Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Mar 11, 2010 Enclosed in robust aluminum housing, Model RAI-GFCI-109-B has UL approved 15 amp rated outlet and circuit breakers. Housing has hinged dust cover that provides protection in industrial environments. With the dust cover closed and latched, through connector interface has IP65 rating that provides watertight seal.

Analog Devices, Inc.    Norwood, MA 02062-9106
Mar 11, 2010 Li-ion battery monitoring and protection system integrates voltage and current measurement devices, signal isolator, and AD8280 safety monitor. Supplied in 48-lead LQFP, AD8280 controls and manages battery functions to optimize operation. It specifically monitors 6 cell voltages and 2 temperature inputs and is powered completely from battery stack. Continuous range-of-trip point settings provide flexibility to work with any Li-ion battery chemistry.

Power Integrations, Inc.    San Jose, CA 95138

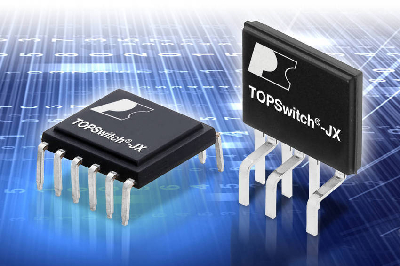

Mar 10, 2010 Offered in 16 models, TOPSwitch-JX Series integrates PSU controller and 725 V MOSFET, which deliver 20 mW output power for 100 mW input power in standby mode at 264 Vac. Multi-mode control algorithm maximizes power efficiency across load range, minimizing power wasted during normal operation. Devices are available in eDIP package, which optimizes heat dissipation in slim-form-factor applications such as LCD monitors, TVs, and netbook/notebook adapters.

TDK-Lambda Americas Inc.    San Diego, CA 92154

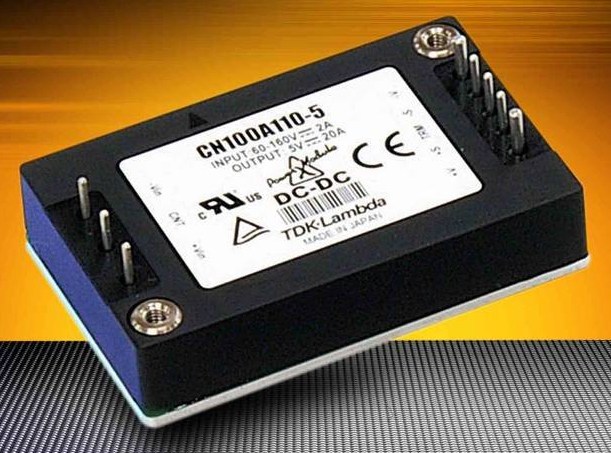

Mar 10, 2010 Fully regulated and isolated, CN-A Series offer 60-160 Vdc input, output voltages from 5-24 Vdc (adjustable ±10%), and output power ratings of 30, 50, and 100 W. Baseplate-cooled products measure 36.8 x 57.9 x 12.7 mm and provide full output power from -40 to +100°C without derating. Suitable for rolling stock and fixed installations, series is designed for harsh environments and meets shock and vibration requirements of IEC61373 Category 1 Class B.

Lineage Power    Mesquite, TX 75149

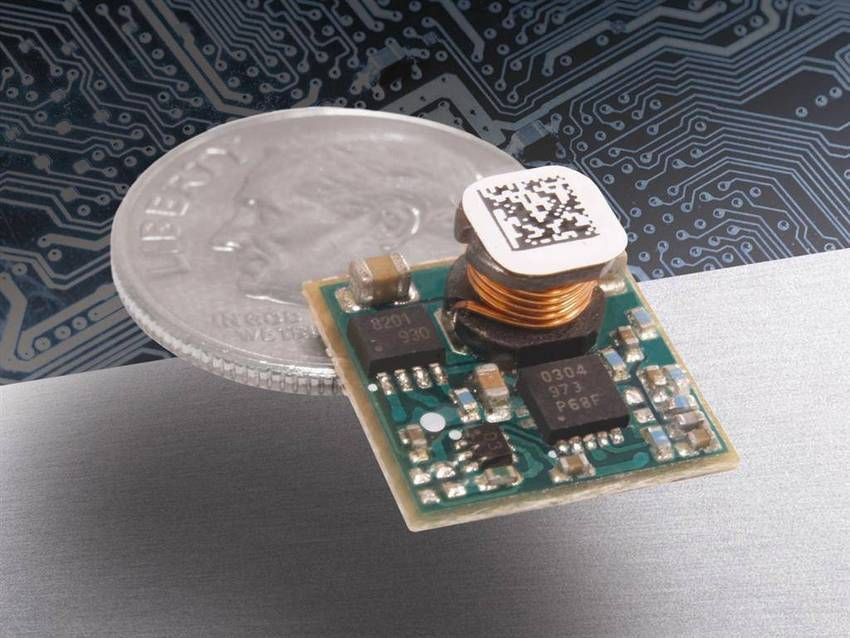

Mar 10, 2010 Featuring wide input voltage of 3-14 V and compact 12.2 x 12.2 mm footprint, 2 A PicoTLynx(TM) point-of-load(POL) DC power converter delivers continuous full load operation at up to 85°C and no air flow. It is packaged in nestable and standard DOSA footprint allowing for drop in installation, while operating at power level from 2-12 A. Non-isolated converter suits wide range of industries, including telecom, datacom, networking, medical, consumer, automotive, and aerospace.

Protek Power North America, Inc.    Hudson, MA 01749

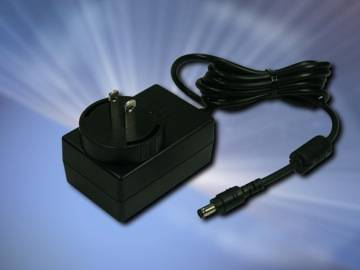

Mar 10, 2010 Suited for patient vicinity medical device applications, 15 W Wall Mount PMP15M Series accepts 90-264 Vac input and provides single outputs ranging from 5-24 Vdc. Device is available with 4 interchangeable input plugs (US, UK, EU, Australian) that attach to 3.08 x 2.04 x 1.35 in. body. RoHS compliant, CE marked device is certified to worldwide EN60601-1 safety standards. With low standby power of 0.3 W typical, adapter complies with CEC Level IV regulations.

Schaefer, Inc.    Hopkinton, MA 01748

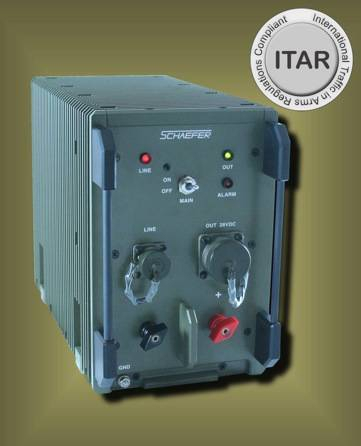

Mar 10, 2010 With ability to provide 28 Vdc output with power ratings from 1,200-1,800 W, Raptor series of power converters are suited for harsh military applications such as shelters, armored vehicles, avionics, and naval. Single and 3-phase input ranges from 88-265 Vac or 125-400 Vdc. Series meet MIL-STD-810D for operating temperature conditions, vibration, and shock, and also MIL-STD ratings for EMI, navy and aircraft electrical power, and environmental test methods.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 10, 2010 Designed for high current applications and for powering digital systems, BEI15 series of isolated, wide input bipolar DC/DC converters have input voltage range between 9-36 V and 18-75 V with positive or negative on/off polarity. Features included are 2,250 Vdc basic isolation, and self protection. Units are space-saving pin compatible, drop-in replacement for 1 x 2 in. DC/DC converters.

Clore Automotive    Lenexa, KS 66215
Mar 10, 2010 Featuring high capacity PROFORMER battery, 2,000 A, 12 V Jump-N-Carry JNC950 features industrial grade Hot Jaw(TM) clamps that penetrate even corroded battery terminals. Extra heavy-duty polyethylene case withstands tough work environments and 46 in. #2 cables facilitate optimal positioning. Onboard automatic charger can provide up to 24 hr/365 day continuous charge. High output unit is suited for diesel shops, fleet maintenance, industrial, and marine applications.

Duraline Div., J.B. Nottingham & Co., Inc.    Islandia, NY 11749
Mar 09, 2010 In-line block GFCI is rated 125 V, 20 A maximum and can be reset, from top of block, without need to remove cover. Unit is molded in solid hypalon rubber that is CSA-rated and rated to UL 94 V-0. Molded rubber cover is removable, allowing for simple replacement of GFCI. Device can be added to any product on 14,12, or 10 AWG, 3-wire cable.

SOR Inc.    Lenexa, KS 66215 2003

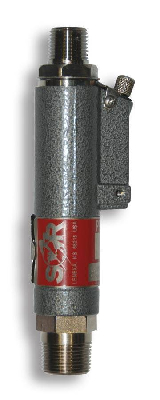

Mar 09, 2010 With switching element assembly hermetically sealed in explosion-proof steel housing, Mini-Hermet Pressure Switches are recommended for variety of process applications in hazardous locations and hostile environments, such as panels for offshore platforms and lube oil systems. Field-mounted instruments enable set point adjustment without declassification of hazardous area.

Electro Standards Laboratories    Cranston, RI 02921 3403

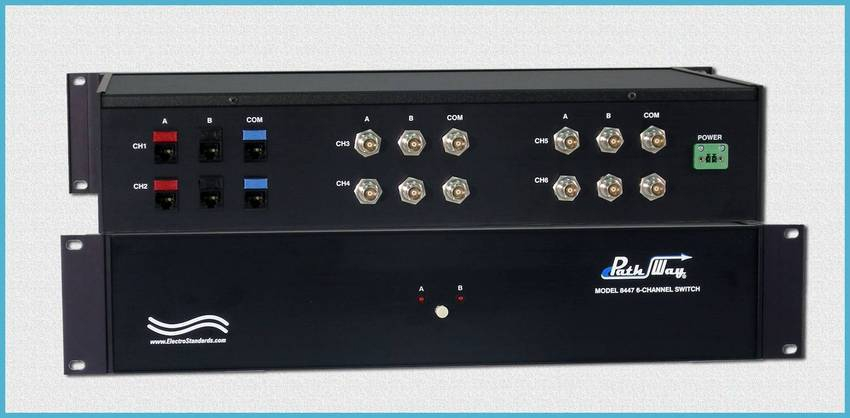

Mar 09, 2010 Featuring 2 channels with RJ45 Cat5e connectors and 4 channels with MIL-STD-1553B concentric twinaxial connectors, Model 8447 allows user to share 1 device among 2 others for each of its 6 channels. Switch ports are transparent to all data, and all channels are switched simultaneously using manual pushbutton located on front panel. Switch reverts to A position for all channels when power is lost, and automatically switches to last known position upon power restoration.

C&K Components    Newton, MA 02458
Mar 09, 2010 Available in illuminated and non-illuminated versions, AP Series SPST, normally open, momentary action switch is sealed to IP67 specifications. Total travel is 2.3 mm, with standard actuation force of 4N and logic level current through 2 A. Operating at -40 to +85ºC, switch offers choice of multiple colored caps, including black, red, orange, yellow, and green, allowing users to order one base switch with multiple color caps to meet application specific needs.

Linear Technology Corp.    Milpitas, CA 95035
Mar 09, 2010 Featuring input range of 4-60 V, Model LTC3890/-1 draws 50 µA quiescent current when one output is active and 60 µA when both outputs are enabled. With both outputs shutdown, device draws only 14 µA. Each output can be set from 0.8-24 V at output currents up to 20 A with efficiencies as high as 95%. Operating with selectable fixed frequency of 50-900 kHz, step-down DC/DC controller can be synchronized to external clock from 75-850 kHz with phased-locked loop.

Lunera Lighting, Inc.    Redwood City, CA 94063

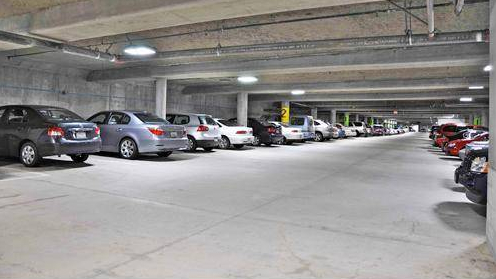

Mar 08, 2010 Able to produce 3,800 lm and color temperatures from 4,000-5,000 K, 2200 Series modular parking garage luminaire delivers uniform lighting at less than 50% of ASHRAE standard illumination requirements for parking facilities. This 62 W, 0-10 V dimmable LED fixture, which measures 2 x 2 ft, is dry/damp rated and equipped with industrial SMT kit. Construction has no mercury or lead and is fully recyclable.

Linear Technology Corp.    Milpitas, CA 95035
Mar 08, 2010 Available in 3 x 3 x 0.75 mm package, LTC4425 employs linear CC-CV architecture with thermal limiting to charge 2 supercapacitors in series to programmable output voltage from Li-Ion/Polymer battery, USB port, or other 2.7-5.5 V current-limited supply. Operating modes include charge current profile (normal) and LDO, and charge current is resistor-programmable up to 2 A (3 A peak). IC operates with 20 µA quiescent current when output voltage is in regulation and draws 2 µA in shutdown.

Larson Electronics, LLC    Kemp, TX 75143
Mar 08, 2010 Integrated with explosion-proof reel, 26 W fluorescent Models EPL-FL26-90-HR and EPL-FL26-50-HR feature 90 and 50 ft cord lengths, respectively. Custom configurations are also available for longer cord lengths. Both hand lamp and reel carry Class 1 Division 1 rating for hazardous location environments. Reel keeps cord organized, minimizing trip hazards.

Rockwell Automation    Milwaukee, WI 53204

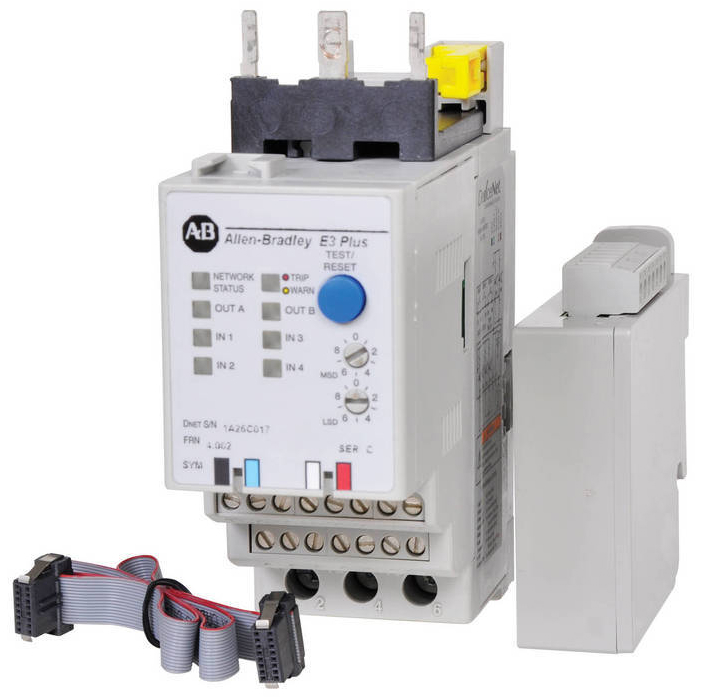

Mar 05, 2010 Combining current and voltage protection with power monitoring and diagnostics, Allen Bradley Bulletin 193-EC5 E3 Plus improves energy efficiency and safeguards critical electric motor loads. It accommodates currents from 0.4-860 A as well as currents up to 5,000 A using external current transformers. Communicating status and diagnostic information via DeviceNet with RSEnergyMetrix software, relay identifies motors contributing to monthly peak demand and power factor line items.

Electro Standards Laboratories    Cranston, RI 02921 3403
Mar 05, 2010 As rackmount unit, QuickSwitch® Model 6296 supports connections between 4 sets of devices or peripherals connected to A/B/C/D ports in 2 positions - Normal and Bypass - and offers front panel pushbutton control. Fiber optic switch features MEMS-based mirror/prism technology supporting Gigabit data rates, and switch ports are transparent to all data. All fiber optic ports are LC duplex angle polished connectors, single mode, 9/125 micron, and support 1,310-1,610 nm wavelength range.

Henkel Corporation    Rocky Hill, CT 06067

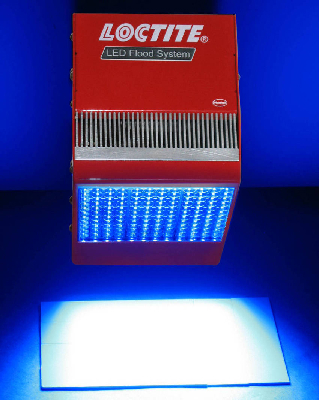

Mar 05, 2010 With curing area of 100 x 100 mm, Loctite® LED Flood System delivers intensities up to 600 mW/cm², depending on wavelength selected. Self-contained, air-cooled system features array of individually reflectorized LEDs, optimally focused for maximum intensity at 50-100 mm working distance. Available in 375 nm, 405 nm, or Indigo(TM), system has expected lifetime of 20,000 hours with negligible intensity decay and no infrared emissions that can overheat parts.
