LEVITON    Melville, NY 11747
May 12, 2010 Incorporating ballast and lampholders in single, self-contained assembly, Zipline(TM) Fixture Assembly Solution mounts transversely into molded, 1-piece lampholder system, bypassing need to install and wire ballast and socket components separately. Available in residential and commercial versions, assembly facilitates repair and maintenance since contractors can replace either side without removing ballast cover, cutting or splicing wires, rewiring sockets, and disassembling socket bars.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
May 11, 2010 Measuring 1 m long, Electrical Busbar System can be cut to any length and includes supports that enable 2 or 3 busbars to be directly mounted to DIN rail. Wiring terminals eliminate need for drilling and tapping of bubar and crimping of terminals on ends of wires. Designed to handle 20 AWG wires to 1/0 cable, terminals feature color-coded plastic housings that can be used to visually designate lead type.

TE Connectivity Ltd.    Berwyn, PA 19312

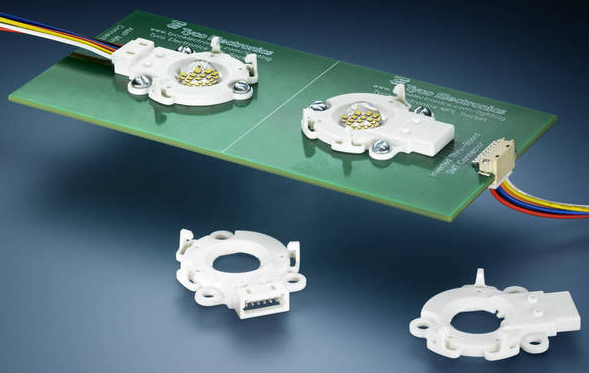

May 11, 2010 Solderless LED Socket, Type CM, facilitates integration of Cree XLamp® MP-L(TM) multichip LED into light fixtures. Allowing ample optical clearance for 120° beam angle, socket has snap-on connect feature for LEDIL Tyra series reflectors, which offers directional optics in 18, 30, and 50° beam angles. Solderless solution minimizes assembly time while providing repeatable and separable termination. Versions for wire or board applications are available.

Burton Medical Products Corp.    Chatsworth, CA 91311
May 11, 2010 Offered with floor, wall, single, and double ceiling mounting options, AIM-200® helps enhance physician's vision during diagnostic and minor surgery applications. Its 360° limitless arm-and-mounting-system-rotation provides 63 in. max reach and 10 ft dia., while three 35 W IRC halogen bulbs together produce 90,000 lux at distance of 1 m. With CRI of 96 and color temperature of 3700K, light has Y-shaped design that minimizes obstruction of light into surgical field.

VPT, Inc.    Blacksburg, VA 24063
May 11, 2010 Single/dual output DVFL/DVTR and single output DVHF Series DC-DC power converters are available in output voltages suitable for avionics and military electronics. They offer high power densities and light weights for aircraft use, and operate in temperatures from -55 to +125°C. Featuring thick-film hybrid construction in hermetic packaging, units resist shock, vibration, salt atmospheres, various barometric conditions, as well as moisture and solvents.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
May 10, 2010 Rated for mechanical life of 10,000 cycles, WBL series features right-angle design and full travel of 3.30 ±0.3 mm. Contact arrangement options include DPDT and 4PDT, and contact rating is 30 Vdc, 300 mA. Operating over -20 to +70°C range, switch requires 20 ±100 g force and offers 50 mX (initial max) contact resistance as well as insulation resistance of 100 MX min @ 500 Vdc. Uses include telecommunications, CE, A/V, medical equipment, and computer applications.

EAO Switch Corp.    Milford, CT 06460
May 10, 2010 Multi-tone Switch Module for Series 56 pushbuttons is pre-programmed with Persons of Reduced Mobility Technical Specification for Interoperability (TSI PRM) suitable tone sequences for door opening, door closing, and orientation signal to help disabled users. Product operates with wide range of nominal voltages between 12-110 Vdc(±30%). Volume control box allows remote adjustment of volume in 1.5 dB steps between 66-90 dB to achieve 70 dB (± 2d B) prescribed by TSI PRM.

TE Connectivity Ltd.    Berwyn, PA 19312

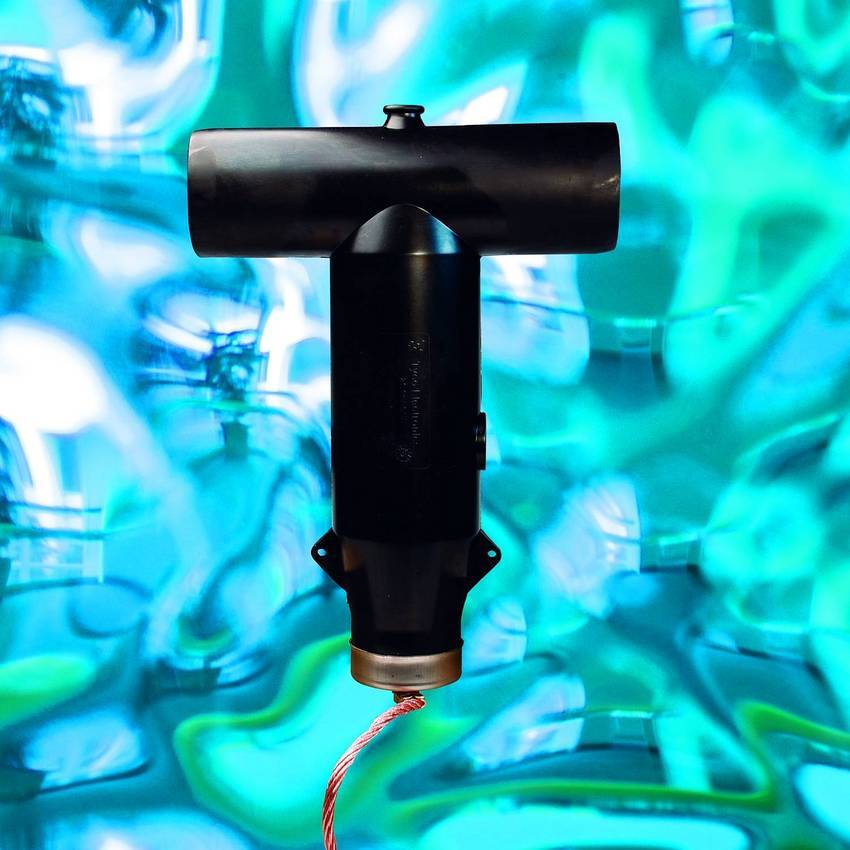

May 10, 2010 Utilizing gapless metal oxide varistor (MOV) technology, integrated 600 A, 35 kV elbow surge arresters protect underground cables and medium-voltage equipment from overvoltage surges from lightning and switching. Products eliminate need for bushing extenders and 200 A load break interface arresters. High-energy MOV blocks in glass-filled epoxy laminate is used by fully shielded and submersible devices.

ERICSSON INC.    PLANO, TX 75024
May 10, 2010 Designed to power 100 W boards in 48 V Information and Communication Technology applications, PKB-A series delivers 30 A or 125 W with high efficiency throughout operating range. There are 2 models within PKB 4000 A 48 V input (38-72 V) platform: PKB 4111A (5 V/25 A) and PKB 4910A (3.3 V/30 A). Both are available for SMT and through-hole assembly use. At nominal voltage, models respectively deliver typical efficiencies of 92.3% and 91.0% at full load.

Alliance Plastics    Erie, PA 16510
May 10, 2010 Available in yellow, blue, green, red, and grey, as well as standard black and natural versions, Colored Nylon Cable Ties are suitable for lot identification purposes. RoHS-compliant parts are manufactured from 94V-2 Nylon 6/6 and have service temperature of -40 to 185°F. Cable ties are also UL/CSA approved and comply with MS-3367 and MIL S 23190E standards.

AC Technology Corp.    Uxbridge, MA 01569 2001
May 07, 2010 Suited for intralogistic applications/general mechanical engineering, 8400 motec mounts directly on motor and covers power ranges from 0.37-1.5 kW. In VFC eco mode, it adjusts magnetizing current to actual load requirements to optimize energy efficiency. Unit also includes color-coded, illuminated area on surface for visible diagnostics in field or from different mounting positions. Operation and diagnostics are handled by L-force Engineer software.

Pelican Products, Inc.    Torrance, CA 90505

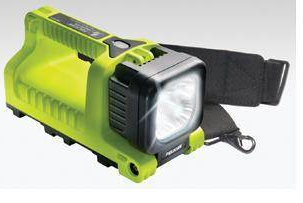

May 07, 2010 Weighing 3 lb with batteries, 9410 LED Lantern shines smoke-cutting 710 lumens/43,200 candela peak beam intensity. Water-resistant electronic switch allows toggle between high, low, and flashing illumination modes. Powered by nickel metal hydride rechargeable battery, IPX4 water-resistant lantern operates for 2 hr (4 hr and 45 min on low mode). Other features include quick-release nylon safety strap to prevent entanglement, and sure-grip, all-weather handle.

Radio Frequency Systems, Inc.    Meriden, CT 06450
May 07, 2010 Available for coaxial cables with 7/8, 1¼, or 1 5/8 in. nominal diameter, DC-FIT incorporates technology that minimizes installation time when upgrading existing wireless cell sites to Remote Radio Head (RRH) technology. Product uses existing coaxial feeders as RRH power supplies and as housing for fiber optical data connection.

Curtiss-Wright Controls Embedded Computing    Leesburg, VA 20175
May 07, 2010 OpenVPX(TM) and VITA-65 compliant VPX6-6902 combines Ethernet and Serial RapidIO® (SRIO) switching in one slot for management, control, and dataplane switching in high-performance, embedded military systems. Available in air- and conduction-cooled versions, 6U VPX board supports Gen-1 SRIO (1.25, 2.5, 3.125 Gbaud) and Gen-2 SRIO (5.0, 6.25 Gbaud). It offers up to 20 Gbps throughput on each of its 28, 4-lane ports and helps architect systems that adhere to VITA-65/OpenVPX(TM) specifications.

Brady Corp.    Milwaukee, WI 53201 2131
May 07, 2010 Available in 4 colors and 9 diameters from 3/32-1.5 in., B-345 High Temperature PermaSleeve(TM) wire markers are made from irradiated PVDF and have shrink ratio of 2:1 or 3:1. Heat-shrink sleeves, which fit snugly around wires for optimal insulation protection and permanent identification, meet specifications for military standards and operate over -55 to +225°C range. Products suit high-temperature and low-vacuum outgassing applications in aerospace, defense, and mass-transit industries.

Meyda Tiffany    Yorkville, NY 13495
May 06, 2010 Featuring bent stained glass lighting, 44 in. wide Plain Dome Chandel-Air(TM) (110002) is engineered to combine Beige Irididescent Art Glass, energy saving fan technology, and nostalgic style. All designs have fan built-into unit, and custom options can accommodate desired sizes, colors, or finishes to meet specifications in residential and commercial applications. Optional 2-circuit remote control offers 3-speed fan control and dimming capabilities.

ERICO    Solon, OH 44139-2631
May 06, 2010 With CADDY® GLIDER, installers can attach one or more electrical boxes to Telescopic Screw Gun Bracket. Once attached, installer can adjust box location and width of bracket between studs. Up to 3 boxes can be installed in standard 16 in. spacing. CADDY Glider is suitable for variety of applications, especially prefab where some assembly is done off-site prior to final installation.

Meyda Tiffany    Yorkville, NY 13495
May 06, 2010 Commerce family of semi-flushmount and pendant type lighting fixtures are suited for residential, hospitality, and commercial applications. Designed with 8 paneled, wispy beige, faux alabaster shade, 72 in. wide Commerce Semi-Flushmount (107469) features cafe noir hand-finished hardware and 8-light socket cluster. Fixture can be extended to height ranging from 55-164 in. Collection includes 48, 45.5, 34.5, and 45.5 in. wide semi-flushmount models and 48 in. wide inverted pendant.

Meyda Tiffany    Yorkville, NY 13495
May 06, 2010 Available with energy efficient lighting options, Modesto Inverted Pendant (106637) features handcrafted Caramel onyx acrylic bowl and Timeless Bronze finished hardware to blend with any residential, commercial, hotel or restaurant interior decor. Fixture height can be extended from 55-164 in., depending on ceiling height and application.

Coleman Cable, Inc.    Waukegan, IL 60085

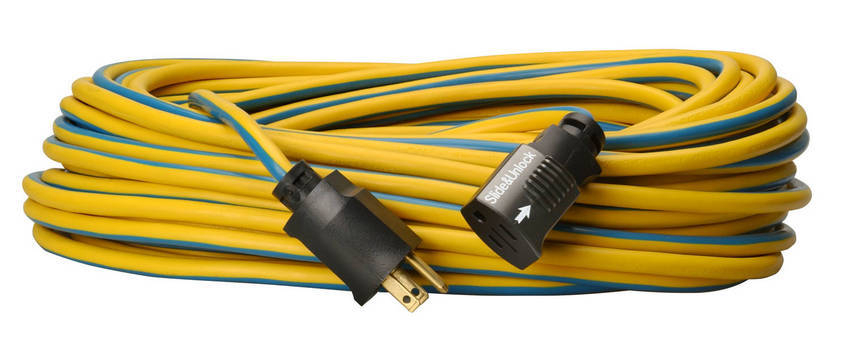

May 06, 2010 Available in 14 and 12 ga, and in 50 and 100 ft lengths, UL listed Locking Extension Cords keep tools and other electrical devices plugged in, eliminating accidental disconnection and power loss. Cords have SJTW jacket that resists moisture, abrasion, and prolonged exposure to sunlight and elements.
