Linear Technology    Dallas, TX 75248
Nov 18, 2010 Operating from 3-36 V, dual-output Model LT3692 delivers up to 3.5 A of continuous output current from each channel. Monolithic switching regulator provides user-programmable switching frequency from 250 kHz to 2.25 MHz. Independent input, shutdown, feedback, soft-start, current limit, and comparator pins for each channel simplify complex power supply tracking/sequencing requirements. Housed in 5 x 5 mm QFN package, IC is suited for load dump and cold crank conditions in automotive applications.

Electri-Flex Co.    Roselle, IL 60172 1994
Nov 18, 2010 UL-Listed Type SLA(TM) has flexible steel conduit with galvanized steel core and tinned copper shielding braid. Latter offers 90% min shielding coverage, and flexible PVC jacket has -20 to +60°C rating. Offering waterproof raceway when assembled with liquid-tight fittings, -55 to +105°C rated Type EMS(TM) has PVC jacket extruded over flexible core of helically wound, fully interlocked strip of bronze. Rated -55 to +105°C, Type EMCS(TM) utilizes bronze core, PVC jacket, and tinned copper braid.

Electri-Flex Co.    Roselle, IL 60172 1994

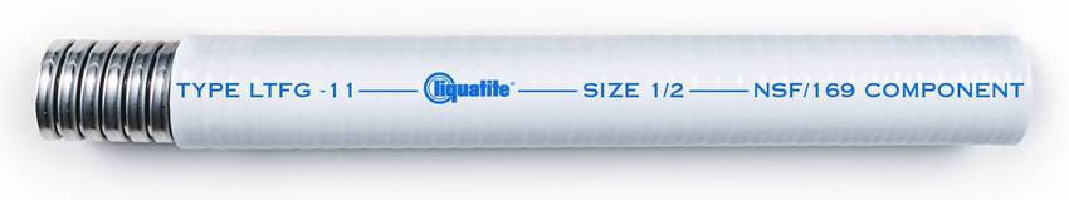

Nov 18, 2010 Available in 3/8-2 in. sizes, Liquatite® LTFG has working temperature of -4 to +140°F, smooth exterior, and does not promote bacteria, making it suited for food processing and packaging as well as pharmaceutical manufacturing. Flexible inner core is made from continuously spiral-wound corrosion-resistant plated steel with nylon cord packing, while flexible PVC jacket is made from FDA-approved compound formulated for Splash Zone food and beverage contact per FDA CFR21 and NFS 51/61 requirements.

Allegro Microsystems    Walton-On-Thames S KT12 2TD  United Kingdom

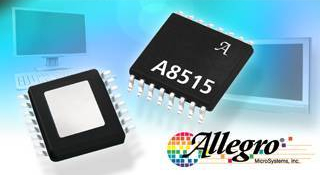

Nov 18, 2010 Designed for LCD backlighting in consumer and industrial displays, multi-output white LED driver, A8515 can operate from single power supply of 5-40 V. Packaged in eTSSOP-16 (LP) exposed pad package, device integrates current-mode boost converter with internal power switch and 2 current sinks. LED current sinks in unit can be paralleled together to achieve LED currents up to 240 mA.

Exar Corp.    Fremont, CA 94538
Nov 18, 2010 Supplied in 8-pin SOIC package, PowerBlox(TM) XRP7664 accommodates operating voltage up to 18 V, is optimized for 12 V input voltage rail, and is equally capable of operating from 5 V rail. Fixed switching frequency is 340 kHz, and max efficiency is rated to 93%. With functionality addressing needs for smaller footprint in A/V equipment, IC offers adjustable output voltage down to 0.925 V, built-in protection features, as well as dedicated enable function and programmable soft start.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Nov 18, 2010 Model TPS92210 single-stage LED lighting pulse width modulation controller regulates LED current and is suited for general lighting applications. Flexible operation modes include peak primary current; constant on-time, with single-stage power factor correction; and frequency modulation. Unit also includes overvoltage protection without optocouplers, thermal shutdown, and overcurrent safety shutdown as well as programmable fault response, full shutdown, and shutdown restart.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 18, 2010 Installed using pick-and-place and Pb-free reflow equipment, reflowable thermal protection (RTP) device lets manufacturers include SMT thermal protection in standard RoHS-compliant reflow assembly process. It can withstand multiple reflow passes with peak temperatures exceeding 200°C. Featuring DC interrupt ratings of 200 A at 16 Vdc and 100 A at 32 Vdc, RTP200R120SA helps protect against thermal-runaway damage caused by corrosion-induced heating or power components that crack/fail.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 18, 2010 Intended for high-rate-discharge battery applications rated above 30 Vdc/30 A, MHP30-36 delivers hybrid circuit protection by combining bimetal protector in parallel with polymeric positive temperature coefficient (PPTC) device. Integrated solution provides resettable overcurrent protection and utilizes resistance of PPTC device to help prevent arcing in bimetal protector at higher currents while also heating bimetal to keep it open and latched. Hold current is 30 A.

Cissoid    Mont Saint Guibert 1435  Belgium
Nov 18, 2010 THEMIS and ATLAS are, respectively, controller and push pull driver stages of power transistors. ATLAS offers 2 distinct channels that can source/sink 2 A each to gate of power transistor. It is scalable and can control up to 5 ATLAS circuits per THEMIS, with current up to 20 A to drive gate of power transistors, which can turn on/off SiC transistors in less than 50 ns typ. Operating up to 225°C, chipset includes various built-in protection features.

Belden    Richmond, IN 47375
Nov 18, 2010 Shielded DataTuff® cables 7958A and 7957A are suited for use in listed motor control centers and switch gear in EMI environments. AWM rating allows usage of units on or within listed cabinet or machine. Features include 24 AWG Bonded-Pair solid bare copper conductors, polyolefin insulation, 24 AWG stranded tinned copper drain wire, and industrial-grade oil- and sunlight-resistant PVC jacket.

Besa Lighting Co., Inc.    Blacklick, OH 43004

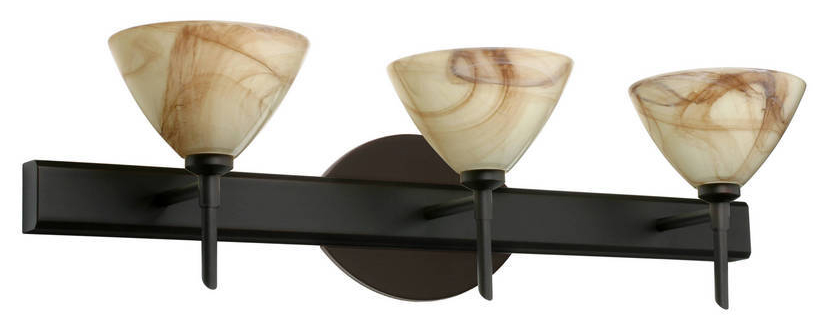

Nov 17, 2010 Able to be oriented upward or downward, Vanity Luminaires utilize 40 W max G9 Halogen 120 V lamping and are fully dimmable with standard incandescent dimmers. Decorative finials are removable for downlighting applications, and canopy allows for direct wiring without outlet box. There are 13 Besa glass types available, each available to accommodate 3 sizes: 2-light (14 in. long), 3-light (22 in. long), and 4-light (30 in. long).

Clore Automotive    Lenexa, KS 66215
Nov 17, 2010 Providing 1,700 peak amps and 425 cranking amps, Jump-N-Carry JNC660 can be continuously plugged in for recharging, without damage or overcharging, enabling busy shops and technicians to keep unit in always-ready state for their next jump starting need. Amber LED indicates that unit is currently charging and green LED shows when unit has reached full charge. System is suited for automotive, marine, light truck, agricultural, industrial, and fleet starting.

Lumex Inc.    Carol Stream, IL 60188

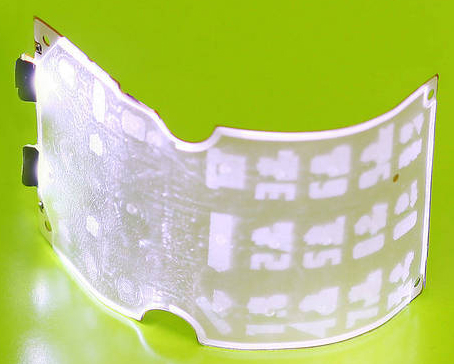

Nov 17, 2010 Customizable in any shape, size, and color, QuantumBrite Flexible LED Backlight is made from polycarbon film and measures 0.6 mm thick on widest side. RoHS-compliant product, suited for traditional applications such as flat panel displays and indicator lighting, may also be used in non-traditional applications such as logo enhancement or indirect lighting. Specific areas of use include appliances as well as medical device and industrial control technologies.

VPT, Inc.    Blacksburg, VA 24063
Nov 17, 2010 Model DVPL0503S non-isolated, synchronous, buck-regulated converter steps down voltage at point of end use. Military-grade product features 3 A, 10 W power output, adjustable output voltage from 0.8-3.4 V, and operates from 5 V nominal input over operating temperature range of -55 to +125°C. Measuring 0.700 x 0.700 x 0.270 in., it can be used alone or in conjunction with DVHE 50W DC-DC converter as part of VPT's HERO Power System.

Duracell, Inc.    Bethel, CT 06801
Nov 17, 2010 With Duracell myGrid USB Charger, users can stay connected to portable devices without searching for outlet. Lithium-Ion rechargeable battery is compatible with smart phones, e-readers, MP3 players, portable gaming devices, GPS units, Bluetooth® headsets, and virtually any other device that can be connected with USB cable. For recharging, users place Duracell myGrid USB Charger onto myGrid charging pad, or unit can be charged through USB input.

Bulbrite    Moonachie, NJ 07074
Nov 16, 2010 Featuring minimal mercury, 28 and 32 W T8 lamps are tri-phosphor lamps qualified by Consortium for Energy Efficiency and comply with Toxicity Characteristic Leaching Procedure standards. With average rated life of up to 24,000 hr, 28 W T8 fluorescents can be used on 32 W T8 ballast and are available with bulbs in 3500K and 4100K color temperatures. Available in 3500K, 4100K, and 5000K color temperatures, 32 W T8 produces up to 3,300 lm and has average rated life of up to 24,000 hr.

W.A.C. Lighting Company    Port Washington, NY 11050
Nov 16, 2010 Operating on 12 V lighting system with 50 W Xenon bi-pin lamp, 5.75 in. tall and 4.5 in. wide YU Quick Connect Glass Pendant is crafted in hand blown glass and delivers warm glow of white with yellow/green tint when illuminated. After minutes of charging with light on, glass will glow blue-green in color for up to 4 hr when light is switched off. Quick Connect(TM) adaptors offer flexible mounting options, and hardware is offered in Brushed Nickel and Chrome finishes.

Ideal Industries, Inc.    Sycamore, IL 60178

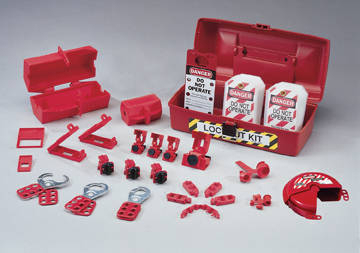

Nov 16, 2010 To help plant managers address lockout/tagout requirements for various equipment and tasks, Plant Facility Lockout/Tagout Kit keeps all necessary devices in one place. Housed in red polypropylene plastic tool box, kit contains lockouts for 277/480/600 V breakers, plugs, valves, wall switches, and multi-pole breakers as well as fuse blockouts, safety hasps, and multiple Do Not Operate lockout tags. Tool box resists oil and chemicals common in industrial facilities.

Laird Technologies    Chesterfield, MO 63017
Nov 16, 2010 Incorporating functionality of 2-piece shield without need for separate frame and cover, ReCovr(TM) features locking mechanism that allows for removal of shield cover when access to board-level components is required. Unit includes rigid corner board-level shield technology, which aids in part and PCB firmness. Rated to survive standard drop, shock, and no-rattle tests, shield is available with ventilation holes, side cutouts, embossing, and marking.

Besa Lighting Co., Inc.    Blacklick, OH 43004

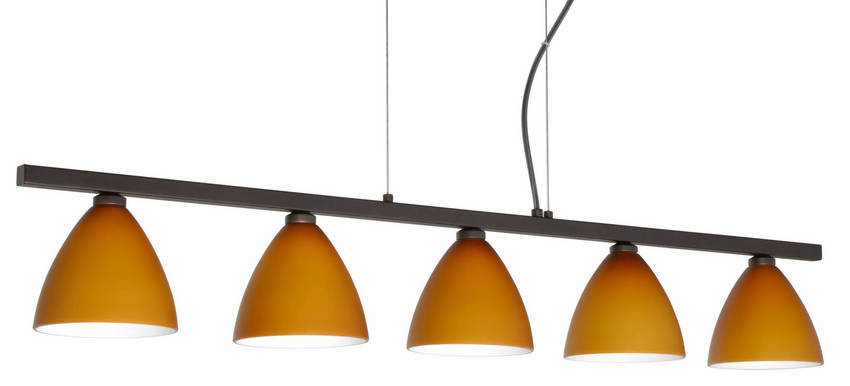

Nov 15, 2010 Multi-light linear pendants utilize fully dimmable 40 W G9 Halogen 120 V lamping. Designed to fit over tables, product is available Mia, Brella, Sabrina, Kani, Nico 4, Palla 5, and Tay Tay families of Besa glass. Each family is offered in 3-light, 22 in. long; 4-light, 30 in. long; 5-light, 38 in. long; or 6-light, 46 in. long sizes. Metal cord sleeves are optionally available to cover cord, and metal finish options include bronze, polished nickel, and satin nickel.
