XP Power    Sunnyvale, CA 94085
Mar 22, 2010 Along with industry standard pin out, ISF and ISG (1 W) models and larger ISL model (1.5 W) feature input to output isolation of at least 1 kV. Available in 2 variants that provide for +5 or +12 Vdc inputs, ISG family provides single regulated output covering nominal voltages of +5, +12, or +15 Vdc. Both ISF and ISL models come in single and dual output versions covering nominal voltages from +3.3 to +15 Vdc.

Stran Technologies    Naugatuck, CT 06770
Mar 22, 2010 Featuring modular, reconfigurable design, InfiniBeam Expanded Beam Connectors have 316 stainless steel optical inserts with anti-reflection coatings. Inserts offer corrosion resistance as well as resistance to mechanical damage of critical mating plane. Also supporting legacy inter-matability, 2 and 4 channel plugs and receptacles meet MIL-DTL-83526/20 and /21 requirements, respectively. Larger format InfiniBeam Excel dispenses with insert guide pins to offer channel counts of 8, 12, and higher.

E-Switch Inc.    Brooklyn Park, MN 55428 1514
Mar 19, 2010 Featuring surface mount design, LP37 Series is available with red, green, and yellow LEDs. SPDT units feature full travel of 5.1 mm ±0.5 mm, contact rating of 20 mVdc to 50 Vdc, and contact resistance of 50 mW. Operating from -30 to +85°C, switches are suited for telecommunications, consumer electronics, networking, low power on/off designs, performance audio, and computer markets.

Electro Standards Laboratories    Cranston, RI 02921 3403
Mar 19, 2010 Model 7292 supports connections between 4 sets of devices or peripherals connected to A/B/C/D ports in 2 different positions: Normal and Crossover. DVI-D Dual Link signals are switched via solid-state components using true DVI (Digital Video Interface) Drive Circuitry, providing end-users with ability to crossover/switch DVI-D connections between Source video and Sink devices. Unit can be switched via front panel pushbutton or DB9 remote port using dry contact open/closure logic.

Electri-Flex Co.    Roselle, IL 60172 1994
Mar 19, 2010 Pre-assembled flexible metal whips are suited for lighting fixture installation as well as many other electrical equipment uses. They consist of 6 ft of UL-listed flexible metal conduit, stranded THHN wire with 6 in. leads, and internal, zinc die-cast fittings with steel locknuts. Standard sizes include 12, 14, and 18 ga wire and multiple color configurations. Products are also available in aluminum as well as jacketed metallic or non-metallic Liquatite® conduits.

Heyco Products    Toms River, NJ 08753
Mar 19, 2010 Specifically designed for manufacturers of single diode, double ribbon photovoltaic panels, PVB-101 Junction Boxes feature low-profile design that maximizes usable solar panel collector space. Units have internal volume and venting for optimal thermal dissipation, cable strain relief, and ambient temperature range of -40 to 105°C. Boxes are IP65-rated, UL approved, and TUV certification-pending.

Dialight Corp.    Farmingdale, NJ 07727
Mar 19, 2010 DuroSite LED High Bay Fixtures incorporate Xlamp® XP-G LEDs that deliver nearly 12,000 lumens while consuming 150 W. Delivering overhead illumination for indoor and outdoor applications, units provide cool white light and sustained 80% lumen capacity over 60,000 operating hours. Maintenance-free products last over 10 yr and are IP-66 rated. They have instant on/off operation, are free of hazardous materials, and offer range of mounting options.

Bulbrite    Moonachie, NJ 07074
Mar 19, 2010 With CRI of 82 and ability to operate in temperatures up to 110°C, Amalgam CFL Triple 4-Pin family of lamps are designed to fit in recessed downlights, ceiling fixtures, and wall sconces for residential, hospitality, industrial, retail, and commercial applications. Series features 5 styles; 18, 26, 32, 42, and 57 W CFLs, which deliver 1,200, 1,800, 2,400, 3,200, 4,300 lumen outputs, respectively. Each model is available in warm 3,000 K, neutral 3,500 K, and cool 4,100 K color temperatures.

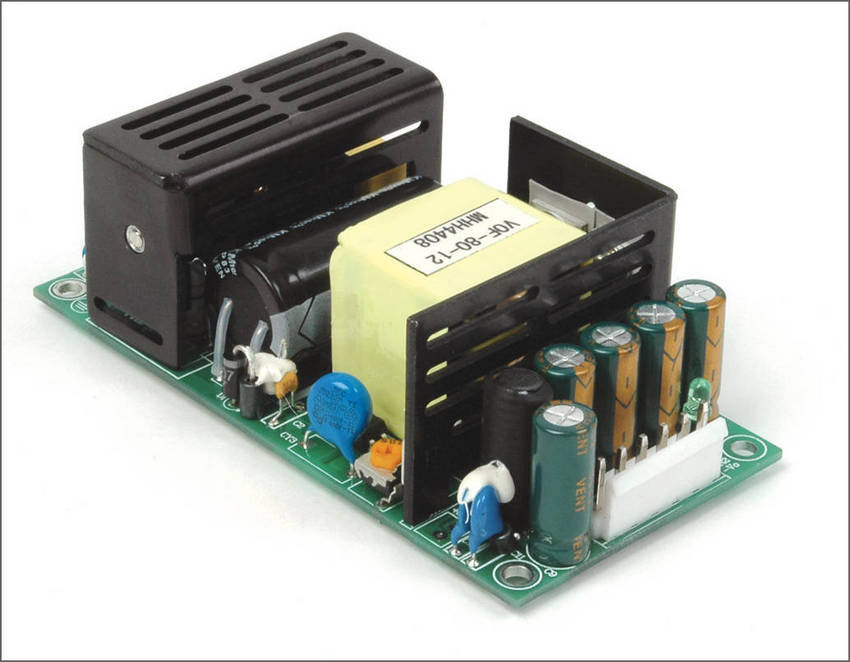

CUI, Inc.    Beaverton, OR 97005
Mar 19, 2010 With no-load power consumption of less than 0.5 W, open frame ac-dc power supply VOF-80 is suited for use in ITE, industrial, and consumer electronics applications. Measuring 2 x 4 in. in size, unit has universal input between 85-264 Vac, and is offered in 3.3, 5, 12, 15, 24, and 48 Vdc output voltages. Including over voltage and short-circuit protections, power supply operates up to +60°C with derating.

AlfaMag Electronics, LLC.    Houston, TX 77089
Mar 19, 2010 Available in 1.6-50 VA range, PCB-mount 50/60 Hz toroidal transformers include cores produced from continuous strip of high-grade silicon steel. This, and windings placed concentrically around core, optimize magnetic path, which optimizes use of magnetic flux for power transformation and reduces idle currents when load is removed. Products offer isolation of 4,000 Vac primary to secondary, low magnetic field radiation, no acoustic noise, and low leakage losses.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Mar 19, 2010 Supplied in 8-pin, 2 x 2 x 0.75 mm SON package, TPS62065/TPS62067 synchronous step-down converters support 2.7-6 V input and can manage up to to 2 A. Products provide up to 95% power efficiency while helping to reduce board space and extend battery life in portable electronics applications. In addition to 3 MHz fixed frequency operation, features include 18 µA quiescent current, Power Save Mode with optimal PWM to PFM transition, and support for POL and processor-based applications.

Analog Devices, Inc.    Norwood, MA 02062-9106
Mar 19, 2010 Offered in 3 x 3 mm TSOP packages, 700 kHz ADP2300 and 1.4 MHz ADP2301 integrate high-side MOSFET that delivers power conversion efficiencies greater than 90%. Step-down non-synchronous regulators include soft-start circuitry and bootstrap diodes for intermediate bus generation and point-of-load regulation. Supporting input voltage of 3-20 V, ICs provide adjustable output from 0.8 V to 90% of input voltage. Under light loads, regulators automatically operate in pulse frequency modulation.

Adalet    Cleveland, OH 44135 3301
Mar 19, 2010 Designed for pushbutton control in Class I, Division 1 & 2 or Zone 1 & 2 locations, rugged safety yellow painted pendant stations feature cast aluminum enclosure and heavy duty operators for management of overhead cranes, hoists, lifts, and other remote controlled equipment. They are offered 1-18 hole configurations and can be assembled with explosionproof pushbuttons, emergency stop pushbuttons, pilot lights, and selector switches.

3COM Corp.    Marlborough, MA 01752
Mar 18, 2010 Offering port density to support, simplify, and secure migration to virtualized core and data center environments, H3C® S9500E uses virtual switching fabric to optimize performance while reducing complexity and enhancing security. Intelligent Resilient Framework (IRF(TM)) technology enables multiple H3C S9500E enterprise core switch to be linked as single virtual switch. Platform is available in 3 chassis models offering 12, 8, and 5 I/O modules.

ITT Interconnect Solutions    Santa Ana, CA 92705
Mar 18, 2010 Suited for outdoor, alternative energy applications, PowerLock Box with flange offers secure sealing into equipment panel cut-outs. Lidded and non-lidded versions, available with 400 or 660 A ratings, feature 107 mm extended front panel, providing seal around entire box. Solution uses standard PowerLock connectors, with all ports keyed and color-coded for sequential mating to ensure ground is connected first. IP2X finger protection and IP65 sealed connector ports are standard.

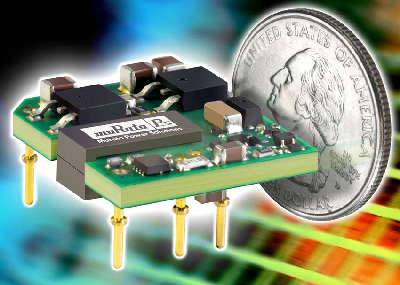

Murata Power Solutions, Inc.    Mansfield, MA 02048
Mar 18, 2010 Providing efficiency levels up to 86%, BEI15 Series offers choice of ±5, ±12, or ±15 V bipolar output voltages regulated to within ±0.25%. Users can also choose from 4:1 input voltages of either 9-36 V with positive remote on/off polarity or 18-75 V with negative remote on/off polarity. All models have full magnetic and optical isolation with basic protection up to 2,250 Vdc. Housed in 0.96 x 1.1 x 0.35 in. package, RoHS-compliant converters operate from -40 to +85°C.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Mar 18, 2010 Designed for industrial usage, Low Voltage Directive and EMI complaint 10 A single phase XCSF240C Switching Power Supply provides adjustable 24 Vdc output. Compact device operates at full power at 50°C and features auto-ranging input and pluggable terminations, and all functions are located on front panel and marked with IEC symbols, facilitating use.

APEM Components    Haverhill, MA 01835
Mar 18, 2010 Requiring 5 lb of force to activate in both push and pull directions, Model 13440 pushbutton switch maintains down position when activated and requires upward pull force to de-activate; total actuator travel is.078 in. Switch contacts are rated for low level switching and for resistive loads of up to 4 A at 24 Vdc. Features include gold-plated solid silver contacts and double shell case. Available with both solder lug and printed circuit terminals, 13440 features 15/32 in. mounting bushing.

Microsemi    Irvine, CA 92614
Mar 18, 2010 Supplied as compact multi-chip module (MCM) with built-in power functionality, NX9415(TM) is designed for step-down DC/DC converter applications. It converts 8-22 V input down to as low as 0.8 V with output current of up to 5 A. In addition to 2 MHz controller and 2 MOSFETs with 31 mW RDS(on), product features internal 5 V regulator that provides voltage supply to internal logic and driver circuit and allows for single supply operation. Module operates from 200 kHz to 2.2 MHz.

Cissoid    Mont Saint Guibert 1435  Belgium
Mar 17, 2010 PROMETHEUS-II is intended to drive Silicon-Carbide (SiC), GaN, and other power devices, such as MOSFETs, IGBT, JFET, and BJT, in applications requiring continuous operation. Current capability depends on MOSFETs used in output push-pull stage: CHT-NMOS4005, CHT-NMOS4010, and CHT-NMOS4020 respectively sink up to 6, 12, and 22 A at 25°C in switching mode. Reference design is based on half-bridge driver CHT-HYPERION.
