GlacialTech Inc.    Taipei   Taiwan
May 17, 2010 Suited for outdoor pool lighting and path lighting, GL-SD07 series LEDs are available in warm white (GL-SD07-WW) and cold white (GL-SD07-CW) versions with color temperatures of 3,000 and 6,000 K, respectively. They feature DC input of 11-15 V/ 22-30 V, min life of 20,000 hr, and LED driver efficiency of greater than 87%. Featuring IP64 dust-proof certification, lights withstand water spray from all directions and are eco-friendly with no UV, IR, and mercury.

Eaton Corporation    Raleigh, NC 27615
May 17, 2010 Available in fixed or drawout configurations, VCP-W line of circuit breakers have voltage range factor of K=1 and offer UL listed ratings up to 15 kV, 3,000 A, and 63 kA. They incorporate maintenance-free vacuum interrupters, which switch high stress current and require no cooling or ventilation systems. Designed for harsh industrial environments, product line also includes model VCP-WSE featuring cycloaliphatic epoxy insulation and ratings up to 15 kV, 3,000 A, and 50 kA.

ON Semiconductor, LLC    Phoenix, AZ 85008
May 14, 2010 Synchronous rectification controller and driver IC, NCP4303A and NCP4303B, have maximum operating frequency of 500 kHz and turn-off delay time of 40 nsec typical. Model NCP4303A has fngate drive clamp of 12 V, while NCP4303B has 6 V gate drive clamp. Externally adjustable minimum on and off times control ringing induced by PCB layouts and other parasitic elements, providing low noise operation. NCP4303A and NCP4303B are offered in Pb−free, 8-pin SOIC packages.

Endicott Research Group, Inc.    Endicott, NY 13761
May 14, 2010 Suited for solid state lighting (SSL) applications, fully isolated eDriver family power supplies offer universal input of 120, 220, and 277 V, power factor correction greater than 90%, and 0-10 V dimming options. Slim 100 W units are available in wide range of constant voltage and constant current models. Offered in custom versions, units have UL8750 and CE approvals and rating of IP67. Applications include cove and architectural lighting, and parking and street lights.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
May 14, 2010 Model TPS54260 monolithic synchronous switcher is 2.5 A SWIFT(TM) converter with 200 mW high-side FET that provides up to 95% efficiency. Low ripple pulse skip mode reduces no load, regulated output supply current down to 138 µA and, when disabled, device draws 1.3 µA. Unit's switching frequency range is 100 kHz to 2.5 MHz, which is synchronized from master clock. Measuring 3 x 4.9 x 1 mm, IC includes power-good, enable, and tracking pins for sequencing.

B & B Electronics Mfg. Co.    Ottawa, IL 61350
May 14, 2010 Conforming to IEC60601 specifications, Ulinx(TM) model UH401 delivers 4 kV isolation to ensure reliability and protection from damaging electrical storms, spikes, power surges, and other EMI/RFI disturbances. Isolation barrier also eliminates disruptive ground loops in measurement applications. Inserted directly into USB signal lines of existing medical applications, product has up LED that indicates power supplied via upstream USB port to 100 mA of current to attached downstream devices.

Larson Electronics, LLC    Kemp, TX 75143
May 14, 2010 Combining bright light output, color temperature control, and 5 yr bulb life, explosion proof LED lights are rated for UL Class 1 Division 1 and Class 2 Division 1 hazardous area use. EPL-48-2L-LED and EPL-48-4L-LED are 4 ft long versions, while EPL-24-2L-LED is 2 ft configuration. Lights feature both surface and pendant mounting options, while wheeled cart options enable operators to move lights in and around hazardous location area to suit particular coating application.

Summit Microelectronics, Inc.    Sunnyvale, CA 94085
May 13, 2010 Battery charger ICs have Automatic Input Current Limit feature that detects maximum current of AC/DC adapter and programs input current limit accordingly. Model SMB328A allows for I2C control of parametric/functional performance, while SMB328B operates in GPIO-controlled configuration. Operating with 3.5-6.2 V input range, both enable charging current levels up to 750 mA from 500 mA USB source. Safety functions include dual redundant protection for I/O current and voltage.

Endicott Research Group, Inc.    Endicott, NY 13761
May 13, 2010 Featuring dual output that provides total max current of 1,200 mA (600 mA per side), Smart Force(TM) SFD2C series full function LED driver powers up to 4 strings of high brightness LEDs per side with max current of 150 mA per string. It accepts 10-20 V input voltage, offers 60 V max output voltage, and provides total 50 W of power (25 W per side). Board offers external PWM dimming, with dimming ratios up to 5000:1 achievable, along with separate brightness and enable controls.

Crystek Corp.    Fort Myers, FL 33907
May 13, 2010 Featuring rugged stainless-steel solder-clamp construction and heavy duty strain reliefs, CCK40 offers shielding effectiveness of greater than -90 dB with operating temperature range of -55 to +85ºC. Product provides attenuation value of 0.90 dB/ft at 40 GHz. Cable offers minimum bend radius of 1.0 in. and is available with 2.92 mm (K) connectors.

NKK Switches    Scottsdale, AZ 85260-3420
May 13, 2010 MB2400 series is available in 7 bezel colors and 4 different bezel styles, 3 of which feature built-in LEDs, with choice of 1 or 2 round LED or 2 rectangular LEDs. The 11.5 mm square pushbutton caps are also available in 7 colors with option to add legend. Mechanical life is rated at 200,000 operations minimum. Momentary action devices are rated at 3 A at 125 Vac with silver contacts, 0.4 VA maximum at 28 Vac/dc with gold contacts, or both ratings when gold over silver contacts are specified.

Mid-West Instrument    Sterling Heights, MI 48314
May 13, 2010 Available in single and double switch options, Model 116 indicating switches feature Dry Bellows design with internal bi-directional relief valves with no liquid fill required to protect unit from over-range. DP ranges from 0-80 in. H₂O to 0-600 in. H₂O. Rated at 4 A at 30 Vdc, 5 A at 120 Vac SPDT, units come with highly visible Flag option to indicate "reorder" or "alarm" fluid conditions, and custom dial faces (logo, dual or tri scale).

Electro Standards Laboratories    Cranston, RI 02921 3403
May 13, 2010 QuickSwitch 6283 enables users remotely access 2 separate fiber optic networks from one computer with ability to change switch position, lockout front panel pushbutton control, or obtain switch status via Telnet command interface. IP-addressable and password-protected for secure network alternate-path switching, LC duplex A/B fiber optic switch with Telnet remote control uses MEMS-based mirror/prism technology and supports Gigabit data rates.

Cooper Lighting    Peachtree City, GA 30269
May 12, 2010 Featuring 270° detection zone with 3 IR sensors that detect motion up to 90 ft away, Precision Plus Doppler Radar Motion Activated Outdoor Security Floodlights activate when side-to-side or front-to-back motion is detected. Use of Doppler radar minimizes false triggering since it reacts to actual motion, rather than wind, rain, and temperature changes. Designed to turn off after pre-selected time delay of 1-12 min, units include photo cell that keeps lights off during daylight hours.

General Manufacturing, Inc.    Bluffton, IN 46714

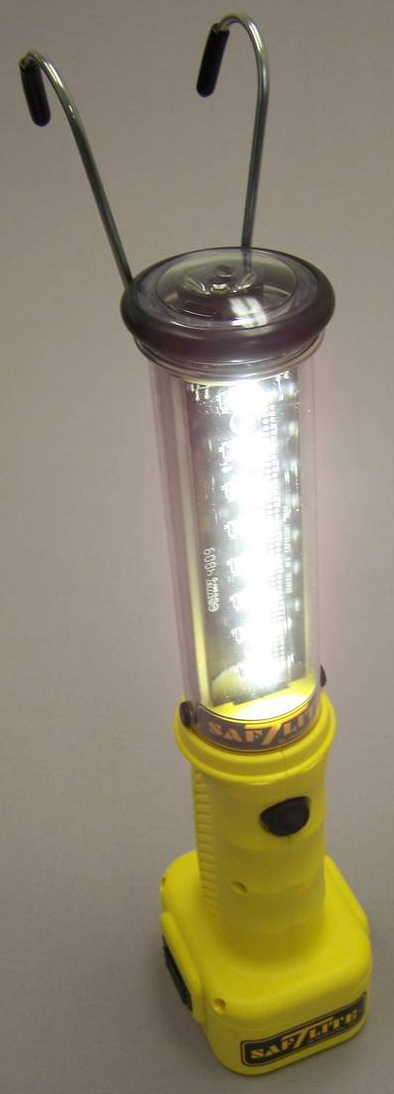

May 12, 2010 Stubby II® Cordless features eight ½ W LEDs on side for use as work light and lensed 1 W LED on end for use as flashlight. Rated at 50,000 hr, LEDs produce 5000K color light and contain no mercury. Included 7.2 V NiMH rechargeable battery pack will operate light continuously for 5 hr or all day with intermittent use. Unit includes 120 V smart charger, and internal circuitry maintains light level until just before battery needs recharging.

Power Sources Unlimited, Inc.    Wrentham, MA 02093-2210
May 12, 2010 Measuring 2.00 x 4.00 x 1.10 in., single output CFM101S Series switching power supplies feature universal 90-264 Vac input, and output voltages of 12, 15, 20, 24 or 48 Vdc. Units feature power factor correction (meets EN61000-3-2), built in short circuit and over voltage protection, and convection cooled operation in ambient temperatures from 0-40ºC. RoHS compliant units have UL, cUL, and TUV safety certifications and meet conducted EMI requirements of CISPR/FCC Class B.

Meyda Tiffany    Yorkville, NY 13495
May 12, 2010 Targeted at residential, commercial and hospitality applications, Woodland Pine two-tier inverted pendant (23812) is accented with cast pine cones and forge branches. Fixture is finished in natural rust complementing amber mica panels and faux alabaster acrylic bowls. Pendant is 60 in. wide and can be extended to a total of height ranging from 114.50-175 in., depending on ceiling height and application.

Larson Electronics, LLC    Kemp, TX 75143
May 12, 2010 Suited for portable use in hazardous locations, Models EPL-24QP and EPL-TP-2X70 are respectively mounted on quadpod and wheeled tripod and rated to 400 and 70 W. Both Class 1 Division 1 lights last for 20 years and suit maintenance, new construction, and other temporary lighting applications. The 24 in. dia Model EPL-24QP features stout tubular aluminum legs and non-slip aluminum foot pads. Dual-head EPL-TP-2X70 is also available with wheeled telescoping cart.

Honeywell International, Inc.    Morristown, NJ 07960
May 12, 2010 Comprised of switches and monitors, Limitless(TM) Series combines MICRO SWITCH(TM) global switches with wireless technology. WGLA Series limit switches use WLAN RF 24 GHz standard radio bands, conform to international IEEE 802.15.4 standards, and feature 16-bit address and 128-bit security key. Up to 16 switches may be networked together and paired with one WPMM monitor. When used together, Limitless components have up to 1,000 ft line-of-sight communication range.

LEVITON    Melville, NY 11747
May 12, 2010 Incorporating ballast and lampholders in single, self-contained assembly, Zipline(TM) Fixture Assembly Solution mounts transversely into molded, 1-piece lampholder system, bypassing need to install and wire ballast and socket components separately. Available in residential and commercial versions, assembly facilitates repair and maintenance since contractors can replace either side without removing ballast cover, cutting or splicing wires, rewiring sockets, and disassembling socket bars.
