Power Integrations, Inc.    San Jose, CA 95138

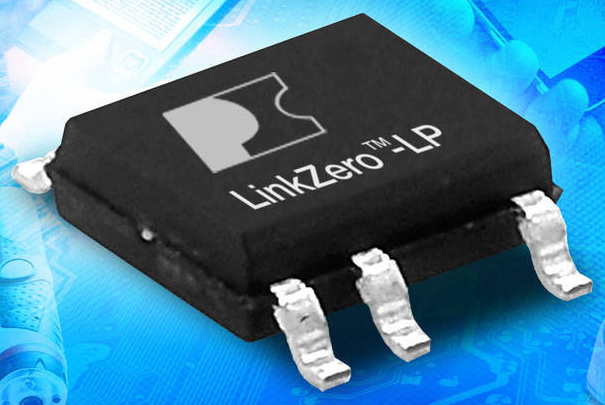

Dec 13, 2010 Targeting up to 3.2 W portable device chargers and adapters, LinkZero(TM)-LP integrated offline switcher IC automatically enters zero-input-power mode when load is disconnected. EcoSmart technology, in combination with said proprietary power-down mode, brings no-load power consumption to 0.00 W and eliminates no-load waste without requiring mechanical switch. Conversely, device automatically restarts when load is detected. Operating frequency (100 kHz) minimizes charger size.

Elma Electronic Inc.    Fremont, CA 94538
Dec 13, 2010 Available in 51 sizes with 2U-7U profiles and widths of 42, 63, and 84 HP, Type 15 StyleBox offers recessed front-card mounting, which helps EMC by allowing solid or perforated panel to fully enclose plug-in boards. Extra space in front of box also protects electrical or optical connectors. With push-on extrusions, enclosure enables installation of PCBs, panels, and hardware. Modular unit allows Eurocard-based mounting for VME, VME64x, or CompactPCI architectures.

Clore Automotive    Lenexa, KS 66215
Dec 10, 2010 Providing service to 6, 12, and 24 V batteries and systems, SOLAR Octane Model OS6150 features Transoid(TM) Transformer, Quad Force(TM) Rectifier, and internal circuitry that meets demands of daily professional use. Unit includes Comfort-Walk(TM) handle and EZ View(TM) control panel to facilitate operation. With 2-hour timer, technician can set desired charging time and walk away.

Cree, Inc.    Durham, NC 27703
Dec 10, 2010 With single, uniform optical source, compact 22 x 22 mm footprint, and simple 2-screw attachment, CXA20 array is designed to simplify manufacturing process for customers who require single component in their light engine design. Unit delivers 1,050 lumens at 11 W, or 2,000 lumens at 27 W, with 3,000°K warm white color temperature.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Dec 10, 2010 Operating from 1.8-5.5 V single power supply, Model DG723 contains 2 independent SPST switches, one normally open and one normally closed. Monolithic device provides low typical on-resistance of 2.5 W, typical leakage current of 1 pA, off capacitance of 8 pF, and on capacitance of 19 pF. With typical bandwidth of 366 MHz at -3 dB, RoHS-compliant switch is suited for low-voltage instruments, healthcare devices, portable meters, PDAs, and modems.

Mid-West Instrument    Sterling Heights, MI 48314
Dec 09, 2010 Featuring CSA, UL, and ATEX rated sensor, explosion-proof Model 220 provides loop-powered, 828 Vdc, 2-wire, 4-20 mA transmitter option with industrial type terminal strip and cast aluminum housing. Piston-operated unit offers differential ranges from 0-5 psid to 0-100 psid with accuracy of ±2% from 20-100% of full scale. Equipped with 4½ in. dial and shatter-resistant lens, weatherproof gauge has safe working pressure of 4,000 psig with full over-range protection.

OSRAM Opto Semiconductors GmbH    Regensburg D-93049  Germany
Dec 09, 2010 Supplied in 5.6 x 3.0 x 0.9 mm package, TOPLED Compact 5630 LED is flat-encapsulated and has no integrated lens. Ultra-white version exhibits 76 lm/W efficiency at operating current of 120 mA and color space coverage up to 100% sRGB depending on color filters used in display. Achieving 67 lm/W eficacy for same operating current, multi-white version covers up to 120% of sRGB color space. Both versions help monitor/TV manufacturers meet energy efficiency standards.

ERICO    Solon, OH 44139-2631

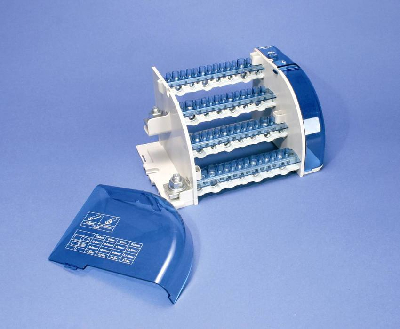

Dec 09, 2010 With working voltage of 1,000 Vac to 1,500 Vdc per IEC and 600 V per UL, ERIFLEX® TDL 250/400 A Distribution Blocks feature tinned copper bar, reinforced plastic parts, and large end terminals that ensure secure connections. Units withstand short circuits up to 51 KA. Rated IP10, hand-safe blocks enable wiring from both sides as well as visual inspection of wire and confirmation of connection.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Dec 09, 2010 With 8:1 input range of 7-60 Vdc, AMLD-Z Series provides constant output currents from 150-1,000 mA, generating 6-48 W of power to maintain constant color and brightness required by demanding LED applications. Units include remote On/Off control in addition to PWM and analog voltage dimming control from 0-100%. Open and short circuit protection works continuously until short circuit condition is resolved. Housed in DIP24 package, drivers operate from -40 to +85°C at full load.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Dec 09, 2010 With input ranges from 4.75-18 Vdc to 8-18 Vdc, Series AMSR1.5-78-NZ and AMSR2-78-NZ provide regulated output from 2.5-6 Vdc. Maximum output currents of 1.5 or 2 A are produced at efficiency rates up to 93%. Units include continuous short circuit protection, output current limiting, and thermal shutdown. Housed in 11.50 x 8.90 x 17.50 mm SIP3 package, regulators operate continuously at full load without derating below +71°C, within ambient temperature range of -40 to +85°C.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Dec 08, 2010 Operating off universal AC input of 85-265 Vac with active PFC, 1,600 W HFE1600 Series provides regulated DC output of 12, 24, or 48 V with operating efficiencies up to 92%. Front-end power supplies, measuring 1.61 x 3.35 x 11.8 in., feature rack mounted enclosure, which enables up to 5 units to be paralleled with automatic load-sharing to provide up to 7,600 W of output power. Integral MCU allows for remote programming, monitoring, and status reporting via isolated I2C and PMBus interface.

O-Z/Gedney A Business Of The EGS Electrical Group    Tulsa, OK 74145
Dec 08, 2010 Explosion-proof and dust-ignition proof Optitrol(TM) control stations and pilot lights feature heavy-duty enclosure that confines electrical arcing, preventing ignition of flammable atmospheres. Malleable iron enclosure and cover are coated with zinc, chromate, and epoxy powder for corrosion resistance. Combinations of push buttons, pilot lights, and selector switches, in either one- or two-gang box configurations, are available in dead-end and feed-through ½, ¾, and 1 in. hubs.

Emerson Network Power    St. Louis, MO 63136
Dec 08, 2010 With 2 x 4 in. footprint and 1 in. height, 12 V Model NPS63-M supports up to 60 W with convection cooling. Open-frame unit accepts universal input of 90-264 Vac, has full-load efficiency of 87%, and features medical and ITE safety approvals. Under normal operating conditions, Model NPS63-M requires less than 74 W of input power and consumes less than 300 mW under no-load conditions. Power supply operates at full load from 0-50°C, and up to 80°C with derating.

Contech    Goddard, KS 67052
Dec 08, 2010 Featuring 2 x 1.6 in. footprint, KMW Series offers 4:1 input range with nominal input voltages of 24 and 48 Vdc. Units provide single outputs of 3.3, 5, 12, and 15 Vdc, as well as dual outputs of ±12 and ±15 Vdc. Housed in anodized aluminum case with 6-sided shielding, RoHS-compliant units include remote on/off, output trim, and over-temperature protection. Operating ambient temperature is -40 to 50°C with no de-rating, but can be extended to 60°C with optional heat sink.

Tripp Lite    Chicago, IL 60609
Dec 08, 2010 Spanning 12, 16, and 20 kVA power capacities, SmartOnline UPS Systems include 9 models that integrate electrical input, output, and data connections of 2 UPS systems via one detachable, parallel PDU in as little as 8U rack space. Products provide non-redundant operation at 100% capacity or full redundancy at 50% capacity, and 0.9 output power factor delivers up to 18 kW in just 12 rack space. Operating with 97% max efficiency, systems also support network power monitoring/management.

UNIVERSAL ELECTRIC CORP    Canonsburg, PA 15317
Dec 08, 2010 Designed to meet power distribution needs of data centers, STARLINE B250 Busway System is rated at 250 A, 600 V AC and DC. Halogen-free design, available with optional oversized neutral, also offers standard and isolated ground options. System with isolated ground is rated to 600 V, while plug-in units are rated to 125 A, 600 V. Product meets UL857 as well as IEC standards and also features interchangeability between STARLINE B250 and B400 Busway plug-in units.

W.A.C. Lighting Company    Garden City, NY 11530

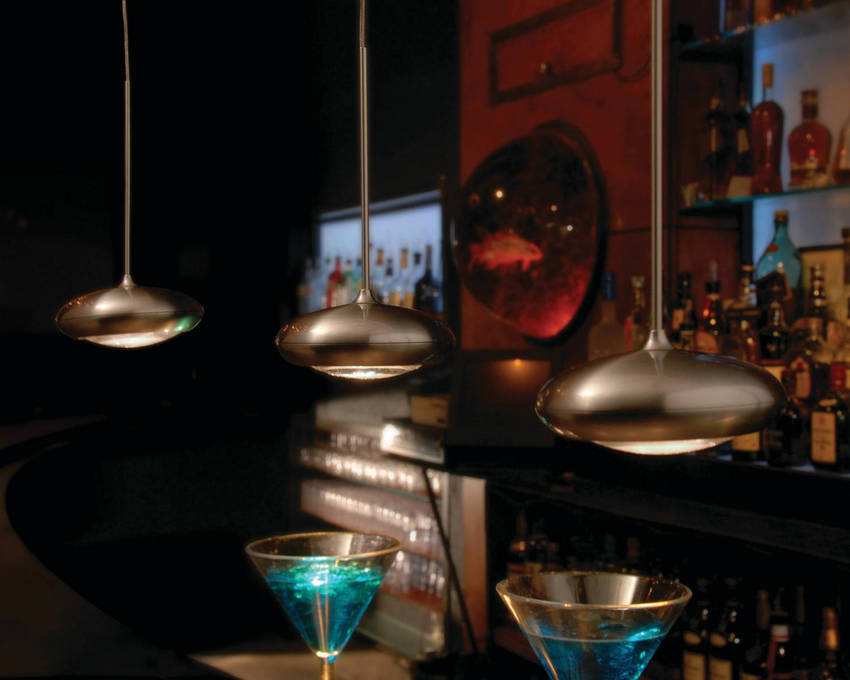

Dec 07, 2010 LEDme(TM) Quest Quick Connect Pendant features streamlined contours in decorative design. Suited for residential and commercial applications, it uses 3,000°K Warm White LEDs binned to ANSI standards. Product includes 72 in. braided wire and Quick Connect(TM) Socket Set and can be used with single-circuit, low-voltage SOLORAIL(TM) and 2-circuit low-voltage DUORAIL(TM). It also offers 50,000 hr operating life and 15-100% range of dimming capabilities using electronic low voltage dimmer.

Supertex Inc.    Sunnyvale, CA 94619

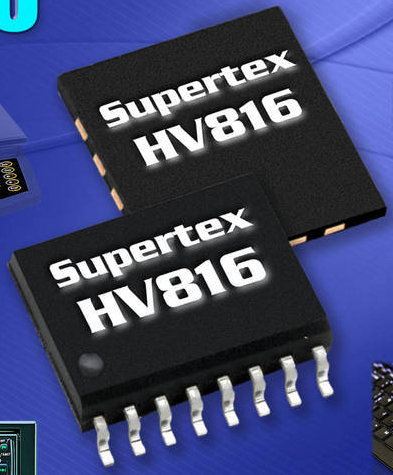

Dec 07, 2010 Offered in QFN-16 and SOW-16 RoHS-compliant package options, HV816 can deliver output to 360 V peak-to-peak for high brightness and also offers adjustable output regulation for brightness control and power conservation. It is designed to drive large area electroluminescent (EL) lamps used for backlighting keyboards and display signs. Operating from 2.7-5.5 V, driver offers flexibility by providing independent lamp and converter frequency settings and adjustable output rise/fall time.

GOEPEL electronics LLC    Austin, TX 78759

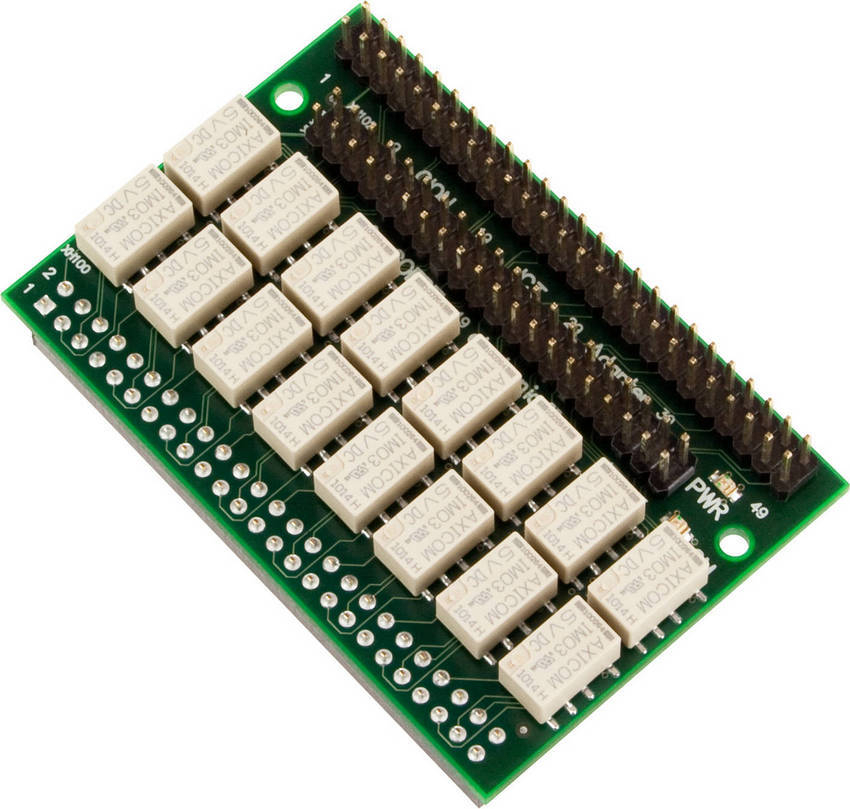

Dec 07, 2010 Developed to meet requirements for Boundary Scan integration into In-Circuit Testers (ICT) adapter systems, CION ICT Adapter enables switching of 32 test channels from ICT to SCANFLEX® JTAG/Boundary Scan hardware platform. ATE channels are connected to the ICT probes in quiescent state and therefore to UUT via relay card. Control signals activation effects switching to Boundary Scan, resulting in connection between UUT and SCANFLEX® system and disconnection from ICT channels.

PowerGate LLC    Santa Clara, CA 95054
Dec 07, 2010 Housed in 3.00 x 5.00 x 1.34 in. open-frame package, 300 W PowDec VHD300 Series includes 5 models with universal input of 90-264 Vac, main output voltages from 12-48 Vdc, and auxiliary outputs of 5 VSb at 1 A and 12 V Fan at 1 A. All feature remote on/off control, full load operation up to 50°C with 20 cfm airflow, and Active Power Factor Correction for EN61000-3-2 Class D compliance. Series is qualified for Class B Emissions and is safety approved to UL/cUL 60950-1, EN60950-1 standards.
