Universal Lighting Technologies    Nashville, TN 37214
Jun 05, 2003 Offered in single- and multiple-lamp versions, with various case configurations, analog SuperDimâ„¢ offers universal input voltage and is suited for compact-fluorescent and T8, T5, and T5HO linear-fluorescent applications. Digital AddressProâ„¢ enables users to independently control multiple lighting zones. It features universal input voltage and 2-way addressability that allows group and scene control functions, as well as ballast and lamp diagnostic features.

Universal Lighting Technologies    Nashville, TN 37214
Jun 05, 2003 ULTim5™ T5HO ballasts have small cross sections that allow units to be incorporated into various fixture applications. Designed for 1- to 4-lamp applications, units offer end-of-lamp-life shutdown circuitry for safe operation and are available in universal (120–277 V) and high-range (347–480 V) input voltages. Ballasts are suited for new construction and retrofits in gymnasiums and high-bay retail stores.

Universal Lighting Technologies    Nashville, TN 37214
Jun 05, 2003 High-effiency ULTim8™ ballast family provides up to 8% energy savings over standard electronic ballasts, and more when operated with energy-saving 30-watt T8 lamps. Ballast features parallel lamp operation and automatic reset upon lamp replacement. It operates 1–4 lamps and is available with .78 or .88 ballast factor. Total harmonic distortion is less than 10%.

Burkert    Irvine, CA 92614 5840

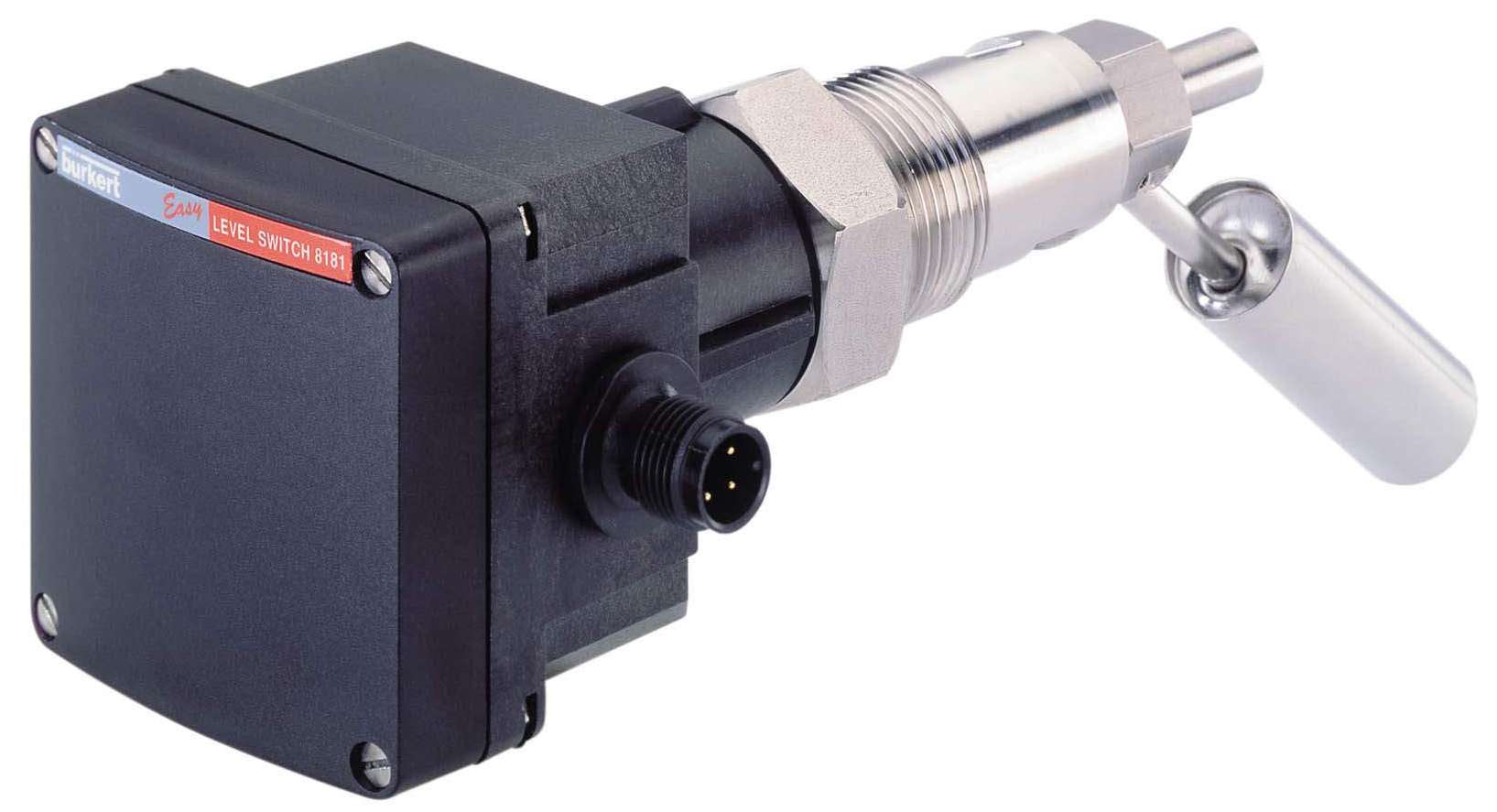

Jun 05, 2003 Type 8181 utilizes decentralized intelligence technology, offering point-to-point connection between sensor and valve. Stem incorporates reed contact, float, and magnet. Depending on liquid level, float actuates Reed contact, which triggers remote alarm or controller via 2 or 5 m, 2-wire, shielded cable or relay module. Level switch functions in NO or NC configurations and is offered in stainless steel and polypropylene models. Max pressures range from 145-14.5 psi.

TE Connectivity Ltd.    Berwyn, PA 19312

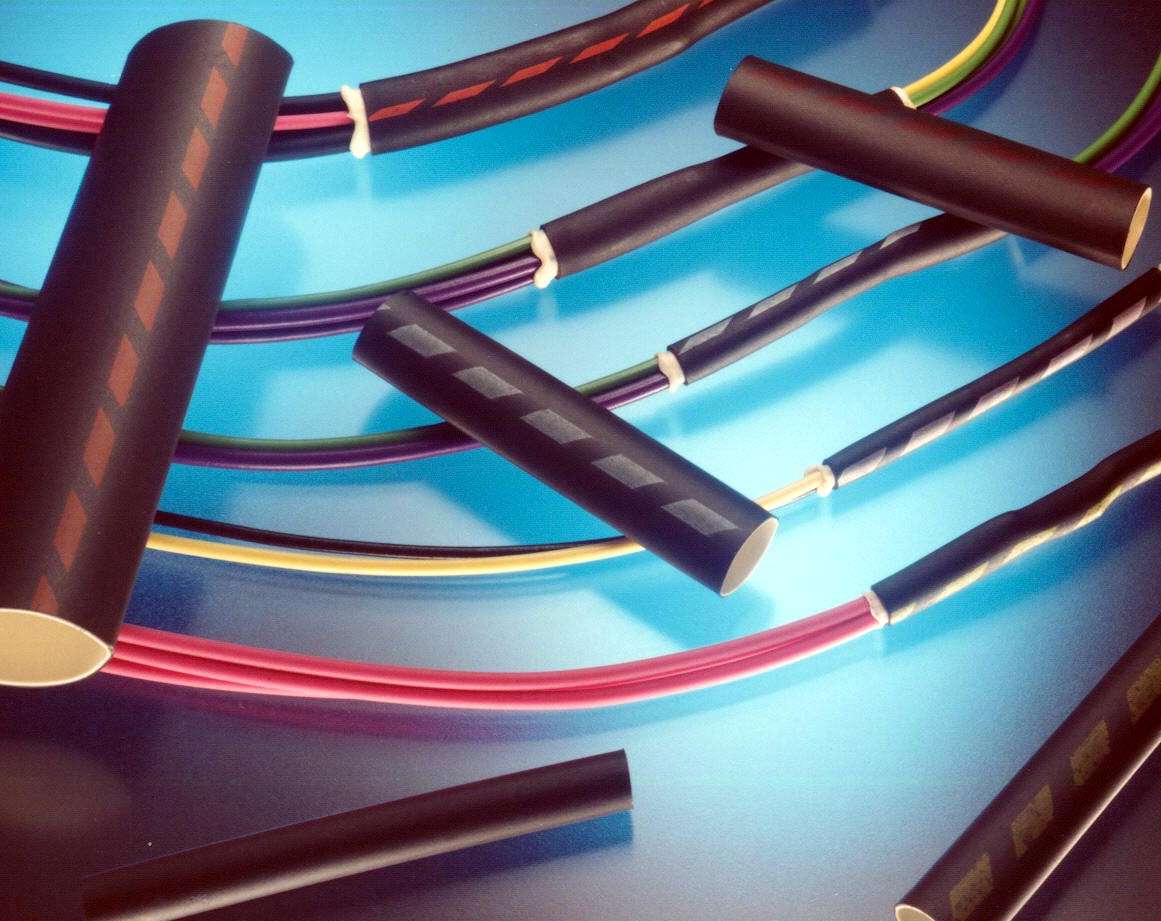

Jun 04, 2003 FL2500 heat-shrinkable tubing is flame-retardant, adhesive-lined polyolefin tube that seals and insulates electrical splices and in-line electrical components. Product is for harsh environments and is flame-retardant. As tube is heated to 135°C, polyolefin tube shrinks and adhesive lining melts. Tubing comes in 4 diameter sizes from 7.62 to 17.79 mm and shrinks at 4:1 ratio. Product comes in 4 cut lengths of 27, 50, 65, and 1,220 mm.

ITT Industries, Cannon    Santa Ana, CA 92705

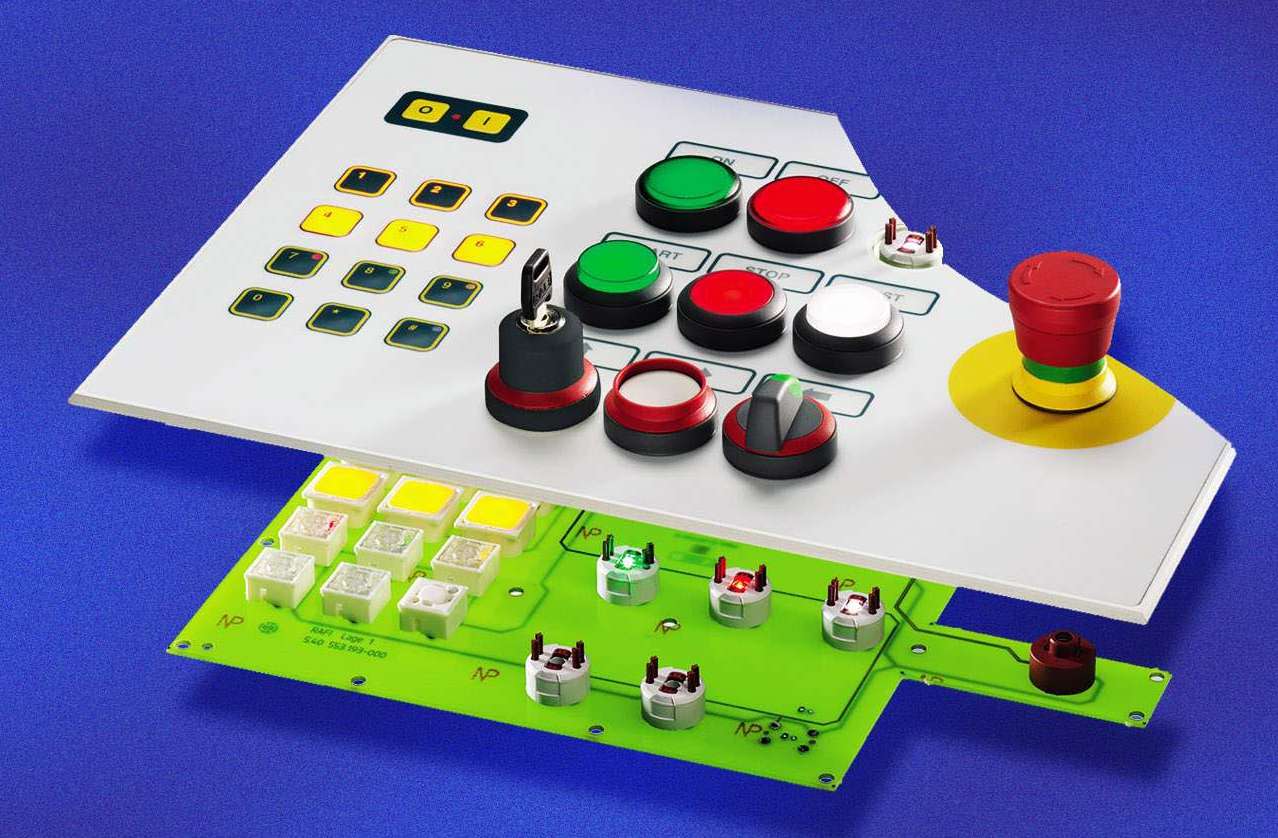

Jun 04, 2003 With mounting depth of 9.2 mm, RAFIX 22FS series ultra-flat control switches can be mounted on same PCB as short travel tact switches, keys, and other components, simplifying design and assembly. Actuators are fastened to front panel with threaded ring in 22.3 mm dia cut out to IEC 947, while thermoflex cast-on collar seal with integrated membrane layer provides waterproof protection to IP65. Illumination is provided via 3 mm LED in base of contact block.

TE Connectivity Ltd.    Berwyn, PA 19312

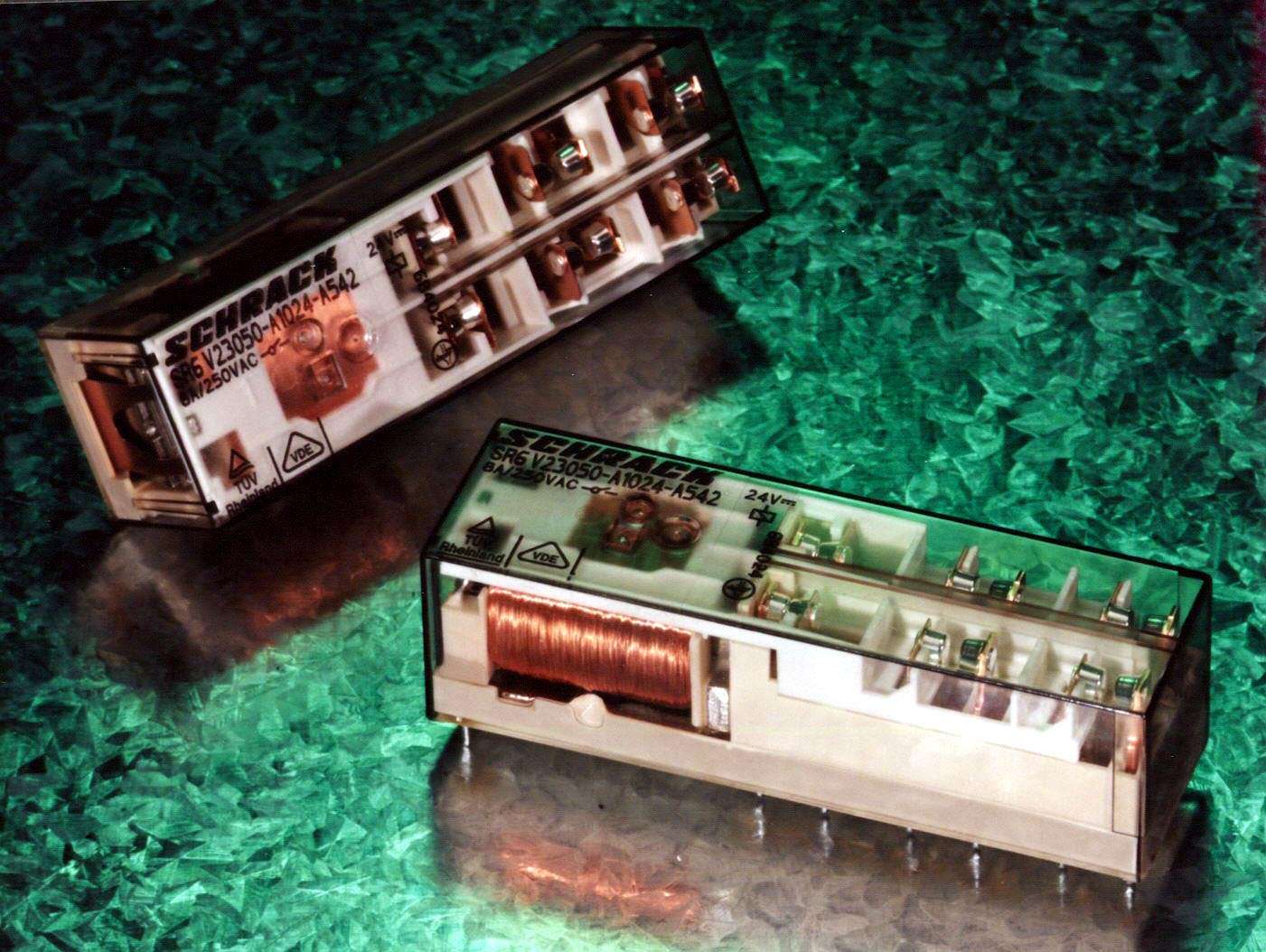

Jun 04, 2003 Measuring 2.165 x .65 x .63 in. tall, PC board mount SCHRACK V23050 series relay employs forcibly-guided contacts and is designed so that its make and break contacts cannot be in closed position simultaneously. Design isolates each contact set within its individual contact chamber. Contacts are offered in 3 NO:NC ratios: 4:2, 2:4, and 5:1. Silver tin oxide contacts are rated for 8 A loads at 250 Vac, and relay is offered with coils for 5-110 Vdc.

Dwyer Instruments, Inc.    Michigan City, IN 46361

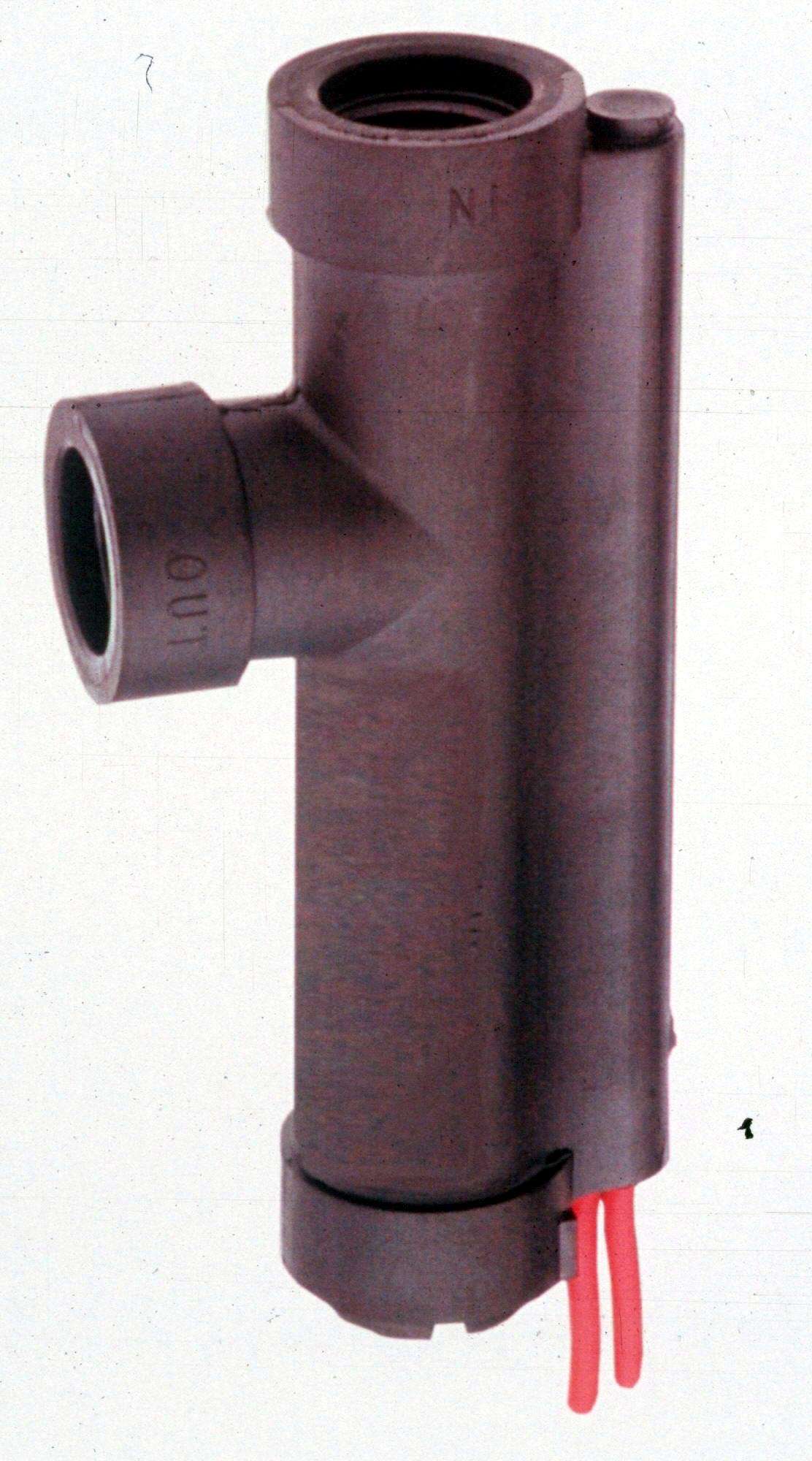

Jun 04, 2003 Series P4 Shuttle Flow Switch monitors water-based liquids with fixed set points from 0.1-1.5 gpm. It features Ryton R4 housing and piston, 316 SS spring, and Viton® O-ring. User can choose from normally open or normally closed SPST or SPDT hermetically-sealed reed switch technology. Inlet and outlet ports are 9/16 in.-18 UNF-2B thread with optional 1/8 in. and ¼ in. NPT or ½ barbed adapters.

Danaher Controls    Gurnee, IL 60031

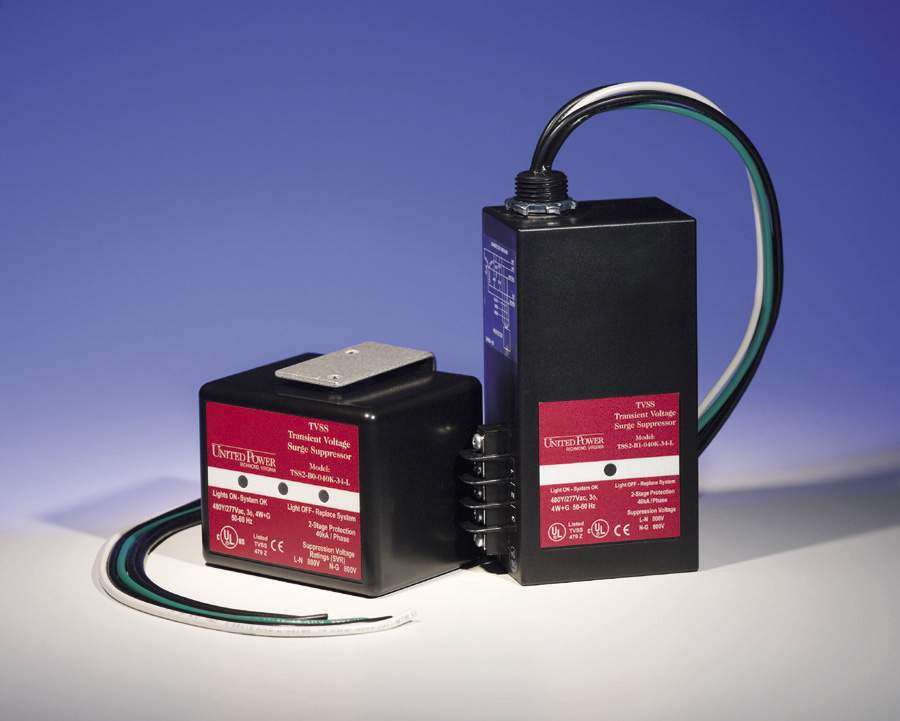

Jun 03, 2003 Model TSS Talon Surge Suppressor for AC power circuits is installed at main service entrance, distribution panel, or subpanel to protect facilities from transient voltage damage. It is MOV-based, and rated 40 kA of 8 x 20 µs surge current for each mode of protection. Unit is available in typical distribution panel voltages from 120/240 Vac, split-phase to 277/480 Vac, 3-Phase.

Global Lighting Technologies Inc.    Brecksville, OH 44141
Jun 03, 2003 Color cell-phone backlight assembly provides luminance of >3000 cd/m² for 1.5 in. diagonal screen, utilizing only 2 white LEDs at 15 mA. PDA backlight assembly utilizes 4 white LEDs and provides brightness of >2000 cd/m² to 2.5 in. diagonal screen. MicroLens(TM) technology allows LEDs to be molded directly into light guide. CCFL light guide utilizes L-shaped CCFL to provide luminance of 6500-7000 cd/m² for 7 in. diagonal screen, with full VGA color. Bulb current is only 6 mA.

Endicott Research Group, Inc.    Endicott, NY 13761

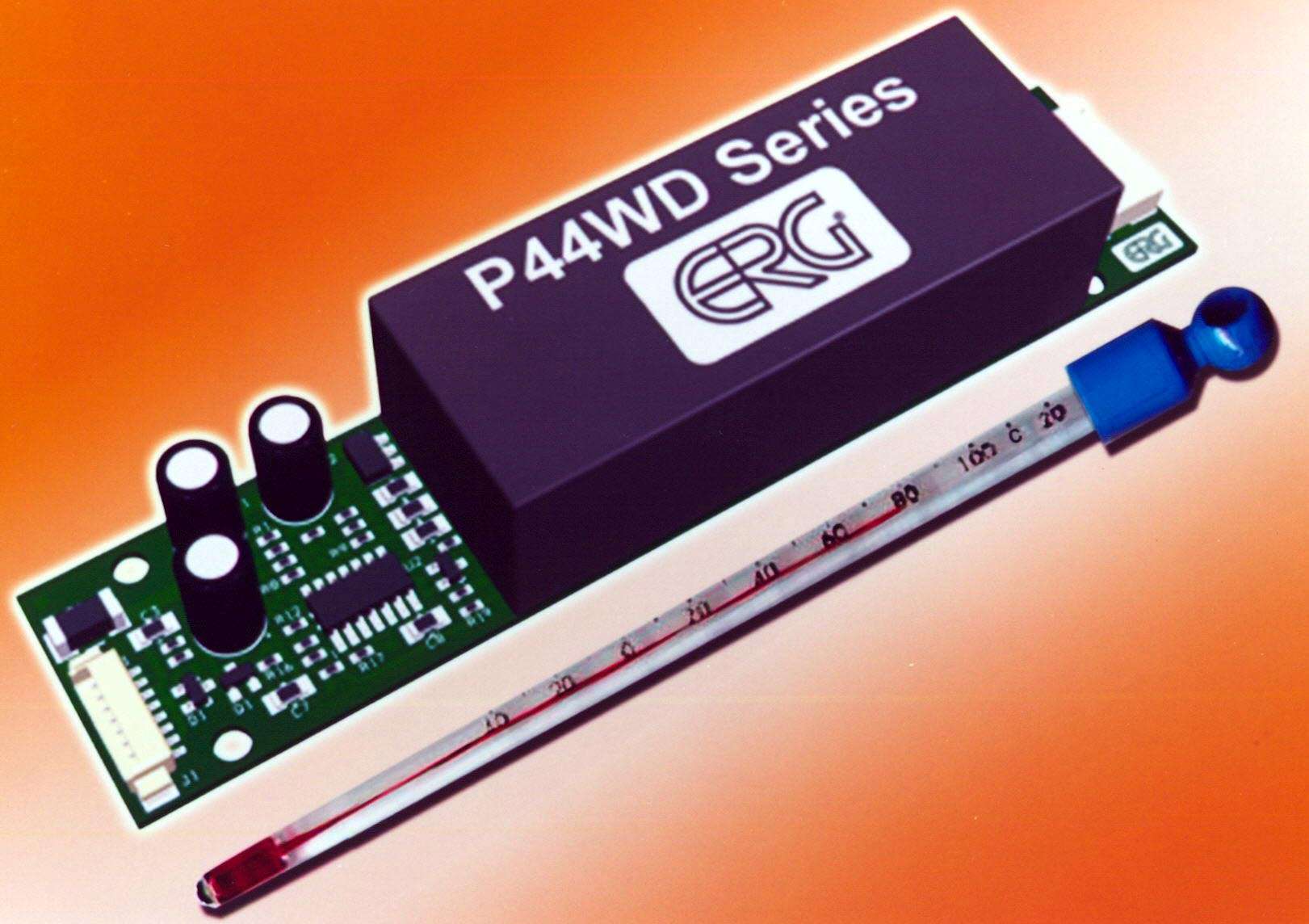

Jun 03, 2003 Plug-and-play Series P44WD powers LCD modules backlit by 1 or 2 cold cathode fluorescent lamps. It provides up to 15 W of output power, with starting voltage up to 2400 Vrms. Select models provide up to 9 mA output current for accelerated lamp warm-up in colder operating conditions, and perform reliably over operating temperature of -86 to 185°F. Fully vacuum-encapsulated, high-voltage section on PC board provides resistance to shock, vibration, and humidity.

Fairchild Semiconductor    South Portland, ME 04106

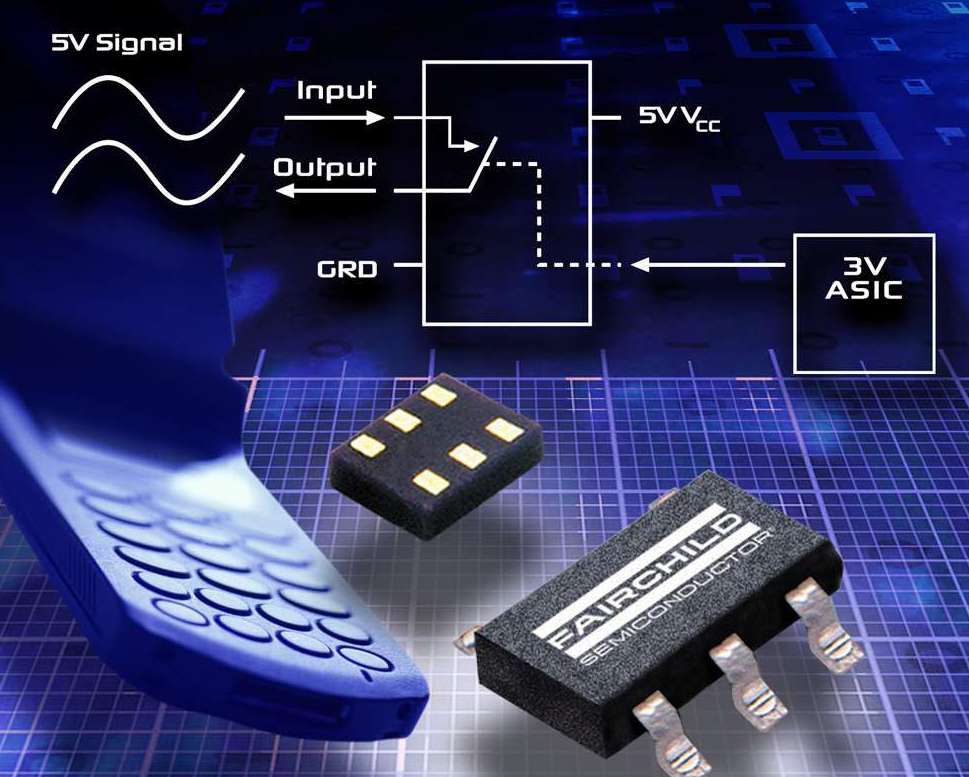

May 30, 2003 Model FSAT66, low-voltage, SPST analog switch uses TTL-level control circuitry so designers can route higher voltage signals with lower voltage control levels. Normally Open MicroPakâ„¢ package is 1.45 mm², and is smallest form factor with this function available. Unit offers minimal THD of 0.011% and is suitable for use in audio applications, mobile phones, digital cameras, and other handheld devices.

Tru-Connector Corporation    Peabody, MA 01960 5099
May 30, 2003 TRU Precision Adapters feature 7 mm interface on one end and SMA, Type N, TNC, HN, and SC on other. These 50 ohm RF coaxial adapters operate from dc to 18 GHz with VSWR of 1.10 max, in -55 to +85°C temperature range. Features include 6-slot center contact on 7 mm end, gold-plated stainless steel body, passivated, stainless steel coupling nut, gold-plated brass center contact, and Noryl insulator.

Astec America Inc.    Carlsbad, CA 92008
May 30, 2003 Power-factor-corrected Model LPQ142-CF provides forced air required for continuous operation at 145 W output power rating. With user-adjustability on 3 of 4 output voltages, one with range of 3.3-25 V, power supply is suitable for any application that requires tightly regulated and low-output ripple on 4 DC outputs. Frequency range is 47-63 Hz, and universal input range is 85-264 Vac and 120-300 Vdc. Unit offers 75% efficiency at full load.

Cedes Corp. Of America    Hickory, NC 28601
May 30, 2003 Safe400 type 4 safety light curtain has slim profile with 15 x 20 mm cross section. Resolutions of 14 mm for finger protection and 30 mm for hand protection are available. SafeC 400 multifunctional safety relay contains up to 8 relay outputs with switching capacity of 2000 VA per output. Product allows for simultaneous connection of multiple light curtains, scanners, and through-beam sensors as well as a variety of other switches, buttons, and controls.

IXYS Corp.    Santa Clara, CA 95054 2704
May 30, 2003 Model XBD4400 Half-Bridge Driver Chipset, consisting of 2 ICs and packaged miniature transformer, offers modular solution for MOSFET or IGBT-based power topologies. The 2 A peak current and heatsinkable, 16-pin SOIC-CT package allow operating temperature to 125°C. Unit features -5 V gate drive supply, 50 V/ns noise immunity, and latch-proof architecture. Interface Transformer provides 2500 V isolation. User can implement choice of protection algorithms.

Norstat, Inc.    Rockaway, NJ 07866

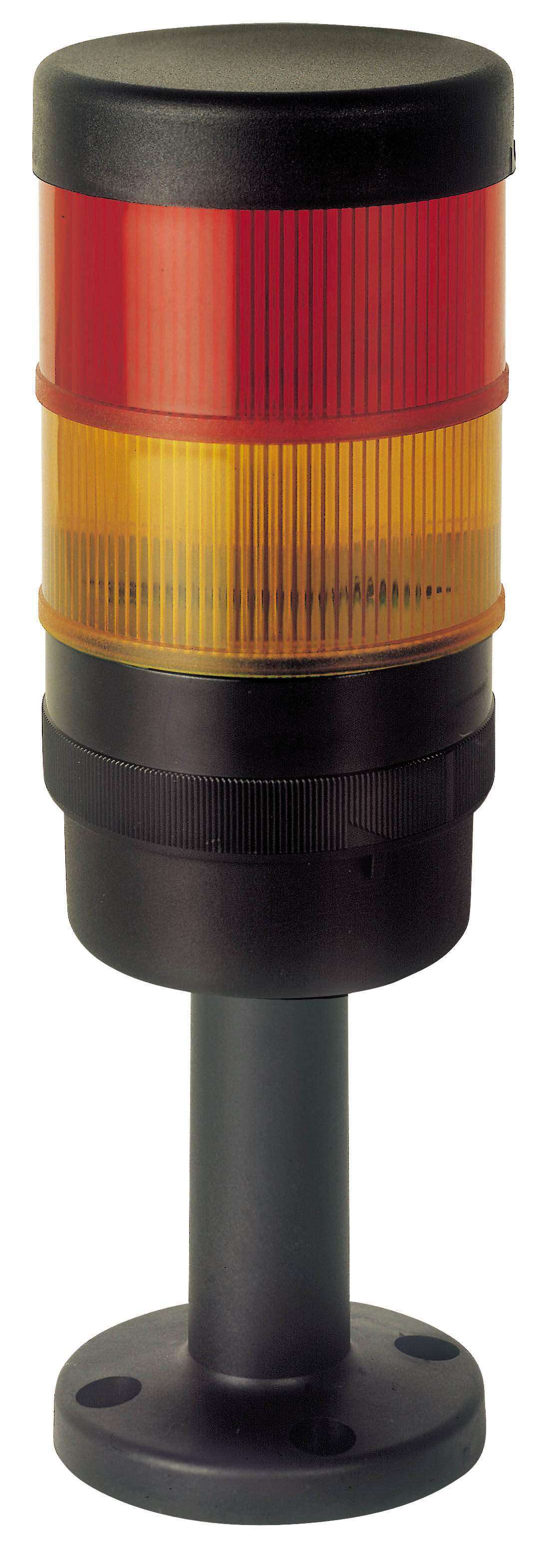

May 29, 2003 One-piece Kompact 71 LED Signal Tower is available in 2-tier and 3-tier versions, with cable or plug connections. It delivers high-intensity lighting, can be operated via PLC control system due to low starting current, and has operating expectancy of up to 50,000 hours. Choice of base or tube mounting, as well as accessories and options, makes tower adaptable and suited for most applications.

Vicor Corp.    Andover, MA 01810 5424

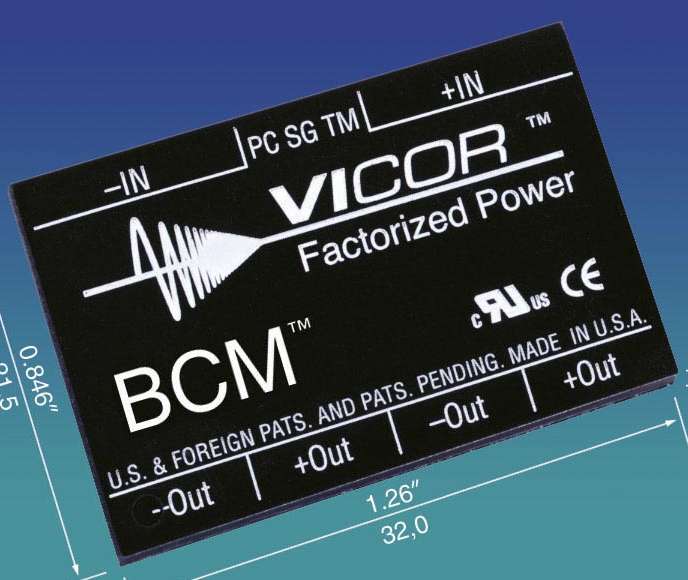

May 29, 2003 Based on V•I Chip (VIC) surface-mount power components, 48 to 12 V Bus Converter Modules suit Intermediate Bus Architecture (IBA) applications. VICs process up to 200 W, acting as functional building blocks to create flexible factorized power system. Power density is 800 W/in.³, while efficiency exceeds 96% over load range. Speed and transient performance allow units to respond to 100% step load changes in less than 1 µsec.

Interpower Corporation    Oskaloosa, IA 52577-0115

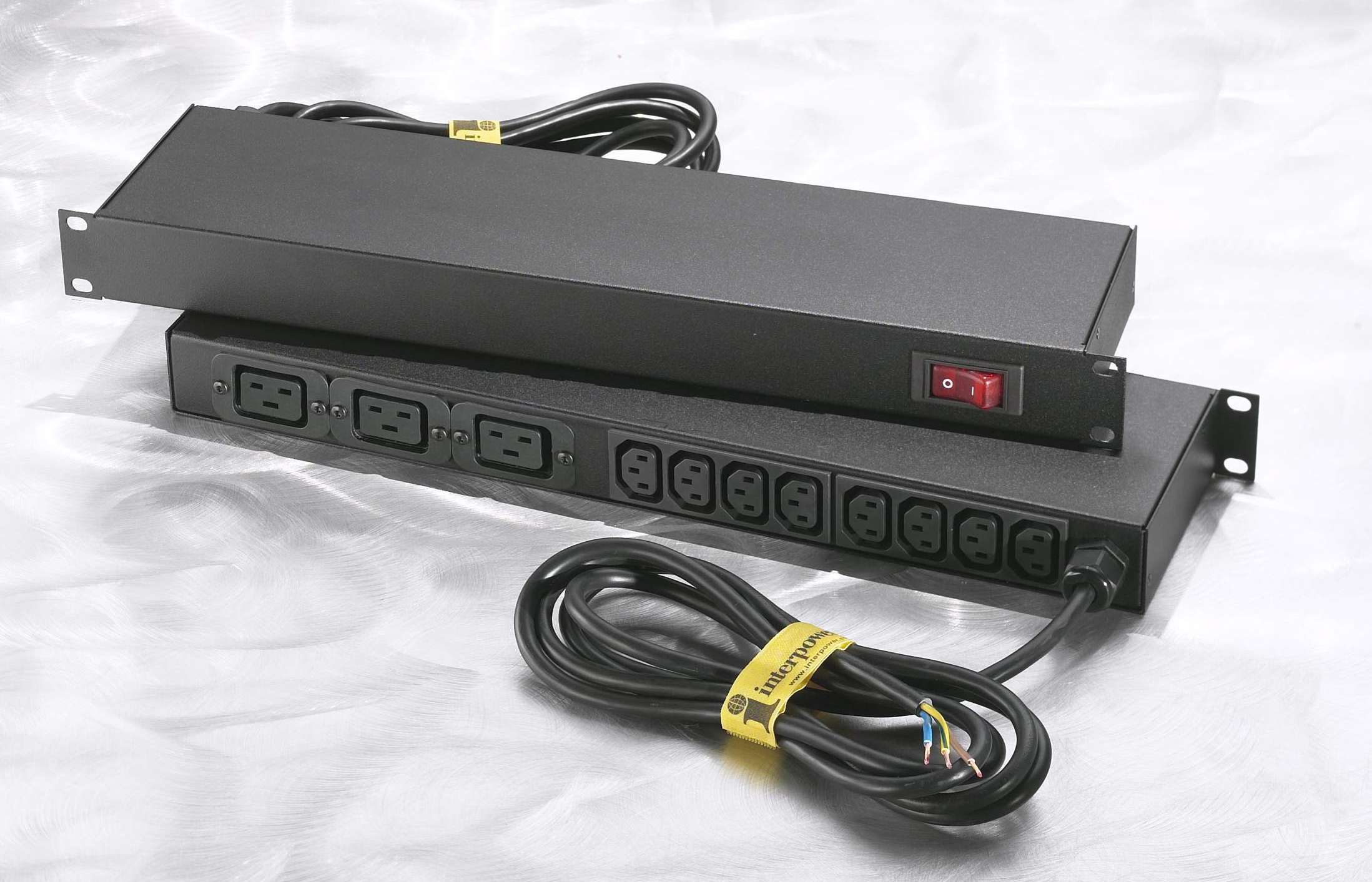

May 29, 2003 Interpower(TM) 19 in. rack-mount Model 852Q2K19 provides domestic and international single-phase power to equipment racks. It offers 8 IEC 60320 Sheet F, 15 A outlets and 3 Sheet J, 20 A outlets with 2.5 m unterminated powercord. Unit is rated at 16 A for service at 250 Vac. It includes lighted rocker circuit breaker and is UL recognized, CSA certified, and TUV approved with CE mark.

TE Connectivity Ltd.    Berwyn, PA 19312

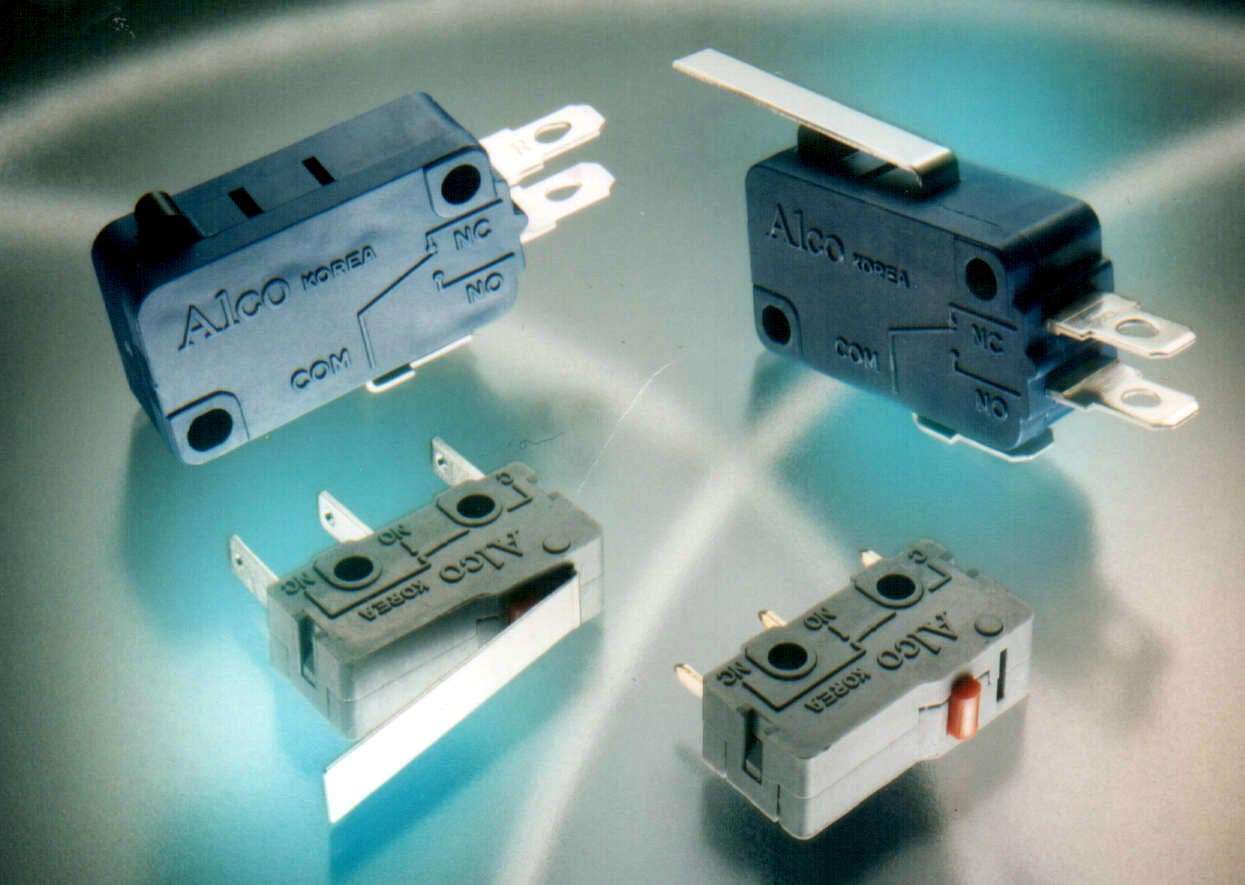

May 28, 2003 ALCOSWITCH miniature and subminiature switches are rated from 0.1-16 A with solder tab, quick connect tab, or solder tail wire termination. Color coding on exterior identifies current rating. Switches can be lever or roller actuated, or can be direct actuated without lever or roller. Actuation force ranges from 40-350 g. SPDT, SPNC, and SPNO versions are available. Units are suitable for instrumentation, industrial control, medical equipment, and security systems.
