Calex Mfg. Co., Inc.    Concord, CA 94520
May 01, 2003 Consisting of 12 models with input ranges from 18–36 and 36–75 Vdc, LT converter family offers 3 regulated positive output voltages ranging from 5–1.5 V. Each output is rated at 10 A, with up to 75 W max power rating for all 3 outputs combined. Housed in ½ brick case measuring 2.4 x 2.28 x 0.53 in., series has 430 kHz switching frequency and is isolated input to output at 1544 Vdc. Remote ON/OFF is offered for power sensitive applications.

GE Company, GE Lighting    Cleveland, OH 44112
May 01, 2003 Pro-Tec 3000 offers wide range of management and monitoring capabilities, enabling measurements such as number and timing of faults detected, current value at time of fault, and cause of fault. Lighting operators can reduce diameter of cable required, and increase distances between relays. Repair requirements can be pinpointed rapidly, reducing downtime and improving public safety.

Revotech Industries International    Los Angeles, CA 90071
Apr 30, 2003 RJAX 6040 75 ohm Termination Keystone Connectors provide snap-in connections with RJ-style plug, similar to that used on telephone lines. Self-terminating units prevent ingress and egress of RFI, eliminating signal degradation and undesired emissions. Quick and easy mating and unmating allows equipment and furniture to be arranged and rearranged easily. Applications include TVs, VCRs, home entertainment system controllers, DVD players, and satellite receivers.

Innova Technologies, LLC    North Miami, FL 33181
Apr 30, 2003 ClickAndGo! assembles without use of nuts, bolts, or tools; only one clip required. Stronger than wire-mesh type cable trays, product does not provide significant path for transmission of corrosive, explosive, or toxic gases and liquids, avoiding exposure of plant personnel and sensitive equipment to such elements. Each cable tray is bottom perforated, manufactured from 0.89 mm thick galvanized mill steel, and UL classified.

Macromatic Controls LLC    Milwaukee, WI 53218

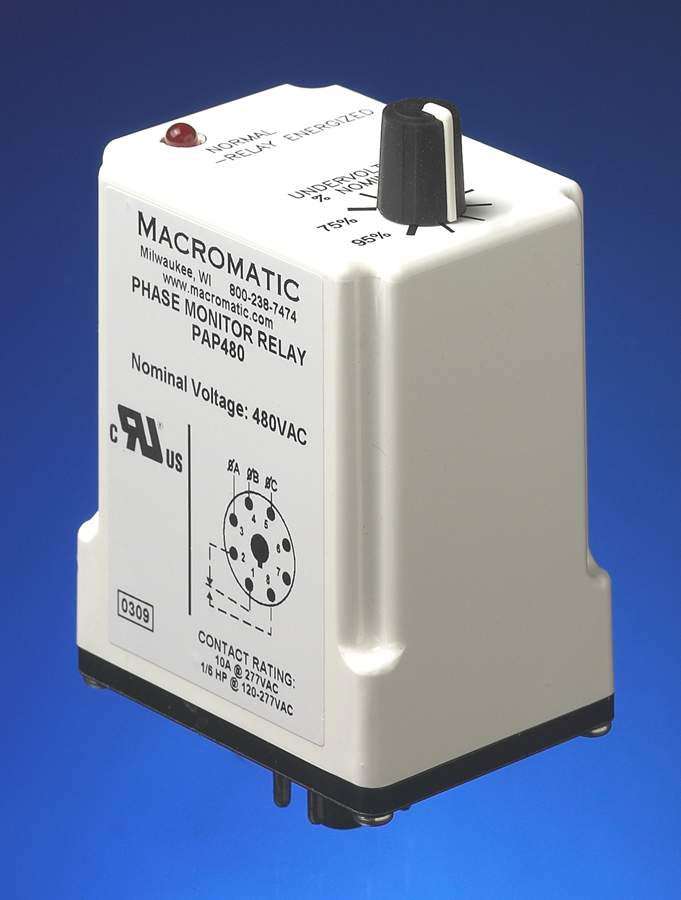

Apr 30, 2003 PAP protects against phase loss, reversal, and undervoltage. Offered with input voltages of 120–480 V, unit comes in plug-in case with 8-pin, plug-in base. Undervoltage is set to 75–95% of nominal voltage and normal operation is indicated through red status LED. Device complies with requirements of both Canada and US and is suitable for motor, compressor, and generator applications.

Mid-West Instrument    Sterling Heights, MI 48314

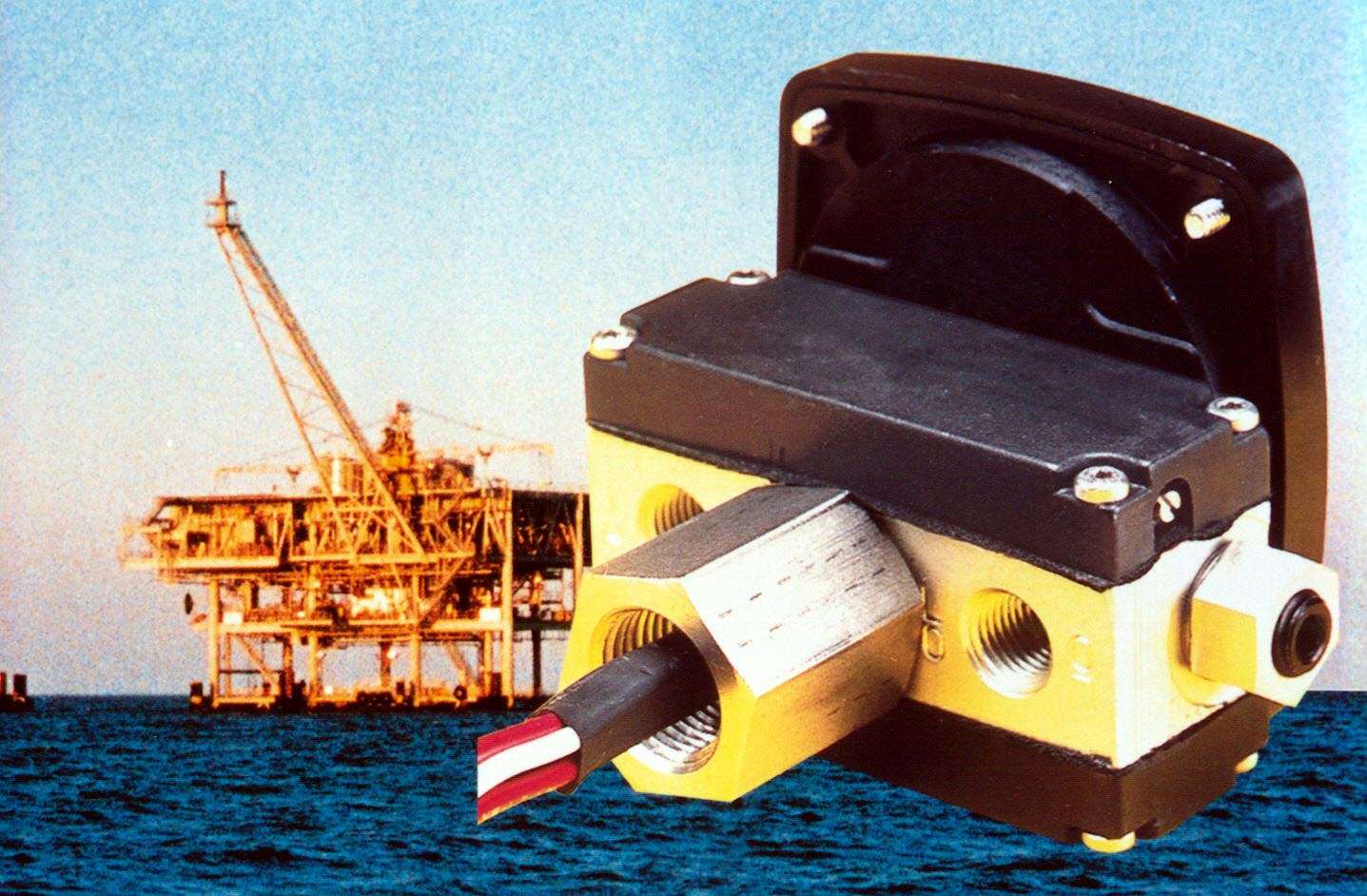

Apr 30, 2003 Model 120 gauge/switch is offered with aluminum or 316 stainless steel pressure containing components with various elastomers to suit every media, whether liquid or gas. SWP is 6000 psig. One or two switches in SPST and SPDT configurations are available. Switch is totally CSA certified and comes with choice of 2 ½, 3 ½, or 4 ½ in. dials with aluminum or engineered plastic dial chambers.

Jefferson Electric, Inc.    Franklin, WI 53132 8847

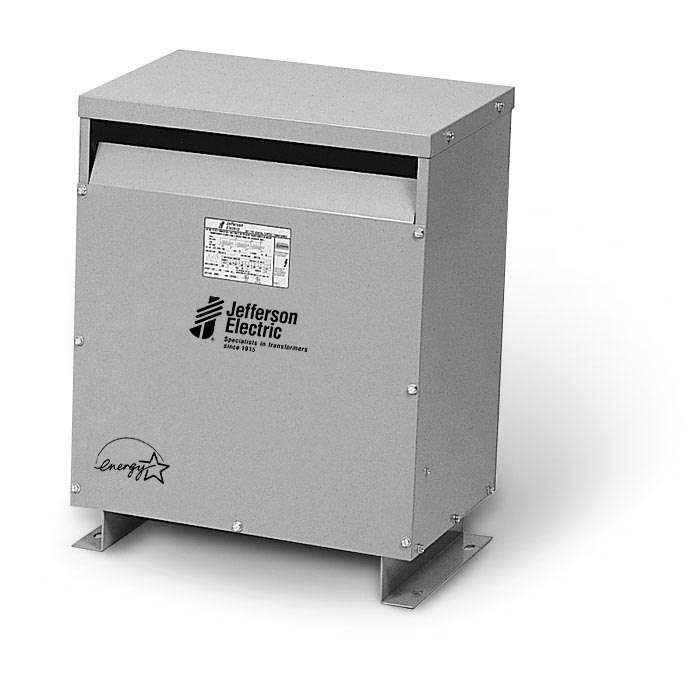

Apr 30, 2003 PowerSaver(TM) Ultra Efficiency Ventilated Dry-Type Transformers are offered in single-phase models from 25-100 KVA, and 3-phase models from 15-500 KVA. Large connection compartment facilitates wiring and installation. Units meet NEMA TP-1 standards for energy efficiency and are suitable for all general loads, indoors or out. Typical installations include lighting, industrial, commercial, and OEM.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460

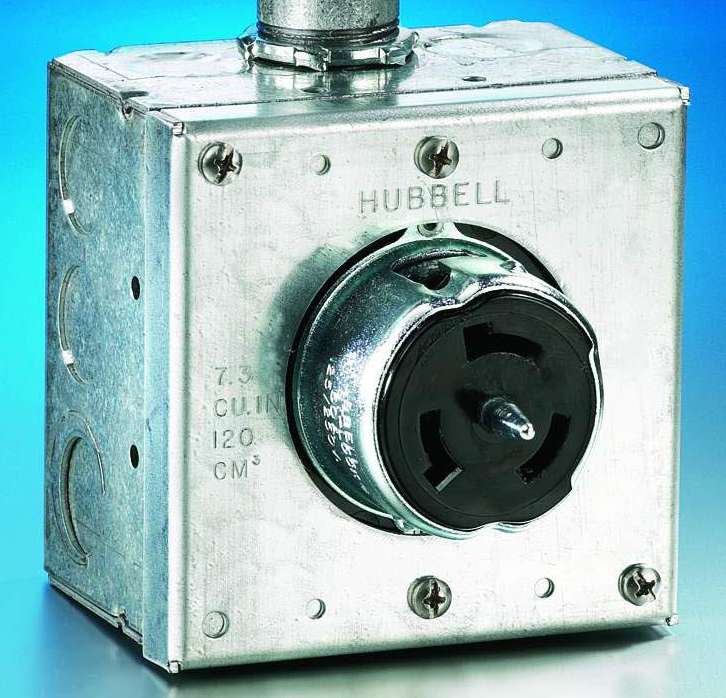

Apr 29, 2003 UL-listed, CSA-certified, square cover plate allows all 50 A Twist-Lock® receptacles to be installed in 4 in. square, 4 11/16 in., or 2-gang box. Made from stamped steel with concentric knockout holes, product includes extra mounting screws. Receptacles mount directly to cover with provided hardware.

O-Z/Gedney A Business Of The EGS Electrical Group    Tulsa, OK 74145

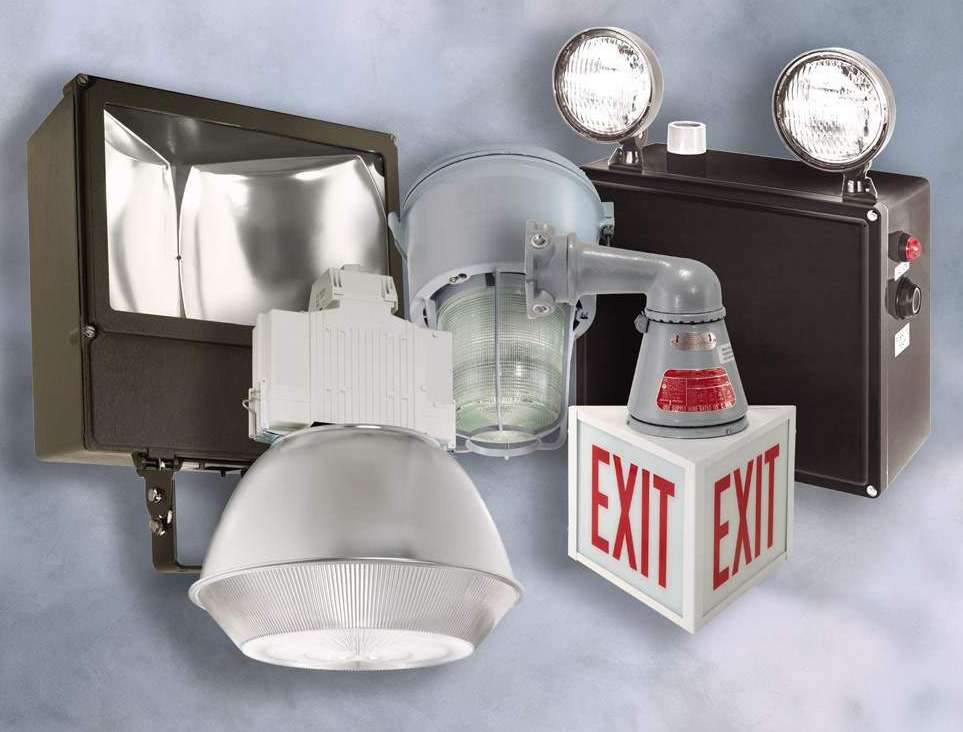

Apr 29, 2003 General Lighting Line consists of indoor low-bay and high-bay fixtures, as well as outdoor quartz floodlights, wall-pack lighting fixtures, and sports floodlights. Available in wattages from 150–1000 W HID, low-bay and high-bay fixtures offer low-glare illumination suitable for manufacturing, storage, and other indoor areas.

NKK Switches    Scottsdale, AZ 85260-3420
Apr 28, 2003 MR series rotary switches incorporate metal construction, positive detent mechanisms, and break-before-make contact mechanism. Rotaries measure ½ in. in diameter and have .787 in. shaft lengths. MRX models have PC-Turret terminals and are available in 1-, 2- and 4-pole options, varying from 2-8 positions. They rate 2 A @ 125 Vac and 1 A @ 30 Vdc. MRY model is 1-pole rotary with 2-6 positions and rates 3 A @ 125 Vac and 2 A @ 30 Vdc.

Artesyn Communication Products Inc.    Madison, WI 53717

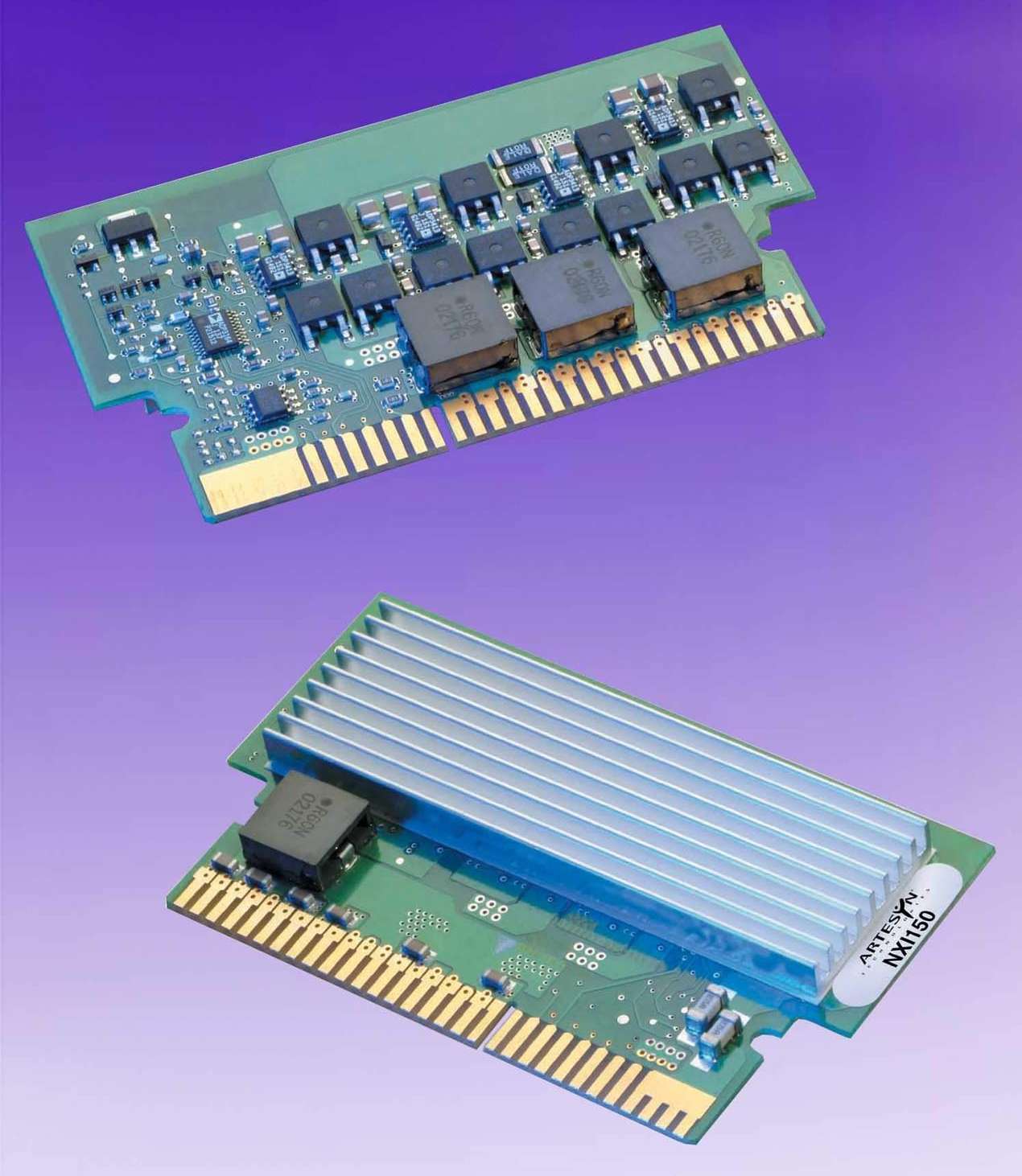

Apr 28, 2003 Models NXI100 and NXI150 non-isolated, point-of-load DC/DC converters power Intel's Xeon(TM) and Pentium 4 processors. They deliver up to 75 A continuous, 81 A peak at user-programmable voltage from 1.10-1.85 V using standard 5-bit VID codes. Both operate from nominal 12 V input. Multi-phase synchronous rectification techniques with interleaving achieve switching frequency of 1MHz. Converters feature typical efficiencies of 85-87% and come in PCB-pluggable forms.

Hubbell Inc. (Delaware) / Wiring Device-Kellems Division    Milford, CT 06460

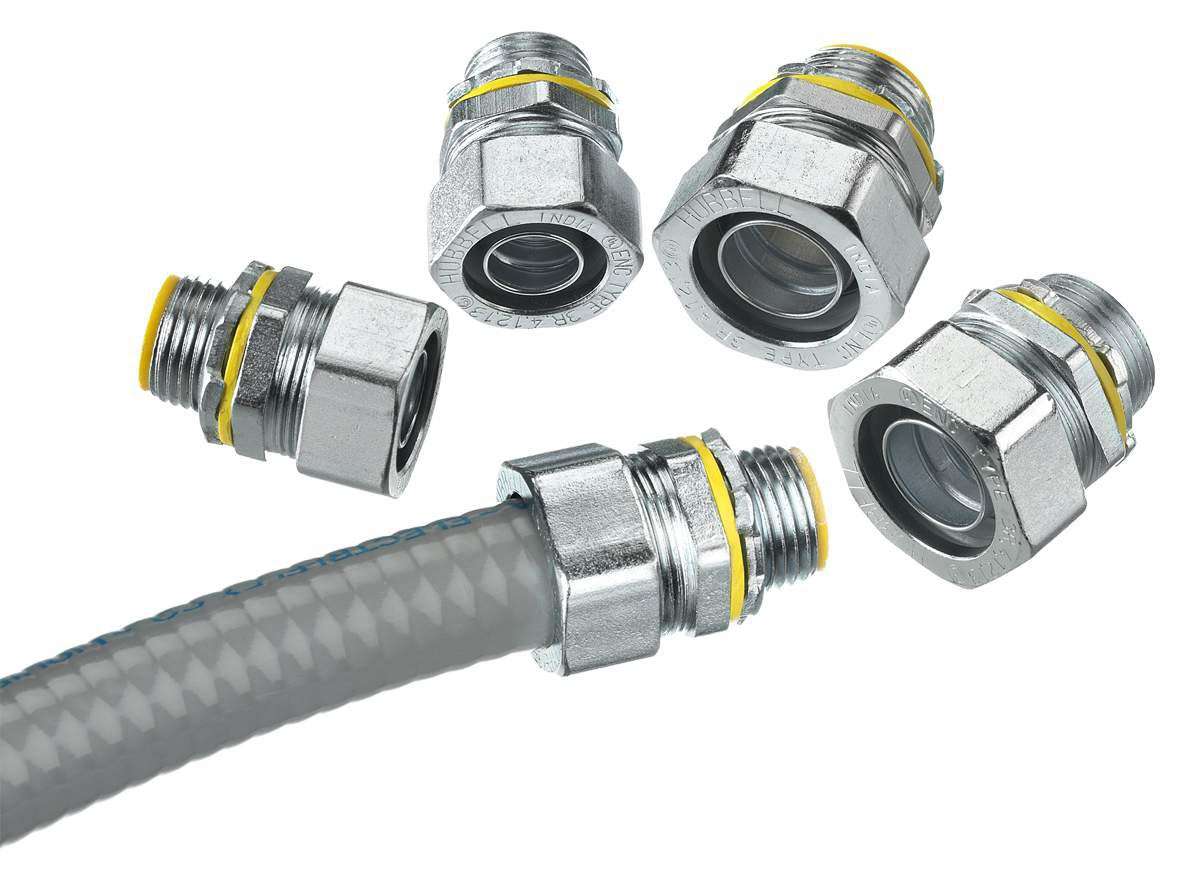

Apr 28, 2003 Metallic Liquidtight Conduit Fittings, offered in ½ and ¾ in. straight body design, feature UL Type 3R, 12, 13, and 4 environmental enclosure ratings. They are 3rd party certified to provide protection from windblown dust and rain, splashing water, hose-directed water, and damage from external ice formation.

Beta Dyne Inc.    Bridgewater, MA 02324

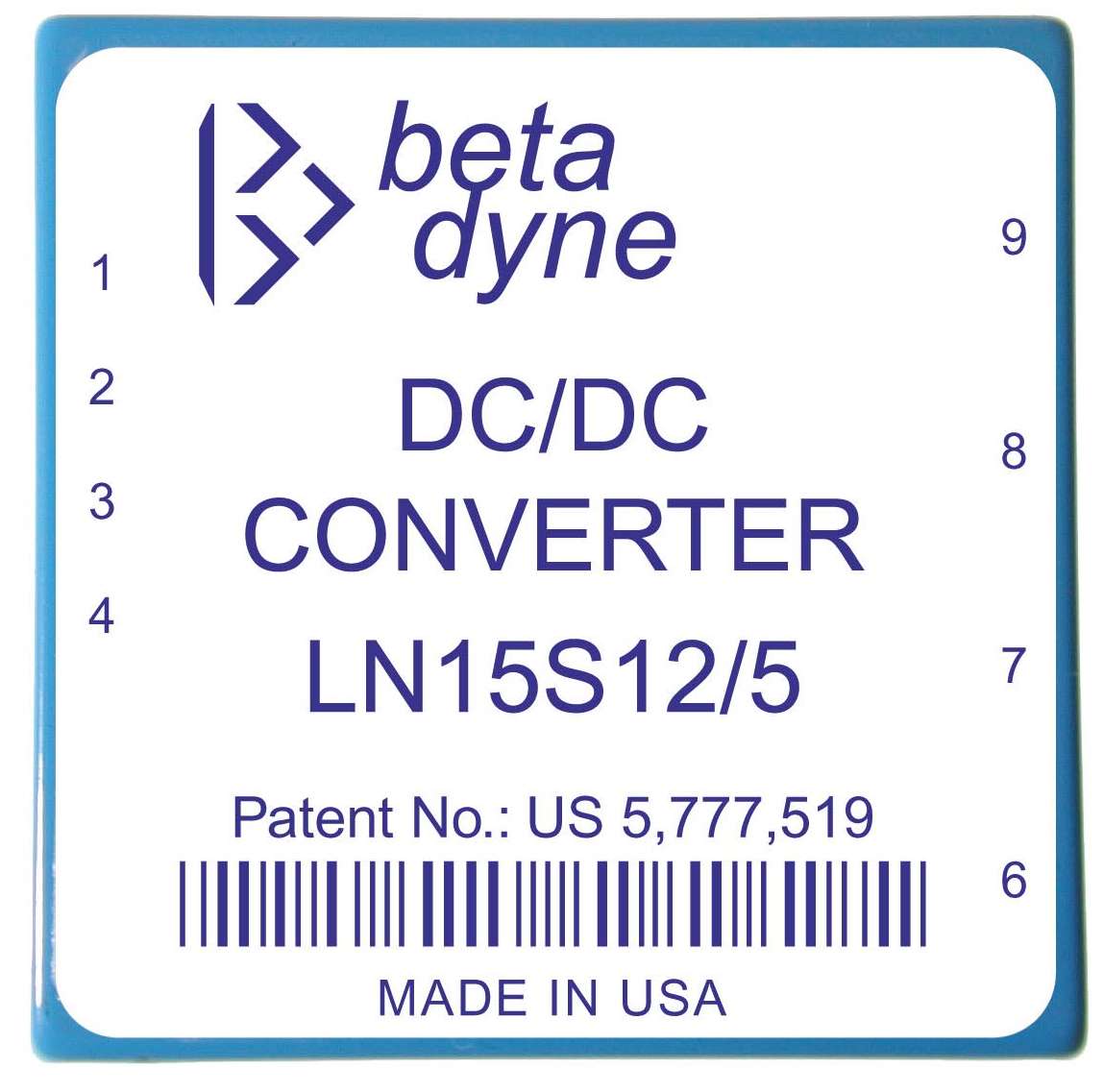

Apr 28, 2003 Isolated, 15 W, DC/DC converters, offered in single- and dual-output models, incorporate 250 mV dropout linear regulators and control circuit that maintains min constant dropout voltage over line and load temperature and output adjust range. With efficiencies to 88%, units include 6-sided shielding, soft start, adjustable outputs, and short circuit and thermal protection. Also offered: 750 µA off state current, industry pinout, and dual output tracking linear regulator.

Gilway Technical Lamp    Woburn, MA 01801 1005

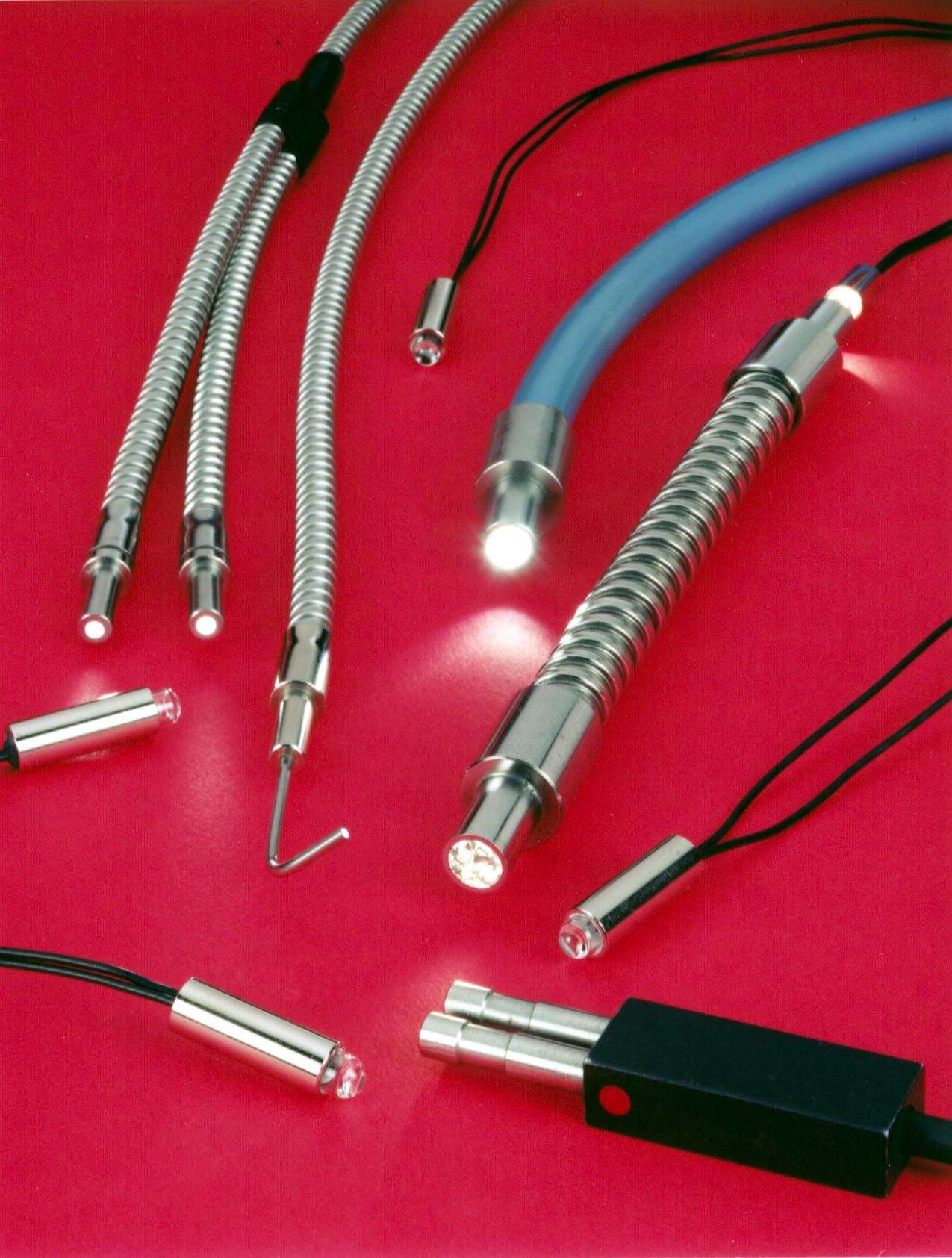

Apr 28, 2003 Focused Lens-End Lamps are miniature light sources that project concentrated high intensity beam of up to 17,000 Lux. They operate at low voltages from 2.5-12 V and 0.020 to 1 A current. Permitting use of lower wattage lamps while maintaining light output, lamps are offered in 5-13 mm dia sizes as vacuum types or gas-filled with argon, krypton, or halogen. They feature precisely positioned tungsten filaments and either smooth or threaded brass bases or no base.

TE Connectivity Ltd.    Berwyn, PA 19312

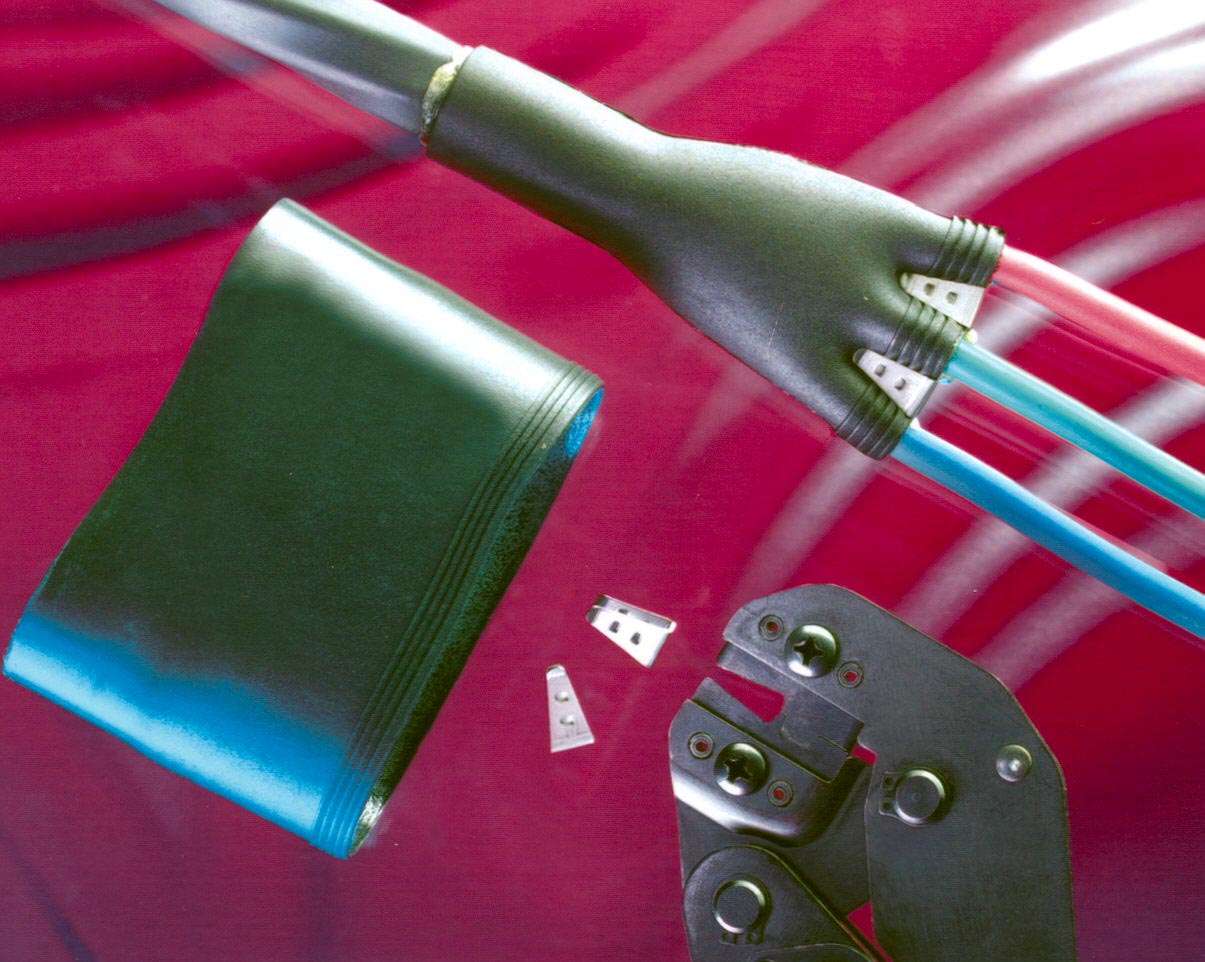

Apr 25, 2003 Series QFT heat-shrink transitions form watertight seal around cable splices, protecting against rough mechanical conditions and corrosion while maintaining electrical insulation properties. They are made from black polyolefin and can be used in temperatures from -20 to +70°C. Transitions resist exposure to fluids including water, engine oils, hydraulic fluids, gasoline, and cleaning fluids.

UNIVERSAL ELECTRIC CORP    Canonsburg, PA 15317

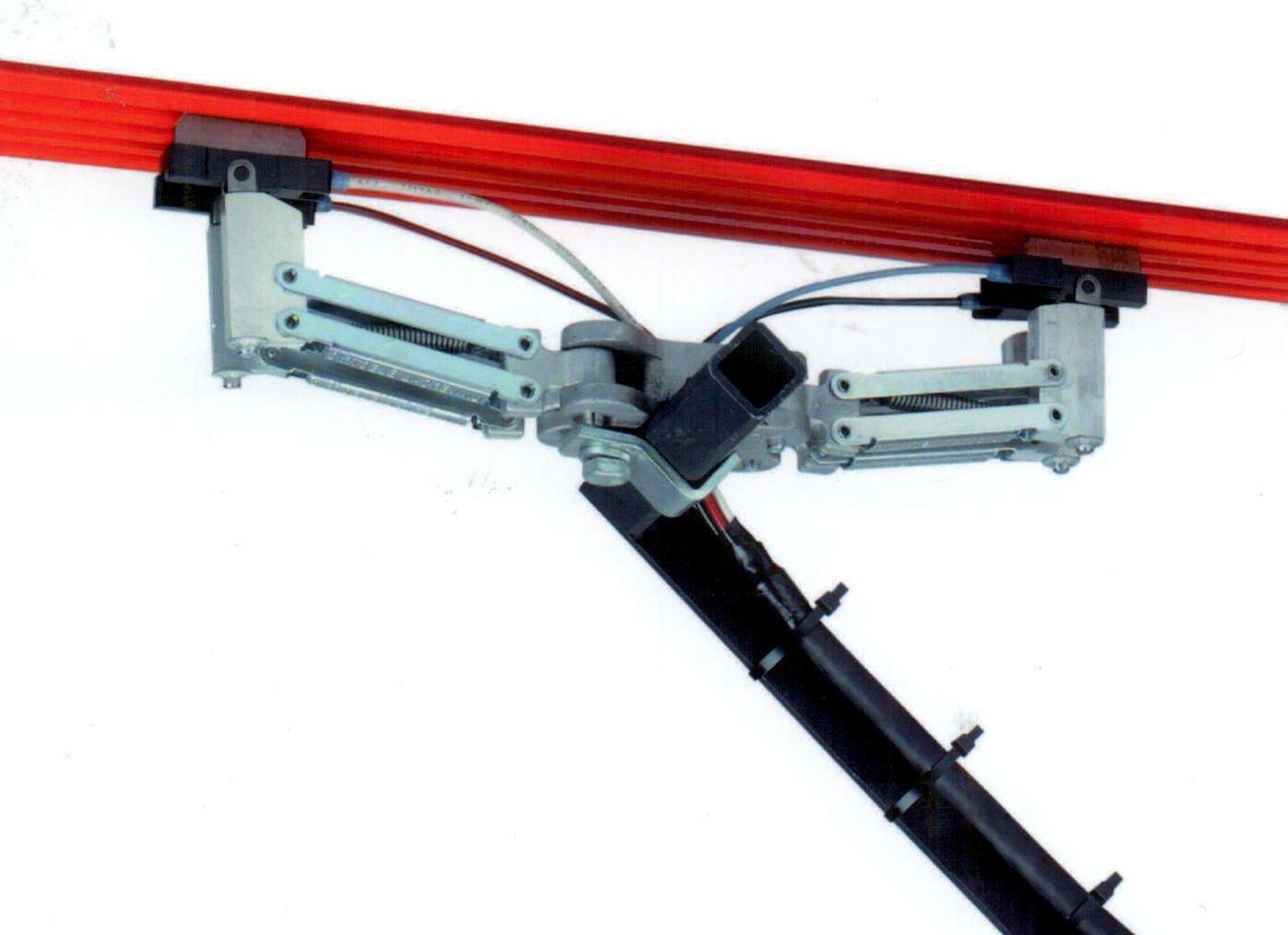

Apr 25, 2003 TightWire 1-piece insulator with 3 or 4 conductors provides electrification for overhead cranes, hoists, and other moving equipment. Available in rolls cut to application's required length, product snaps into mounting hangers every 10 ft. Power collector is mounted to moving equipment and has spring-loaded collector arms that guarantee positive contact along conductors. Product comes with 3 pole, 50 A or 90 A copper conductor or 4 pole, 50 A or 90 A copper conductor.

Beta Transformer Technology Corp.    Bohemia, NY 11716 2504
Apr 25, 2003 Series TGB Twin Gigabit Transformers meet requirements of ANSI X3T11, Fibre Channel and FC-PH-3 specifications. They are housed in 0.185 in. maximum height, surface mount package, which is suitable for PMC and other low profile configurations. Four different frequencies are available with or without center-tap. Operating temperature is -40 to +85?C.

TE Connectivity Ltd.    Berwyn, PA 19312

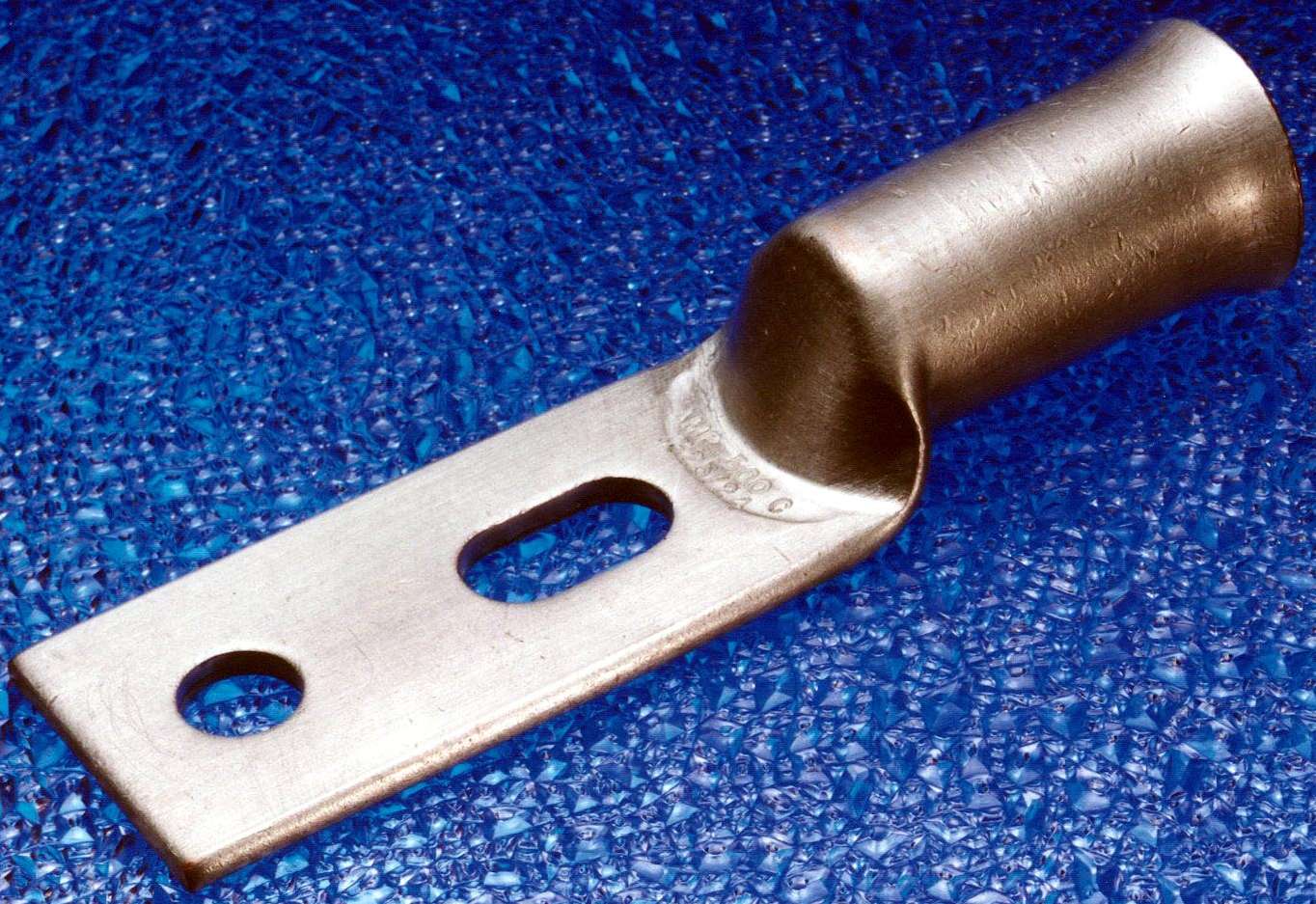

Apr 25, 2003 AMPOWER slotted tongue electrical terminals employs design with 1 round stud hole and 1 slotted hole on terminal tongue. Product allows maintenance and repair shops to reduce electrical terminal inventories and simplifies installation for applications with stud spacing variations. Available in 4/0, 300 MCM, and 500 MCM wire ranges, products are offered in additional styles and are constructed of high-conductivity copper with tin or silver platings.

Electro-Mech Components, Inc.    South El Monte, CA 91733 3689

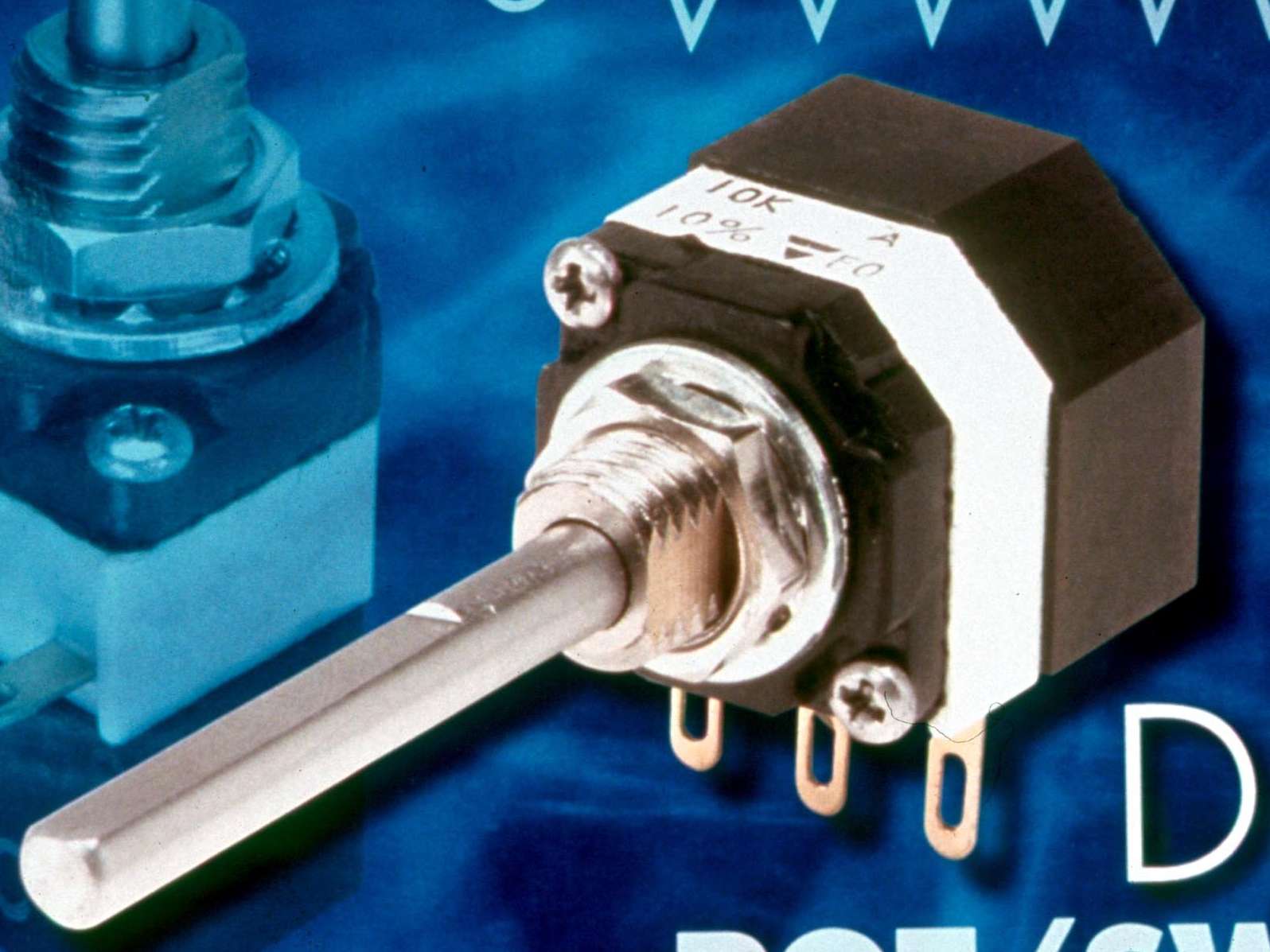

Apr 25, 2003 Model SW44212 combines rotary switch and potentiometer capability in miniaturized configuration Pot/Switch. Non-illuminated switch with silver-plated contacts offers switch functions that are from beginning of clock-wise NO rotation. With mechanical rotational life of 50,000 cycles min, 0.500, 0.875, and 2.500 in. shaft lengths are available. Product is rated 30 Vdc or 115 Vac, 2 A resistive, 0.5 A inductive. Entire assembly is packaged into 0.52 x 0.52 x 0.655 in. housing.

Eraser Co., Inc., The    Syracuse, NY 13221

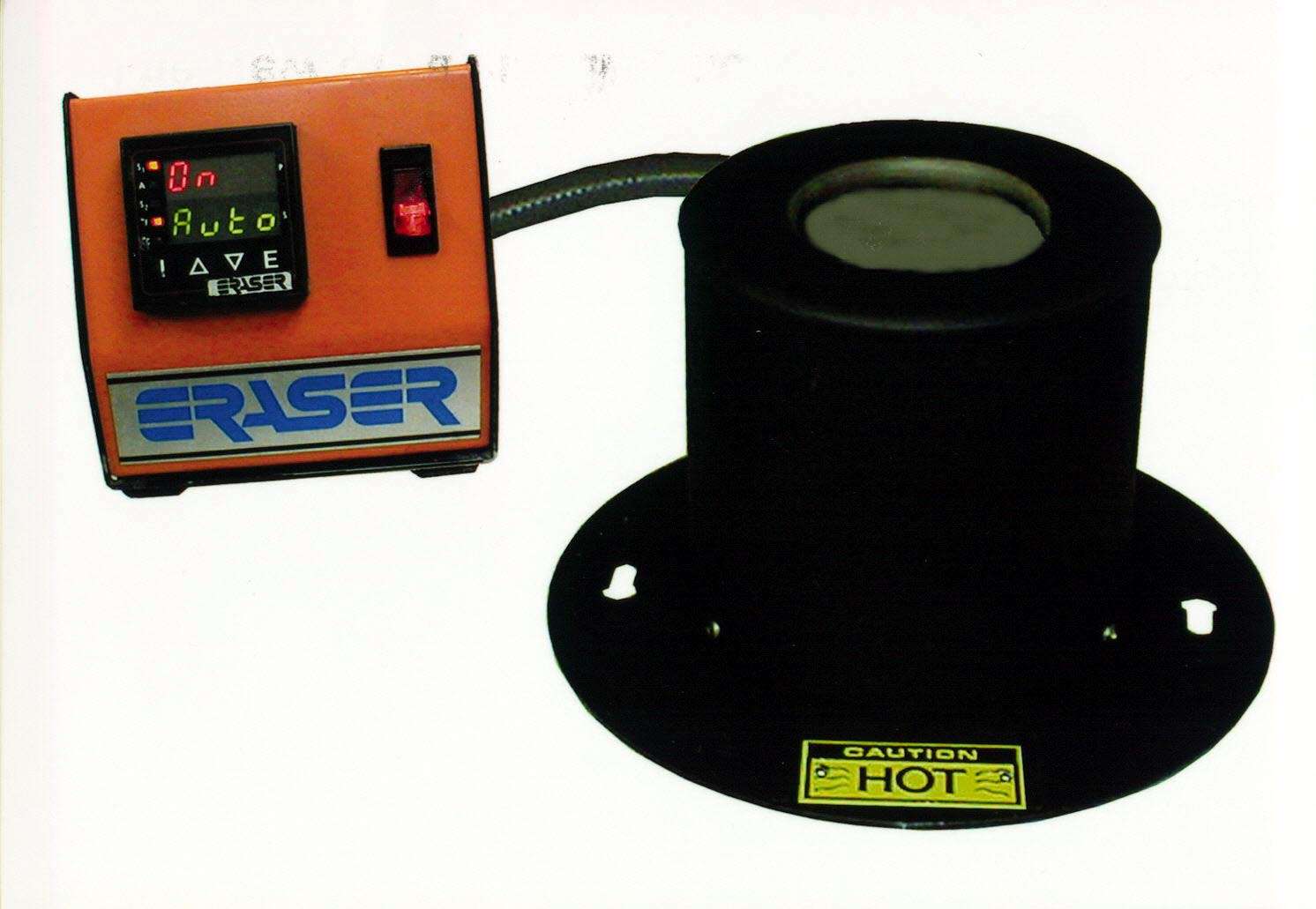

Apr 25, 2003 Model USP1 strips film insulation from 40 AWG to 50 AWG magnet wires. Wires are dipped into Ultrafine Stripper solution, which is heated to 145–230°F to remove insulation. Stripping method will not cause any mechanical stress or abrasion to wires.
