Jacoby-Tarbox, A Division Of Clark-Reliance Corp.    Strongsville, OH 44136 5513
Jun 18, 2003 Phaeton Series Tank Lights produce bright, clean light for safe viewing into any process vessel or storage tank. Products require less than 1 A of power and are rated for over 11 years of continuous operation. View-thru feature eliminates need for second tank window, and direct powered LED lights remove potential burning hazard to face and hands. Available as 6 or 4 in. light rings, units are available in 240 Vac, 120 Vac, and 24 Vdc source.

LEDtronics, Inc.    Torrance, CA 90505
Jun 18, 2003 Right-Angle 3 mm PCB LED indicators, suited for applications requiring precise alignment of status indicators, withstand stress of automated positioning machinery. LEDs come in bi-level, tri-level, and quad-level units in single-column to 4-column configurations. Diffused lenses are standard. Offered in red, green, and yellow, products are also offered in bi-colored combinations. Solid-state design is impervious to shock, vibration, and frequent switching.

Panduit Corp.    Tinley Park, IL 60477 3091
Jun 18, 2003 PAN-TERM Ring Terminals are offered in nylon, vinyl, and non-insulated models. Brazed seam creates solid barrel, which assures high mechanical and electrical performance in non-insulated and vinyl series. Funnel entry insulation speeds wire insertion and helps eliminate turned back strands in vinyl Series. Color-coded insulation sleeve identifies wire range and provides quick visual identification in nylon and vinyl models.

Endicott Research Group, Inc.    Endicott, NY 13761
Jun 18, 2003 Series MS provides up to 45 W of output power for backlighting of LCDs 20 in. diagonal and larger in size that are powered by 6 CCFLs. Product offer multiple, fully encapsulated transformers that ensure CCFL ignition and prevent cross-talk. By separating lamps in each CCFL cluster, inverter keeps them from interacting and prevents current from jumping from lamp to lamp. Series offers on-board pulse width modulation dimming with analog control.

Linear Technology Corp.    Milpitas, CA 95035
Jun 18, 2003 Model LT3465 consists of switching, constant current, white LED driver in ThinSOT(TM) package. Capable of driving up to 6 white LEDs from one Li-Ion cell, it offers efficiencies to 81% and switches at 1.2 MHz. Unit provides constant frequency PWM operation and delivers same current to each LED, regardless of variations in forward voltage drop. It offers output voltage limiting, one-pin dimming control, and internal soft-start.

NKK Switches    Scottsdale, AZ 85260-3420

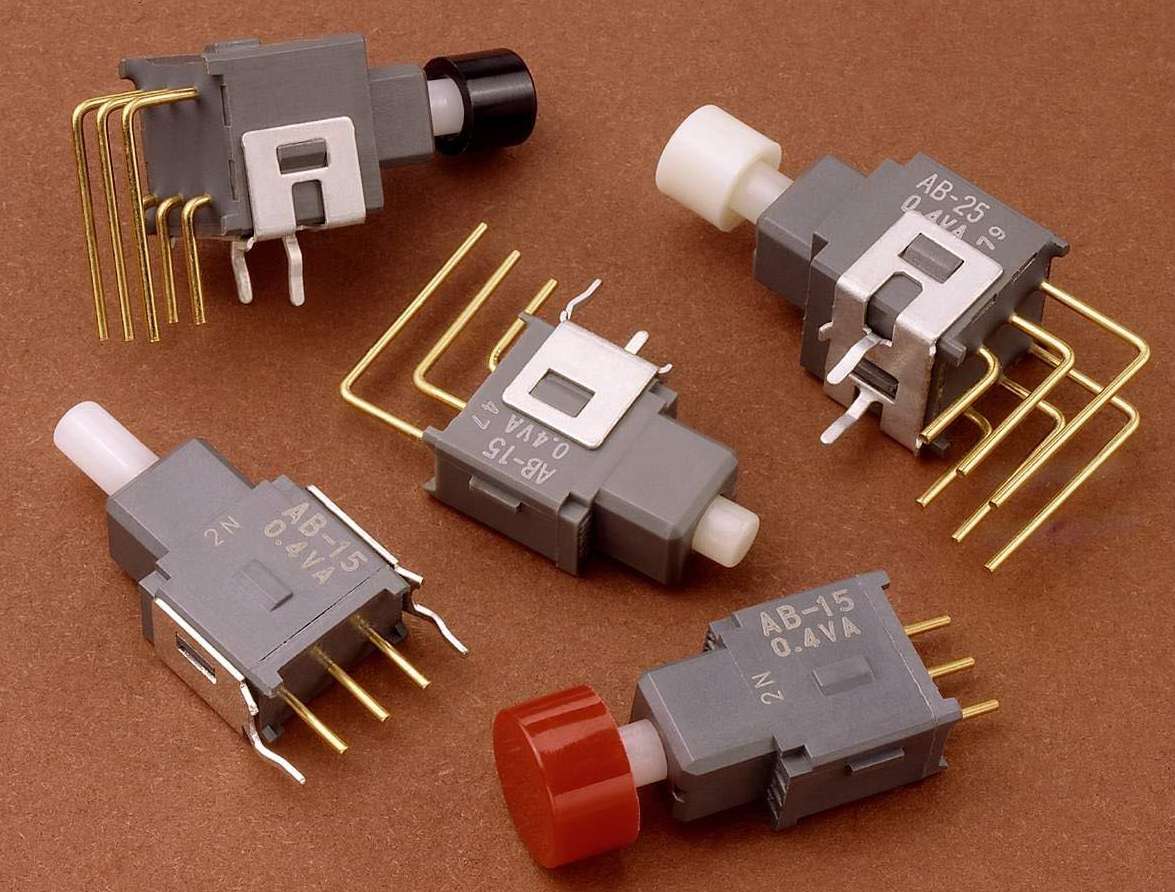

Jun 17, 2003 Rated 0.4 VA max @ 28 V AC/DC max, A-Series subminiature switches incorporate Sliding Twin Crossbar contact mechanism. Process-sealed products withstand automated wave soldering, washing, and processing techniques. Available in single- and double-pole models, units measure .516 and .362 in. high, respectively. Single-pole versions are .230 in. deep. Other measurements include smooth bushing length of .177 in. and .100 x .100 terminals that conform to standard PC board grids.

Action Instruments, Inc.    San Diego, CA 92123
Jun 17, 2003 DIN-rail-mount Model WV108 provides 2 selectable relay output functions. It is powered by 9–30 Vdc and is field-configurable via DIP switches for DC voltages from ±20 mV to ±200 V and dc current inputs of ±10 or ±100 mA. Alarm outputs can be set as high or low alarms to operate in failsafe or non-failsafe modes. TouchCALâ„¢ technology provides electronic stability of microprocessor, enabling 100% adjustment of setpoints and deadbands.

C & D Technologies    Mansfield, MA 02048-1151
Jun 17, 2003 Series ULQ single-output, quarter-brick DC/DC power converters are fully rated for 15, 20, and 25 A output currents and are aimed at 8-15 A applications. They deliver full rated output power/current at 70°C with 200 lfm air flow. Output voltages are 1.2, 1.5, 1.8, 2, 2.5, and 3.3 V. Input voltages are either 24 V or 48 V nom. All models offer 2250 Vdc isolation and line/load regulation of ±0.5%/±0.5% max. They meet UL/EN60950 safety requirements for BASIC insulation.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jun 17, 2003 Models MIC2213 and MIC2214 each consist of 2 low-dropout regulators, power-on reset supervisor, and open-drain driver with adjustable delay time. First regulator can source 150 mA of current, while second regulator can source 300 mA. Total current consumption is 48 µA. Suitable for portable applications, units are housed in 3 x 3 mm MicroLead Frameâ„¢ leadless package. They feature low dropout voltage of 120 mV at 150 mA and transient response of less than 10 µs.

ITT Industries, Cannon    Santa Ana, CA 92705
Jun 16, 2003 Series K6/K12 center-lit key switches offer switching voltage from 2–30 Vdc and switching currents from 10 uA to 100 mAdc. Contacts are cleaned during each actuation. Available with center-positioned, 3mm T1 and argus T1-LEDs, standard colors include yellow, green, red, and orange. The 3 mm LEDs are suitable for illuminating small surface on top of switch. Argus LEDs, in combination with reflector, deliver homogenous illumination.

Positronic Industries, Inc.    Springfield, MO 65801 8247
Jun 16, 2003 Type K thermocouple crimp contacts, machined from solid bar stock, are suitable for company's Front Runner circular connectors and RD Series d-subminiature connectors.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jun 16, 2003 Surface-mount QTLP650D-RGB is top illuminating for back-lighting and status indication. Side-illuminating, right-angle QTLP614C-RGB is for edge lighting LCD displays. Low profile QTLP650D-RGB and QTLP614C-RGB lamps have heights of 1.1 and 1.5 mm, respectively. Lamps provide red, green, or blue color output, and can mix RGB light sources for multi-color output. They may be used with company's LED driver ICs for full range of color and brightness control.

Matrix Systems Corp.    Calabasas, CA 91302 1440
Jun 16, 2003 Model 13761 bi-directional-random addressable matrix features front panel keypad control, LCD display, crosspoint verification, and redundant, pluggable power supply system. RS-422 unit features 8 x 10 x 16 balanced pair configuration, frequency response of DC–10 MHz, and I/O impedance of 100 ohms nominal. IRIG matrix provides 8 x 10 coaxial configuration, frequency response greater than 10 MHz, and I/O impedance of 75 ohms nominal.

Cooper B-Line    Highland, IL 62249-1331
Jun 16, 2003 X-Hookâ„¢, with Xylan® coating for smooth, frictionless surface, eliminates need for cable rollers. It is suitable for pulling cable and for use in corners, drop-outs, or any direction change in cable run. Three sizes are available and include Qwik-Latchâ„¢ cable retainer.

Keithley Instruments, Inc., Test Instrumentation Group    Cleveland, OH 44139 1891
Jun 13, 2003 Model 2306-VS dual channel fast transient power supply with external triggering allows externally triggered output voltage level changes to reduce execution time compared to traditional GPIB/SCPI command and control. External triggering allows for synchronized and deterministic control of output voltages and measurements. Automated voltage stepping lets users preprogram set of voltage outputs and measurement readings.

Astec America Inc.    Carlsbad, CA 92008
Jun 13, 2003 AC-to-DC Model HPS3KW is housed in 5.25 in. bulk front end. Modules deliver 3000 W of output power at 85% efficiency and 19 in. rack can be configured with up to 6 devices for total of 18,000 W of power in less than 2,400 cu in. Single-output devices provide 48 Vdc output at 57 A. Modules accept ac input from 180 to 264 Vac and feature active power factor correction greater than 0.98 to meet EN61000-3-2 requirements for input current harmonic content.

Electro-Mech Components, Inc.    South El Monte, CA 91733 3689
Jun 13, 2003 With snap-action design, SW44188 SPST momentary contact switch incorporates lusterless black lens finish. Standard display legends are offered in 0.150 in. high type in standard colors; custom legends are also available. Display lighting includes choice of either T-1 ¾ midget flange based LED or incandescent bulb. Switch ratings are 30 Vdc or 115 Vac, 1 A resistive, 0.25 A inductive. Additional features include operating pressure of 24 oz and and rated switch life of 50,000 minimum actuations.

Fairchild Semiconductor    South Portland, ME 04106
Jun 12, 2003 Model FS6X1220RT, suited for dc/dc forward or fly-back power supply applications, integrates fully avalanche-rated SenseFET with current mode PWM IC. Off-line power switch offers over-voltage, over-load, cycle-by-cycle current limit, and thermal shutdown protection. Product uses integrated 300 kHz oscillator and provides line-under voltage detection, remote sleep on/off, under-voltage lock out, and optimized blanking and gate turn-on/turn-off driver.

Linear Technology Corp.    Milpitas, CA 95035
Jun 12, 2003 LTC3734 and LTC3735 DC/DC converters have 550 kHz operating frequency and power Intel's Centrino® mobile technology for thin and light notebook PCs. Converters are synchronous step-down DC/DC controllers with integrated MOSFET drivers and Intel® Pentium® M compatible power saving mode. Single-phase and PolyPhase® units provide up to 20 and 40 A load current respectively, with input voltages ranging from 4 to 30 V.

Crydom    San Diego, CA 92154
Jun 12, 2003 Offered with integrated, removable finger-proof covers, CW24 and CW48 provide LED status indication and universal connectors. Available in steady-state current ratings of 10, 25, 50, 90, and 125 A rms, products have high surge ratings in silicon-controlled rectifier, AC-switch output configuration. Series CW48 and CW24 have respective blocking ratings of 1,200 and 600 Vpk and come in universal package with 4,000 Vrms isolated metal, base plate construction.
