Supercon, Inc.    Shrewsbury, MA 01545
Sep 24, 2003 Available as stabilized or non-stabilized conductors, Supercon High Field Superconducting Wire provides 16-18 K transition temperature and high critical magnetic field for applications greater than 10 Tesla. It can be supplied as bare or braided fiberglass insulated wire or cable and features 4,500-15,000 Nb or NbTa filaments in CuSn matrix. Product is offered in various configurations and sizes from 0.5-1.25 mm dia. packaged on spools.

Chromalox    Pittsburgh, PA 15238
Sep 24, 2003 SSR Series Power Controllers feature ruggedized construction, touch safe exterior, back-to-back SCR design, ambient ratings of 40ºC, and DIN rail mounting. Products are rated for 25, 50, and 75 A at voltages up to 600 Vac and provide zero-fired single phase control with control signals of 4.5-32 Vdc, 24-265 Vac, or 24-190 Vdc. Other features include self-lifting terminals, LED status indicator, and removable IP20 touch protection cover.

Samtec, Inc.    New Albany, IN 47151 1147
Sep 24, 2003 Q2â„¢ shielded connector system incorporates shield plates along sides of connector and terminates them to PCB via selected signal pins. Available in single ended and differential pair versions, system has signal pins on .025 in. pitch and is available with 52, 104, 156, and 208 total pins per connector set. Connectors are polarized to ensure proper mating. In addition to vertical mating, edge-mount, power combo, and non-shielded versions are available.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 23, 2003 Models SN65LVCP22 and SN65LVP23 are 2 x 2 crosspoint switches that provide 2:2 buffering, 1:2 splitting, and 2:1 multiplexing. Model SN65LVCP22 supports LVPECL/CML to LVDS level translations, while Model SN65LVCP23 supports LVDS/CML to LVPECL level translations. Both feature 50 ps peak-to-peak jitter, 1.7 ns switch time, and operating temperature of -40 to +85°C. They meet redundant serial bus transmission needs of fault-tolerant systems.

Positronic Industries, Inc.    Springfield, MO 65801 8247
Sep 23, 2003 Developed to support live insertion and extraction requirements of cards used in computing platforms, VP Series connectors provide dedicated power interface between plug-in boards and backplanes. VPX power connectors, developed for VITA 41 VXS (VME Switched Serial), are uniquely sized for compatibility with IEEE 1101.2 conduction cooled boards and PMC cards per IEEE 1386. Six power contacts and 3 levels of sequential mating are offered.

Invensys    Foxboro, MA 02035

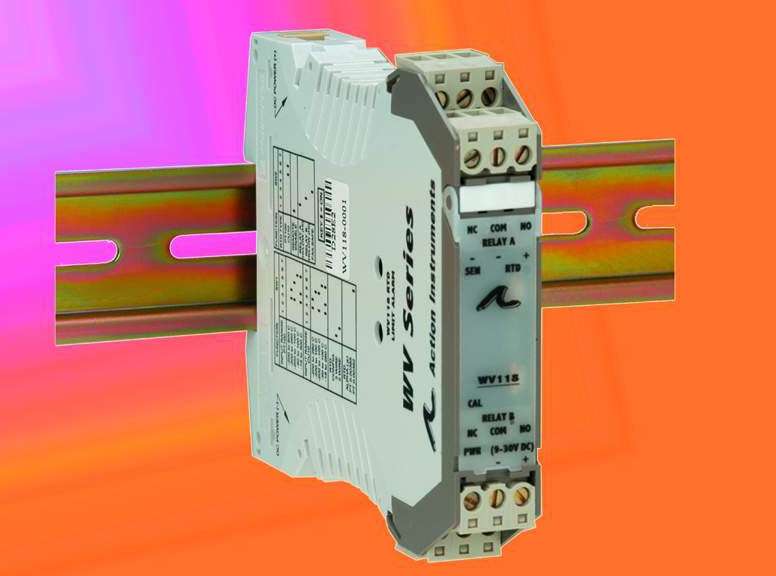

Sep 23, 2003 DIN-rail-mount Model WV118 accepts provides 2 selectable relay output functions and is powered by 9–30 Vdc. It is field configurable via DIP switches for 2– or 3–wire, Pt100 RTDs of either alphas of 0.00385 or 0.00392, as well as copper Cu10 RTDs. Dual relay alarm outputs can be set as high or low alarms to operate in failsafe or non-failsafe modes. TouchCAL™ technology enables 100% adjustment of setpoints and deadbands.

Orange Research, Inc.    Milford, CT 06460

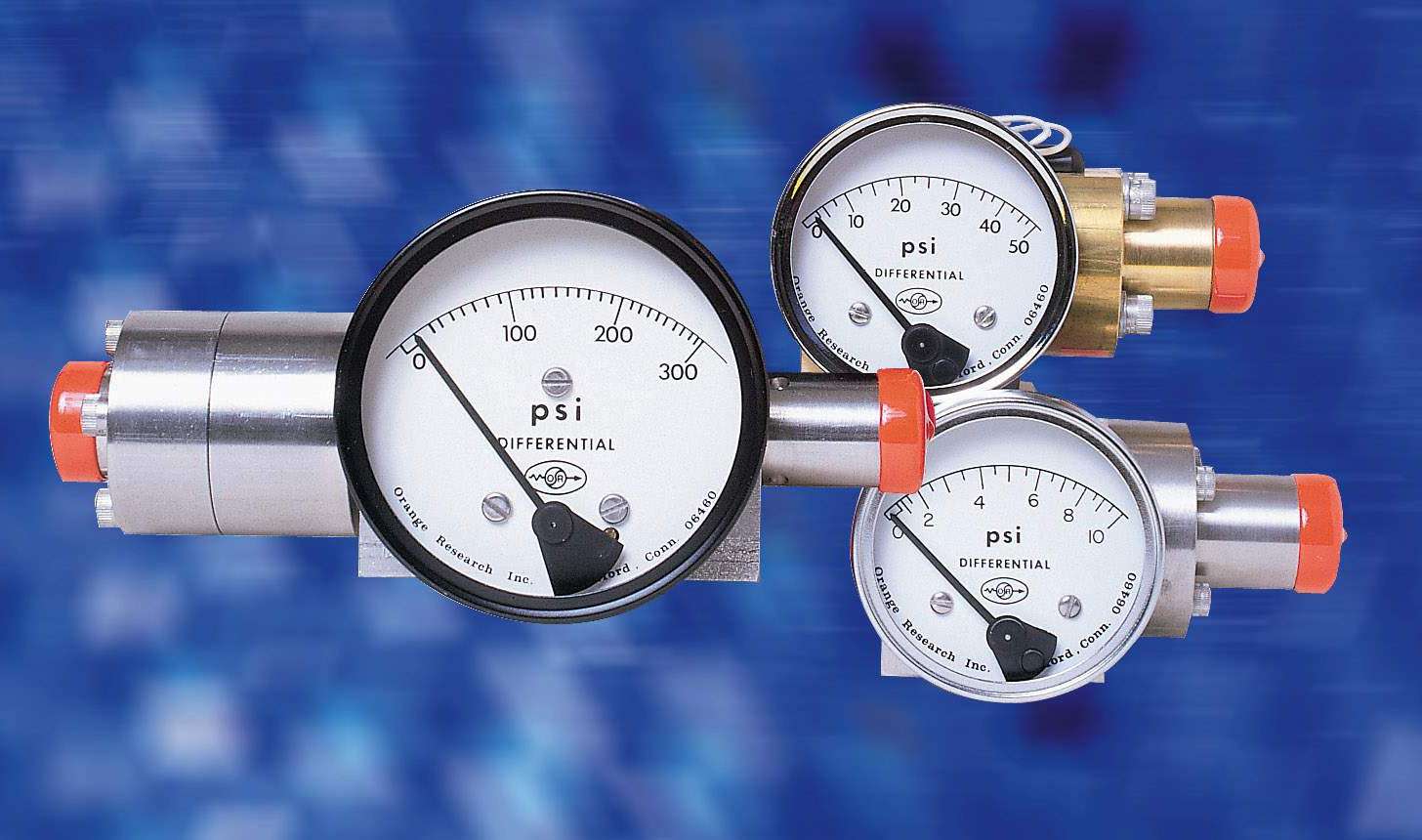

Sep 23, 2003 Series 1500 Sensors measure high differential pressures without fluid migration. Diaphram is combined with piston-magnet pointer assembly to completely seal piston area. Bodies and wetted parts are anodized aluminum, type 316 stainless steel, naval brass, or PVC. Available in switch and gauge-switch models that measure more than 18 pressure ranges from 0-5 to 0-300 psid, instruments include 1 or 2 independently adjustable reed switches.

GE Industrial Systems    Fort Wayne, IN 46802
Sep 22, 2003 Digital Energyâ„¢ SG Series UPS systems are built upon digital processing design. Unique Redundant Parallel Architecture eliminates single points of failure, while low output voltage distortion results in clean output waveform. Additional features include Space Vector Modulation, output isolation transformer, and battery management. Front service access minimizes footprint, and integrated input filter reduces current distortion.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Sep 22, 2003 Non-synchronous TPS6420x series controllers conserve battery life in battery-powered applications with input voltages from 1.8–6.5 V that must be stepped down to regulated voltage to 1.2 V and provide output currents from 1–3 A. Housed in 6-pin SOT-23 packages, devices feature quiescent current of 20 µA and drive external P-channel MOSFET. Products use minimum on-time and off-time control scheme and feature internal soft-start and over-current protection.

GE Industrial Systems    Fort Wayne, IN 46802
Sep 22, 2003 TransforMoreâ„¢ Tranformer Line is used in low voltage commercial, industrial, and residential distribution, and in applications for feeding main power to distribution equipment. Safety features such as alarm, 3-phase disconnect, and dry contacts are provided for remote monitoring.

GE Company, GE Industrial Systems    Plainville, CT 06062
Sep 22, 2003 TransforMoreâ„¢ 300 kVA dry type transformer includes safety features such as alarm, 3-phase disconnect, and dry contacts for remote monitoring. Unit's size and weight aid in installation. Product is suited for low-voltage commercial, industrial, and residential distribution as well as applications for feeding main power to distribution equipment.

Dortronics Systems, Inc.    Sag Harbor, NY 11963

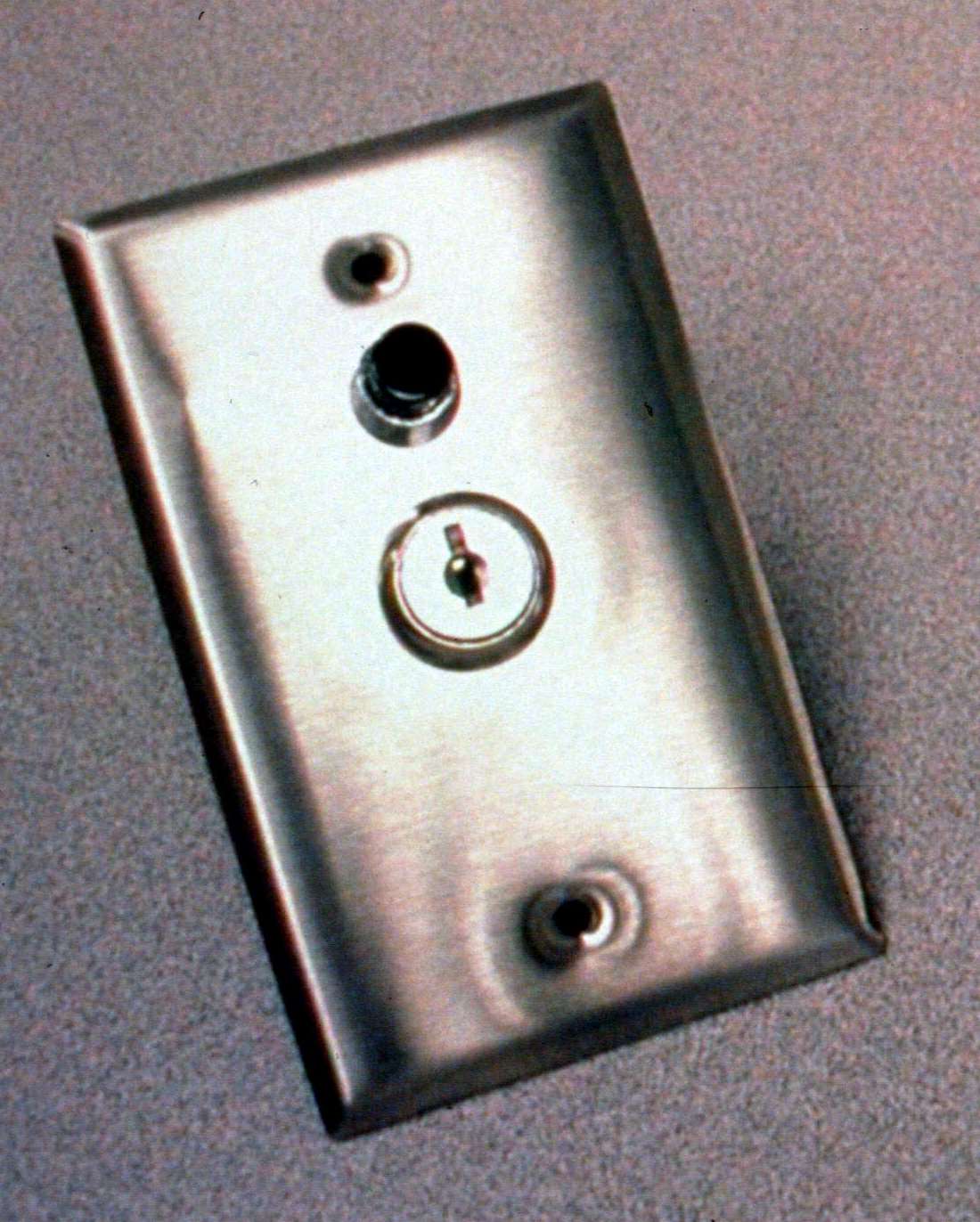

Sep 18, 2003 Series 5241 Electric Key Switches restrict use of electrically operated entrance control systems, alarms, locks, and other devices to key carrying personnel. Contact outputs include SPNO, SPDT and DPDT. Key operation may be supplied as key removable in either or both positions, depending on application. Switch contacts are rated for 3 A at 125 Vac or 28 Vdc. Pushbuttons come standard as SPDT momentary action and can be changed to meet requirement.

Adalet    Cleveland, OH 44135 3301

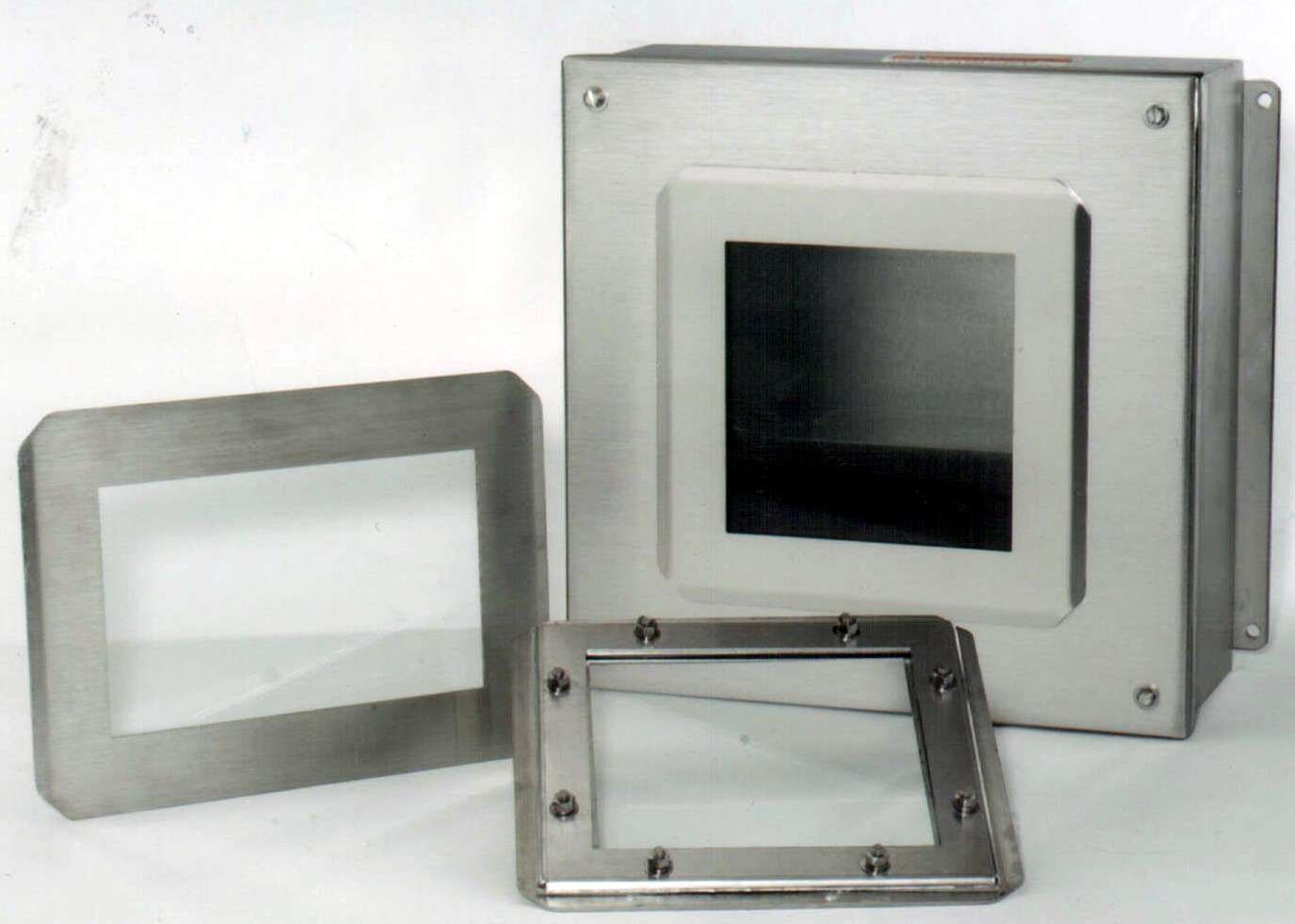

Sep 18, 2003 Tempered-plate-glass window kits, offered with 304 and 316L stainless steel frames, are available for use in company's Increased Safety Terminal Enclosures (protection type e) and general-purpose NEMA Type 4, 4X, 12, and 13 enclosures. Glass window offers impact resistance. Silicone gasket provides protection against oil and water and provides dust-tight seal around perimeter of window and frame. Sizes range from 3 x 3 in. viewing area to 24 x 24 in.

WAGO Corp.    Germantown, WI 53022

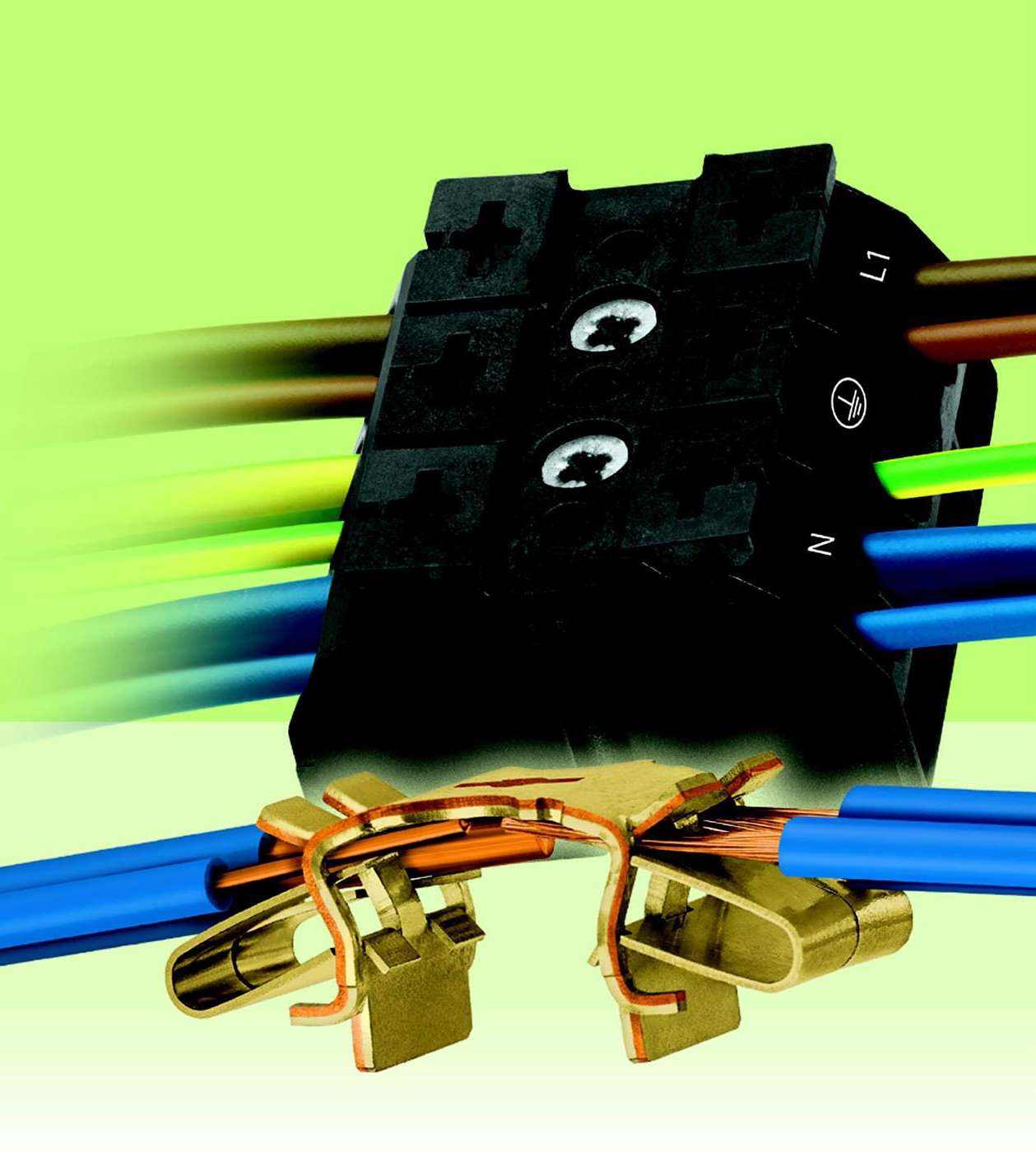

Sep 17, 2003 Series 862 is rated 300 V/20 A or 600 V/5 A and can terminate wire sizes 20-12 AWG. Connectors feature snap-in mounting feet or self tapping screw, built-in test points, and integrated ground contact. Four connection points per pole allow wiring of different gauge conductors, power distribution, or daisy chaining. CAGE CLAMP® spring pressure technology allows solid wire or stranded wire with ferrules to be easily terminated.

Liebert Corp.    Columbus, OH 43229
Sep 17, 2003 PowerSure PSI provides power protection in sizes up to 3 kVA. It can be configured as self-standing mini-tower or rack-mounted within 2U space. Double-boost, single-buck technology protects against surges and sags. PowerSure PSI includes 7–8 battery-backed outlets, data line surge protection, user-replaceable hot-swap batteries, configurable input voltage window, TVSS circuitry, and remote emergency power off. Communication options include USB, Serial, and SNMP.

Ault, Inc.    Minneapolis, MN 55428
Sep 16, 2003 Model PW132 101 W switch mode power supply, featuring 100–240 Vac input power, provides regulated output with low ripple, and complies with EMI/RFI regulations. Typical electrical efficiencies are 85% and mean time before failure exceeds 100,000 hours. Applications include medical monitors/displays and respirators, point-of-sale terminals, wireless local area networks, and satellite receivers.

TE Connectivity Ltd.    Berwyn, PA 19312
Sep 16, 2003 SOLARLOK interconnection system allows for assembly using hand tools or high speed, semi-automatic applicators. Flexible, UL and TUV approved system accommodates serial and parallel solar module connections. Silver-plated, copper alloy contacts, rated at 25 A, offer contact resistance of 1 milliohm or less. Connector housings are offered with positive and negative polarity keying. Weatherproof housing is molded from UV resistant polypheneylene oxide.

LEDtronics, Inc.    Torrance, CA 90505
Sep 16, 2003 With 25 mm Edison-screw bases and light maximizing designs, G25-Style DécorLED products combine Indium Gallium Aluminum Phosphide and Silicon Carbide/Gallium Nitride LED technologies. Offered with power draws of 1.0-1.7 W and in 6 sunlight-visible colors, 18 solid-state LEDs are configured to disperse light in 270° wide angle or 30° acute angle. Individual LEDs incorporate optical-grade epoxy and molded polycarbonate with UV- and shatter-resistant globes.

Norstat, Inc.    Rockaway, NJ 07866
Sep 16, 2003 ISIS Safety Switch achieves 6 mm switching in tamper-resistant, resin-filled ABS or stainless steel body with IP67 protection rating. Available in range of voltages, ISIS control units monitor open and short circuit faults while providing 2 NO safety contacts and one NC auxiliary contact. Control units can monitor up to 2 or 4 safety switches, depending on model, and can monitor E-Stop buttons, combining multiple safety functions into single DIN-rail mounted unit.

NKK Switches    Scottsdale, AZ 85260-3420
Sep 16, 2003 Available with red, green, or amber LEDs, CWSC Series snap-in mounted rockers have even LED color distribution for visible status indication. Products are offered in DPST circuit and are rated at 9 A @ 125 Vac or 6 A @ 250 Vac. Interior shield prevents contamination of rocker by carbon from any arcing, while single-break, snap acting contact mechanism provides smooth actuation and audible, tactile feedback.
