SICK, Inc.    Minneapolis, MN 55438
Nov 11, 2003 Model L 4000 system safety photoelectric switch system safeguards hazardous areas on machinery and access to restricted areas. Type 4, non-contact safety device includes UE 401 evaluation unit, which monitors functioning of sensor and generates cut-off signal if light path is interrupted. Up to 4 individual sensor pairs or 8 cascaded pairs can be connected to unit. Switches are available with metal or plastic bodies and operating ranges from 0-60 m.

Fairchild Semiconductor    South Portland, ME 04106
Nov 11, 2003 Switches offer ON Resistance from 1.0–1.35 ohms which preserves signal integrity and lowers drive necessary to support audio and signal processing. Operating voltage ranges from 1.65–5.5 V, Total Harmonic Distortion is 0.002% typ, and RON flatness is 0.2 ohm typ. Offered in SPDT, SPST/NO, and SPST/NC configurations, they accommodate overcharges of up to 4.6 V, have greater than 350 MHz bandwidth, and provide ESD protection better than 7,500 V (HBM).

Quatech, Inc.    Akron, OH 44311
Nov 11, 2003 Housed in metal cases, CompactFlash cards enable users to add serial ports to handhelds, PDAs, tablets, laptops, and embedded systems for mobile computing applications. Models include one-port RS-232 serial CF card, 2-port RS-232 serial CF card, and one-port RS-422/485 serial CF card. They provide serial connectivity at rates to 921.6 kbps. Single-port cards provide ESD protection, and 2-port cards provide ±50 Vdc isolation for each port.

Xuron Corp.    Saco, ME 04072 1840
Nov 11, 2003 Xuron 170-II Micro-Shear® Flush Cutter employs bypass cutting, which produces clean, square cut using shear action. Ergonomically designed cutter features angled head and contoured, non-slip, soft rubber grips. Equipped with Light Touchâ„¢ return spring, product employs slim profile head that lets users see wire being cut. Lightweight (2 oz) tool also offers glare-eliminating black finish and alloyed steel construction hardened to Rc 54-56.

Mettler-Toledo Process Analytics    Bedford, MA 01730
Nov 11, 2003 Dissolved carbon dioxide measuring system consists of InPro5000 CO₂ sensor and 5100e CO₂ transmitter. It provides in-situ measurement in bioreactors during fermentation. Sensor uses materials that are FDA compliant for high-level hygienic applications, and can be installed in nearly all types of bioreactors. Operational safety is provided through continuous sensor diagnostics. Calibration procedures offer pictographic user interface.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
Nov 11, 2003 UPStation® GXT2 6000 combines 6 kVA capacity and dual output voltage in 4U-sized cabinet. It converts incoming AC power to DC, and then back to AC, isolating protected equipment from incoming disturbances. Unit features dual inverter design for 240/120 or 208/120 output voltage, internal automatic and manual bypass, as well as self-diagnostics. Cabinet includes internal batteries with capacity to provide 5 min of run time at full load.

Radius Power, Inc.    Orange, CA 92867
Nov 10, 2003 EMC Series RP400 eliminates equipment and mains-borne electromagnetic interferences. It features universal input up to 480 Vac and Y configuration, which incorporates filters on all 3 phases plus neutral. Series includes 11 models ranging from 15-300 A/phase. Each is CSA/UL and EN approved for input voltages up to 480 Vac, meeting most ac input line requirements. Applications include industrial and medical equipment, factory automation, and welding equipment.

Astrodyne Corp.    Mansfield, MA 02048
Nov 10, 2003 Modular FEC40 Series converters provide output power of 40 W and accept 2:1 wide range inputs from 18-75 Vdc. Available in 18 models, they are offered with single, dual, and triple outputs from 3.3-15 Vdc. All models provide short circuit protection, OVP, on/off control, internal input filter, and 1,600 Vdc I/O isolation. Ambient operating temperature range is -40 to +50°C.

Phoenix Contact    Harrisburg, PA 17111 0100
Nov 10, 2003 Insulation displacement connection QTC 1.5 terminal blocks have contact that is 20% smaller than other blocks. Quick-connection terminal blocks are available with 5 mm pin spacing, accept up to 22–16 AWG, and have current carrying capacity of 10 A @ 600 V. Wiring entails pushing cable into contact; wire stripping is not required. Terminations are made using screwdriver.

Amerlux Lighting Solutions    Fairfield, NJ 07004-2527
Nov 10, 2003 Aspect Lighting offers horizontal ballast housing in electronic or magnetic versions, and vertical ballast housing in electronic only. Vertical housing is side-mounted and accommodates high and low wattage ballasts. All fixtures offer vertical aiming angle adjustment from 0–90°, as well as locking to maintain aiming position. Aspect Lighting utilizes ED17 Medium Base in 50, 70, and 100 W; T6 G12 Bi-Pin Base in 39 and 70 W; and PAR38 Medium Base in 70 W.

TE Connectivity Ltd.    Berwyn, PA 19312

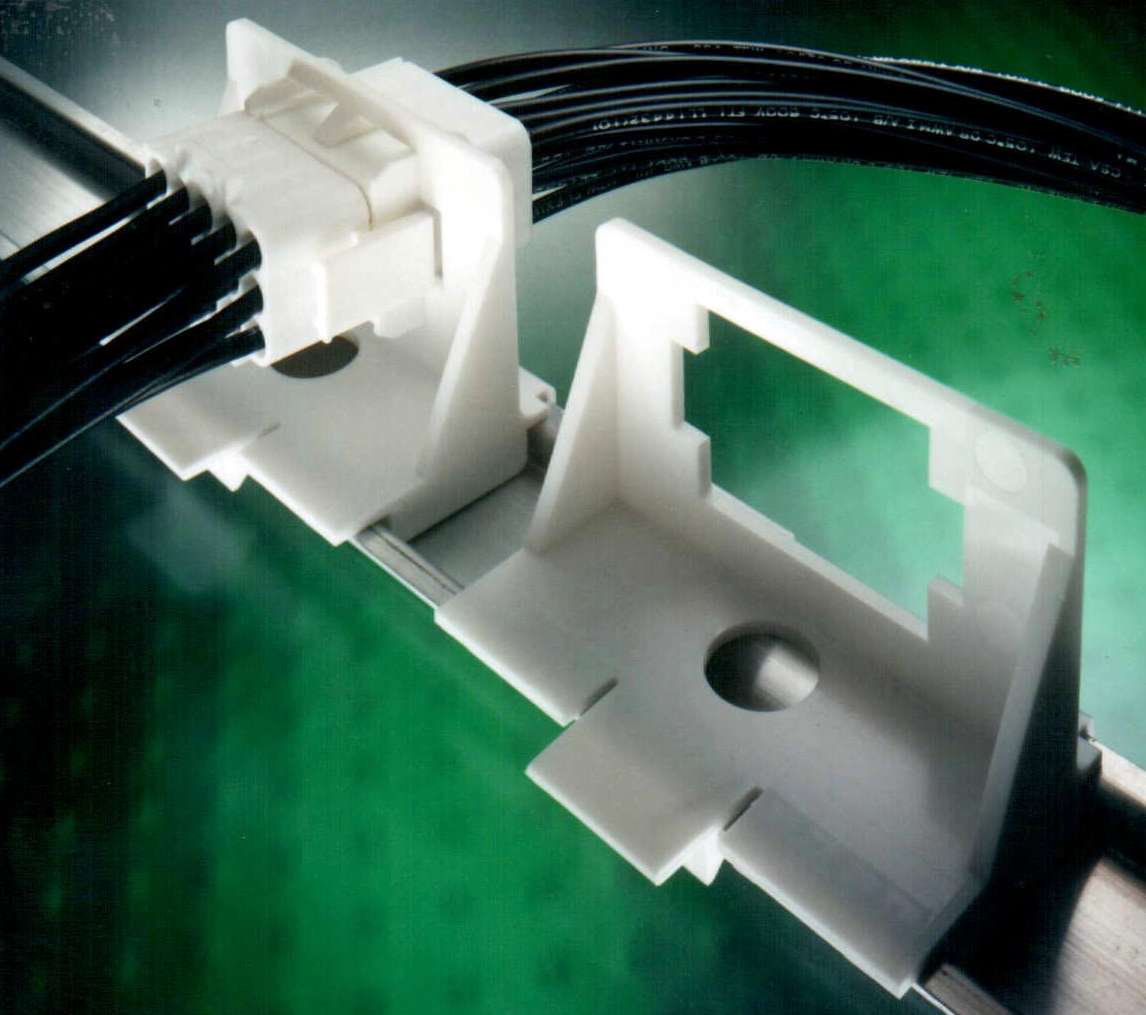

Nov 07, 2003 Combining benefits of using pin and socket connector with convenience of DIN rail mounting, adapter for MATE-N-LOK cap housings allows wire and harness installers to bring 2 ends of cable assembly or wire harness together at DIN rail mounted location. Since connectors are part of wiring harness, entire completed harness can be installed, minimizing difficult point-to-point wiring installation methods and achieving higher wiring densities.

Penn-Union Corp.    Edinboro, PA 16412-2381
Nov 07, 2003 Models TDY-1 and TDY-U feature pressure selection control located on tool handle, permitting tool to crimp variety of connector styles and sizes. Wide, hinged tool head allows easy insertion and removal of butt splices up to 750 MCM. Two-speed hydraulic pump advances ram into contact with connector and automatically shifts into crimping mode to complete connection. Tools have conductor range of 4–750 AWG MCM copper and 4–1,000 AWG MCM aluminum.

Waldmann Lighting Co.    Wheeling, IL 60090

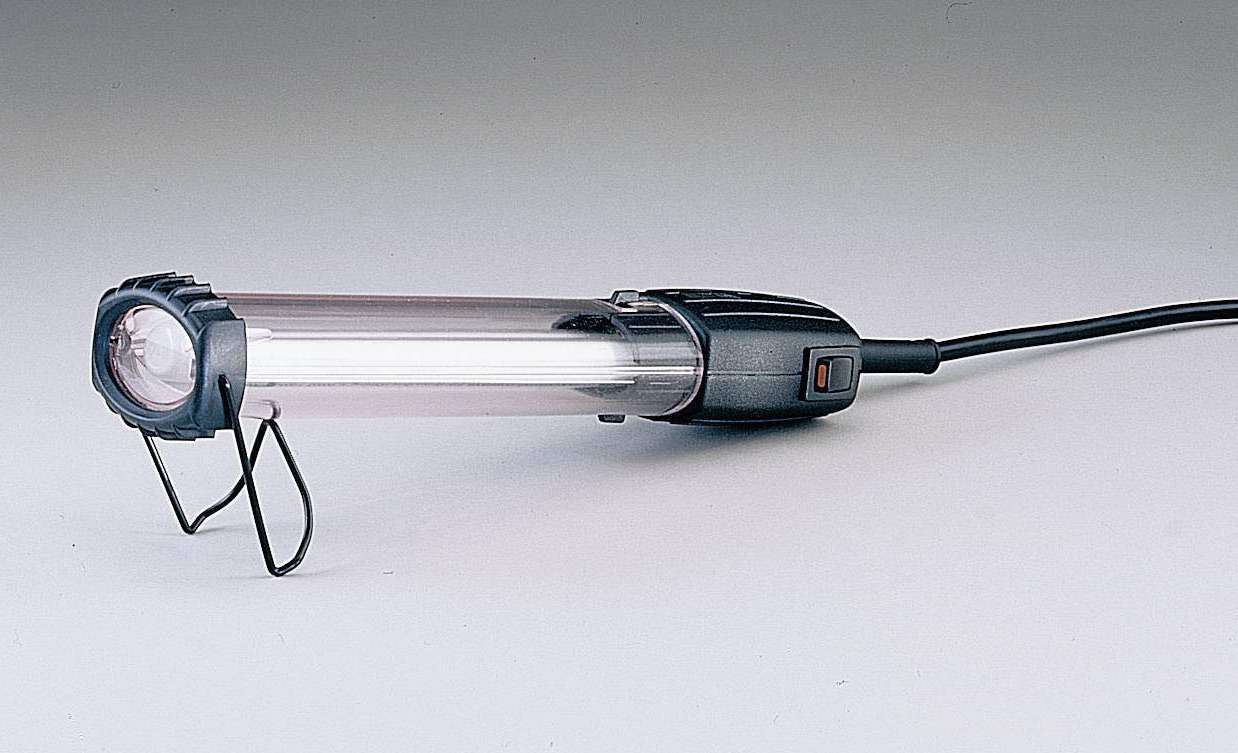

Nov 07, 2003 Model PAL-109 UV features acrylic shield and shock guard cap, which minimizes heat and protects UV lamp from dust or breakage. Removable reflector, built into shield, guides light in one direction. Ten ft cord between light and plug-in ballast allows for positioning and movement, and on-off rocker switch built into handle provides lamp ignition. Model PAL-109 UV delivers 10,000 hr of lamp life and is suited for assembly and inspection applications.

RVSI Acuity Ci Matrix    Canton, MA 02021

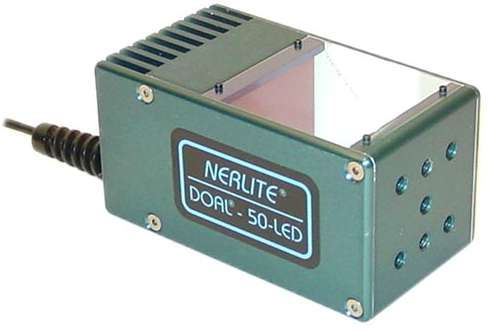

Nov 07, 2003 Series DOAL-50 V2 diffuse-on-axis, LED-based illuminators are available in red or white models with 12 or 24 V continuous and 24 V strobed power. Units are fan-free, allowing them to be used in environments, such as clean rooms, where airflow disruptions are not allowed. Anti-reflective cover protects optics from contamination and accidental damage. DOAL units are suited for applications that have flat specular surfaces requiring uniform lighting.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243

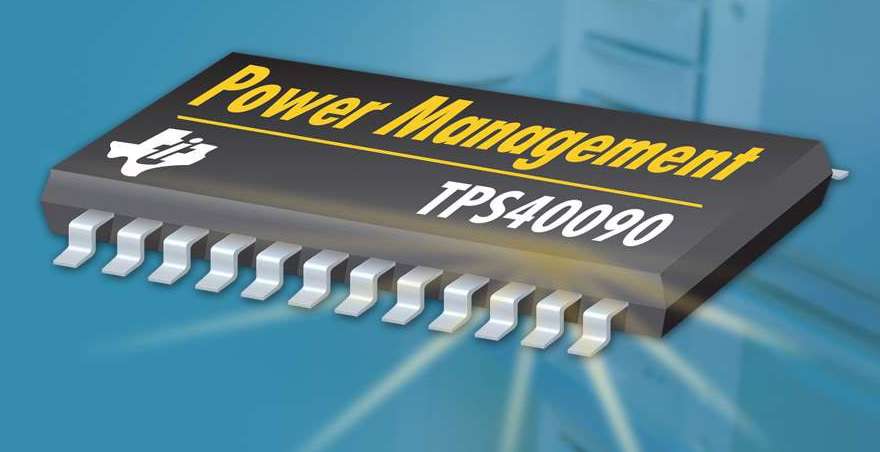

Nov 07, 2003 Series TPS4009x synchronous, DC/DC buck controllers manage 2, 3, or 4 phases and can operate each phase at switching frequency up to 1 MHz, resulting in ripple frequency up to 4 MHz at input and output in 4-phase applications. Single-chip, PWM devices include current sense fault protection, programmable over current protection, and individual phase current detection. They offer more than 90% efficiency and typical output current of 20–30 A per phase.

Texzec, Inc.    Round Rock, TX 78681
Nov 07, 2003 Using ultrasonic technology, ActiveMetalâ„¢ products sense touch through solid metal. Switches, keypads, and keyboards are vandal-proof, waterproof, and explosion-proof. They are resistant to cleaners and solvents and easily sanitized. Products produce minimal EMI and are suited for Class 1 - Division 1-2, NEMA 12, NEMA 4X, and IP65 enclosures. Front surface of touch area can be flat, contoured for finger indexing, or covered with tactile overlay.

NKK Switches    Scottsdale, AZ 85260-3420
Nov 07, 2003 Rated at 15 A @ 125/250 Vac or 30 Vdc, WR series switches have sealed construction that conforms to IP67 of IEC529 standards. Outer housing is constructed of heat-resistant resin that meets UL 94V-O flammability ratings. Available in both SPST and SPDT, they feature black or ivory caps and can be specified with solder lug, screw lug, or wire lead terminals. Dielectric strength is 1,250V AV min between contacts and 3,750 Vac min between contacts and case.

Omega Engineering, Inc.    Stamford, CT 06907
Nov 07, 2003 Series SPRTX RTD 2-wire Transmitters feature hermetically-sealed, miniature signal conditioner built into connector housing. They condition and linearize across dedicated temperature range, providing standard 4-20 mA current output, which can be transmitted thousands of feet from sensor to indicating meter, controller, PLC, computer, data logger, or chart recorder. Units require no field adjustments to achieve ±0.5% FS accuracy.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Nov 06, 2003 Low-profile Model ACST-260 Current Sense Transformer monitors up to 30 A at frequencies up to 200 Hz. It provides turns ratio of 1:500, primary to sense, and is constructed with UL-recognized class B insulation system and meets dielectric strength of 3 KV.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Nov 06, 2003 Model AZ2510 SPST Relay features dielectric strength of 4,000 Vrms from contact to coil and 2,000 Vrms between open contacts. It requires 50 msec pulse to either Set or Reset. Single and dual coil versions are available. Coil connections are made via PCB terminals, and power connections are made via heavy, bus-type, rigid terminals with threaded holes. Relay includes manual position indicator, which may be used for manual operation or to drive micro-switch.
