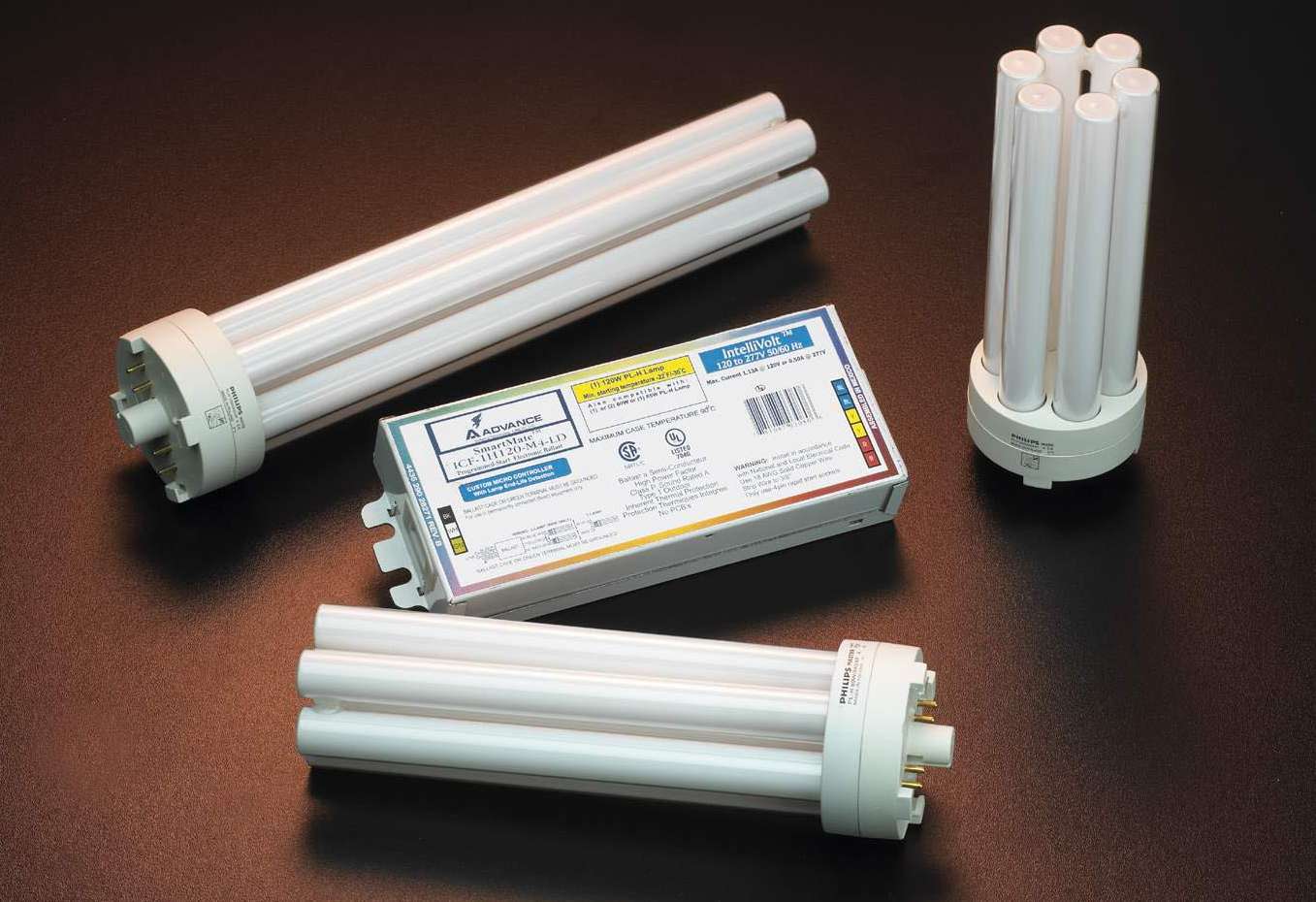

Ballasts support high-wattage compact fluorescent lamps.
Advance Transformer Co.
Rosemont, IL 60018 5625
Nov 19, 2003 SmartMate® ballasts support PL-Hâ„¢ lamps from Philips. One ballast can operate one or two 60 W lamps, one 85 W lamp, or one 120 W lamp. Available in 13-120 W range, ballasts are rated to 90°C maximum case temperature, provide up to 20,000 hr life, and can start lamps from -30°C. Features include dual-entry, color-coded connectors, end-of-lamp-life protection, and Intellivolt® technology to allow ballasts to operate at inputs from 120-277 V, 50/60 Hz.
Switch Modules meet needs of automated test equipment.
National Instruments Corp.
Austin, TX 78759-3504
Nov 18, 2003 Models PXI-2530 and SCXI-1130 are high-density, 128-channel and 256-channel, multi-configuration multiplexers/matrices with 14 possible topologies and switching speed of 900 ch/s. Model PXI-2529 brings 128-crosspoint, 2-wire matrix to single-slot 3U PXI module. It can switch up to 150 Vdc or 150 Vrms CAT I and up to 1 A switching/2 A carry. Models PXI-2567 and SCXI-1167 are 64-channel relay-drive modules that accommodate up to 50 V or 600 mA of drive capacity.

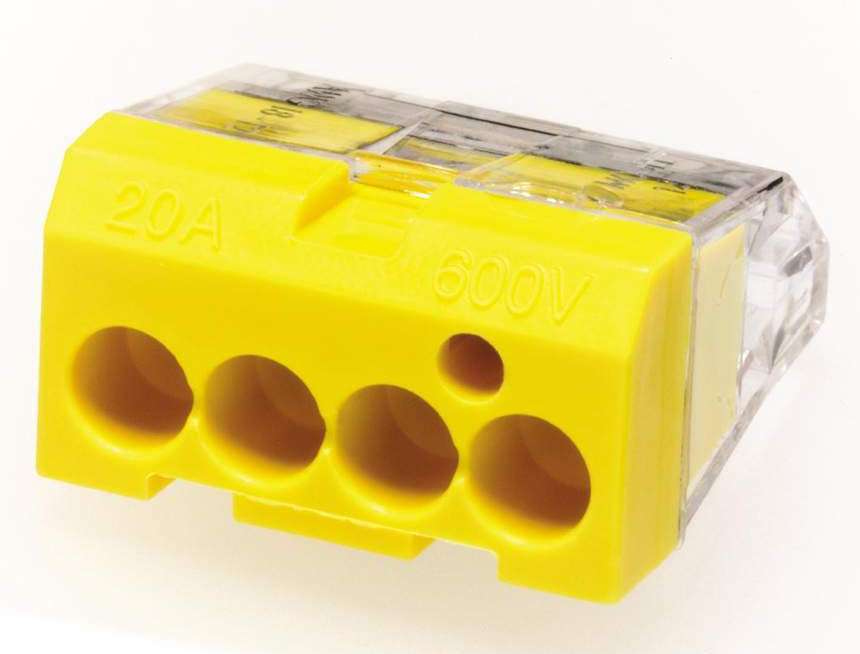

Wire Connectors utilize push-in design.
Ideal Industries, Inc.
Sycamore, IL 60178
Nov 18, 2003 In-Sureâ„¢ Push-In Wire Connectors fit any combination of 12â€“18 AWG stranded copper and 12â€“20 AWG solid conductors. Push-in design terminates conductors without twisting, while clear polycarbonate housing permits visual verification of connection. Units include stainless steel inserts to restrict pullout, electrolytic tin-plated copper bus system, integral test port for voltage and continuity testing, and built-in strip length gauge. They are rated to 600 V and 105°C.
Rocker Switches endure mechanical life of 30,000 cycles.
Brooklyn Park, MN 55428 1514
Nov 18, 2003
Series R5 illuminated, rectangular, panel-mount DPDT rocker switches are constructed from Nylon 66. Two-position switches are rated at 20 A @ 125 Vac and 15 A @ 250 Vac, with initial contact resistance of 0.2 ohms. Non-illuminated, 3-position switches are rated at 15 A @ 125 Vac and 10 A @ 250 Vac. Switches have silver-plated contact surfaces and terminals, and snap-mount in 30.6 x 22.3 mm rectangular hole on panels up to 3 mm thick.
Line Interactive UPS Units provide data line protection.
Skokie, IL 60077
Nov 17, 2003
Series S2K prevents sensitive equipment from being damaged in event of surges, spikes, lightning strikes, blackouts, and other power disturbances. Automatic Voltage Regulation saves battery power for deep sag situations when input voltage is below 78 V. Units feature intelligent battery management and hot-swappable batteries that do not require shutdown for replacement. They come in 120 and 230 Vac models with power ratings from 300-1,000 Va.
Plugs/Connectors offer protection of rubber and nylon.
Woodhead L.P., Woodhead Electrical
Northbrook, IL 60062
Nov 17, 2003 Safeway+ Wiring Devices consist of plugs and connectors with 3-piece Core-Lockâ„¢ rubberized-nylon assembly, engineered for general-purpose wiring device applications. They lock together with 2 screws, while reversible cord clamp accommodates cords from 12â€“18 gauge. Nylon core is surrounded by protective rubber coating, providing impact resistance without marring. They are UL/CUL LISTED and come in 15 and 20 A configurations.
Cables handle 16 channels of data acquisition.
PCB Piezotronics Inc.
Depew, NY 14043 2495
Nov 17, 2003 Multi-Conductor Models 0009B and 0009A consist of 16 twisted shielded pairs. Model 0009B incorporates DB50 female on one end and DB50 male on other, while Model 0009A features DB50 female on one end and 16 BNC plugs on other. Both come in standard lengths of 10, 25, 50, 75, 100, and 150 ft, with custom lengths available. Typical uses include connecting sensors, signal conditioners, and patch panels.
External Switching Power Supply has 60 W of total power.
Astec America Inc.
Carlsbad, CA 92008
Nov 17, 2003
External desktop adapter model DAS60 delivers 48 Vdc with 60 W total power and features 20 ms hold-up time. Accepting universal AC input from 85-264 Vac, it operates in -5 to +50°C temperature range and operates with 80% efficiency. Product has overload, over-voltage, short circuit, and thermal protection as well as built-in Class B EMI filter. It demonstrates mean time between failures of 550,000+ hr at full load in 25°C ambient conditions.

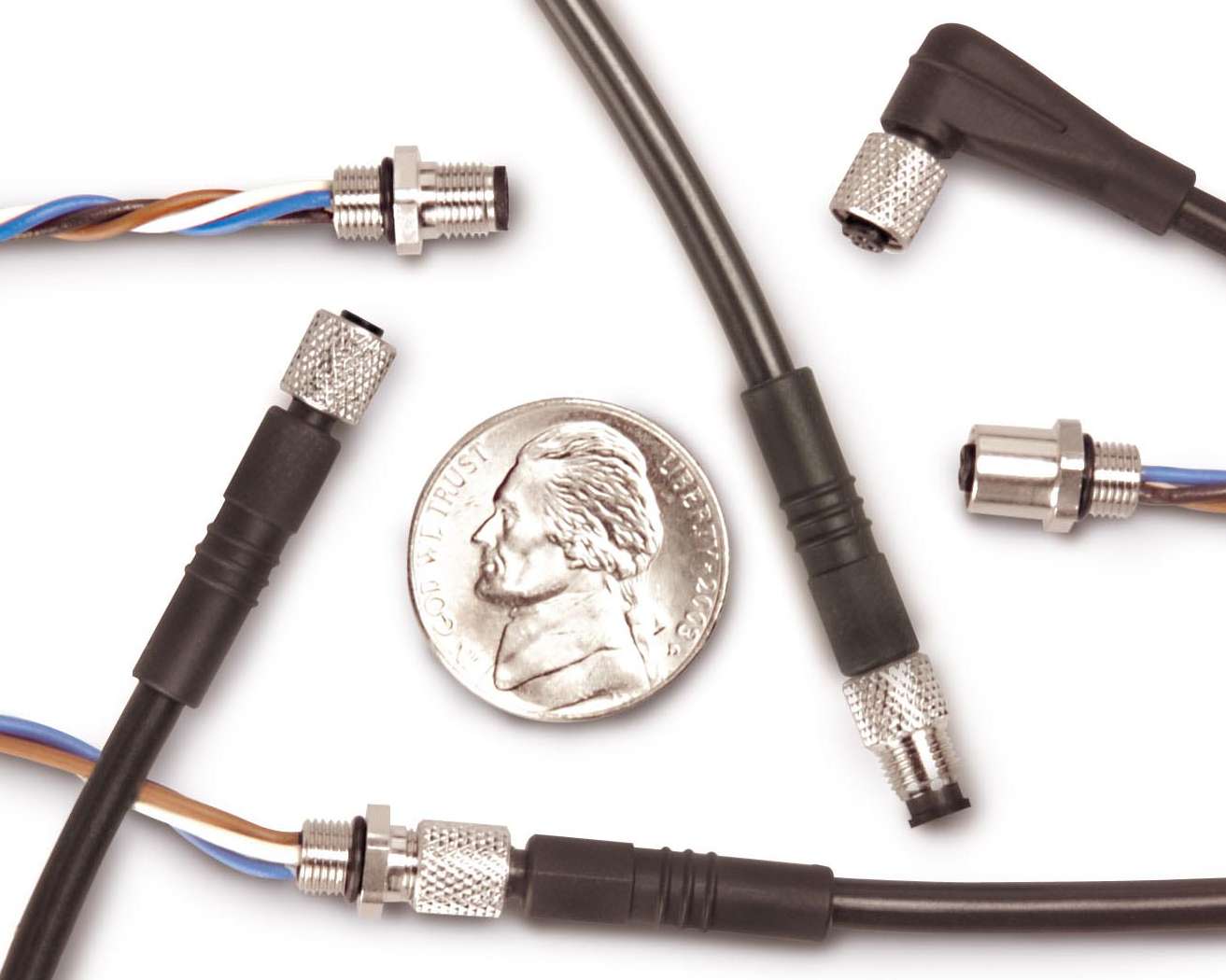

Cordsets and Receptacles have 0.24 in. diameter.
Plymouth, MN 55441
Nov 17, 2003 Providing protection that meets IEC IP67, M5 pentafast threaded connector products offer 3 or 4-pin connection with coupling nut that measures 0.24 in. in diameter. Multi-pin molded cables are available with PUR cable, straight or right angle configurations, standard or custom lengths, as pigtail or extension cords. Rated for 125 V and 1 A, products are suited for power and signals to factory automation equipment.
Lockout Kits fit specific applications.
Master Lock Co.
Oak Creek, WI 53154
Nov 14, 2003
Safety Series(TM) Lockout Kits consist of lightweight lockout carrying cases with modular, translucent storage trays and high-use components. Separate compartments allow for grouping and storage of padlocks and hasps, valve lockout devices, and electrical lockout components. Personal lockout kits, for individual employee use, come keyed-alike for single-key convenience, while group lockout kits come keyed-different to avoid key interchange.

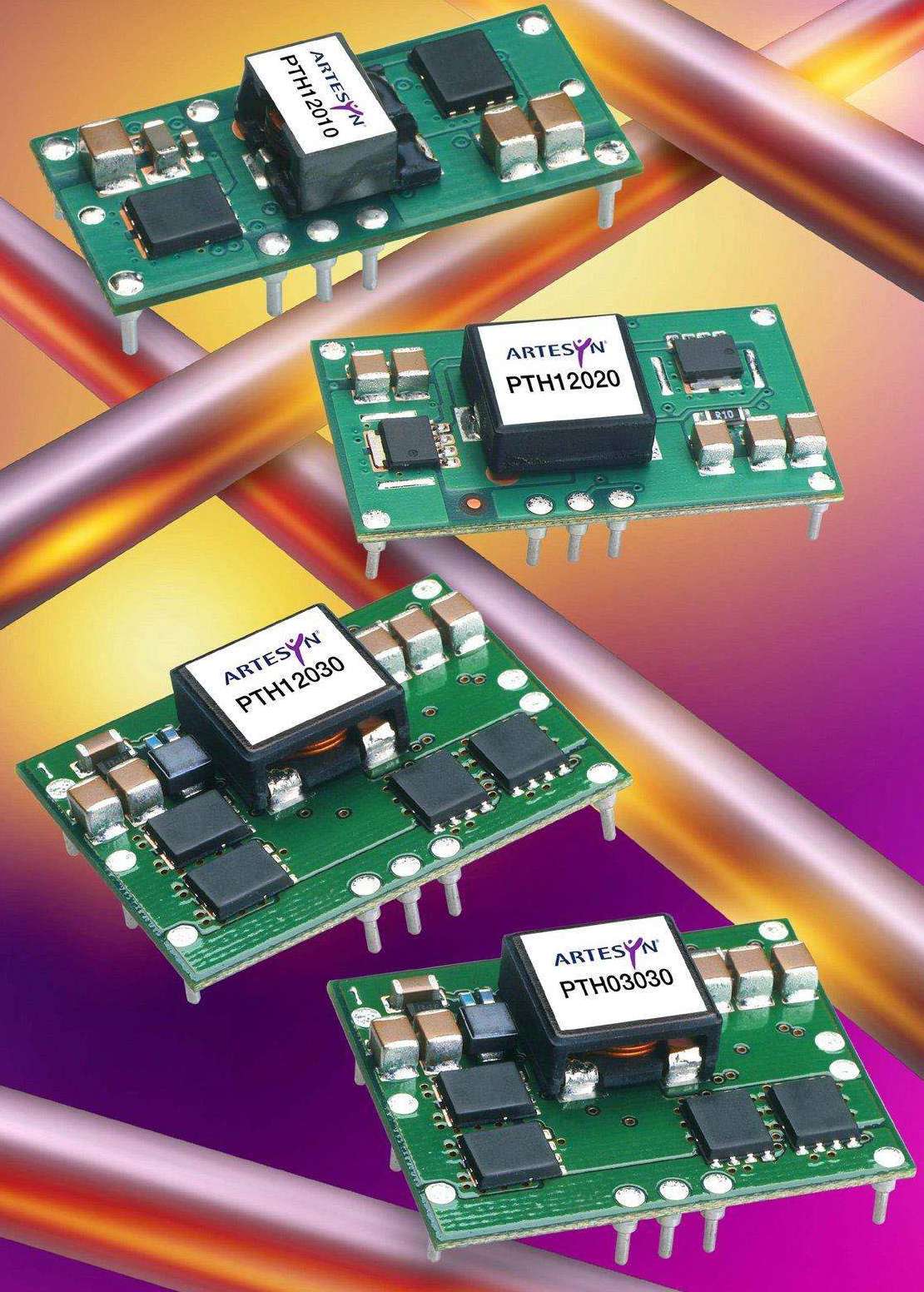

Point of Load Converters have power sequencing capabilities.
Artesyn Communication Products Inc.
Madison, WI 53717
Nov 14, 2003
Compatible with Point-of-Load Alliance standard, PTH series non-isolated DC/DC converters provide means of addressing multiple power rail requirements of latest-generation boards. All 15 models are available in through-hole and surface-mount versions and offer output voltage adjustability, on/off inhibit function, and output over-current protection with automatic recovery. They are available with 9 current outputs from 6-30 A and input voltages of 3.3, 5, or 12 V.

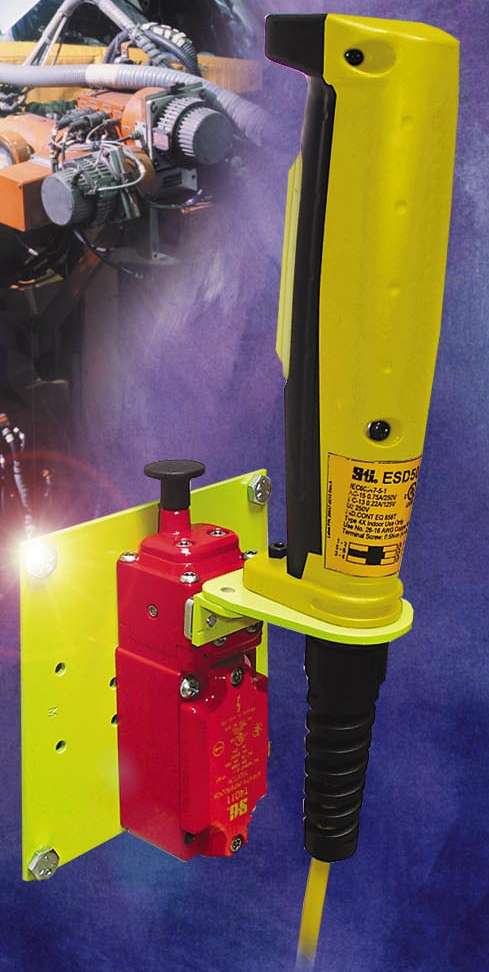

Enabling Switch Device aids in set-up of robotic machinery.
Scientific Technologies Inc.
Fremont, CA 94555
Nov 13, 2003 CE Listed Model ESD5020 provides margin of safety needed during troubleshooting, set-up, programming, and servicing of robotic or automated machinery. It incorporates two 3-position enabling switches into trigger to provide operator with constant control. Redundant switch contacts ensure machinery can be stopped by releasing or squeezing trigger. Optional switch buttons and LED indicators may be added for activating functions and providing visual indicators.

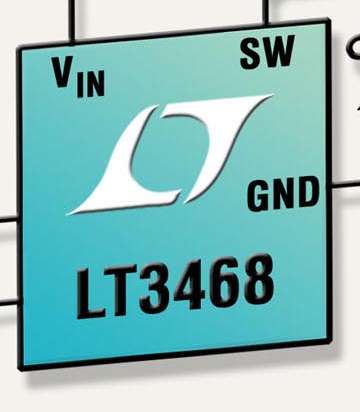

Capacitor Charger uses current-limited flyback topology.
Linear Technology Corp.
Milpitas, CA 95035
Nov 13, 2003
Stand-alone Model LT3468, intended for digital and film cameras, can charge 100 µF capacitor to 320 V in 4.6 sec from 3.6 V battery. With controlled peak current of 1.4 A, charger, in conjunction with flyback transformer, can charge any size photoflash capacitor with efficiencies greater than 80%. Model LT3468-1 is identical to LT3468, except that current limit is 0.7 A. Both utilize primary side output voltage detection internal to device and come in ThinSOT(TM) package.
Quarter Brick DC/DC Converter is rated to 75 W.
Calex Mfg. Co., Inc.
Concord, CA 94520
Nov 12, 2003 Potted with thermally conductive compound, QL Series utilizes aluminum baseplate that enables it to perform in still air or limited airflow environments. Utilizing synchronous rectification, unit offers efficiencies in excess of 90%. It has 2:1 input range, 18â€“36 or 36â€“75 Vdc, and output voltages are 1.5, 1.8, 2.5, 3.3, and 5 Vdc. Output noise runs down to 30 mV peak to peak, and features include remote sensing, output trim, and remote on-off.
Inverter includes on-board PLC.
Omron Electronics, LLC
Schaumburg, IL 60173
Nov 12, 2003
Model 3G3MV Inverter with 3G3MV-P10CDT-E PLC eliminates delay of point-to-point wiring. On-board controller features RS-232 and hostlink communication. Direct, dual-port RAM connection gives access to inverter parameters, as well as providing encoder input, interrupt inputs, and digital, pulse, and PWM outputs. Single point programming uses Omron PLC software, and RS-232 serial port enables direct connection to on-board, 10 I/O, non-expandable PLC.
Ballasts suit high-wattage, metal halide applications.
Advance Transformer Co.
Rosemont, IL 60018 5625
Nov 11, 2003 Compact Core Ballasts utilize 4¼ x 4¾ in. core and are available for 1,000 W probe-start, 1,000 W pulse-start, and 875 W pulse-start metal halide lamps. Units comply with ANSI, UL, and CSA standards. Multi-tap formats include 120/208/240/277 quadri-volt® and 347/480 dual-volt with 120 V output tap. Ballasts are suited for high bay industrial fixtures, outdoor flood and area lighting, roadway highmast lighting, and indoor sports arenas.
DIP Relay suits high-density PC boards.
CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.
Maple Grove, MN 55369
Nov 11, 2003 Subminiature Model WJ102 provides high-sensitivity switching with .15 W coil option. Small, lightweight relay has gold-plated, bifurcated contacts that provide reliable switching. It is manufactured and quality controlled to ISO-9002 and QS-9000 standards.
Foot Control Pedal offers smooth, variable output.
Conntrol International Inc.
Putnam, CT 06260 0645
Nov 11, 2003 Series 300 Potentiometer Control Foot Switch is a variable-speed control pedal with slip-resistant surface. Featuring 2 W potentiometer drive mechanism with virtually no backlash, electric foot control offers adjustable tension and stroke, and maintains position when user's foot is removed. Unit has cast-aluminum housing, full size pedal surface, and skid-resistant base. It is suitable for any equipment with variable-speed motor.

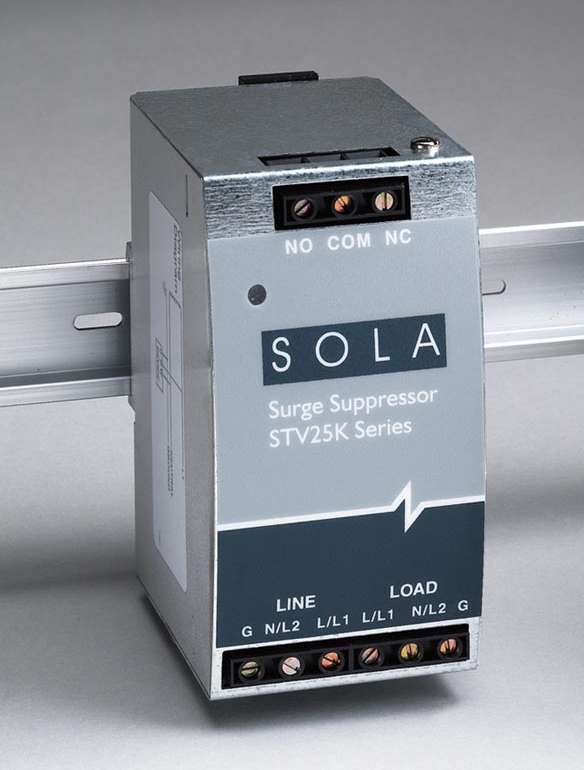

Surge Suppressors protect against severe transients.
Skokie, IL 60077
Nov 11, 2003
Series STV25K consists of DIN rail mount, narrow-sided suppressors that handle damaging spikes up to 25 kA at dedicated equipment levels of input ratings up to 20 A. They have screw terminals for installation and are suited for quick mounting and connection in control cabinets. Diagnostics such as LEDs and Form C contacts provide status indication. Units feature UL 1449, 2nd Edition, and cUL approvals.
Switch System simultaneously monitors multiple doors.
Minneapolis, MN 55438
Nov 11, 2003
Model L 4000 system safety photoelectric switch system safeguards hazardous areas on machinery and access to restricted areas. Type 4, non-contact safety device includes UE 401 evaluation unit, which monitors functioning of sensor and generates cut-off signal if light path is interrupted. Up to 4 individual sensor pairs or 8 cascaded pairs can be connected to unit. Switches are available with metal or plastic bodies and operating ranges from 0-60 m.
