Industrial Retractile Extension Cords glow in the dark.
North Branford, CT 06471
Dec 15, 2003
Cords are designed with glow-in-the-dark material to improve safety for those working in dark areas. With 1 hr of light exposure, products glow for 8 hr. They are available in PVC and TPE, in 14 gauge 3 conductor and 16 gauge 3 conductor, which extend on 1:5 ratio. Cords extend only as far as necessary and have lighted plugs to alert users of live wire. Safety features include Nema 515, twist-lock, and molded plugs and strain release.
LED Lamps fit standard incandescent fixtures.
Gilway Technical Lamp
Woburn, MA 01801 1005
Dec 15, 2003 Decorative LED Lamps, available in blue, green, amber, red, and white, use only 20% electricity of standard incandescent lamps. Cool to the touch, they include temperature and current control circuitry, operate at 2.5 W, and yield 15-30 lumens/W. Bulb and spotlight styles are offered in 110/230 V universal line voltage and will last up to 10 years. Spotlight styles incorporate shaping diffusers for adjustable beam patterns from 2â€“80°.
Splicing Connector terminates various wire sizes/types.
Germantown, WI 53022
Dec 15, 2003
Enabling users to terminate and re-terminate solid and stranded wire sizes from 28-12 AWG, 222 Series compact, 3-conductor splicing connector is UL listed for 600 V/20 A. CAGE CLAMP® spring pressure connection technology provides vibration proof, corrosion/temperature cycling resistant, and maintenance-free wire connection. Unit also offers integrated orange lever actuator for tool-less wiring and test point for testing/trouble shooting circuits.
KVM System manages multiple servers from one console.
Hewlett-Packard Co. (Corporate Headquarters)
Palo Alto, CA 94304-1185
Dec 15, 2003 Server Console Switch family consists of scalable and integrated keyboard, video monitor, and mouse system. Intended for staffed datacenters, switches are available in 8- and 16-port versions and can be connected in tiered fashion to increase server access from 8 to 128 servers. User can manage all attached computers via single, integrated, on-screen display interface. Interface adapters are available for PS/2 and USB, and connect to UTP CAT5 cable.
Generator Sets offer high efficiency and low emissions.
Peoria, IL 61629
Dec 12, 2003 Natural-gas-fueled Series G3500 generators, for extended-duty distributed generation service, are driven by reciprocating engines in 12-, 16-, and 20-cylinder configurations. Engines operate at 1500 rpm/50 hz, 1200 rpm/60 hz, or 1800 rpm/60 hz, with ratings up to 2.1 MW. They deliver up to 43.5% mechanical efficiency with NOx emissions of less than 0.5 g/bhp-hr and 250 mg/Nm³. Features include open-protocol, SCADA-compatible ADEMâ„¢ III digital microprocessor control.
Safety Relays target process applications.
Harrisburg, PA 17111 0100
Dec 12, 2003 Series PSR Relay Modules feature startup behavior approved to SIL3/IEC 61508. They provide 2 safely-isolated, redundant NO contacts and 1 NC contact that can switch up to 250 Vac/6 A in 22.5 mm housing. Relays are suited for electrically isolating field applications from control systems or adjusting voltage or power. They can form integral part of safety chain for electrical and electronic applications in process technology and mechanical engineering.
Level Switch provides product quality control.
Siemens Energy & Automation, Inc.
Alpharetta, GA 30005
Dec 11, 2003 SITRANS PD 500 two-wire capacitance instrument features flow-through, PTFE-lined electrode, which resists build-up and provides measurement with no sensor obstruction in pipeline. Electronics offer HART communications for remote configuration and inspection. One-point calibration allows set-up without shutting down process. Effective in temperatures from -328 to 392°F and pressures from full vacuum to 725 psi, switch can withstand aggressive, toxic chemicals.

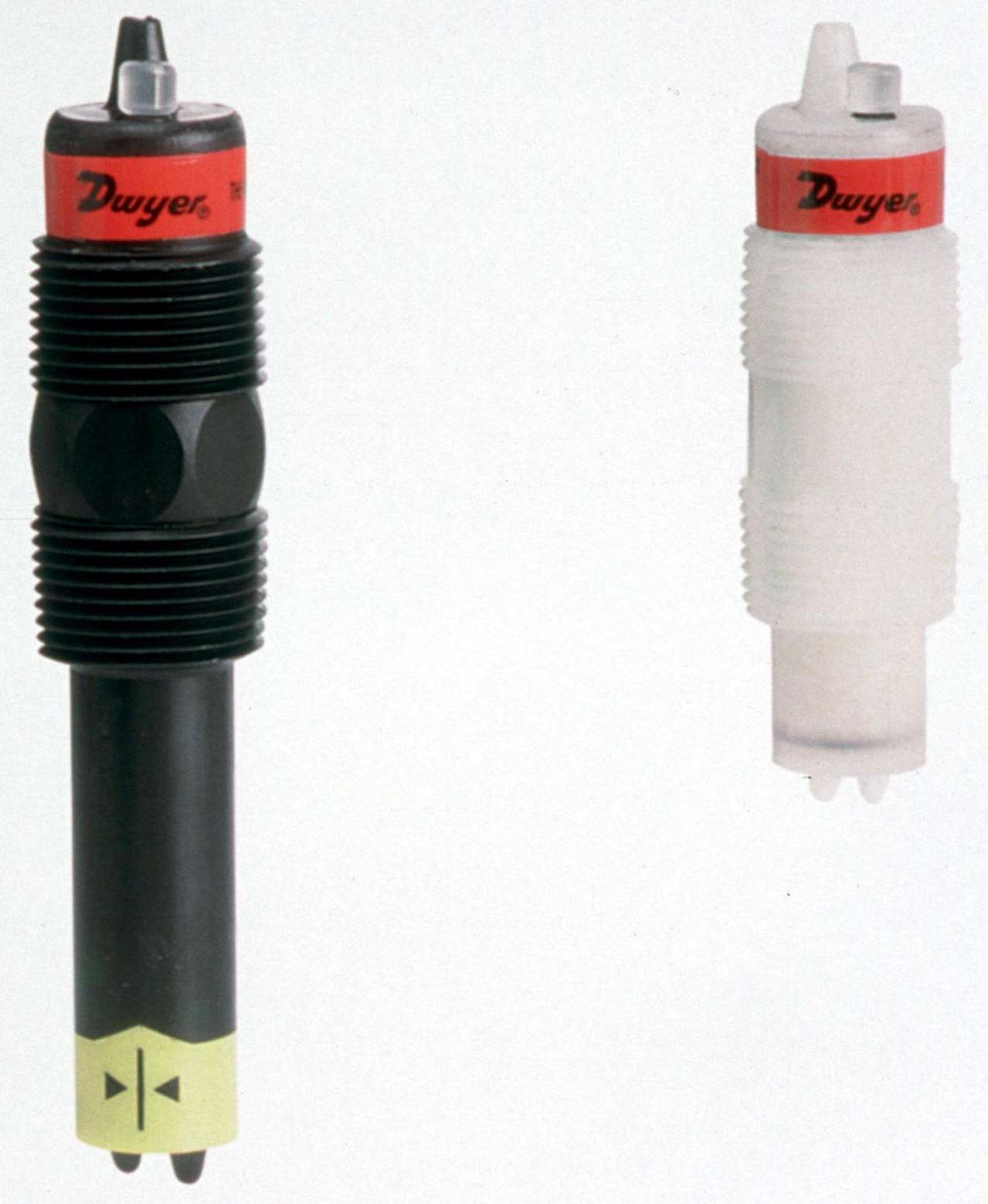

Thermal Dispersion Flow Switch offers solid state detection.
Dwyer Instruments, Inc.
Michigan City, IN 46361
Dec 11, 2003
Available in Polypropylene/Ryton or PVDF wetted materials and 3 or 4.5 in. lengths, Series TDS monitors and controls flow of non-coating liquids. It provides SPDT output for interfacing with remote PLC or relay control devices and features selectable NO or NC operation. Adjustable switch point is factory calibrated at 0.2 fps, and unit provides LED indication of flow and calibration status.

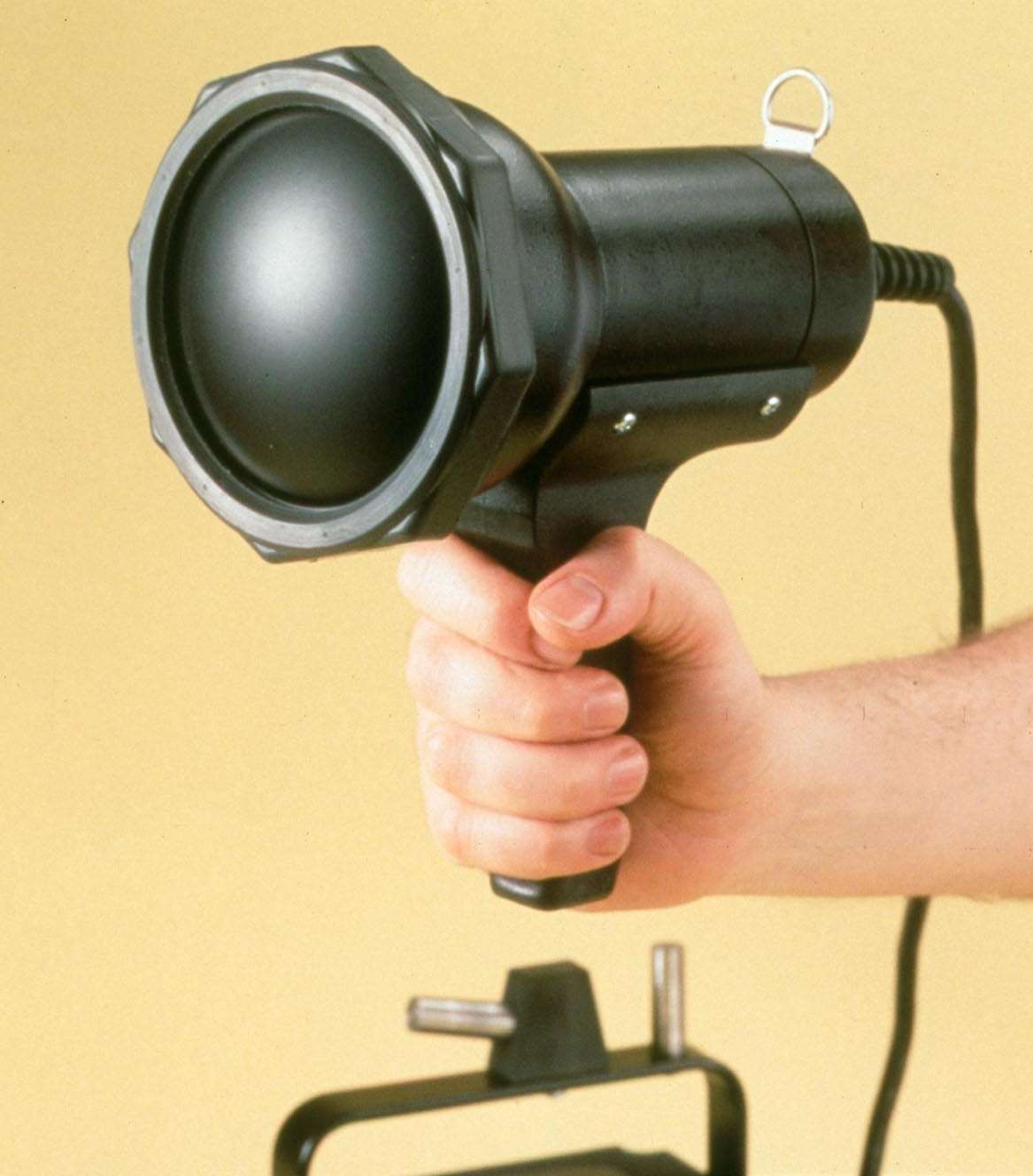

UV Lamp helps to find surface flaws in tight areas.
Westbury, NY 11590
Dec 11, 2003 Spectroline® C-100 utilizes 100 W bulb that produces long-wave UV intensity of 4,000 µW/cm² at 15 in. Visible light emission is less than 2 footcandles, which meets ASTM specifications for FPI and MPI. Heat-resistant filter holder minimizes filter movement during use and prevents any visible light leakage. Powered by magnetic ballast, compact lamp features 5½ x 8 in. head and stay-cool pistol grip, which allows use for long periods without fatigue.

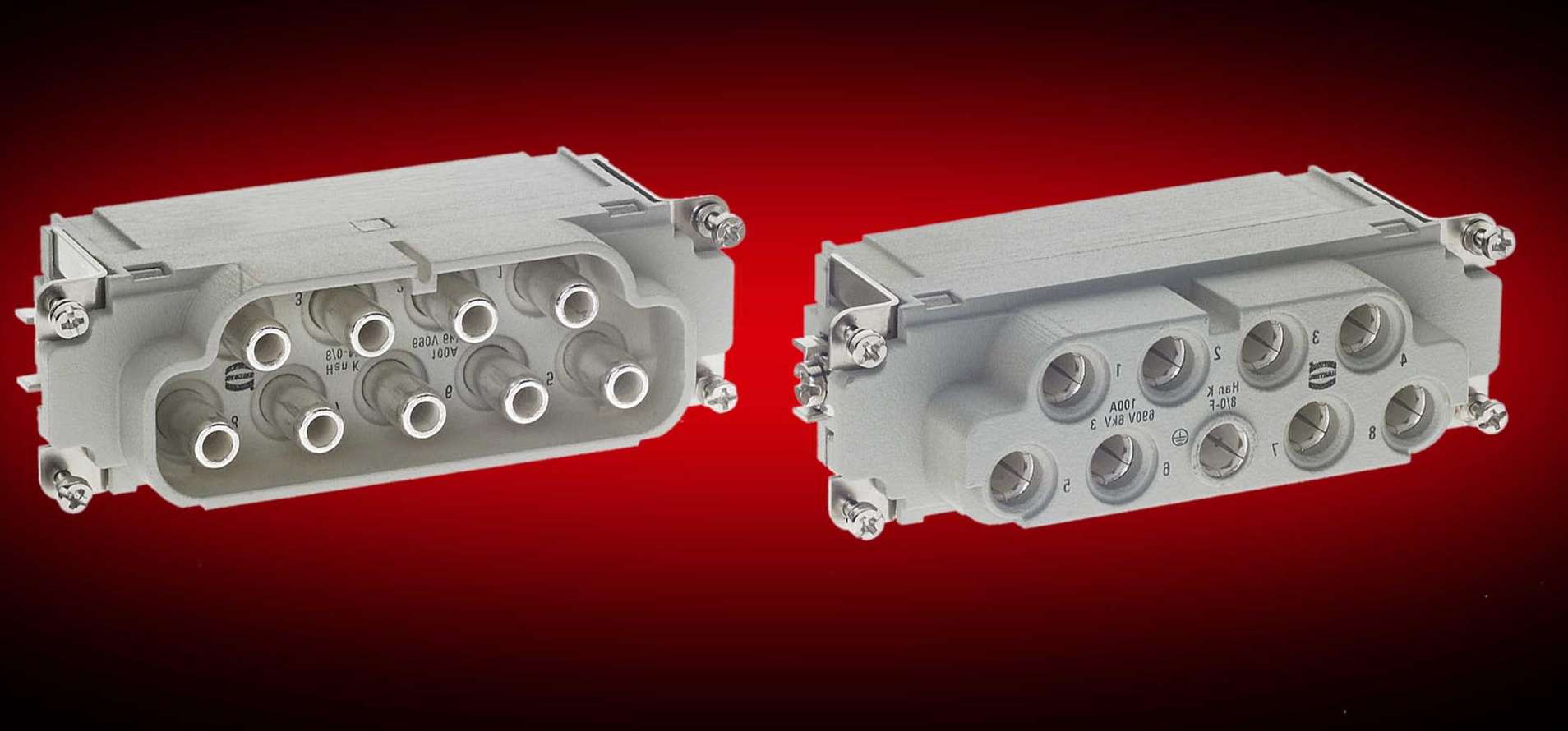

Insert extends range of Han® connectors.
HARTING, Inc. Of North America
Elgin, IL 60123 5538
Dec 10, 2003
Model K 8/0 insert makes Heavy Duty Han® Connectors suitable for medium power applications in power and transportation equipment. Insert has 8 contacts rated at 80 A, with an additional contact to connect protective earth (PE). Termination method is axial screw contact. Insert mounts in standard size 24B hoods and housings with protection degrees up to IP 68. It can also be housed in closed electrical enclosures in conjunction with DIN rail mounting components.

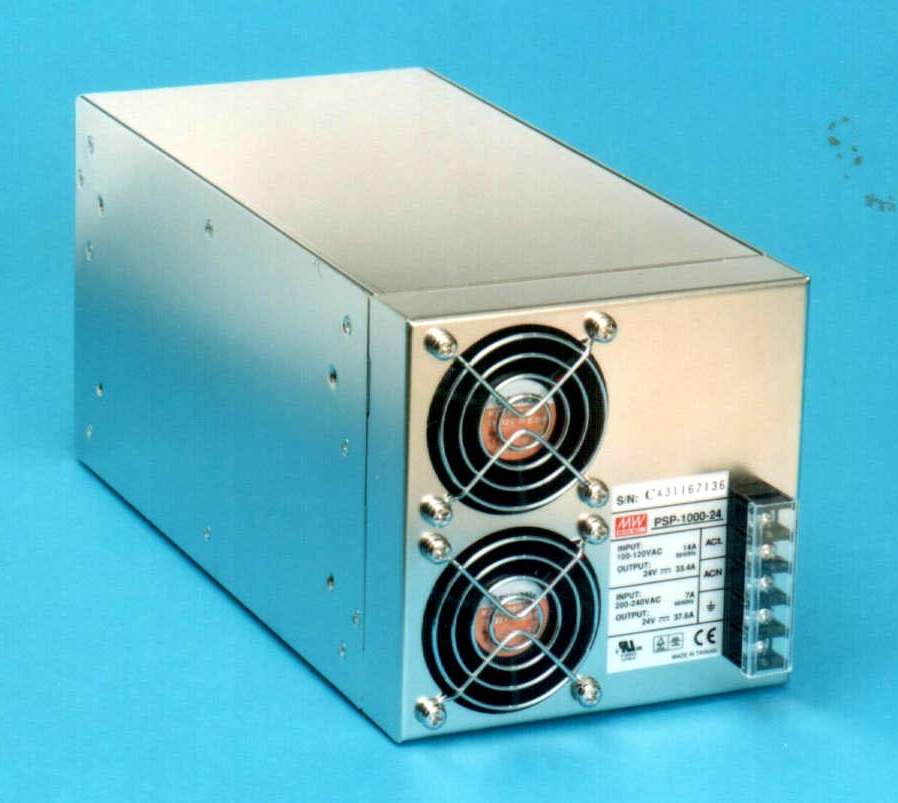

Switching Power Supplies accept input from 85-265 Vac.
Mansfield, MA 02048
Dec 10, 2003
Parallel-capable and power factor corrected, Series PSP1000 and PSP1500 provide output power over range of 1,000 and 1,500 W, respectively. Enclosed AC/DC power supplies include soft-start circuitry, integral EMI filtering, power-good LED indicator, and output adjustment potentiometer. They operate over ambient temperature range of 0-45°C without forced cooling or output power derating. Models are available that provide single outputs from 5-48 Vdc.

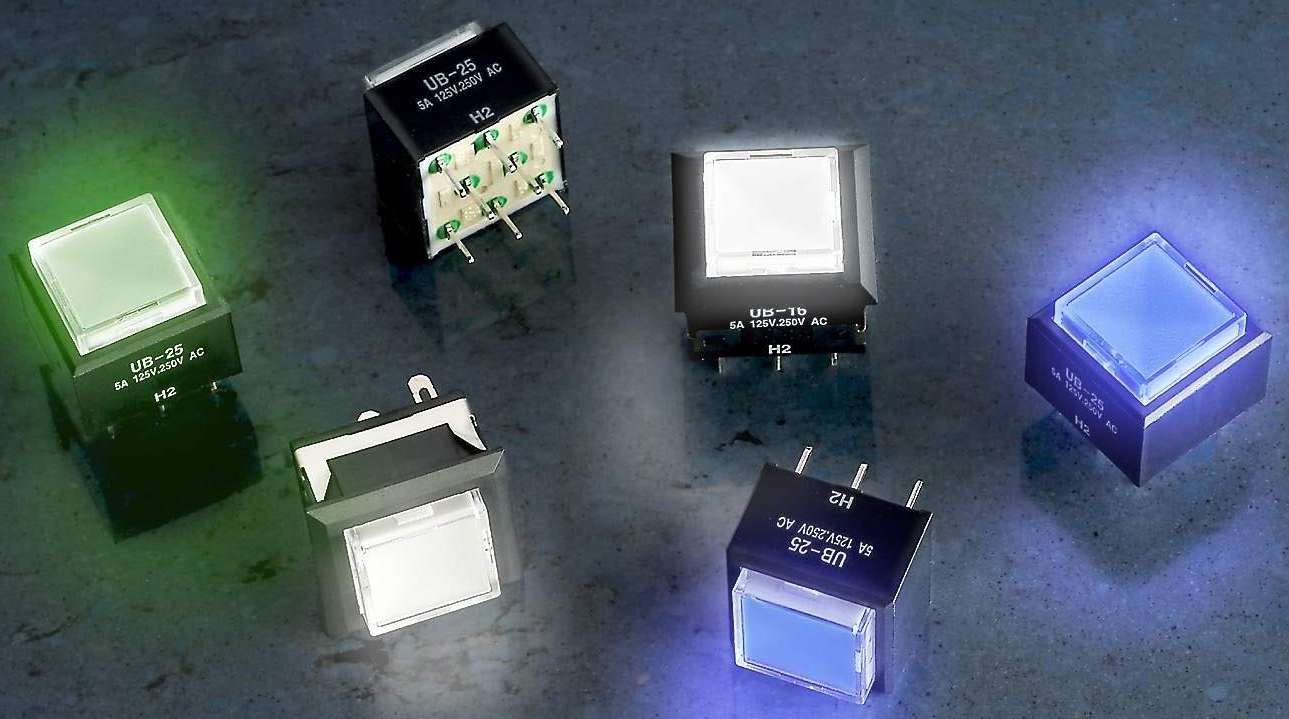

Pushbutton Switches come in lit or non-lit versions.
Scottsdale, AZ 85260-3420
Dec 10, 2003
Illuminated and non-illuminated UB series switches have behind-panel depth of .394 in; square models have .628 in.² panel cutout, while rectangular devices have .638 x .882 in. cutout. Rated 5A @ 125/250 Vac or 5A @ 30 Vdc for power rated models and 0.4 VA max @ 28 V AC/DC max for logic level devices, switches have mechanical life of one million operations min for momentary models and 200,000 operations min for alternate action circuits.

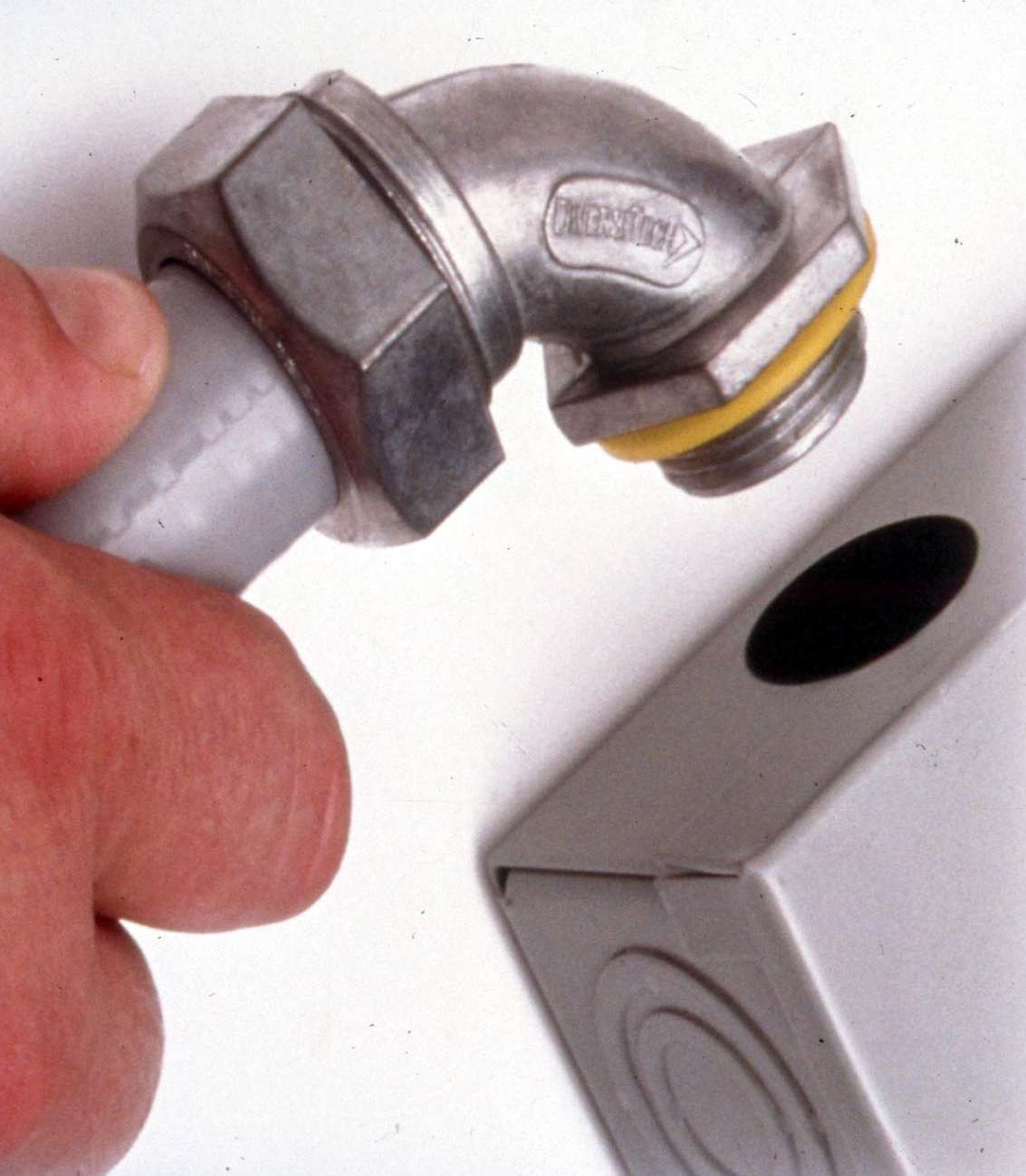

Metallic Conduit Fittings make liquid-tight connections.
Heyco Products, Inc.
Toms River, NJ 08753
Dec 10, 2003 Metallic Liquid-Tight Fittings protect electric wires and cables from damage by sealing out water, airborne debris, and undesirable elements. Available in straight and 90° sweep styles in ½ and ¾ in. trade sizes, products are constructed of die-cast zinc, withstand temperatures from -22 to +212°F, and are UL and CUL listed. They are suited for use with flexible, electrical conduit in motor and transformer connectors, as well as electrical panels.

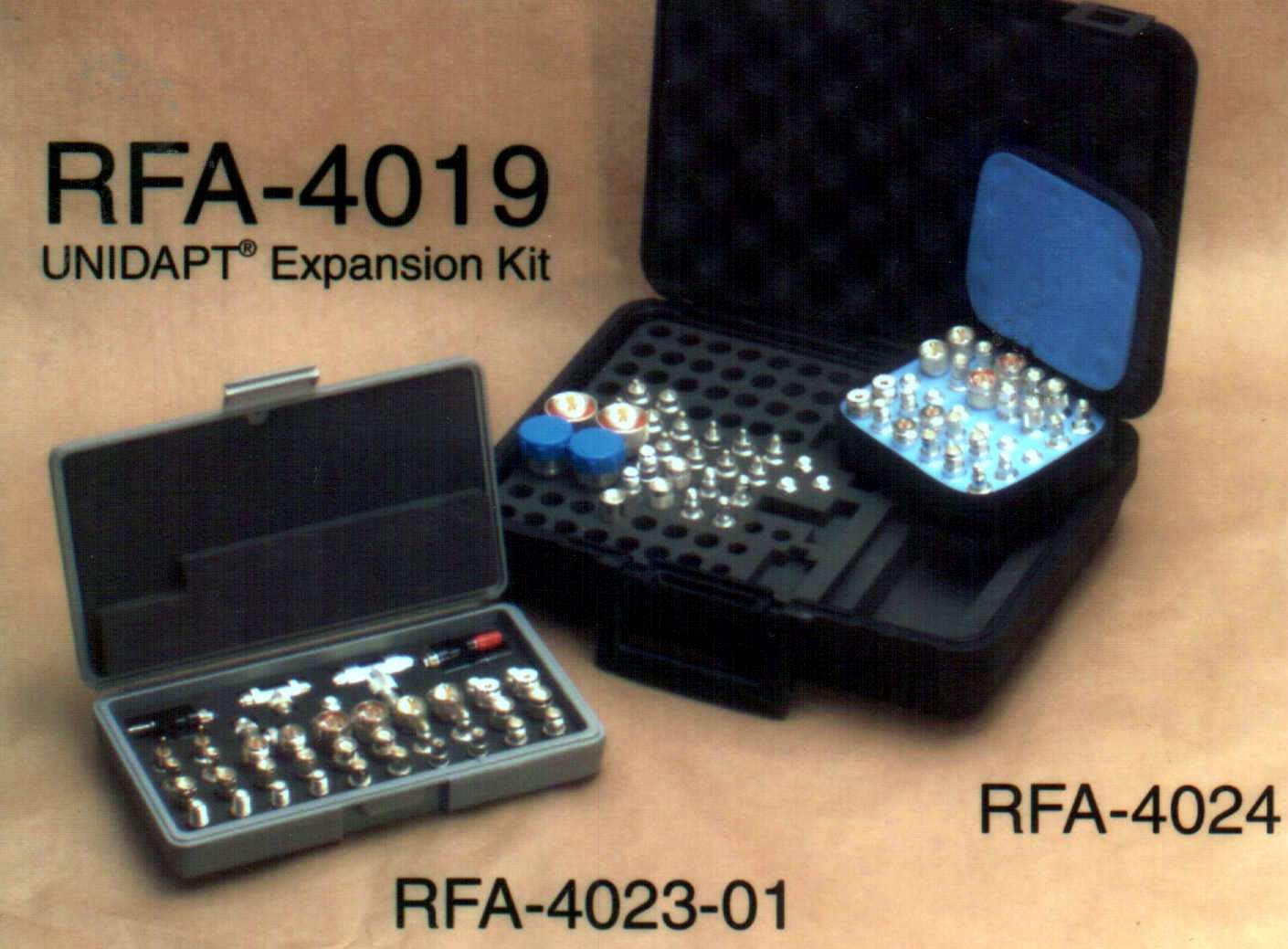

Universal Adapter Kit expands Unidapt® system.
San Diego, CA 92126 4202
Dec 10, 2003 Model RFA-4019 expansion kit contains 27 adapters including MCX, MMCX, SMB, 7â€“16 DIN, reverse polarity SMA, and reverse polarity TNC adapters. All are silver-plated, machined brass with gold-plated contacts and Teflon insulation. Foam-lined case features enough slots and cavities to accommodate full line of Unidapt® products. Mega Kit Model RFA-4022 contains all 74 pieces.
Miniature Power Relay offers high load capability.
CIT Relay & Switch: Division of Circuit Interruption Technology, Inc.
Maple Grove, MN 55369
Dec 09, 2003 Available with ratings of 30 A at 277 Vac and 2 hp at 250 Vac, Series WJ115F3 comes in panel mountable package and includes quick connect terminals. Contact configurations include 1A, 1B, and 1C. UL recognized unit offers choice of AgCdO or AgSnO2 contacts for high inrush loads, and is available with standard epoxy sealing for wave soldering.
Switch Cabinet Connector facilitates wiring.
HARTING, Inc. Of North America
Elgin, IL 60123 5538
Dec 09, 2003
Han-Snap® is designed for wiring of multiple closed electrical equipment cabinets. Hinged, rail fixing, connector-mounting element facilitates use of standard connector inserts inside electrical control enclosure. Connector inserts are locked into carrier element without use of tools.
Gigabit Backbone Switch has 48 fixed 10/100/1000 ports.
Irvine, CA 92618
Dec 09, 2003 Compact TigerSwitchâ„¢ SMC8648T, suited for enterprise workgroup or backbone switching applications, moves data at speeds to 96 Gps (9K in jumbo frame support mode). Along with RADIUS, 802.1x, SSH and SSL for security, unit offers complete Layer2/3/4 switching with traffic prioritization, including DSCP- and TCP/UDP Port-based CoS and port and protocol-based VLANs. It also provides rate limiting, SNTP, and SMTP, configurable through command line interface.
Cable Ties are flame retardant and non-absorbent.
Nelco Products Inc.
Pembroke, MA 02359
Dec 09, 2003
Polyketone Cable Ties contain no halogen and are resistant to UV, most chemicals, and acids. They can be continuously submerged in water, do not become brittle, and operate from -50 to +100°C. Featuring rounded and recessed head and rounded tie body to reduce strain when closed, units include graduated notches for stress-free tensioning. Sizes range from 8-31 in. long with either 50 or 100 lb tensile strength.
LED Illuminator suits bi-color water gauges.
Clark-Reliance Corporation, The
Strongsville, OH 44136
Dec 08, 2003 Simpliport® LED illuminator for bi-color water gage glass produces intense, highly visible light for improved safety, eliminating burning hazard. It retrofits on existing Simpliport® gauges and has a service life of 8 years. LED lights consume 90% less power than standard light bulbs.
Solid State Relays feature integrated heat sink.
Carlo Gavazzi Electronic Packaging
Brockton, MA 02301-5548
Dec 05, 2003 Series RJ Solitrons can replace electromechanical contactors in high switching frequency applications. They may be snapped onto DIN-rail or mounted to back chassis. Units include LED indication of control input and over-voltage protection. Installation is via self-lifting connection clamps and 2 terminal layouts. Relays are offered in Mini style for switching up to 30 A at 600 Vac, Midi for switching 75 A, and Power for switching up to 90 A at 600 Vac.
