Gore, W. L., & Associates, Inc.    Newark, DE 19711
Feb 03, 2004 Able to work with ZD backplane interface, GOREâ„¢ EYE-OPENER® ZD Cable Assembly combines digital cable assembly technology with ZD high-speed connector to offer interconnect that handles bandwidths 5 Gb/s and higher. It uses expanded PTFE as dielectric core for digital interconnect cable. Helically wrapped core ensures controlled electrical properties throughout signal path and provides open eye patterns.

Beta Dyne Inc.    Bridgewater, MA 02324

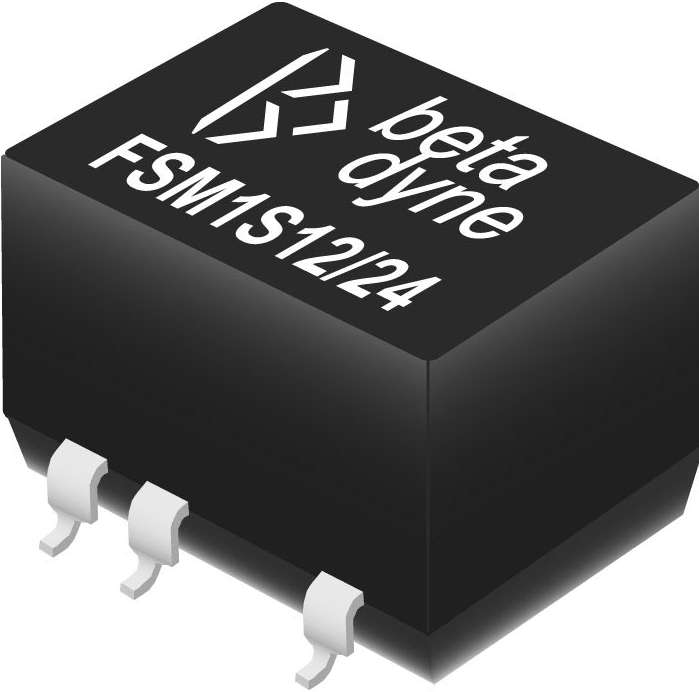

Feb 03, 2004 Series FSM1S, FSMA1S, and FSM1D are unregulated, 1 W DC/DC converters offering input voltages of 5, 9, 12, 15, and 24 Vdc and output voltages of 3.3, 5, 9, 12, 15 and 24 Vdc. Series FSM1S and FSMA1S are single output, while Series FSM1D is dual output. Units come in SMD package with minimum isolation voltage of 1,000 Vdc, minimum efficiency of 70%, and operating temperature from -40 to +85°C. They include line and load regulation and short circuit protection.

Emerson Process Management, Intellution Division    St. Louis, MO 63136 8506
Feb 03, 2004 Ensuring availability of IP Telephony equipment, IP Telephony Availability System provides online double-conversion power protection. It brings data center-level power protection and support to server closets and network edge locations in branch offices and remote sites while simplifying installation of IP telephony devices. System integrates remote monitoring and management and local service and support into one solution.

Linear Technology Corp.    Milpitas, CA 95035
Feb 02, 2004 Model LTC3806 synchronously drives primary and secondary side MOSFETs. It facilitates cross regulation in multiple output power supplies by keeping MOSFETs ON and outputs coupled for larger fraction of each power conversion cycle. Unit incorporates all timing and control functions, as well as 1 A gate drivers for designing multiple output power supply at up to 60 W. Adjustable soft-start controls inrush current while IC's start-up current is guaranteed at 80 µA.

NKK Switches    Scottsdale, AZ 85260-3420

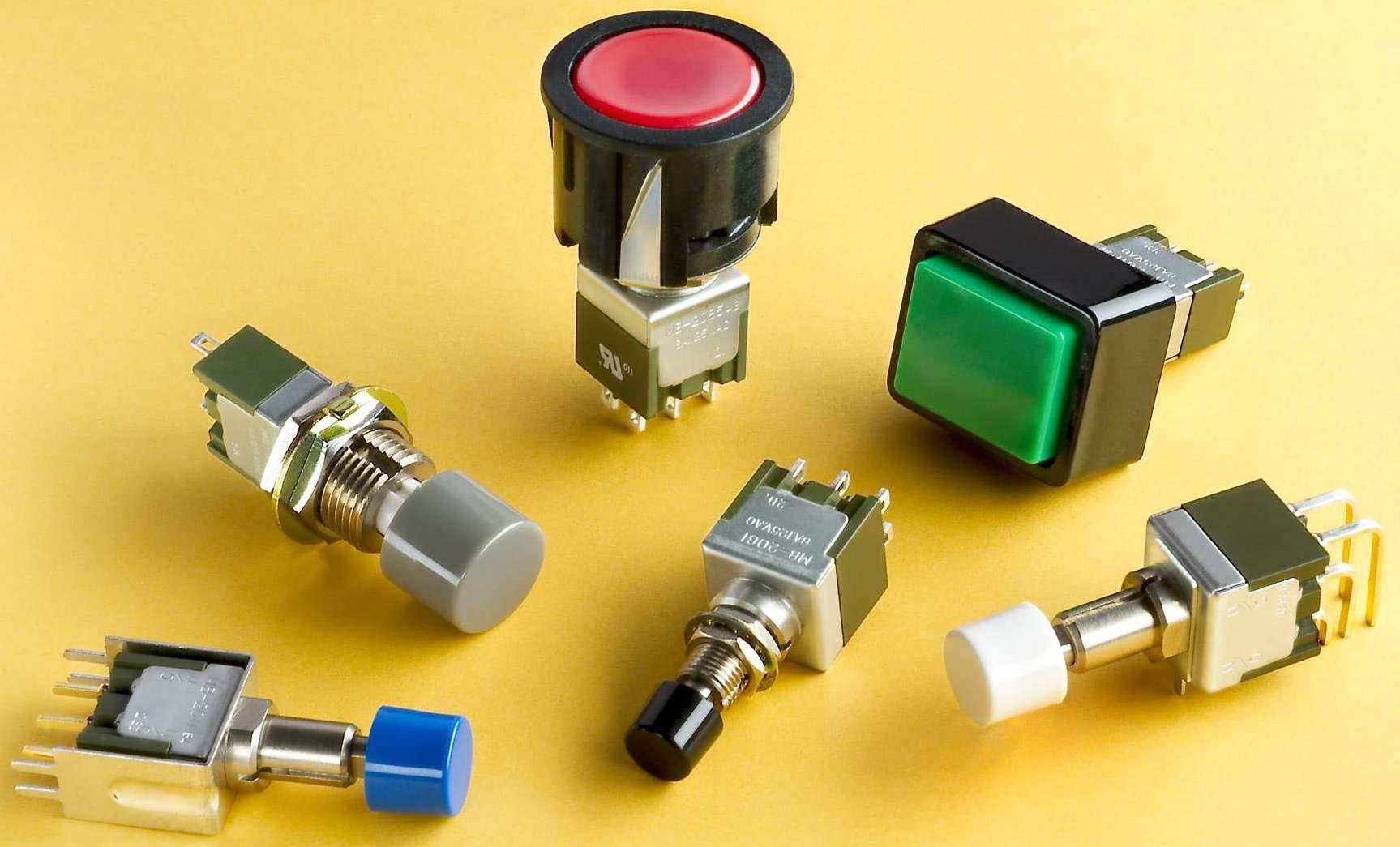

Feb 02, 2004 Offered with momentary and alternate circuits, MB2000 series pushbuttons are available in single-, double-, and 4-pole, double throw configurations. They feature over-center actuator mechanism, guide-interlocked actuator blocks, frames clinched above case, and epoxy-sealed terminals. Power rated models are 6A @ 125 Vac and 3A @ 250 Vac or 3A @ 30 Vdc. Logic level devices are rated at 0.4 VA max @ 28 V AC/DC max. Various terminals and mounting options are available.

EGS Electrical Group    Skokie, IL 60077

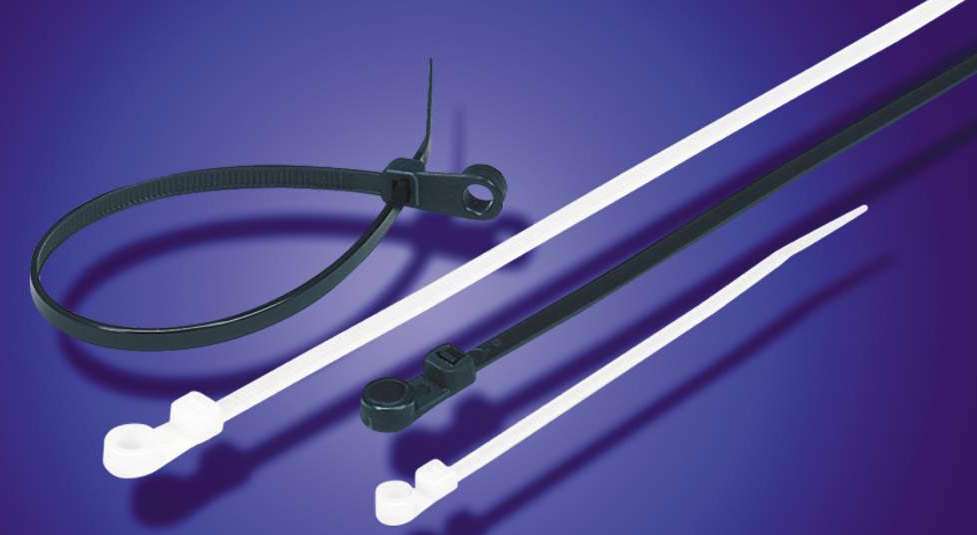

Feb 02, 2004 Tie-Max™ cable ties, available for mounting and non-mounting applications, come in standard or weather-resistant designs. Tensile strength ranges from 18–175 lb with cable lengths from 3.78–30 in. Mounting cables have tensile strength from 18–50 lb with lengths from 3.94–8.07 in. Weather-resistant ties have Carbonate A, which offers UV resistance.

Allegro MicroSystems Inc.    Worcester, MA 01615
Feb 02, 2004 Pre-Driver IC Family fills need for driving either DC brush or DC brushless motors in systems with motor supply voltages as low as 7 V and as high as 60 V. Wide operating temperature range, fault diagnostics and reporting, and operation over wide supply voltage make family suited for harsh automotive environment. Each is offered in various options of surface mount packages, including low profile and thermally efficient e-LQFP and e-TSSOP packages.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Jan 30, 2004 Series F7-MLK2 contains all components necessary for fabrication of 1 or 2 station level switch for pipe plug mounting. User can customize stem length, actuation point, distance between floats, and lead wire lengths to fit specific application. All components are 316 stainless steel suited for corrosive liquid monitoring. Operating temperature is -40 to 275°F and max pressure is 750 psi.

Technology Dynamics Inc.    Bergenfield, NJ 07621

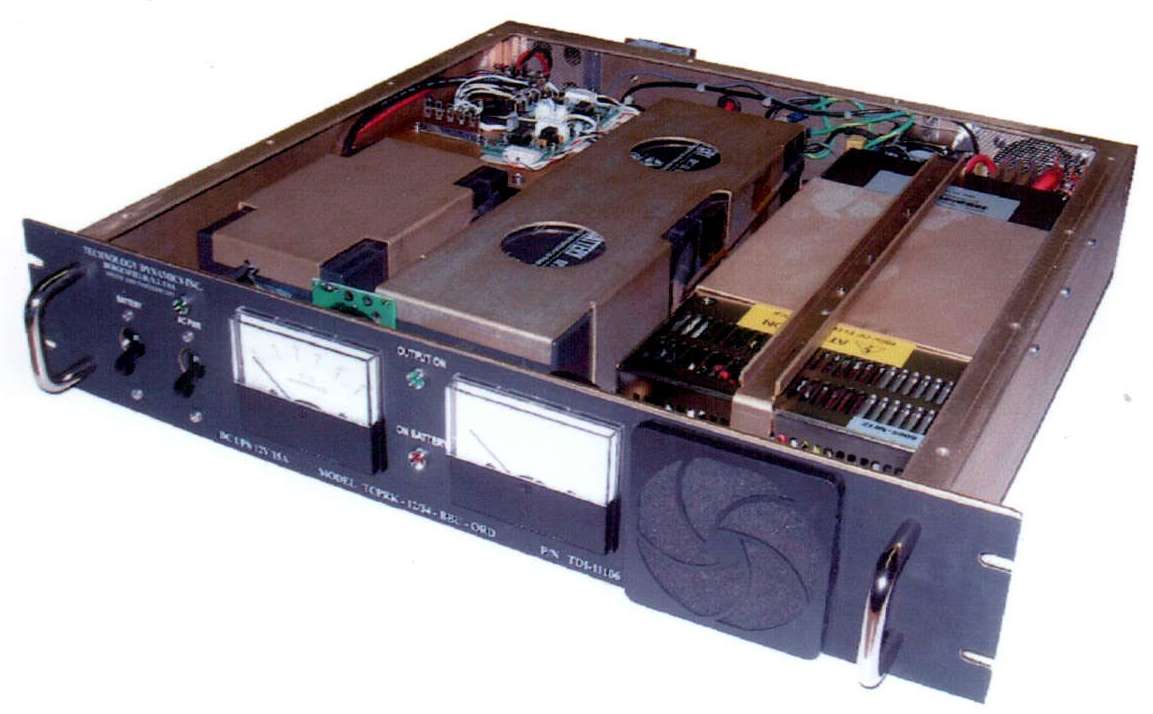

Jan 30, 2004 Designed for systems in commercial and military markets, TCP/BBU Series single output power supplies provide seamless DC power in 2U package with separate charging circuit. Sealed lead acid batteries provide up to 1 hr back-up, and low voltage battery disconnect protects batteries from damage due to deep discharge. Standard voltages include 12, 24, and 48 V outputs up to 500 W, and input is rated 110/220 Vac, 47–63 Hz.

Automation Products, Inc.    Houston, TX 77008

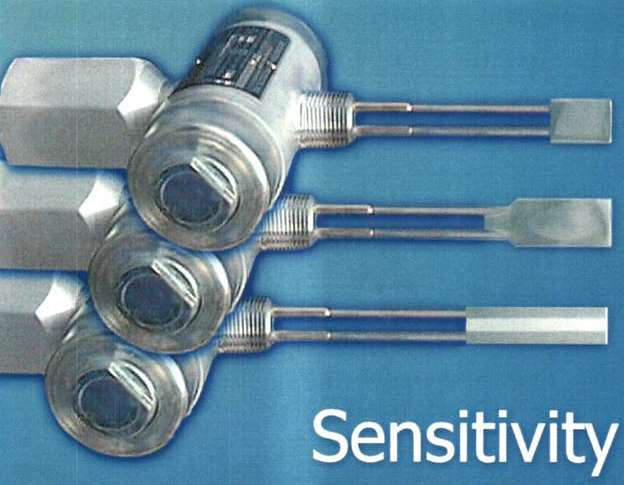

Jan 30, 2004 Designed for working with extremely light or fluffy products or bulk solids that tend to pack or bridge easily, Dynatrol® G-Series Level Detectors provide high-, mid-, or low-point level detection. Products are solidly constructed and employ no moving parts. They require no adjustments, calibrations, or maintenance.

GE Intelligent Platforms    Charlottesville, VA 22911
Jan 30, 2004 Integrated VME Ethernet switch RM940 has eight 10/100 Mbps auto-negotiating ports. Model RM946M 24-port 10/100 BaseTX Ethernet Switch has 2 Gigabit uplinks and Layer 2 switching capabilities. Model RM931/M consists of 16-port, 10/100BaseTX VME switch with 2 Gigabit Ethernet port uplinks. Conduction cooled CP920/12M, 12-port Gigabit switch is designed to CompactPCI form factor. Model CP663FX/3UM, 3U CompactPCI Ethernet card offers dual 100FX interfaces.

Conntrol International Inc.    Putnam, CT 06260 0645

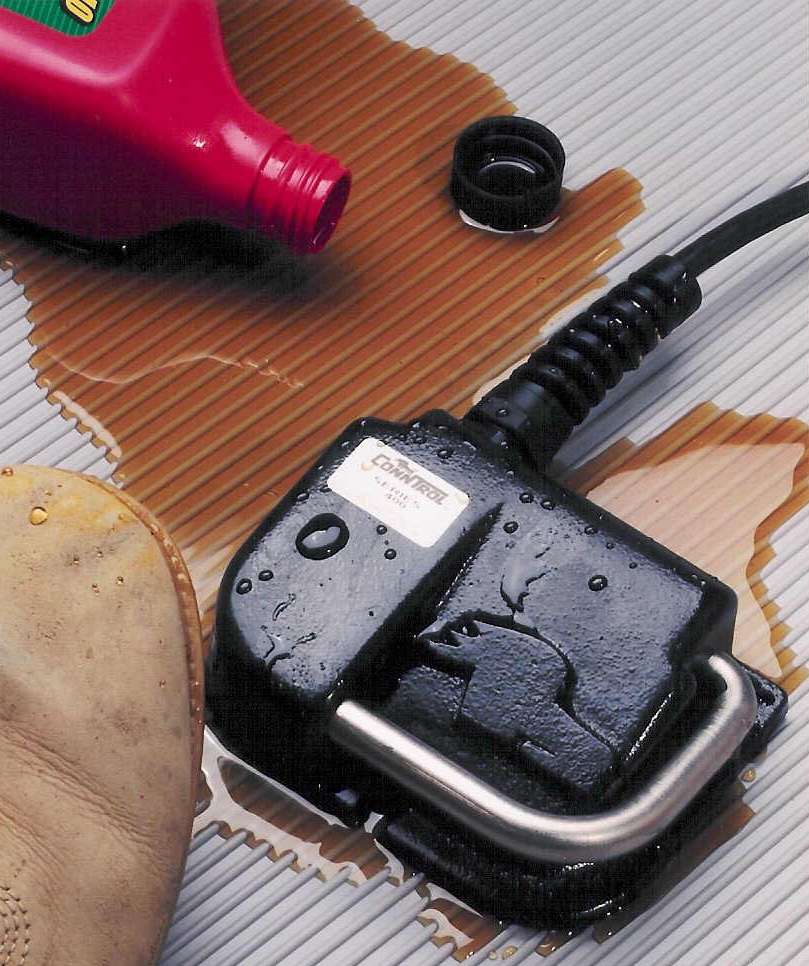

Jan 29, 2004 Series 400 Sealed Foot Switch features low-profile, cast iron housing with foot rest that lets users slide their foot sideways and step on nickel-plated steel pedal. Equipped with skid-resistant elastomeric base pad and 3 mounting holes, switch has no external springs, measures 7¼ x 4¾ x 1½ in., is UL/CSA listed, and sealed to IP68 and NEMA 4X, 6P, 12, and 13 ratings. Electrostatically coated black housing can be supplied in custom colors for OEMs.

W.A.C. Lighting Company    Port Washington, NY 11050
Jan 28, 2004 Flexrail2 track system suits installation at retail locations, banks, hotels, showrooms, restaurants, and healthcare facilities. Lighting tools include line and voltage spotlights, compact fluorescent wall washers, and HID accent lights. Utilizing QuickConnect adaptor, system accommodates low-voltage fixtures, pendants, and spotlights. System can be customized in curved and circular configurations. Silver-gray rail is offered in 4 ft and 8 ft lengths.

E-T-A Circuit Breakers    Mount Prospect, IL 60056 6060

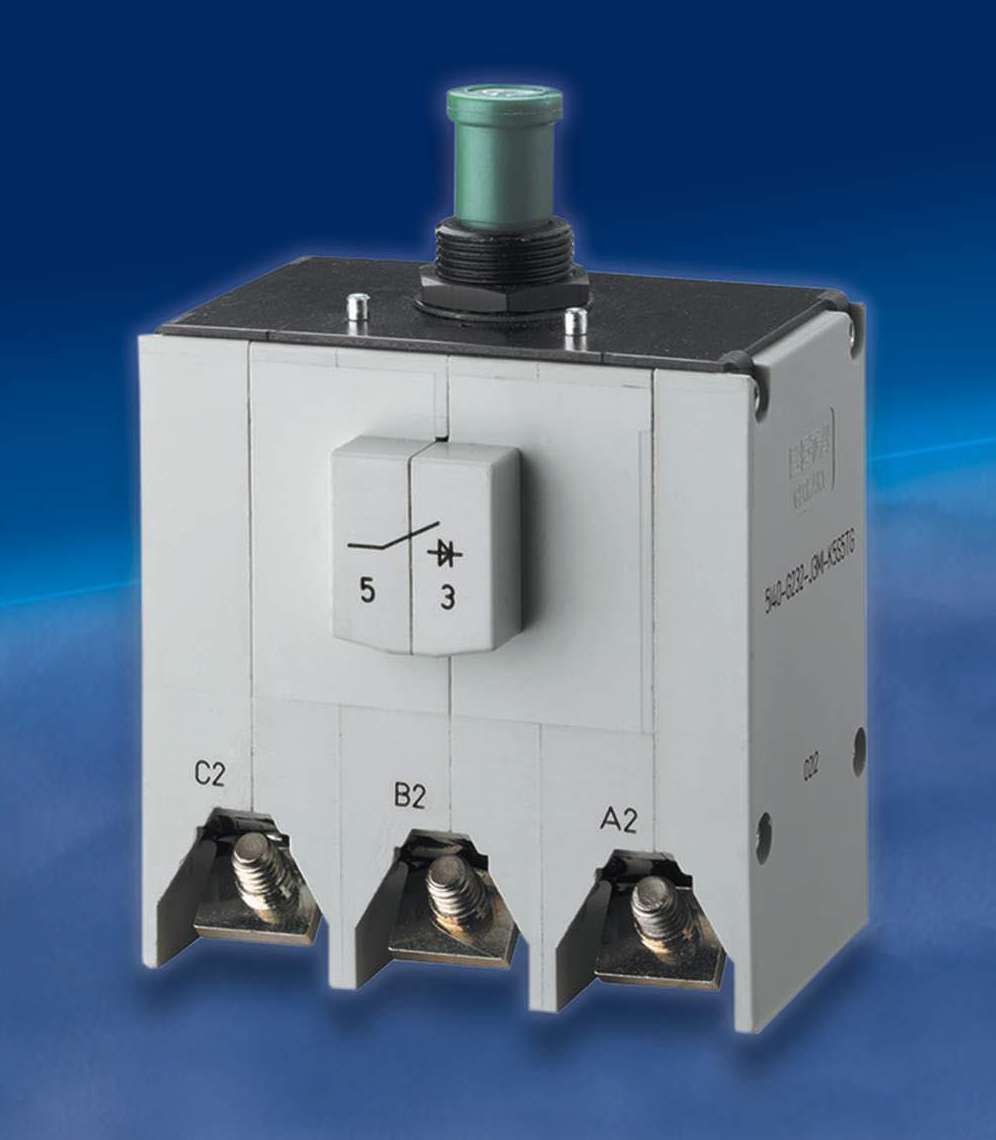

Jan 28, 2004 Model 5140 is suited for 400 Hz, 3-pole applications from 20-50 A. It is temperature compensated, providing consistent trip curve characteristics from -55 to +90°C. Typical life is 5,000 mechanical cycles and 2,500 inductive cycles. Circuit breaker meets requirements of commercial and military aircraft applications, as well as rugged ground vehicles and boats.

Crescent/Stonco    Union, NJ 07083

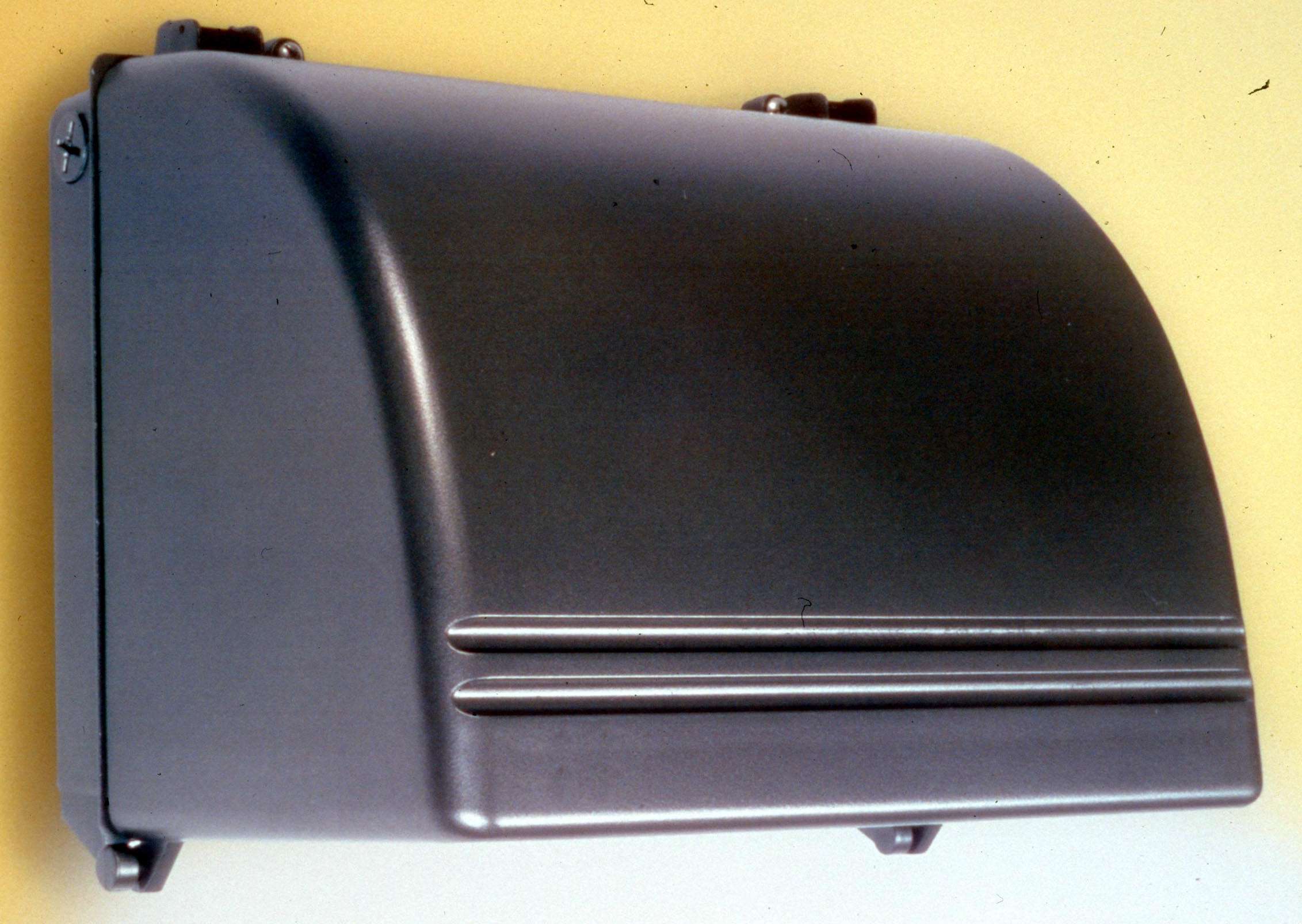

Jan 28, 2004 Wall-mounted Series 600 offers full cut-off optics compliant with Dark Sky ordinances. Units feature cast aluminum architectural shape, large shade that conceals light source, and computer-designed specular metal reflector. Illumination is provided by single metal halide, Pulse-Start metal halide, high-pressure sodium, or compact fluorescent sources, in range of voltages and wattages. Luminaires are suited for site, perimeter, security, and accent lighting.

Linear Technology Corp.    Milpitas, CA 95035

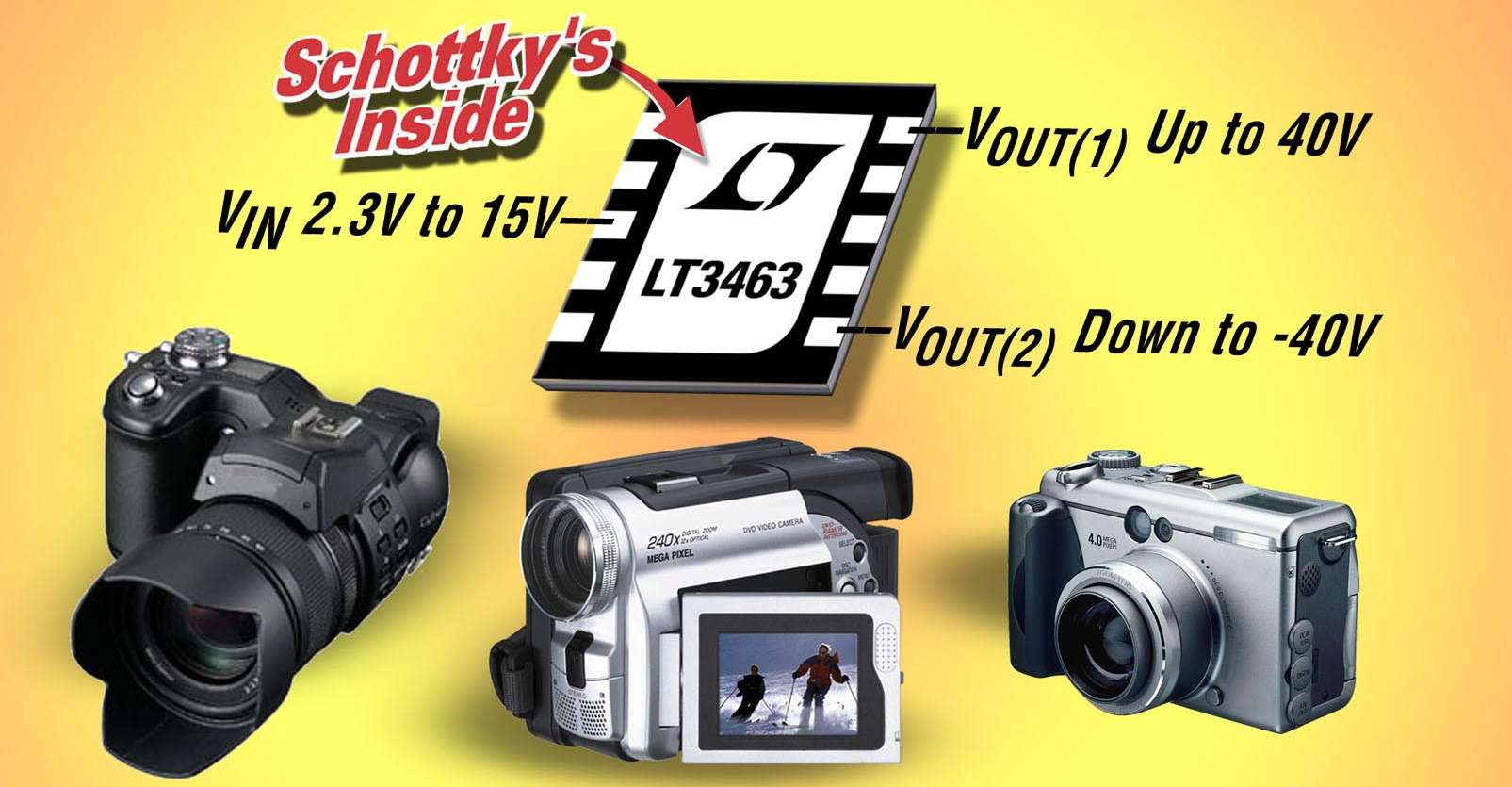

Jan 27, 2004 Dual micropower Model LT3463 features internal 250 mA, ±42 V switches that deliver 40 and -40 V output from input voltage of 2.3-15 V. Burst Mode® Operation enables ultra-low supply current of 40 mA for both channels, while shutdown current is less than 1 mA. Low off-time of 300 ns permits use of tiny inductors and capacitors. Converter is suited for biasing TFT LCDs as well as digital camera CCDs from inputs ranging from Li-Ion to multiple cell alkaline/NiMH batteries.

PolyPhaser Corp.    Minden, NV 89423 9000

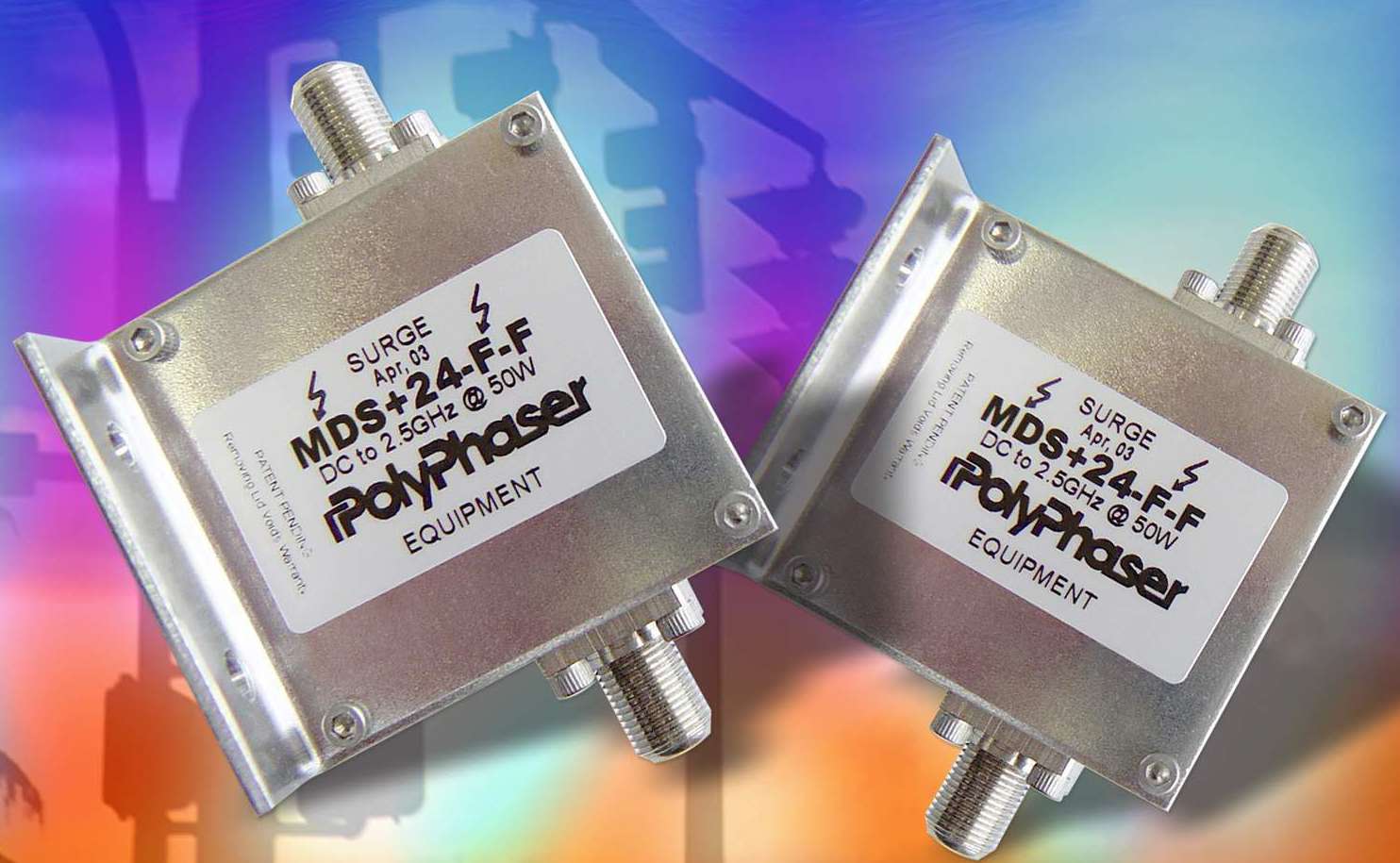

Jan 27, 2004 Model MDS+24-F-F is suited for broadband wireless and satellite applications from 300–2,500 MHz. It utilizes cascaded protection circuit resulting in let-through voltage of 48 Vpk and throughput energy of 1,000 µJ for 3 kA at 8/20 µs waveform. Unit provides low insertion loss of 1 dB and RF power of 50 W. Featuring 75 ohm F female connectors, flange mountable lightning protector passes telemetry frequencies of 10–150 kHz and 10–100 MHz.

Teledyne Hastings Instruments    Hampton, VA 23661
Jan 26, 2004 Model THPS-400 digital, 4-channel power supply unit has integrated totalizer with count-up or countdown options; user selected filtering of readings; and RS-232, RS-485, or Ethernet communication. It also offers simultaneous display of all 4 channels or selective blanking of unused channels, ratio control with analog outputs, and menu-driven calibration and setup. Construction includes all-metal enclosure and vacuum fluorescent display.

Panamax    San Rafael, CA 94903 2046

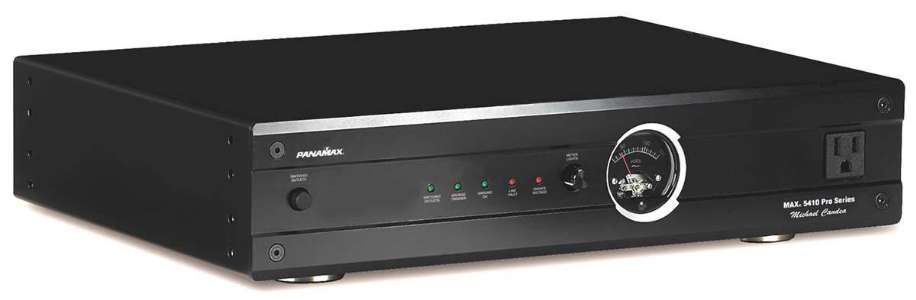

Jan 26, 2004 Panamax MAX® 5410 Pro custom, installer-centered component distributes clean power to systems in automated homes and features RS-232 interface for home automation system compatibility. It has 12 V-in and -out triggers that control start-up, shut down, and automation functions; surge protection; and component-specific power conditioning. Additional features include 6 LED diagnostic lights; backlit, analog Voltmeter with dimmer control; and front panel outlet.

Beta Dyne Inc.    Bridgewater, MA 02324

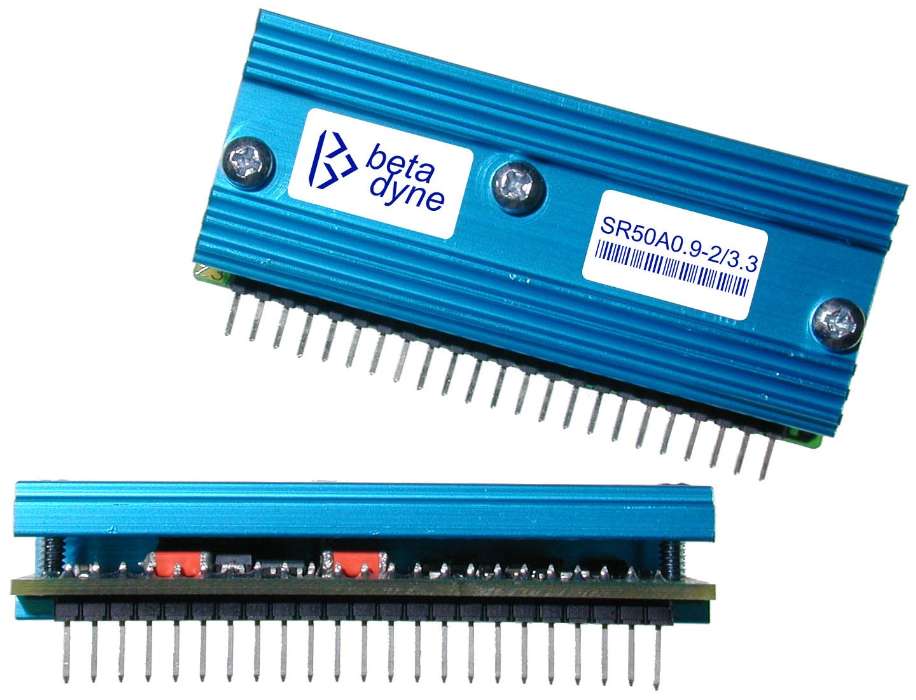

Jan 26, 2004 Series SR50 consists of 5-bit, adjustable, synchronous, non-isolated, step-down DC/DC converters that support 6 Voltage Identification (VID) codes and choice of 2 physical configurations. Input and output ranges from 3.3–12 V and 0.9–5 V, respectively. Synchronous rectifiers operate at 400 kHz switching frequency and can be synchronized to external clock. Series has multilayer PCB construction, anodized aluminum heat sink, and 2.6 x 1.1 x 0.52 in. size.
