Non-Isolated DC/DC Converters offer efficiencies to 92%.
Astec America Inc.
Carlsbad, CA 92008
Aug 04, 2004
Operating over -40 to +85°C temperature range, APA18 series delivers 18 A with adjustable output voltages from 0.75-5.5 V. It incorporates built-in overcurrent and overtemperature protection as well as remote enable pin for sequential activation. Measuring 2 x 0.5 x 0.4 in., 75 W, single inline package footprint point-of-load DC/DC converter is available with input voltage from 10-14 V and vertical or horizontal mounting pins. Current slew rate is up to 1 A/µsec.
Watering Gun Cart offers portable water supply.
Montgomeryville, PA 18936
Aug 04, 2004 With pump powered by 12 V, 7 Ah sealed lead acid battery, Hydrofill Watering Gun Cart provides mobile water supply for industrial batteries. Made of polypropylene, 2-wheel, 10 gal cart handles like a hand truck and can be charged from any 120 Vac outlet using charger provided. Nine foot hose attaches to all Philadelphia Scientific watering guns. Cart weighs 30 lb and measures 37 x 17 x 17 in.
Aerospace Circuit Breaker handles currents up to 50 A.
E-T-A Circuit Breakers
Mount Prospect, IL 60056 6060
Aug 04, 2004
Weighing 60 g, single-pole Model 4140 is intended for 115 V or 28 Vdc applications from 20-50 A. Temperature-compensated unit offers operating temperature of -67 to 257°F and provides consistent trip curve characteristics from -67 to 194°F. In addition to aircraft applications, breaker is suitable for ground vehicles where resistance to mechanical vibration and shock are required. It also meets Mil-Std 202, method 101 test condition B, for salt spray test.
Flat Cables suit factory automation projects.
C & M Corporation
Wauregan, CT 06387 0348
Aug 04, 2004 Featuring tight bend radius and low profile, Flat Cables allow severe flexing in OEM equipment or in-plant installation. They will accommodate bending, rolling, and variable flex better than standard round cables. Available with 12â€“24 gauge conductors, cables come in various widths and are suitable for space-restricted applications.
SMT Battery Connectors have low-profile design.
Myrtle Beach, SC 29578
Aug 03, 2004 Designed for mobile applications, 9155 Series connectors feature contact beam static height of 2.45 mm. Initial product is available in 3 contact positions and spaced on 2.5 mm centers. Once fully deflected, compressed height reduces to 1.3 mm above board. All gold-plated contacts, stamped and rated to 3 A, have beryllium copper base material and stable contact beam design. Integral end stop aids in radial or slide-in battery engagement.
Piezo Inverter suits multi-lamp backlit displays.
Global Display Solutions
Bingley West Yorks BD16 1PE United Kingdom
Aug 03, 2004 With Piezo Inverter, each lamp in multiple lamp systems operates independently in event of single or multiple lamp failure. By using balanced output configuration, dimming ratios of greater than 500:1 are achievable. Control circuitry and low voltage power supply can be remotely mounted allowing thermal management of display. Optical feedback provides uniform lamp output and can compensate for brightness variations caused by temperature changes in display.
Crimping Machine offers fully automatic operation.
Komax Systems, Inc.
Wilmington, CA 90748 1323
Aug 03, 2004 Gamma 255 processes both ends of wire from 16â€“36 AWG. Operator can leave crimping press in place as changeover is made to twisting, fluxing, and tinning. Featuring integrated prefeeder for gentle feeding of wires, system provides defective crimp handling, knot detection, end-of-wire monitoring, wire splice detection, stripping confirmation, and terminal presence. Fitted with short wire option, Gamma 255 can crimp wires as short as 20 mm.

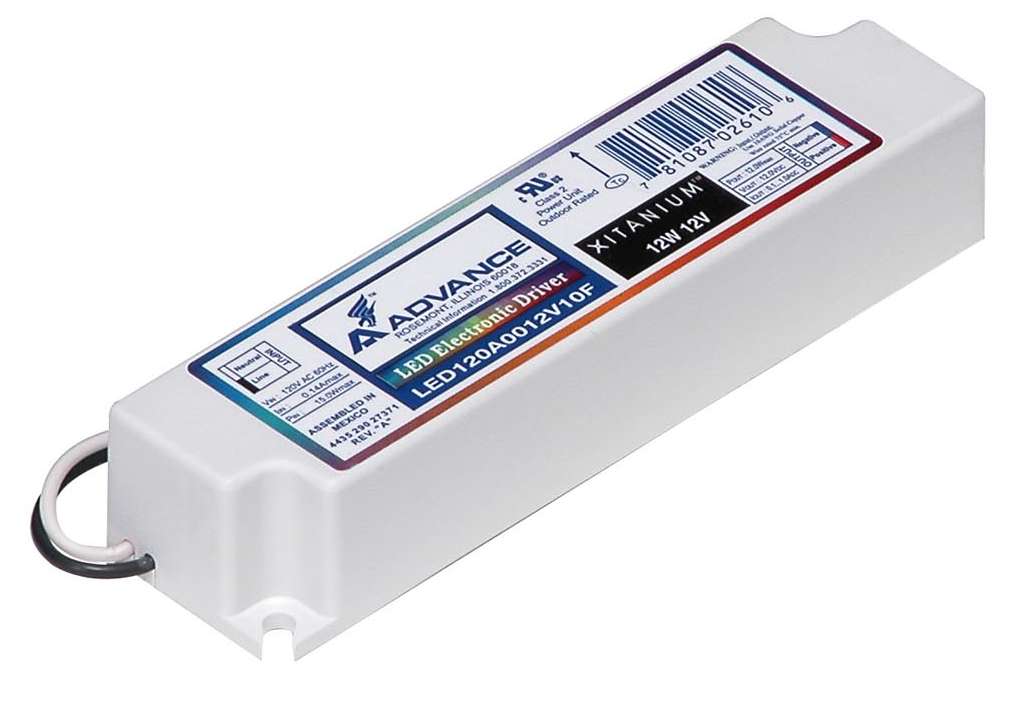

LED Light Source Drivers can be used in damp locations.
Advance Transformer Co.
Rosemont, IL 60018 5625
Aug 03, 2004 Available with 120 and 230 V input voltages, signPROâ„˘ damp location-rated drivers are designed for Luxeonâ„˘-branded LEDs. Sign drivers, offered in 350 and 700 mA models, are suited for use in sign settings where moisture could be of concern. Compact products deliver constant current operation, eliminating need for current-limiting resistors. Leaded design, with UL Class 2 rating, includes short-circuit protection and has 50,000+ hr life expectancy.

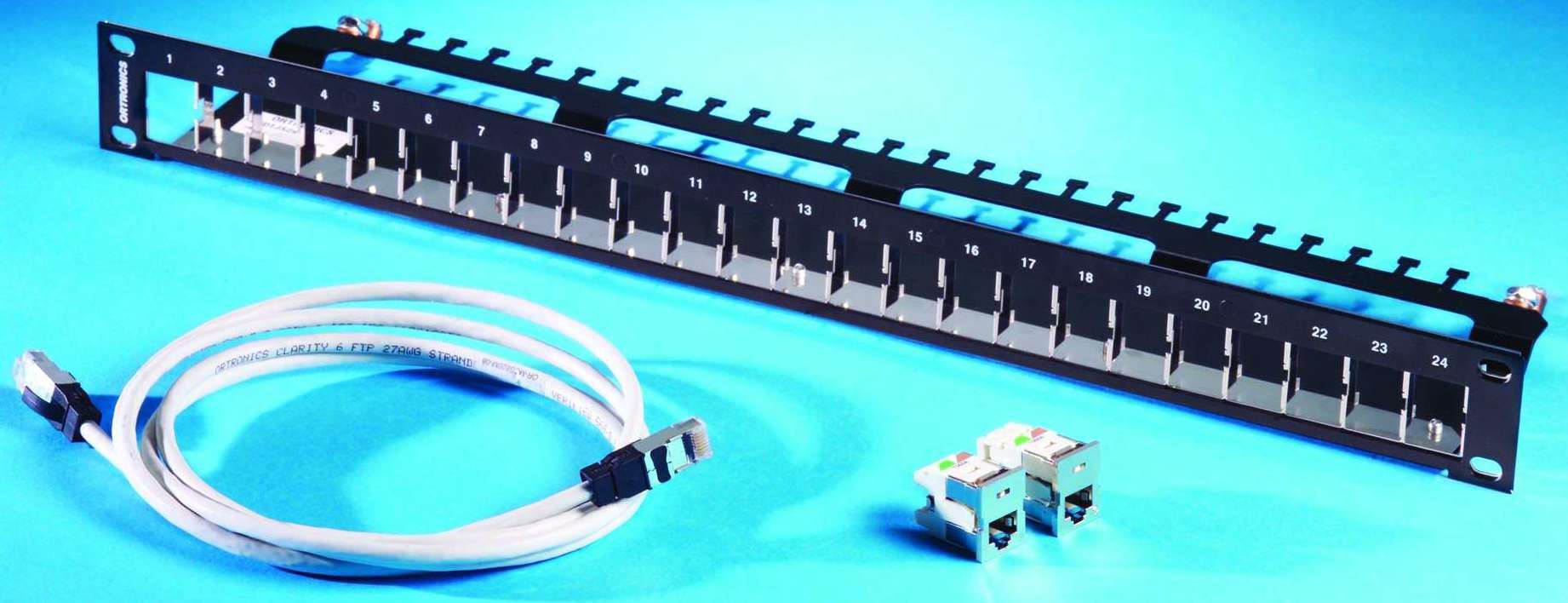

Shielded Cable and Patch Kits deliver shielded connectivity.
New London, CT 06320
Aug 03, 2004 Clarity® Shielded Solutions provide Category 6 and 5e performance with added protection from EMI, RFI, and alien cross-talk, external noise sources that can negatively affect channel performance. This 4-pair shielded connectivity system includes TracJack® workstation modules, patch cords, and patch panel kits. Products exceed ISO/IEC 11801 and EN50173 second edition requirements for transfer impedance and shield effectiveness.
DC/DC Converters offer output to 2,000 Vdc.
Beaverton, OR 97005
Aug 02, 2004 PCB-mount, high-voltage converter series VMHV, VSHV, VPHV, and VBYH come in 22 models with expected MTBF value of 400,000 hr. They accept input of 5 or 12 V, with wattages from 0.5â€“3.5 W. Output voltages are trimmable from 0â€“2,000 Vdc with external pot, and voltage regulation is as low as .01%. Available in positive and negative polarities, converters feature remote on/off and short circuit, output over-current, and over-temperature protection.

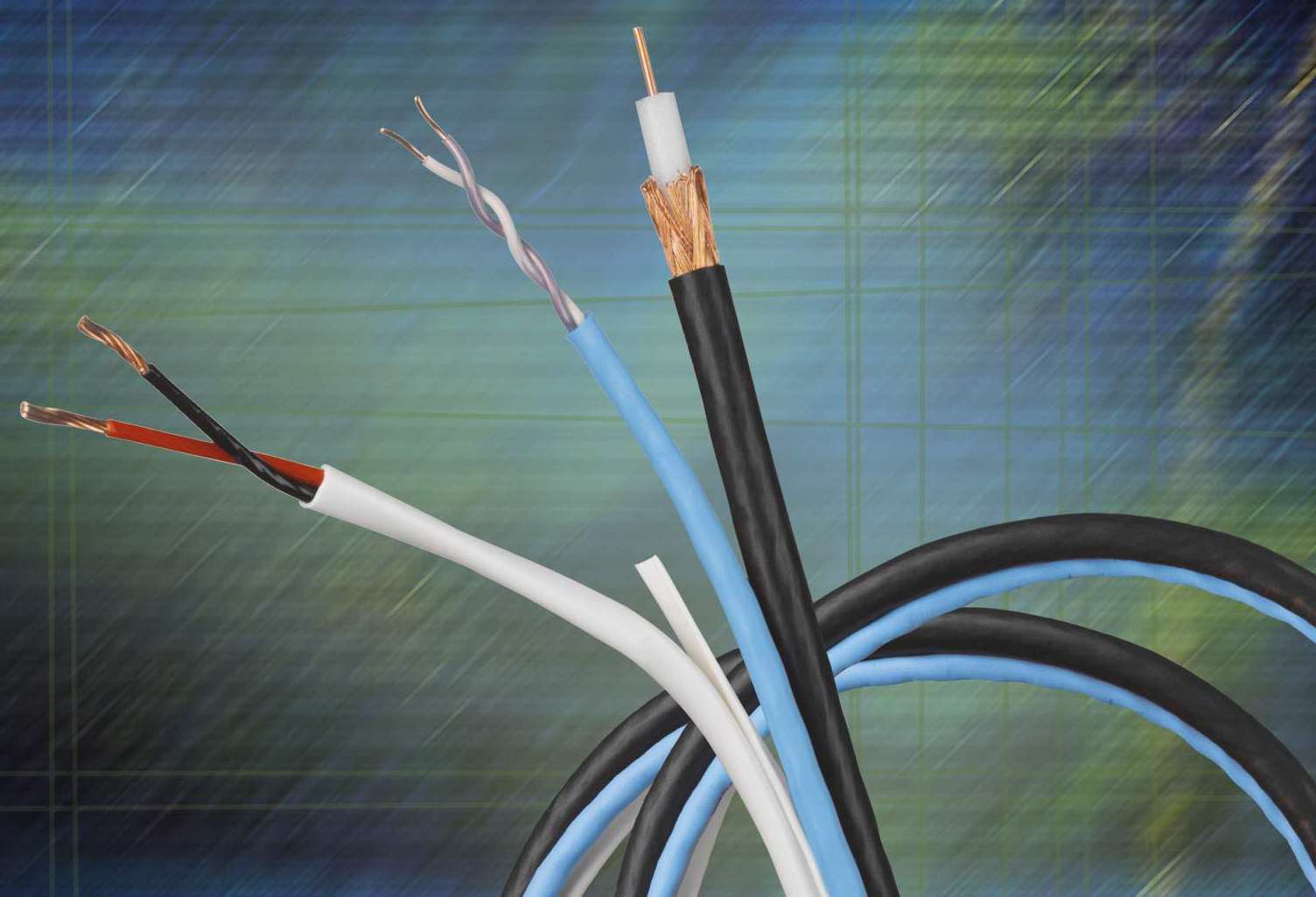

Composite Cables suit CCTV surveillance systems.
Richmond, IN 47375
Aug 02, 2004
Offered in riser and plenum versions, New Generation Banana Peel PTZ Composite Cables are suited for pan/tilt/zoom (PTZ) cameras used in CCTV surveillance systems. They are comprised of one RG-59 coaxial cable, single-pair 18 AWG cable, and one 23 AWG UTP or one 22 or 18 AWG STP. Composite cables feature Banana Peel design, in which individual, color-coded cables are affixed to center spline, eliminating need for overall jacket.

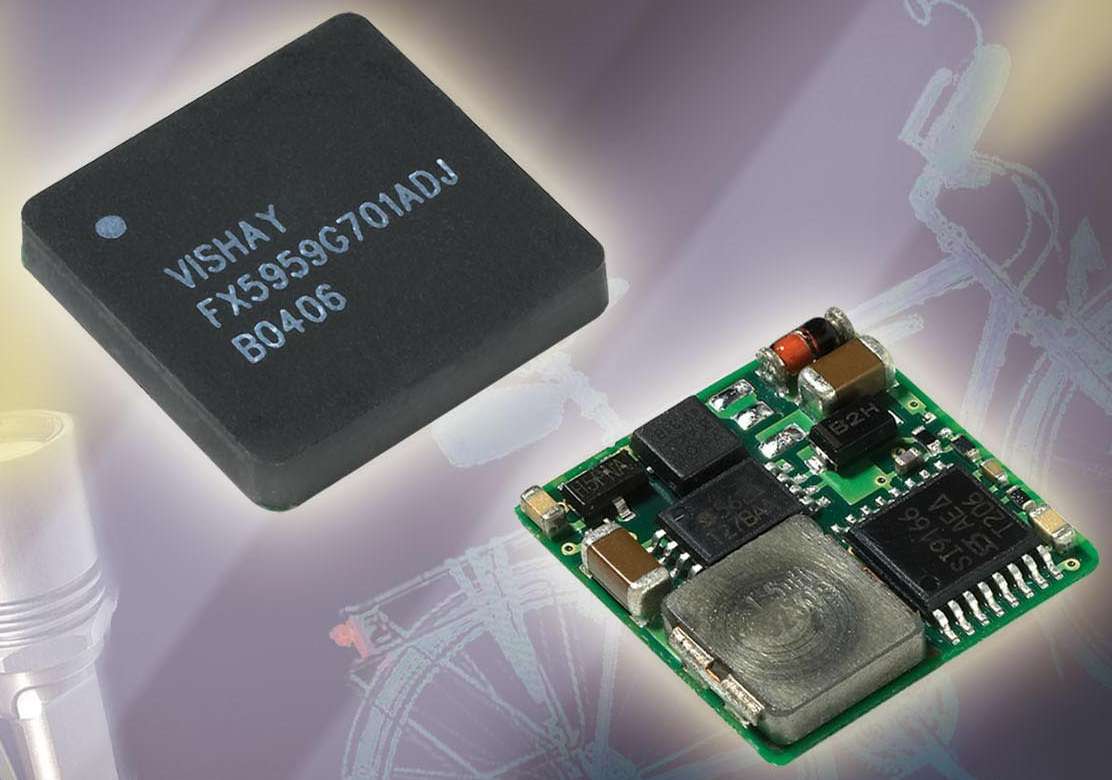

DC/DC Converter features 15 x 15 mm power LED driver.
Vishay Intertechnology, Inc.
Malvern, PA 19355 2143
Aug 02, 2004 Requiring no external components, FX5959G701ADJ features fully integrated constant current source module that ensures full load life of LEDs without exceeding applicable LED voltage. It drives power LEDs rated for operation at or above 300 mA by being connected with LED and low voltage source. Measuring 0.59 x 0.59 x 0.126 in., product incorporates 20 components and dc/dc converter in one BGA package. Input voltage range is 2.5â€“6 V.
Cable Markers are suited for network professionals.
El Dorado Hills, CA 95762
Aug 02, 2004 Packaged Cable Markers provide clean, simplified solution to organize wiring closets. Products consist of white plastic C Clips with black numbers from 0â€“9. Clips are applied to Category 3, 4, 5, or 6 wiring that connects switches to servers and patch panels. Labeling both ends facilitates identification of cable routes without removing cable management trays or hand tracing wires. Markers can be applied to operational networks without service disruption.
Line Driver delivers video signals over twisted pair cable.
Analog Devices, Inc.
Norwood, MA 02062-9106
Jul 30, 2004 Manufactured on XFCB bipolar process, AD8133 triple differential line driver is integrated into 4 x 4 mm package. With 225 MHz large signal bandwidth and 1,600 V/µs slew rate, it enables engineers needing to drive RGB signals over twisted-pair cable to eliminate use of multiple-chip solutions. Internal common-mode feedback provides output gain and phase balance of -60 dB @ 50 MHz, suppressing EMI radiation and enabling use of Category-5 UTP cable.

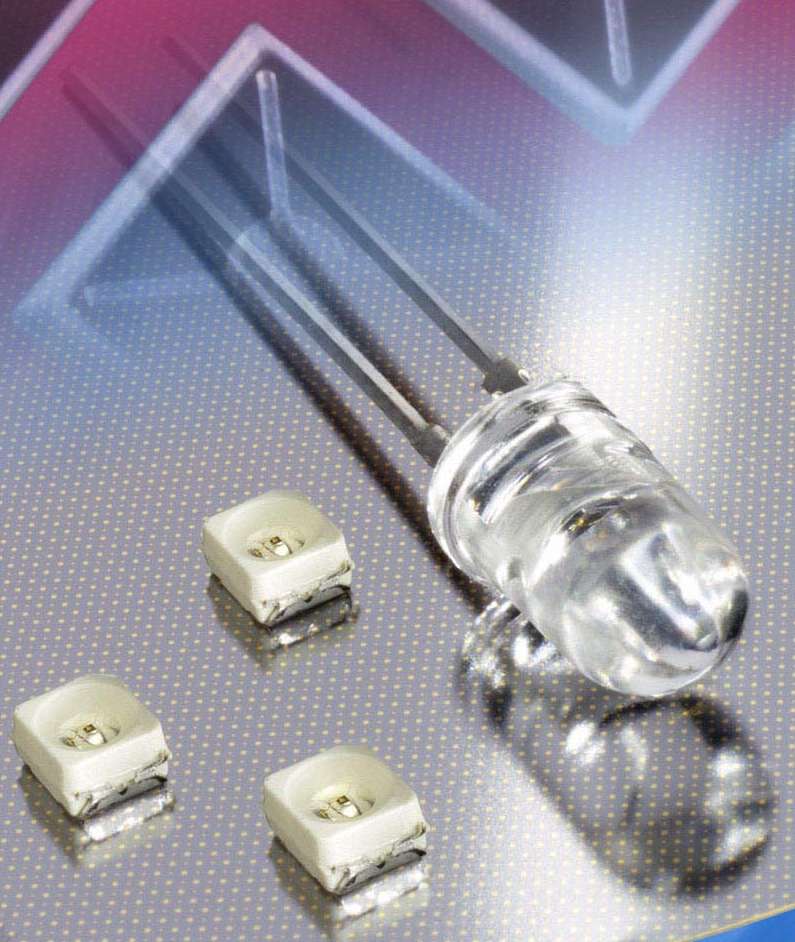

IR Emitters are optimized with 850 nm wavelength.
Vishay Intertechnology, Inc.
Malvern, PA 19355 2143
Jul 30, 2004 Lead-free infrared (IR) emitters TSHG6200 and TSMG3700, suited for CMOS camera and high-speed IR data transmission applications, incorporate GaAlAs double hetero technology and have 20 ns rise time and 1.8 V max forward voltage. Model TSHG6200 has radiant intensity of 180 mW/sr at forward current of 100 mA and ±10° angle of half intensity, while surface-mount TSMG3700 combines ±60° angle of half intensity with radiant intensity of 10 mW/sr.
Hand Tool crimps PowerMod and Power Drawer contacts.
Anderson Power Products
Sterling, MA 01564
Jul 30, 2004 Model PM1000GI features 12-position, dial type locator that accommodates 18 different PowerMod and Power Drawer contacts. Integrated 4-indent die includes dial selector with appropriate settings for 24â€“12 AWG wires. Product also comes equipped with carrying case and tooling required for die and locator maintenance.
LED Lamp indicates PC status.
Morbach 54497 Germany
Jul 30, 2004 Intended for Internet terminal users, PC Status LED Lamp features 8 individually-controllable RGB LEDs mounted inside. With software, user can control colors and brightness. Standard pre-programmed effects include blinking, flashing, colors, and color-flow of color spectrum. Consuming 2 V, USB-powered lamp offers life span up to 50,000 hr constant use.

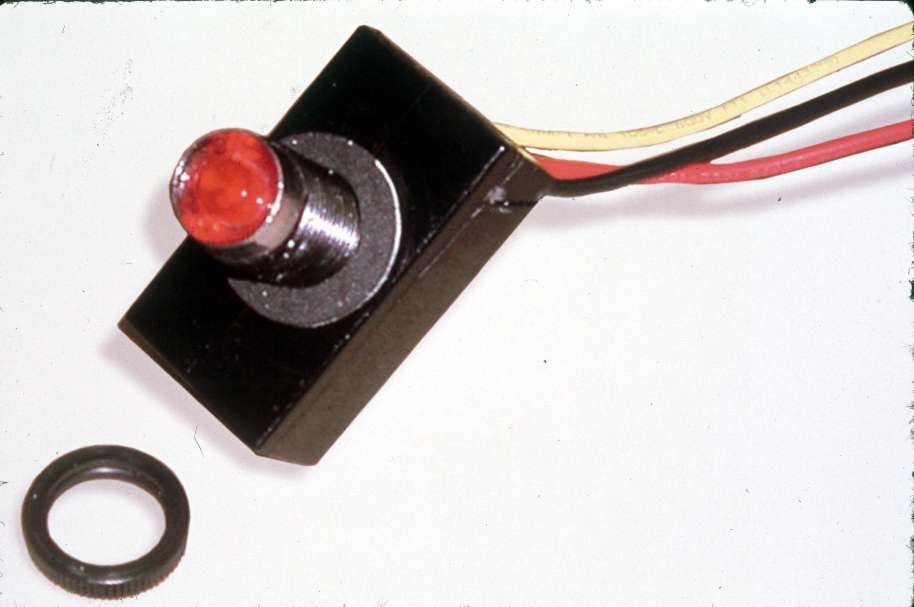

Signaling Device provides diagnostics for light fixtures.
Beacon Products, Inc.
Sarasota, FL 34243
Jul 28, 2004 I.Q. On Boardâ„˘ LED signaling device troubleshoots common problems of outdoor pole- or building-mounted commercial light fixtures. Device connects directly to fixture ballast compartment and provides at-a-glance diagnostic information. Problems can be spotted from pedestrian or vehicular levels, as soon as they occur. LED lamp is discreetly positioned at base of ballast compartment. Silicone gasket assures watertight seal around LED.

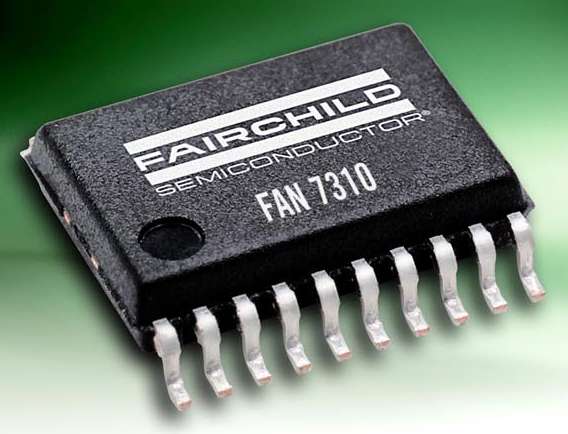

LCD Inverter/Driver suits portable backlighting applications.
Fairchild Semiconductor Corp.
South Portland, ME 04106
Jul 28, 2004 Full-bridge Model FAN7310 integrates pulse width modulation controller in 20-SSOP package with input range of 5â€“24 V. Unit supports analog, mixed, and burst-dimming modes of operation. In addition to phase shift control, FAN7310 offers alternate zero voltage switching and zero current switching topology, while consuming less than 4 mA. Open lamp regulation and open lamp protection shield transformer from over-voltage during start up or when open lamp occurs.
OEM Flow Switches withstand high temperatures.
Fluid Components Intl.
San Marcos, CA 92069 5115
Jul 28, 2004 Series M180 provides air, gas, or liquid flow sensing and switching with no drift under operating conditions to 450°F. Switches are sealed, with no orifices to plug or foul. Two platinum RTD sensors are mounted in miniature thermowells, which are sealed to avoid contamination by process fluid. Series M180 is suited for control loops and protection circuitry within analyzers, compressors, fans, fuel systems, HVAC systems, machinery, motors, and pumps.
