Wire Duct eliminates unsightly wire bundles.
Greer, SC 29652-0830
Jul 09, 2004 Wire Duct consists of 2-piece conduit that routes and encloses wires, eliminating safety issues of exposed wiring. Base section, with concave bottom, mounts via adhesive to 028 mm pipe sections of structures, and top cover snaps into place and locks over base. Plastic resin Wire Duct is offered in 2 m long sections and can be cut to length. Conduit heights include 11, 16, and 21 mm, providing ample space for lighting cords to NM-type sheathed wiring.

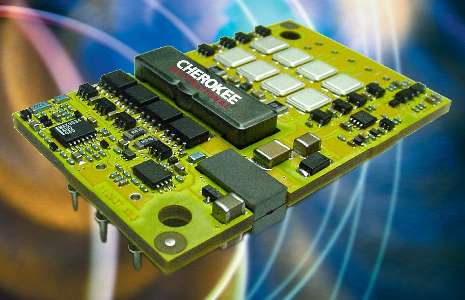

DC/DC Converter operates without derating.
Cherokee International, Inc.
Tustin, CA 92780
Jul 09, 2004 Optimized for 300 lfm airflow at 50°C, Apollo 5 quarter-brick, 80 A converter provides output voltages of 1.8, 1.5, or 1.2 V and current density of 55 A/cu-in. Integrated pre-bias features enable monotonic startup for synchronizing multiple converters to multiple output voltages during power-up. Available in open-frame or base plate models, Apollo 5 is suited for switches, routers, telecom, automatic test equipment, wireless loop, and RF transmission devices.
Appliance helps optimize IT asset utilization.
San Jose, CA 95110
Jul 09, 2004 Able to instantly plug into IT infrastructure, nLayers InSight delivers agentless appliance that automatically uncovers ways to optimize applications and mitigate risks involved in making changes to production environment. It tracks application relationships, dependencies, usage, demand, and service levels over time, transforming data into information used to implement strategic IT initiatives aimed at server and application consolidation.

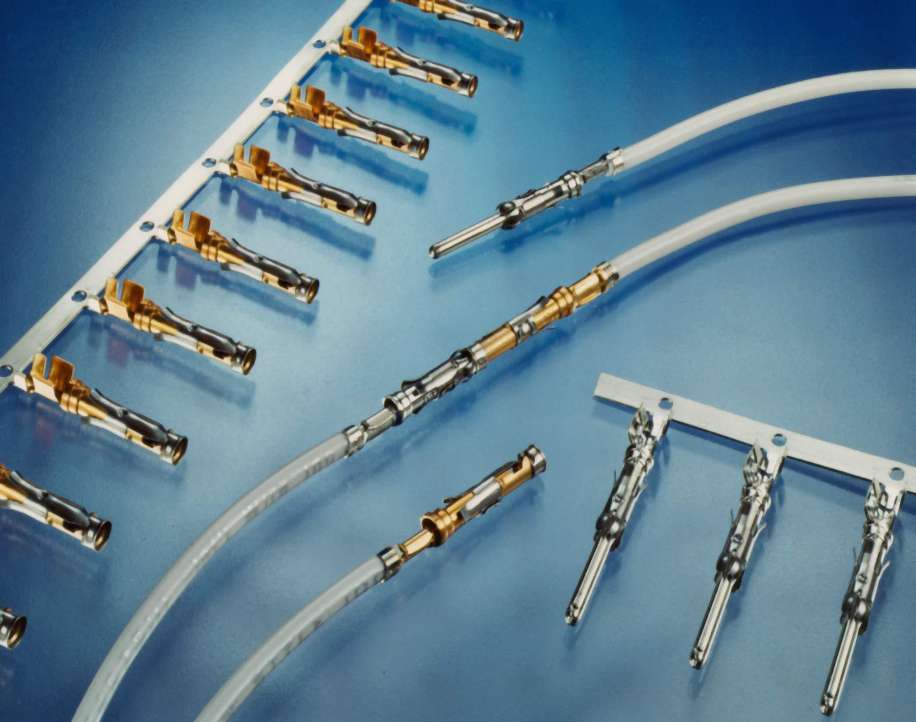

Contacts offer 8 A current carrying capacity.
TE Connectivity Ltd.
Berwyn, PA 19312
Jul 08, 2004
Type III+ Enhanced High Current Signal Contacts are crimp style contacts suited for use in circular plastic connectors, M Series connectors, and METRIMATE connectors. Products allow engineers to package power into existing connector housings without compromising temperature rise. Contacts are copper nickel alloy and are available with gold or tin plating. Size 16 contacts are rated at 250 Vac/25 A with 30°C temperature rise when using 14 AWG wire.

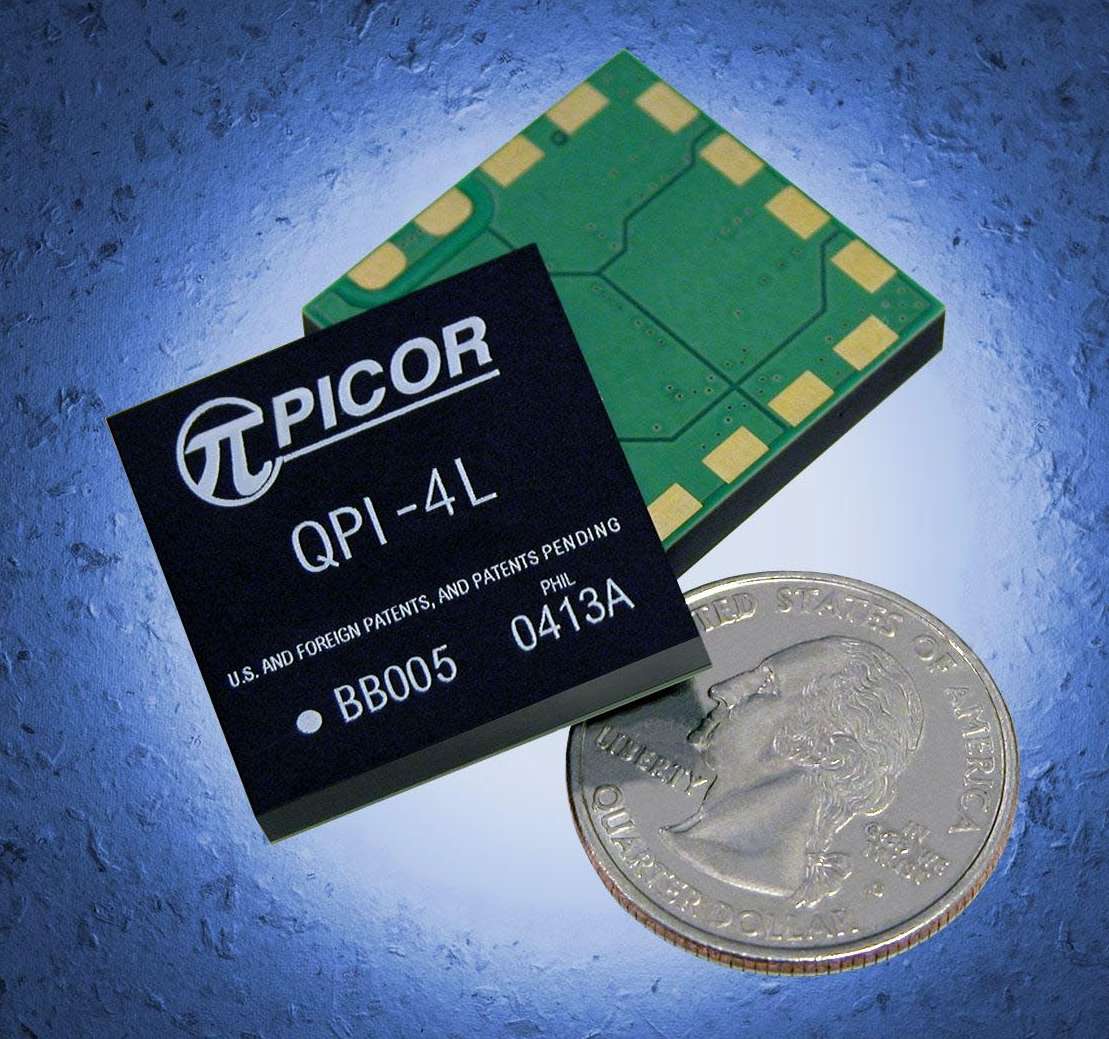

Active EMI Filter targets 48 V dc-dc converter applications.
Andover, MA 01810 5424
Jul 08, 2004 Providing attenuation from 150 kHz to 30 MHz, Model QPI-4 delivers over 40 dB common-mode and more than 70 dB differential-mode noise attenuation at 500 kHz. It meets specifications for international 36â€“76 Vdc telecom bus, including 100 V, 100 ms surge requirement. Rated at 7 A, unit supports single or multiple dc-dc converters requiring up to 336 W of input power at 48 V input. Surface mount LGA package is rated for -40° to +100°C with 99% efficiency.
Miniature Electronic Ballasts come in 1- or 2-lamp models.
Advance Transformer Co.
Rosemont, IL 60018 5625
Jul 08, 2004 Offered in 4.4 x 1.85 x .94 in. (one lamp) and 5.0 x 1.85 x .94 in. (2 lamps) sizes, Matchbox® ballasts include High Power Factor (HPF) models for operation of 4-pin compact fluorescent and T5 linear fluorescent lamps @ 120 V. Products operate compact fluorescent lamps in various combinations and feature color-coded poke-in connectors and end-of-lamp-life circuitry. Instant-on electronic design ensures flicker-free starting.
Light Fixture Mount suits hazardous work areas.
Eau Claire, WI 54703
Jul 08, 2004
Fluorescent Light Corner/Hip Mount features one-piece, 20-gauge, pre-painted steel housing and can be installed at 45° angle, either vertically in corner, or horizontally between wall and ceiling. Unit helps eliminate shadows in paint booths and other areas where proper lighting and detail are critical for illumination of products. Mount is intended for use with Model 390440 Slim Light, 4 ft/4 lamp, fluorescent light fixture.
Fuses meet RoHS requirements.
Des Plaines, IL 60016
Jul 08, 2004 Surface-mount, RoHS (Restriction of Hazardous Substances)-compliant Nano² fuses feature gold finish on nickel-plated brass caps. They are available in subminiature and miniature formats, including very fast-acting, fast-acting, Sio-Blo® (time delay), UMF, 250 V UMF, and surge-resistant versions. With 100% tin finish, RoHS-compliant PICO II subminiature axial-lead fuses are available up to 250 V in very fast-acting, Time Lag, or Slo-Blo versions.
Cone Pendants feature opal and frosted blown-glass.
W.A.C. Lighting Company
Port Washington, NY 11050
Jul 08, 2004
Series G913 QuickConnect Pendants are offered as accent lighting in 3 colorations: clear frosted, opal cut, and opal etched. Ceiling pendants utilize plated die-cast brass fittings and metal cord sets finished in platinum, chrome, and satin brass. Components include socket set with 6 ft of braided cable and hang-straight tube. Pendant shade is 11¾ in. tall and 2½ in. wide at bottom.

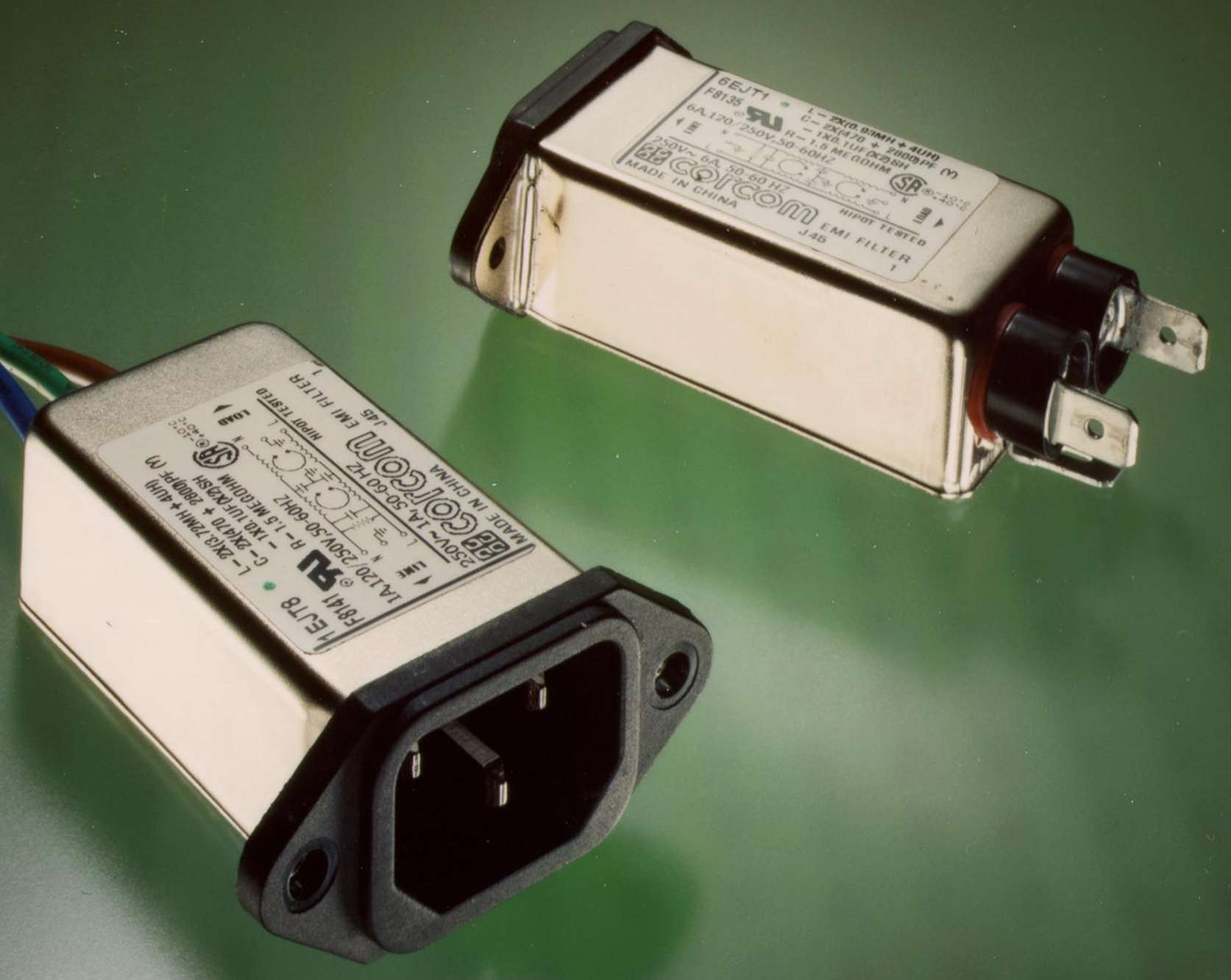

Inlet Filter offers up to 1 GHz attenuation performance.
TE Connectivity Ltd.
Berwyn, PA 19312
Jul 07, 2004
CORCOM EJT series 2-stage inlet filter utilizes IEC320 input connectors with maximum rating of 20 A. It can attenuate up to 14 db in common mode and 23 dB in differential mode @ 1 GHz. Available with ¼ in. FASTON terminals or wire leads in flange mount configuration, series carries UL/CSA/VDE agency approvals. It can be used in networking, telecom/datacom, and test and measurement equipment.
Differential Relay eliminates need for settings.
Schweitzer Engineering Laboratories Inc.
Pullman, WA 99163
Jul 07, 2004 Microprocessor-based SEL-387L Line Current Relay suits applications with identical-ratio CTs at both ends of line, with digital communications channel interface between relays. Restraint technology provides secure, high-speed ground fault differential and sensitive phase protection, uncompromised by communication asymmetry, CT saturation, or different in-feeds. Negative- and zero-sequence differential elements detect high-resistance ground faults while remaining secure for external faults.

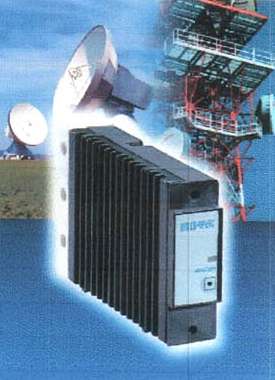

Circuit Breaker protects and controls telecom equipment.
E-T-A Circuit Breakers
Mount Prospect, IL 60056 6060
Jul 07, 2004
Electronic Model ESS60-T uses Windows®-based software to program thresholds for over-current, short circuits, over-voltage, and low-voltage. Settings can be changed remotely anytime. Typically installed in rack-mounted PDUs, Model ESS60-T offers current ratings from 5-60 A. During short circuit, it electronically limits max current that can flow through device to 0.5-7 A over nominal current. Undervoltage threshold is programmable from -36 to -48 V.

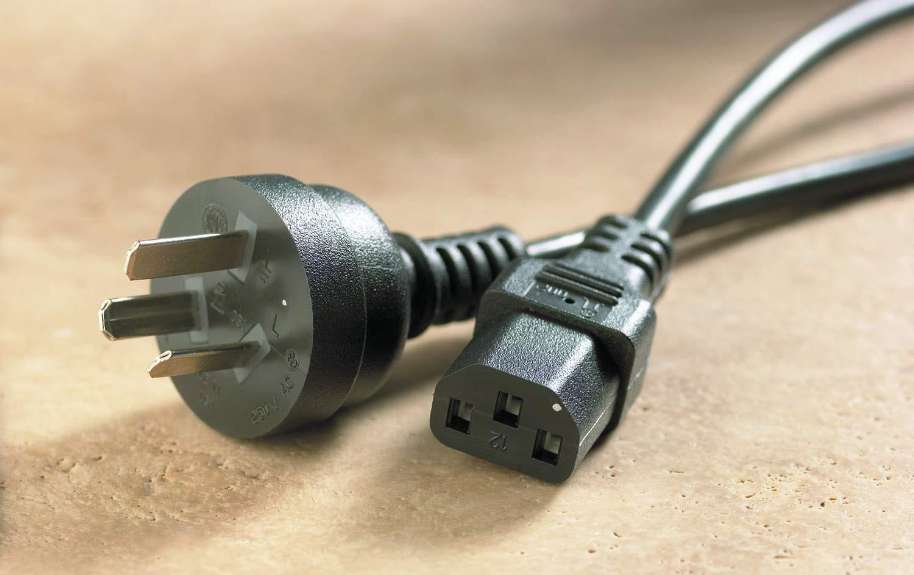

Molded Cordsets suit equipment used in Argentina.
Oskaloosa, IA 52577-0115
Jul 06, 2004 Argentina cordsets are for equipment rated up to 10 A with service at 250 Vac. IRAM/SCI&M-approved cordsets are available with 1.00 mm² cable in stock lengths of 2.5 m. Cordsets are configured with Argentina plug and terminated with choice of 5 IEC 60320 C13 connectors, including left, right, up, down, and straight, enabling designers to reduce clearance space required behind or under equipment.
Press-Fit Contacts simplify solder-free connection to pcb.
Anderson Power Products
Sterling, MA 01564
Jul 02, 2004 Press-Fit contacts, for PowerMod products, incorporate Flat Rock feature that eliminates need for special tooling to press connectors into board. Contacts are available for straight-through male and female connectors. Based on compliant termination, they are designed for 2 ranges of pcb thickness of .092â€“.177 in. and .177â€“.255 in. Nonstandard sizes are also offered. Connectors are UL listed to 23 A per circuit for board-to-board applications.

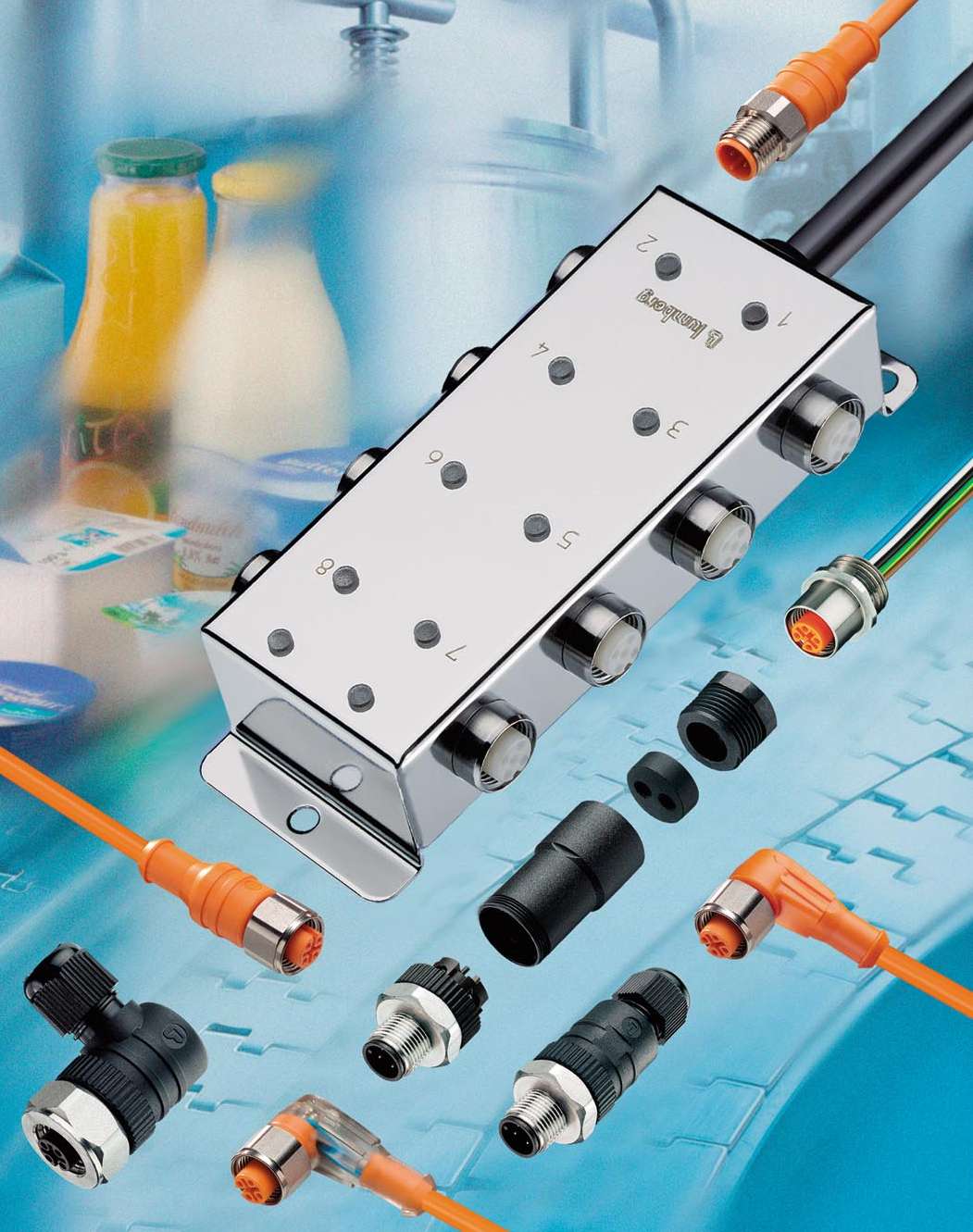

Wiring Solutions suit food and beverage industry.
Midlothian, VA 23113
Jul 01, 2004 Connectivity products utilize stainless steel hardware, PVC inserts, and cable jacketing with overmolding. Rated IP 69K, devices have smooth surfaces to resist build-up of residue and bacteria and withstand daily use of aggressive cleaning agents and high-pressure or steam-jet cleaning. Products include passive and active distribution boxes, single- and double-ended cordsets, field attachable connectors, and receptacles.
Portable Generators output 1,100 to 4,300 W.
Robin America Inc.
Wood Dale, IL 60191
Jul 01, 2004 Power Series delivers stable power through automatic voltage regulation. Model R1100 is powered by EH09-2 OHV gasoline engine, while Models RG2800DX, RG3200DX, and RG4300DX are powered by EX17, EX21, and EX27 OHC gasoline engines, respectively. Reverse cooling allows generators to be fully enclosed without threat of overheating. Model RG4300DX includes Multi-Monitor, which integrates AC voltmeter, frequency meter, hour meter, idle control, and electric oil level sensor.

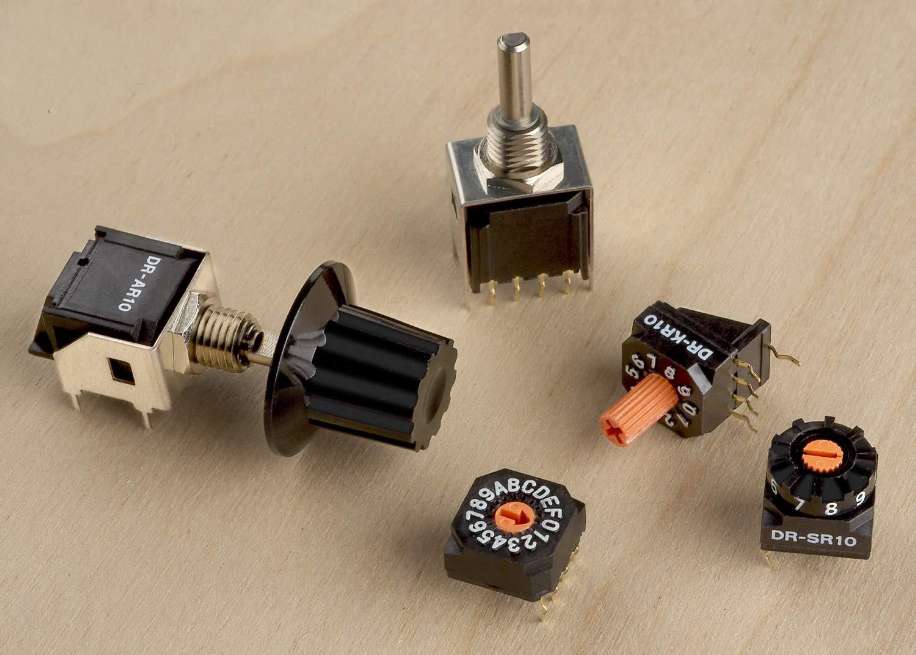

DIP Rotary Switches offer choice of actuators.
Scottsdale, AZ 85260-3420
Jul 01, 2004
Offered in straight or bracketed PC and right angle mount versions, DR series features visible legends and choice of screwdriver, shaft, dial-adjusted, or knob actuators. Designers can specify arrow or dot indicators on 10- and 16-position switches. Ultrasonically welded case, O-ring sealed actuator, and insert molded terminals seal out flux and other contaminants. Switch is available in real and compliment codes, identified by color-keyed actuator.

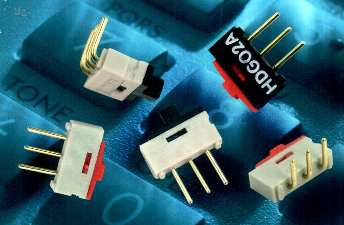

Miniature Slide Switch suits PCB configurations.
EAO Switch Corp.
Milford, CT 06460
Jul 01, 2004
Offered as SPST version, Model 1K2 occupies 10 x 2.5 mm board space with height of 4.5 mm, excluding actuator. It is available with 2.54 mm pitch pins, allowing end-to-end or side-by-side stacking on 2.54 mm pitch board. Contacts are gold-plated nickel, with tropicalized version, including extra gold plating for operation in saline or damp conditions. Capable of switching 24 V, Model 1K2 offers power rating of 6 W nominal and contact resistance of less than 22 mohms.
High-Power Generators feature impact-resistant design.
Makita U.S.A., Inc.
La Mirada, CA 90638
Jun 30, 2004 Models G2800L and G4300L are 2,800 W and 4,300 W generators with EX Series air-cooled engines utilizing chain-driven overhead cam technology. They include automatic compression release system and recoil starter system with electronic ignition. Equipped with overhead valve engine, 2.5 hp Model G1100 offers max output of 1,100 W. It includes 1.1 gal fuel tank with 4.2 hr runtime. All feature oil sensors that shut units off if oil level drops too low.

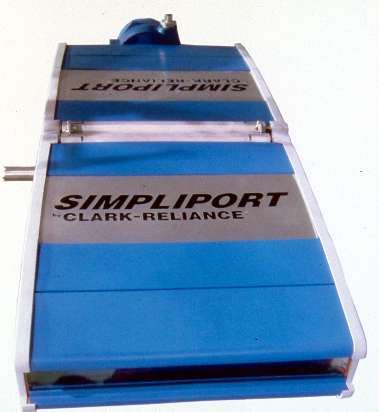

Illuminator provides drum level indication.
Clark-Reliance Corp., The
Strongsville, OH 44136
Jun 30, 2004 Simpliport® LED Illuminator offers bi-color boiler drum level indication. Highly visible light eliminates heat, burning hazards, and maintenance associated with traditional illuminators. Maintenance-free unit retrofits any existing Simpliport bi-color gage glass and lasts approximately 10 years.
