Integrated Power Switches meet 1 W initiative.
San Jose, CA 95134
Nov 12, 2004 Models FSCQ0765RT, FSCQ1265RT, and FSCQ1565RT, designed for quasi-resonant off-line SMPSs, address 100â€“250 W range switch mode power supplies for color TVs, DVD receivers, audio devices, and plasma display panels. Off-line power switches incorporate avalanche-rated SenseFET and current mode PWM IC in one package. FSCQ series Green Fairchild Power Switch (FPS) products feature burst mode operation for standby mode, rated under 0.1 W @ 265 Vac.

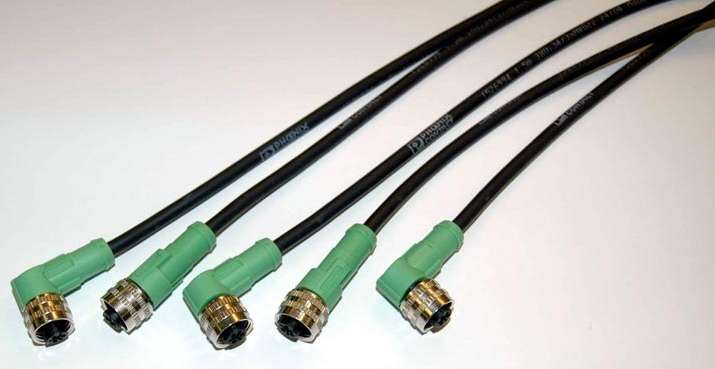

Sensor/Actuator Cable is offered in 1/2 in. size.
Harrisburg, PA 17111 0100
Nov 11, 2004 Sensor/Actuator Cable (SAC) family includes ˝ in. ac cordsets, which are available with male and female inserts in straight and angled configurations. Designed to industry standard, 3, 4, and 5 positions are produced with dual keying to prevent mis-mating. Cables meet IP 67 requirements and are available in standard and variable lengths, including 1.5, 3, 5, and 10 m. Cordsets provide solution for customers with standard ac applications.

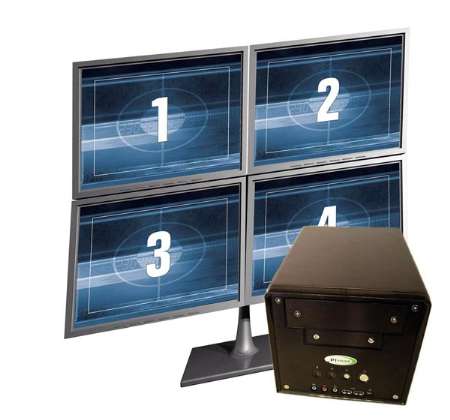

Network Video Recorder offers video wall support.
Orlando, FL 32811
Nov 11, 2004 Model UVMSâ„˘ D3 Decoder and Display Driver is suitable for controlling banks of video displays. System is modular, with each D3 driving up to 4 display units. D3 exploits built-in switching capabilities of IP network to provide virtual video matrix with almost unlimited potential for expansion. System includes built-in quad feature, supports displays with up to 3,200 x 2,400 pixel resolution, and offers access to replay and live video in any window.

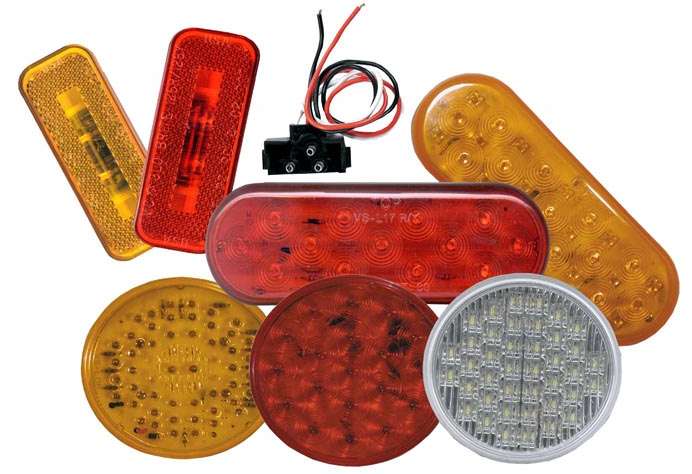

LED Kits are sealed for extended use.
Chanhassen, MN 55317
Nov 11, 2004 Stop/Tail/Turn and Clearance/Marker LED lights, available in red or amber, are 4 in. round sealed LED kits that include LED light, grommet, and pigtail. LEDs are set in impact-resistant plastic housing to increase life expectancy. Also available, sealed white LED back-up kits come with LED light, grommet, and pigtail.
SAN Switch offers 4 Gb fibre channel switching.
IBM (Corporate Headquarters)
Armonk, NY 10504-1783
Nov 11, 2004 TotalStorage® SAN32B-2 offers 4 Gbps port-to-port throughput with auto-sensing capability for connecting to host servers, storage, and switches. It offers 32 non-blocking ports with full duplex throughput at 1, 2, or 4 Gbps link speeds. Switch includes hot-pluggable power supplies and fans, automatic path routing, and nondisruptive firmware upgrades. Scalable ports in 16, 24, or 32 port increments accommodate range of connectivity solutions in 1U form factor.
Drill Attachment turns drill into cable cutter.
Ideal Industries, Inc.
Sycamore, IL 60178
Nov 11, 2004 PowerBladeâ„˘ Cable Cutter installs like drill bit on virtually any corded or uncorded drill with 3/8 in. drive shaft. With turning action of drill, it provides needed force to cleanly slice through up to 750 MCM hard-drawn copper cable or up to 1,000 MCM aluminum cable with minimal cable distortion. Adjustable torque arm securely holds drill in place, while textured Santoprene® grip provides control and minimizes vibration.
Entry Switch suits small-to-medium size businesses.
IBM (Corporate Headquarters)
Armonk, NY 10504-1783
Nov 11, 2004 Intended for Intelâ„˘-based servers, TotalStorage SAN12M-1 addresses needs of entry-level SAN applications, first-time SAN deployments, departmental SANs, and application-specific deployments. It offers 4, 8, or 12 non-blocking ports, providing 1 and 2 Gbps FC ports using auto-sensing and auto-rate-negotiating operation with Fabric and Public Loop attached devices. Optional Full-Fabric Activation supports Inter-Switch Link and full bandwidth operation to 10 km at 2 Gbps.
Subminiature Relay suits industrial control applications.
American Zettler, Inc.
Aliso Viejo, CA 92656 4115
Nov 10, 2004 Measuring 0.25 in. wide with 0.18 in. footprint, Series AZ6951 requires 200 mW of coil power to switch up to 5 A at 250 Vac or 30 Vdc. Unit has silver tin oxide contacts and is lead-free, meeting stringent RoHS requirements. Applications include programmable logic controllers, instrumentation, timers, counters, and other process equipment.
DC/DC Converter powers up to 5 series white LEDs.
Texas Instruments, Inc., Semiconductors
Dallas, TX 75243
Nov 10, 2004 Available in 8-pin QFN or chip scale packages, TPS6106x 1.5 x 1.5 mm integrated circuits feature intelligent digital brightness control and 1 MHz fixed switching frequency. Synchronous boost converter provides inductor-based solution to power and control white LED backlights in handheld electronics. Models TPS61060, TPS61061 and TPS61062 integrate 400 mA power MOSFET and synchronous rectifier, support 2.7â€“6 V input voltages, and power up to 3-, 4- and 5-series LEDs.

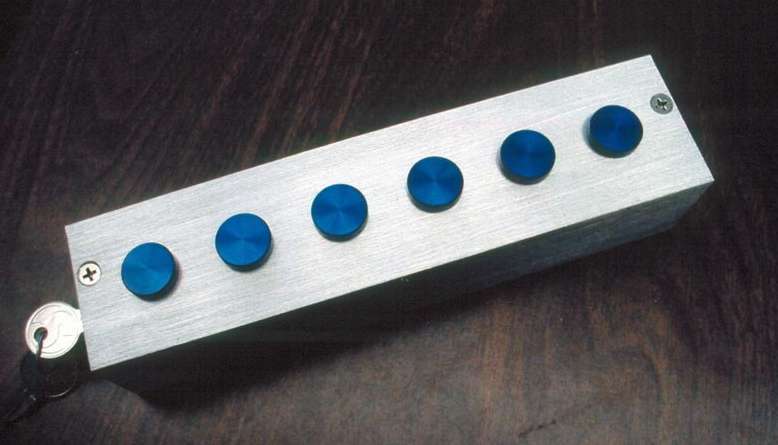

Piezoelectric Switch controls access to multiple doors.
Dortronics Systems, Inc.
Sag Harbor, NY 11963
Nov 10, 2004 Mountable under reception desk or counter, Series 5246 requires light touch to activate, is completely silent, and does not incorporate any moving parts that can wear or break from repeated use. Made of aluminum, unit features anodized finish and adjustable slotted mounted plate. Optional key switch locking mechanism is available to lock out or override control of buttons.

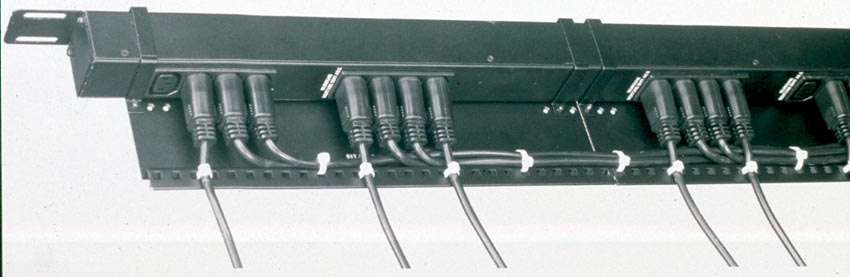

Cable Restraint/Management System has vertical design.
Raleigh, NC 27615
Nov 10, 2004
KIT-CABLRES-2X features cable tray that clamps onto power distribution units. Design allows cable tray to be retrofitted in field or connected to new power distribution units. Series of square holes in cable tray are used in conjunction with cable ties to fasten cables to tray. This secures connections and provides cable routing/management functionality.

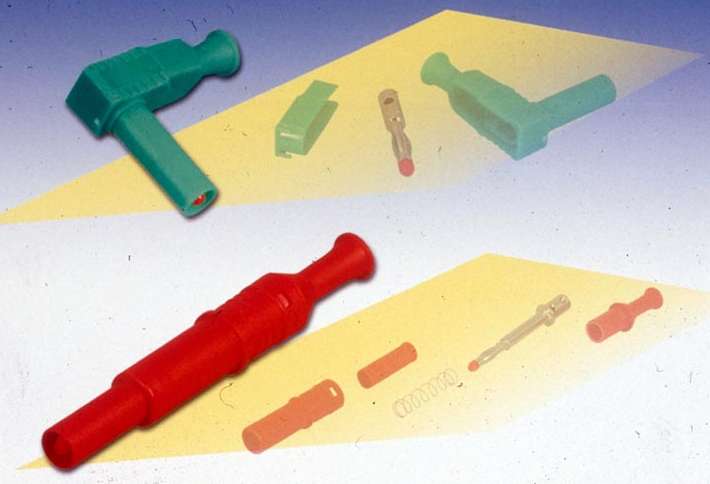

Banana Plugs meet IEC61010-031 safety requirements.
Cal Test Electronics
Yorba Linda, CA 92887-4604
Nov 09, 2004 Solderless, 4mm Safety Banana Plugs, Models CT3201 and CT3203, help protect technician and test equipment. Consisting of 5 parts, Model CT3201 features protective sheath that retracts when connecting plug. It can be rated to IEC61010-031, 600 V CATII, dependent on wire, with max current of 36 A. Made of up 3 parts, Right-Angle Sheathed Model CT3203 provides standard connector for DMMs. It can be rated to IEC61010-031, 1,000 V CATIII, with max current of 20 A, dependent on wire.

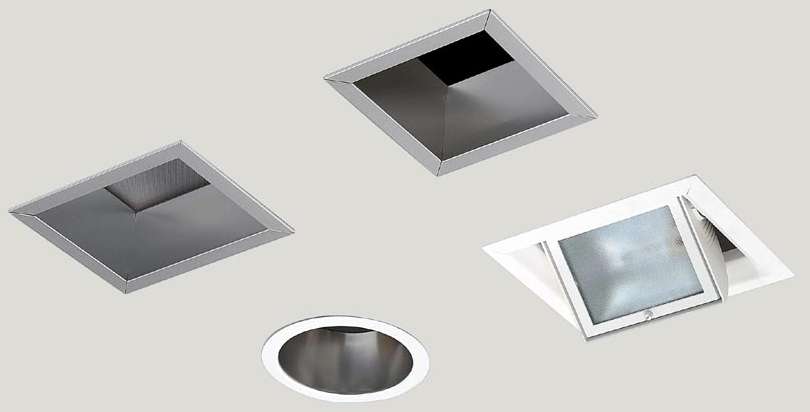

Metal Halide Downlights come in choice of apertures.
Amerlux Lighting Solutions
Fairfield, NJ 07004-2527
Nov 09, 2004 Downlights use T4, T6, and ED17 ceramic metal halide lamps and are offered with apertures from 4 and 6 in. round and square to 4 x 6 in. and 6 x 9 in. rectilinear. T4 Downlights include vertical style and recessed adjustables, while T6 Downlights also come in horizontal and Wall Washer styles. ED-17 Downlights are offered in vertical, horizontal, Wall Washer, and adjustable Wall Washer versions. All Downlights are offered with 40° lockable tilt and 358° rotation.
Computer provides decentralized control interface.
Advantech Automation Corp.
Cincinnati, OH 45240
Nov 09, 2004
TPC-60S Windows CE based 5.7 in. QVGA STN LCD display computer suits factory floor operator interface terminal. Unit uses low power, fanless ARM CPU running at 266 MHz and features and NEMA4/IP65 compliant front panel. It includes 64 MB flash memory and CompactFlash® slot for extra storage. PCMCIA slot can be fitted with optional wireless LAN card. TPC-60S offers 3 serial ports, 1 Ethernet port of 10/100Base-T, 2 USB ports, and LED indicator for LAN.

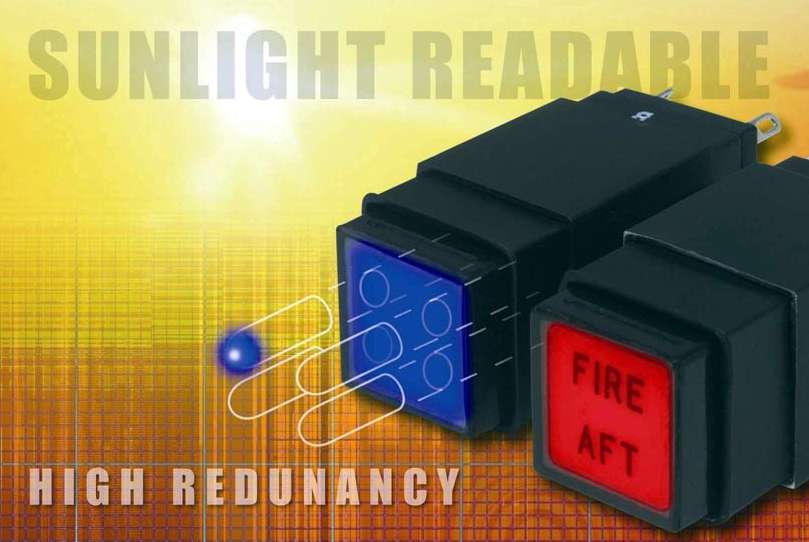

Pushbutton Switches offer dual and quad LED design.
Electro-Mech Components, Inc.
South El Monte, CA 91733 3689
Nov 09, 2004 Providing sunlight readability, Series SW44267 accommodates up to 4 T-1 sub-midget, flange-based super-bright LEDs, offering safety backup and redundancy. Units feature interchangeable lenses with clear or smoke grey top cover, black opaque sides, and legend filters. Mounting into 0.698 in. square hole, switches are 0.75 in. square and rated to 30 Vdc, 2 A resistive and 0.5 A inductive. Multi-function units offer split, quadrant, or full segment display configurations.

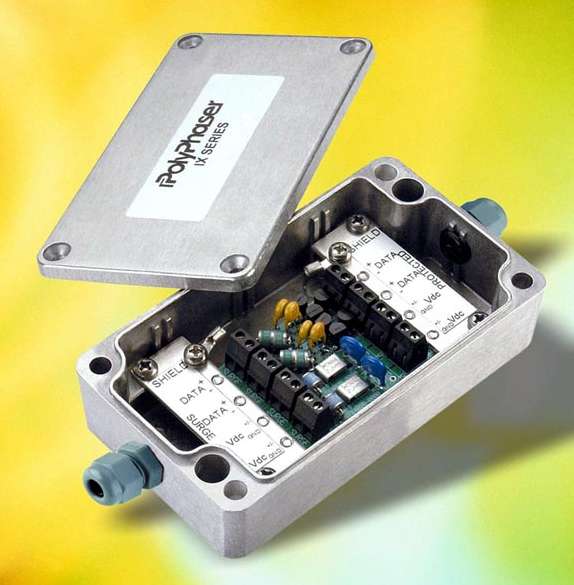

Lightning/Surge Protectors offer CAT 5 compatibility.
Minden, NV 89423 9000
Nov 09, 2004 Configurable IX Protection Platform provides surge and lightning protection for data and Power Over Ethernet applications. Model IX-H suits applications up to 100 Mbps, such as Cat 5, UTP, and STP while Model IX-L supports applications up to 25 Mbps including T1/E1, RS422, and RS485. Model IX-M is targeted at RS232 platforms, and Model IX-DC24/48 fits 24 or 48 Vdc voltage power supplies. All are UL497B listed and meet BELLCORE 1089 10/1000 µs at 100 A specifications.
Surge Protection/Wiring Devices suit industrial automation.
Melville, NY 11747
Nov 08, 2004
Rockwell Automation Encompass(TM) Program components provide durability required by industrial automation users. Offerings include modular 74000 and 75000 Series surge protection panels; Industrial Grade Black and White(TM) Locking Plugs and Connectors; UL 94 flammability-rated V-0-MAX(TM) Receptacles; Mini Lock(TM) Midget Plugs, Connecting Receptacles, and Outlets; Wetguard® Watertight Plugs, Connectors, and Receptacles; and DIN-Rail Mountable Receptacles.
Power Transformer suits HVAC/R applications.
Zettler Controls, Inc.
Aliso Viejo, CA 92656
Nov 08, 2004 AHR series comes with UL1585 Class 2 approval and is available with 30 and 40 VA power ratings. Capable of up to 3 primary voltages, series offers 50/60 Hz operating frequency and primary voltages between 120â€“575 V. Unit utilizes UL-approved Class B electrical insulation system for safe operation. It is energy limited and no secondary fusing is required.

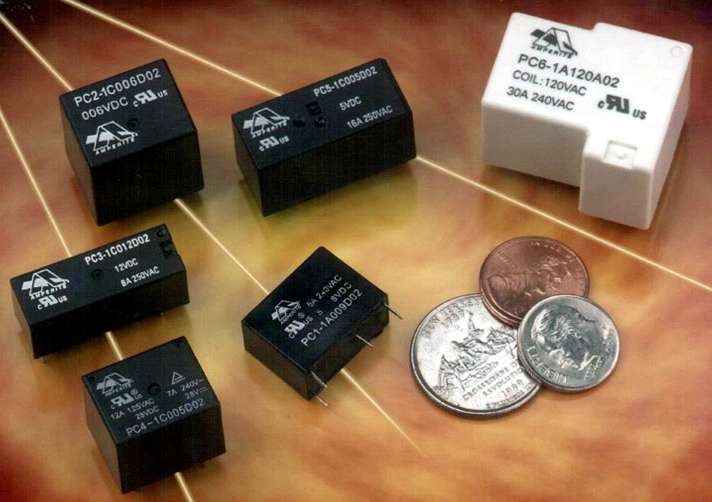

PCB Relays are offered in 6 series and 3 package types.
Amperite Co., Inc.
Union City, NJ 07087
Nov 08, 2004 PCB sealed, electromechanical relay line consists of 6 PCB-mount relay series, each with numerous models. Products within PC1 through PC6 Series feature one form A (SPST NO) or one form C (SPDT) contact set. With current capability covering 1â€“30 A range, relays are offered in sub-miniature, miniature, and low-profile packages with universal PCB footprints.
Cord Reel solves tangling and storage problems.
Kansas City, MO 64188
Nov 08, 2004 Flexible, yellow, doughnut-shaped Cordpro® divides, stores, and dispenses extension cords up to 100 ft in length without springs, ratchets, or motors. Portable system also stores and protects cord-ends when not in use. Product dispenses only required amount of cord, stopping payout when user stops pulling. Made of HDPE, unit is welded together at inseam, which is covered with rubber grip.
