Dwyer Instruments, Inc.    Michigan City, IN 46361

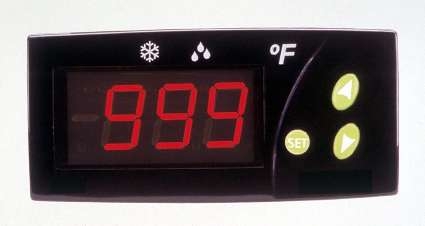

May 13, 2005 Dual stage Series TS2 monitors and controls temperatures for heating and cooling applications. It offers 15 A SPDT relay output that can be used to drive motor, compressor, or fan. Additional features include set point adjustments, static defrosting timing, compressor mean time, hysteresis, and ambient probe adjustments. Security protection is provided by password code.

RF Industries    San Diego, CA 92126 4202
May 13, 2005 Series QMA features interface that allows for mating and un-mating without tools. Sliding snap-lock mechanism works by sliding shell back and releasing to lock both connectors in place. After mating, connectors can be rotated 360°. Available for RG-58/U and LMR-195 cable as well as RG-142/223/400/U, RG-8/X, and LMR240 cable, units feature 3 metal, non-nickel-plated brass bodies, Teflon® insulation, spring copper alloy outer contacts, and gold-plated inner contacts.

LEDtronics, Inc.    Torrance, CA 90505
May 13, 2005 Models BSD1890 and BSD1888 offer drop-in replacements for incandescent lamp Nos. 2232 and 2266 and halogen lamp No. 0201789-001, which are used in 28 V reading light fixtures in airplane cabinets, passenger trains, and coach buses. Available in 9 and 15 mm single-contact bayonet bases, units do not require modifications prior to installation. Each features 28 warm white 5 mm LEDs and draws 1.5-2.0 W.

J. W. Winco, Inc.    New Berlin, WI 53151

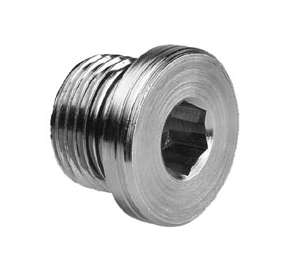

May 12, 2005 Hexagon Socket Threaded Pipe Plugs are fashioned from zinc-plated steel with yellow passivated finish and are ultrasonically checked. With max heat resistance of 250°F, NBR synthetic rubber seal is retained in radial undercut in mating face, preventing it from dropping out or protruding when plug is tightened. Plugs are available in metric pipe thread and BSPP parallel threads.

B & K Precision Corp.    Yorba Linda, CA 92887
May 12, 2005 Single output, benchtop Model 9120 utilizes standard 115 Vac outlet as power source and provides programmable output of 0–30 V, 0–3 A. Non-volatile memory stores up to 100 power supply settings, while RS-232 interface permits user to program voltage and current though serial COM port. With resolution of 10 mV and 1 mA, unit is suited for low power surface mount circuits that require precise voltage and current settings. Model 9120 uses 4 mm sheathed banana jacks for safety.

K-Tek    Prairieville, LA 70769
May 12, 2005 Featuring compact switching mechanism that is isolated from process fluid, magnetically coupled Series LS operates at specific gravities as low as 0.25, temperatures to 1,000°F, and pressures to 4,500 psi. Hermetically sealed, 360° externally adjustable cam action switching mechanism results in zero maintenance. Using either float or displacer, units provide 1-step access to switching mechanism, eliminating need to remove bulky housing of cage level switches.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
May 12, 2005 Designed for PCI, AGP, and PCI Express graphics products such as Parheliaâ„¢, Millennium P-Series, QID, and Millennium G-Series, 64-bit SE display drivers for MS Windows XP Professional x64 Edition support both AMD64 processors and 64-bit Intel® Xeonâ„¢ processors. Architecture supports 64-bit applications as well as most existing 32-bit applications.

Honeywell Power Supplies    Northford, CT 06472

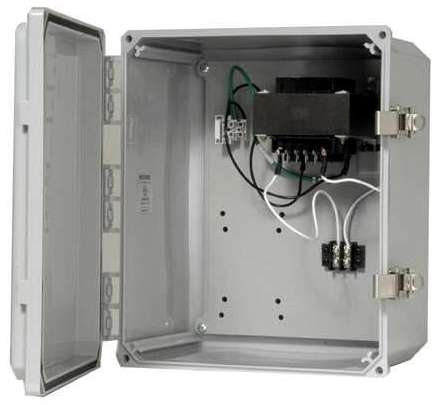

May 12, 2005 Featuring sealed, non-corrosive, non-metallic enclosures, power supplies mount in outdoor areas alongside weatherproof camera housings. Products feature electronically regulated outputs, power disconnect switch, and surge protected outputs in addition to output LED indicator and diagnostic LEDs for each circuit. Each circuit is individually protected with automotive style fuses rated 3 A 35 V, and board is protected with 5 A main fuse.

Linear Technology Corp.    Milpitas, CA 95035
May 11, 2005 Constant frequency, current mode, step-down controller model LTC3772 operates from 2.75-9.8 V input and delivers up to 5 A of output current to voltages as low as 0.8 V. Without requiring current sense resistor, product automatically switches into Burst Mode® operation at light loads. It consumes 40 µA quiescent current under no-load condition and features undervoltage lockout, 550 kHz switching frequency, and internal soft-start.

Altronix Corp.    Brooklyn, NY 11220

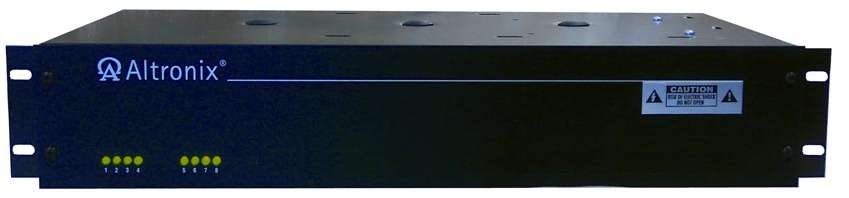

May 11, 2005 Featuring UL2044/CUL certification, 2U rack - EIA 19 in. models R248ULI, R248ULCBI, R2416ULI, and R2416ULCBI incorporate master power switch with built-in circuit breaker, individual power LEDs, and removable terminal blocks with locking screw flanges. First 2 models offer 8 fuse-protected outputs and total supply current of 12.5 A (300 VA), while latter 2 models offer 16 Class 2 rated PTC outputs and total supply current of 25 A (600 VA).

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 With 115 Vac input power, Series ALTV248UL AC Wall-Mount Power Supplies deliver 24 Vac output and either 12.5 or 25 A total supply current. All units are UL2044/CUL listed and include master power switch with built-in circuit breaker as well as electronically isolated outputs. Output protection is provided by fuse or Class 2 Rated PTC, depending on model.

Altronix Corp.    Brooklyn, NY 11220
May 11, 2005 With input power of 115 Vac, 2U rack mount Models R615DC416UL, R615DC616UL, R615DC416ULCB, and R615DC616ULCB feature adjustable 6–15 Vdc output range that is filtered and electronically regulated, making them suited for CCTV cameras and accessories. All units include short circuit/thermal overload protection, master power switch with built-in circuit breaker, individual power LEDs, and removable terminal blocks with locking screw flanges.

Altronix Corp.    Brooklyn, NY 11220

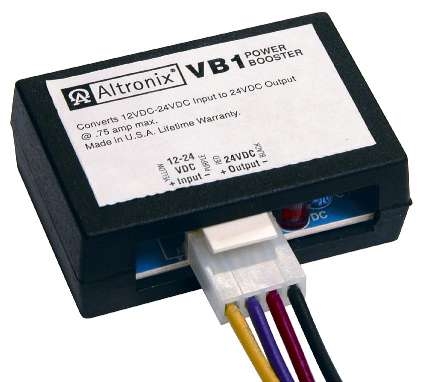

May 11, 2005 Models VB1 and VB1T both convert 12–24 Vdc power source to 24 Vdc, .75 A regulated output. Model VB1 offers modular connector/cable assembly to facilitate wiring, while Model VB1T utilizes conventional screw terminal block. In addition to compensating for voltage drop due to long cable runs, boosters can also provide power for 24 Vdc access control devices from 12 Vdc power source.

Dortronics Systems, Inc.    Sag Harbor, NY 11963

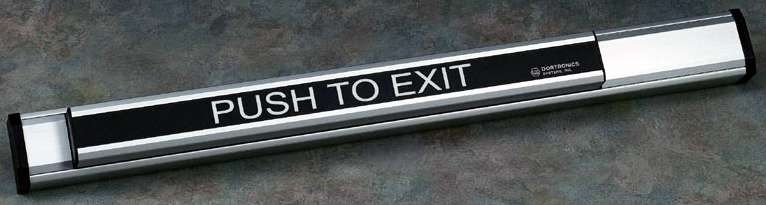

May 11, 2005 Designed for environmentally unprotected areas, 6495 Series uses weather-resistant switch contacts and fits any standard 36 in. wide door; special widths are available for doors up to 48 in. wide. Single or dual contact outputs can be used for REX input to card access systems or EDR-101 Delayed Egress Systems. Imprinted with Push to Exit in black accent, aluminum egress bar has clear anodized finish and can be supplied as mechanical rim device.

C & M Corporation    Wauregan, CT 06387 0348

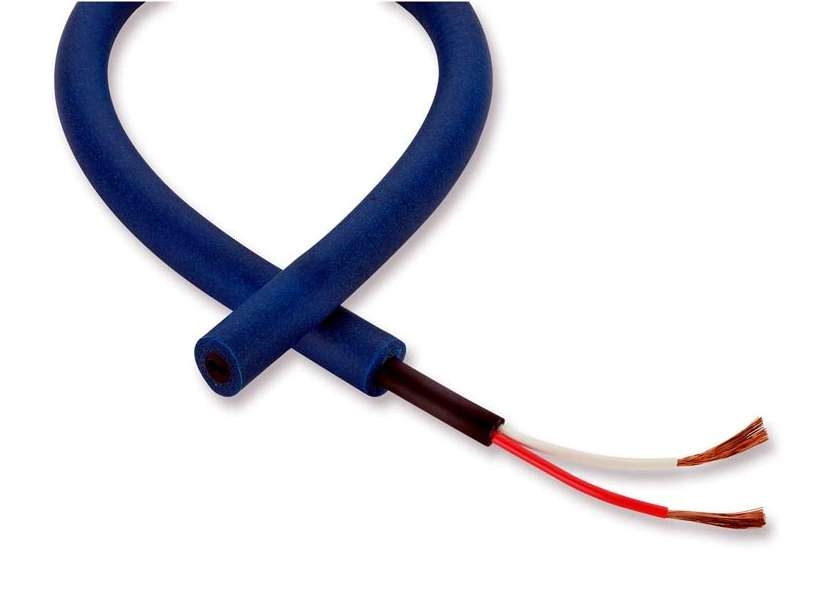

May 11, 2005 DuraFloat Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, UV-stable, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems.

Waytek Inc.    Chanhassen, MN 55317

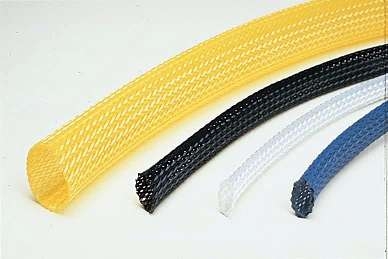

May 11, 2005 Made from braided polyester yarn, Expandable Sleeving slips over wire harness or tubing by bunching it together and then stretching it to bring it back down to size. Standard sleeving is 10 mil thick, while heavy wall version is 15 mil thick and provides extra protection against extreme abrasion. Available in 5 sizes and 4 colors, sleeving cuts with hot knife or scissors and is rated to 257°F max.

Transtector Systems    Hayden Lake, ID 83835

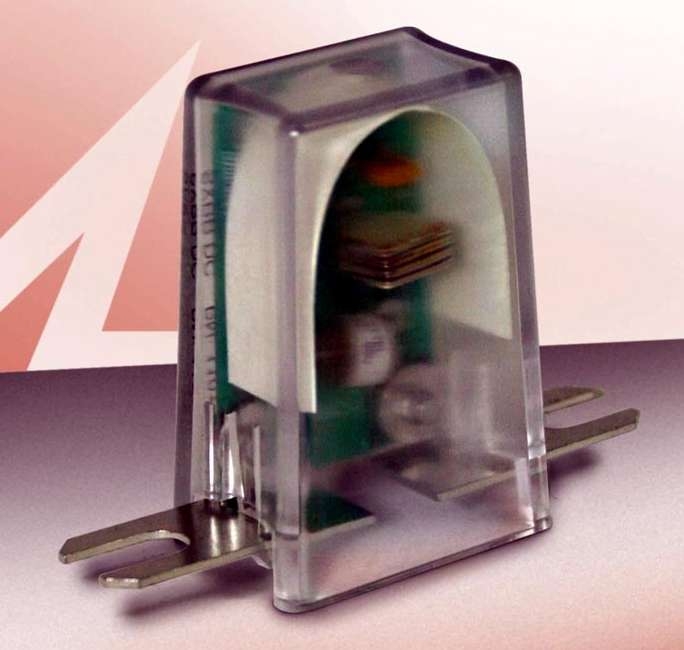

May 11, 2005 Installed as line-to-line or line-to-ground device, Series SXRR offers response time of less than 5 ns and continuously protects against surges up to 20 kA. Multiple Silicon Avalanche Suppressor Diodes are utilized, suppressing induced voltages and shunting high currents away from signaling circuits. Housed in clear polycarbonate module rated to UL94V-V0, unit has breakdown voltage threshold of 75 V at 5 mA and operates from -40 to +75ºC.

Para Light Corp.    Walnut, CA 91789

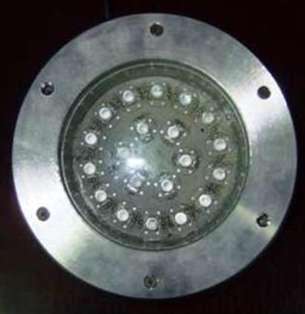

May 11, 2005 Each waterproof unit in LLEA-0001 series incorporates twenty 150 mA E-power LEDs with integrated heat-sink design and total flux of 100 lumens. Along with color-changing RGB version, series is comprised of 32 different models in amber, red, green, blue, and blue-green with 10°, 20°, 30°, 60°, and 100° viewing angles. Applications include landscaping, architectural, and swimming pool lighting.

Linear Technology Corp.    Milpitas, CA 95035

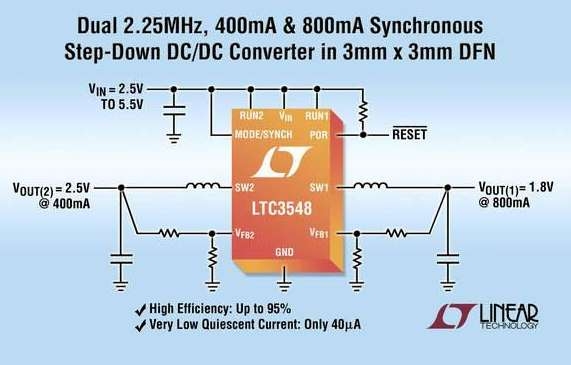

May 11, 2005 Synchronous buck regulator, Model LTC3548, delivers up to 800 mA of continuous output current from one channel and up to 400 mA from the other. Housed in 3 x 3 mm DFN package, unit features switching frequency of 2.25 MHz and can generate 2 independent output voltages as low as 0.6 V. Using constant frequency and current mode architecture, unit operates from input voltage of 2.5-5.5 V, making it suited for single cell Li-ion, multi-cell alkaline, or NiMH applications.

Lamar Lighting Co., Inc.    East Farmingdale, NY 11735
May 11, 2005 Site-adaptable AWL Series enable side lamp components to be independently adjusted up or down 45° to meet lighting requirements of applications from high storage aisles to warehouses. Able to accommodate T5HO or T8 lamps, fixtures install via hanging hook, cable, or pendants. Options include acrylic diffusers, wire guards, integrated motion sensors, and uplight apertures.
