NCC Electronics    Westland, MI 48185
May 19, 2005 Safety Interlock Switch allows direction of actuating head to be changed without detaching it from switch body, minimizing chances of damage during installation. Switch uses only 2 fastening screws, facilitating actuator orientation. Versions with actuating force of 30 N or stainless steel parts are also available.

Norstat, Inc.    Rockaway, NJ 07866

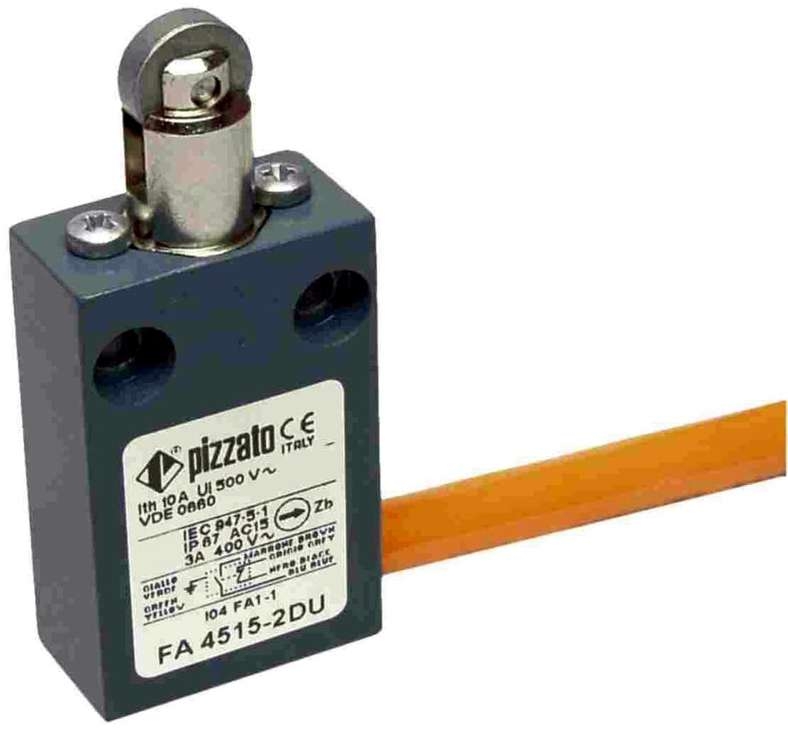

May 19, 2005 Series FA and FB pre-wired position switches are offered with optional polyurethane cable, which lends to cable strength and durability. Used as alternative to standard PVC cable, polyurethane option makes product suited for use in applications such as machine tool industry, where resistance to higher temperatures, sheath abrasion, and oils and solvents are required.

Meter-Treater Inc.    Lake Park, FL 33403
May 19, 2005 TST/TS Models are Series Hybrid SPDs (surge protection devices) configured for parallel or series installation. They include RFI/EMI filtering, are line load sensitive, and interface with power cables via screw terminals. Each unit is self-contained in plastic enclosure. Dry Contacts are standard on 30 and 60 A models, and telephony interface is available option on 30 A model. All models employ 20 mm T-MOVs as prime suppression elements.

CDM    Turnersville, NJ 08012
May 19, 2005 Qualified per MIL-C-22992, MS90556, and MS90557, Class L cylindrical connectors are manufactured of aluminum and feature copper alloy, silver over nickel contacts. They incorporate 5-key polarizing system, double stub coupling threads, and left-hand accessory treads. QPL'd unit has arc quenching design and programmed coupling sequence. Products, offered in shell sizes from 28–52, have current ratings from 40–200 A and contact sizes from 6–4/0.

Phihong USA    Fremont, CA 94539
May 18, 2005 Single output Series PSA075 is packaged in 1U high, 3 x 5 in. open frame with outputs of 5, 12, and 24 V. Unit provides zero minimum load, over voltage protection, and short circuit protection. It is suited for tape/disk drive systems, POS terminals, Internet servers, peripherals, routers, and networking.

ASI Instruments, Inc.    Houston, TX 77024 1802
May 18, 2005 ShieldPoint(TM) RF Capacitance Switches provide point level detection in applications ranging from sticky slurries to low dielectric bulk solids. Single-point ShieldPoint 300 features 3-element shielded probes and 10 A DPDT relay, while multi-point ShieldPoint 400 offers variety of probe options, Teflon® coated or bare rods and cables, along with 2 SPDT 10 A relays. Both are housed in aluminum enclosure with LED indicators for operation and calibration.

W.A.C. Lighting Company    Port Washington, NY 11050
May 18, 2005 Precision Modules, consisting of Specification Grade Multiple Recessed Spotlights, can be interchanged with precise number and types of lamps needed to accomplish task, including wall washing, accent, spot, or perimeter lighting, or any combination. Offered in Low- and Line-Voltage Systems, units are designed with and without flanges. They are available in square and rectangular styles, including 1-, 2-, 3-, 4-, and 6-light configurations.

Omnitronix, Inc.    Seattle, WA 98103
May 18, 2005 Suited for critical monitoring of remote cellular, microwave, and broadcast communications sites, alarm sensing device, Model SL-10 operates at -48 Vdc and outputs up to 9 Vdc at 1 A to power network components. With 6 contact closure inputs, 2 voltage inputs, 2 output relays, temperature sensor, and humidity sensor, unit can integrate variety of environmental conditions and legacy equipment into network monitoring system by providing alarm notification via SNMP traps.

Emerson Electric Co.    St. Louis, MO 63136 8506
May 18, 2005 Internal AC/DC switching power supplies in LPS50 series feature overload, over-voltage, short circuit, and thermal protection as well as built-in Class B EMI filtering. Accepting universal input of 127-300 Vdc or 90-264 Vac, products deliver 55 W of total power @ 5 Vdc or 60 W @ 12, 15, 24, or 48 Vdc. Used to power telecommunications, networking, test, measurement, and imaging devices, they are also available with medical grade safety certifications.

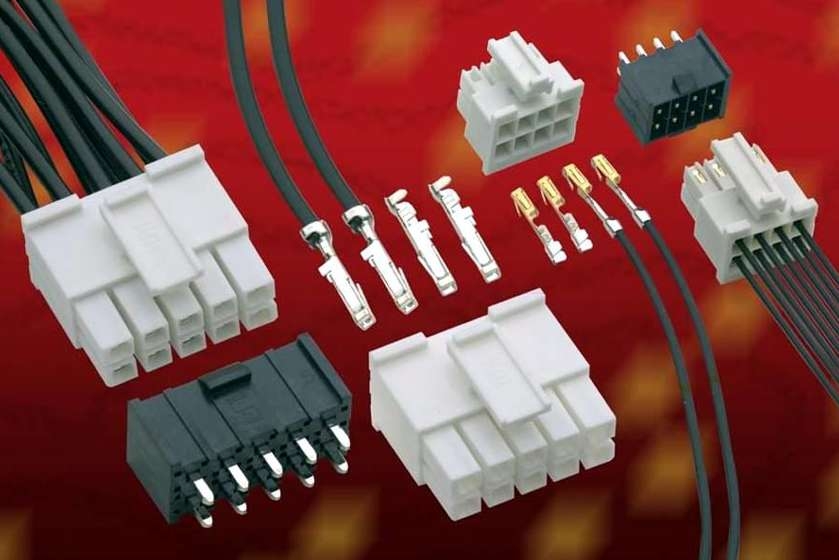

Samtec, Inc.    New Albany, IN 47151 1147
May 17, 2005 MiniMate® MMSD Series cable and connectors, available with wire gauges from 20–30 AWG, are rated at up to 6 A @ 20°C. Offered with wire gauges from 16–24 AWG, PowerMateâ„¢ IPBD Series cables and connectors are rated at up to 12 A @ 20°C. Cable assemblies are offered in variety of cable lengths, pin counts, and termination orientations. Mating PCB-mount connector shells and contacts are also available as components for assembly.

Besa Lighting Company, Inc.    Columbus, OH 43219
May 17, 2005 Measuring 19¾ x 8¾ x 4¾ in., Series 101 is offered with handcrafted European glass in bronze/marble or white. Made of marine-grade stainless steel, units withstand exterior elements, including salt air weather conditions. Luminaires can be lamped with 60 W, A19 incandescent bulb or variety of compact fluorescent configurations with max wattage of 60 W. Units are finished in powder-coated bronze or lightly brushed stainless steel.

AutomationDirect.com    Cumming, GA 30040-9905

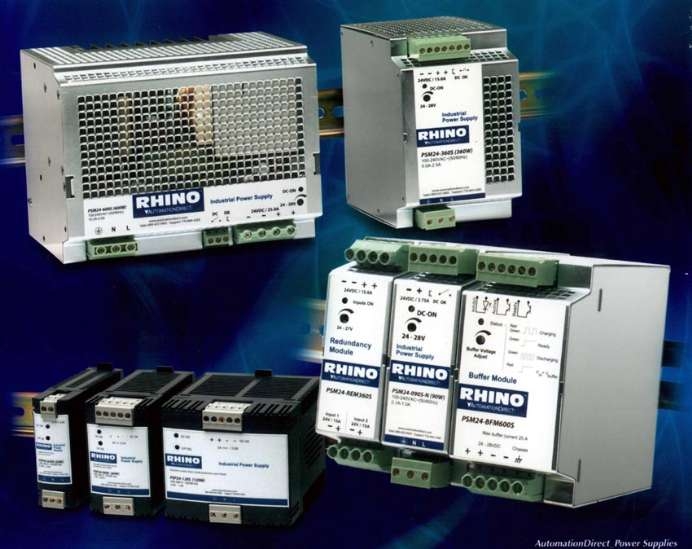

May 17, 2005 RHINO™ PSM series switching power supplies are available in 12 or 24 Vdc models with power ratings from 78–600 W and up to 25 A output current. Two diagnostic outputs monitor low output voltage levels, allowing for remote notification to a PLC, SCADA, or MMS. RHINO PSM power supplies also include multiple output terminals to enable wiring in parallel load configurations, dual status indicator LEDs, and pluggable screw terminal block to facilitate installation and removal.

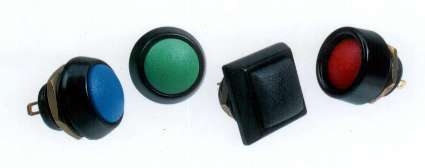

ITW Switches, An Illinois Tool Works Co.    Harwood Heights, IL 60656 3512
May 17, 2005 Panel-sealed Series 59 is made of high creep strength, non-spark zinc alloy, suitable for use in mining or other potentially explosive atmospheres where dust and moisture are problematic. Impact-resistant unit has gold contacts and is sealed to IP67 requirements.

Heyco Products    Toms River, NJ 08753

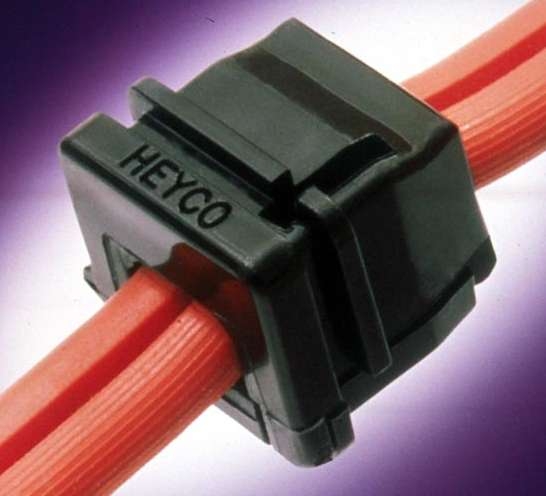

May 16, 2005 Lockits™ for U-Shaped Housing Slots anchor, insulate, and protect electric cables and cords in household or commercial appliances or equipment. Providing strain relief in U-shaped asymmetric mounting hole, products reduce pull, push, twist, or pulsating forces. Self-locking design does not require housing insertion. Molded of Type 6/6 nylon, products are suited for use with round cable with diameters from .220–.290 in.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
May 16, 2005 Model AZ762F, rated for 20 A, 277 Vac, and 100k cycles at 124°C ambient temperature, incorporates low-profile (0.618 in.) quick connects for load connection that eliminate need for heavy copper traces on PCB. With isolation of 10 mm and dielectric strength of 5,000 Vrms, product is suited for HVAC and white goods applications. RoHS compliant relay features full UL/CUR approvals and withstands surges up to 10 kV.

B & K Precision Corp.    Yorba Linda, CA 92887

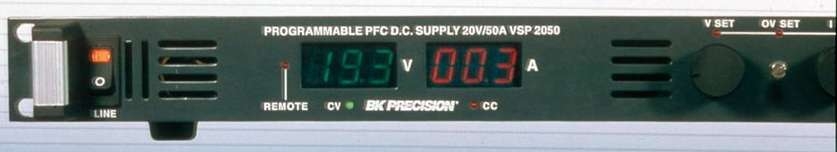

May 16, 2005 Offering remote control from RS-232 serial interface, Model VSP2050 features soft switching and 2-device, asynchronous, half-bridge dc to dc converter design. Unit, supplied in 19 in. rack-mount chassis that measures 1U high, provides output of 0–20 Vdc, 0–50 A. While analog remote sensing automatically maintains desired voltage at load level of power cable, manual tuning is enabled via front panel, 10-turn potentiometers and 3-digit meters.

Canfield Industries Inc.    Youngstown, OH 44514
May 16, 2005 Offering NEMA 6 dust tight, water resistant designation, D-Box is used with 8, 12 or 8/12 mm quick-connect cables to connect sensors and actuators at machine level. Epoxy encapsulated for harsh environments with temperature rating of -20 to +80°C, features include LED indicators for power and I/O, NPN/PNP options, input surge suppression, 15 ft. standard cable length, and optional DIN rail mounting. Unit is rated for 120 V max and 12 A unit/4 A I/O.

Linear Technology Corp.    Milpitas, CA 95035
May 13, 2005 Manufactured in plastic, 12-lead, 3 x 2 mm DFN package, No RSENSE LTC4213 senses load currents with RDS(ON) of external MOSFET, eliminating need for sense resistor. Product operates over bias supply range of 2.3-6 V and monitors voltages from ground to 6 V. With pin-selectable VDS thresholds of 25, 50, and 100 mV, circuit breaker provides dual level and dual response time functions for overcurrent protection; response time is rated at 1 µs.

Micro Plastics, Inc.    Flippin, AR 72634
May 13, 2005 Available in 8 and 15½ in. sizes, Screw Mounting Cable Ties securely mount wiring harness to panels or walls using single No. 10 screw. Units are offered in UL approved Nylon 66-94V-2, Natural, and UV-Black.

Taiyo Yuden (USA) Inc. / Power Systems Group    San Marcos, CA 92069
May 13, 2005 Featuring 1U form factor, 130 W AAD-130SD operates at better than 0.98 power factor and 90% efficiency. It offers outputs in 8 available ranges from 3.3-48 V; dual-output configurations accept any combination of available outputs. Current ratings include 3-32 A for single-output configuration and 1.5-16 A for dual-output model. Product allows current sharing between outputs of similar units, making it suited for parallel or redundant applications.
