Phihong USA    Fremont, CA 94539

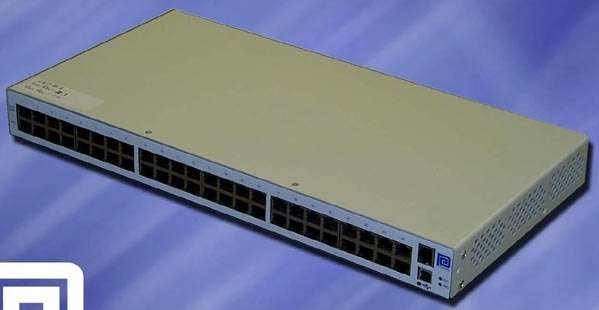

Jun 02, 2005 Usable in any network without compromising data rate, multiport midspan power injector implements Power-over-Ethernet (PoE) into existing network where power can be inserted on spare pair. Product is offered in 1-, 8-, 16-, and 24-port versions that provide 15.4 W per port. It comes with software to control and monitor each port along with full power management capability for load shedding in back-up power conditions.

Texas Instruments Inc. / Tiris Division    Dallas, TX 75243

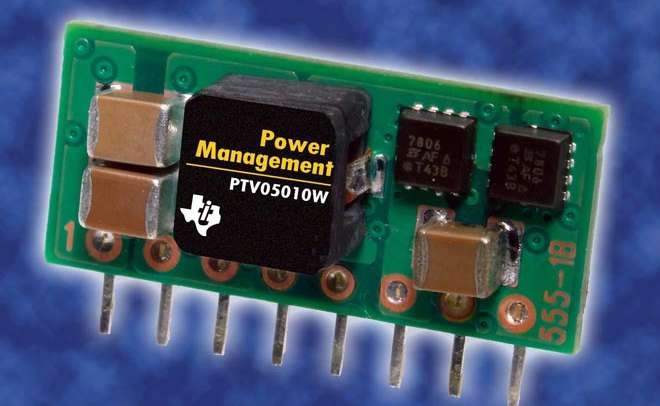

Jun 02, 2005 Available in single in-line pin packages, 8 and 18 A POLA™-compatible, non-isolated, plug-in power modules support input voltages of 3.3, 5, and 12 V. Series PTVxx010 provides step-down conversion to range of output voltages, at up to 8 A of output current. Output voltage can be set at any value between 0.8–1.8 V or 2.5–3.6 V. Series PTVxx020 consists of 12-pin modules that support similar systems requiring output current up to 18 A.

Para Light Corp.    Walnut, CA 91789
Jun 02, 2005 Available in 5 colors and as many viewing angles, LLWB-0001 measures 39.37 x 1.18 in., weighs 59.97 oz, and is made up of 36 LEDs with total flux of 180 lumens. Colors include red (620 nm), orange (590 nm), true green (525 nm), pure green (505 nm), and blue (470 nm), while available viewing angles are 10°, 20°, 30°, 60°, and 100°. With input of 15 or 24 Vac, product is suited for architectural, decorative, and cabinet lighting.

Tripp Lite    Chicago, IL 60609
Jun 02, 2005 SmartPro® line-interactive and SmartOnlineâ„¢ true online units are 5,000 Va UPS systems for multi-layer switch and router installations. Occupying 3 rack spaces, SmartPro simultaneously powers 208 and 120 V power supplies at full power. Integrated 8-outlet switched PDU turns off less critical loads during power outages. SmartOnline models include 5U unit that powers 208 V devices and 7U version with step-down transformer and twelve 120 V receptacles to power 208 and 120 V devices.

MGE UPS Systems    Costa Mesa, CA 92626
Jun 01, 2005 Plug-and-play Power over Ethernet (PoE) midspan solution ensures continuous power to remotely connected devices and systems when used in conjunction with UPS. Installed in wiring closet, 24-port, 10/100 Mbps hub resides between Ethernet switch and connected equipment to provide up to 15.4 W of 48 Vdc per port. Rack-mount unit offers Web-based SNMP management option for remote control and auto-sensing algorithms for non-powered device protection.

Supertex Inc.    Sunnyvale, CA 94619

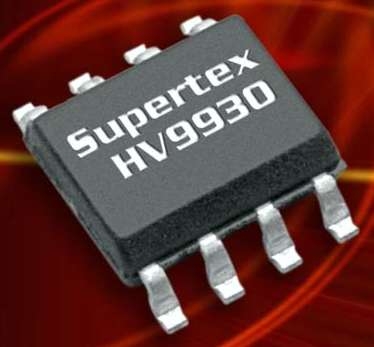

Jun 01, 2005 Manufactured in 8-pin DIP and SOIC packages, HV9930 variable frequency PWM controller IC controls LED lamp using boost-buck topology, which automatically steps up and steps down input voltage. Product utilizes hysteretic current mode control to regulate both input and output currents. Featuring dc input range of 8–200 V, unit provides PWM dimming capability with duty cycle ratio of 0–100%. Unit also offers inherent protection against short circuit.

Agilent Technologies, Inc.    Santa Clara, CA 95051
May 31, 2005 Wireless connectivity test set, Model N4010A, with Bluetooth(TM) Enhanced Data Rate Option 105, allows engineers to test Bluetooth connectivity during development, integration, and manufacturing of chipsets, modules, and devices. Key transmitter measurements include carrier frequency stability, modulation accuracy, and relative transmitter power. Receiver measurements include EDR sensitivity, EDR BER floor performance, and EDR maximum input level.

Linear Technology Corp.    Milpitas, CA 95035
May 31, 2005 With input voltage of 1-3.2 V, synchronous boost dc/dc converter, Model LTC3490, delivers up to 350 mA from single or dual cell alkaline/NiMH battery. Output voltage of 2.8-4 V is fully compliant with forward voltage requirements of high-current LEDs. Housed in 3 x 3 mm DFN package, unit features 1.3 MHz switching frequency and operates at up to 90% efficiency. Onboard analog dimming capability reduces drive current proportionally to CTRL/SHDN pin voltage.

Scientific Technologies Inc.    Fremont, CA 94555
May 31, 2005 Equipped with power supply and removable terminal blocks, RM-2AC serves as central point for terminating all signals to and from solid-state safety device. It converts solid-state outputs to force-guided relay outputs. One NO and one NO/NC safety relay output rated at 250 Vac, 6 A can be used as primary switching device or to switch contactor. With 100–240 Vac input, module can monitor switching function of final switching device through MPCE monitoring circuit.

Holophane    Granville, OH 43203
May 31, 2005 Featuring ISD (Ideal Synergetic Distributions) SuperGlass, Designer Series Illumibay Fixture is available in various lamp sources, including compact fluorescent, ceramic metal halide, or pulse start metal halide. Product is offered with electronic or magnetic ballasts; former has dimming capabilities. It may be used in commercial markets in areas such as schools, retail stores, convention centers, Atriums, and multi-purpose room applications.

Holophane    Granville, OH 43203
May 31, 2005 Sitelink, with Trac and TracNut system, offers system approach of providing products that are designed to complement each other in appearance and method of attachment. It enables users to mount lighting, signage, traffic control, security systems, banners, and telecommunications systems onto one pole, eliminating clutter. Sitelink allows users to maintain aesthetics of project as modifications or additions are needed.

Holophane    Granville, OH 43203
May 31, 2005 Enclosed end-cap IntelliVue and open end-cap IntelliBay Fluorescent Highbays feature Passively Optimized Lumen output with Automated Regulation, which maintains cold spot temperature on T-5 lamps at 47°C, over room temperature of 25-45°C. Both feature vertically stacked lamp system, isolated ballast chamber, and Micro-Silver optics for 98% total reflectivity. Available in 2 or 3 lamps, 4 or 6 lamps, or 9 lamp versions, units are UL listed at 55°C for damp locations.

Gresham Power    Salisbury   United Kingdom

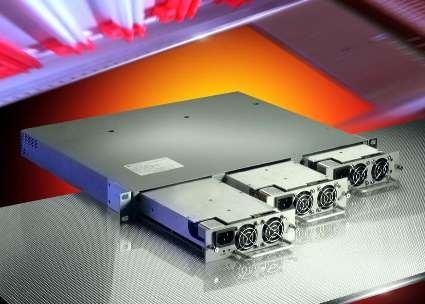

May 27, 2005 Strongbox® front-end power shelf is available with 1,200, 600, and 800 W power cassettes, allowing single 1U, 19 in. rack shelf to provide 1,800, 2,400, or 3,600 W of power. StrongBox® systems may be connected in parallel to provide higher power systems and communicate via I²C active data bus. Power cassettes are available with active PFC universal ac or 12, 24, or 48 Vdc input and are self cooling front-to-back. Operating temperature range is 0–50°C with no de-rating.

Phihong USA    Fremont, CA 94539
May 27, 2005 Offering support for displays from 2–37 in., dc-ac power supplies drive CCFLs in LCD back lighting applications. Dimming capability, low power standby, and peak functionality are taken into consideration for customized packages. Able to power from 1–16 bulbs, products produce output power from 3–120 W and can be tailored to choice in terms of size, voltage, current, brightness. Applications include LCD TV, gaming, medical, industrial, and kiosk.

Pulse Research Lab    Torrance, CA 90502-1200

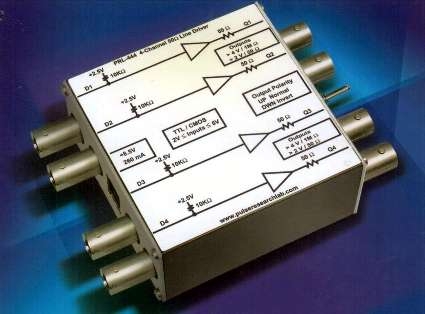

May 27, 2005 With 10 kohm input impedance, self-contained Model PRL-444 can receive signals from devices with low drive current such as sensors, PC-based digital I/O cards, and optical transceivers. Each input has 10 kohm pulled up to 2.5 V so it can also be driven by open-collector devices. With 50 ohm terminations, all outputs can drive 100 ft of 50 ohm cables at clock rates greater than 60 MHz. Driver includes ac adapter and BNC or SMA signal connectors.

NKK Switches    Scottsdale, AZ 85260-3420

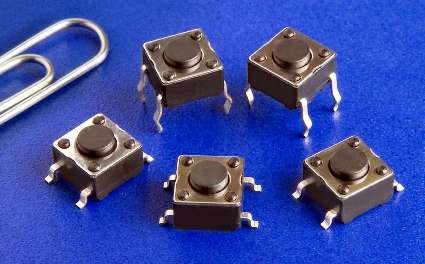

May 27, 2005 Series HP features 6 mm through-hole and surface-mount switches with insert-molded terminals to lock out flux, solvents, and other contaminants. Circuit is normally-open, SPST OFF, momentary ON. Measuring .244 in. square, body is molded in heat-resistant resin, which meets lead-free solder processing requirements and has UL flammability rating of 94V-0. Switches are available with silver contacts rated at 3 Va max dc or gold contacts rated at 28 V ac/dc max.

Advance Transformer Co.    Rosemont, IL 60018 5625
May 27, 2005 Centium® Instant Start Electronic Ballasts are produced in low watt models for operation of 1–4 T8 fluorescent lamps rated 32, 25, and 17 W as well as same number of 30, 28, and 25 W Energy-Saving T8 lamps. With ballast factor of .77, units feature IntelliVolt technology, which enables operation at any input voltage from 120–277 V, 50/60 Hz. Products also utilize instant start circuitry and Centium technology, which delivers under 10% THD.

9 Corp.    St. Charles, IL 60174
May 27, 2005 Designed to safeguard microprocessor-based equipment, Theon INL08000 works by opposing changes in electron flow on ground wire while not compromising intrinsic ground safety. With 15 A, 120 Vac continuous current rating, unit utilizes multi-stage, non-degrading surge suppression along with common-mode filtering to eliminate power surges and sags. Multi-stage circuit has active response time of less than 1 ns, while maintaining continuous high frequency filtering on ground.

Ortronics, Inc.    New London, CT 06320
May 27, 2005 Featuring steel knock-down design that can be assembled onsite, Mighty Mo 6 is compliant to Telcordia GR-63-CORE Zone 4 standards, with load rating of 510 lb. Unit is 7 ft high with 10.5 or 16.25 in. channel depth and full 45 rack units of mounting space. Suited for high-density cabling system applications, rack features vertical management cage with individual 1-rack unit fingers and double-hinged door that can open to left or right.

Cummins Power Generation Americas    Minneapolis, MN 55432
May 27, 2005 Available in 50 and 60 Hz frequencies, Series DQC consists of 600, 750, and 800 kW generator sets intended for standby and prime power use in wide range of applications. Units include PowerCommand® digital control system for total system integration, including automatic remote starting/stopping, precise frequency and voltage regulation, alarms and status message display, alternator protection, output metering, and auto-shutdown-at-fault detection.
