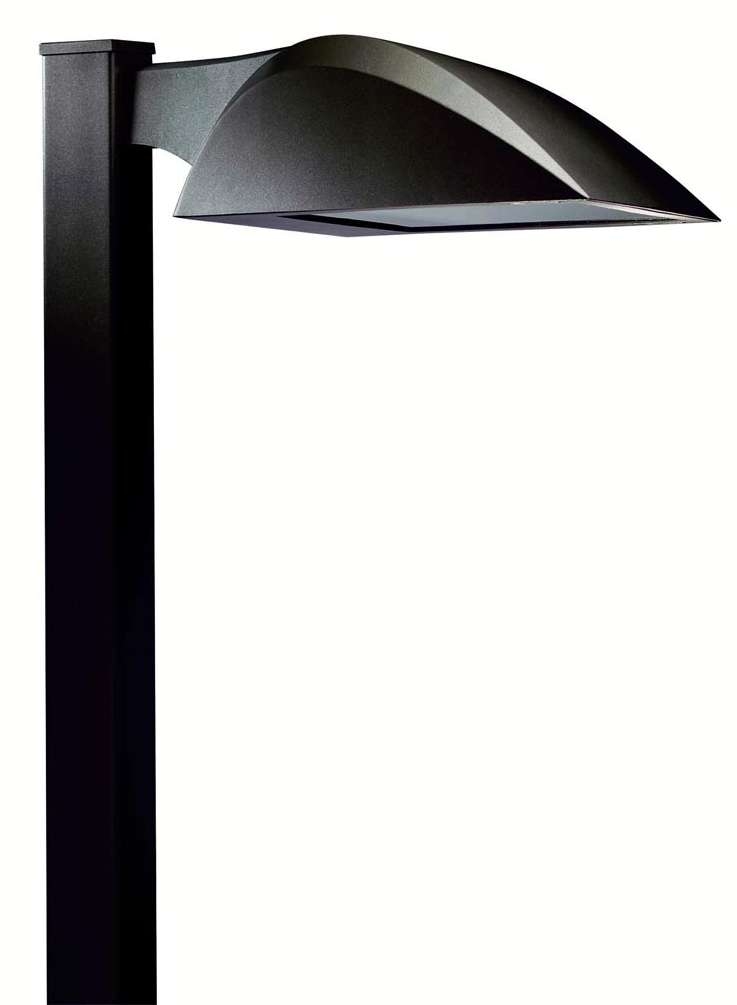

Area Lighting features airfoil design.
Sturtevant, WI 53177
Jul 12, 2005 Available in segmented Type III and IV optic, Aviator architectural luminaries have single-piece, die-cast aluminum housing with integrated mounting arm. Product is offered in 400 W version that measures 18.5 x 19.6 in. and 175 W version that measures 14.4 x 15.4 in. Luminaries can be mounted in multiples of up to 4 on one pole and incorporate high-temperature silicone foam-in-place gasket for weather- and insect-tight seal.

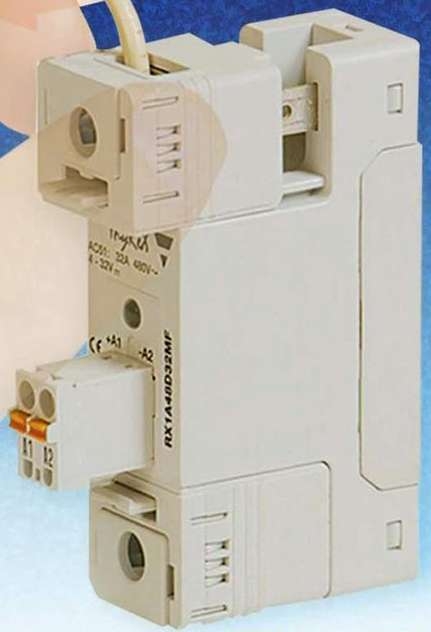

Solid State Relays offer various cable securing methods.
Carlo GAVAZZI Automation Components
Buffalo Grove, IL 60089
Jul 11, 2005
Measuring 76 x 22.5 x 43 mm, RX Series ThyRex has base module that allows user to choose from screw terminals, spring terminals, or FAST-ons for securing cable. Thyristor-based power section is soldered using vacuum bonding technology and is externally protected by aluminum plate. As fully plug-in system, series is suited for solid state switching of AC loads up to 32 A at voltages to 480 Vac when controlled by 4-32 Vdc or 24-275 Vac.
Constant Current LED Driver offers 2-terminal solution.
Sunnyvale, CA 94619
Jul 11, 2005 Able to compensate for variations in LED properties and voltage supply, CL2 is suited for driving multiple applications with different operating voltages with single device. Temperature-compensated IC is trimmed to provide 20 mA ±10% current at input voltages of 5â€“90 V and can be used in parallel to provide higher currents in 20 mA increments. Product is available in SOT-89 (CL2N8), D-PAK (CL2K4), and TO-92 (CL2N3) packages.

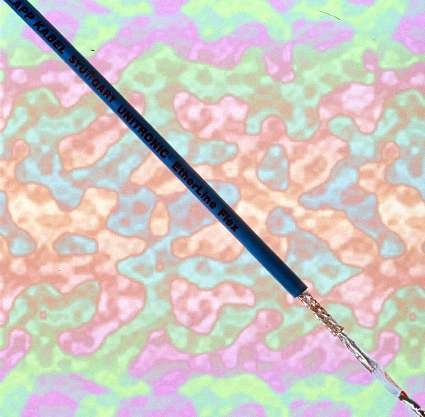

Cable is designed for use in continuous flex applications.
Florham Park, NJ 07932
Jul 11, 2005 Available in 26 AWG with 2 or 4 pairs, UNITRONIC® EtherLine® FD P Cat. 5 Plus continuous flex cables have foil for flexing and tinned copper braid shield to provide noise protection and integrity during flexing. Halogen free, fine stranded, oil-resistant polyurethane (PUR) cable meets standard EIA/TIA-568; TSB-36 & ISO/IEC 11801 - Generic Cabling for Customer Premises for class D links.

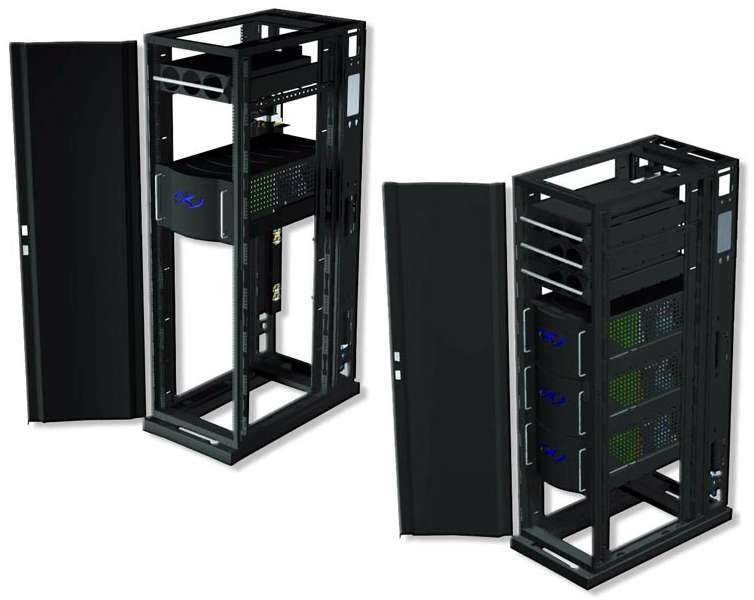

Fuel Cell System provides hours of power generation.
American Power Conversion
West Kingston, RI 02892
Jul 08, 2005 Suited for IT applications with high availability requirements, InfraStruXureâ„˘ with Integrated Fuel Cells utilizes architecture that integrates power, cooling, management, and services in rack-optimized design. It incorporates modular polymer electrolyte membrane (PEM) fuel cells and allows IT project managers to stack up to three 10 kW modules per rack for scalable solution. Energy is stored and supplied to system via bottled hydrogen.

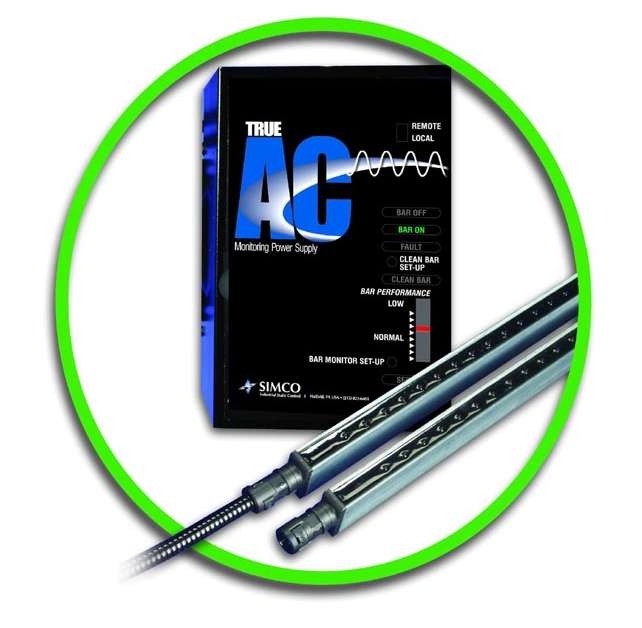

AC Power Supply targets static control equipment.
SIMCO Industrial & Electronics
Hatfield, PA 19440 1998
Jul 07, 2005 Self-monitoring TrueAC Power Supply operates with Blue Bar to provide consistent static neutralization of materials traveling at speeds up to 2,500 fpm. When system is activated, Bar On indicator is illuminated, and during operation unit displays bar performance range and indicates when static bar needs to be cleaned. System includes local or remote on-off control and arc-detection circuit that protects unit in event of short.

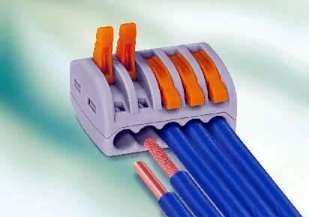

Splicing Connector offers alternative to twist/crimp styles.
Germantown, WI 53022
Jul 07, 2005
Five-conductor Model 222-415 features CAGE CLAMP® spring pressure connection technology, which provides vibration-proof, corrosion/temperature cycling resistant wire connection. Integrated orange lever actuator allows for tool-less wiring and ensures proper connection, while built-in strip length gauge insures proper 9-10 mm strip length. Connector is UL listed for 600 V/20 A and can terminate wire sizes 28-12 AWG.

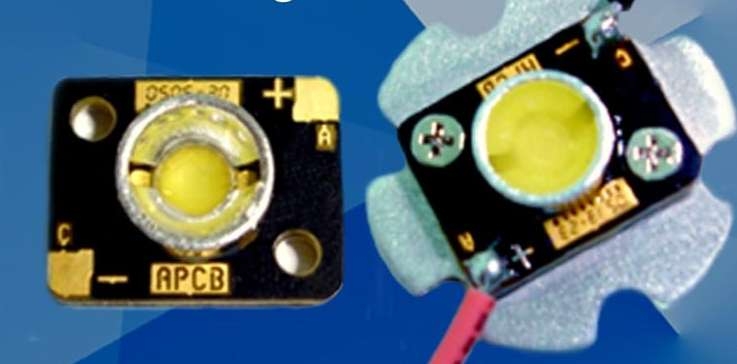

LED Modules use 1 W of power.
American Bright Optoelectronics Corp.
Chino, CA 91710
Jul 07, 2005 Measuring 10.00 x 13.00 mm including heat sink, MagnaBrite 1-Watt LED module handles forward currents to 350 mA. Series offers 20.00 mm dia base that is pre-wired for direct interface and is available in white, red, green, blue, and yellow. It offers operating temperature of -30 to +120°C and viewing intensity of 30 lm. With 7 mm dia bezel and flush lens, module is suited for small lamps, torches, and general illumination applications.
DC/DC Converters offer adjustability and low noise.
Beta Dyne Inc.
Bridgewater, MA 02324
Jul 07, 2005 Series AD35 consists of four 35 W models that accept input voltages of 12, 24, 48, and 110 Vin and provide adjustable output that can be configured as positive, negative, or dual. Employing dual 500 mV dropout linear regulators, converters produce output noise of less than 10 mV. They feature up to 88% efficiency, 2:1 input voltage range, single and dual outputs, short circuit and thermal protection, 750 µA off state current, and 6-sided shielding.
LED Ring Light suits quality control and inspection.
Dazor Mfg. Corp.
St. Louis, MO 63146
Jul 07, 2005
Multi-directional HIGHLIGHTER uses mouse to control direction of lights, as well as intensity and number of LEDs illuminated. Unit works on all makes of microscopes, allowing inspection and quality control workers to view surface defects. Left mouse click activates automatic continuous rotation of 1-39 LEDs so operator can compare and contrast image under different lighting. Right click alters light intensity to meet optical instrument and individual requirements.
Ground Fault Receptacle provides added safety for end users.
Milford, CT 06460 2465
Jul 07, 2005 When test button is pushed, LED GFR® cycles through complete functional test and will return flashing red LED light if ground fault protection is compromised. It will also provide convenience power at face of receptacle to help prevent unsafe practices while device is out of service. If device is improperly wired, mis-wire protection blocks power at face or downstream loads. Unit meets UL943 surge testing, preventing inoperative power condition that locks out end user.

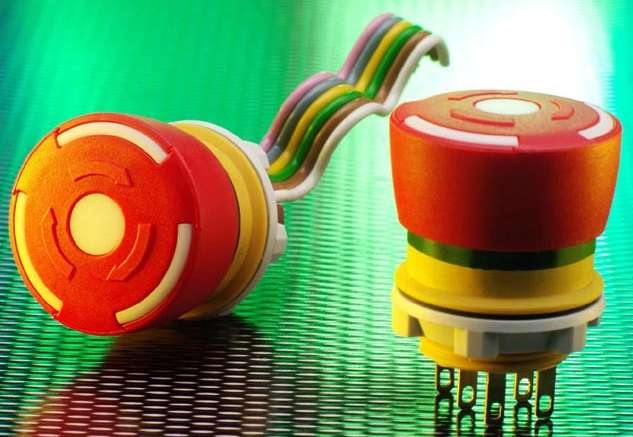

Emergency-Stop Switch suits space-sensitive applications.
EAO Switch Corp.
Milford, CT 06460
Jul 07, 2005
With EN418 rating and UL-approval, Series 84 features mono-block single piece design, LED illumination, and gold-plated silver contacts. Switch has slightly domed actuator head that provides visible illumination from side view and colored ring that indicates actuated position. Rated for 50,000 operations, unit accepts supply voltages from 5-30 Vdc and can be mounted to front plate with thickness from 1-4 mm or adapted to PCBs of different heights.
EMI Shielding Film suits dynamic flex operations.
Tatsuta System Electronics Co., Ltd
Osaka 578-8585 Japan
Jul 07, 2005
With total thickness of 22 microns, SF-PC5000 film is formulated for flex interconnects, COF, hinge applications in cellular phones, and LCD drivers. Base dielectric is 5 microns thick soft epoxy, covered with 0.1-0.15 microns of silver and 17 microns of Anisotropic Conductive Adhesive. Film exhibits thermal stability during reflow with no blistering or warpage, and minimal shrinkage. It comes with 50 micron PET transfer film and 120 micron film for protection.
Cylindrical Connectors meet non-magnetic specifications.
Amphenol Corp., Amphenol Aerospace
Sidney, NY 13838
Jul 06, 2005 Suited for MRI applications, multi-pin Amphe-Lite Series features corrosion-resistant composite housings with IP67 rating when mated. Non-magnetic contacts are available for power, signal, and coax applications ranging from single Twinax contact up to 128 size 22D contacts for crimping 22â€“28 AWG. Standard crimp contacts can be terminated to discrete wires, and PC tail contacts are available for termination to PCBs or flex circuitry.

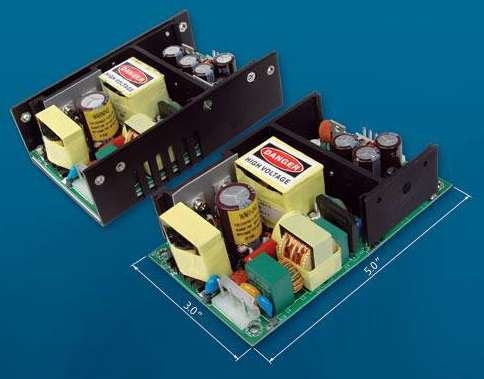

Switching Power Supplies comply with RoHS.
Beaverton, OR 97005
Jul 06, 2005 U-frame Series VSUU-120 measures 3.2 x 5 x 1.54 in., while open PCB Series VSBU-120 measures 3 x 5 x 1.28 in. Convection-cooled, 120 W, 1U units are available in 11 single-output models from 3.0â€“50.0 Vdc as well as 7 dual output models and 18 triple output models. Producing full output power in 0â€“50°C temperatures, devices include power factor correction and internal EMI filter, in addition to over voltage, over current, and short circuit protections.
Rooftop Pipe Support features lightweight, sled design.
Solon, OH 44139-2631
Jul 06, 2005
Offering alternative to wood blocks, straps, and clips, UV-rated CADDY® Rooftop Pipe Support features 4 x 5 in. footprint with sled design that distributes load evenly and protects roof membrane. Integral pipe-retaining mechanism ratchets down to hold pipes securely or can be set for loose guiding to accommodate for thermal changes. Weighing less than 1/3 lb, support holds up to three ˝ in. or two ľ or 1 in. pipes or conduits.

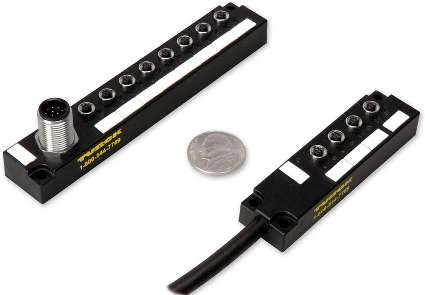

Junction Boxes provide multiple I/O points.
Plymouth, MN 55441
Jul 06, 2005 Available in 4- and 8-port models, pentafast Junction Boxes contain integrated PUR cable or M12 eurofast® 12-pin Quick Disconnection, and are offered with power and signal LEDs. Nylon encapsulated units provide IP67 protection and meet UL, CSA, NEMA 1, 3, 4, and 6P standards. Operating voltage is 10â€“30 Vdc, while operating current is 1 A per port and 3 A total with 1 power pair.
Power Over Ethernet Switch targets small offices.
Sunnyvale, CA 94085
Jul 06, 2005 Featuring 24 10/100 Ethernet ports and 1 Gb/s fiber port, 1U Model EPS24 connects to any -48 V supply, and can be used to power devices such as IP telephones, keyless entry systems, security cameras, and WiFi access points. Switch supports IEEE 802.3af as well as layer 2 and layer 3 switching in hardware.
LDO LED Driver regulates lighting for portable devices.
AustriaMicroSystems USA Inc,
Raleigh, NC 27615
Jul 05, 2005
Designed for parallel connected LEDs, AS1101 features analog and PWM brightness control. It can drive 2 LEDs with up to 80 mA per LED, and shutdown control results in supply current drop to under 1 µA. Designed for voltage drop of less than 150 mV, driver is suited to connect directly to Li-Ion batteries without dc/dc converter. LED current is programmable using external resistor, and IC can drive any color LED for backlighting of small displays.
Strobe Signals suit industrial washdown applications.
Edwards Signaling & Security Systems
Plainville, CT 06062
Jul 05, 2005
Measuring 4 in. tall, Compaxx 117 Series Strobes are made with shatter-resistant polycarbonate fresnel lens that intensifies and transmits beam of light. Type 4X indoor/outdoor units use ac or dc power sources and are suited for industrial, commercial, and institutional applications where distinctive visual indication is required.
