Remke Industries, Inc.    Wheeling, IL 60090 6039
Aug 04, 2005 TUFF-FLEX Cord Grip Connector has tapered, molded rubber cone that matches cable arc-of-bend specifications to eliminate damage to cable insulation at connection stress points. Rubber cone-to-connector seal is moistureproof, and 100% rubber construction resists hard knocks, splitting, and cracking. Available in straight, 45°, and 90° styles, product handles cables from .562–1.375 in. in 1¼ and 1½ in. knock-out sizes. Swivel versions are also available.

EGS ELECTRICAL GROUP • APPLETON    Rosemont, IL 60018
Aug 04, 2005 Watertight plugs, receptacles, connectors, inlets, and mechanical interlock devices provide safe electrical connections in commercial and light industrial environments subject to temperature extremes, vibration, impact, dirt, moisture, corrosive elements, and wash downs. Housings are flame retardant, impact-resistant and non-corrosive Valox and nylon material. Rated to 20, 30, 60, and 100 A, units are available in 3, 4, and 5 pin models with voltages from 110–600 V.

Wall Industries, Inc.    Exeter, NH 03833 4556
Aug 04, 2005 Dual front-end Series PSAQC60 accepts universal input range of 90–264 Vac or 120–370 Vdc and delivers 60 W of power in single outputs of 5, 12, 15, or 24 Vdc. Housed in 4.25 x 2.24 x 1.42 in. package, units are enclosed in plastic resin with fiberglass UL94V-O material. They offer efficiencies up to 80%, -25 to +70°C operating temperature, ±1% line/load regulation, and ±2% voltage accuracy. Units are suited for applications subject to dirt, dust, and moisture.

AustriaMicroSystems USA Inc,    Raleigh, NC 27615
Aug 03, 2005 RoHS-compliant Model AS1120 drives up to 46 segments of non-multiplexed LCD displays and can be cascaded to increase segments. Serial interface allows for integration into microprocessor-based solutions with minimal interface between display and data source. With input ranges from 3-5.5 V, driver achieves ultra-low current consumption of 5 µA. Applications include gas station displays, processor monitoring displays, instrumentation readouts, and thermometers.

World Magnetics    Traverse City, MI 49686-3441
Aug 03, 2005 Adjustable Series PSF105 achieves set points as low as 0.03 in. H₂O and up to 1.0 in. H₂O with standard tolerance of ±10%. Switches are UL recognized and offer life span of over 20 million cycles. Available as pressure, vacuum, or differential pressure switches, units are suited for medical analyzers, liquid level controls, air flow detection, and filter restriction.

Texas Instruments Inc. / Tiris Division    Dallas, TX 75243
Aug 03, 2005 Supporting 3.1–17 V input range, TPS62110 leverages LBC7 analog process manufacturing technology and features integrated FETs in lead-free, 4 x 4 mm QFN package. This 1.5 A synchronous, step-down, DC/DC converter achieves 95% power efficiency and enters PFM mode at light load currents. It supports output voltages from 1.2–16 V, has 1 MHz switching frequency, and can be synchronized to 0.8–1.4 MHz external clock signal. In shut down mode, power consumption is under 2 µA.

Molex Inc.    Lisle, IL 60532-1682
Aug 03, 2005 Rated at 32 V and 1.5 A max, EZ-Conn™ System includes insulation displacement cable plugs and modular PCB receptacle connectors in circuit sizes from 3–32. Field operators need only insert insulated wire and terminate using standard pliers. Vertical through-hole PCB version is available in modular units of 3 or 4 circuits in single, 4-row, and 8-row styles. SMT version is available in 4-circuits, allowing for right-angle mounting.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Aug 03, 2005 Generating up to 500 W at full load over operating temperature of -55 to +85°C, Model 57S81 provides 5 outputs for VME system or 8 outputs for VXI system. It features baseplate conduction cooled design and is manufactured to NAVMAT component derating guidelines. Operating from 115/230 Vac single-phase or 270 Vdc, unit provides outputs of +5, +3.3, and ±12 Vdc with +5 Vdc standby for VME systems or +5, ±12, ±24, -5.2, and -2.0 Vdc with +5 Vdc standby for VXI systems.

Rockwell Automation    Milwaukee, WI 53204
Aug 02, 2005 Requiring momentary 20 A applied current to open or close, multi-pole Bulletin 500LC is controllable from multiple sources. Contactor connects with various control systems and devices and can have 2-wire, 3-wire, and start/stop control to allow it to interface with remote objects. With small footprint and four screw mount, unit installs within, or next to, enclosures and is UL 508 listed, CSA certified, and suited for UL 67 listed panelboards.

Electroswitch, Unit Of Electro Switch Corp.    Weymouth, MA 02188 2913

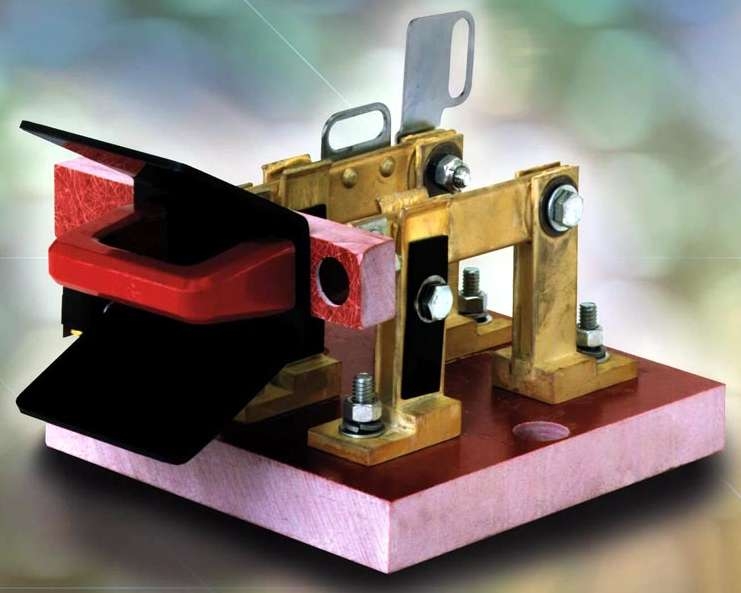

Aug 02, 2005 Configured for single or double throw, switches allow numerous modifications for polarity reversals, frequency, voltage, air operation, and remote operation. Type A switches, rated from 30–3,000 A, are front-connected units with adjustable silver-plated contacts and insulated bases. Rated from 30–10,000 A, Type DL units are back-connected units without base plates. Switches rated 400 A or less use stud connections, while those 600 A and above use bus-bar connections.

Cyberlux Corporation    Durham, NC 27703
Aug 02, 2005 Portable, water-resistant RelyOn provides perpetual and rechargeable light source during extreme conditions. Solid-state semiconductor light head, powered by 3 Cree 3 W XLampâ„¢ 7090 white LEDs, provides over 250 lumens and may be focused as intense spotlight beam or adjusted to generate blanket of light. System can be charged from wall outlet or vehicle charging port. Used as power plant, RelyOn can recharge mobile phones and other 12 Vdc devices through built-in power port.

Cooper Bussmann    Chicago, IL 60706-4792

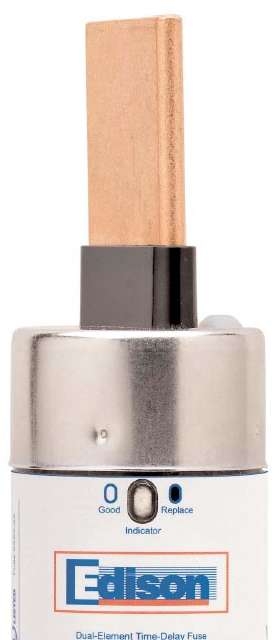

Jul 29, 2005 Edison® Class RK1 and Class J time delay, current-limiting fuses facilitate identification of blown fuse via black-and-white color indicator. In addition to providing protection against short circuit faults that can destroy motors and motor starters, products reduce arc-flash hazard via current-limiting capability that assures minimum incident energy case of arc-flash.

American Environmental Products    Fort Collins, CO 80524
Jul 29, 2005 Shatter-proof Glow-Luxâ„¢ Emergency Afterglow Lighting combines scotopic phosphor blend with non-radioactive after-glow phosphor blend to provide uninterrupted illumination in critical interior areas during low-light and no-power conditions. Even if bulb breaks, glass pieces will continue to glow up to 12 hr after power goes off. This 100% bomb-proof fluorescent lighting can also be detached and used as portable emergency light source.

TE Connectivity Ltd.    Berwyn, PA 19312

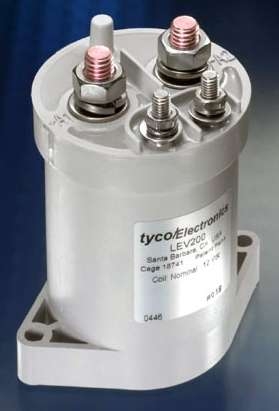

Jul 29, 2005 Suited for power switching applications, KILOVAC LEV200 is offered in upright or side-mount attachment styles with hermetically sealed construction. Intrinsically safe product, able to be used in explosive and harsh environments, is rated to continuously carry 500 A @ 320 Vdc when using 400 mcm conductors at 65°C. It employs one Form X (SPST-NO-DM) main contact and can interrupt up to 2,000 A @ 320 Vdc. Contact voltage rating is 12-900 Vdc.

AVX Corp.    Myrtle Beach, SC 29578
Jul 28, 2005 Series 9257 design features fixed SMT socket mounted on PCB and housed in portable equipment such as handheld devices, industrial modules, cell phones, and medical electronics. Connector plug offers cable termination with options of single- and double-sided contacts and single- or dual-row plug connections. No latching is required due to click design of contacts. Socket connector houses 16 contacts in 2 rows on 1.25 mm pitch with 1 A/contact rating for 5,000 mating cycles.

NKK Switches    Scottsdale, AZ 85260-3420
Jul 28, 2005 Offered in ultra-miniature and subminiature models, AB, BB, GB, G3B, and M2B series pushbuttons have logic level ratings of 0.4 VA max @ 28 Vac/Vdc and terminals with .100 X .100 pin spacing. They are available in circuit configurations from SPST through DPDT and process compatible options with terminations that include straight PC, with and without brackets; right-angle; and vertical-mount. BB series offers maintained action circuit option.

Banner Engineering Corp.    Minneapolis, MN 55441
Jul 28, 2005 EZ-LIGHTs(TM) feature solid or flashing lights that indicate status of machine or process. Sealed and IP67-rated, units are water- and oil-tight with solid-state design that has no bulbs to replace. Configurations include general-purpose red/yellow/green, multicolor 7-function with pre-configured flashing sequences, and remote indicator for EZ-SCREEN® safety light curtain status. All are compatible with PLC or other logic-level control outputs.

Thomas Research Products    Huntley, IL 60142
Jul 27, 2005 Stand-alone Safeguard Ignitor Turn-Off Switch minimizes ballast failures and component damage from insulation failure and overheating by automatically disconnecting lamp ignitor if light source has failed, is at end-of-life, or is missing. Unit stops constant electrical cycling or restriking attempts until faulty or missing lamp can be replaced. Switch is suited for 39-1,000 W Pulse-Start Metal Halide and 35-400 W High-Pressure Sodium lighting systems.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jul 27, 2005 Produced with BiCMOS technology, A110x family includes A1101/02/03/04/06 Hall-effect switches that are packaged in 3-pin single in-line and 3-pin SMT packages (LH). Continuous-time unipolar switch family, with option for Pb-free plating, include voltage regulator, Hall-voltage generator, small-signal amp, Schmitt trigger, and NMOS output transistor on one silicon chip. On-board protection circuitry allows ±30 V absolute max voltage rating.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jul 27, 2005 Available in 3-pin single in-line package (UA) and 3-pin SMT package (LH), A1201/02/03/04 Hall-effect switches offer Pb-free plating option and are stress-resistant for use in extended temperature ranges. Hall plate geometries and low-offset low-noise amplifiers minimize noise and reduce residual offset voltage. Produced in BiCMOS technology, products are suited for computer/office, industrial, and automotive markets.
