KEP Co. - Kessler-Ellis Products Co.    Eatontown, NJ 07724

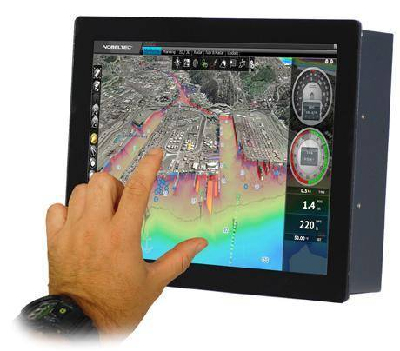

Jul 08, 2011 With KEPM GB Dual Touch Glass Bridge Displays, boaters can zoom in/out and skew displayed images with 2 fingers. Sunlight readable units accept composite, S-Video, DVI, VGA, UXGA, and SXVGA inputs. Featuring color TFT Active Matrix LCD, 15, 17, and 19 in. models have max resolution of 1,280 x 1,024, while 22 in. widescreen model has 1,680 x 1,050 max resolution. Additional features include backlighting that is dimmable to complete black for night viewing and 3-stage Picture in Picture capabilities.

Advantech Technologies, Inc.    Irvine, CA 92618
Jun 08, 2011 Designed for industrial applications and harsh environments, Model ITM-5115 has IP54 flat sealed front panel and supports operating temperatures from -20 to 60°C. Basic stand-alone Series ITM-5115R M has VGA/DVI input interfaces, while Series ITM-5115 C with optional Box Computer in rear offers all-in-one solution. Series ITM-5115R L and P allow integration with Advantech pluggable Embedded Box Computers via 36-pin LVDS input interface and 164-pin golden finger connections.

TE Connectivity Ltd.    Berwyn, PA 19312
Apr 06, 2011 Featuring 16:9 HD widescreen display, C-Series is suited for point-of-sale, point-of-information, and point-of-service applications. Configurable units offer choice of AccuTouch Zero-Bezel Resistive, IntelliTouch Plus Multi-Touch Surface Acoustic Wave, and iTouch Zero-Bezel Surface Acoustic Wave technologies. In addition, users can choose fanless 1.66 GHz Intel Atom dual-core processor, 3.0 GHz fan-cooled Intel Core 2 Duo processor, up to 4 GB RAM, and 2nd hard drive option for expanded storage.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Mar 29, 2011 Equipped with 9 in. widescreen, Core 3 OS-ready Model TPMC-9L supports high-definition streaming video for IP/Web security cameras. Gestures navigation with intelligent velocity facilitates finger swipe control of theater systems, lighting, AV networks, thermostats, and security cameras. Twelve programmable hard-key pushbuttons, positioned along both edges of touch screen faceplate, align onscreen text and graphics to support context-sensitive menu functions.

R. Stahl, Inc    Houston, TX 77054
Mar 10, 2011 Certified for hazardous gas and dust explosion zones, Open HMIs feature Intel Atom CPUs and can be fitted with 15 in. displays that utilize polarization filters to minimize glare and reflections. Displays can be adjusted up to 1,000 cd/m² and are readable even in direct sunlight, with luminescence of 700-800 cd/m². Capable of operating at continuously extreme temperatures from -30 to +50°C, HMIs are suited for oil and gas sector as well as chemical and pharmaceutical industries.

VIA Technologies, Inc.    Taipei 231  Taiwan
Mar 01, 2011 Available in ruggedized and open frame configurations, VIA VID Series spans 7-19 in. form factors and supports SXGA display resolutions up to 1,280 x 1,024 pixels. Ruggedized models feature IP65 water resistance and operating temperature of -10 to 70°C. Equipped with LED backlight technology, displays offer screen brightness up to 600 cd/m² and wide viewing angles up to 178°. Five-wire USB-based resistive touch interface offers optimal responsiveness for interactive applications.

National Instruments Corp.    Austin, TX 78759-3504
Feb 07, 2011 Based on 1.33 GHz Intel Atom processor, Models TPC-2206 and TPC-2212 feature -20 to 60°C operating temperature, 4 GB solid state drives, 1 GB RAM, and 2 GigE ports. LED backlight technology maintains screen brightness across range of temperatures. Combined with NI LabVIEW graphical development environment, computers provide rugged HMI for monitoring and control applications. Units work with variety of hardware including NI CompactRIO, PXI, NI Smart Cameras, and NI Embedded Vision Systems.

TE Connectivity Ltd.    Berwyn, PA 19312

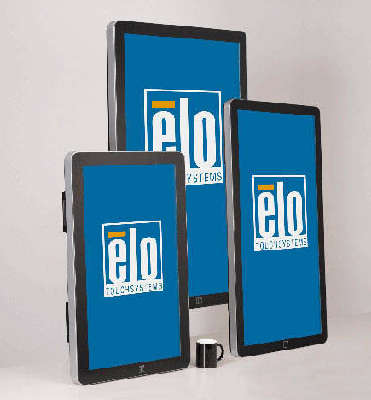

Feb 02, 2011 Designed to support high-traffic, public-access venues, IntelliTouch displays are available in 42 and 46 in. sizes, while IntelliTouch Plus multi-touch display is available in 32 in. size. Units come in bezel and zero-bezel designs with steel chassis and scratch protection. Leveraging 3 axes of touch information, IntelliTouch Plus technology delivers accurate, drift-free recordings of 2 simultaneous touch locations anywhere on screen regardless of position.

Maple Systems Inc.    Everett, WA 98204
Oct 27, 2010 Operating in portrait or landscape mode, 4.3 in. Model HMI5043T features 16:9 widescreen and provides 480 x 272 pixel resolution, while 10.4 in. Model HMI5104TH delivers 600 x 800 pixel resolution. Both include Ethernet port and VNC server that enable users to remotely monitor and control HMI from any location via Internet. Equipped with 32-bit RISC processor, 128 MB Flash storage, and 64 MB memory, HMIs provide online/offline simulation, alarm and recipe management, and data logging and sampling.

Trimble Navigation Limited    Sunnyvale, CA 94085-3913
Sep 08, 2010 Equipped with built-in, dual-frequency receiver, CFX-750(TM) full-color, 8 in. display lets farmers choose specific guidance, steering, and precision agriculture capabilities to best fit their needs. Possible upgrades include GLONASS capabilities and section and rate control. For precision planting, display is compatible with Field-IQ(TM) crop input control system and Tru Count clutches. Visibility can be increased from cab by using 2 live video feeds on display.

Lumex Inc.    Carol Stream, IL 60188
Sep 02, 2010 Available in both standard and touchscreen formats, InfoVue TFT LCDs feature extended temperature range of -20 to 70°C and LED backlight that allows 500:1 contrast. Resistive type touchscreens operate in 4-bit parallel interface. Offered in 3.5, 4.3, 5.7, and 7.0 in. diagonal screen sizes, RoHS-compliant units are suited for industrial controls, medical devices, test and measurement, and communications equipment.

Saelig Co., Inc.    Pittsford, NY 14534

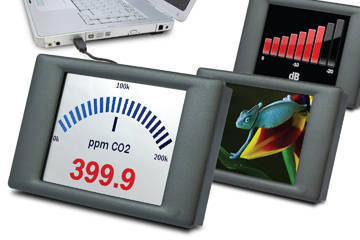

Sep 02, 2010 Suited for wide range of display instruments, 2.4 in. Model SGD 24-M features 320 x 240 pixel resolution, built-in touchscreen, dual analog inputs, and alarm outputs. Unit is configured using Windows-based Panel Pilot software, which allows users to design and customize range of color displays with click of mouse. Six analog, digital, and bar graph styles are available to be downloaded via USB port. For panel mounting, display includes integrated bezel with silicone seal.

Densitron Corp.    Santa Fe Springs, CA 90670
Aug 11, 2010 Featuring thin micro sheet of glass bonded to face, DTS416 Series 5-Wire Analog Resistive Touch Panels offer 7 Mohs hardness, minimizing scratches and abrasion. Panels require operating force of less than 100 g and provide 80% transparency with 4.5% haze. They can be used with gloved hand or passive stylus in wet or harsh working environments.

American Industrial Systems, Inc.    Irvine, CA 92614
Jul 21, 2010 Suited for building/factory automation and process control applications, HMI touchscreen displays feature 6-20 in. TFT LCDs that can be connected to standard industrial PCs. They feature aluminum front bezel, wide input range of 8-36 Vdc, and come with scratch-resistant, anti-reflective glass touchscreens. Options include sunlight readable Transflective films, Power over Ethernet (PoE), and shock/vibration enhancements. Mounting options include rack, chassis, and panel mount.

IKey Ltd.    Austin, TX 78754
Jun 09, 2010 Suited for harsh environments, 15 in. Model IK-PDS-1502, 17 in. Model IK-PDS-1703, and 19 in. Model IK-PDS-1902 have IP65-rated front panel and are resistant to dirt, dust, liquids, and corrosives. Units, respectively, feature brightness of 350, 300, and 300 cd/m²; contrast ratio of 700:1, 800:1, and 1,300:1; and resolution of 1,024 x 768, 1,280 x 1,024, and 1,280 x 1,024. Operating from 0-50°C, each LCD offers VESA, panel, and wall mounting as well as wall-embedded installation.

Strongarm Designs, Inc.    Horsham, PA 19044
Jun 03, 2010 Available on Suite-Station, Aseptic Display eliminates ledge associated with traditional panel-mount displays, creating smooth, crevice-free exterior surface that helps prevent particle accumulation and provides wipe-down cleanability. Unit is available in 15.1, 17.1, 19.1, and 21.3 in. sizes, and can be configured with Infrared, Resistive, and SAW touchscreen technologies.

Banner Engineering Corp.    Minneapolis, MN 55441
Apr 09, 2010 Available for iVu Image Sensors, iVu Remote Touch Screen Display enables vision inspection in hard-to-access areas. Users can program iVu sensors through single display and change inspection parameters remotely. Connected via 3-50 ft cable, 3.5 in. flat panel display incorporates 2 LEDs that provide feedback on remote sensor operation - one for Power/Error and another for indicating Pass/Fail inspection results. Display can be hot-swapped among multiple live sensors.

American Industrial Systems, Inc.    Irvine, CA 92614
Apr 06, 2010 Available in sizes from 8.4-20.1 in., Rugged Vehicle, Marine Bridge, and Rack Mountable displays features shock and vibration resistance to MIL-810F Environmental Engineering standards. They are all touchscreen-capable and designed to operate reliability in harsh environments for military, marine, outdoor, and vehicle applications. In addition to I/O port array for connectivity and expansion, features include all-metal construction and several touchscreen technology options.

Anders Electronics PLC    London NW1 OEU  United Kingdom
Feb 05, 2010 Pre-integrated with PXA270-based embedded system running WIN CE 5.0, UMR Intelligent Color Touch Screen Displays include CAN bus interface, which supports CAN 2.0B protocol and allows transmission and reception of extended and standard CAN frames at up to 1 MB/sec. CAN driver is available under WIN CE 5.0, enabling applications to configure CAN controller and communicate using CAN bus.

Crestron Electronics, Inc.    Rockleigh, NJ 07647

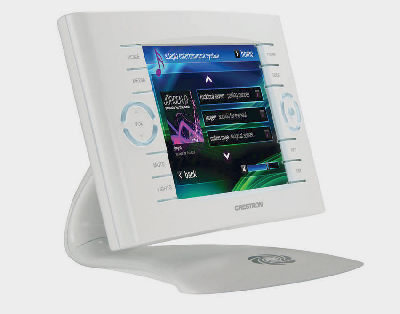

Feb 03, 2010 Suitable for hospitality and residential applications, 6 in. Model TPS-6XNL provides table top form factor while offering portability. While docked, unit recharges battery and communicates as wired touch panel via Ethernet or Cresnet®. High-speed Ethernet connection enables full motion video display in scalable or full-size window. By lifting panel off dock, unit automatically switches to wireless RF device, offering 2-way RF communications up to 200 ft and 1-way IR.
