Chassis Plans Inc.    San Diego, CA 92123

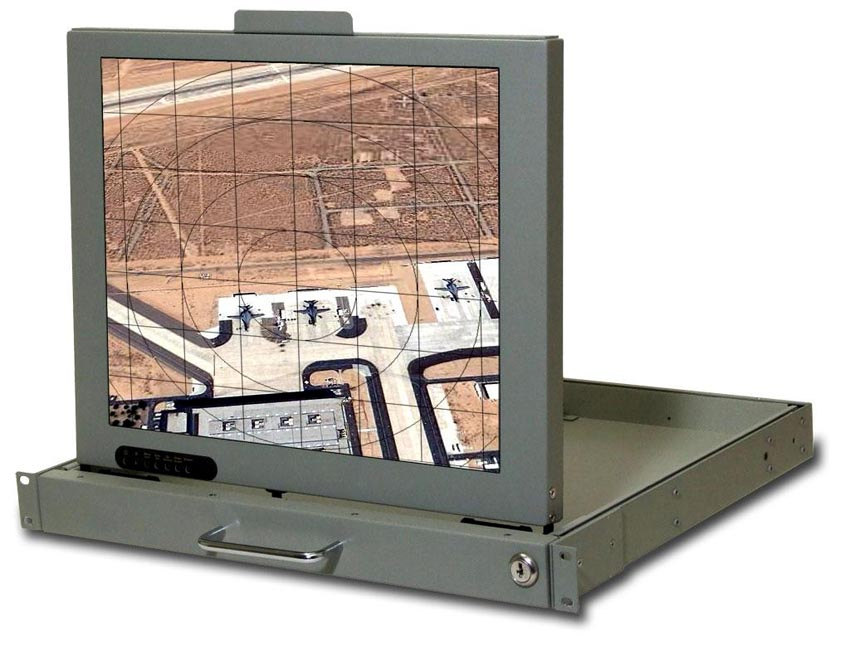

May 30, 2006 Designed for industrial, commercial, broadcast, and military applications, CPL-A1617 and CPL-A1616U SXGA 1280 x 1024 pixel resolution 17 in. LCD displays offer 250nit brightness and 350:1 contrast. Aspect ratio is 4:3 with pixel pitch of 0.264 mm. Displays mount one above other with top display tilting up and bottom display tilting down to provide double height rackmount display.

Chassis Plans Inc.    San Diego, CA 92123
May 30, 2006 Series CPPM-8U17 and CPPM-8U19 1280 x 1024 pixel resolution, SXGA panel mount LCD displays feature anti-glare hard coating, aspect ratios of 4:3, and 16.7 million colors. CPPM-8U17 offers 250 nit brightness, 350:1 contrast, analog RGB input standard, and optional DVI, S-Video, and Composite inputs. CPPM-8U19 offers 500:1 contrast, and RGB, DVI, S-Video, and Composite as standard inputs. Displays satisfy wide range of industrial, commercial, broadcast, and military requirements.

Sharp Microelectronics    Camas, WA 98607 9489
May 30, 2006 Advanced Super View TFT LCDs are offered in 12.1 in. (LQ121S1LW01) and 15.0 in. (LQ150X1LW72) models, which display 262,000 and 16 million colors and 250 and 350 nits of brightness respectively. These RoHS-compliant, flat-panel LCDs, viewable in indoor and outdoor settings, have flicker-free screens and 170° symmetrical viewing cone that allows off-axis perception of image without color shifting or loss of detail. Operating temperature range is 0 to +50°C.

Sanyo Fisher (USA) Corp.    Chatsworth, CA 91311
May 26, 2006 Model PLC-XF46 Tabletop XGA LCD projector uses three 1.8 in., 1024 x 768 pixel Biena 4 LCDs, and four 300 W UHP lamps to produce up to 12,000 lumens without microlenses. Using 3 panel LCD and optical block design, it provides up to 1,200 to 1 contrast ratio with smooth color and grey scale variations. Projector features optical compensator plate, and Dynamic Auto Gamma Processing and Edge Enhancement circuits.

Advantech Automation Corp.    Cincinnati, OH 45240
May 25, 2006 Suited for industrial and commercial applications, FPM-3120G color flat panel monitor features 12.1 in SVGA TFT LCD display with luminance of 350 cd/m² and 800 x 600 resolution. It offers multi-scan function supporting XGA, SVGA, VGA, and text mode; auto-recognition of input signal; and VESA arm, desktop, panel, and wall mounting options. NEMA4/IP65 compliant aluminum front panel has hard anodic coating that protects against abrasion and acid corrosion.

AXIOMTEK Co., Ltd.    City of Industry, CA 91748
May 24, 2006 Equipped with 17 in. high brightness SXGA LCD display, PANEL6173 industrial-grade ultra slim panel monitor supports multi signal inputs including DVI, VGA, S-Video, and video. TFT LCD offers luminance at 300 cd/m² and has contrast ratio of 500:1. Screw-type adaptor plug design and 12/24 V DC-In support enables monitor to fit in all industrial applications. Featuring NEMA4/IP65 compliant front bezel, it supports panel, wall, rack, or VESA FPMPMI mounting methods.

Displaytech Ltd.    Carlsbad, CA 92008

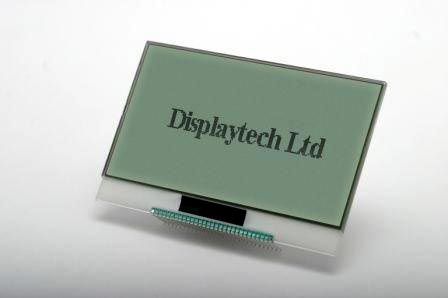

May 22, 2006 Offered in 3 sizes, 128 x 64 chip on glass LCDs come with 50.0 x 25.0 mm, 70.0 x 40.0 mm, and 60.6 x 33.1 mm view areas. Dot size ranges from 0.33 x 0.33 to 0.48 x 0.48 mm. In addition to COG displays, 5 modules are available that incorporate white LED backlight, with voltage from 2.3-3.5 V and typ current of 20-80 mA. Also available, modules with RGB backlights let user switch between red, green, or blue backlights and combinations of those 3 to create up to 7 backlight colors.

Elmo USA Corp.    Plainview, NY 11803
May 19, 2006 Weighing less than 6 lb, portable ELMO TT-02 Teacher's Tool enables users to share information, documents, and small 3D objects with audiences of any size. Optical system features 5.3x optical zoom, 8x digital zoom, and one-touch auto focus. Unit displays objects in real-time and employs 850,000 pixel, progressive scan CCD that captures 20 fps. Offered in models with or without USB port, product features switch-selectable output and one-handed adjustment.

3M Touch Systems, Inc.    Methuen, MA 01844

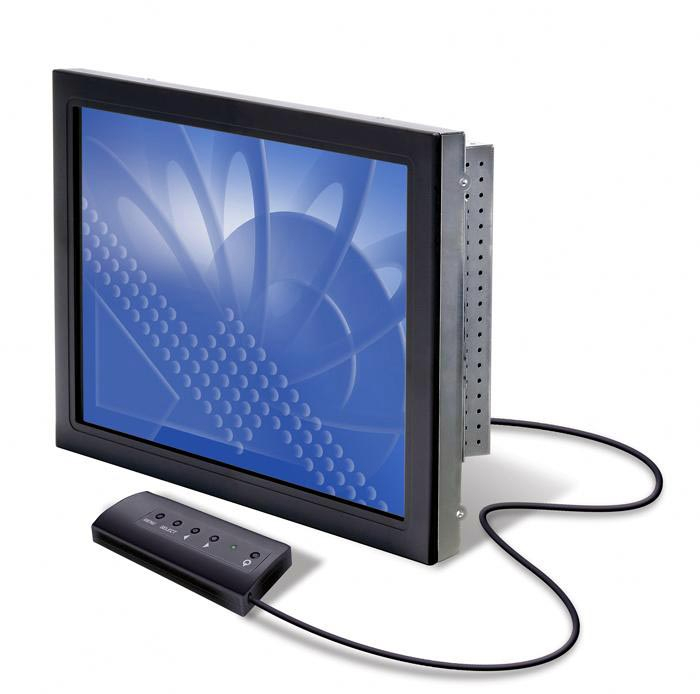

May 16, 2006 MicroTouch(TM) CT150 15 in. LCD touch screen monitor features 3 bezel options on rigid steel enclosure and is offered with variety of mounting options, including VESA mounting as stand-alone display. Features include remote control on-screen-display adjustment module and 500:1 contrast ratio display module that allows print-color matching. Based on ClearTek II touch screen technology and EXII electronics platform, RoHS compliant monitor accepts ac or dc power.

LG Electronics USA, Inc.    Englewood Cliffs, NJ 07632
May 12, 2006 Model MW-71PY10 plasma HDTV Monitor features full HD 1,920 x 1,080 pixel display resolution with 1,200:1 contrast ratio. It incorporates XD Engine technology that takes low resolution of analog signals to near high-definition levels for better picture quality and viewing experience. Flexible PIP, split-zoom, and twin-picture features allow sub-windows to be moved, resized, swapped, and split into up to 9 windows. Unit includes RGB input for PC connectivity.

OpenTV Corp.    San Francisco, CA 94111
May 12, 2006 Switched Digital Video Solution integrates interactive program guide based on OpenTV Core 2.0 Middleware(TM) running on Motorola's DCT-2000/2500 set-top boxes and C-COR's nABLE(TM) Global Session and Resource Manager providing session and edge resource management. Switched digital broadcasting enables instant bandwidth allocation for infrequently used channels. Solution lets cable operators employ SDB on set-top box, freeing up bandwidth for offerings such as HD broadcasting and video-on-demand.

Scientific-Atlanta, Inc.    Lawrenceville, GA 30044
May 12, 2006 Operating over existing HFC infrastructures, Switched Digital Video System enables delivery of switched video services on existing installed base of MPEG set-top boxes that cannot decode DOCSIS or IP stream. Transparent to consumers, SDV enables operators to offer extensive lineup of content ranging from premium sports packages to ethnic programming. It offers gigabit quadrature amplitude modulation sharing between multiple services and advanced bulk encryption support.

IDEC Corporation    Sunnyvale, CA 94089-2209
May 03, 2006 Available in 10.4 and 12.1 in., TFT color LCD touchscreens feature WindO/I-NV2 3.01 programming software and Ethernet/IP driver. Units also include Ethernet networking protocols Modbus TCP/IP 1:N driver and IDEC 1:N driver. Programming software features security function and alarm logging. Alarm logging stores historical events and has configuration compliant to Instrument Society of America Standards. Touchscreens are suited for automation design engineers.

Horizon Technology, LLC    Lake Forest, CA 92630
Apr 27, 2006 Delivering 4096 x 4096 resolution, Surface Acoustic Wave (SAW) touch screens feature pure glass optics that deliver 92% light transmission with no color shift. Products, offered in tempered or shatterproof glass, may be worked with fingers or gloves and exhibit no performance impact from touches or cleaning over time. Fully integrated behind existing bezel of LCD monitors, displays provide high-performance touch without altering monitor design.

Opto Technology Inc.    Wheeling, IL 60090 6056
Apr 25, 2006 Incorporating 9 LED chips in compact and thermally conductive ceramic substrate, OTLA-0100 high density, multi-chip LED module offers wavelengths of 380, 410, 460, 500, 525, 575, 615, 655, and 705 nm from UV through Visible Red Spectrum. Applications include fluorescence excitation equipment, colorimeters, blood analyzers, clinical chemistry analyzers, and DNA analyzers.

Sony Electronics Inc.    Park Ridge, NJ 07656
Apr 19, 2006 Designed for use in boardrooms or as digital signage, FWD-42PX2 42 in. high-definition (HD) plasma display features respective brightness and contrast ratio measurements of 450 cd/m² and 10,000:1 (dark room). Dual option accessory and input slots are provided for application-specific customization. Along with DVI-HDCP and RS232 connectivity, product features picture-in-picture and video wall capabilities as well as optional network connectivity.

Sony Electronics Inc.    Park Ridge, NJ 07656
Apr 19, 2006 With 16:9 aspect ratio and 1,680 x 1,050 screen resolution, 20 in. MFM-HT205 includes NTSC television tuners and features ability to watch TV while multitasking with PC applications. Displays feature 6 msec response time, 470 cd/m² brightness, 1,600:1 contrast ratio, and 170°/170° viewing angles. Sound package includes two 3 W speakers and 5 W subwoofer. Mac and PC compatible LCDs offer connectivity options including S-video, component, composite, HD-15, and DVI-HDCP inputs.

NVIDIA Corp.    Santa Clara, CA 95051
Apr 04, 2006 PureVideo(TM) technology provides hardware acceleration for decoding H.264, VC-1, WMV, and MPEG-2 movies, and performs post processing techniques like spatial-temporal de-interlacing and inverse telecine on decoded high definition content. Software offloads CPU and 3D engine of complex video tasks, and enables PC to run multiple applications simultaneously.

Wildform, Inc.    Los Angeles, CA 90034
Mar 27, 2006 WildPresenter enables anyone to create Flash presentations, product demos, training videos, and sales and marketing materials. It combines screen recorder; PowerPoint/Flash converter; video/audio converter; suite of drawing, flowcharting, and text tools; software to capture video/audio from webcam, microphone, and videotape; animation and transition generator; text effects engine; and timeline editor. Flash output is suited for Internet, corporate intranets, CD-ROMs, and mobile devices.

Xycom Automation Inc.    Saline, MI 48176
Mar 24, 2006 Pro-face AGP3000 Series includes 19 models of graphic operator interface terminals ranging from 6 in. monochrome and TFT displays to 15 in. HMI displays. TFT LCD units support 65,536 colors, while STN models offer 4,096 colors and 16 monochrome LCD shades. GP-Pro EX self-guiding screen editor software offers drag-and-drop address mapping, over 1,800 graphics symbols and parts, multi-language support using Unicode fonts, and online documentation wizard.
