Clarion Corporation of America    Gardena, CA 90247
Jan 11, 2007 Featuring slim profile and designed for rear seat use, OHM Series Overhead Monitors support 16:9 and 4:3 wide and full screen adjustable formats with selectable display mode. They feature on-screen display with built-in LED dome lights. All 3 units include 2 A/V inputs, 1 A/V output, and built-in IR transmitter for wireless headphones. Available in 8, 10.2, and 15.4 in. sizes, monitors have front panel controls and DVD, CD, CD-R, CD-RW, and MP3 playback functionality.

VarTech Systems, Inc.    Baton Rouge, LA 70809
Jan 08, 2007 With shock and vibration safeguards, DiamondVue Xtreme Series adapts to extreme environmental conditions. Units come in 6.4-21.3 in. sizes and can be equipped with resistive or capacitive touchscreen. Displays include optically bonded laminated PVB front protective glass with EMI coating. Integrated heaters at rear of panel extend operational temperature, while conformal coating on all internal circuit boards and exterior metalwork protects against humidity and salt.

NEC Electronics    Santa Clara, CA 95050
Jan 03, 2007 Delivering color gamut that exceeds 100% of NTSC color space, 3.5 in. system-on-glass (SOG) LCD module features quarter high-definition (QHD) array of 960 x 540 pixels that enables reproduction of images in resolutions over 300 pixels/in. Luminance of 350 cd/m² meets requirements for brightness levels in small-form factor equipment. Backlight system and color filter are optimized to achieve balance between color and luminance for optimal clarity.

Zytronic PLC    Tyne & Wear NE21 5SG  United Kingdom
Dec 28, 2006 ZYPROFILM(TM) allows businesses to install large-screen, interactive displays that can be operated through glass windows/surfaces up to 20 mm thick. Projected capacitive technology (PCT(TM))-based product offers lifetime drift-free performance and optimal light transmission characteristics. Construction of touchscreen unit consists of hard coated film immediately behind glass surface, precisely spaced grid of microfine-gauge sensing wires, and rear projection film.

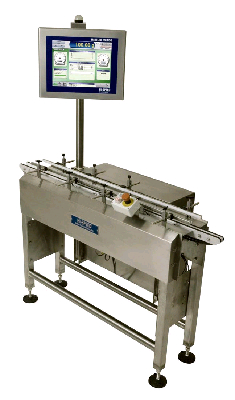

Hi-Speed Checkweigher Co., Inc.    Ithaca, NY 14850
Dec 22, 2006 Providing quality control for cans or round containers, Canweigh(TM) CM9400 is available with 15 in. dashboard-style XS Control, which provides menu-driven access to checkweigher functions. System allows checkweigher to be set up as OPC server to store production data and present it on Internet. CM9400 can communicate with and control other intelligent sensor machines on plant networks via serial, Ethernet, Ethernet IP, USB, Bluetooth, Fieldbus, PROFIBUS, DeviceNet, or ControlNet.

NEC Electronics    Santa Clara, CA 95050
Dec 22, 2006 Model NL2432HC17-04B 2.7 in. transreflective display module features reflective ratio of 35% and brightness level of 100 cd/m² in transmissive mode. With contrast ratios of 150:1 in transmissive mode and 15:1 in reflective mode, NL2432HC22-41B 3.5 in. display has luminence level of 200 cd/m² and reflective ratio of 15%. Both amorphous silicon TFT LCD modules have mode for using backlight system as spectral source and one for using ambient light.

Sipex Corp.    Miliptas, CA 95035-1701
Dec 22, 2006 Capable of driving low forward voltage LEDs from 33 mA to 1 A, SP7618 enables range of LED lighting applications with zero external components and minimal design time. It can drive LED directly from single cell Li-Ion or 3 alkaline batteries in series without additional boost regulator. Product can also dynamically change current level and PWM width simultaneously. Also available, SP7619 and SP7619A Flash Drivers let user select from 2 pre-set current levels.

VarTech Systems, Inc.    Baton Rouge, LA 70809
Dec 22, 2006 Model VT084PX features shock and vibration safeguards and electromagnetic environmental interference protection. Offered with anti-reflective, protective faceplate, product has 8.4 in. TFT Active Matrix screen with VGA resolution and brightness level of 400 nits. Equipped with video connections for HD15 (F), RCA, and 5 Pin Mini Din, display comes with NEMA 4 black power coated, cold rolled steel front bezel.

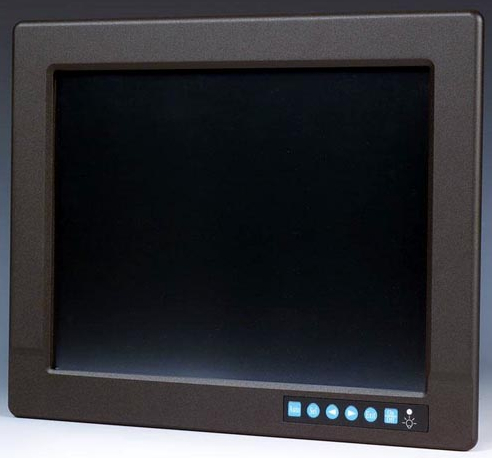

Advantech Automation Corp.    Cincinnati, OH 45240
Dec 21, 2006 Industrial 12.1 in. XGA TFT flat panel monitor, FPM-3121G, is NEMA4/IP65- and RoHS-compliant and designed for limited-space applications. Features include anti-reflective screen with tempered glass and OSD (on screen display) control pad on bezel for image adjustment. Direct-VGA signal input comes standard, and optional features include ability to support industrial 24-48 Vdc power input, transflective LCD, and stainless steel front panel.

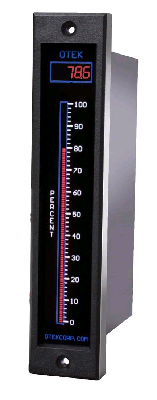

OTEK Corp.    Tucson, AZ 85714
Dec 18, 2006 Automatic Tricolor Bargraph, Model HI-Q101 features 4-digit display as well as RS232, 485, and USB ports. Firmware gives customer ability to control all parameters and upgrade system to SCADA, DCS, or Ethernet without changing existing panels or wiring. Model HI-Q101 is available in V, mA, DC, and AC power with 4-20 mA current loops, and custom inputs.

Epson America, Inc.    Carson, CA 90746
Dec 18, 2006 Addressing demand for front projectors with portable screen for use at work and home, Accolade(TM) DUET(TM) Ultra Portable Projection Screen's design enables it to expand horizontally to 4:3 or 16:9 aspect ratios. It can hang on wall using mounting bracket or stand freely by placing it on retractable stand. Screen and stand can be set up together in less than 30 sec and can be taken down and stored as 42 in. long one-piece solution.

Displaytech Ltd.    Carlsbad, CA 92008
Dec 15, 2006 Available in 1.8, 2.0, and 3.5 in. sizes, TFT Display Modules can be modified to accommodate specific mounting needs of user. Company can integrate units into customers' end products by building displays onto larger circuit board that incorporates additional circuitry, switches, and keypads, and supplying full or turnkey product including plastic housing.

NEC Electronics    Santa Clara, CA 95050
Dec 13, 2006 Featuring 10-bit TFT LCD source driver, 6 million-pixel NL280210AM15-01A can display 3,070 grayscales per pixel simultaneously without interpolation. It has 2,800 x 2,100 pixel resolution, 1000:1 contrast ratio, and 1,000 cd/m² luminescence. UXGA resolution, 2 million-pixel NL160120AM27-13A utilizes SA-SFT technology and high-intensity direct backlight system to achieve uniform brightness over entire screen with 1,700 cd/m² luminance. It offers 850:1 contrast ratio.

FSR Metal Products    West Paterson, NJ 07424
Dec 11, 2006 With HD-15 local monitor loop output, CI-5LB high resolution active computer video interface provides connectivity to local work station and cable run to projector of house display. Device has local unbalanced stereo mini jack input and converts signal to balanced audio for noiseless operation. Packaged as standard single gang wall plate, unit includes RGBHV 5 BNC equalized video output that drives cable lengths up to 150 ft.

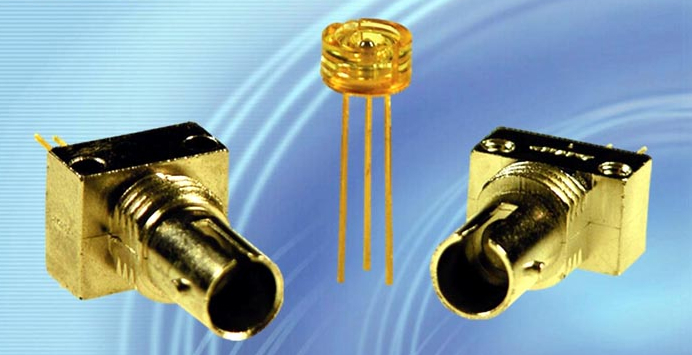

Optek Technology, Inc.    Carrollton, TX 75006-6905
Dec 11, 2006 OPF670 Series LED transmitter family consists of OPF670 in TO-46 package, OPF672 in standard profile metal housing, and OPF673 in low profile metal housing, all designed to launch optical power into 50/125 µm or 62.5/125 µm diameter multimode fibers. Model OPF670 comes with plastic lens cap for active alignment into connector receptacle, and Models OPF672 and OPF673 are equipped with ST connector.

Saelig Co., Inc.    Pittsford, NY 14534
Dec 07, 2006 Designed to connect to PC via USB, Pertelian x2040 provides instant display for incoming email, Instant Messages, RSS feeds, and other data that needs to be reviewed immediately. Housed in 4 x 2.5 x ¾ in. cowling, USB cable is long enough to permit backlit 4 x 20 display to mount on top of monitor. Features include Monitor for eBay, Forum Watcher, and IRC Support software. Win/Mac/Linux-ready software works with 3 IM platforms and will check POP3 email, weather, sports scores, and stock prices.

NEC Electronics    Santa Clara, CA 95050
Dec 04, 2006 Abel to achieve luminance levels to 1,100 cd/m², 12.1 in. SVGA module (NL8060BC31-36) has 33 msec response time and employs high-intensity backlight system. Other modules include 12.1 in. SVGA module (NL8060BC31-42D), one 8.4 in. SVGA module (NL6448BC21-04), and one 7 in. WQVGA module (NL4823BC37-05). Each offers 400 cd/m² brightness, 600:1 contrast ratio, 160° x 140° viewing angle, and 25 msec response time.

Chi Mei Optoelectronics (CMO)    Taiwan R.O.C. 74147  Taiwan
Dec 01, 2006 Available in sizes ranging from 7-56 in., IAAV line of application and medical display panels offer resolutions from 1-8 mega-pixels. Suited for cockpit navigation display and in-flight passenger entertainment system, 10.4 in. panels provide brightness of 400 nits, viewing angle of 88°/88°/88°/88°, and response time of 25 msec. Brightness of 600 nits and contrast of 600:1 is offered by 1 MP 19 in., 4 MP 30 in., and 8 MP 56 in. panels.

Mitratech    Los Angeles, CA 90036
Nov 30, 2006 Providing on-going education and training support, Mitratech University promotes post-implementation communication and education to accelerate return on TeamConnect investments. Training curriculum supports legal staff at all levels with various instructional formats. Users learn how to manage meaningful information, strategically leverage internal and external resources, and generate financial and performance reports according to business objectives.

Modular Industrial Computers, Inc.    Chattanooga, TN 37421
Nov 29, 2006 Offering LED marquee sign alternative in NEMA 12 and NEMA 4X locations, Productivity Dashboards are 40 and 46 in. LCD panels with interface for HMI or MES computer systems. Able to display text, charts, alarms, HMI graphics, KPIs, live video, and any other information needed for manufacturing, models are available with integral PC, Thin Client, local, or remote computer options and feature 450 cd/m2 brightness, 800:1 contrast ratio, up to 1600 x 1200 resolution, and over 16 million colors.
