One Stop Displays    Winter Park, FL 32789
Dec 01, 2004 PLED display uses Hitachi/Samsung-compatible standard interface and protocol introduced by LCD displays. Character font set closely matches ASCII computing standard, which can be generated by various system processors from character strings. Features include 160° viewing angle, 100:1 contrast ratio, and 12 mA current draw @ 40 nits of uniform brightness. Applications include telecom, instrumentation, home automation, and audio and video products.

One Stop Displays    Winter Park, FL 32789
Dec 01, 2004 With 1.65 mm thick display, 1.5 in. color OLED features 262 k color depth to produce clear images for picture IDs or other images relevant to maintaining security. It is suited for next-generation ID, security card, and programmable card applications.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Nov 18, 2004 Dual 15-66 MHz, 18-bit LVDS serializer, SCAN921821, offers programmable pre-emphasis to 6 dB, IEEE 1149.1 JTAG, and 15 kV ESD protection. Each serializer handles payloads to 1.188 Gbps. In addition to JTAG, SCAN90CP02, 1.5 Gbps 2 x 2 LVDS non-blocking crosspoint switch features 6.5+ kV ESD protection and programmable pre-emphasis that operates at speeds to 1.5 Gpbs. Model DS90LV110T 1:10 LVDS repeater makes 10 copies of clock or data signal and is equipped with failsafe mode.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Nov 17, 2004 Featuring 23 in. diagonal display area, Model FLC58UWC8V offers 600:1 contrast ratio, brightness of 400 nits, and response time of 12 ms, combined rise and fall. Native panel resolution is 1,920 x 1,200 pixels, and viewing angle is more than 170° in both vertical and horizontal directions. Model FLC58UWC8V is suited for medical imaging, broadcast, and homeland security markets.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 09, 2004 TPC-60S Windows CE based 5.7 in. QVGA STN LCD display computer suits factory floor operator interface terminal. Unit uses low power, fanless ARM CPU running at 266 MHz and features and NEMA4/IP65 compliant front panel. It includes 64 MB flash memory and CompactFlash® slot for extra storage. PCMCIA slot can be fitted with optional wireless LAN card. TPC-60S offers 3 serial ports, 1 Ethernet port of 10/100Base-T, 2 USB ports, and LED indicator for LAN.

Clarity Visual Systems    Wilsonville, OR 97070

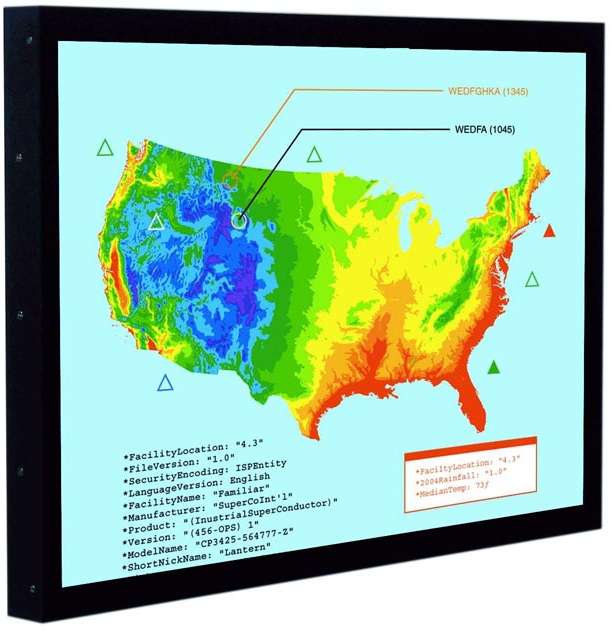

Nov 08, 2004 Used in centralized network monitoring, Bay Cat direct view LCD display offers 46 in. screen size with 1920 x 1080 resolution and 170° viewing range. This enables plant operators to view network conditions and act on situations before they become problematic.

Elmo USA Corp.    Plainview, NY 11803
Oct 27, 2004 Measuring 6 x 4.3 x ½ in. with 5 in. display, Model LM-5011N delivers high-resolution 600 x 234 pixel images. With ¼ x 20 screw socket, monitor can be mounted on any standard bracket. DC-operated unit has 12-15 Vdc power supply and consumes 8 W at 15 Vdc. Featuring composite inputs and RCA pin jack video input terminal, monitor is suited for select places such as reception areas, executive offices, and other locations where it is unobtrusive.

Rockwell Automation    Milwaukee, WI 53204

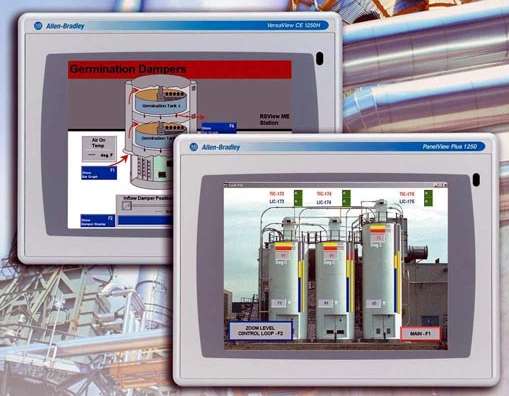

Oct 27, 2004 Allen-Bradley PanelView(TM) Plus operator interface and VersaView CE industrial computer families are offered with NEMA 4X touch display modules designed to facilitate reading in bright locations. Rated to withstand harsh, outdoor environments, modules, backlight-rated at 50,000 hr, have light intensity rating of 1,100 NITS. Optional stainless steel solar visor fits over bezel to help shade display when ambient temperatures reach up to 104°F.

Global Display Solutions    Bingley West Yorks BD16 1PE  United Kingdom
Oct 18, 2004 Available in 6.4–19 in. sizes, industrial LCDs combine Mitra panels, Morpheus monitors, and optically-enhanced LCD displays. Latter eliminates internal reflections and refractions. Solution enabled development of optically solid unit, which does not suffer from condensation on display, parallax, stress on LCD, or delamination. Applications include banking, process, kiosk, and marine.

Kyocera Display America, Inc.    Plymouth, MI 48170
Oct 13, 2004 RoHS-compliant, monochrome LCDs incorporate negative mode panel with internal black mask and color LED black light. Flat liquid crystal fluid allows products to support 5 V operation over -20° to +70°C temperature range without temperature compensation circuit. Sizes range from 2.8-5.2 in. diagonal, and colors include white, blue, green, or yellow. Displays range from 40 character x 4 line to 16 x 2 with 128 x 64 to 240 x 64 dot pixel resolution.

Rice Lake Weighing Systems    Rice Lake, WI 54868
Oct 12, 2004 Available with 8- or 12-character display, LaserLightâ„¢ M-Series will slide, scroll, or flash any alphanumeric message. IntelliBrightâ„¢ sensing feature automatically adjusts display intensity, while non-glare lens prevents washout in direct sunlight. Display features 2.75 in. digits with standard annunciators for gross, net, lb, and kg. Heat-resistant enclosure opens from bottom to allow access to electronic components and prohibit moisture ingress.

Three-Five Systems, Inc.    Tempe, AZ 85281

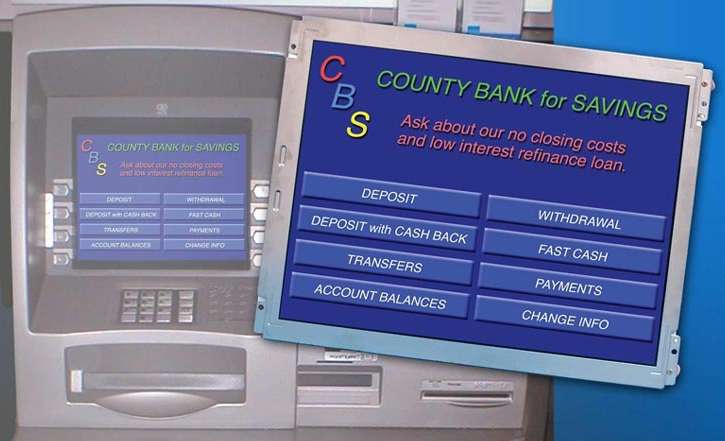

Oct 06, 2004 Available in 10.4, 12.1, and 15.0 in. models, Transflective LCD Displays use power of light to facilitate readability. Sunlight is captured by display and reflected back through screen. Since fans are not needed, displays can be assembled in sealed enclosures to protect against dust and dirt. Suited for high ambient light conditions, units target ATM machines, security/surveillance displays, factory automation, process control, and military applications.

FANUC Robotics America, Inc.    Rochester Hills, MI 48309 3253
Sep 24, 2004 Touch Panel iPendant user interface for R-J3iB Robotic Controller allows user to access corporate Web sites, electronic documentation, advanced diagnostic information, or other equipment directly from controller. Email capability allows robot to automatically send messages regarding errors or production status. Ergonomic design includes multi-window display and color LCD screen, and unit also provides integrated help and diagnostic functions.

Starrett, L.S., Co., The    Athol, MA 01331 1915

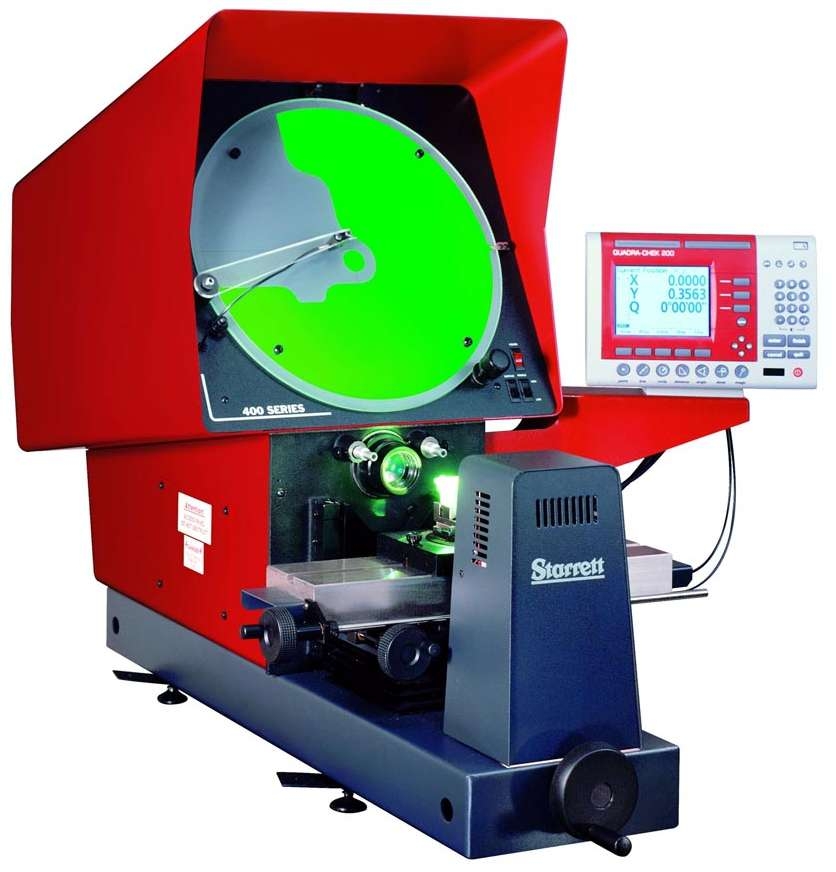

Sep 13, 2004 Horizontal, benchtop Model HE400 MkIII features screen with integral hood, precision crosslines, and calibration markings. Fan-cooled, halogen profile illumination, with high/low intensity, allows user to adjust lighting. Magnifications of 10x, 20x, 25x, 31.25x, and 50x to 100x are available. Product has 10 x 4 in. measuring travel and workstage with 18.9 x 4.7 in. top plate. It accommodates up to 55 lb with negligible deflection and includes Quadra-Chek Digital Readout System.

Global Display Solutions    Bingley West Yorks BD16 1PE  United Kingdom
Sep 08, 2004 Large Screen LCD Displays, Models G320, G370, and G460, suited for digital signage market, provide information, advertising, and crowd-control opportunities. All units have removable frame and modular, vandalproof design. Features include 16:9 aspect ratio; 500 and 600 cd/m2 brightness, depending on model; and WXGA and HDTV resolution, depending on model. Equipped with antiglare glass panels, displays offer 170º vertical and horizontal viewing angles.

Touch International    Austin, TX 78758
Sep 01, 2004 IRTouch touch screens are highly transparent units that provide maintenance-free and calibration-free operation. Since there are no films or conductive layers, standard transparency is over 92% with 100% possible. Sealed to IP65 standard, screens operate over temperature range of -41 to +70°C. Standard LCD sizes range from 12.1–29 in. with response time of 10–35 ms. Units provide vandal-resistant operation in ATMs, POS displays, and outdoor kiosks.

Chassis Plans Inc.    San Diego, CA 92123
Aug 31, 2004 Rack-mount 1U display drawer, CPRSD1-19HD, incorporates 19 in. UXGA TFT LCD that provides .2415 mm dot pitch, 500:1 contrast ratio, and 250 cd/m2 brightness. Optional touchscreen is available, and contrast filters can be installed to enhance daylight visibility. Clamshell-style drawer includes Cherry full travel keyboard with 83 keys and trackball.

Crescent/Stonco    Union, NJ 07083
Aug 19, 2004 Eclipse Series is comprised of scratchproof, corrosion-proof, UV-stable thermoplastic signs and lighting. Featuring adjustable lamp heads, Series CPC LED Exit Sign and Emergency Lighting combines tungsten lamps with LED exit illumination. Series CP LED Exit Sign includes rechargeable sealed Ni-Cad battery that provides 120 min of full LED light output illumination. Utilizing wedge base tungsten lamps, Series CEL Emergency Light features track and swivel design.

NKK Switches    Scottsdale, AZ 85260-3420

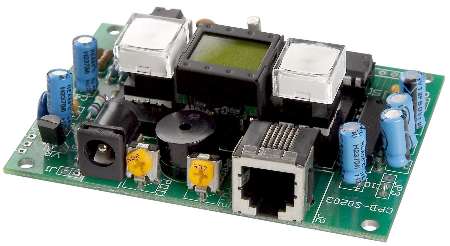

Aug 13, 2004 IS-Dev Kit-1 consists of SMARTSWITCH(TM) programmable LCD display module and 2 pcb-mounted tact switches. IS-Dev Kit-2 features 2 SMARTSWITCH(TM) LCD programmable pushbutton switches. Both come on pcb with flash memory, power, and programming connections. IS-Dev Kit-3 consists of panel display unit with 2 SMARTSWITCH(TM) LCD pushbuttons and SMARTSWITCH(TM) LCD display. Using Design Online tools, engineers can program text, draw graphics, experiment with design concepts, and download programs into development kit.

Densitron Corp.    Santa Fe Springs, CA 90670
Aug 12, 2004 Measuring 3.15 x 1.38 in., DV4900 consists of 100 x 33 resolution display with 2.64 x 0.98 in. viewing area. It offers single IC controller with integrated charge-pump, software contrast adjustment, and temperature compensation. With -20 to +70°C operating temperature range and 3 or 5 V operating voltage, display works in portable, hand-held instrumentation used indoors and outdoors. Available with FSTN fluid, module provides clear, black on white display.
