Oil-Rite Corporation    Manitowoc, WI 54221 1207
Sep 10, 2004 Infrared Lubrication System is equipped with solid-state PLC, 3-way solenoid valve, bank of PurgeX® pumps, power supply, and NEMA 12 enclosure. Independent pump operation allows individual adjustment of flow to each lube point from 0–.012 cu in./cycle. Clear, polycarbonate, ½ gal reservoir, with hinged top lid, feeds system and allows for visual confirmation of fluid level. System is suitable for -15 to +180°F applications. Standard systems are available with 1–12 pumps.

J. W. Winco, Inc.    New Berlin, WI 53151
Aug 17, 2004 Available in ball lever and hexagon type, Eccentrical, Top Clamping, and Bottom Clamping cam units feature cams and washers fabricated of steel with black oxide finish. Case hardened, nitrided products have threaded bolt and lever arm ball knobs fabricated of black phenolic plastic. Products are self-arresting in any position in order to maintain clamping in angular positions. All three types feature clamping bolts that can be used as stepless adjustable end stops.

Hoffer Flow Controls, Inc.    Elizabeth City, NC 27909
Jul 29, 2004 Nova-Flow Batch Controller provides local display and transmits flow data for control capability. Plug-n-flow computer also provides for single and dual stage batching processes for use on liquids and gases requiring temperature, pressure, and compressibility compensation. Unit features LED backlit display, capable of showing 4 parameters simultaneously, and 8 expansion slots that accommodate electronic modules for I/O and communications options.

B & R Industrial Automation Corp.    Roswell, GA 30076

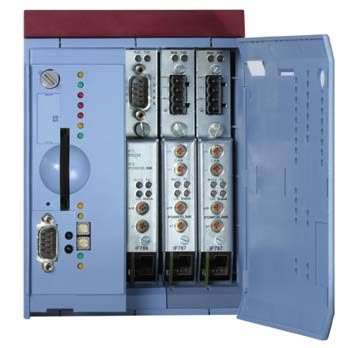

Jul 28, 2004 System 2005 CP382 is equipped with 64 MB DRAM, exchangeable Compact Flash, and 10/100 Mbps Ethernet. It offers PLC functionality with 200 microsecond task classes and flexible function modules, including PLC Open motion library, Soft CNC, WebServer, and VNC Server. Insertable field bus modules allow custom solutions for every application. Centralized or decentralized I/O modules with intelligent and high-speed individual channels expand processing power.

Telco Sensors Inc.    Charlotte, NC 28217
Jul 22, 2004 Housed in plastic enclosure, SGC 1 is intended for use in conjunction with SG 1 self-contained light curtain series in installations where dc supply voltage is not available and where electromechanical relay output is required. It is available with 230 or 115 Vac supply voltage, and supplies fixed output voltage of 24 Vdc, which can be NPN or PNP. Test pushbutton temporarily disables transmitter power for test purposes.

COMITRONIC    Noisy-le-Grand 93160  France
Jul 19, 2004 Two-handed, Model COM3C adapts to any kind of press that can be interrupted at any time. It is equipped with digital system using safety software and is protected by electronic current-limiting circuit-breaker system. With reaction time of 2 µs, device enables immediate use of unit as soon as fault is removed. Featuring 22.5 mm wide case, module includes plug-in terminal blocks and handles switching capacity of 8 A/250 Vac, 50 Vdc.

Superior Solutions    Netanya 42140  Israel
Jul 16, 2004 Quad-motor, machine-control card Model PMC-54300 is based on 32-bit plug-and-play PCI bus. Dedicated motor control chip provides control over 4 motors simultaneously and up to 16 with Series-5000 stepper drives. Optically isolated motor command and motion feedback lines assure performance in harsh environments. Software package facilitates integration. In addition to 48 discrete I/O lines, PMC-54300 is equipped with 4 current input, 4 voltage inputs, and 4 analog output lines.

McGill Electrical Product Group    Rosemont, IL 60018

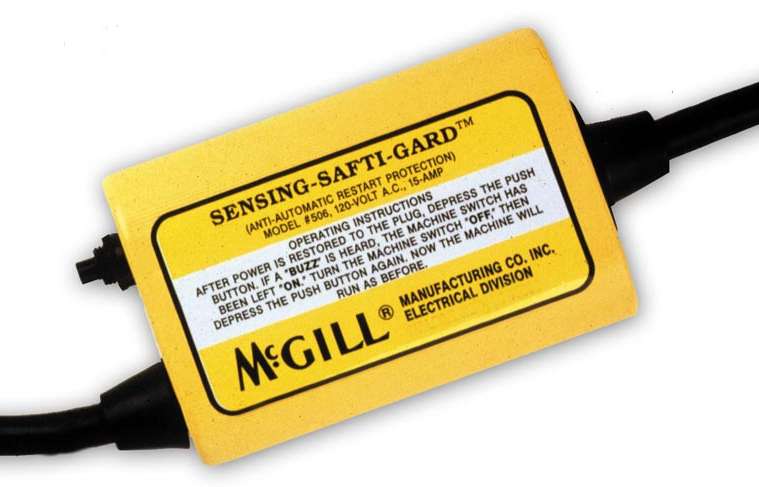

Jul 07, 2004 After voltage drop or power interruption, Sensing-Safti-Gardâ„¢ motor controls prevent accidental machine start-ups. Built-in sensor blocks control from resetting until equipment switch has been turned off. UL/CUL recognized controls are suited for use with equipment driven by small single phase motors operating on 120 or 240 Vac that are connected to power source by means of 14 gauge, 3-wire flexible cord.

Larco    Brainerd, MN 56401-0547
Jul 06, 2004 Zone Monitor 3000 provides individual mat status indicators for up to 4 safety mats using LEDs. It offers 2 modes of operation including automatic restart and guard only, and accommodates 120 Vac, 240 Vac, and 24 Vdc power requirements. Field replaceable relay pack lasts more than 500,000 electrical cycles at 1 A. With IP-65/NEMA 12 rated enclosure, control meets or exceeds CE, UL, and CUL safety requirements and is suited for industrial environments.

Service Network Inc.    Worcester, MA 01603
Jun 08, 2004 Millennium Series utilizes integrated architecture that brings together high-speed, multi-tasking controller; Ethernet and SERCOS networks; and integrated motion, visualization, and intelligent motor control. Non-productive cycle time is minimized through quick set-up capabilities and features that allow grind cycles to be optimized to save time in both conventional and CBN applications.

Davis-Standard, Killion Specialty Systems    Pawcatuck, CT 06379

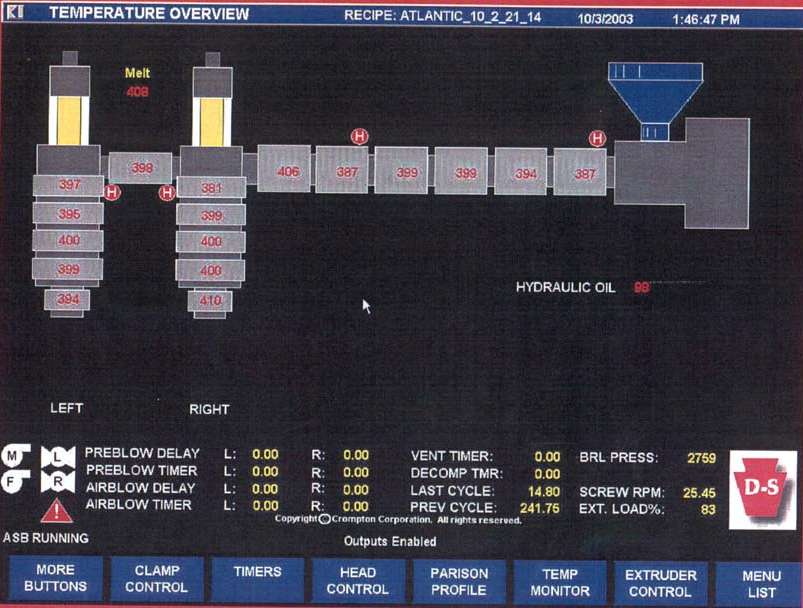

Jun 04, 2004 MACO 6500RS offers Windows® 2000 Pro Ethernet capabilities, 3 modes of closed-loop shoot/fill, adaptive extruder speed control, digital on-demand heater amp scan, statistical process control, and security change function. PC/PLC arrangement permits dedicated sequencing and control of criteria such as temperature, extruder speed, and shot size while providing operator's station for data entry and back-up. Statistical items can be tailored to meet customer requirements.

Hyson Products, Associated Spring    Brecksville, OH 44141
Jun 01, 2004 Dyne-A-Cam® Models RC2-30, RC2-50, and RCP2-150 provide piercing forces of 30, 50, and 150 kN, respectively. Each can be mounted at any angle, with 50° angle required between user-supplied driver and motion of cam. Units feature precision guiding for off-center loading and upside-down installation, built-in return stroke dampening, and heavy-duty roller bearing to transfer force from driver to cam. Return force on all models is generated by gas springs.

Intech Corp.    Closter, NJ 07624 1333
May 26, 2004 Self-Lubricating Power-Core curved, U- and V-shaped rollers will not wear out rail, and achieve noise reduction of 6–10 dBa over metal rollers. Precision machining provides minimal run-out, while tire material absorbs shock to provide smooth rolling motion and is resistant to chemicals and corrosion. Power-Core rollers operate in temperatures ranging from -60 to +140°F and are suitable for indoor and outdoor use.

Hyson Products, Associated Spring    Brecksville, OH 44141
May 20, 2004 Models HCCU-60 and HCCU-150 in Dyne-A-Cam® Nitro-Camâ„¢ Series are available with respective sizes of 6¾ and 16¾ tons. Products, offered with sensor kits for positioning, can be mounted at any angle in die and retrofit to existing dies. Features include constant force through stroke, built-in mechanical stop for exact cam stroke, and no fluid pressure at die open. Other sizes in series include 1.69 (HCCU-15), 4.50 (HCCU-40), and 10.12 tons (HCCU-90).

Schmersal Inc.    Elmsford, NY 10523

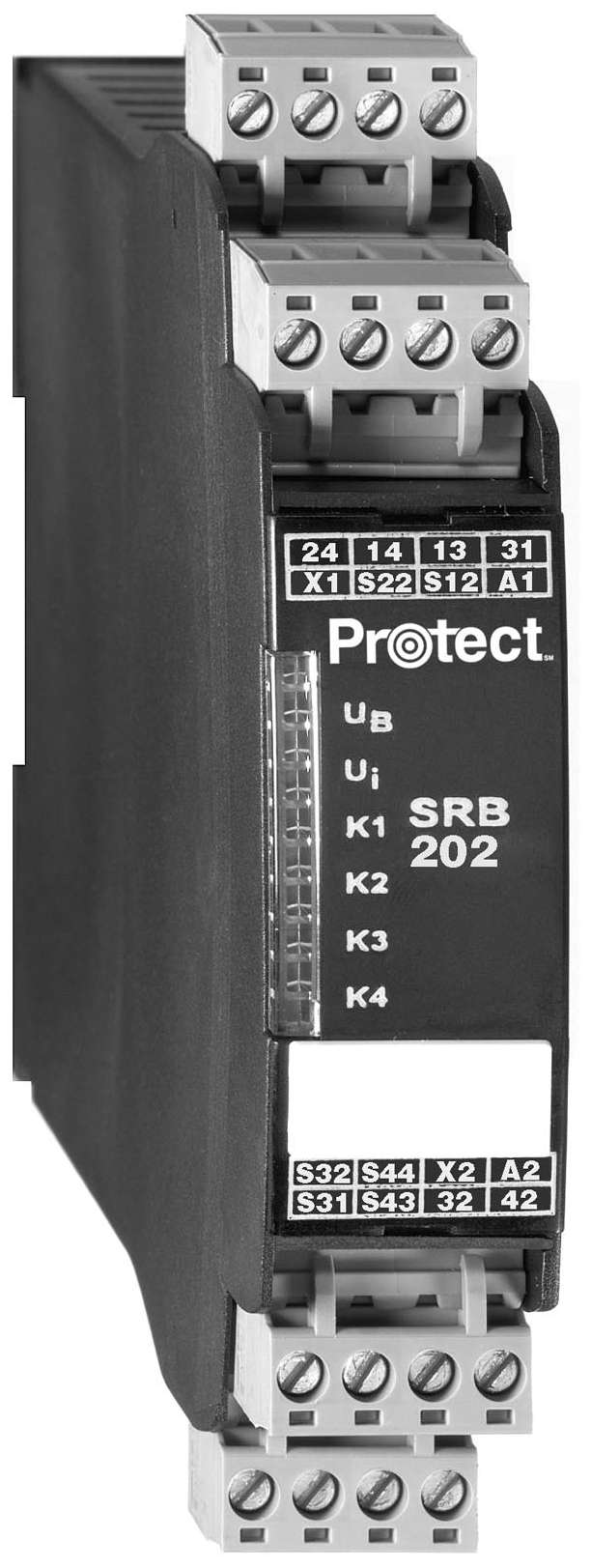

Apr 15, 2004 CE-compliant, dual-input SRB 202C and SRB 400C are general-purpose controllers designed for use with safety devices having 2 NC and/or 1 NC and 1 NO dry contacts. Products provide differentiated output switching of safety outputs depending upon input that is actuated. Both 22.5 mm wide models feature plug-in screw terminals, electronic fuse, cross-short monitoring, feedback monitoring, and user-selectable automatic or monitored-manual reset.

Square D Co.    Raleigh, NC 27611

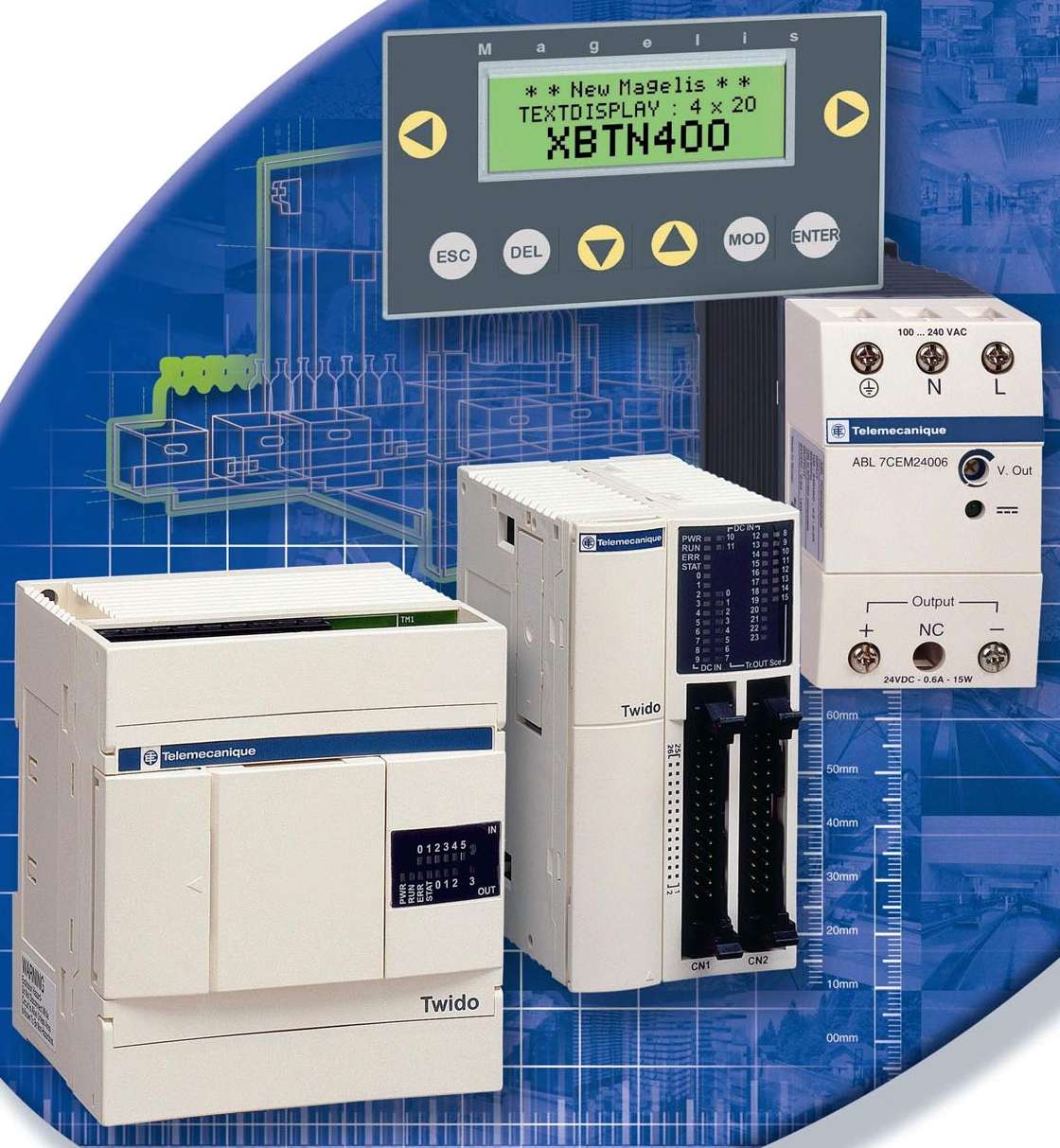

Apr 07, 2004 Telemecanique® TwidoPack integrates Twido nano controllers with Magelis® XBT-N text-based HMI display. Controllers feature TwidoSoft v2.0 software, up to 14 configurable PID loops, and built-in USB port and modem communications management capabilities. AS-INTERFACE master module allows nano controller to manage 1,000+ I/O points. With depth of 78 mm, HMI display is rated NEMA 4X and incorporates diagnostics and distributed communications capabilities.

Sauer-Danfoss    Ames, IA 50010
Apr 06, 2004 Suited for mobile machinery, PLUS 1(TM) incorporates programming environment, software tools, microcontrollers, I/O modules, graphical terminals, and joysticks. Modular system allows custom configuration and tuning of work and propel functions, such as speed, position, and pressure control. Multiple options can be specified into joystick's configuration, including detents, friction locks, redundant outputs, and switch functions. USB and RS232 connections allow laptop and PDA interfaces.

Sauer-Danfoss    Ames, IA 50010
Apr 05, 2004 Designed to meet mobile machine requirements, PLUS 1(TM) compliant joysticks offer interchangeable base and grip options, which provides flexibility and mix and match environment to overcome compatibility constraints. Product line provides choices from mini-rollers and mini-rockers, for light-duty machines and chest packs, to standard, heavy-duty and custom-designed base and grip solutions for demanding applications.

GE Intelligent Platforms    Charlottesville, VA 22911

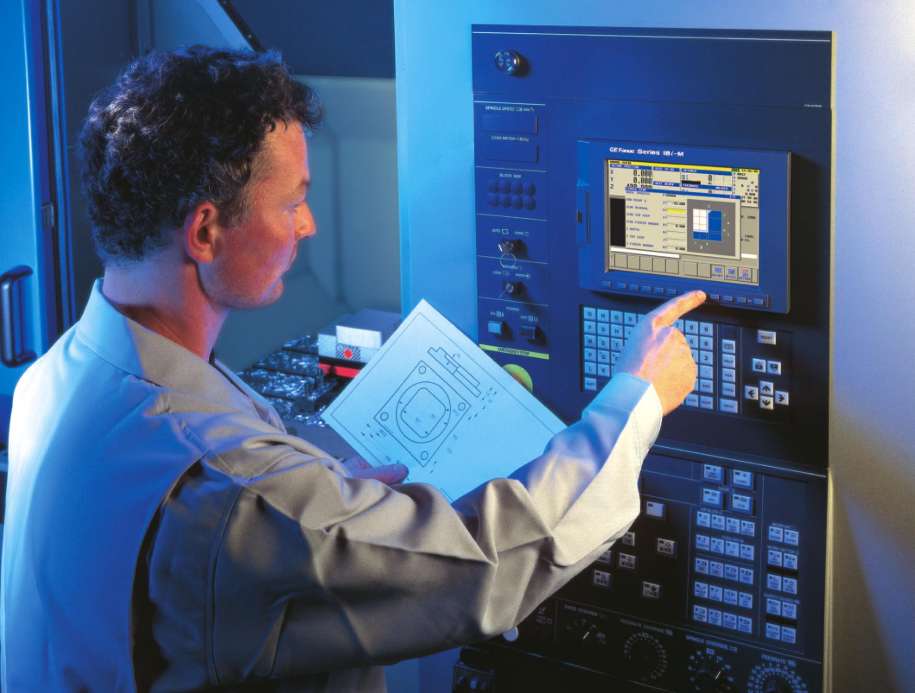

Mar 31, 2004 Machine Tool Retrofit solutions revitalize mechanically sound machines with new controls, existing-control enhancements, and digital-drive technology. Controls permit optional add-on features, and communication capabilities are provided via Ethernet-ready controls. Features include CNC hardware such as Manual Guide i, machining technologies such as AI Contour Control, Bell-Shaped Acc/Dec for Rapid Traverse, and i Adapt adaptive control.

MSA    Pittsburgh, PA 15230 0426

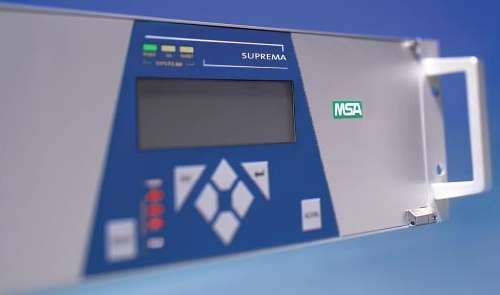

Mar 17, 2004 ATEX/TUV-approved Suprema® Control System incorporates fire and gas detection technology and provides signal processing for up to 256 inputs and 512 relay and analog inputs. Intelligent safety system is compatible with third-party devices with 4-20 mA and dry-contact type inputs. Field configurable system provides distributed digital bus technology that ensures fail-safe internal data transfer and incorporates status LEDs.
