Rockwell Automation    Milwaukee, WI 53204
Jan 24, 2006 Featuring built-in 4-port Ethernet switch for connecting I/O blocks, Allen-Bradley GuardPLC 1600 and 1800 safety controllers are offered with choice of 4 distributed I/O modules. Digital modules include 8 input/8 output and 16 input/8 output versions with bipolar outputs for use with robot controllers. Analog module has 8 safety-rated inputs and 4 standard analog outputs, and relay module has 8 isolated relays for switching power or providing dry contact as enable signal.

Rockwell Automation    Milwaukee, WI 53204
Dec 20, 2005 Featuring Integrated Architecture, GuardLogix Controllers use RSLogix 5000 programming software, which helps manage safety memory so users do not have to manually partition logic to isolate safety-related data. Safety memory can be read by standard logic and external devices such as HMIs. Controllers leverage Common Industrial Protocol Safety on DeviceNet for safety I/O connectivity, and Ethernet/IP for safety interlocking between GuardLogix processors.

InoCAM, Lda    Lisbon - Portugal   Portugal
Nov 29, 2005 InoCONTROL CNC software and hardware solution uses spline-based motion control algorithm with motion profile look-ahead; dynamic, real-time acceleration control; and output velocity filtering. Requiring 5-25% CPU usage, intelligent interface board minimizes computing requirements from host PC to avoid need for RTOS and use of dedicated PC for motion controller. InoCONTROL can be installed on any Windows/Linux PC and share same computer with other applications.

Pilz Automation Safety L.P.    Canton, MI 48187
Nov 28, 2005 With PNOZ m2p base unit, multi-functional PNOZmulti monitors and provides diagnostics for all safety equipment on press brakes, eccentric presses, and hydraulic presses. All necessary safety and standard control functions are configured on PC using PNOZmulti Configurator program. Users can configure monitoring of operating modes as well as monitoring of safety light curtains in single-break or double-break mode. Same applies to monitoring camshaft with run monitoring.

Azonic Products, Inc.    Albion, NE 68620
Nov 25, 2005 Controlled remotely by existing winder controller, Switchable Tension Stepper, Model 300 allows user to set up to 4 predetermined tension levels that adjust automatically during winding cycle. Users can accelerate coil winding at one tension level, then adjust to another tension level for regular winding speed, and use another tension level for deceleration and tapping. Model 300 retrofits to existing tensioners including Models 30-40G, 30-350G, and 30-700G.

K-Tron Process Group    Pitman, NJ 08071
Oct 31, 2005 Integrating control and motor drive modules directly on feeder, K-Tron Control Module is available with integrated operator interface keypad display or as blind cover with status display. It can function as volumetric or gravimetric feeder controller, and supports all K-Tron feeders equipped with SFT II or SFT III load cells. Meeting IP 65/NEMA 4 standards, module is suited for hazardous areas and supports Modbus, Allen Bradley DF1, Device Net, Ethernet/IP, and Profibus DP protocols.

Omron Electronics, LLC    Schaumburg, IL 60173
Oct 18, 2005 Used to facilitate development of safety circuits for machines and equipment, G9SX-ADA utilizes pulse signal between units that enables configuration of AND logic only by wiring. Unit features expandable I/O points with logical connection function and LED display with failure diagnosis capabilities. With response time under 15 ms, product is available with one- or 2-channel safety input and 2 safety outputs and meets global safety standards.

Hypertherm, Inc.    Hanover, NH 03755 0010

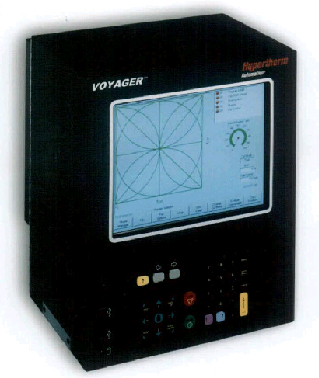

Oct 13, 2005 Featuring 15 in. touch screen with IntelliTouch Surface Wave technology, 6-axis Voyager III is based on 2.4 GHz Intel processor using Hypertherm Automation CNC Software v6.0. Machine interface converts SERCOS fiber optic communication to analog interface for motion commands and I/O. It offers choice of enclosure-mounted analog interface, SERCOS communication ring, or remote-mounted SERCOS-to-analog conversion card. Unit expands to 12 axes of motion and over 1,000 I/O signals.

Schneider Electric    Palatine, IL 60067-7399

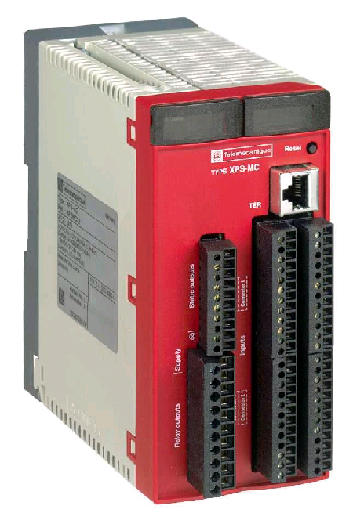

Oct 11, 2005 Available with 16 or 32 inputs, Telemecanique® Preventa(TM) XPSMC Safety Controller includes library of certified safety functions for applications that must conform to Category 4 of standard EN 954-1. Detailed diagnostics provide in-depth overview of status of inputs and outputs, and identify any faults and their causes. Diagnostics can be viewed by PC connected to controller, PLC, or Magelis® HMI. Multiple controllers can be used to provide distributed safety solution.

SICK, Inc.    Minneapolis, MN 55438

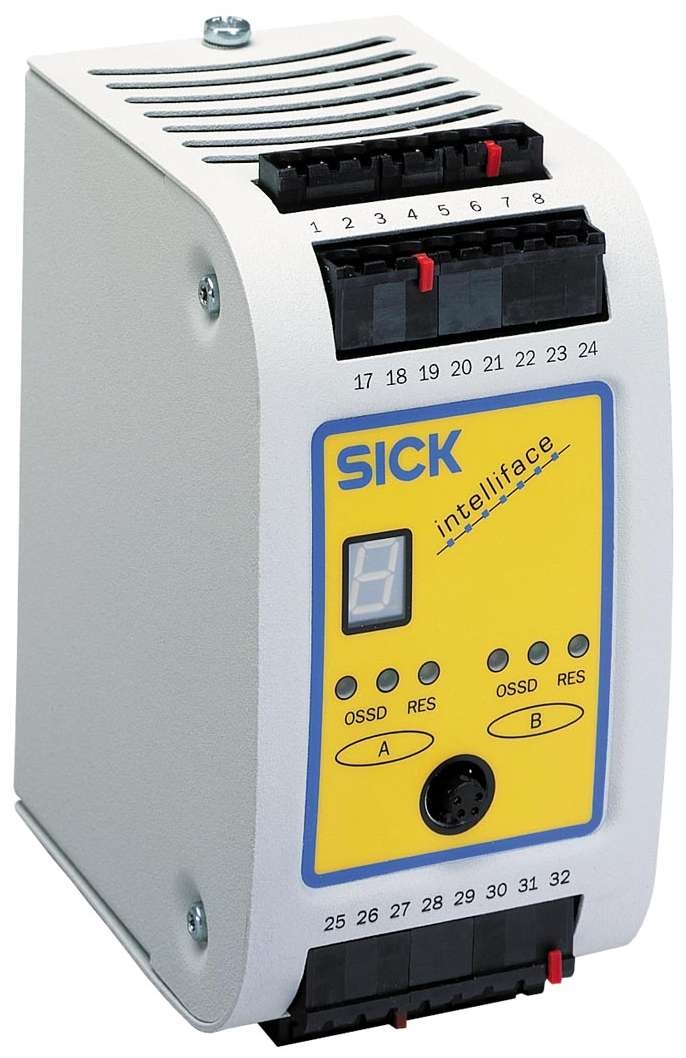

Aug 30, 2005 Configurable UE 440 is suited for implementation of safety applications such as simultaneous safeguarding of multiple robot cells, while UE 470 is designed for press brake applications. Both feature 15 single-channel inputs, up to 7 of which can be configured as 2-channel inputs. Safe connections for electro-sensitive protective equipment can support configuration and diagnostics, while 8 outputs allow individual control of downstream components.

Leica Geosystems Inc.    Norcross, GA 30092

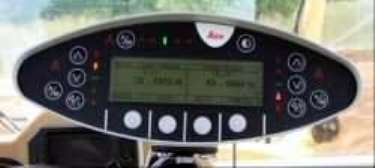

Aug 23, 2005 Universal Machine Control System, MC1200 combines human-machine interface with CAN-bus architecture and complete array of machine slope and grade sensors for 1D and 2D control over construction equipment. System is upgradeable to 3D control with plug-in options for GPS or robotic total station inputs. LCD display and indicator lights provide critical information to operator, while dedicated function keys give direct access to most often used functions.

Red Lion Controls    York, PA 17406 9428
Aug 19, 2005 Master Controller Module allows machines to be controlled and monitored via any networked PC with web browser. Controller can log system data directly to CompactFlash in Microsoft Excel-compatible CSV files. In temperature control applications, unit can accommodate up to 32 loops, controlling up to 16 hot-swappable dual PID modules. In data acquisition configuration, Master Controller monitors up to 16 modules, each with 14 points for up to 128 I/O.

Fortress Interlocks Ltd    Erlanger, KY 41018
Jul 21, 2005 Safety key module enables operator to retain machine activation key while entering potentially hazardous area, ensuring only authorized personnel can access guarded area. Constructed using stainless steel and zinc alloys, AmGard combines trapped key and gate switch technology to control access to equipment protected by safety guarding with sliding or hinged doors. It includes solenoid-controlled locks and is ingress protected to IP67.

Pilz Automation Safety L.P.    Canton, MI 48187
Jun 22, 2005 PSSuniversal combines decentralized, modular I/O and control platform with safety functions for automation needs. Design consists of head modules, as well as base modules that are connected alongside and available in screw or cage clamp terminals. Electronic modules are installed on base modules, allowing system to be tailored to automation requirements. PSSuniversal enables communication via standard fieldbus systems as well as with SafetyBUS p safe bus system.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jun 21, 2005 GLT Web Tension Systems measure winding, rewinding, slitting, coating, laminating, and printing zones to ensure optimal performance. Products combine PS-1010T tension transmitter with galvanically isolated 0–10 V, 4–20 mA output signals and GLT Transducers with rated output of 2.000 mV/V ±0.25%. Available in 20, 50, 100, 200, and 500 lb ratings, GLT transducers feature full Wheatstone-Bridge, temperature-compensated, SR-4 strain gage construction.

REO-USA, Inc.    Indianapolis, IN 46226
Jun 16, 2005 Built into IP54 aluminum enclosure, REOVIB Analog Thyristor System (ATS) 100 phase-angle controller is suited for bowl, hopper, or linear vibratory feeders with 16 A current rating. Unit is internally switchable for input voltages of 110 or 230 V, 50/60 Hz with 110 or 230 V, 50/60 Hz output power. For start/stop mode, enable is provided for external contact or 24 Vdc signal. Output voltage set point is adjusted via potentiometer, control voltage, or control current.

Baldor Electric Company    Fort Smith, AR 72901
Jun 03, 2005 Ethernet Powerlink-compatible system includes servo motor drives, machine controller, and license-free software. Mint(TM) software provides programming environment that exploits Ethernet-compatible machine control hardware, while NextMove e100 control platform offers real-time core that can control over 200 Ethernet Powerlink devices. MicroFlex e100 drives provide dual-port Ethernet hub interface to support daisy-chain connection, plus CANopen interface for I/O expansion.

Power Automation America, Inc.    Houston, TX 77055

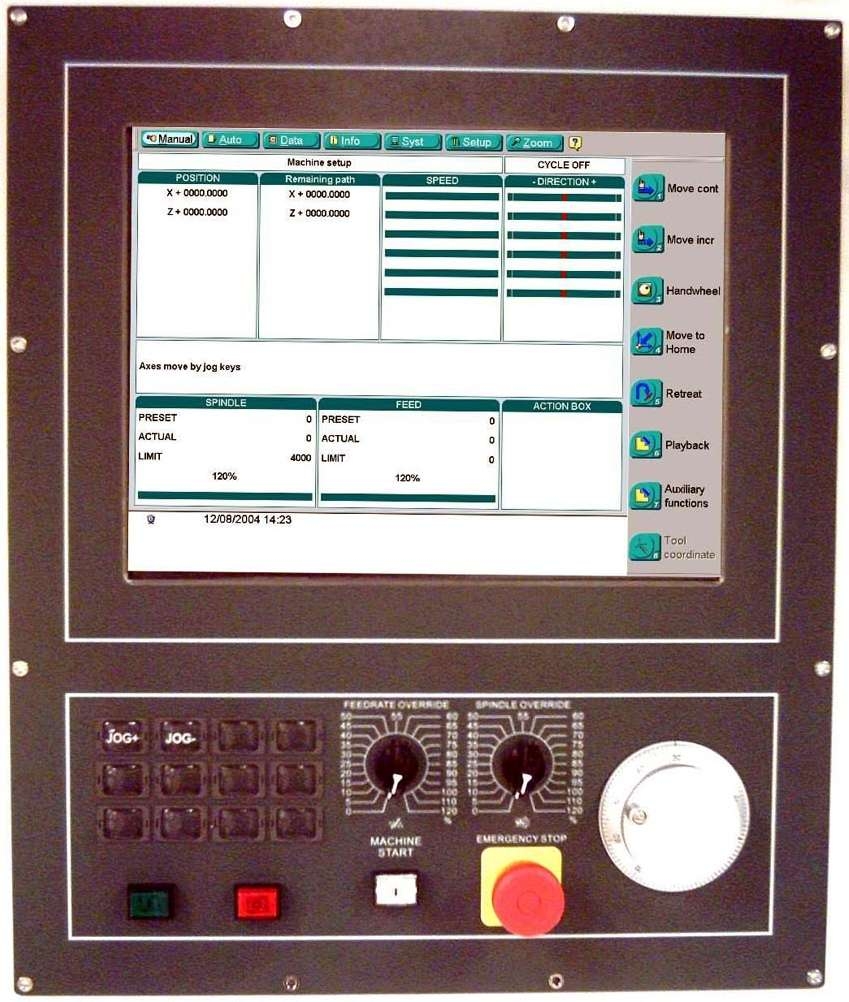

Apr 22, 2005 With 17 in. wide x 20.187 in. high front panel, Model M267 Industrial Operators Station features 15 in. color TFT touch-screen that uses SVGA PC interface connector and PC mouse interface connector. Machine Tool Builders Panel devices are discrete switches, buttons, and lights interfaced through 50-pin, sub-D connector. Unit is also equipped with Manual Pulse Generator, which can be furnished as 24 V pulse generator or 5 V TTL encoder.

Siemens AG    Munich D-80333  Germany

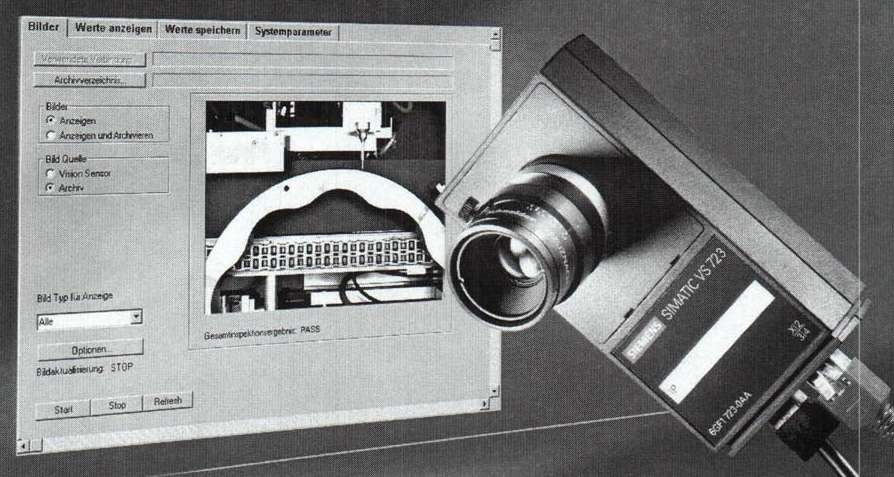

Apr 07, 2005 HMI Controls VS 720 display and process images from Simatic VS 720 vision sensors. Along with central operation, they enable visualization of live images, analysis of faulty test objects, display of image analyses, and archiving of results. Products utilize MS DCOM and ActiveX technologies and can sequentially display images from up to 4 vision sensors, differentiated according to good or fault. Up to 20 values can be displayed per vision sensor.

Toledo Integrated Systems    Holland, OH 43528
Mar 17, 2005 Model DPPlus basic integrates 4 die protection inputs, 8 programmable limit switches, brake monitor with brake test, motion detection, and job storage into an encoder-based package. Unit mounts in NEMA enclosure or in existing panel. Features include: batch, part, and stroke counters; alpha/numeric user programmed names; speed compensation; password protection; and press position display.
