Cams

Controls & Controllers

Universal Compact Cams cover diverse application range.

September 3, 2014

LamCam™ includes 13 series of Aerial and Die Mount Universal Cams that cover low-volume, light-duty to high-volume, heavy-duty applications. Cam widths are available from 50–600 mm, each with common footprint to other cam manufacturers. Universal Cams are offered with single or double wear plates, mechanical or nitrogen spring return, and V-guidance system ensures precision guiding. Available for piercing, flanging, and trimming operations, Cams are available from 0–75. Read More

Controls & Controllers, Green & Clean

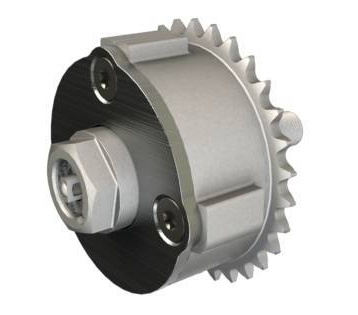

Cam Phasers with Failsafe enhance efficiency of I4 engines.

October 12, 2012

Cam phasers for I4 engines have modular design that supports various cam phasing technologies, including cam torque actuated (CTA) and torsional assist (TA) with optional mid position lock technology. Using existing torsional energy in valve train, CTA phasers actuate quickly, use minimal engine oil, and operate under range of engine speeds/temperatures. TA phasers, using torsional energy and standard engine oil pressure, offer range of authority and achieve 70° of crank rotation or more. Read More

Controls & Controllers, Mechanical Power Transmission

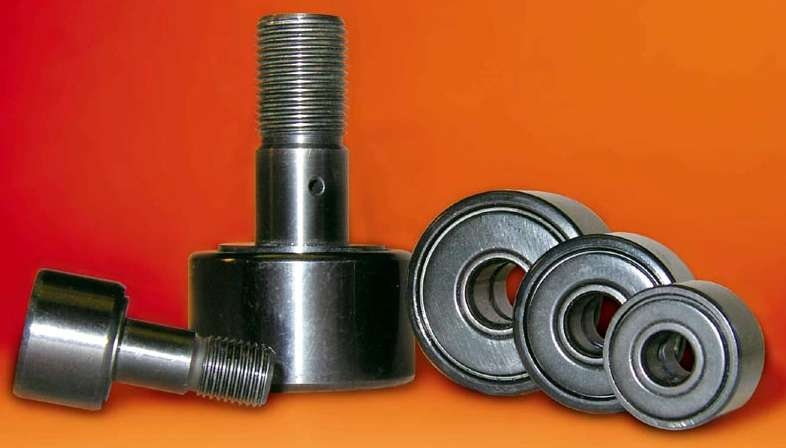

Stainless Steel Cam Followers tolerate washdown applications.

August 10, 2011

Suited for wet or submersible applications, GRAPHALLOY® Cam Followers are corrosion resistant and do not contain oil or grease to harden, burn up, contaminate, or wash away. Units handle speeds up to 100 rpm and operate in temperatures up to 750°F. Made of self-lubricating graphite/metal alloy, cam followers do not deform under load and provide constant low coefficient of friction. Applications include industrial ovens, steel mill equipment, conveyors, kilns, and substrate dryers. Read More

Controls & Controllers, Plant Furnishings & Accessories, Fasteners & Hardware

Slide Shoe allows cam to slide during rotation.

October 7, 2010

Consisting of housing and latch wedge, Model 1-103 eliminates metal-to-metal friction, preventing panel surface from being scratched by rotation of cam during closing and opening process. Snap Hook holds Slide Shoe securely in place on cam and prevents it from turning or becoming loose during application life cycle. Model 1-103 can be applied to any 35 and 45 mm single or 3-point cam with standard 3 mm ramp. Read More

Material Handling & Storage, Controls & Controllers

Stainless Steel Eccentrical Cam Units are RoHS compliant.

June 18, 2010

Offered in metric sizes, series GN 918.5 Stainless Steel Eccentrical Cam Units feature chemically nickel-plated, stainless steel cam and tempered stainless steel Hexagon threaded bolt and washer. Ball lever handle is matte shot blasted stainless steel with black phenolic plastic ball knob, and is linked to cam via mating serrations. Eccentrical cam can also be used with T-slot nuts on machine beds, or as stepless adjustable end stops. Read More

Material Handling & Storage, Controls & Controllers, Mechanical Power Transmission

Cam Roller Runner Block does not require preload adjustment.

December 6, 2007

Available in sizes of 15 and 25, eLINE Cam Roller runner block for eLINE profiled rail systems provide quiet transport of light loads at speeds up to 12 m/sec. Users can choose between runner blocks in standard length with 4 cam rollers, or short runner blocks with 2 cam rollers. Aluminum eLINE profiled rail system compensates for tolerance errors and unevenness in mounting surfaces. Rails can be mounted from above/below and come in one-piece lengths of up to 4,000 mm. Read More

Controls & Controllers, Mechanical Power Transmission

Cam Followers work in high temperatures.

December 14, 2004

GRAPHALLOY® yoke style cam followers suit high temperature, low temperature, and submerged applications. They work in temperatures to +750°F and require no grease or oil. Under load, GRAPHALLOY will not soften or extrude. Cam followers, without stud, fit various fixed locations and are available as stock items in roller OD from .75-3.00 in. and roller lengths from .50-1.75 in. Products can also be furnished with crowned rollers. Read More

Controls & Controllers

Cam Units are offered in three styles.

August 17, 2004

Available in ball lever and hexagon type, Eccentrical, Top Clamping, and Bottom Clamping cam units feature cams and washers fabricated of steel with black oxide finish. Case hardened, nitrided products have threaded bolt and lever arm ball knobs fabricated of black phenolic plastic. Products are self-arresting in any position in order to maintain clamping in angular positions. All three types feature clamping bolts that can be used as stepless adjustable end stops. Read More

Controls & Controllers

Roller Cams offer minimum service life of 1 million cycles.

June 1, 2004

Dyne-A-Cam® Models RC2-30, RC2-50, and RCP2-150 provide piercing forces of 30, 50, and 150 kN, respectively. Each can be mounted at any angle, with 50° angle required between user-supplied driver and motion of cam. Units feature precision guiding for off-center loading and upside-down installation, built-in return stroke dampening, and heavy-duty roller bearing to transfer force from driver to cam. Return force on all models is generated by gas springs. Read More

Material Handling & Storage, Controls & Controllers

Rollers and Cam Followers offer alternative to metal rollers.

May 26, 2004

Self-Lubricating Power-Core curved, U- and V-shaped rollers will not wear out rail, and achieve noise reduction of 6-10 dBa over metal rollers. Precision machining provides minimal run-out, while tire material absorbs shock to provide smooth rolling motion and is resistant to chemicals and corrosion. Power-Core rollers operate in temperatures ranging from -60 to +140°F and are suitable for indoor and outdoor use. Read More

Controls & Controllers, Machinery & Machining Tools

Die Stamper is available with sensor kits.

May 20, 2004

Models HCCU-60 and HCCU-150 in Dyne-A-Cam® Nitro-Cam(TM) Series are available with respective sizes of 6¾ and 16¾ tons. Products, offered with sensor kits for positioning, can be mounted at any angle in die and retrofit to existing dies. Features include constant force through stroke, built-in mechanical stop for exact cam stroke, and no fluid pressure at die open. Other sizes in series include 1.69 (HCCU-15), 4.50 (HCCU-40), and 10.12 tons (HCCU-90). Read More

Controls & Controllers

Positive Return Cams are keyed and doweled.

August 8, 2003

Milfab® POS-Z-CAM positive return cams come in 4 models rated from 5-15 tons and can be mounted at any angle up to 15°. Suited for high volume production, cams include option of case hardened slide with self-lubricating graphite inserts and soft, large mounting face for punch retainer attachment. Read More

Material Handling & Storage, Controls & Controllers

Cam Clamps suit machine shop applications.

April 29, 2002

Series HDC Heavy Duty Cam Clamps withstand continuous industrial use while providing significant speed benefits over conventional strap clamps in repetitive machining tasks. Styles include both clockwise and counter-clockwise clamping actions, hand or mallet applied actuation, and cam-swing or cam-ram design. Clamping force is from 675 to 11,200 lbs. Read More

Material Handling & Storage, Controls & Controllers, Mechanical Power Transmission

Composite Rollers replace steel cam followers.

February 5, 2002

Quiet-running, self-lubricating Power-Core rollers work in demanding, load-bearing applications where noise, moisture, shock, temperature and rail wear present challenging operating environment. Roller includes long-wearing composite tire with stress-free crystalline structure that resists flattening from compression under static loads. Deformation resistance and internal elasticity provide vibration and shock dampening under dynamic loads. Read More

Controls & Controllers, Mechanical Power Transmission

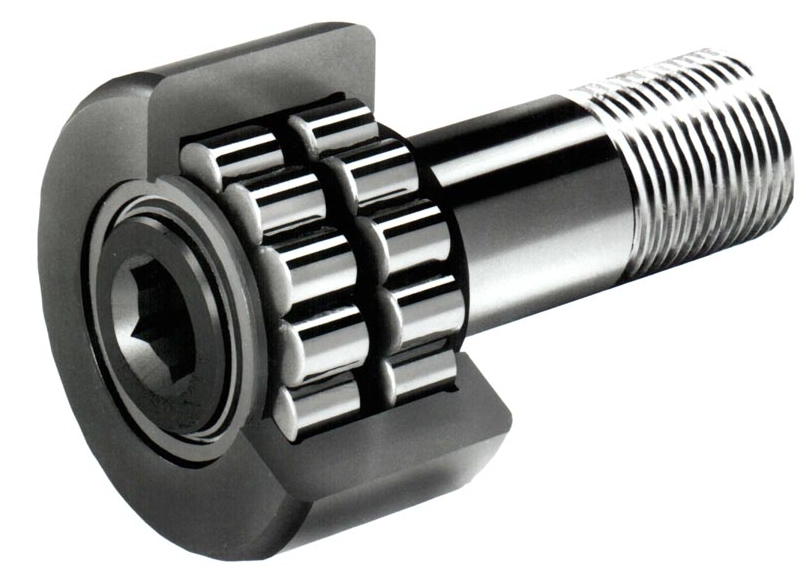

Cam Followers are suited for small-to-medium sized machines.

January 3, 2002

Cylindrical Roller Cam Followers, available in sizes from 1 to 10 in. diameter, are used in applications throughout packaging, transportation, robotics and automation, and material handling. Contacting lip seals provide positive protection against contamination, while keeping grease inside. Double row cylindrical rollers provide true-running performance. Units are lubricated for life and operate at high rotational speeds. Read More
