Precise Automation LLC    Los Altos, CA 94024
Oct 29, 2010 Guidance 1400A multi-axis motion controllers are based on distributed network architecture that allows them to be located at point of use. Measuring 87 x 150 x 38 mm, units include servo motor drives that drive two 200 and two 100 W motors simultaneously; network communications; and machine vision interface. Controllers integrate web server for access from anywhere. Included software has set of motion commands, machine kinematics, continuous path motion planner, and trajectory generator.

Bishop-Wisecarver Corporation    Pittsburg, CA 94565 0209
Oct 29, 2010 Available in stainless steel as standard with range of sizes and load capacities, HepcoMotion Precision Ring Track PRT2 system includes ring slides, ring segments, bearings, and ancillary components. Friction-free, debris-tolerant system also offers options, including floating bearings, fixed center carriages with clamping brake, continuous bleed lubrication, and pinions. Turntable applications are possible with addition of precision ground ring discs.

Invensys PLC    London   United Kingdom
Oct 28, 2010 Triconex General Purpose System is TUV-certified for Safety Integrity Level 2 (SIL 2) applications, and is supported by various engineering tools and applications. Compatible with Triconex Tricon and Triconex Trident safety systems, it includes safety and critical control application libraries, and is Achilles-certified for protection against cyber attack. System is suited for turbomachinery control as well as emergency shutdown, fire and gas protection, and burner management applications.

Jtag Technologies Inc    Stevensville, MD 21666

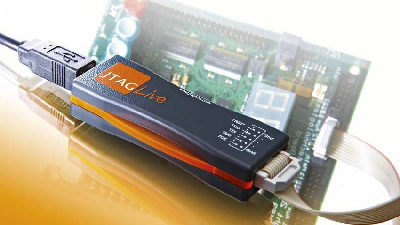

Oct 27, 2010 Consisting of single tap, IEEE Std. 1149.1 boundary-scan controller, JTAGLive includes built-in support options for Altera and Xilinix hardware. PC-powered unit features single test access port and programmable output voltages and input thresholds. Controller is designed for use exclusively with JTAGLive suite of software tools that include Buzz continuity tester, Clip interactive cluster test generator, and Script Python-based boundary-scan scripting system.

Maple Systems Inc.    Everett, WA 98204
Oct 27, 2010 Operating in portrait or landscape mode, 4.3 in. Model HMI5043T features 16:9 widescreen and provides 480 x 272 pixel resolution, while 10.4 in. Model HMI5104TH delivers 600 x 800 pixel resolution. Both include Ethernet port and VNC server that enable users to remotely monitor and control HMI from any location via Internet. Equipped with 32-bit RISC processor, 128 MB Flash storage, and 64 MB memory, HMIs provide online/offline simulation, alarm and recipe management, and data logging and sampling.

ebm-papst Automotive & Drives, Inc.    Dearborn, MI 48120
Oct 27, 2010 Measuring 63 x 52 mm, VDC 3-49.15 Series is available in 2 versions with nominal voltage of 48 and 24 Vdc and operating voltage range of 18-55 or 18-30 V. Units feature output power of 105 and 63 W at 2.9 and 3.5 A current consumption, respectively. With nominal speed of 4,000 rpm, nominal torque reaches 250 mNm or 150 mNm, while max torque controlled by I2t function can be twice as high. Maintenance-free motors include solid flange with 3 tapped holes for direct mounting.

Tripp Lite    Chicago, IL 60609

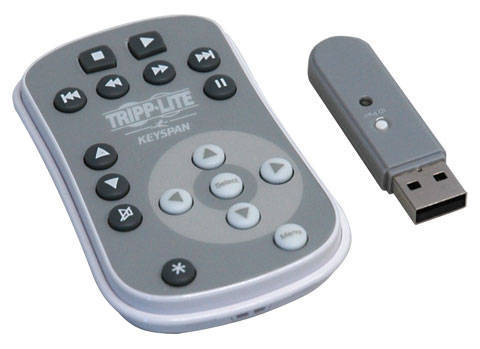

Oct 26, 2010 Suited for residential, business, and classroom applications, URM-15T Multimedia Presentation Remote utilizes RF technology to control media and music players through obstacles over distances up to 35 ft. This 17-key remote control device works with RF receiver that installs in standard USB port and can be programmed to control range of multimedia applications, including Windows® Media Player, PowerPoint®, and iTunes®. Power is provided by one replaceable Lithium 3 V battery.

Advanced Blending Solutions, LLC    De Pere, WI 54115

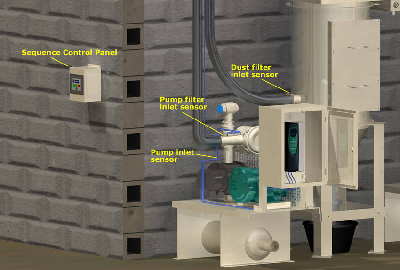

Oct 26, 2010 By monitoring pressure at vacuum pump's inlet point, Pick Up Velocity Control System allows material to flow at constant rate, minimizing energy consumption while virtually eliminating angle hair - long thin strands of material caused by fluctuations in conveyor speed. System uses sensors placed at various points in convey line to monitor pressure and flow rates in real-time. To maintain consistent flow, system automatically adjusts pump speed up or down.

Clore Automotive    Lenexa, KS 66215
Oct 26, 2010 Model No. 3001 has heavy-duty air compressor, for delivery of shop air, that features auto shut-off at adjustable, preset pressure. Multipurpose unit features 5 ft retractable jumper cables, for access to starting points on vehicles of all shapes and sizes, and pneumatic wheels to maneuver it in any terrain or shop environment. Contained in rugged, high-impact case, unit includes 10 A automatic battery charger and EZ View(TM) Control Panel with gauges viewable from distance during service.

Phoenix Contact    Harrisburg, PA 17111 0100
Oct 25, 2010 Running on 24 Vdc, nLC-055 base station offers 4-function math capability - add, subtract, multiply, divide - and integrated analog inputs to increase Nanoline® controller flexibility. Base station can also perform percentage operations and features 2 analog inputs with 12-bit resolution, 8 digital inputs, 2 high-speed counters, built-in RTC and retentive memory, and 4 relay outputs. Product is compatible with Nanoline expansion modules for GSM, Ethernet, I/O, RS-232/-485, and USB.

Chromalox    Pittsburgh, PA 15238
Oct 25, 2010 Pipe-mounted model DTS provides temperature control, power switching, and alarm indication for heat trace systems used in process temperature maintenance or freeze protection applications. Programmable from -40 to +485°F, Div 2 hazardous area-compliant controller houses heating cable power connection and monitors pipe or ambient temperature with 3-wire, 100 Ohm platinum RTD. It provides digital indication of process set-point and temperature as well as high/low and sensor failure alarms.

Atmel Corporation    San Jose, CA 95131
Oct 22, 2010 Housed in 7 x 7 mm QFN48 package, Model ATA6614 combines Atmel LIN System Basis Chip ATA6630 including LIN transceiver and 5 V voltage regulator, and Atmel ATmega328P with 32 k Flash memory in single package. Device is fully compatible with QTouch® library solution to allow button, slider, and wheel touch applications to be implemented with same device, which communicates these touches using available LIN protocol stacks over LIN network.

ii2P LLC    Southlake, TX 76092
Oct 22, 2010 Based on MULTOS smart chip with anti-tampering capabilities and cryptographic co-processor, ii2P MyVault(TM) v2.X stores, retrieves, and auto-populates login credentials at any intranet or Internet site. System safeguards private information such as account numbers, healthcare information, and other sensitive data. It includes provision to populate new Web form information via form fill capability and ability to split credentials for those sites which require separate entry of ID and Password.

Syrris Ltd.    Royston SG8 5HW  United Kingdom
Oct 20, 2010 Atlas Hotter Hotplate, suited for use with Atlas automated synthesis system, features temperature control module that allows automated reactions to occur at temperatures up to 350°C. When used in combination with Atlas Lithium system, hotplate enables automated reactions in wide range of round bottom flasks and vials, using dry baths such as stacking dry baths, triple dry baths, and vial baths that remain cool to touch.

APG Cash Drawer, Inc.    Minneapolis, MN 55421-1012
Oct 20, 2010 Ready for connection to Thin Client POS system via Ethernet network, NetPro(TM) Ethernet Cash Drawer interface is identified with its own Network IP address and can report cash drawer status and access events in real time. Interface offers remote Help-Desk support for service and troubleshooting of cash drawer operation in distributed retail locations. Cash access and disconnection event data is time and date stamped for monitoring and detecting unusual events.

Emerson Process Management    Pleasanton, CA 94566
Oct 19, 2010 In addition to displacement sensor technology for measuring liquid level or level of interface between 2 liquids, FIELDVUE(TM) DLC3020f uses digital FOUNDATION fieldbus communication protocol to deliver diagnostics and alerts that help optimize performance. Digital communication also lets users configure, calibrate, and test DLC3020f using AMS Suite software or 475 Field Communicator. Model DLC3020f stores up to 30 logs and can directly replace pneumatic, analog, or HART® transmitters/controllers.

ABM Drives Inc.    Milford, OH 45150
Oct 19, 2010 Combining 2.2-22 kW induction motors and multi-stage planetary gearboxes with ratios from 100-2,000, Yaw Drives maintain nacelle positions to wind to maximize energy generation. Units have output torque ratings from 2,000-50,000 Nm with max output of 100,000 Nm. Providing steady performance for up to 20 years, Pitch Drives position setting angle for each blade to wind. Both are suitable for ambient temperatures down to -40°C.

Schneider Electric    Palatine, IL 60067-7399
Oct 19, 2010 Combining individual branch circuit remote control and metering functions into one lighting panelboard enclosure, Powerlink® EM system enables users to verify performance of control system via energy savings by circuit, zone, space, panel, or complete system. It also provides historical trends and generates reports to allocate costs according to actual energy used. Smart metering is accomplished using PowerLogic® Branch Circuit Power Meter (BCPM).

Miller Electric Mfg. Co.    Appleton, WI 54912 1079
Oct 18, 2010 With Wireless Remote Hand and Foot Controls, welders can reposition remote around work area without having to untangle cords. Foot control, designed specifically for TIG welding, allows operator to adjust amperage at point of use. Designed for Stick, TIG, MIG, and Flux Cored welding, hand control lets operator adjust parameters for joint configurations, electrodes, and wire types/sizes at point of use. Both eliminate extensions, cord failures, and associated downtime.

ABB Ltd.    Zurich CH-8050  Switzerland

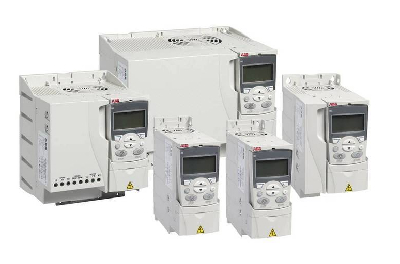

Oct 15, 2010 Ranging from 0.5-30 hp and 0.37-22 kW, Model ACS355 supports control of standard AC induction motors and permanent magnet motors. Unit offers 4 degrees of environmental protection, as well as features such as torque memory, mechanical brake control, and pulse counting. Safe Torque Off function keeps drive energized when motor has been stopped and ensures there is no torque on machine. Supporting plug-in type fieldbus adapters, drive enables communication with common automation protocols.
