Industrial Indexing Systems, Inc.    Victor, NY 14564-9795
Feb 25, 2003 Intelligent Servo Driveâ„¢ (ISDâ„¢), built around series of hardware and software modules, can incorporate servo driver with brushless motors up to 750 W, variable frequency drives to 1 hp, and logic and I/O power supplies. Available features include 24 Vdc isolated I/O, analog I/O, and 8051 microprocessor core with flash memory. Also available: RS-232 and RS-485 serial busses for communications, velocity, position and torque control; operator display; and keypad functions.

Motion Engineering, Inc.    Santa Barbara, CA 93117
Feb 24, 2003 Stand-alone motion controller, eXMP-SynqNet(TM) utilizes dual-processor architecture with scalable Celeron® processor running VxWorks, embedded NT, or other real-time operating systems along with XMP family Sharc® DSP motion co-processor. Unit includes Ethernet, up to 4 COM ports, and on-board flash memory. It supports CAN networking for integrated I/O programming using Motion Programming Interface, and up to 32 axes of servo or stepper motors across network.

Barton Instrument Systems, LLC    City Of Industry, CA 91749-1882

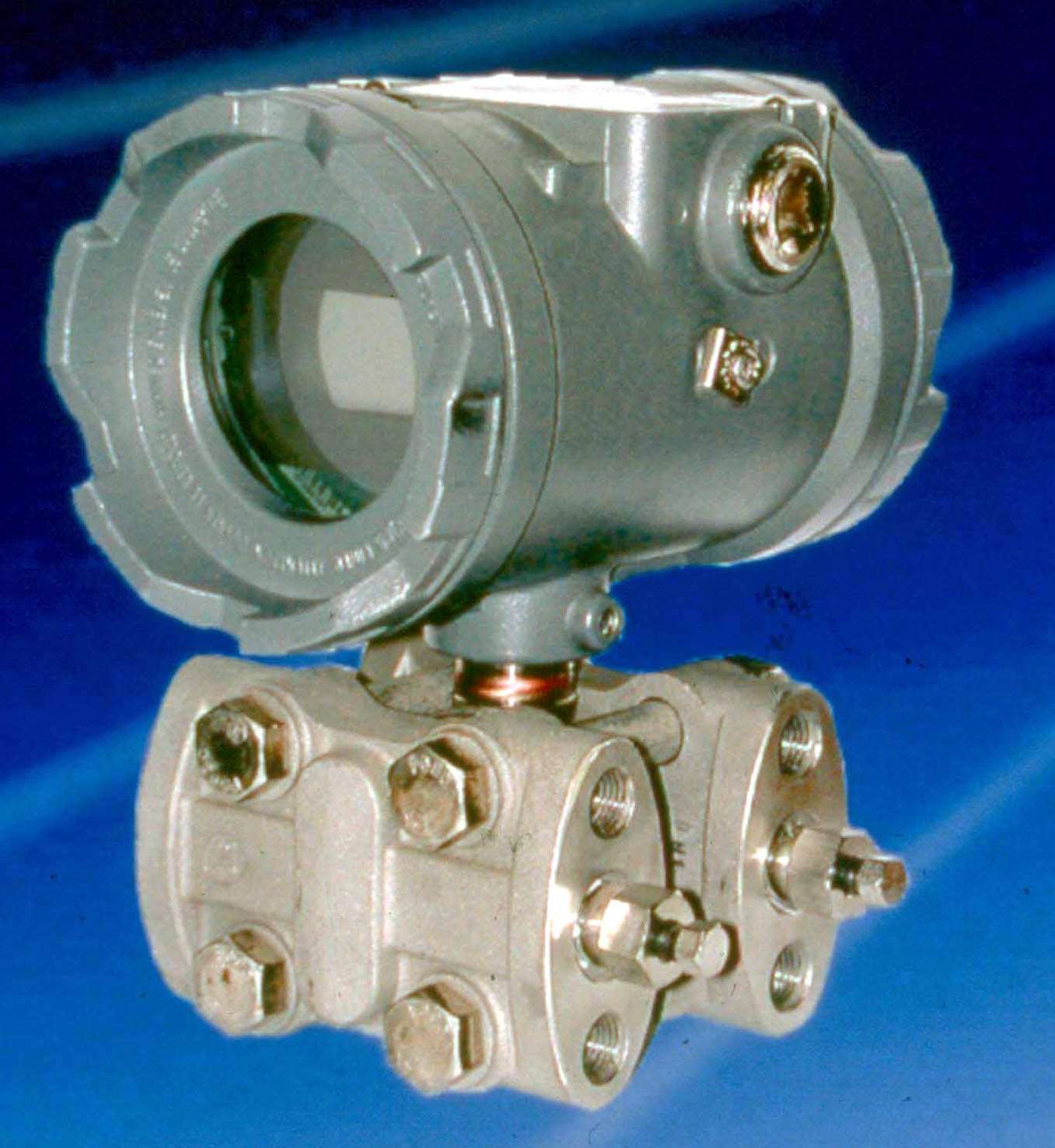

Feb 24, 2003 Series B30 Transmitters and B40 Transmitters-Controllers provide measurement and control of differential pressure, absolute pressure, gauge pressure, and saturated steam flow. Non-conductive and conductive liquids at high viscosities can be accommodated. Units feature remote options, rotatable NEMA 4X/6P housing and rotatable smart display, and built-in PID controller. They have Hastelloy-C diaphragms, 316SS wetted parts, and ¼ or ½ in. NPTF process connections.

Airtrol Components Inc.    New Berlin, WI 53146 2107

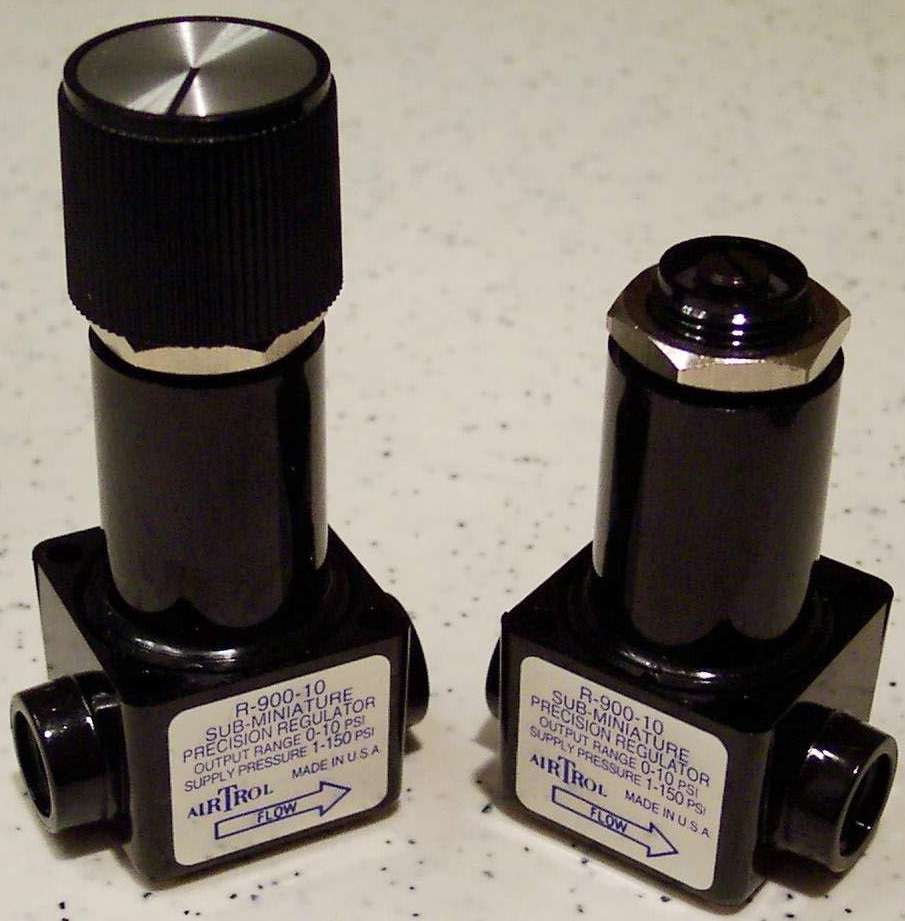

Feb 24, 2003 Unit regulates pneumatic or water pressures in applications that require little or no flow. Output is adjustable with ranges from 0-3.5 psi to 0-100 psi with 15 turns of resolution. Maximum supply pressure is 150 psi with maximum air flow of 1.0 scfm, and maximum water flow of 0.2 gpm. Non-bleed, non-relieving type regulator is for use in medical equipment, air bearings, and custom machinery. Parts can be flush or panel mounted.

Bell & Gossett    Morton Grove, IL 60053
Feb 24, 2003 Technovar® Pump Controller consists of variable frequency drive with integral microprocessor controller that mounts directly on motor. Utilizing variable speed capability, controller adjusts power consumption. Programmable features include over/under voltage protection, overload/overhead protection, and adjustable acceleration/deceleration. Available in 1–30 hp, product allows for staging and sequencing of up to 4 pumps and performs 4 system control methods.

United Control Systems, Inc.    Princeton, NJ 08540
Feb 20, 2003 Series F805 SOFT PLCs provide common hardware platform for 4 different weighing applications. They include Model F805-FB multi ingredient batching, Model F805-CF constant loss in weight, Model F805-MD multi-draft weighing and Model F805-BC belt weighing. All settings are menu driven on color touch-screen displays. Alphanumeric keyboard pops up for product name or part number entries. Graphic x-y plots allow system diagnostics and process overview.

Kollmorgen    Radford, VA 24141
Feb 20, 2003 SynqNetâ„¢ all-digital motion control interface provides connections between controllers and drives and can be customized to meet specific requirements. It replaces standard ±10 V analog interface with real-time synchronous network to deliver motion performance in complex applications such as semiconductor, electronic assembly, and robotics industries.

APW-Wright Line    Worcester, MA 01606
Feb 19, 2003 Profileâ„¢ Communication Consoles can be configured to house multiple CRT and flat screen monitors and computers within compact space. They include electronic, height-adjustable work surface, and adjustable monitor arms and keyboard platforms, allowing personnel to comfortably see all equipment at once. Control pad mounts beneath work surface and provides programmable memory for varying heights. Consoles feature integrated cable management and removable panels.

Bio-Chem Valve Inc.    Boonton, NJ 07005
Feb 19, 2003 CoolCubeâ„¢ allows placement of overdrive voltage on solenoid valve, which can decrease valve response time, increase operating pressure, and reduce power consumption. Control module provides step-down voltage to 1/3 of input voltage. Hit and hold circuit accepts 12 or 24 Vdc input to energize solenoid valve with full power for 110 msec. It then drops voltage and current and reduces power consumption to 1/9 of original value to hold valve in its energized mode, reducing heat generation.

Hardy Process Solutions    San Diego, CA 92123 1825
Feb 18, 2003 Series 3000 filler/dispenser controllers use Smart Diagnostics option for remote monitoring and analysis. Option utilizes multitude of conditions and deep model knowledge to provide system reports, correction, and maintenance. Using Smart Dignostics, plant supervisor can directly wire up to 4 load sensors to controller to monitor individual weight, mV/V, and mV from front panel display over Ethernet using web browser or wirelessly utilizing Palm® OS PDA.

Hardy Process Solutions    San Diego, CA 92123 1825
Feb 18, 2003 Series 3000 Weighing Controllers can send e-mail messages, giving users ability to receive rapid notification of important events or alarms in process. E-mails can be forwarded to PC, pager, or WAP-enabled cell phone. Messages can be customized, providing receiver with specific information about process, such as physical location, product line, and other critical parameters.

Advanced Motion Controls, Inc.    Camarillo, CA 93012
Feb 18, 2003 Series DRQ110EE is equipped with digital, 100Mbit/s SynqNet(TM) 100Base-T motion control network interface, which allows servo drive to be mounted in close vicinity of motor. Drive is suited for use with brushed or brushless, rotary or linear servomotors. Drive configuration and tuning are accomplished via graphical, Windows-based utility, using serial RS232/485 communication port. Maximum current output capability is from 15-100 A.

Aalborg Instruments & Controls, Inc.    Orangeburg, NY 10962
Feb 13, 2003 CE compliant, AF Thermal Mass Flowmeters and Controllers use straight tube sensors to ensure laminar gas flow. Materials in contact with gases are stainless steel and Vitonâ„¢ O-rings. PC boards have built-in polarity reversal protection, and resettable fuses provide power input protection. Response time is typically 1 sec to within ±2% of flow setting. Units provide 0–5 Vdc output and ±1% full scale accuracy. Maximum gas pressure is 500 psig.

Roberts-Gordon, Inc.    Buffalo, NY 14240
Feb 13, 2003 ULTRAVACâ„¢ Control, for CORAYVAC® infrared heaters, can modulate burner input rate with outdoor air temperature to match heating system's input to building's heat requirement. Multi-feature zone temperature sensor provides localized control resulting in additional comfort for building occupants. PC-based software package provides total heating system management from user's desktop. Optional modem offers remote system management.

International Electronics, Inc.    Canton, MA 02021 2709
Feb 11, 2003 Secured Seriesâ„¢ BioReadâ„¢ fingerprint access control system features BioMatchâ„¢ technology. Up to 4 fingerprint templates for each user are stored on contact-less Mifare® Smart Card. Reader looks to match presented fingerprint to template on Smart Card before permitting entry. System includes fingerprint reader; controller; PC connectors; and programming, enrollment, and management software. It is expandable up to 32 doors per site.

Dart Controls, Inc.    Zionsville, IN 46077

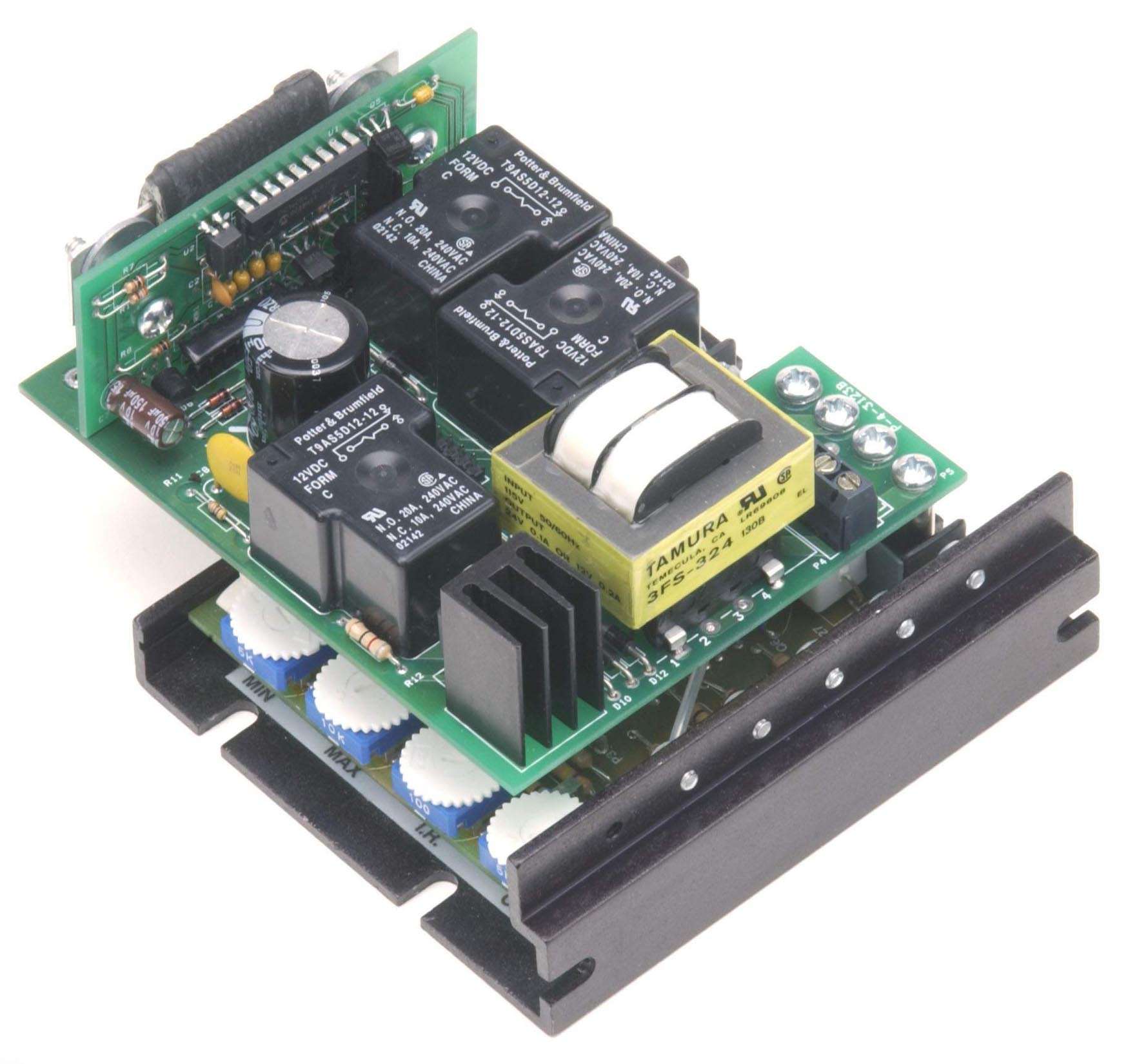

Feb 10, 2003 Series 130 control utilizes zero-speed detect and solid state dynamic braking circuits to eliminate contact arcing and failed braking problems. Zero-speed detect circuit also eliminates motor plug reversing problems. In case of power loss or emergency stop condition, product drops into dynamic brake condition to safely bring motor to stop, remaining there until power is reapplied and run condition is recognized. Unit mounts vertically/horizontally.

Honeywell Advanced Composites    Newark, DE 19713

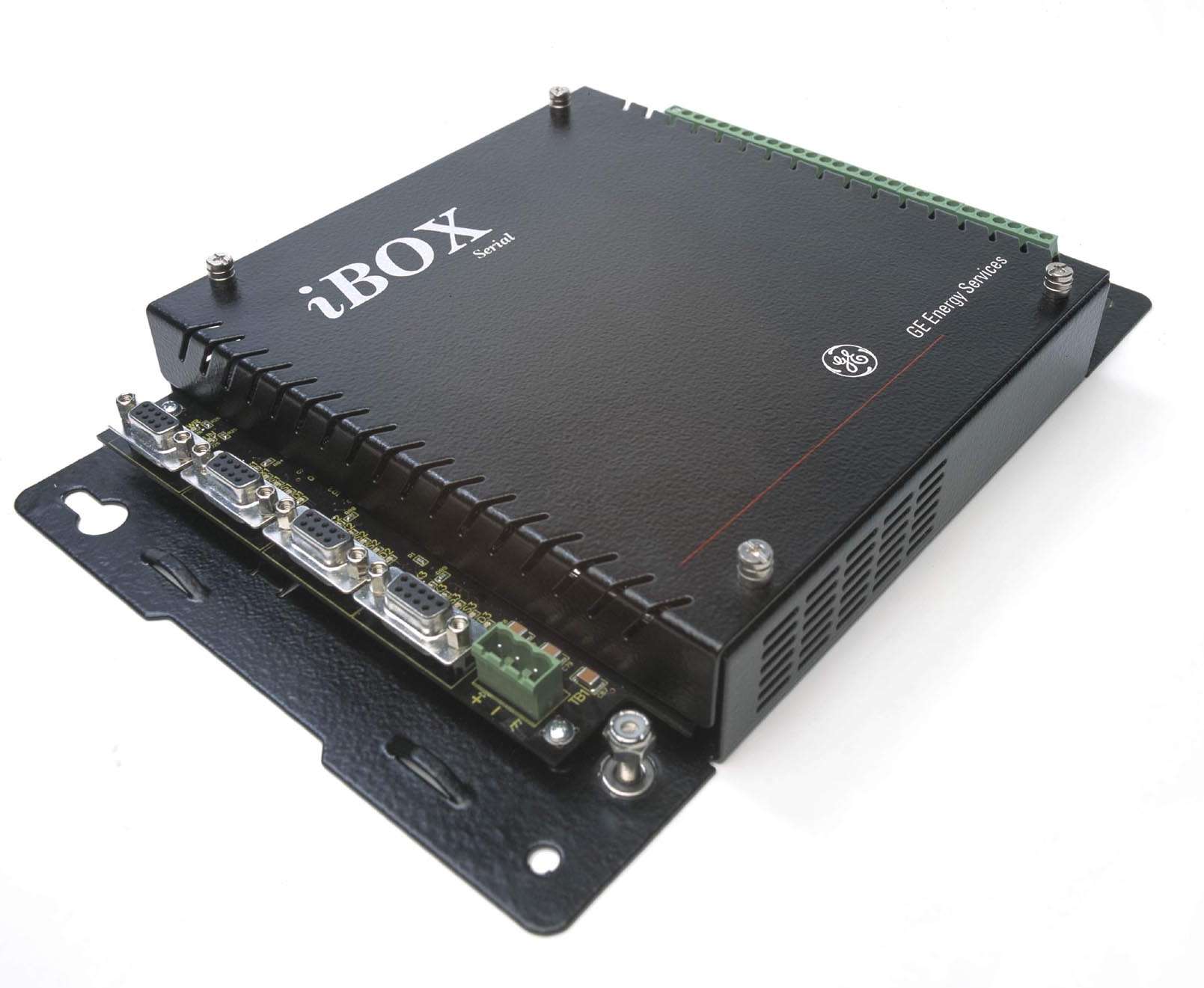

Feb 10, 2003 iBOXâ„¢ Serial Substation Controller combines multiple communication ports and local I/O in small footprint. It includes 8 digital input points and 4 controls. Unit is compatible with D25 multifunction intelligent electronic device, which functions as PLC, substation LAN node, IED gateway, bay level controller, power quality monitor and fault/event recorder. Optional LogicLinx® soft logic automation tool smoothly implements distribution automation applications.

ABB SSAC    Baldwinsville, NY 13027
Feb 07, 2003 PSS Softstarter can be connected both inline and inside the delta configuration. When connected inside the delta, PSS can replace wye delta starters and be sized to 58% of the motor horsepower rating. Reduced rating results in smaller starter, saving space and money. Compact Line offers 3–25 A at 230–600 Vac motor softstarting and control voltages of 24–110 Vac/dc, 100–480 Vac. Flexible Line is for 18–300 A at 230 – 600 Vac operation.

Performance Motion Devices, Inc.    Lexington, MA 02421
Feb 07, 2003 Pilotâ„¢ Model MC3510 single-axis motion processor provides pulse and direction output up to 50 kpulses/sec, including s-curve profiling, multiple breakpoints, on-the-fly profile changes, at-rest indicators, and programmable PLC-style inputs and outputs. It is packaged in 132-pin device and powered by 5 V. MC3510 is driven by host microprocessor through asynchronous bi-directional serial port or through 16-bit microprocessor-style parallel interface.

Automatic Timing & Controls    Lancaster, PA 17605
Feb 05, 2003 Model 3830 SMART Rate/Totalizer panel meter includes up to one Form-A, 5 A and three Form-C, 5 A output relays. Microprocesser-based process controller offers 4 analog outputs or RS 232 serial communication. Active in background or foreground, 6-digit totalizer delivers scaled pulsed output to PLCs or other controllers. Unit is available in various DC voltage or current inputs: 0–5 Vdc, 0–10 Vdc, and 4–20 mA. Aluminum case and NEMA 4 front bezel are standard.
