Johnson Controls, Inc.    Milwaukee, WI 53201
Jan 13, 2005 Installed in cars, trucks, and minivans, HomeLink® can be used to remotely operate garage doors, estate gates, locks, home security and lighting systems, and other convenience and safety devices. QuickTrain technology facilitates training of device for customized use.

Chromalox    Pittsburgh, PA 15238
Jan 12, 2005 Electrically heated, 100% efficient HACS produces zero emissions. Available for up to 150 kW and 7,000 scfm air at 5 in. WG, unit is suited for temporary on-site comfort heat, curing plaster, drying paint, spot heating for personnel, and freeze protection for equipment. High limit temperature and low limit airflow controls ensure safety during operation. Painted carbon steel construction offers weather resistance, and all electrical enclosures are NEMA 4 rated.

Parvus Corp.    Salt Lake City, UT 84115 2913
Jan 12, 2005 Fast1394â„¢ PC/104-Plus IEEE-1394b Controller is suited for data acquisition from audio, video, and storage peripherals in embedded computer systems. It integrates 3 plug-and-play bilingual cable ports, which are galvanically isolated between transceiver and link controller. Link layer and physical controllers integrate intelligent power management capabilities, deep transmit and receive FIFOs, support for digital video and MPEG data stream reception/transmission.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129
Jan 11, 2005 Platinum Series M10 and M400 1/16 DIN temperature controllers include Autotune software, dedicated auto/manual key, multiple standard outputs, and IP65-rated front panel. Platinum Series M5000 process controller with setpoint programming offers data acquisition and signal management, information transfer to supervisor, and ability to adapt to changing process conditions. In addition to M10 and M400 features, it includes 1 or 2 digital inputs and auxiliary power supply.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129
Jan 11, 2005 Engineered to meet needs of most thermal processing applications, Series 4000 provides proportional temperature control. Housed in 1/4 DIN case, units include filtered digital LED display; 25-turn setpoint pots, which provide 1 or 0.1 resolution calibration; adjustable bandwidth and manual reset that eliminates offset error; and choice of standard outputs for energizing most output devices.

Scientific Technologies Inc.    Fremont, CA 94555
Jan 10, 2005 LCM-100 Series Controller is offered with choice of automatic start, start/restart interlock, and start interlock operating modes. IP65-rated metal enclosure protects controller from water over-sprays and dust while promoting access to controller board. Features include options for 100–230 Vac power and relay safety outputs; 2-digit numerical display; and MPCE monitoring, remote reset, exact channel select, and floating blanking capabilities.

Quicksilver Controls    San Dimas, CA 91773
Jan 07, 2005 SilverNugget I-Grade System provides servo control of 17 or 23 frame micro step motor utilizing single cable for both motor and encoder signals. Motors with 34 frame have second cable to handle high current motor signals. Controller/driver and motor/encoders use standard DB15 data connector for 7 I/O and communications signals. System features low EMI emission and is suited for dusty environments.

IDEC Corporation    Sunnyvale, CA 94089-2209
Jan 07, 2005 Offering 2 Mb of memory, Model HG2F features 5.7 in. screen available with monochrome or 256 color display, 192 touch regions, and replaceable backlight. Unit accepts standard CF cards up to 512 Mb for storing multiple projects, which can be transferred to another operator interface without computer. Alarm and trend log data, recipe data, and hardcopies of screens can be saved to CF card. Model HG2F is RS232/RS485/RS422 compatible and programmed using WindO/I-NV2 software.

AICSYS, INC (Advanced Industrial Computer Systems)    Taipei Hsien   Taiwan
Jan 04, 2005 Equipped with 106-key industrial keyboard and touchpad, CYCLOPS-B series 19 in., 1U consoles are available with optional cherry keyboard with trackball. CYCLOPS-B1716, equipped with 17 in. TFT/LCD, monitors and controls up to 16 computers. Variations include 15 in. TFT/LCD monitor and support for one (CYCLOPS-B151), 8 (CYCLOPS-B158), or 16 computers (CYCLOPS-B1516). Separate tracks for panel and keyboard allow users to choose comfortable visual distance by moving LCD.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129

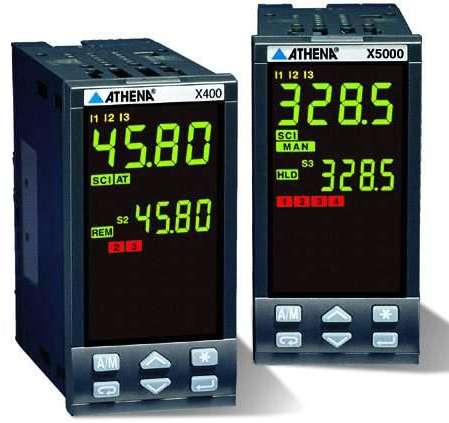

Jan 03, 2005 Measuring 48 x 96 mm, Platinum Series X400 temperature controllers and X5000 process controllers are suited for use in thermal processing applications. They feature choice of analog, heat/cool, valve control outputs as well as multiple options for interfacing with other devices. Platinum X5000 Line can assimilate information via mathematical package and exchange it between different interface levels and control devices.

Kaif Digital    Scottsdale, AZ 85260

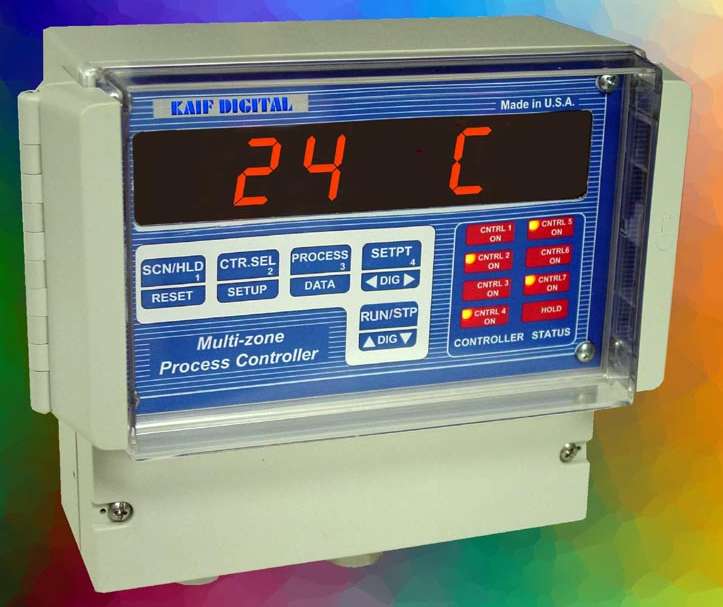

Jan 03, 2005 Wall-mount wMPC Series provides up to 7 zone controllers in one package. They accommodate universal range of temperature and process inputs, and input type is individually configurable for each zone from keypad. Series accommodates temperature, pressure, velocity, flow, and volume sensor types at same time. Scaling and offset of current and voltage signals is user-programmable, and multiple display modes allow for variety of data to be shown on 0.8 in., 7-segment LED.

Athena Controls, Inc.    Plymouth Meeting, PA 19462 1129
Dec 29, 2004 Modular K Series includes models K-10 and K-20 for monitoring up to 60 and 120 zones, respectively. Component options include control cards with or without current measurement, touchscreen consoles, and cabinets with interlocked card access door. Control board LED indicators are visible through front-door window for diagnostic capability, and up to 20 tool settings may be stored. Event Log captures all fault alarms and setting/configuration changes.

G & L Motion Control, LLC    Fond du Lac, WI 54935
Dec 29, 2004 Cimrex 41 HMI, with built-in Ethernet, integrates with Series MMC Motion Controllers and Servo Drives. Display has 320 x 240 pixels with 0–100% backlight dimming for optimal viewing. Interface includes alarm and recipe management, multilanguage support, dual drivers, password protection, and trending. CimrexProg v4.13 includes driver that interfaces to tag name database in motion control application program.

Amtel Security Systems Inc.    Miami, FL 33172 2707
Dec 24, 2004 Added to new or existing Ethernet network with remote download capability, XP/IP universal TCP/IP control panel provides connectivity options for TCP/IP, RS232, RS485, modem, and wireless. It has 2 ports that accept RS232 and Wiegand interface, and comes with 8-bit, 22 MHz processor. With memory for 20,000+ users and 3,000 transaction buffer, panel includes lock status sense circuit, expansion ports, interface for keypad, and optional LCD display.

Baldor Electric Company    Fort Smith, AR 72901
Dec 23, 2004 Model H2 Adjustable Speed Control has graphical display and keypad with multi-line display, selectable text sizes, navigation arrows, and soft programming keys. Diagnostic information is available with error logging and help text features, and point and click operation is available from desktop PC. With horsepower range of 1-60 hp, drive offers volts/hertz inverter, encoderless vector, closed loop vector, or ac servo motor control selections.

APEM Components    Haverhill, MA 01835

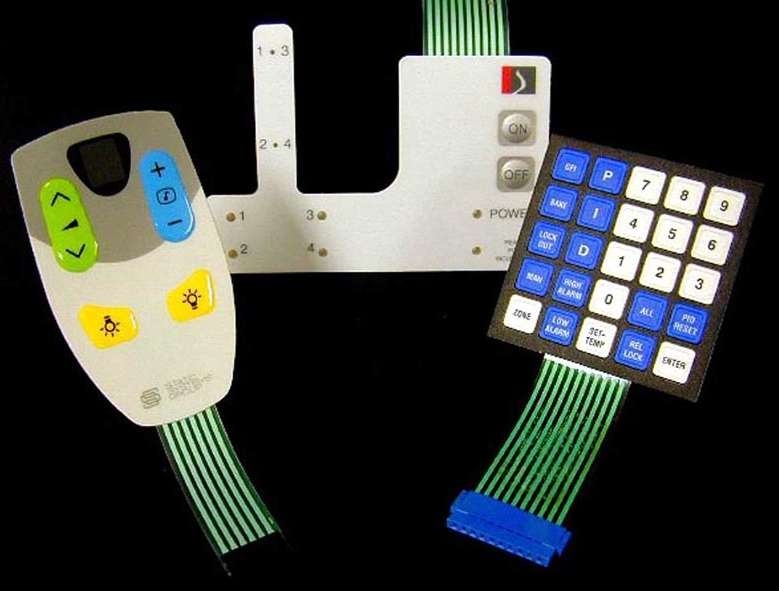

Dec 22, 2004 Custom membrane switch panels can be ergonomically designed and feature embossed graphics, integrated LEDs, selective solvent-resistant textures, colored window displays, custom sheet metal backers or enclosures, and ESD shielding. Able to be designed for specific environments, products are offered with stainless steel or polyester domes, with or without tactile feedback. Possible seal ratings include NEMA 4, IP65, and IP67.

Linear Technology Corp.    Milpitas, CA 95035
Dec 22, 2004 With input voltage capability down to 0.9 V, Model LTC3025 delivers up to 300 mA of output current. It offers micropower operation with 54 µA of quiescent current, and less than 1 µA in shutdown, maximizing runtime in handheld applications. Unit optimizes stability and transient response with low ESR ceramic output capacitors as small as 1 µF. Available in 6-lead DFN package with exposed pad, VLDO includes current limiting and thermal overload shutdown.

Hardy Process Solutions    San Diego, CA 92123 1825
Dec 22, 2004 Enabling users to monitor plant processes, 3000 Series function-specific controllers can send email messages to PC, pager, or WAP-enabled cell phone. Messages can be customized, providing receiver with specific information about process. Smart Diagnostics (SD) option on 3000 Series application-specific process controllers provides remote system monitoring and analysis tool that utilizes conditions and model knowledge to provide system reports, correction, and maintenance.

Synergistics, Inc.    Natick, MA 01760

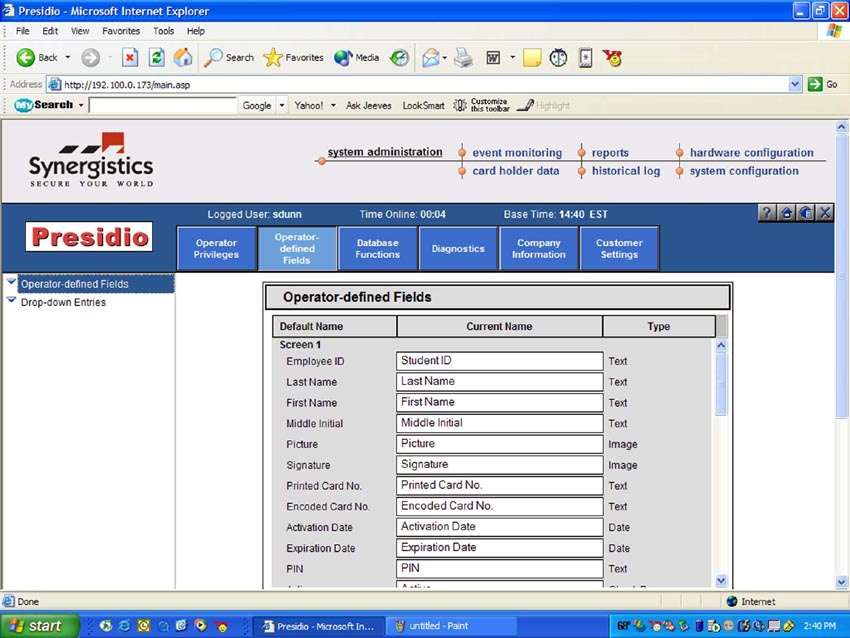

Dec 17, 2004 Scalable to meet any configuration, Presidio v1.3 Web-based enterprise solution allows user to segregate system so operators are only able to view, edit, and control designated portions of system. Image verification feture lets user see cardholder's picture and optional data record when card is used. Use of 128SSL encryption enables alarms and events to be securely monitored in real-time and routed to cell phones, pagers, or email.

Midwest Motion Products    Watertown, MN 55388
Dec 17, 2004 Suited for 12 Vdc motors and gearmotors, Model MMP.115VAC-12VDC features continuous output of 5 A at 12 Vdc out. DC power supply and control module are packaged in 6 x 6 in. aluminum base plate. Each unit is provided with 10 Kohm speed adjust potentiometer, plus terminals and connectors required to provide ac input to on-board power supply. Chassis has 4 through-holes for mounting, measuring 0.250 in. diameter and spaced 5.5 in. apart, center to center.
