Macro Sensors    Pennsauken, NJ 08110 1334

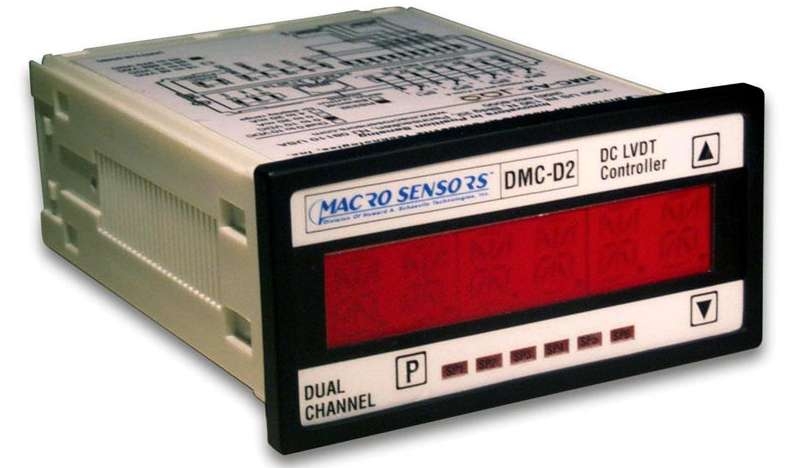

Mar 21, 2005 DMC-A2 AC and DMC-D2 DC Controllers feature internal signal conditioning to provide proper voltage for operating LVDTs. With 4 programmable setpoints and 8 selectable functions, microprocessor-based logic provides digital position indication, linearization and cross-channel math functions, input averaging, digital filtering, and hi/low limit detection. RS-232 communications port is standard for remote software setup, and optional TCP/IP network capability is available.

National Instruments Corp.    Austin, TX 78759-3504

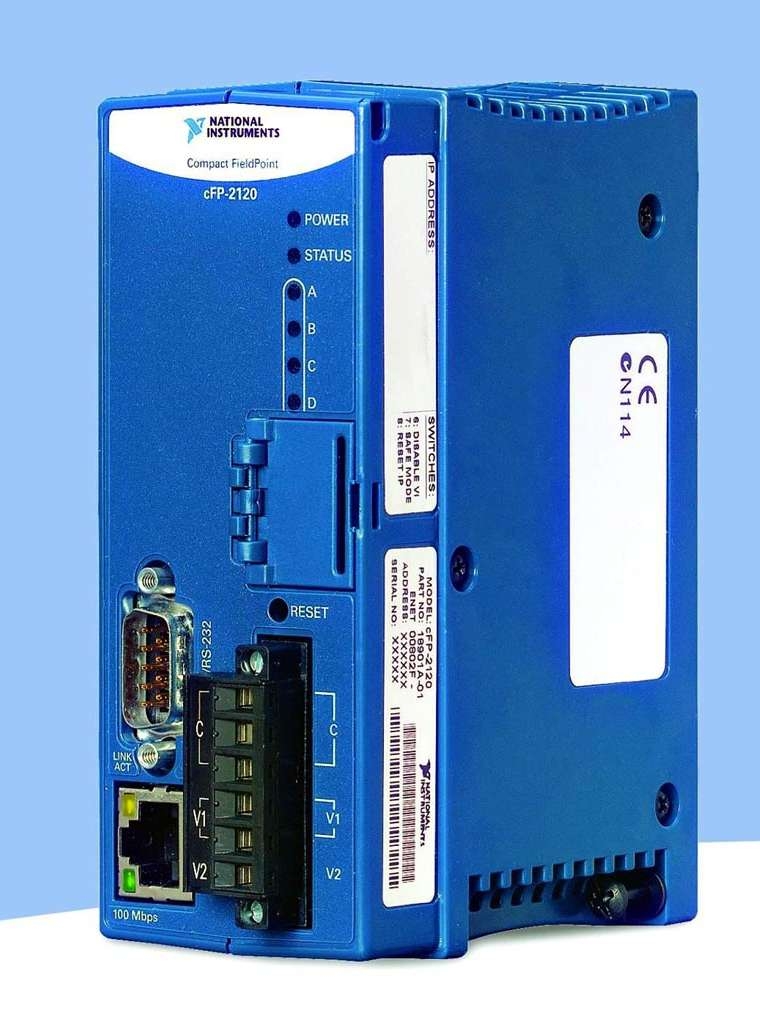

Mar 18, 2005 Compact FieldPoint cFP-2100 Automation Controllers include 200 MHz Pentium-class Vega processor, 64/128 Mb RAM, and industrial temperature range of -40 to 70°C. SDRAM memory facilitates simultaneous data transfer to CPU while another set of data is being prepared for transfer. Featuring internal temperature sensor and serial console redirect, controllers are suited for processing-intensive applications such as high-speed control and high-count distributed I/O.

Toledo Integrated Systems    Holland, OH 43528
Mar 17, 2005 Model DPPlus basic integrates 4 die protection inputs, 8 programmable limit switches, brake monitor with brake test, motion detection, and job storage into an encoder-based package. Unit mounts in NEMA enclosure or in existing panel. Features include: batch, part, and stroke counters; alpha/numeric user programmed names; speed compensation; password protection; and press position display.

Princo Instruments, Inc.    Southampton, PA 18966

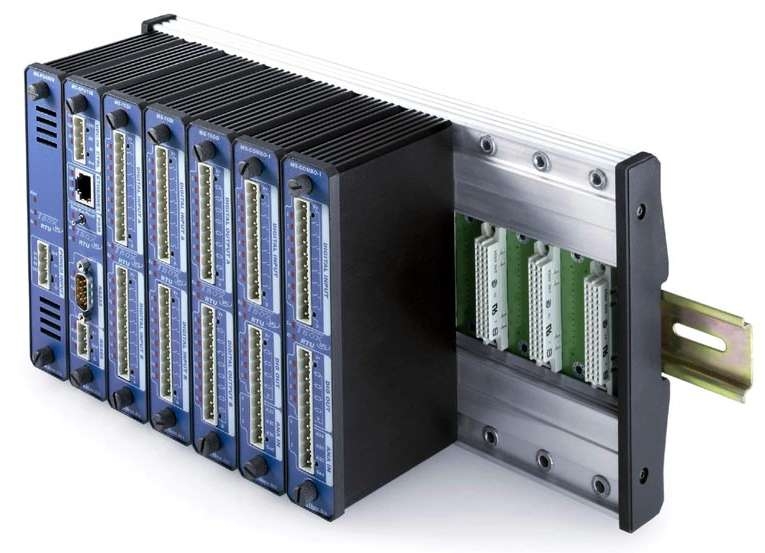

Mar 16, 2005 TBOX-MS integrates telemetry, PLC automation, and 3 levels of TCP/IP Internet compatibility. Based on backplane rack architecture, unit accepts cards such as power supply, CPU, I/O, modems, serial ports, Ethernet, and GPS. TwinSoft(TM) configuration software contains tools to create telemetry functions, and PLC functions are programmable by ladder diagram, high-level Basic, or C. Internet features include embedded web server, alarms &/or statistical reports by e-mail, and FTP.

Bodine Electric Company    Northfield, IL 60093

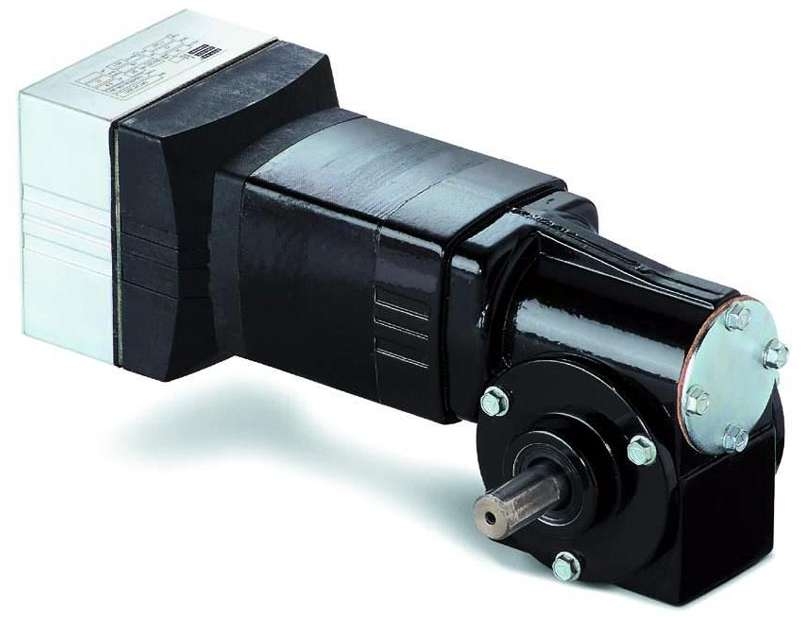

Mar 16, 2005 INTEGRAmotor integrates brushless dc motor and speed control in one package, minimizing both EMI and installation time. It operates from regulated 24 Vdc power supply and is available with or without integral gearbox; parallel and in-line gearboxes are offered with outputs from 1.0-2,500 rpm. Stock models accept analog ±5 Vdc input signal for speed control or direction. Hollow shaft and OEM custom built-to-order models are also available.

Beckhoff Automation LLC    Minneapolis, MN 55337

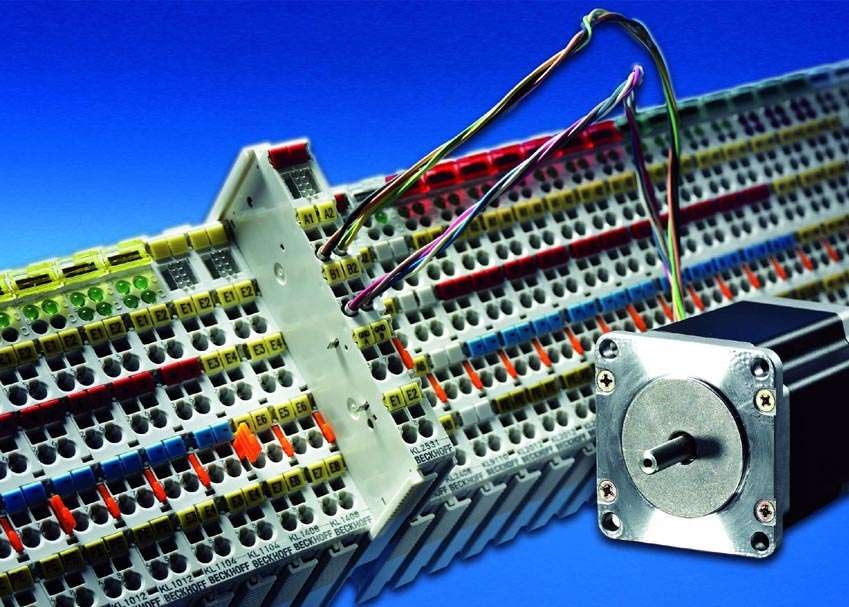

Mar 16, 2005 Bus terminals KL2531 and KL2541 integrate compact motion control solution for stepper motors up to 200 W, eliminating need for remote amplifiers. Measuring 12 mm, KL2531 has peak current of 1.5 A per phase and is designed for integration into 24 Vdc control voltage system. With peak current of 5 A, 24 mm wide KL2541 can generate 5 Nm torque and features integrated incremental encoder interface. Both provide 2 controlled sine/cosine currents.

AMETEK Dixson    Grand Junction, CO 81503 1900

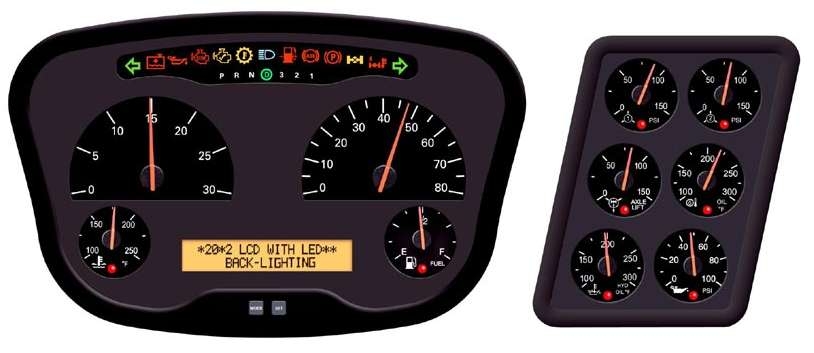

Mar 15, 2005 Basic Universal Instrument Panel contains two 2 in. gauges with red warning LEDs, 3 in. speedometer, and 7-digit, multifunction LCD. UIP-MC (Message Center) upgrades to 5 in. speedometer and 2-line display and adds 5 in. tachometer. UIP-D (Graphic Display) features 128 x 128 pixel graphic display in addition to odometer, trip odometer, hourmeter, and diagnostic message displays. Users can also select from virtual gauges as well as fuel economy indicator.

Siemens AG    Munich D-80333  Germany

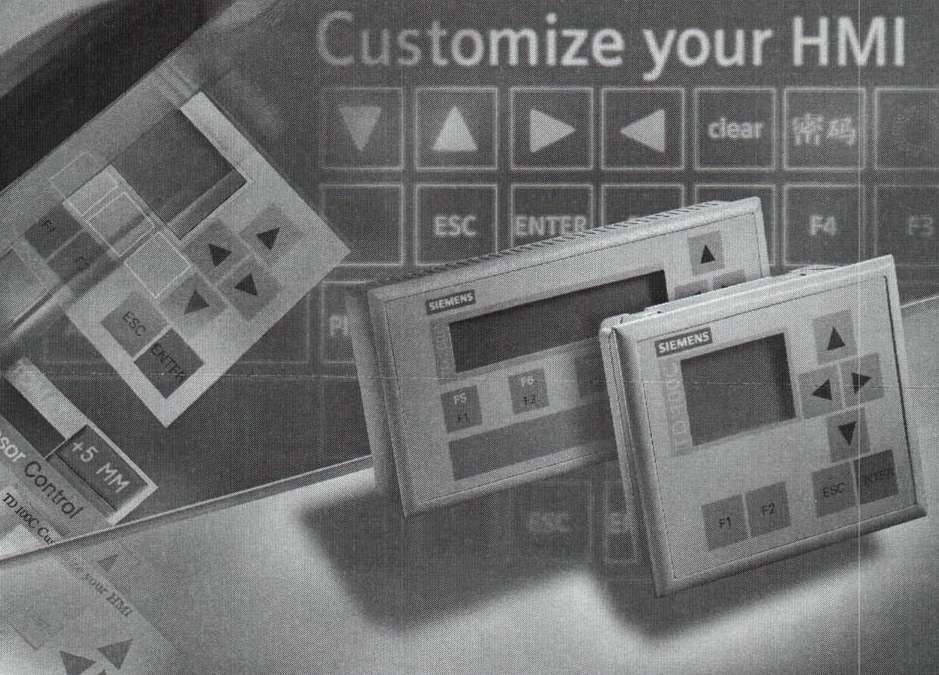

Mar 11, 2005 User-customizable Model TD 200C, with up to 20 keys, and Model TD 100C, with up to 14 keys, are specifically for use with Simatic S7-200 micro-PLCs. User interfaces can be used with preset design or customized in layout and key assignments. Arrangement, size, and function of keys are configurable and can be changed as required. Images, symbols, colors, and text can be designed to suit individual needs such as customer-specific graphics and company logo.

ON Semiconductor, LLC    Phoenix, AZ 85008
Mar 11, 2005 Fixed-frequency, current-mode NCP1653 drives continuous conduction mode boost converters with power needs from 100 W to 3 kW. It can also operate with output voltage tracking input voltage, called follower boost. Designed for PFC boost circuits in power ranges up to 300 W, NCP1601 operates in fixed-frequency discontinuous conduction mode and/or variable frequency critical conduction mode. Both devices are offered in PDIP-8 and SO-8 packages.

Escort Memory Systems, Inc.    Scotts Valley, CA 95066
Mar 10, 2005 High-frequency HF-0405 controller has compact design with integrated antenna and can read multiple tag protocols operating at 13.56 MHz. It handles data capture in material handling and work-in-progress applications and has IP67 NEMA rating. Three models are available: HF-0405-232-01, HF-0405-422-01, and HF-0405-485-01. Model GWY-01-TCP-01 Gateway creates multi-drop network of controllers with HF-0405-485-01.

Mori Seiki USA Inc.    Rolling Meadows, IL 60008

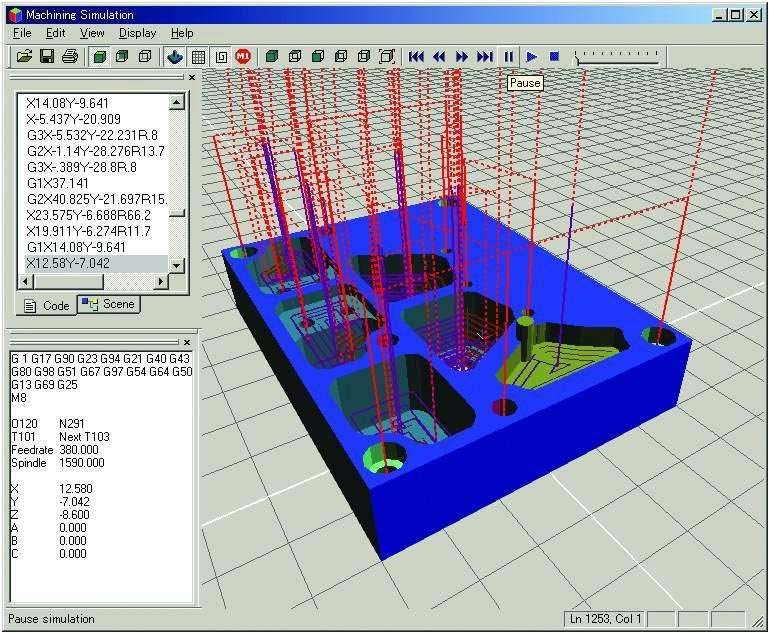

Mar 10, 2005 With industrially hardened design, MAPPS II (Mori Seiki Advanced Programming Production System) withstands vibration and contaminants present in machining environments. Hardware includes 15 in. flat panel display and 256 Mb memory, 50 Mb of which is available for program storage. System, capable of automatically computing radius endpoints, offers 3D cutting simulations that let user view line-by-line display of tool paths through program.

Precise Automation LLC    Los Altos, CA 94024
Mar 09, 2005 Guidance 3400 is based on distributed network architecture that allows it to be located at point of use. It controls 4 axes of motion and contains 4 motor drivers, 6 encoder input channels, 700 MIPS processor, digital and analog I/O, and Ethernet, DeviceNet, and RS-232 interfaces. Unit can produce up to 3,000 W of motor power in 180 x 70 x 70 mm package. User Interface is based on web server, which allows controller to be accessed from anywhere.

Continental Instruments, Inc.    Amityville, NY 11701
Mar 09, 2005 Card Access 3000 v2.1 supports integration with Napco Gemini alarm panels, as well as Integral Technologies and Salient Systems DVRs. It offers migration path to Sensormatic® AC500 software and SensorPanel access control installations. Integrated Episuite badging software supports more than 2,000 readers and up to 150 workstations. Options include hot standby database server software and direct connect dial-up and network communication to access control and alarm panels.

Escort Memory Systems, Inc.    Scotts Valley, CA 95066

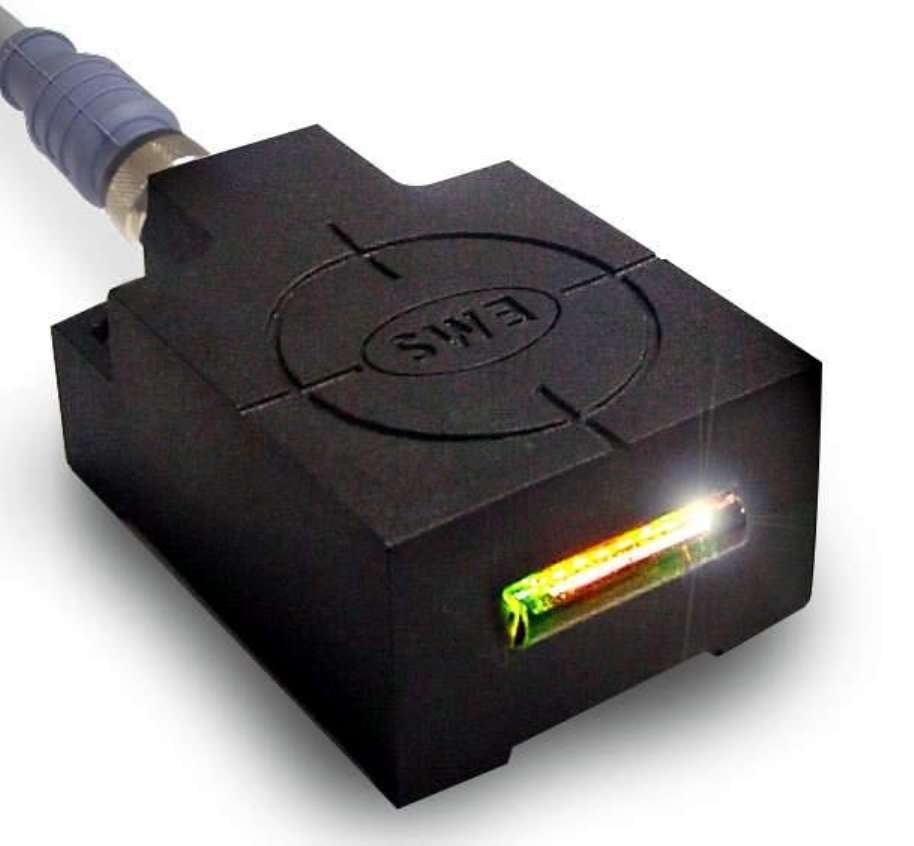

Mar 08, 2005 Featuring integrated antenna, Model HF-0405 reads HMS and LRP Series tags with read range up to 100 mm. Eight LEDs indicate communication status and address on network. Controller's M12 style connector provides connectivity for power and data communications, while IP67 NEMA rating makes unit suited for food processing, automotive, pharmaceutical, and electronic industries. Mounting bracket allows installation in tight corners or alongside conveyers.

OTEK Corp.    Tucson, AZ 85714
Mar 07, 2005 Megameter Series is available with 6 digits in 1.5, 3, 4, 5, and 7 in. high 7-segement LED, all with optional tricolor bargraph of 101 segments that change from red to green to orange upon reaching preset and programmable limits. Series is available from simple serial input remote display to full process controller with optional 18-bit A/D and up to 3 channel inputs for 4-20mA, V/mAdc, true RMS, temperature, strain-gage, humidity, pH and ORP.

Datakey Electronics Inc.    Savage, MN 55378

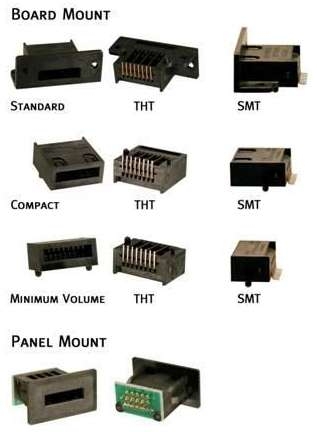

Mar 04, 2005 Series SR4000 allows OEMs to integrate data transport and access control capabilities of SlimLine(TM) or Extended SlimLine(TM) Tokens to meet application requirements. Surface mount Model SR4210SMT features mounting flange, 50,000 insertion cycle-life, and detent mechanism for token retention. For smaller devices, Model SR4220PCB eliminates flange and mounts directly onto PCB board. Minimum Volume Receptacle Model SR4230PCB occupies 0.22 cu-in. of volume for maximum space savings.

Rockwell Automation    Milwaukee, WI 53204
Mar 03, 2005 Pico Series B nano-controllers have retentive memory range that permits use in applications requiring up to 128 lines of ladder logic. They use PicoSoft v6.0 software program, which is backwards-compatible with Series A Pico controllers. Models 1760-RM-PICO and RM-GFX remote mounting CPUs allow users to connect Pico GFX-70 display to Pico and Pico GFX CPUs, bringing text messaging to front of panel without requiring special enclosure.

BriskHeat Products(BH Thermal Corp.)    Columbus, OH 43201

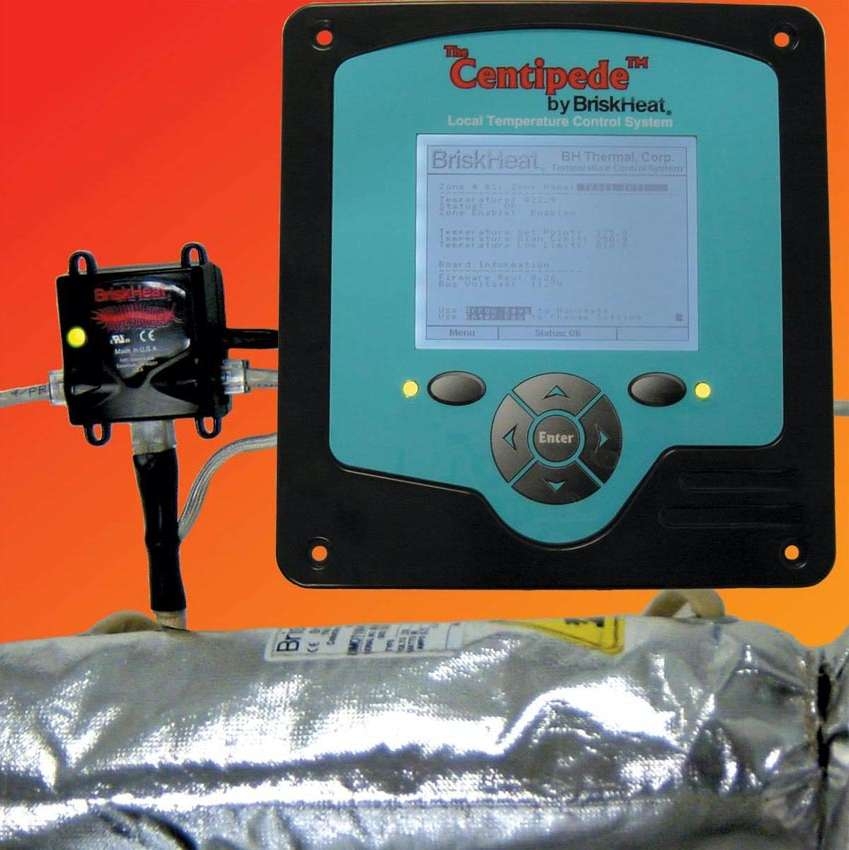

Mar 02, 2005 Centipede(TM) total temperature control system is comprised of compact, digital PID-autotuned modules with RTD sensors, which daisy-chain together with communication cable to form network of zones. Operator interface centrally controls and monitors system, allowing on-the-spot temperature adjustment.

Selco Products Co.    Reno, NV 89521-5908

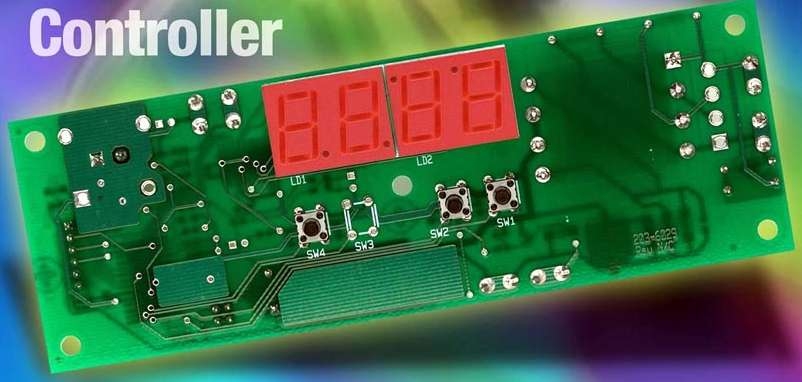

Mar 02, 2005 Featuring digital sensing and microprocessor-based, solid-state technology, Model 2901A offers 5 operating modes for time control or simultaneous temperature and time control. Unit allows selection of J or K type thermocouple sensors as well as temperature readings in °F or °C; operating mode selections and parameters are set from front panel. Temperature control range is from 40-999°F and temperature setpoint differential is adjustable from 1-10°.

HydroPoint Data Systems, Inc.    Petaluma, CA 94954
Mar 01, 2005 WeatherTRAK.net Internet service enables central online management of WeatherTRAK ET pro controllers. From any location with Internet access, customers can log in to secure WeatherTRAK.net Web site to gain central view of all ET pro controllers under their management. Via 2-way wireless communication, users receive real-time controller status readings and can adjust irrigation programs of single controllers or groups of controllers.
