Linear Technology Corp.    Milpitas, CA 95035
Feb 23, 2009 Operating from 4.5-36 VIN, Model LTM4609 regulates output voltage from 0.8-34 V and can deliver output power up to 120 W. Buck-boost DC/DC µModule integrates synchronous buck-boost DC/DC controller, 4 N-channel MOSFETs, input and output bypass capacitors, and compensation circuitry. To minimize undesirable frequency harmonics, LTM4609 is phase-lockable to external clock frequency ranging from 200-400 kHz. Unit is housed in 15 x 15 x 2.8 mm LGA package and operates from -40 to 85°C.

Rockwell Automation    Milwaukee, WI 53204
Feb 23, 2009 Certified to UL Class 1, Division 2 standards, DataSite RTU (remote terminal unit) controller acts as PLC that processes user program as well as controls and monitors operation of other equipment. It has embedded Web server and is designed to operate in remote locations. Operating on 12 Vdc, controller also employs 32-bit processor with embedded real-time, multitask operating system; serial and Ethernet ports; and HART multidrop port. Electronic flow meter version is also available.

Newport Corp.    Irvine, CA 92606
Feb 19, 2009 Available in X/XY/XYZ configurations, NPX linear stages use frictionless guide design. Multi-axis XY and XYZ devices utilize parallel motion principle, ensuring parallel and straight motion up to 400 micron travel. Mounted between microscope and objectives, NPO NanoFocusing stages allow up to 250 micron focusing range. NPA Translators can generate forces up to 1,000 N, while PSM Ultrafast Piezo Steering Mirror provides sub-microradian resolution, tip, tilt, and z-motion for optics.

Quicksilver Controls    San Dimas, CA 91773
Feb 19, 2009 CiA DSP 402 CANopen servo motor controller, QCI-D2-IGK, SilverDust IGK is stand alone, single axis controller that includes serial communications (RS-232, RS-485), CANopen and 7 I/O. Features included are 32K non-volatile memory, 100:1 inertial miss-match, PVIA(TM) servo loop, electronic gearing/camming, and multiple thread programming. Product also has built-in voltage clamp, and point to point or profile moves.

Intelligent Motion Systems, Inc.    Marlborough, CT 06447-1334

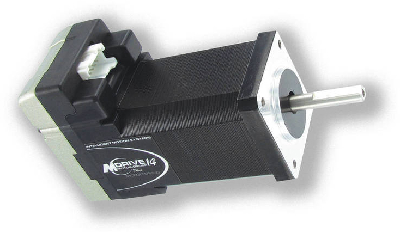

Feb 13, 2009 Suited for limited-space applications, MDrive14Plus products integrate NEMA size 14 brushless 1.8° stepping motor with electronics. Units are 2 in. high x 1.4 in. wide, with lengths of 2 in. for single motor or 3 in. for triple motor, which provides holding torque at 36 oz-in. Capable of full 256 x 200 microstepping with 12-48 Vdc integrated driver, MDrive14Plus systems feature extended operating range of -40 to +85°C and oversized input capacitors to minimize power line surges.

Vicon Industries Inc.    Hauppauge, NY 11788

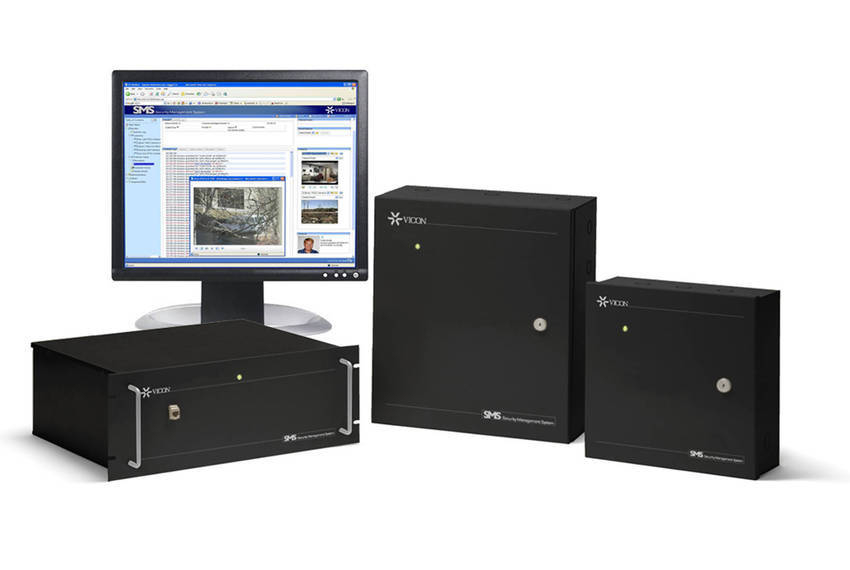

Feb 12, 2009 Designed for complete integration with ViconNet digital video management systems, Vicon SMS allows for automatic linking of ViconNet video with corresponding access control events. Appliance based system consists of controller and one or more nodes to connect to readers, sensors and other physical security devices. Browser-based interface allows users to manage and operate system from any PC with network access using standard web browser.

Rockwell Automation    Milwaukee, WI 53204
Feb 12, 2009 Available in power ranges of 7.5-250 kW or 10-350 hp at 400/480 Vac and 540/650 Vdc input, PowerFlex 755 AC drive supports multiple languages and meets global standards and certifications. It comes embedded with Allen-Bradley DeviceLogix control, Ethernet, as well as safe torque-off and safe-speed monitoring options. Drive can be configured to provide advanced notification of operating data on cooling fans, I/O relay cycles, motor run-time hours, and potential fault warnings.

Crestron Electronics, Inc.    Rockleigh, NJ 07647

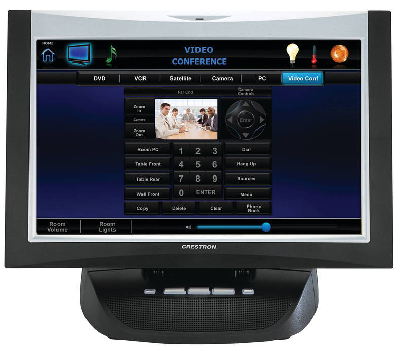

Feb 11, 2009 Isys® TPS-17G-QM offers 17 in. WXGA widescreen display with viewing angle, brightness, and contrast optimized for control graphics, hi-res images, and full-motion HD video. QuickMedia® (QM) technology, which simultaneously transmits all audio, video, and computer signals on one CAT5e cable, facilitates system design and installation. Also included, QM-TX transmitter can connect conventional AV sources/PCs and also transmits all signals up to 450 ft on one cable.

Advantech Automation Corp.    Cincinnati, OH 45240

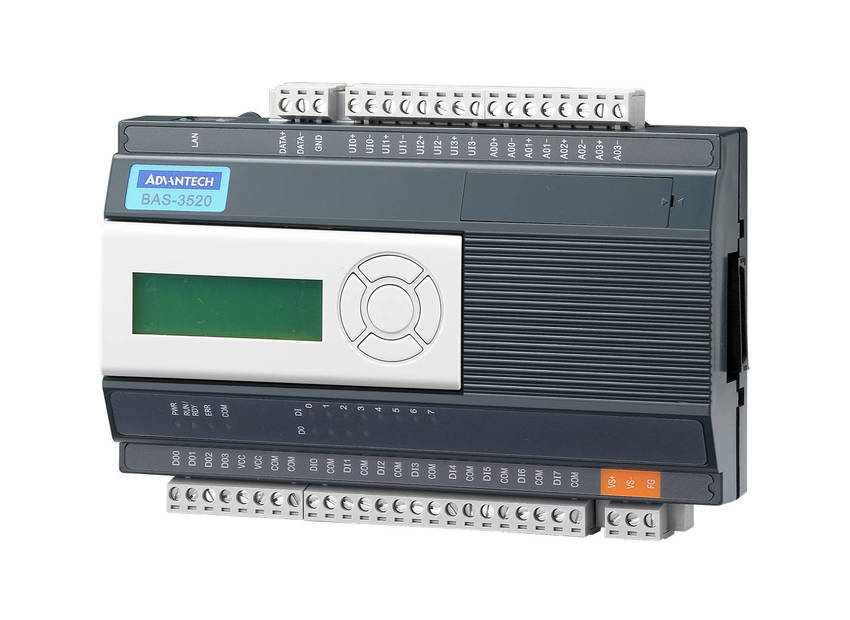

Feb 11, 2009 Designed for facility monitoring and energy management applications, BAS-3000 series provides access and remote management capabilities for web-enabled devices via Ethernet connection with browser-based interface, offline simulation, and online debugging. Series consists of BAS-3512/3520 stand-alone programmable DDCs delivering various onboard I/O and BAS-3520/3521 expansion I/O modules that can be stacked on DDC or can serve as remote stand-alone I/O via RS-485 network.

Leica Geosystems Inc.    Norcross, GA 30092
Feb 10, 2009 Leica PowerGrade system incorporates PowerSnap docking station, which lets operators move PowerGrade automatic control panels from one machine to another. Machine-specific settings are permanently stored in docking station. Waterproof and designed for harsh environments, system includes color graphic display and 2D to 3D scalability. It provides automatic control of both slope and elevation, with dual-laser sensor configurations available.

Leica Geosystems Inc.    Norcross, GA 30092
Feb 10, 2009 Use of CI-14 CAT Interface Module facilitates installation of Leica Geosystems 2D and 3D machine control systems on Caterpillar® (CAT) earthmoving equipment. It eliminates effort of installing add-on hydraulic valves in order to control ARO-prepared and non-ARO CAT K/T Series dozers and M Series motorgraders. With no CAT® SEA license activation fee, module is suitable for 2D and 3D automatic control with failsafe operation and full operator override at any time.

American Megatrends, Inc.    Norcross, GA 30071
Feb 10, 2009 Compliant with International Blinking Pattern Interpretation (IBPI) specification, MegaRAC® MG9082 manages LED indicators for up to 8 SAS/SATA drives, signaling drive presence, fail, and rebuild activity. Each chip, which has 9 x 9 mm footprint and is outfitted with 2 SGPIO SFF8485 interfaces, drives various LED configurations, including 16 or 18 LEDs directly or 24 LEDs through latches. Up to 4 chips can be cascaded to support 32 drives.

Crestron Electronics, Inc.    Rockleigh, NJ 07647

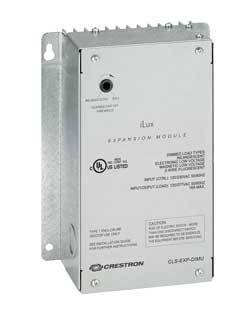

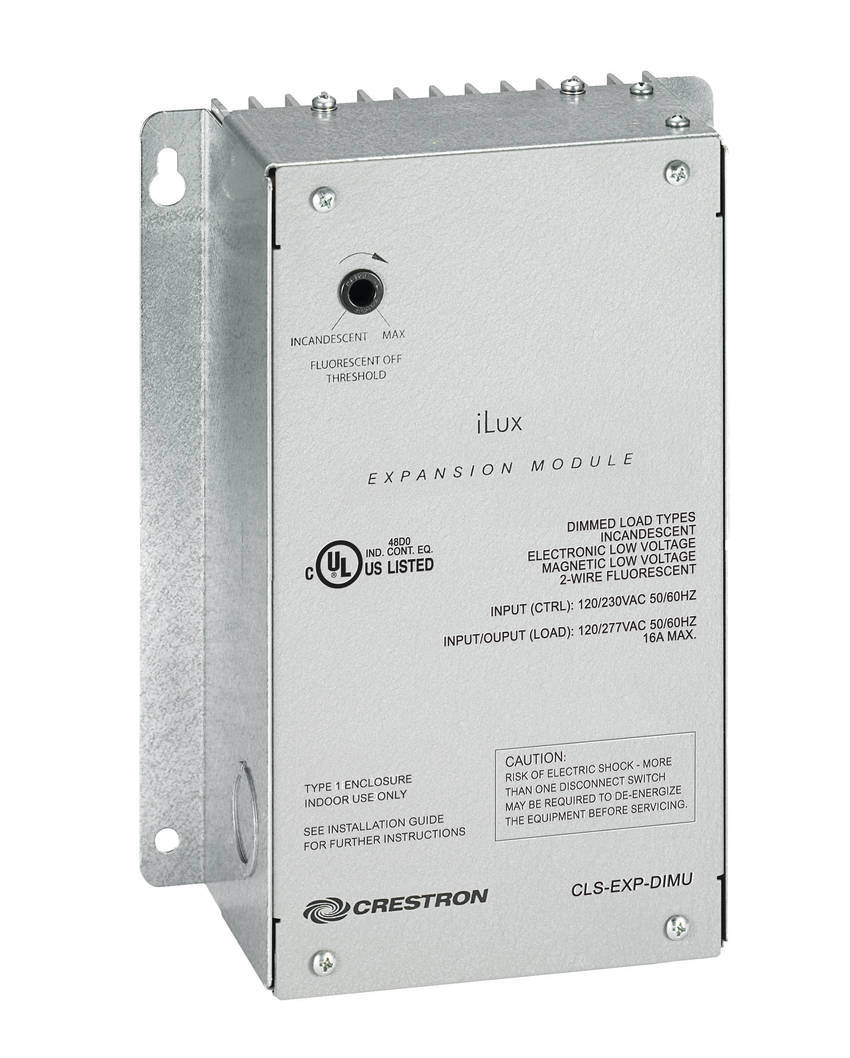

Feb 09, 2009 With ability to handle manage 120, 230, or 277 V loads up to 16 A, CLS-EXP-DIMU universal dimmer expansion module enables Crestron iLux(TM) integrated lighting systems and lighting dimmers to add reverse phase type loads. Five expansion modules can be connected to single iLux dimmer channel. Wall-mountable unit supports both forward and reverse phase type loads, including electronic low-voltage, magnetic low-voltage, incandescent, neon/cold cathode, or 2-wire dimmable fluorescent.

Greyline Instruments, Inc.    Massena, NY 13662

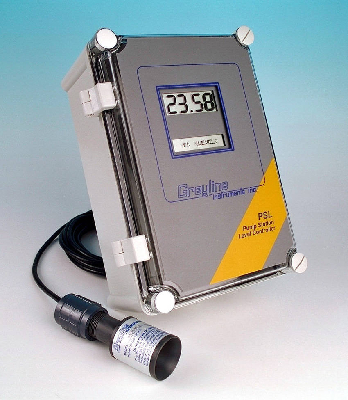

Feb 06, 2009 Designed for sewage lift stations, wet wells, and storage tanks, PSL Pump Station Level Controller features isolated 4-20 mA output and 6 programmable control relays for pump control, pump alternation, and level alarms. Automatic pump run time logging and reporting system helps operators to plan pump maintenance. Each PSL includes PSL Remote for Windows(TM) Operators software, which can prepare and save calibrations in advance and download to PSL through password-protected RS232 interface.

NAPCO Security Group    Amityville, NY 11701
Feb 06, 2009 Control panel GEM-P1664 features 8 hybrid zones, including two 2-wire fire zones, in 12.5 x 14 x 3.75 in. locking enclosure. On-board multiplexing technology accommodates up to 64 EOL zones from alpha keypads or multiplex modules. System also grants programmable partitioning for 4 areas and uses standard Gemini crystal-control wireless technology. Supporting up to 64 user codes and 16 relays, solution comes with keypad menu-driven Self-Programming Plus to minimize programming time.

Tridium, Inc.    Richmond, VA 23233
Feb 06, 2009 Niagara Video integrates environmental control, intrusion detection, access control, lighting and energy management with video. It can be used with other security and video products or as stand alone system providing video window that identifies incident and notifies proper personnel who can manage response from anywhere. It also works with local and remote buildings, and can be combined with other NiagaraAX building applications to deliver facility-wide management system.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Feb 05, 2009 Model CLS-EXP-DIMU universal dimmer auto-detects dimmable load type and selects appropriate operating mode to control load, simplifying installation. It manages 120, 230, or 277 V loads up to 16 A, accepting both forward and reverse phase types including electronic/magnetic low-voltage, incandescent, neon/cold cathode, or 2-wire dimmable fluorescent. Supporting up to 5 expansion modules, it can be installed above suspended ceiling or be wall-mounted.

Microteknix    Pottstown, PA 19465
Feb 05, 2009 Designed for environmental protection and control, Model EPC-2374 digitally monitors and processes ambient temperature, humidity, external RTD temperatures, and dewpoint. Six modes of operation include trip above, trip below, inside window, outside window, regulate heat, and regulate cool. In addition, unit records time and date formatted history and event logs. Configurable data logging mode allows any monitored input to be recorded and captured to PC with import-ready data file.

Trust Automation, Inc.    San Luis Obispo, CA 93401

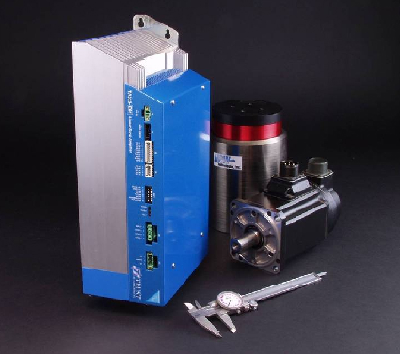

Feb 05, 2009 Measuring 14.9 x 7.7 x 4.7 in., Model TA333 features true Class-AB linear amplifier with pure analog throughput at currents up to 25 A. Drive operates with brushless motors using external sinusoidal commutation, internally commutated brushless motors with Hall Effect sensor feedback, 2-phase stepper motors, or up to 2 voice coil motors. For applications requiring low electrical noise, drive utilizes external 24 Vdc source of power for internal logic.

Crestron Electronics, Inc.    Rockleigh, NJ 07647

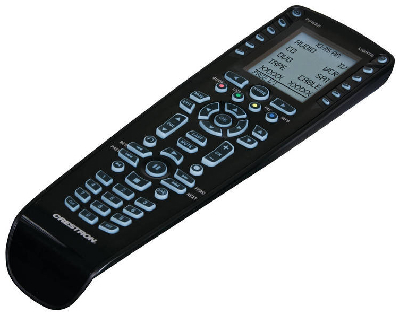

Feb 04, 2009 Along with infiNET EX(TM) 2-way wireless RF with long-range (400 ft) communications, MLX-2 features advanced mesh network technology that provides reliability, true feedback, and dynamic frequency allocation. Ergonomics and size facilitate one-handed operation, while 57 programmable buttons enable intuitive, tactile control. Integrated LCD supports dynamic text and can also show time, lighting/audio levels, room temperature, and other real-time data.
