Baldor Electric Company    Fort Smith, AR 72901
Apr 06, 2010 Available in power ratings up to 33.5 A, MicroFlex e100 and MotiFlex e100 single- and 3-phase drives can control rotary and linear servo motors, linear motors, and closed-loop vector motors. Embedded Mint Lite capability supports basic motion programming requirements including performing relative and absolute moves, S-ramp profiles, jog and homing movements, and reacting to real-time trigger events. With TCP/IP-compatible Ethernet interface, drives can link into Ethernet factory networks.

Kawasaki Robotics (USA), Inc.    Wixom, MI 48393
Apr 06, 2010 Kawasaki D Series Controller features CPU with multiple processors, with processing speed between CPU and digital servo drives suitable for optimizing motion control. High-speed signal monitoring of E-stop and collision detection circuits minimizes risk of system failure. Product supports any network communications protocol, and uses K-Logic sequencer for configuration without external PLC. Incorporating teach pendant interface touchscreen, unit allows control of up to 16 axes.

Vtronix LLC    Weston, FL 33326
Apr 06, 2010 Measuring 75.0 x 34.5 x 62.5 mm, TC-102 microprocessor-based, 2-stage controller is used to help maintain water temperature in storage tank. Operating modes (heat or cool) are selected by input signal from remote thermostat, and auxiliary relay is provided for controlling fan or pump. Able to work with any general-purpose 10K NTC sensor, 24 V solution features 7-segment display to show temperature of tank in °F or °C and key lock to prevent unauthorized access.

STMicroelectronics    Lexington, MA 02421
Apr 06, 2010 Model STM6600 and STM6601 smart pushbutton on/off controller chips block device power-up if battery is excessively discharged. Chips can also prevent power-up if fault is detected in power supply. Connecting directly to power button, ICs use smart-reset, which requires 2 pushbuttons to be held down for minimum period before reset occurs, eliminating need to hide reset button. Units have active power consumption of 6 µA and zero-power shut-down mode consuming less than 1 µA.

Johnson Electric    Vandalia, OH 45377
Apr 05, 2010 Suited for battery powered portable devices, small footprint Saia® Compact Driver provides 3-wire operation of 28 mm Saia motors, including UCL and UCE linear step motors, and UCD and UCB rotary step motors. It automatically detects end of motor's stroke, eliminating noise, reducing mechanical stress, and compensating for transverse distance tolerances. Available with 3 different types of control interfaces, driver suits any application requiring on/off or proportional functions.

EPSON Factory Automation/Robotics    Carson, CA 90746
Apr 05, 2010 Micro PowerDrive Controller combines PowerDrive servo technology for optimized motion performance and EPSON RC+ Development Software, which facilitates use. Fully integrated options include support for Microsoft .NET, DeviceNet, and Profibus as well as additional I/O. Able to be used as standalone solution, PLC slave, or with PC, controller suits applications from pick-and-place to more complex or motion performance-intensive applications as found in electronics/medical industries.

EPSON Factory Automation/Robotics    Carson, CA 90746
Apr 05, 2010 Supplied in single-box chassis that contains control unit (PC) and drive unit (amps), RC420 robot controller has passive backplane, shock mount drive bay, and 200 W power supply. EPSON RC+ Control Software, included, facilitates use, while SPEL+ language accommodates system designers throughout world. Powered by 850 MHz Intel® Celeron® CPU, controller features 128 MB PC100 SDRAM, removable 20 GB hard drive, as well as various connectivity and expansion options.

Omron Scientific Technologies Inc.    Fremont, CA 94555
Apr 02, 2010 Consisting of 2 proximity sensors and one G9SX safety controller with fault diagnostics, G9SX-LM delivers standstill and low-speed monitoring for machine tools, printing presses, and other applications by monitoring motor rotation speed. Unit lets operator access machine for maintenance while it is running at safe, max set operating threshold of 10 Hz. If motor speed exceeds preset, product will stop machine immediately; optional A4EG Enabling Grip Switch provides additional safety.

Leonard Valve Co.    Cranston, RI 02910
Apr 02, 2010 Suited for hot water systems in hotels, hospitals, and other commercial and institutional installations, LV980 Series temperature valves provide accurately mixed water from flows as low as 2.5 gpm to high flow requirements. Valves are listed and passed to performance requirements of ASSE Standard 1017. Several models are available for group/individual shower applications and hydrotherapy in exposed and cabinet assemblies.

ON Semiconductor, LLC    Phoenix, AZ 85008
Apr 01, 2010 Rated to 1 A, NCP69x series suits low current consumption, portable, battery-powered, and always-on applications. VLDO regulators NCP690, NCP691, and NCP692 offer adjustable output voltage from 5.0-1.25 V or fixed voltage. While NCP691 includes enable-low function, NCP692 has enable-high function. Other devices include NCP693, in 5 standard voltage versions from 0.8-3.3 V, and NCP694 adjustable ULDO regulator with min output of 1.0 V and 5 fixed voltage options from 0.8-3.3 V.

Intelligent Appliance    Netanya, IL 42140
Mar 31, 2010 Featuring 6 contact support as well as differential and dual differential multiplexing, model IA-3154-2 is 24 DPDT relay controller board which includes commands for single and twin relay operation and is supported by Series-3000 controlling commands list. Board supports daisy-chain operation, with buffered communication output port enabling numerous boards to be chained and connected to common host controller simultaneously and transparently.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707
Mar 30, 2010 Marex OS II-3D offers traditional control head as well as remote control that can be extended on request by joystick, which lets captain control entire ship with only one hand. Eliminating need to coordinate drive components individually, 3-axis joystick integrates all propulsion components. Captain can decide at any time whether to use traditional control levers together with lever for bow and stern thruster or to use maneuvering assistant. Modular setup lends to system adaptability.

Techno Linear Motion Systems    New Hyde Park, NY 11040

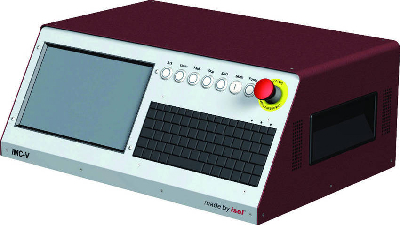

Mar 26, 2010 Compatible with gantry tables, linear slides, belt drive actuators, and rotary tables, 1-6 axis Model iMC-V is housed in desktop enclosure with drives, power supply, I/O, onboard computer, and 10 in. touch screen. Controller features 16 digital inputs and 8 digital outputs, which can be expanded up to 128 points of I/O through CAN bus. Able to perform linear, circular, and helical interpolation, unit is suited for pick-and-place, dispensing, assembly, routing, welding, and general automation.

Linear Technology Corp.    Milpitas, CA 95035
Mar 25, 2010 Supplied in 3 x 5 mm QFN package, LTC3616 incorporates constant frequency, current mode architecture. Internal switches with RDS(ON) of 25 and 35 mW allow delivery of up to 6 A continuous output current, and low dropout operation allows output voltage range of 0.6 V to millivolts below VIN. Operating from 2.25-5.5 V, IC has programmable switching frequency from 300 kHz to 4 MHz, exhibits efficiencies up to 95%, and can be configured to run in pulse-skipping or forced continuous modes.

Dortronics Systems, Inc.    Sag Harbor, NY 11963
Mar 24, 2010 Suitable for air locks or security mantraps, with up to 4 normally unlocked doors or 3 normally locked doors, 4700 Series can be programmed at factory to allow for only 1 door, in any defined area, to be unsecured at a time. Request for access at any normally locked door will inhibit REX inputs for all other locked doors and secure all unlocked doors in area. PLC is powered from built-in 4 A power supply, which also provides 12 or 24 Vdc to operate maglocks and/or strikes for each door.

Baumer Ltd.    Southington, CT 06489 1534
Mar 24, 2010 Low-delay GigE Trigger device features 8 inputs and 8 outputs to provide connections for integrating light barriers, encoders, sensors, and actuators. Device evaluates input signals and provides real-time control of additional process steps. To trigger cameras directly, unit has 3-port switch and, in combination with GigE switch, it can be used to control multiple cameras. Device supports all Baumer standard GigE cameras or PoE cameras.

Morse Watchmans    Oxford, CT 06478
Mar 24, 2010 Suitable for mounting under cabinets or on counter tops, 6-module horizontal KeyWatcher® system provides control over who can remove key and is interoperable with various access control systems. System comes with bottom-mounted control box and can be used with remotely mounted keypad and display box. Designed to resist abuse and wired with tamper-proof mechanism, KeyWatcher cabinet is secured using built-in keypad and up to 2,000 assignable user codes with PINs.

CompuDAS    Shelton, WA 98584-8759
Mar 23, 2010 Model CPM-7000 is multichannel system capable of monitoring 16-256 independent channel inputs. Communicating via Windows-based software and Ethernet connectivity, it can be configured as desktop or wall-mounted unit. Unit features SBC with solid-state hard drive that can store over 3 million readings even if operator PC is off-line. Secure PC connection allows for remote process monitoring and data are retrieved/maintained in Windows Excel compatible csv files.

Kaba Ilco Corp.    Winston-Salem, NC 27105
Mar 22, 2010 Standalone E-Plex 5800 series is Physical Access Control System (PACS) that integrates certified CHUID readers into locking devices for FIPS 201 smart cards. CoreStreet-enabled system can enroll cards at reader without requiring any software. With software, user can check card validation against Federal Bridge PKI, import photos, set access schedules, and retrieve audit trail. System meets FIPS 201 requirements such as PIV, PIV-I, TWIC, CAC, and FRAC.

TRIATEK    Norcross, GA 30093
Mar 22, 2010 Integrating precision measuring system with touch screen interface with full color TFT display, Model FMS-1650 includes 4 analog inputs, 4 analog outputs, 4 digital inputs, 4 digital outputs, and 2 universal inputs. For building automation systems using BACnet®, LonWorks®, or Metasys® N2 protocol, unit measures ultralow pressure or flow down to 0.0001 in. H2O. Control outputs based on measured inputs utilize programmable control loops, eliminating need for separate controller.
