Andantex USA, Inc.    Wanamasa, NJ 07712
Aug 10, 2010 Installed on cabinet backplane, X-block is designed for multispindle wire and cable pay-off applications that use open- or closed-loop tension control systems. Unit has rear-panel DIN rail mounting clip that allows up to 6 units to be installed side-by-side in width of 300 mm. Built around PID controller, unit includes sensor amplification module, enabling plug-and-play settings for all types of load cells, and power supply function for direct control from electromagnetic actuators.

Precise Automation LLC    Los Altos, CA 94024
Aug 10, 2010 Accommodating remote access, Guidance System D4/D6 includes all electronic components necessary to operate robotic mechanism: 4- or 6-axis motion controller, motor and logic power supplies, fans and filters for cooling, and connectors. Software includes complete set of motion commands and machine kinematics as well as continuous path motion planner and trajectory generator. Other features include Active X and .Net links to Microsoft software and optional machine vision package.

Sieb & Meyer USA, LLC    Cincinnati, OH 45242
Aug 09, 2010 Designed to serve as drop-in replacement for obsolete PMC-400, PMC-450, and PMC-550 control systems, Series 8 CNC uses PC for operator interface and motion controller for precise, high-speed printed circuit board routing. Part program compatibility for ATI and Excellon legacy data is included, as well as common PCB routing features such as tool life management, pressure foot/vacuum control, and tool diameter compensation based on distance routed.

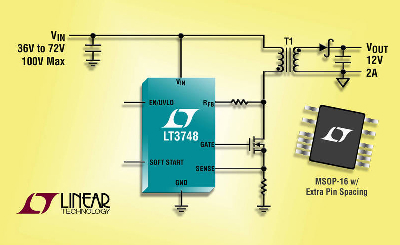

Linear Technology Corp.    Milpitas, CA 95035
Aug 06, 2010 Operating over 5-100 V input range, Model LT3748 simplifies design of isolated DC/DC converters. No opto-isolator, third winding, or signal transformer is required for feedback since output voltage is sensed from primary-side flyback signal. Isolated device operates in boundary mode, which is a variable frequency current mode control switching scheme, resulting in ±5% typical regulation over full line, load, and temperature range. Housed in MSOP-16 package, IC operates from -40 to 125°C.

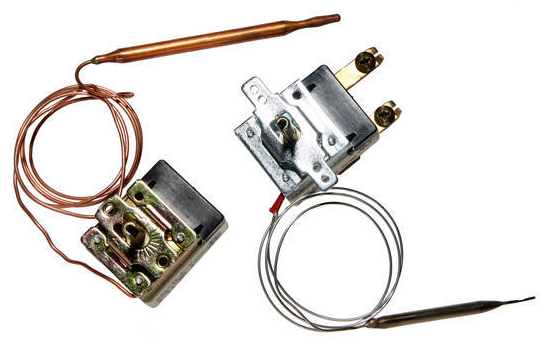

Selco Products Co.    Reno, NV 89521-5908
Aug 05, 2010 Available in manual or automatic reset models, CAP Series provide temperature control for commercial and consumer heating applications. They are offered with various preset temperature ranges, ceramic bodies, temperature ranges of 32 to 752°F, and differentials from 2.7°F ±1.8°F to 16.2°F ±7.2°F. Compliant with UL, C-UL, VDE, EC, and RoHS standards, products are available with various knobs, dials, or set screws for determining temperature set point.

Elemental LED    Emeryville, CA 94608
Aug 05, 2010 Apollo Controller can control DMX devices, such as wall washers and PAR cans, or drive 3 channels of PWM to control LED lighting fixtures, such as strips and bars. Dual-mode solution comes with software that lets user visually design custom lighting scenes on computer, load them into Apollo, and play them back through lighting fixtures without computer. Functionality accommodates needs of artists, business owners, or anyone who needs pre-programmed custom content.

Milltronics Mfg. Co.    Waconia, MN 55387
Aug 04, 2010 Model 8200 CNC Control works with all G/M Code programs and delivers capabilities critical for high-speed and multi-axis machining: macro programming, auto routines, trig help, and conversational programming. Mill Away function, for mid-program offset adjustment, as well as wire frame and solid model graphic modes, further enhance operation. Along with USB and Ethernet networking capabilities, CNC offers Fast Verify feature that lets operator run program at 100X speed.

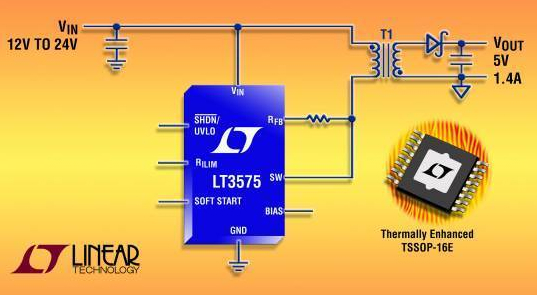

Linear Technology Corp.    Milpitas, CA 95035
Aug 04, 2010 Operating from 3-40 V, monolithic LT3575 has 2.5 A, 60 V power switch and delivers up to 14 W output. It consolidates isolated DC/DC converter design by negating need for opto-isolator, third winding, and signal transformer for feedback; output voltage is sensed from primary-side flyback signal. Boundary mode operation typically results in ±5% regulation over full line, load, and temperature range. Other features include LDO regulator, programmable soft-start and undervoltage lockout.

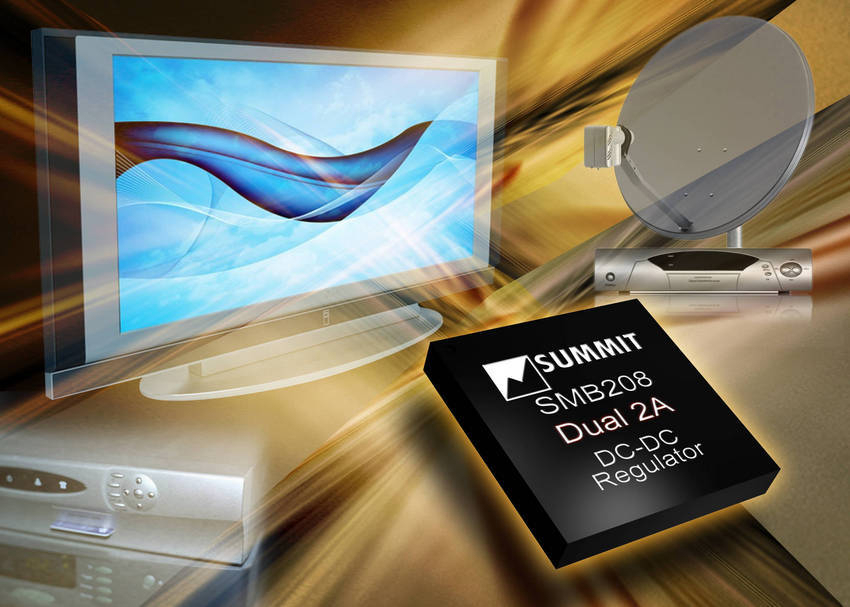

Summit Microelectronics, Inc.    Sunnyvale, CA 94085
Aug 03, 2010 Series SMB20X DC-DC buck regulators are single or dual output step-down converters with high-side MOSFET supplying up to 4 A output current. Serial digital interface and non-volatile memory facilitate configuration and programming. Input voltage range is +4.5-16 V and output range is +0.8-5.0 V, accurate to 2.5% over load/line/temperature, while output voltage is programmable in 100 mV or ~10 mV steps. Output enable, sequencing, softstart, and output voltage monitoring are also programmable.

Pulse Engineering, Inc.    San Diego, CA 92128
Aug 03, 2010 SmartER(TM) B8887NL central office (CO) splitter module enables dense mounting of multi-channel splitter cards, resulting in more modules per digital subscriber line access multiplexer (DSLAM) or roadside cabinet. Featuring 8 mm profile that increases airflow area between multi-channel splitter cards, module separates plain old telephone service (POTS) and DSL data signals. It complies with TR-127 for VDSL2 applications and meets ETSI 600 ohm and China MII standards.

European Safety Systems Ltd    Acton, London London W3 7QH  United Kingdom
Aug 03, 2010 Certified II 1G Ex ia IIB T4/5/6 for use in Zones 0, 1, and 2, IS-pA1 panel mount sounder is suited for use as fault indication or process alarm on control panels located in intrinsically safe environments. It produces 100 dBA at 1 m continuous 2,600 Hz tone that can be pulsed externally to produce different signals. To reinforce audible warning signal, IS-pB1 panel lights can be included that can be mounted behind red, amber, green, blue, or clear lenses.

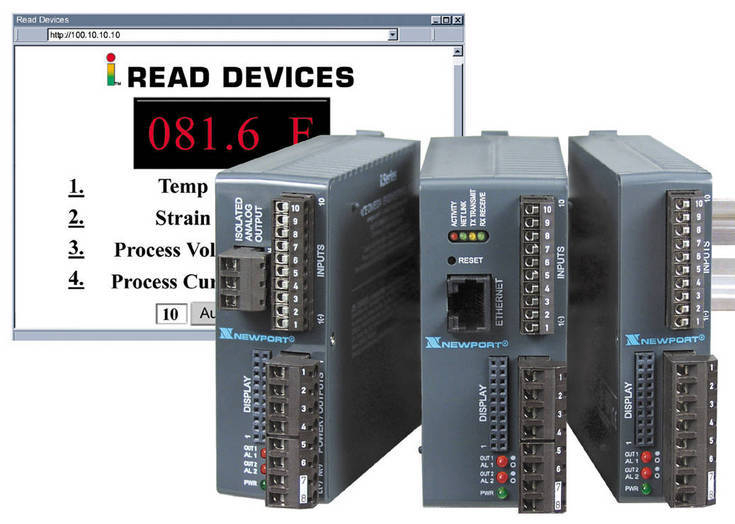

Newport Electronics, Inc.    Santa Ana, CA 92704
Aug 02, 2010 Comprised of signal conditioners and PID controllers, DIN rail-mount iDR series are available with Ethernet option for connecting directly to LAN and serving Web pages over Internet. Universal signal input covers 10 thermocouples; 100 and 1,000 ohm RTDs with 2-, 3-, or 4-wire connections; Process (DC) Voltage, current, and Strain Gauge inputs. Optional outputs include Form C SPDT relays, SSRs, DC pulse, programmable isolated or non-isolated analog voltage, and current.

Newport Electronics, Inc.    Santa Ana, CA 92704
Aug 02, 2010 Used for remote surveillance of environmental conditions, Virtual Chart Recorders(TM) let users view virtual charts as well as record temperature, relative humidity, dew point, and barometric pressure over Ethernet network or Internet via Web browser. Instruments can trigger alarm - email or cell phone/PDA text message - if reading goes above/below user-determined set point, and removable 2 GB SD Flash Memory card stores up to 7 years of readings taken at 10 sec intervals.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jul 30, 2010 By accepting signal from position indicator, ¼ DIN Model 4V-3 displays and controls current position of valve or damper. Unit accepts thermocouple, RTD, current, or voltage inputs and can be programmed for On/Off, PID, ramp and soak, auto-tuning, or manual tuning methods. RS-485 serial communications work with either ASCII or Modbus® RTU protocol. Operating from 100-240 Vac, controller features temperature range of 32-122°F and NEMA 4X/IP66 front panel rating.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jul 30, 2010 Model MIC2165 features architecture that makes high delta-V operation with VIN of 28 V and VOUT of 0.8 V possible. Unit employs Hyper Light Load(TM) feature to achieve high efficiencies at light loads. Operating over input supply range of 4.5-28 V, it can provide up to 25 A of output current, achieves up to 95% efficiency, and has short current sensing on bottom MOSFET. Unit also features internal linear regulator that provides regulated 5 V to power internal control circuitry.

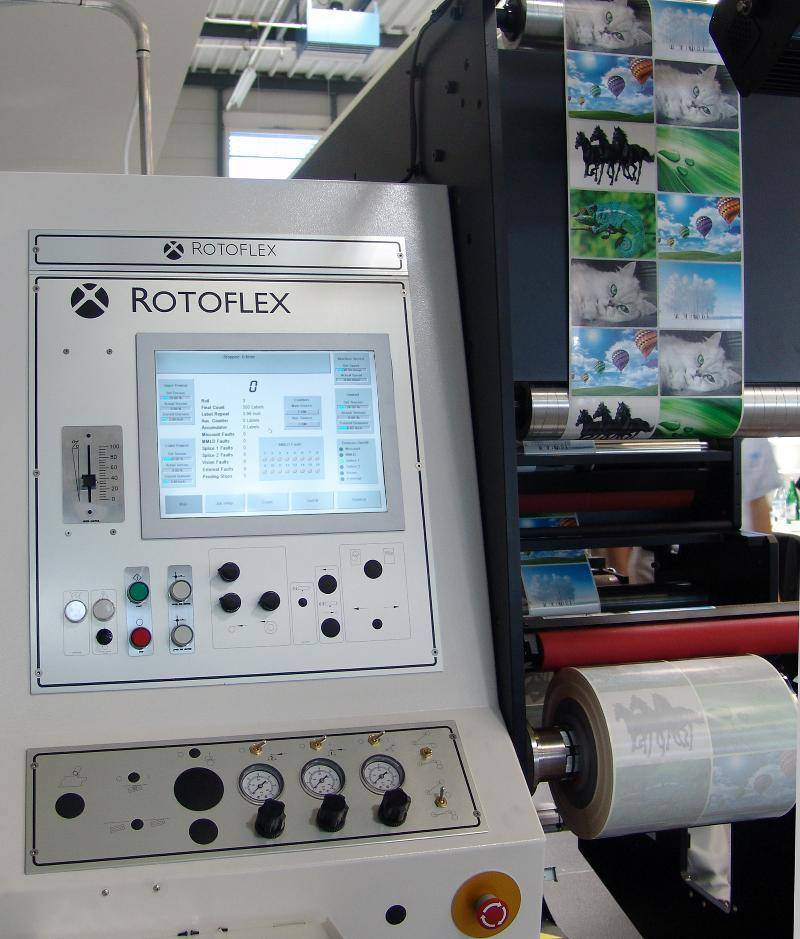

Rotoflex International    Mississauga, ON L5T2R5
Jul 29, 2010 Fully compatible with in-plant job management systems, Genesis provides variable and multi-shape label inspection, intuitive defect management, as well as missing label and matrix detection. Real-time processor simultaneously handles critical functions, while automatic repeat detection and sensor calibration facilitate setups. Along with independent lane configuration, system features reporting options such as tracking each user input and machine event with time-stamp resolution.

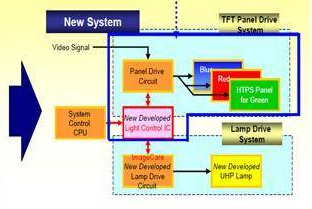

Seiko Epson Corporation    Suwa, Nagano   Japan
Jul 29, 2010 Intended for 3LCD projectors, light control system uses Epson high-temperature polysilicon (HTPS) TFT LCD drive technology and Philips' lamp technology for optimal performance regarding projector image contrast and energy consumption. System is comprised of projector lamp and lamp drive circuits. Optimal image quality and color reproduction is achieved by automatic adjustment, in real-time, of white balance deviations that occur due to changes in lamp power.

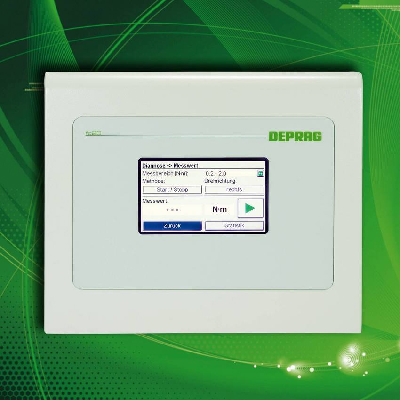

Deprag Inc.    Lewisville, TX 75057 4726
Jul 29, 2010 Developed for MICROMAT®-F and MINIMAT®-F pneumatic screwdrivers as well as electronic screwdrivers of 341 Series, Model fc20 enables up to 7 sequences to be arranged from up to 99 programs, respectively. Unit has freely usable power outputs, so integration of workpiece lock into process is possible. Finished workpiece can only be removed from workpiece holder once all assembly tasks have been successfully completed. Communication with superordinate control is carried out via 24 V E/A interface.

Mosaic Industries    Newark, CA 94560
Jul 29, 2010 Measuring 2.5 x 4 in., PDQ Board(TM) features Motorola 68HCS12 processor and 1 MB memory as well as 8 digital I/O lines with counter/timer capabilities, 8 PWM digital output signals, and 8 general purpose digital I/O lines. Additional I/O includes 16 analog inputs with 10-bit resolution, dual RS232/485 ports with speeds to 256 KBaud, and synchronous SPI and IIC serial interfaces. Board can host up to 8 I/O mezzanine modules called Wildcards that can be mixed-and-matched depending on application.

Micrel Semiconductor Inc.    San Jose, CA 95131
Jul 29, 2010 With 600 kHz switching frequency, Hyper Speed Control(TM) MIC2166 operates over supply range of 4.5-28 V and achieves up to 95% efficiency. Internal VDD regulator enables single-supply operation, while digital soft start minimizes inrush current. UVLO feature ensures proper operation under power-sag conditions, which prevents external power MOSFET from overheating. Available in 10-pin ePad MSOP with junction operating range from -40 to +125°C, IC is suited for set-top boxes, gateways, and routers.
