Interface Isolation Boards & Modules
(Showing headlines 1 - 20) more ....
Flash-Aware Interface boosts usable memory capacity.
Salt Lake City, UT 84121
Apr 10, 2014
While doubling usable capacity of ioMemory flash, NVM Compression Interface eliminates performance impact associated with disk-era compression algorithms used with flash SSDs. Developers can introduce flash-aware compression to their applications using workload-optimized compression algorithms. Once integrated into application, developers can help enterprises scale IT infrastructure to meet increasing data demands by balancing storage efficiency with customer workload performance requirements.

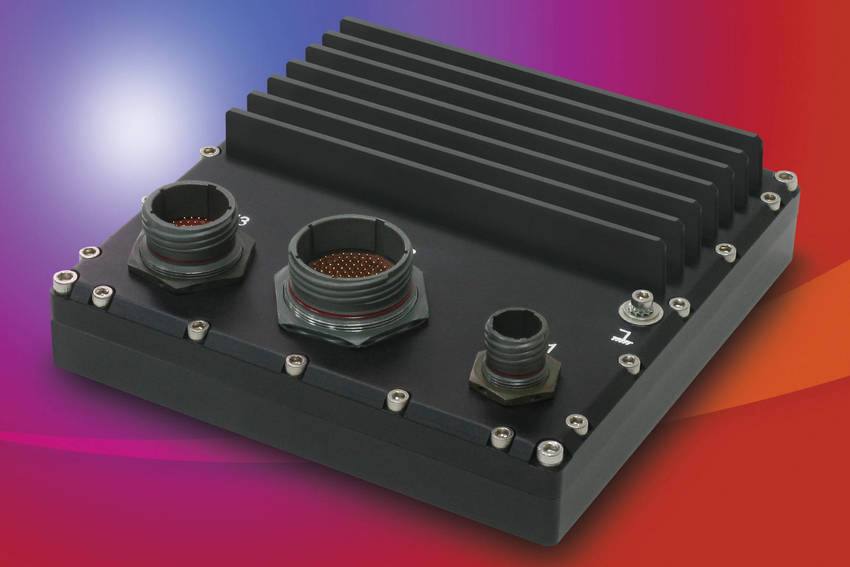

COM Express Type 6 Carrier Cards aid SFF systems development.
Wixom, MI 48393 7037
Mar 31, 2014
Used in SFF computing systems that require -40 to +85°C operation and shock/vibration immunity, ACEX-4600 carrier cards provide rugged host for Type 6 CPU and PMC/XMC modules. There are three models available to host basic size COM Express module and, optionally, one or two PMC/XMC modules for FPGA or I/O processing tasks. All models include 2 mini-PCIe slots, and mezzanine module slots are located on opposite side of CPU module to maintain compact footprint.
Ethernet I/O modules offer 16 channels in 1 in. wide package.
Wixom, MI 48393 7037
Mar 18, 2014
Respectively accommodating single-ended analog current or voltage input signals, BusWorks® XT1230 and XT1240 provide 16-channel interface and choice of Ethernet/IP, Profinet, or Modbus TCP/IP protocols with peer-to-peer i2o communication support. Both modules, suitable for harsh environments, are 1 in. wide and feature two 10/100 Ethernet ports, removable front-facing terminal blocks, and DIN rail power bus support. USB-to-PC connection and Windows® software aid configuration.
Industrial Network Interfaces foster Powerlink adoption.
HMS Industrial Networks, Inc.
Chicago, IL 60607
Mar 07, 2014
Anybus CompactCom 40-series enables communication between host device and Powerlink. Affording flexibility, products come in 3 formats – chip, brick, and module – that are all equipped with same software interface from host device. Process data latency is <15 µsec, and up to 1,500 bytes of process data can flow in each direction. Implementing integrated Ethernet hub, products support Multiplexing and PollResponseChaining; response time is 1 µsec, and synchronization jitter is 1 µsec max.
SDR Platforms facilitate system prototyping/development.
Analog Devices, Inc.
Norwood, MA 02062-9106
Mar 07, 2014
Able to be software-configured for RF performance in 2,400–2,500 MHz region or for wide tuning over 70 MHz to 6 GHz range, AD-FMCOMMS4-EBZ includes AD9364 RF Transceiver IC in 1 x 1 SDR rapid prototyping FMC module. Built around AD9361 RF transceiver on 2 X 2 SDR rapid prototyping module, AD-FMCOMMS3-EBZ transceiver FMC module is engineered for 70 MHz to 6 GHz wideband tuning applications. Both modules include all HDL code and device drivers needed to get SDR platform up and running.
HART Modules feature 2 inputs and 2 outputs.
B&R Industrial Automation Corp.
Roswell, GA 30076
Mar 06, 2014
Part of X20 Series, HART Input and Output Modules use real-time Ethernet POWERLINK to transfer HART data supplied by sensors and actuators directly to controller. To evaluate data, controller forwards information via process bus to maintenance stations with FDT containers. HART devices are configured with TCP/IP communication DTM, which scans network and detects hardware tree. DTM server on controller provides read/write access to all information regarding HART field devices for asset monitoring.
Active Interface Modules cover 500-690 V range.
Munich D-80333 Germany
Feb 26, 2014
Available for Sinamics S120 low-voltage converter, 1,700 kW Active Interface Modules combine with Active Line Modules to form functional unit. Active Interface Modules filter out most harmonics to keep distortions very low on line side. Units incorporate liquid-cooled reactor, liquid-cooled filter module, and associated connecting elements. With 4 identical modules connected in parallel, up to 5,700 kW can be reached on motor side and up to 6,460 kW can be reached on line side.
NOR Flash Memory features high-speed, 12-pin interface.
Sunnyvale, CA 94088 3453
Feb 25, 2014
Supplied in 8 x 6 mm BGA package, Spansion® HyperFlash™ NOR Memory devices support read throughputs up to 333 MBps and feature interface that consists of 8-pin address/data bus, differential clock (2 signals), Chip Select, and Read Data Strobe for controller. Devices provide migration path from single Quad SPI to Dual Quad SPI to HyperFlash Memory. Offered in 3 and 1.8 V power supply versions, products come in 128, 256, and 512 Mb densities.
Two-Port 40 GbE Fiber QSFP+ Adapter increases network speed.
American Portwell Technology
Fremont, CA 94538
Feb 13, 2014
Designed with 40G Ethernet technologies compliant with IEEE 802.3ba standard, NIP-86020 delivers high-bandwidth and Ethernet connectivity for performance-driven server and storage-intensive applications. Adapter leverages Mellanox® Connectx-3 Ethernet controller, supports dual fiber QSFP+ ports, and provides IPv6 offloading, IEEE 1588 precision time protocol circuitry synchronization performance, RDMA over Converged Ethernet (RoCE), and Jumbo Frame functions.
USB/RS-232 Serial Adapter enhances Android device connectivity.
Acces I/O Products
San Diego, CA 92121 1506
Feb 05, 2014
By using Android Open Accessory protocol to make Android device recognize onboard USB port as RS-232 port, ANDROID-232 lets users control legacy RS-232 devices directly from Android devices and vice-versa. This industrial- and military-grade, 2-way data port supports serial data rate up to 921.6 kbps (max of 115.2 kbps without flow control), and onboard circuitry provides power to charge Android device while connected. USB serial interface board is rated for -40 to +85°C operation.
Interface Board controls RS-232 and RS-485 Modbus RTU devices.
Pleasanton, CA 94588
Feb 04, 2014
With Model 9009, temperature chambers and other Modbus controlled slave devices can be controlled from Ethernet, GPIB, or USB source or test system. Board's Ethernet port supports VXI-11 and raw socket protocol, Modbus TCP/IP conversion, and internal HTML web server. Modbus TCP/IP packets are directly converted into Modbus RTU packets. With Control Page, WebServer lets user enter commands from any web browser. Model 9009 does all Modbus RTU packet formatting and handles response packets.
FMC/VPX Carrier features optical backplane interface.
Upper Saddle River, NJ 07458
Jan 27, 2014
As 3U VPX FMC carrier with a Virtex-7 FPGA, Flexor™ Model 5973 features VITA 57.1 FMC (FPGA Mezzanine Card) site, 4 GB DDR3 SDRAM, PCIe (Gen 1, 2, and 3) interface up to x8, optional user-configurable gigabit serial I/O, and optional LVDS connections to FPGA for custom I/O. Flexor Model 3312 FMC offers four 250 MHz 16-bit A/Ds and two 800 MHz 16-bit D/As. FMC connector matches Virtex-7 FPGA carrier to promote performance and flexibility.
Peripheral Modules expand embedded system functionality.
Fremont, CA 94539
Jan 17, 2014
Resistant to vibration and dust, embedded peripheral boards afford connectivity and expansion through diverse output signal functionality which ranges from LAN, USB, serial (RS-232/-422/-485) ports, PCIe, and SATA interface cards to display cards outputting analog VGA and digital signals (HDMI/TTL/LVDS). Converter and bridge modules increase interfacing options, while riser and extender boards expand system connectivity. Various form factors are available.
Ethernet Communications Modules support fiber optics.
Southfield, MI 48034
Jan 13, 2014
Supporting IEC61850, DNP3, and IEC60870-5-104 Ethernet-based communication protocols, PACSystems RX3i Modules enable access to data and time-stamping of events via object-oriented programming, allowing users to identify root cause of downtime and system disturbances. Modules enable 2-way communication between SCADA and Intelligent Electrical Device levels. By uniting control and software layers under common architecture, information stored in controller becomes accessible and actionable.
Port Multipliers support 6 Gbps SATA 3.0 data transfer rates.
Addonics Technologies, Inc.
San Jose, CA 95131
Dec 27, 2013
Internal 5-port 6G Port Multiplier (PM) mounts into add-on card slot of desktop computer or low-profile system and connects up to 5 SATA HDDs or optical drives into one SATA port on system board or on add-in controller. Also available, 5-Port 6G Rack Mount PM connects up to 5 SATA HDDs or SSDs to computer using one eSATA connection. When multiple PMs are combined with 4-Port eSATA controller, users can attach up to 20 SATA HDDs via one host controller to any desktop or server computer.
USB-to-CAN Interface connects over USB 2.0 at 480 Mbps.
IXXAT Automation GmbH
Dec 09, 2013
Suitable for demanding applications at max bus load and CAN bit rates up to 1 Mbps, USB-to-CAN V2 Interface is available with 1 or 2 CAN interfaces based on ISO 11898-2. In USB-to-CAN V2 compact, CAN connection is implemented as sub-D9 plug or alternatively as RJ45 connector. Versions that carry 2 CAN interfaces are connected via RJ45 connectors. Additional options include galvanically isolated CAN interfaces, bulk variants, and support for ISO 11898-3 low-speed CAN and LIN.
I/O Interface Board complements Motorola RTU I/O module.
Wilkerson Instrument Company, Inc
Lakeland, FL 33811
Nov 05, 2013
Expanding capabilities of Motorola ACE3600 RTU Mixed I/O Module, Model SIB-V245/V453 Mixed I/O Interface Board provides 16 discrete inputs which can be separately set to monitor 10–30 Vac/Vdc or 120 Vac; 4 discrete outputs as Form C pluggable relays; and 4 bipolar analog inputs, which provide test points that allow monitoring of 4 current signal inputs without breaking current loop. Transient surge arrestors on analog input can be replaced in field with screwdriver.
Sensor Signal Interface IC offers high resolution, low power.
Micro Analog Systems Oy
Oct 14, 2013
Intended for MEMS-based pressure sensor modules, MAS6503 uses ratiometric ADC principle employing delta-sigma (∆Σ) conversion technique and communicates via 2-wire I˛C serial bus interface. This 24-bit piezo resistive sensor signal interface IC, operating from 1.8–3.6 V, consumes 18.3 µA — with one pressure conversion in 1 sec at max resolution and including sensor bridge current. Effective number of bits (ENOB) of ADC is 17.4 bits, and over sampling ratio has 5 values to choose from.
Dual-Mode Bluetooth v4.0 Modules suit industrial environments.
Chesterfield, MO 63017
Oct 02, 2013
With Class 1 range and dual-mode, or Bluetooth Smart Ready™ support, BT800 Series enables connections to devices that support BLE and Classic Bluetooth. HCI modules support full speed USB interface plus GPIO as well as I2S and PCM audio interfaces. Measuring 8.5 x 13 mm with 8 dBm output power, modules are suitable for adding Bluetooth connectivity to any device with Bluetooth software stack. HID Proxy Mode enables out-of-the box HID connectivity for devices such as keyboard and mouse.
Access Control Panel features dual serial interface.
Galaxy Control Systems
Walkersville, MD 21793
Oct 02, 2013
With dual serial interface board, 635 Series optimizes third party integration and ensures interoperability with current and legacy hardware from multitude of manufacturers. DSI board includes two 485 ports to support 485 devices in single or multi-drop configuration, including wireless reader technology, relay controls, LCDs, and Galaxy 485 Remote DPI modules. Available in 4 sizes and rackmount version, panel can be populated with any combination of controller boards.
(Showing headlines 1 - 20) more ....
