I & O Interface Cards & Adapters
(Showing headlines 861 - 880) << 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56
Host Bus Adapters support 1, 2, and 4 Gbps operations.
LSI Logic Corp.
Milpitas, CA 95035
Mar 04, 2005
Leveraging Fusion-MPT architecture and LSI Logic LSIFC949X Fibre Channel controller, 4 Gbps Fibre Channel Host Bus Adapters (HBAs) feature 64 bit/133 MHz PCI-X bus interface. They are backwards compatible and auto-speed negotiating with 2 Gbps products and legacy 1 Gbps technologies. MyStorage(TM) software provides HBA monitoring as well as load balancing and path failover protection. It also permits control and configuration of any LSI Logic HBA in SAN.
Backplane Receptacle Connectors support speeds of 3 Gbps.
Etters, PA 17319 9769
Mar 02, 2005 Vertical, 29-position Connectors enable implementation of Serial Attached SCSI hard disk drive interface. Staggered contact lengths provide sequential mating of contacts to enable hot plugging. Molded guide posts feature angled lead-in to compensate for connector misalignment, allowing device plug and backplane receptacle to self align during mating process. Options are available for through-hole solder, press fit, surface-mount, or hybrid termination.
Communication Unit uses detachable serial blocks.
New Providence, NJ 07974 1507
Mar 01, 2005
Designed for FP2 Series programmable controllers, multi communication unit, Model FP2-MCU supports RS232, RS485, or RS422 detachable communication blocks. It operates in general serial mode, computer link, or PCLINK for networking FP2 and FPG PLCs. Unit supports ASCII and binary transmission codes as well as baud rates from 300-230,400 bps simultaneously in both channels. Transmission distance is 15 m for RS232, 400 m for RS422, and 1,200 m for RS485.
Analog Output Universal PCI Card has high-density design.
Advantech Automation Corp.
Cincinnati, OH 45240
Feb 23, 2005
Featuring 32 analog output channels, 14-bit PCI-1724U has universal PCI connector that is compatible with 5 and 3.3 V signaling. Various DLL drivers enable software-based I/O functions, and unit is designed for synchronized output, which eliminates existence of any time delay in system. When system is hot reset, unit can still keep its output values. Unit features isolation up to 1,500 V and output range of -10 to +10 V at 0-20 and 4-20 mA.
LCD Controller features universal LVDS interface.
Digital View, Inc.
Morgan Hill, CA 95037

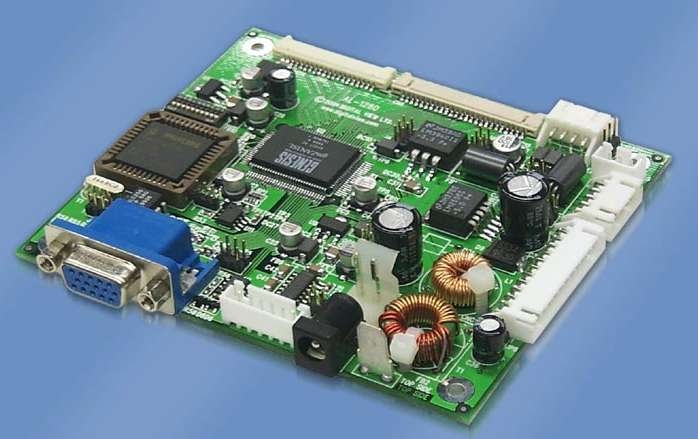

Feb 11, 2005 Model AL-1280 is a multi-sync interface for analog RGB connection to LVDS-interface TFT type LCD panels. Supporting panel resolutions from 640 x 480 to 1,280 x 1,024 pixels, unit features automatic up-scaling of lower resolution inputs onto higher resolution flat panel display. ULIâ„˘ ensures compatibility across wide range of LVDS interfaces found in LCD panels. Controller offers MTBF in excess of 100,000 hours, multi-panel support, and standard 15-pin D-sub input.
Adapter Card communicates with I/O system.
Temecula, CA 92590 3614
Feb 09, 2005 Model PCI-AC51 links Pamux bus to PCI-compatible computers. Card provides efficient architecture that allows custom device drivers to run multiple adapters in parallel. LEDs indicate if card has been accessed or if any reads and writes have taken place. It is compatible with company's I/O hardware components capable of communicating via Pamux protocol.
Wireless Module simplifies broadband home networking.
Terayon Communication Systems, Inc.
Santa Clara, CA 95054-1103
Feb 03, 2005 Attaching directly to Series TJ700x Cable Modems, Model Wx-54G features modular architecture that enables operators to deploy unified cable modem and wireless home networking package. Module is based on 802.11g high-speed wireless networking standard, which supports up to 54 Mbps data rates. It can operate as wireless access point or as home gateway. Security features include 64-bit and 128-bit WEP encryption and shared key authentication.
Security Acceleration Boards offer 155-524 Mbps performance.
Los Gatos, CA 95032
Feb 02, 2005 Access HXL Security Acceleration Board Series consists of 6 half-height PCI cards designed to meet encryption requirements of OEM customers whose systems have space and form factor constraints. Based on 7954/7955/7956 security processors, boards can support compression and variety of bulk encryption algorithms to accelerate IPsec, SSL/TLS, and Wireless protocols. They include 32/64-bit PCI v2.2 interface with support for 33/66 MHz bus speeds.
Embedded Boards feature shared memory architecture.
Curtiss-Wright Controls, Inc.
Gastonia, NC 28052-1167
Feb 01, 2005 SCRAMNet GT PMC, PCI, and VME boards deliver real-time control and data networking, and enable networked heterogeneous computers to function as single multi-processor system. They feature 2.5 Gbit/sec SFP transceiver with optional secondary SFP available to provide redundancy. Shared memory on each board starts at 128 Mb and supports data throughputs surpassing 200 Mbps. SCRAMNet GT boards support Programmed Input/Output for small data transfers.
PCI/PCI-X Adapters suit eserver® OpenPower 720 systems.
IBM (Corporate Headquarters)
Armonk, NY 10504-1783
Jan 27, 2005 Ten Gigabit Ethernet-SR PCI-X adapter provides short-reach connections up to 108 ft on shortwave multimode optical cable, while 10 Gigabit Ethernet-LR PCI-X adapter suits long-reach connections up to 6 miles. Both offer 128K x 8-bit boot flash ROM support, 32 Kb on-chip TX packet buffer, and 256 Kb on-chip RX packet buffer. Two-port EIAâ„˘-232 PCI adapter provides asynchronous serial PCI-based server connections EIA-232 to networks and devices.
Processor PMC Module is based on PowerPC 440GX processor.
GE Fanuc Embedded Systems
Huntsville, AL 35803
Jan 21, 2005 Model PMC721TX operating at up to 800 MHz and features up to 512 Mbytes DDR SDRAM, 8 MB on-board flash memory, and 133 MHz PCI-X bus interface. Processor PCI Mezzanine Card utilizes modular approach to add processing capabilities and can be run as system controller or dedicated I/O processor. Suited for communications and networking applications, product offers front panel support for two 10/100/1000BaseT Ethernet ports and one RS-232 serial port.
Interface Board offers 12 Mbps USB interface to host PC.
Saelig Co., Inc.
Pittsford, NY 14534
Jan 20, 2005
Offering hot plug-and-play connection, Model USB-I2C/IO provides 20 bits of user-configurable digital I/O, 90 Kbps I2C interface, and 8-bit wide data bus for fast FIFO transfers. Onboard I2C EEPROM provides 16 Kb of storage for code or data. USB status LED lights on enumeration, then blinks to indicate USB traffic. Board is suited for USB-interfacing to 90 kHz I2C components, USB to 20 x I/O connections, I2C test fixture interfacing, and data acquisition.
PCI Cards feature plug-and-play configuration.
Rockwell Automation / Allen-Bradley/Industrial Automation Sy
Mayfield Heights, OH 44124
Jan 19, 2005 ControlNet 1784-PCIC and 1784-PCICS can detect and adapt to varying voltage amounts, allowing users to apply them to virtually and industrial or personal computer using PCI bus. Supporting redundant media operation, both cards feature scheduled connected message handling and scheduled multicast connection establishment. They work with RSLinx server software and are tolerant of connection changes to ControlNet tap and trunk cable.
Ray-Tracing Hardware enables 3D graphics rendering.
ART VPS Ltd
Cambridge CB4 0FQ United Kingdom
Jan 12, 2005
Built with 8 ART VPS AR350 ray-tracing processors, PURE PCI card provides users with accelerated rendering hardware designed to harness core graphics technologies of Mac OS X and performance of Power Mac G5. System employs modular ray-tracing architecture and allows users can generate full-frame previews in seconds. Features include multiple area lights, 3D motion blur, secondary illumination, camera properties, and special RenderMan shaders.
Development Kit lets users produce PROFINET IO devices.
Profibus Trade Organization
Scottsdale, AZ 85260
Dec 31, 2004
Based on NetARM processors, PROFINET IO Development Kit has one license for development and production of one product line. Each kit has printed license conditions and CD-ROM that contains all necessary firmware and required documentation, including firmware stack in source code for PROFINET IO; user description of PROFINET IO stack; and documentation and program examples for IO device and for CPU317-2 PN/DP that can be used as a test partner.
USB Sensor Link eliminates additional signal processing.
Sensor Developments, Inc.
Orion, MI 48359
Dec 27, 2004
Model 90386 provides portable interface that powers and processes strain gaged based sensor into USB 2.0 compatible signals. In addition to monitoring and storing data for force and torque sensors, product can also measure and record pressure or displacement as well as simultaneous angle or speed measurements. Optional software packages are available for remote control of up to 8 devices, statistical calculations, and other process monitoring.
Wireless Bluetooth USB Adapter is Bluetooth 1.2-compliant.
Irvine, CA 92618
Dec 23, 2004 Model SMC-BT10 EZ Connect Wireless Bluetooth USB Adapter enables users to set-up personal area network that connects PCs to up to 7 Bluetooth-equipped devices with full backward compatibility. Connection facilitates data sharing and transfer, printing, Web browsing, and synchronization. Class 2 Bluetooth-compliant, product communicates at distances of up to 30 ft. Installation requires user to plug unit into USB port and insert installation CD.
Connectors target datacom industry.
Amphenol Corp., Amphenol Aerospace
Sidney, NY 13838
Dec 22, 2004
Amphe-PD(TM) Connectors include RADSOK® terminals, which feature stamped hyperbolic grid and support 50-70 A continuous duty. UL listed at 69 A and CSA listed at 55 A, units have single-position RADSOK with molded socket shell or dual-position TUV touch-proof unit with V0 rating. Amphe-PD Series can connect to wires, busbars, and circuit boards.
CAN Interface Board suits 6U compactPCI systems.
Saelig Co., Inc.
Pittsford, NY 14534
Dec 09, 2004
Offering up to 4 CAN bus channels, cPCI-CAN Board features Philips' SJA1000 CAN controller on each channel. MC68332 microcontroller provides safe communication on CAN networks. Board includes 3.3 and 5 V PCI interface, diagnostic front panel LEDs for status indication, and ICANOS firmware, which supports Layer 2 CAN communication. CAN connection is via front panel or cPCI connector. Optional fibre optic connection gives isolated and noise-immune CAN link up to 300 m.
Power Cords meet country-specific requirements.
IBM (Corporate Headquarters)
Armonk, NY 10504-1783
Dec 02, 2004 Available in 14 different models, Power Cords allow IBM 7311-D11 I/O drawer to be installed in non-IBM rack using non-IBM power distribution units. External SCSI Port Enablement Cable connects SCSI internal controller on IBM IntelliStation® 9114 Model 275 to external port, allowing attachment of external SCSI devices to system.
