Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Aug 06, 2008 Designed for avionics lab applications requiring interface to MIL-STD-1553 and/or ARINC 429 data buses, Model BU-65591U offers 2 dual redundant 1553 channels, 4 ARINC 429 receive channels, 2 ARINC 429 transmit channels, 7 Digital Discrete I/Os, and IRIG-B time synchronization input. It includes both 1553 and 429 C SDK and drivers for Windows® 2000/XP. Graphical bus analysis and simulation tools for MIL-STD-1553 and ARINC 429, along with ARINC 615 data loading software are available.

Maxim Integrated Products    Sunnyvale, CA 94086
Aug 05, 2008 Series MAX3886 is designed for passive optical network equipment used in fiber-to-the-home market and optical network terminals used in FTTH installations including Verizon FiOS®. Functionality combines multirate clock, data recovery, and serialization/deserialization within single integrated device. Available in 8 x 8 mm, 56-pin TQFN package, system operates from 3.3 V supply and is fully specified over -40°C to +85°C extended temperature range.

Sealevel Systems Inc.    Liberty, SC 29657
Aug 05, 2008 SeaLINK+4.SC and SeaLINK+8.SC offer 4 or 8 serial ports that are software configurable for RS-232, RS-422, or RS-485, eliminating need to open the enclosure to change jumper settings or dip switches. Devices maintain their electrical interface settings locally, allowing host computer to be repaired or upgraded without reconfiguring serial ports. They include USB type B connectors to help prevent unintentional disconnection from standard USB cables.

Catalyst Semiconductor    Sunnyvale, CA 94089
Aug 04, 2008 With low standby mode current supply of 1 µA max, 8-bit Model CAT9534 offers solution for adding I/Os for functions such as LED indicators, control buttons, fans, and sensors. Unit features 8 ports, each of which can be configured as input or output by writing to register. Each I/O port is 5 V input tolerant, with high current I/O drive sink of up to 25 mA and I/O source of up to 10 mA max. Operating from 2.3-5.5 V, device is 400 kHz I2C bus compatible.

GOEPEL electronics LLC    Austin, TX 78759
Aug 04, 2008 Able to completely test PCI Express Standard V2.0 compliant slots via dot1/dot6 for correct pin contacting, IEEE Std. 1149.6 compliant CION Module(TM)/PCIe-x(1/4) interface cards are plugged directly into x1 or x4 PCI Express slot and controlled by TAP (Test Access Port). With on-board IEEE 1149.1 and IEEE 1149.6 test channels, all high speed signal pins, low speed signal pins, and voltage supply pin of PCI Express compliant connectors can be tested structurally.

Network Technologies, Inc.    Aurora, OH 44202
Jul 29, 2008 Designed for use in XTENDEX Extender Module Tray, XTENDEX® Rackmount Extender Modules include NTI USB KVM Extender to 300 ft with optional audio, NTI PS2 KVM Extender to 600 ft with optional audio or RS232, and NTI VGA Extender to 600 ft with optional audio or RS232. All feature steel construction with powder coat finish. Up to 12 extender modules can be mounted in space-saving 2RU shelf.

Vertilon Corporation    Westford, MA 01886
Jul 28, 2008 Model SIB164 provides mechanical and electrical interface between Hamamatsu H7546B 64-anode photomultiplier tube (PMT) and 64 channel DAQ system. Charge signals from high-speed events are detected by PMT mounted on SIB164 and sent over specialized cables to DAQ system. When used with IQSP582 PhotoniQ system, SIB164 achieves single photon sensitivity at rates exceeding 200,000 events/sec. Board also incorporates last dynode preamplifier and 3 types of on-board pulse discriminators.

ATTO Technology Inc.    Amherst, NY 14068
Jul 28, 2008 Featuring half-height form factor, ExpressSAS R30F provides 16 internal ports of SAS/SATA II connectivity and utilizes PCIe bus technology to deliver 3 Gbps performance. Advanced Data Streaming Technology support promotes performance necessary to handle multiple layers of complex, uncompressed, real-time effects as well as manage latency and control data transfer acceleration. Uses include IT and digital media applications requiring flexible connectivity options and data protection.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jul 18, 2008 Model 6765 is high speed, 4-channel Logic-to-Fiber Interface Converter that translates 4 input/output logic pairs into 4 fiber pairs, resulting in total of 8 fiber optic connections. It features user selectable fiber light ON polarity, ST fiber connectors, and logic test points for signal monitoring. Powered from 5 Vdc, circuit board is suited for embedded applications.

Dataforth Corp.    Tucson, AZ 85706

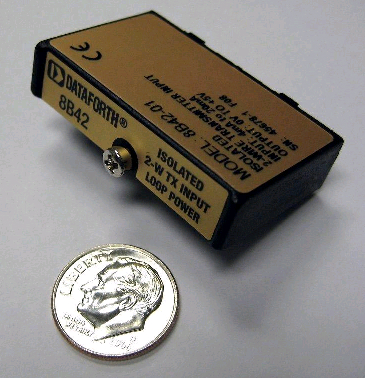

Jul 15, 2008 Suited for non-isolated 2-wire transmitters, 8B42 Modules supply power to current transmitter, then isolate, filter, and amplify resulting process current input signal and provide analog voltage output. Signal filtering is accomplished with 3-pole low-pass filter. Housed in miniature package measuring 1.11 x 1.65 x 0.40 in., modules operate from -40 to +85°C with 1,500 Vrms transformer isolation, up to 40 Vrms field-side protection, and ANSI/IEEE C37.90.1 transient protection.

Sealevel Systems Inc.    Liberty, SC 29657

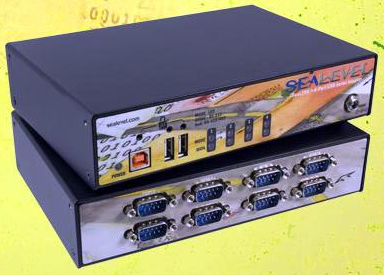

Jul 14, 2008 Along with 2 USB 1.1 hub ports, SeaLINK+4M.SC and SeaLINK+8M.SC respectively offer 4 and 8 serial ports that are software-configurable for RS-232, RS-422, or RS-485. Both devices, configured at one computer and deployed to others, maintain electrical interface settings locally and use state-machine architecture that supports 921.6 Kbps data rates. Serial ports appear as standard COM ports to host computer and provide up to 500 mA (each) to connected 5 V peripherals.

Phoenix Contact    Harrisburg, PA 17111 0100
Jul 10, 2008 Offering field communication through 2 RJ45 ports, Inline EtherNet/IP bus coupler establishes connection to EtherNet/IP network and facilitates building linear structure. It measures 80 mm wide and can connect up to 61 IP20 modules to network. For distributed machine mount IP65/67 applications, Fieldline EtherNet/IP bus coupler connects up to 16 local devices. It has 2 Ethernet connections designed as D-encoded M12 sockets, 3-port switch, and transmission rates of 10 or 100 Mbps.

Taiwan Commate Computer Inc.    Taipei Hsien   Taiwan
Jul 10, 2008 Available with Scode DVR program or SDK, MP-6010 features 4 video/audio input channels and one video/audio output channel. Single-chip solution utilizes MPEG4 hardware compression technology and offers programmable OSG (On Screen Graphic) 120/100 fps at 704 x 480 or 704 x 576 (NTSC/PAL) resolution. Compression parameters can be configured for each video channel, and internal I/O includes RS485, DVR-in, and DVR-out. Unit supports MPEG4 video and Motion JPEG.

Balluff, Inc.    Florence, KY 41042-0937
Jul 10, 2008 Including Input-only and Configurable versions, machine mount Profibus I/O Blocks feature all metal low profile housings that can survive rough treatment and still keep cables protected. Blocks incorporate high density inputs that enable use of splitters, set up switches that speed addressing process, and large, highly visible status LEDs. Both models provide range of inputs that can be set for NO/NC operation, and compatible Profibus cables and connectors are also available.

FCI    Etters, PA 17319
Jul 08, 2008 Micro SATA connector meets SFF 2.6 specification with 16 positions, including 7 positions with 1.27 mm pitch for signal and 7+2 positions with 1.27 mm pitch for power requirements. Plug connector supports internal 5.00 and 8.00 mm, 1.8 in. form factor drives such as HDD or SSD, while right angle receptacle connector supports system applications. RoHS-compliant connector is compatible with lead-free processing temperatures.

SynchroTech, A Div. of Synchronized Technologies Inc.    Los Angeles, CA 90010
Jul 08, 2008 MicroU2E-MV is USB 2.0 to USB 2.0 mode ExpressCard 34|54 host adapter that accepts 1.5 and 3.3 V ExpressCards. Cross-platform device allows use of USB based ExpressCards of 3G WWAN wireless devices on slot-less PC notebooks, Apple MacBooks, and MacBook Air.

Westermo    Stora Sundby   Sweden
Jul 07, 2008 Featuring built-in 4-port Ethernet switch, Wolverine Models DDW-221 and DDW-222 offer transfer rates up to 5.7 Mbit/s and operating distance of 10 km. Redundant protocol can be used on SHDSL interface or on built-in Ethernet switch. It uses FRNT technology to re-configure network in event of any link or hardware failure. Model DDW-222 includes RS-232 serial adapter and 10-port Virtual Com port re-direct software, which re-directs Com port to IP address.

ADDER CORPORATION    Newburyport, MA 01950
Jul 07, 2008 Able to extend video and audio up to 165 ft from computer, AdderLink X50 link transparent USB and video extender delivers video at up to 1,920 x 1,200 together with 44.1 kHz digital stereo audio over single CATx cable. Desk, shelf, or rack mountable unit provides true display data channel emulation, ensuring all possible resolutions are supported. AdderLink X50-Multiscreen has second video and transparent, high speed RS232 connection.

Video Products, Inc.    Aurora, OH 44202
Jul 03, 2008 Supporting data transfer rates up to 800 Mbps, 1394B-HUB-3 FireWire hub/repeater allows user to connect and swap 2 FireWire devices to single computer without rebooting. When used as repeater, it doubles maximum range of FireWire cable from standard 14.75 ft to 29.5 ft, and multiple units can be cascaded to extend range up to 236 ft. Unit features circuitry designed to protect equipment from ESD, and supports plug-n-play specifications.

SCM Microsystems, Inc.    Fremont, CA 94539
Jul 03, 2008 Based on smart card technology, CHIPDRIVE MyKey is USB token that stores passwords, credit card numbers, and other sensitive information. Product works with simple application that facilitates filling in username/password logins and online forms. It holds encrypted information instead of PC, so once device is removed information is not available to anyone else. Eliminating need to remember multiple passwords, unit can be used safely anywhere.
