Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Jan 14, 2011 Offering complete hardware and software solution, Model BU-65580MX combines 1 dual redundant MIL-STD-1553 channel and 1 Enhanced Bit Rate-1553 channel with 4-port hub on single card. Card is engineered for rugged environments and can be used in conduction cooled or air cooled systems. Model BU-65580MX is suited for weapons interfaces or stores management systems with limited space.

Belden, Inc.    University City, MO 63105
Jan 14, 2011 Featuring either integrated T-piece functionality or piercing contacts, AS-Interface modules 0910 ASL 146 and 0910 ASL 438 are configured as slaves with 4 digital inputs for 2- or 3-wire sensors and 4 digital outputs for standard actuators. Both the 2 inputs and 2 outputs are Y-connected, and both modules comply with AS-Interface specification v3.0 and provide connection of up to 1,000 DIO. Specifically, each module contains 8 M12 sockets for DIO.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Jan 12, 2011 As standalone system or part of control system, HD-EXT fosters HDMI-based, long-distance signal transmission and distribution throughout classrooms, boardrooms, and commercial buildings with zero signal degradation. Model HD-EXT1-C includes HD transmitter and receiver that carry HD digital A/V as well as 2-way RS-232 and IR control signals over single DM 8G STP (shielded twisted pair) cable, while HD-EXT2-C substitutes RS-232 and IR control with stereo analog audio support.

EasySYNC Ltd,    Hillsboro, OR 97124-5803
Jan 10, 2011 Powered directly from USB connection, non-isolated Model USB2-F-7001 and digitally isolated Model USB2-F-7101 connect CAN bus devices to PC via USB. Each adapter integrates USB-to-FIFO interface IC, CAN controller, and CAN bus transceiver. CAN bus signals are output to DE-9P connector conforming to CAN-in-Automation DS102-2 pin-out, and max CAN bus data rate is 1 Mbps. Operating from -40 to 85°C, adapters use 3 LEDs to indicate link validity, operating status, and error conditions.

Icron Technologies Corporation    Burnaby V5C 5TC  Canada
Jan 07, 2011 Using standard LAN or dedicated Cat 5 cable, ExtremeLink(TM) 4500 connects displays and USB peripherals to computers in remote locations. Unit delivers full PC extension, including HD video, stereo audio, and full 480 Mbps USB 2.0 support. Packaged in 7 x 5 in. form factor, ExtremeLink(TM) 4500 supports all USB 2.0 device types including keyboard, mouse, flash drive, touchscreen, and game controllers. Extender also supports Isochronous USB devices such as USB webcams, speakers, and microphones.

Broadcom Corp.    San Jose, CA 95110
Jan 07, 2011 Manufactured in 65 nm CMOS process technology, BCM20730 Bluetooth transceiver enables wireless connectivity for PC peripherals and 3D glasses. Single-chip HID (human interface device) integrates support for common keyboard and mouse interfaces as well as programmable keyscan matrix interface, with up to 8 x 20 key-scanning matrices. Other features include built-in shutter control for 3D glasses and compatibility with Bluetooth 3.0, featuring unicast connectionless data power control.

EasySYNC Ltd,    Hillsboro, OR 97124-5803
Jan 07, 2011 Powered directly from USB connection, both non-isolated USB2-F-7001 and USB2-F-7101 with built-in digital isolation enable connection of CAN bus devices to PCs via USB. Plastic enclosure features USB type-B socket, allowing adapter to be connected to Host type-A socket using provided cable. Both models integrate USB-to-FIFO interface IC, CAN controller, and CAN bus transceiver and are compatible with USB1.1 and USB2.0 Host and Hub ports for plug-and-play installation.

Balluff, Inc.    Florence, KY 41042-0937

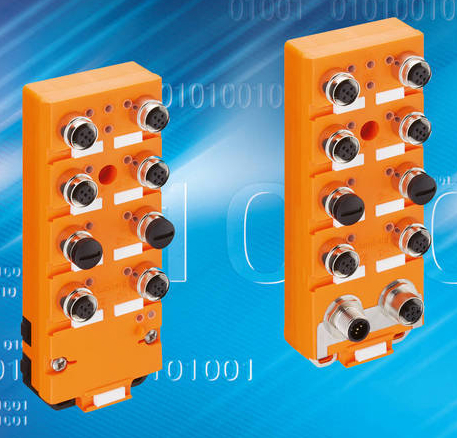

Dec 23, 2010 To accommodate applications with varying housing material requirements, IO-Link hubs range from M8-M12 with plastic or metal housing. They usually replace standalone modules connected directly to bus network and are offered with or without diagnostics. M8 Hubs range from 4-8 ports and include 3 or 4 pole varieties, while M12 Hubs are all 8 port versions with single or dual inputs. Configurable model with output capabilities is also available.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
Dec 20, 2010 Offering customizable setups with Matrox PowerDesk, Matrox Extio F2408 separates up to 4 displays plus keyboard, mouse, and other USB devices from rest of computer via fiber-optic cable. Point-to-point unit delivers zero compression KVM extension with no hidden dropped frames, and supports up to 2,560 x 1,600 resolution per display. Extender also offers flexible connectivity with up to 5 USB ports for HIDs.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
Dec 15, 2010 DualHead2Go DP Edition Graphics eXpansion Modules support uncompressed graphics and video across resolution of 1,920 x 1,200 pixels on 2 monitors, while TripleHead2Go modules support 1,360 x 768 pixels on 3 monitors. Both modules feature Mini DisplayPort-to-DisplayPort cable for connecting them to mini-DisplayPort output of Mac to drive multiple monitors or projectors. They allow use of laptop LCD as additional monitor and are compatible with Windows® OSs.

Opto 22    Temecula, CA 92590 3614
Dec 13, 2010 Providing 2 isolated serial synchronous inputs, SNAP-SCM-SSI Module offers communications interface between digital encoders and SNAP PAC System I/O processors or PACs. Unit connects to and accepts input from binary or Gray code encoders, allowing it to process and communicate position-related data. Accommodating SSI clock frequency up to 2.5 MHz, module functions at cable lengths up to 500 ft and can be configured for clock frequency, data bits, and time interval between data samples.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Dec 09, 2010 Providing reliable bus interface, BU-65586H1 board facilitates addition of dual redundant MIL-STD-1553 channel to any small embedded system, rugged laptop, or rugged tablet computer. Complete hardware and software solution, intended for embedded and rugged portable applications, connects MIL-STD-1553 to PCI-e x1 lane bus via edge connector for ease of use in systems with Mini-PCIe slot.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
Dec 08, 2010 Integrating with desktop, laptop, or tablet computers, Model SB-36610UX is designed for test applications involving angle measurements from synchro and resolver sensors. Portable synchro/resolver-to-digital interface device includes 2 independent channels programmable for inputs from 2-90 V, 47 Hz to 10 kHz, and on-board reference sine oscillator with output voltage options of 2-32 or 20-123 Vrms. Providing 1-min accuracy, device is suited for motor control, robotics, and valve control testing.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245

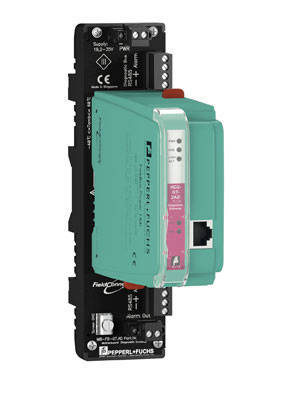

Dec 07, 2010 FieldConnex Diagnostic Gateway supports interoperation between individual Advanced Diagnostic Modules (ADM) of fieldbus infrastructure and Diagnostic Manager in control room. Information is exchanged in both directions via Ethernet, enabling features such as remote setup of ADMs. Combination of gateway and Diagnostic Manager creates monitoring system that offers control-room-based insight into physical layer, which can be managed for availability without expert knowledge.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670

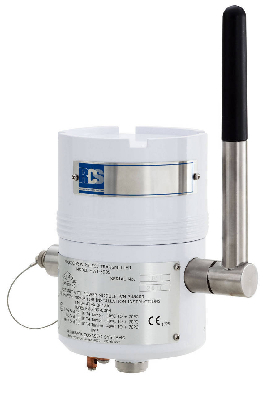

Dec 07, 2010 Designed for corrosion monitoring systems, Microcor Wireless Extender expands mesh networks when outlying wireless devices exceed range of mesh formed by other nodes and gateway. Unit integrates with wireless devices using WirelessHART 7 protocol and can be configured using Wireless Tools Software or Checkmate DL-W Wireless Configurator. Operating from -40 to 70°C, extender is Certified for Class I/Zone 1 hazardous locations, enabling power module to be changed without removing WE from field.

LSI Logic Corp.    Milpitas, CA 95035
Dec 07, 2010 With ability to operate with less than 25 W of power, LSI WarpDrive(TM) SLP-300 plug-and-play I/O acceleration card delivers up to 240,000 4K read IOPS and up to 200,000 4K write IOPS, with access latency of less than 50 microsec. Based on enterprise-proven LSI Fusion-MPT(TM) architecture, product can sustain up to 1,400 Mb/sec of throughput. Card features LSISAS2008 6 Gb/s SAS I/O controller and utilizes LSI SAS software drivers.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
Dec 02, 2010 Intended for wireless corrosion monitoring systems, Microcor Wireless Extender (WE) offers means to expand mesh networks when outlying wireless devices exceed range of mesh formed by other nodes and gateway. It is certified for Class I/Zone 1 hazardous locations and integrates with wireless devices via WirelessHART 7 protocol. With typical life of 3 years, WE offer typical wireless range of 1,000 ft with clear line of sight with up to 3 hops permitted from originating node to gateway.

Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
Nov 12, 2010 Utilizing bus extension technology to ensure full HD resolution support and uncompromised workstation performance at operator station, Extio F2408 separates up to 4 Hi-Res displays plus USB keyboard, mouse, and other HIDs from host system by up to 3,280 ft of fiber-optic cable. Additional outputs can be added, via optional Extio F2408 Expander, to connect up to 8 displays at resolutions up to 2,560 x 1,600 per monitor Independent and stretched mode supports 4x1 and 2x2 configurations.

Jtag Technologies Inc    Stevensville, MD 21666
Oct 27, 2010 Consisting of single tap, IEEE Std. 1149.1 boundary-scan controller, JTAGLive includes built-in support options for Altera and Xilinix hardware. PC-powered unit features single test access port and programmable output voltages and input thresholds. Controller is designed for use exclusively with JTAGLive suite of software tools that include Buzz continuity tester, Clip interactive cluster test generator, and Script Python-based boundary-scan scripting system.

Kontron    Poway, CA 92064
Oct 21, 2010 Based on Cavium Networks OCTEON® II CN6335 MIPS64® 6-core processor, AdvancedMC(TM) AM4211 can be used as eNodeB and LTE network element component or, in combination with full scale AdvancedTCA® blades, as co-processor NIC. Module can be scaled across both MicroTCA(TM) and 14-slot AdvancedTCA® platforms. With direct connectivity to FPGA/DSP AMCs in MicroTCA(TM) platform, unit offers complete solution for MAC processing and L3-L7 processing on single chip, achieving throughput up to 15 M packets/sec.
