L-Com, Inc.    North Andover, MA 01845
Jul 28, 2011 Offered in 24/28 AWG and 28/28 AWG configurations, USB bulk cable is optimized for flexibility as well as provision of full USB power transfer. Both configurations are USB 2.0-compliant and have double shields, braid and foil, to provide maximum protection against data-corrupting EMI/RFI. While 24/28 AWG configuration provides significant power transfer, 28/28 AWG version is primarily used for mini- and micro-USB connectors.

Magnetek    Menomonee Falls, WI 53051
Jul 27, 2011 Designed for Flex M receiver, Radio Drive Serial Interface Module allows users to communicate with IMPULSE drives though serial interface. Communication to any number of drives is achieved with 3 wires. When combined with Magnetek XLTX or MLTX2 transmitter, operators interfacing with Flex M receiver with RDSI module can monitor performance parameters such as drive status, torque reference, output frequency, voltage, current, and power, directly on transmitter's display unit.

Emerson Network Power    St. Louis, MO 63136
Jul 21, 2011 Featuring universal 100-240 Vac input for worldwide use, DCH5 Series generates regulated 5 Vdc output capable of delivering up to 1 A continuously. Adapters operate in constant voltage/constant current mode and are intended for powering or charging any USB peripheral device rated at 5 W or less such as smartphones, tablets, and digital cameras. Available in 4 models for US, Europe, UK, and Australia, adapters employ switch-mode power conversion technology and meet Energy Star Efficiency Level V.

ADDER CORPORATION    Newburyport, MA 01950
Jul 19, 2011 Combining advanced USB technologies with MiMEQ video compensation and clear stereo audio, X-USB PRO delivers true reference-grade, professional product. Unit features transparent USB up to 300 m over single cable, and Multi-pole Mirror EQ cable compensation, which allows users to precisely model specific cable against cable type and cable length. Local feed through at transmission end gives user choice of locations to work from, or allows for multi-user system scenario.

Binder-USA, LP    Camarillo, CA 93012
Jul 14, 2011 Cable designed for CAN-bus applications, available as part of M12 Series 763 product line, features over-molded connectors suited for industrial network applications. Single-ended cordsets are offered in male and female versions with 5 gold-plated contacts. When properly mated, connectors are sealed to IP67 against liquids and debris. Standard cable lengths are 2, 5, and 10 m; custom lengths are available upon request. Mating receptacles and field-attachable connectors are also available.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jul 13, 2011 Featuring field-mountable design, VBA-2E-G11-I/U/PT100-F G11-style Modules can be installed and removed while under power. Units accept 2 freely selectable analog inputs for 4-20 mA, 0-10 V, or PT100 type signals, and provide overall analog conversion speed of 8 ms. Incorporating 2 radial O-rings that ride on precision conical housing components, modules have IP68/69k protection rating for resistance to high-pressure washdown and cleaning solutions.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jul 05, 2011 Rugged 3U cPCI Serial Ethernet Interface board, G211F, accommodates 4 fiber optic Ethernet transceiver channels (1000Base-SX) for connections over distances up to 1,800 ft. Connected to backplane via PCIe x4 link and managed via IEEE 802.3x-compliant Ethernet controller, board's 4 channels transfer data at up to 1,000 Mbps when used simultaneously. Full and half duplex operation are supported depending on chosen transceiver, and board may also be configured with 2 redundant channel pairs.

DSL    Letchworth Garden   United Kingdom
Jun 30, 2011 Powered by fanless 800 MHz Vortex86DX processor with 256 MB DDR2 RAM, 90 x 96 mm ICOP-6357 controller offers three 10/100 Mbps LAN interfaces, 4 serial ports, and 2 USB ports for connectivity. LCD interface supports resolutions to 1,280 x 1,024, and overall power consumption is rated at 800 mA. Backwards compatible for existing x86-based PC104 controllers, product operates from -20 to +70°C as standard or optionally from -40 to +85°C.

Acromag, Inc.    Wixom, MI 48393 7037
Jun 30, 2011 By routing power and bus signals to 4 IndustryPack mezzanine modules, Model APCe8650 creates custom I/O processing boards with PCI Express interface for use in PC-based control systems. Card supports any combination of standard, single-width ANSI/VITA-4 IP modules to offer flexibility in performing variety of I/O signal processing tasks. Residing in memory space, Model APCe8650 features plug-and-play carrier configuration and supports IP module I/O, ID, INT, and MEM spaces.

National Instruments Corp.    Austin, TX 78759-3504
Jun 10, 2011 Part of NI-XNET family of network interfaces, 9862 C Series high-speed CAN module includes hardware-accelerated messaging, onboard frame processing, and communication with 100% bus loads without dropped frames. Module allows engineers to develop in-vehicle networks as well as diagnostics, and perform device validation with synchronized DAQ. Software tools and APIs to accelerate development are included, and product can be incorporated into CompactDAQ and CompactRIO CAN platforms.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jun 08, 2011 Comprised of transmitter and receiver unit, Division 2 KVM Extenders let computers and servers be positioned in one centralized location, away from any environmental hazards, while enabling users to send keyboard, video, and touchscreen or mouse signals over distances up to 1,300 ft. These cULus-Listed products, rated for use in Class I Division 2 hazardous area applications, extenders come in 3 versions to satisfy application needs: VGA to Cat 5, DVI to Cat 5, and DVI to Fiber Optic.

Kontron    Poway, CA 92064
May 31, 2011 Available in air- and conduction-cooled versions, 3U hybrid VX3905 provides up to 24 PCIe Gen 1/Gen 2 ports for up to 32 lanes that can be configured - x8, x4, x2, and x1 - according to required bandwidth. This offers OEMs max data transfer rate of up to 4 GBps per port for serial interboard communication and extended lifecycle of OpenVPX(TM) applications. Up to 9 GbE ports are available for control plane, and optional SATA disk carrier facilitates central data storage for OpenVPX(TM) systems.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada
May 23, 2011 With PhidgetBridge 1046, users can connect up to 4 un-amplified Wheatstone Bridge based sensors, such as strain gauges, compression load cells, and pressure sensors. Unit supports specific data rates from 1-125 samples/sec and lets users adjust gain from 1-128. Providing up to 465 mA to Bridge outputs, PhidgetBridge 1046 features USB voltage range of 4.5-5.25 Vdc, USB current of 500 mA, and 35 mA USB quiescent current.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
May 06, 2011 PowerWise repeaters are offered as model DS80PCI402 with 4 bidirectional channels, DS80PCI800 with 8 channels, and DS80PCI102 with 1 channel. Delivering 65 mW/channel power consumption, all support selectable 3.3 or 2.5 V single-supply voltage. Receive equalization gain is up to 36 dB and transmit de-emphasis is 12 dB, with both performing on each lane to compensate for channel loss. Repeaters enable up to 40 in. FR-4 backplane reach to simplify migration to PCIe Gen-3 data rates.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482
May 03, 2011 Able to integrate with smaller desktops, SB-3623X suits test applications involving instrument-grade angle position simulation of up to 6 independent channels, programmable up to 90 V Synchro or Resolver, at 30 arc sec accuracy. Half-size card is used to perform lab testing on position sense for motor control, industrial automation, robotics, gimbal positioning, and valve control. Features include programmable reference sine oscillator, dynamic rotation, and up to 3 two-speed outputs.

ADLINK Technology Inc.    Irvine, CA 92618
Apr 27, 2011 Providing 200 MS/s sampling rate of 14 bits of data across 1 channel, Model PCIe-9842 is designed for light detection and ranging tests as well as radar signal acquisition. Unit's 100 MHz bandwidth analog input receives ±1 V high-speed signals with 50 W impedance. For applications that require data to be acquired and transferred in real-time, board is designed on PCI Express x4 bus interface. End-users benefit from 11.3 ENOBs and 70 dB SNR with 10 MHz sine wave input frequency.

Tripp Lite    Chicago, IL 60609
Apr 18, 2011 With wall-plate form factor that provides streamlined, finished look to wiring installations, USB Wall Plate (model B202-150-WP) uses Cat5/Cat6 cable and lets users place host computer up to 150 ft away from any USB peripheral device. Rear-mounted RJ45 jacks facilitate connections between wall plates, without 110-type punchdown connections. Compliant with USB 1.1 specifications, bus-powered solution does not require any additional AC adapters and provides 1.5-12 Mbps transfer rates.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Apr 15, 2011 Comprised of Ethernet communication gateway and backplane, ETHERNET Remote I/O bridges field instruments and Modbus TCP-based Ethernet with data transfer rates to 100 Mbps. Field signals can have intrinsically safe connection for Div 1/Zone 0 applications, and up to 80 analog or 184 discrete signals can be controlled through one gateway. While high transfer frequencies require LWL connections for extended distances, copper lines are suitable for shorter distances up to 100 m.

ADDER CORPORATION    Newburyport, MA 01950
Apr 15, 2011 Suitable for PC, Mac, and Sun computers, AdderLink X-DVI PRO delivers transparent USB and full bandwidth DVI over single cable to ensure what is shown on screen is exactly what workstation intends. Device supports extensions over distances up to 200 ft and achieves full frequency clock rate for single link DVI connections. Providing plug-and-play functionality, device feeds extended profile DDC EDID information from screen to ensure proper video card setup.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada

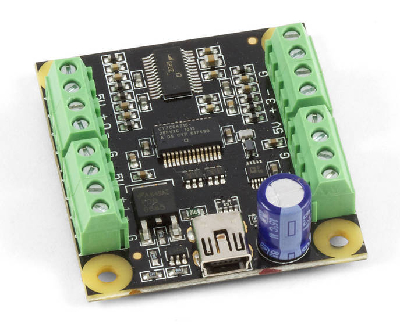

Apr 07, 2011 Completely plug-and-play, 1011 - PhidgetInterfaceKit 2/2/2 provides 2 analog inputs, 2 digital inputs, and 2 digital outputs on dongle-sized board that supports USB voltage from 4.75-5.25 Vdc. Respective update rates for analog inputs and DIO lines are 1,000 and ~125 samples/sec. Solution comes with custom 12-wire cable, where wires 1/2/3 and 7/8/9 end with female connector designed to take Phidget sensor cable; other wires are loose. Users decide OS and computer language.
