USB Connectors

Electrical Equipment & Systems, Computer Hardware & Peripherals

USB Wall Plug Adapters meet Level VI standards.

August 13, 2015

Featuring 2.56 x 1.42 x 0.89 in. footprint, 5 Watt Models SWI5-5-N-I38 and SWI5-5-E-I38 deliver 5 Vdc single regulated outputs with universal input voltage from 90~264 Vac. Both feature no load power consumption of <0.075 W and provide over voltage, over current, and short circuit protections. SWI5-5-N-I38 has input blades for North American and Japanese applications, while SWI5-5-E-I38 has European input blades. Applications include media players, e-readers, GPS, and other mobile devices. Read More

Computer Hardware & Peripherals

USB Flash Module enables in-field panel upgrades without computer.

April 13, 2015

Used in field, Model 400 USB Flash Module lets installers update firmware for panels that would otherwise require computer and Model 399 Programming Harness. USB 2.0 connector is provided to plug USB flash drive into Model 400, and 4-pin header connects directly to panel. As new firmware is released from DMP, it can be downloaded and stored on USB flash drive and then connected to Model 400 to be used for panel firmware updates. LED on USB indicates successful programming. Read More

Electrical Equipment & Systems, Electronic Components & Devices, Optics & Photonics, Computer Hardware & Peripherals

Feed-Through Connectors eliminate soldering.

March 6, 2015

Available in audio, data, and fiber versions, FT Digital XLR Feed-Through Connectors can be front or rear mounted into standard 24 mm XLR connector mounting hole. Options include both USB 2.0 and 3.0 LC and SC fiber, RJ45 in both Cat6 and Cat5e with and without shielding, and connector gender change. Offered with standard or countersunk mounting holes, connectors have high impact plastic shells. Bezels are available in 7 colors to identify function when fitted to control panel. Read More

Computer Hardware & Peripherals

USB Type-C Port Controllers target top-tier PC makers.

February 13, 2015

Based on PSoC® 4 programmable system-on-chip architecture, CCG1 Type-C Port Controllers integrate voltage- and current-monitoring circuitry critical for power adapter applications. PSoC 4 architecture integrates ARM® Cortex™-M0 core with PSoC's programmable analog and digital peripherals. Type-C standard’s 2.4 mm high connector plug allows for transport of USB signals and PCIe or DisplayPort signals on same connector. Applications include USB cables, power adapters, notebooks, and monitors. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Electronic Components & Devices

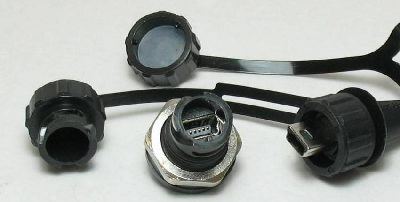

RJ45 and USB Panel Mount Connectors are waterproof to 1 m.

December 18, 2014

Rated 1.5 A @ 125 V, ASICPICRJ45S shielded, panel mount RJ45 receptacle has gold-plated contacts and provides Ethernet connectivity for industrial environments. Panel mount USB receptacle, ASICPICUSB2.0AS, is rated at 1.5 A @ 30 V AC/DC, has gold-plated contacts on front and 4 solder connection pins and shield in back, and provides USB connectivity for data transmission in industrial environments. When covered by ASICPICPC protection cap, RJ45 and USB bulkhead connectors have IP67 rating. Read More

Computer Hardware & Peripherals, Electronic Components & Devices

USB 3.0 Interface ICs come in low-pin count packages.

November 20, 2014

Respectively, FT600Q and FT601Q come in 56- and 76-pin QFN packages and feature 16- and 32-bit wide FIFO bus interface. Both chips, which function as SuperSpeed USB 3.0 to FIFO bridges, support up to 8 endpoints (other than management endpoints) linked to configurable buffers of 16 KB length for in and 16 KB for out. Providing data bursting rates up to 3.2 Gbps, USB 3.0 products support 2 interfacing modes: 245 FIFO mode and multi-channel FIFO mode. Read More

Computer Hardware & Peripherals

USB Adapter Kit extends wireless coverage.

October 31, 2014

Supplied in FCC/IC certified kit, 2.4 GHz 802.11b/g/n Model ARK-2404U-3 comprises WLAN-LCUSB2415 wireless USB Adapter and Hyperlink's 4 dBi omni-directional antenna. Adapter supports data rates of 150 Mbps and features IP67-rated waterproof enclosure for outdoor applications. Included 5 m cable is terminated with USB 2.0 plug for direct connection to desktop or notebook PC. Additional features include 100 mW to 1 W adjustable RF power, Windows OS drivers, and WPA/WPA2 data security. Read More

Computer Hardware & Peripherals

Video Adapters provide 4K HD video through USB 3.0 connection.

October 13, 2014

USB 3.0 to HDMI® (USB32HD4K) and USB 3.0 to DisplayPort® 1.2 (USB32DP4K) enable users to connect USB 3.0-equipped laptop or desktop PC to Ultra HD 4K television, display, or projector, even if computer does not natively support 4K video. Integrated chipset enables plug-and-play functionality, where drivers are automatically installed and updated, and USB-powered performance eliminates need for additional power supply. Areas of use include graphics-intensive applications. Read More

Computer Hardware & Peripherals

USB to Serial Bridges offer 12 Mbps USB data transfer rate.

September 29, 2014

Available with 1, 2, or 4 UART channels, XR21B142x Series provides way to interface with RS-232 or RS-485 serial networks through USB using minimal PCB space. Large 512 Byte transmit and receive FIFOs enable max data throughput of 9 Mbps across up to 4 UART channels. Offering ±15 kV ESD protection on USB pins, devices eliminate need for additional protection components, making them suitable for smart grid data collection, data aggregators/concentrators, and security/access control systems. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Mounting & Attaching Products

Shielded Connector can convey transmissions up to 5 Gbps/pair.

September 18, 2014

Supporting LVDS, USB3.0, and HDMI 1.4a Type E, GT32 Series employs pin-in-hole intrusive reflow method that promotes PCB retention force and enables one-time reflow process with other SMT components. Lock strength is 98 N, and operational range is -40 to +105°C. Featuring 1.5 mm pitch, shielded connector offers EMI shielding and low near-end crosstalk (NEXT). Respective transmission speeds for 4-, 10-, and 19-position models are up to 3, 5, and 2 Gbps/pair. Read More

Computer Hardware & Peripherals

USB over IP Extender connects Windows PCs to 4 USB devices.

July 8, 2014

By allowing remote connection of 4 USB peripheral devices over Ethernet, Model USB-IP-4LC eliminates need for locally attached host PCs. USB peripheral devices can be centrally managed and monitored from remote server or PC via web interface. Offering true plug-and-play functionality, extender transfers data over 1000Base-T Gigabit Network and supports variety of USB 1.0 and 2.0 devices such as USB hard drives, flash drives, card readers, webcams, scanners, and multi-function printers. Read More

Computer Hardware & Peripherals, Communication Systems & Equipment

USB Fieldbus Adapter extends connectivity to fieldbus networks.

July 1, 2014

USB Fieldbus Interface v3 facilitates in-field or instrument shop-based FOUNDATION fieldbus device configuration, monitoring, and troubleshooting. Multiple options are provided for commissioning and configuring FOUNDATION fieldbus devices. Functionality allows Fieldbus devices to be commissioned, decommissioned, and assigned device tags. Communication DTM, included, enables device configuration using third-party FDT Frame Applications and library of Emerson Device DTMs. Read More

Computer Hardware & Peripherals

USB-to-RS422/RS485 Adapters offer 10 kV ESD protection.

June 25, 2014

Offering plug-and-play installation, single-port Model ES-U-2001-S incorporates automatic transmit and receive control for 2-wire RS485 half-duplex mode. Model ES-U-2001-STB has same features and functionality, but with 5-pin terminal block connector included which facilitates wiring process. Suitable for connection with either USB 1.1 or 2.0 hosts, adapters' high-speed serial ports are capable of data rates from 300–921.6 kbps. Both have built-in termination and biasing mechanisms. Read More

Computer Hardware & Peripherals, Services

USB3.0 Connectors accommodate height-restrictive applications.

June 2, 2014

USB3.0 mid reverse connectors are designed for inclusion in such devices as tablets, notepads, and other handheld devices. Mid bottom mount USB3.0 connectors are available for low-profile applications where height above and below PCB is critical. Allow mounting on bottom of PCB, reverse connectors sit in cut out on PCB to minimize height. With cutaway face, USB1115 has .212 in. body height and suits angled panels. While USB1110 is mounted below PCB, bulk sits above PCB. Read More

Computer Hardware & Peripherals, Electronic Components & Devices

Micro USB Connectors feature long leads for thick PCBs.

March 21, 2014

Providing .090 in. leads for .062 in. PCB thickness, USB3106 B Type and USB3131 A/B Type Connectors feature through-hole, vertical design suitable for applications where horizontal connectors do not meet customer requirements. Typical applications include smart watches, electronics bracelets, sports headgear, consumer electronics, wearable electronics, robotics, and home automation. Read More

Test & Measuring Instruments, Computer Hardware & Peripherals, Communication Systems & Equipment

USB/RS-232 Serial Adapter enhances Android device connectivity.

February 5, 2014

By using Android Open Accessory protocol to make Android device recognize onboard USB port as RS-232 port, ANDROID-232 lets users control legacy RS-232 devices directly from Android devices and vice-versa. This industrial- and military-grade, 2-way data port supports serial data rate up to 921.6 kbps (max of 115.2 kbps without flow control), and onboard circuitry provides power to charge Android device while connected. USB serial interface board is rated for -40 to +85°C operation. Read More

Computer Hardware & Peripherals

RS422/USB converter lets computers accommodate optical sensors.

January 17, 2014

Four-channel IF2004/USB lets lab PCs, company laptops, or computers without RS422 industrial interface evaluate readings from laser and confocal sensors. Able to convert digital signals from up to 4 optical sensors into USB data packet, product also ensures synchronous data acquisition for defined temporal allocation of four RS422 inputs. Converter has 4 trigger inputs and one trigger output for connecting additional converters. Connected sensors and converter are programmable via software. Read More

Computer Hardware & Peripherals

USB-to-CAN Interface connects over USB 2.0 at 480 Mbps.

December 24, 2013

Promoting data throughput with minimal latency and power consumption, IXXAT USB-to-CAN V2 comes in variants with one or two CAN interfaces based on ISO 11898-2. In USB-to-CAN V2 compact, CAN connection is via sub-D9 plug or RJ45 connector. Versions that carry two CAN interfaces are connected via RJ45 connectors. Another variant, IXXAT USB-to-CAN V2 for embedded use, is designed sans housing but with slot board and adapted USB cable for installation into computer. Read More

Computer Hardware & Peripherals, Electronic Components & Devices

High-Speed I/O Connectors operate from 5-10 Gbps.

December 19, 2013

Operating as storage interface, SATA III Connector supports server, desktop/mobile PC, hard drive, and HD DVR applications. PCIe3.0 Connector can support up to 8 Gbps and is used in expansion cards that interconnect with server, switch, router, and desktop applications. Through single, compact port, Thunderbolt Connector supports high-resolution displays and data devices. USB 3.0 Connector is used in SuperSpeed USBs to furnish connectivity for desktop/mobile PCs, servers, switches, etc. Read More

Test & Measuring Instruments, Computer Hardware & Peripherals

USB-to-CAN Interface connects over USB 2.0 at 480 Mbps.

December 9, 2013

Suitable for demanding applications at max bus load and CAN bit rates up to 1 Mbps, USB-to-CAN V2 Interface is available with 1 or 2 CAN interfaces based on ISO 11898-2. In USB-to-CAN V2 compact, CAN connection is implemented as sub-D9 plug or alternatively as RJ45 connector. Versions that carry 2 CAN interfaces are connected via RJ45 connectors. Additional options include galvanically isolated CAN interfaces, bulk variants, and support for ISO 11898-3 low-speed CAN and LIN. Read More
