Twisted Pair Cables

Computer Hardware & Peripherals, Electrical Equipment & Systems

CAT.6A Cables suit continuous flex and torsion applications.

June 11, 2014

Combining 10 Gbps data transfer with continuous flex and torsion performance, ETHERLINE® CAT.6A Cables are suited for robotics, machine vision systems, wind turbines, and other industrial machines. Shielding system employs proprietary process that wraps aluminum compound foil around individual twisted pairs at angle for optimized performance. Compliant with Profinet standard and resistant to UV and flame, cables also have copper braid reinforced with foil-laminated fleece. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

CAT 6A Cabling Systems support 10GBASE-T up to 500 MHz.

July 29, 2013

Featuring modular connector that terminates with JackEasy tool, ICC CAT 6A UTP System has internal separator and jacket for centered wiring core, minimizing Alien Crosstalk from neighboring cables. ICC CAT 6A FTP System, equipped with shielded jacket to minimize EMI/RFI noise, features modular connector designed for tool-less termination. UTP system suits high-bandwidth data centers, while FTP system operates in hostile datacom environments. Both exceed TIA-568-C.2 Category 6A standard. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Green & Clean

CMR Cables feature halogen-free construction.

February 1, 2013

Part of 17 FREE™ line, GenSPEED® 10 MTP™ Cat 6A 10 Gig Type CMR Cables contain Mosaic Crossblock™ technology, providing unshielded twisted pair cable that performs like shielded cable but with green properties. Cables do not contain any chlorine, fluorine, bromine, or iodine. ETL listed and UL verified, cables are suited for network infrastructure and data centers within enterprise, healthcare, and education markets where data must be moved quickly and communications delivered in real-time. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Data Cables operate in industrial environments.

July 30, 2012

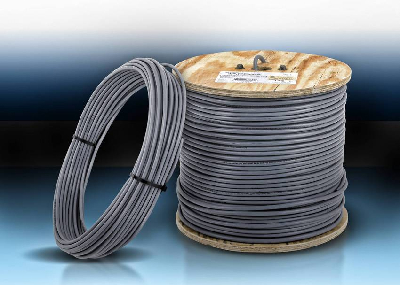

Designed with impedances specific for RS-232/422 and RS-485 communication applications in industrial environments, Data Cables feature 24 AWG twisted pair tinned copper conductors in 1, 2, or 3-pair color coded constructions. Cables have polyethylene conductor insulation and gray PVC jacket. Protection from radiated or conducted EMI is provided by combination shields consisting of overall foil shield layer with drain wire and woven braid shield layer. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Twisted, Shielded Pair Cable have tight bend radius.

June 2, 2010

Madison Cable brand InfiniTwist cables simplify cable management in high-density systems via bend radius of less than 2.5X cable diameter. Cables exhibit virtually no pistoning of conductors or pairs, and twisted-pair design promotes flexibility as well as mechanical reliability while decreasing time delay skew. Offered in constructions of 1-36 pairs and above, cables utilize conductor sizes 32-24 AWG and support transmission speeds up to 16 GHz and beyond. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Hi-Speed Twisted-Pair Shielded Cables have tight bend radius.

May 21, 2010

Available in construction of 1-36 pairs and above, InfiniTwist cables utilize conductor sizes of 32-24 AWG and offer bend radius of less than 2.5x cable diameter. Cables can be manufactured in both 85 and 100 W impedance and support transmission speeds up to 16 GHz and beyond. Applications include InfiniBand (SDR, DDR, QDR, and FDR - 1X, 4X, and 12X), 10G/40G/100G Ethernet, and Fibre Channel (12 Gbps, SFP+, QSFP+, CXP, CR4, CR10, and 16 Gbps) standards. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Data Cables optimize bandwidth for Cat 6 networks.

May 27, 2009

Designed to support Category 6 IBDN System 3600, DataTwist® 3600 Cables provide stable transmission characteristics and offer SNR that ensures error-free performance in LANs where noise and interference are high. These UTP copper cables, which meet and exceed TIA/EIA requirements, consist of 4 pairs of 23 AWG insulated copper conductors with round flexible core construction. Diameter and bandwidth properties enable high-density installations. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

IP Cables suit video, sound, and security applications.

April 23, 2009

Offering integrated Power over Ethernet in single cable, IP Category 5e and Category 6 Unshielded Twisted Pair Cables come in riser- and plenum-rated versions and meet ANSI/TIA/EIA-568-B.2-2001 Standard. Category 5e cables feature 24 AWG solid bare copper conductors and are sweep tested to 100 MHz, while Category 6 cables feature 24 or 23 AWG solid bare copper conductors and are sweep tested to 250 MHz. All are available with black jackets. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Cables are constructed for optimal performance.

February 6, 2009

Belden 10GX® Cables utilize Bonded-Pair technology, where cable's individual conductors are bonded along their longitudinal axis for uniform spacing within each twisted pair, allowing them to maintain signal integrity and consistent transmission performance throughout stresses of installation and maintenance. In addition, they incorporate central spline that separates and holds twisted pairs firmly in position at uniform distance from each other, improving crosstalk performance. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Round Cable targets sealed industrial Ethernet applications.

November 21, 2008

Helping to future proof mission-critical network and automation system backbones, DataTuff® 7940A Category 6 UTP Cable is Ethernet/IP compliant. Four-pair 23 AWG cable features solid bare copper conductor and heavy-duty oil- and sunlight-resistant jacket. Bonded-Pair technology bonds individual insulated conductors of each pair along full length of cable. For optimal electrical performance, cable maintains consistent distance between conductors, with no twisting or gaps. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Industrial Ethernet Cables withstand 10 million cycles.

November 12, 2008

Featuring stranded alloy copper conductor, Cat 5e DataTuff Continuous Flex Cable, Product No. SI7938A, is rated for use in continuous motion machinery. Four-pair 24 AWG cable includes polyolefin insulation, overall Beldfoil foil/braid shield, and dual TPE jackets for resistance to oil, weld splatter, and sunlight. Cat 5e DataTuff Continuous Flex Cable, Product No. 7939A features flexible stranded and shielded construction that withstands vibrations and resists EMI/RFI. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Cable Assemblies handle high mating cycle applications.

March 27, 2008

Twisted Pair IDC cable assemblies employ 32 AWG 7/40 tinned cable with PVC insulation. Female assembly, Series FFTP, is double-ended with standard notch polarization and mates with .050 in. micro, shrouded, and ejector headers. Male Series FMTP is available double-ended or with transfer end and mates with .050 in. low profile and micro socket strips. Both series are RoHS compliant and available in choice of cable lengths with optional reverse connector on second end. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Twisted Pair Cables eliminate alien crosstalk.

February 26, 2007

Suited for UTP environments, 10 Giga SMARTen(TM) Ungrounded Foiled Twisted Pair Cables enable achievement of electromagnetic conductivity and Alien Crosstalk performance as required for full compliance with CISPR/FCC CLASS A EMC IEEE 802.3an requirements. Because connectors within cables are able to touch each other, cables have diameter of only 8 mm. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Network Connectivity Components suit high-noise environments.

November 3, 2006

Uniprise® Foiled Twisted Pair Solution cable assemblies include Category 6 and 5e cabling, patch cords, modular patch panels, and information outlets. Products provides plug-and-play design to facilitate interconnection without special tools. With components that meet TIA/EIA, IEC 60603, and ISO/IEC 11801 standards, Uniprise FTP components are suitable for automotive and industrial markets. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Audio Cables provide immunity to interference.

September 13, 2006

Suited for professional audio systems, SonicWave(TM) Pro instrument and microphone cables are available in coaxial and twisted pair, shielded configurations. CU Shielding Technology(TM) ensures interference-free transmission of audio signals, while connectors maintain integrity from component to component. Twisted pair cables are available with XLR male to female or ¼ in. TRS male to male connectors, while coaxial cables come with XLR female to ¼ in. male or ¼ in. male to male connectors. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Fasteners & Hardware

Patch Cables feature color-matched boots.

May 26, 2006

Available in variety of colors, CAT 6 Patch Cords are suited for distances up to 100 m. They consist of unshielded twisted pair cables with 4 pair, 24 AWG stranded conductors. Cables are terminated with RJ45 connectors in accordance with TIA/EIA 568B standards, and certified to 550 MHz. Offered in standard and custom lengths, patch cords are suited for 10Base-T, 100Base-T, 1000Base-T, Ethernet, and Gigabit Ethernet applications. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Cables ensure operation of emergency warning/evac systems.

January 6, 2006

Safe-T-Line cables include circuit integrity (CI), CI-PLTC, and circuit integrity in conduit (CIC) cables. Rated for use in high-rise buildings, Safe-T-Line CI and CIC cables meet 2-hr Flame Test requirement, can be installed vertically, and withstand direct contact with flame. Available with solid, stranded shielded, or unshielded construction in 1,000-ft lengths, cables feature thermoset elastomer insulation and flame-retardant, LSZH polyolefin jackets. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Heavy-Duty Cat 5E UTP Cables may be used indoors or out.

September 20, 2005

Brilliance CatSnake tactical field-deployable Category 5e audio/video cables feature bonded-pair unshielded twisted pairs with 24 AWG stranded bare copper conductors and polyolefin insulation. Used for patching Ethernet or other Cat 5e digital audio/video formats, AES/EBU-compliant product No. 1304A and 1305A have stranded (7 x 32) conductors and matte-finished Belflex jackets. Heavy jacket wall and upjacketed versions are also available. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Shielded Twisted Pair Cable suits Wi-Fi tower transmissions.

September 13, 2005

Compatible with any system that uses RJ-45 connectors, outdoor-rated, 4-pair 1300A Cable connects point-to-point and point-to-multipoint wireless LAN systems. It features .030 in. thick, UV-resistant PVC jacket with Beldfoil shield bonded to jacket's inner wall. Weather-resistant construction enables stable performance, even in high-traffic RF environments. Cable adheres to TIA/EIA 568-B.2 Category 5e and Power over Ethernet IEEE 802.3af standards. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Retractable Cables come in USB 2.0 and Cat5E versions.

March 8, 2005

Used to connect computer to USB 2.0 or 1.1 devices, USB 2.0 cables measure 4 in. long when retracted and extend to 4 ft. They support data transfer rates to 480 Mbps and come in 3 versions for use with devices that have USB B, mini USB 4-pin, or mini USB 5-pin connectors. Cat5E ZIP-LINQ(TM) Ethernet retractable cable connects computer to 10/100 Ethernet network. It extends to 5 ft and features Evernew flat Cat5E cabling with twisted pair construction. Read More
