Corning Cable Systems    Hickory, NC 28603-0489
Oct 10, 2005 Suited for deploying optical access networks, OptiSheath(TM) Premier FlexNAP(TM) Terminal Distribution System consists of optical cable pre-installed with network access points at customer-specified locations and tethered, environmentally hardened MT connector. FlexNAP cables can pass homes without incurring cost of terminal placement or fusion splicing prior to service being offered or subscribed.

Gore, W. L., & Associates, Inc., Electronic Products Div.    Elkton, MD 21922-0160

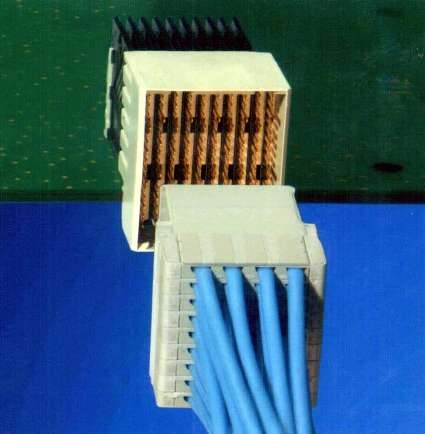

Jun 06, 2005 Leveraging FCI's AirMax VS® high-speed connection system, High Density Copper Cable Assembly provides aggregate bandwidth of 1.0 Terabit/sec using 50 linear millimeters of backpanel space. Helically wrapped, expanded PTFE dielectric core ensures constant impedance throughout length of cables. Connectors are offered in 5, 4, and 3 pair/column versions and in 10, 8, and 6 column counts. Assembly is suited for large-scale servers, telecom switches, and other data intensive hardware.

Igus, Inc.    East Providence, RI 02914 0349

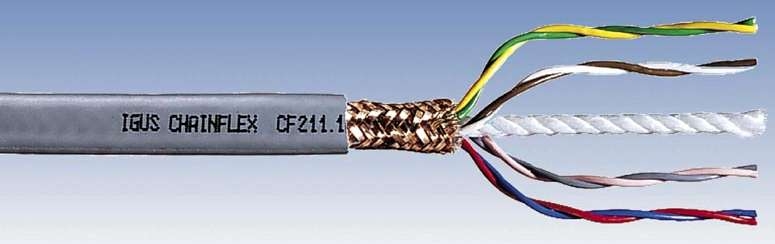

May 23, 2005 UL-approved Chainflex® CF211 and CF240 feature PVC-based outer jacket and short-pitch conductor twisting. Twisted pair CF211 has high-coverage shield, 70% linear and 90% optical, and can be used with bus systems. Minimum bend radius is 12x cable diameter. Type CF240 has same coverage shield and bend radius and is available in 21 sizes with gauge range of 26-20 AWG. Both have continuous-flex temperature range of 23 to 158°F and operating voltage of 300 V.

American Power Conversion    West Kingston, RI 02892
Feb 17, 2005 InfraStruXureâ„¢ Systems provide turnkey solution for IT managers addressing disaster recovery and converged voice and data applications. Single-rack configurations for wiring closets and computer rooms feature base unit with UPS, PDU, network management card, blanking panels, cable management, data partitions, and expansion racks. Multi-rack configurations for data centers include N+1 power and cooling, peak capacity of 20 kW per rack, and integrated management software.

TE Connectivity Ltd.    Berwyn, PA 19312

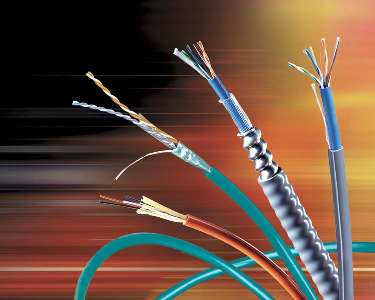

Feb 01, 2005 AMP NETCONNECT XG UTP System consists of unshielded, twisted-pair cabling that supports 10G Base-T and enables 10 Gigabit Ethernet transmission over full 100 m channel. System has been tested to 625 MHz in worst-case scenario installations and has demonstrated Shannon Capacity of greater than 19 Gb/s.

TE Connectivity Ltd.    Berwyn, PA 19312
Feb 01, 2005 Offered in 10 colors, MT-RJ SECURE Outlet and MT-RJ SECURE Patch Panel Jacks are no-epoxy, non-polish, no-crimp, reusable 2-fiber connectors that help users segregate multiple networks in same location. Color-coded and keyed jacks mate only with like-colored plugs to minimize connection to wrong networks and improper connection of segregated networks. Jacks are available for 50 micron, 62.5 micron, XG, and singlemode systems.

HARTING, Inc. Of North America    Elgin, IL 60123 5538
Jan 20, 2005 Ethernet M12 D-Coded products include M12-RJ45 Adaptor, M12 Panel Feed Through with 50 cm conductors, and M12 Panel Feed Through with dip solder pins. All connectors support standard interface used for industrial Ethernet and are approved for use with EtherNET/IP and ProfiNET. When used as panel feed through, connectors have decreased profile compared to RJ45 connectors and are IP67 rated.

NAPCO Security Systems, Inc.    Amityville, NY 11701-2800
Jan 11, 2005 Securi-Smart® combines 2 telephone lines and 10/100 Base Ethernet connection over one CAT5e wire and provides users with means to incorporate security and structured wiring. Product is offered in dual door aluminum enclosure models with locking dedicated security compartment as well as turnkey structured wiring kits preconfigured with Gemini Systems and all necessary modules, brackets, and amps. Enclosure also acts as a dust cover.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 03, 2005 Designed to maximize front-panel space utilization and streamline fiber management, multi-fiber MTP/MPO Fan-Out Cable Assemblies are supplied in single mode and multimode fiber. They utilize 12-Fiber MTP connector on one end and discrete connectors, such as LC, SC, FC, and ST, on breakout end. Rackmount MTP Quick-Connect modules are available to facilitate termination and transition of MTP cable to discrete connectors.

Whitney Blake Co.    Bellows Falls, VT 05101 0579
Dec 03, 2004 Pre-assembled Handset and Headset Assembly Cords feature polyurethane jacket and may be customized with appropriate contacts and connectors. Length and flexibility of cords gives user range of motion needed in demanding environments. Specific applications include radio telephone handsets, vehicle intercom systems, and mobile radio systems.

Samtec, Inc.    New Albany, IN 47151 1147

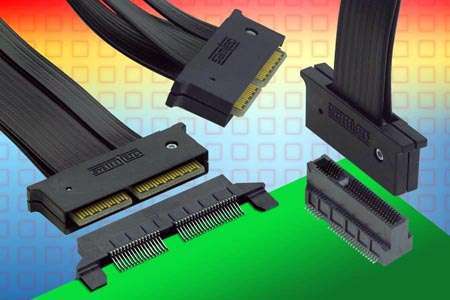

Oct 29, 2004 Series EEDP High Data Rate Cable Assembly, manufactured with 30 AWG twin-ax cable, provides flexible solution for HSEC8 Series edge card interfaces with various mounting options. Suited for cable lengths up to 1 m, with custom lengths to 1.8 m, system has fully encapsulated solder joints and locking and latching options. Standard assemblies are available with 8, 16, 24, and 32 pairs. Mating connectors may be oriented vertically or edge mount.

Belden    Richmond, IN 47375
Oct 15, 2004 Available in 2- and 4-pair versions, DataTuff Category 5e Cables feature polyolefin insulation and PVC jacket. They withstand oil, sunlight, wide temperature variations, abrasion, and crushing. Bonded-Pair technology affixes conductor insulation of cable pairs along longitudinal axes to ensure that no gaps develop between conductor pairs. Cables avoid data transmission errors that can lead to unsafe conditions or interruption of industrial control functions.

ITT Industries    Newton, MA 02458

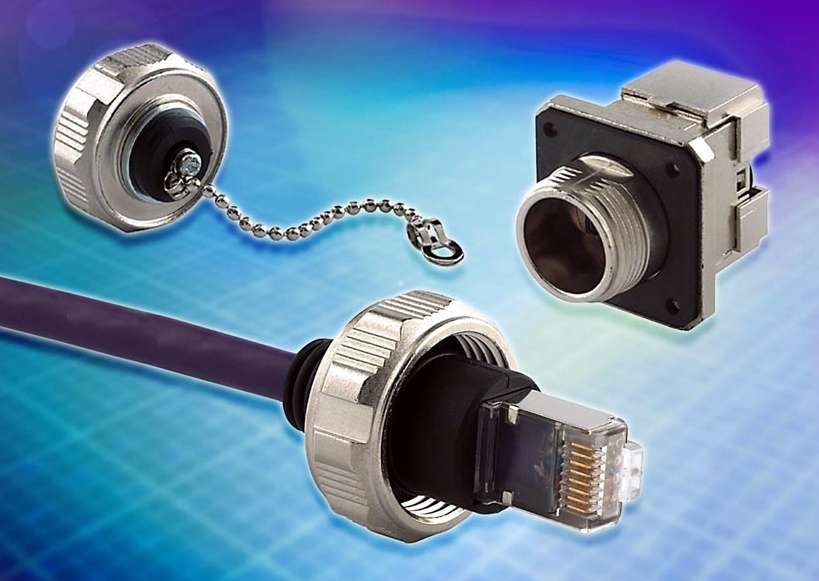

Oct 08, 2004 Waterproof to IP67, CAT6 and CAT 5E RJ45 Ethernet Connectors are IDC terminated, with 360° CEM shielding, and rear metallized cap. Available in several lengths, pre-terminated patch cords feature PVC or polyurethane cabling to resist oil and other damaging liquids. Snap-in rear covers provide tight fixing and guidance while maintaining ground and shielding continuity. Steel or stainless steel boxes deliver IP66 protection and enable connectors to be mounted anywhere.

Animatics Corp.    Santa Clara, CA 95054
Sep 20, 2004 Fully-molded Add-A-Motor(TM) cables daisy-chain multiple SmartMotor 1700 and 2300 Series motors for serial operation, supplying dc power and RS-232 communications. Products feature fully-molded connector ends and high-flex cable. Each cable has female 7-pin SmartMotor 7W2 Combo-D-sub connector on one end and female 7-pin 7W2 D-sub connector backed by male 7-pin connector on other end. Cables come in standard lengths of 0.3, 1.0, 3.0, and 7.5 m.

Alcatel USA, Inc.    Plano, TX 75075

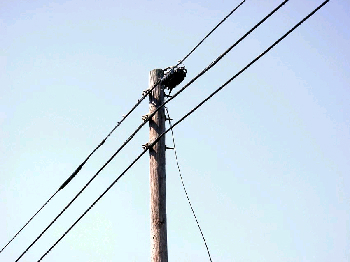

May 18, 2004 Providing electrical grounding protection, 6841 Optical Ground Wire (OPGW) functions as drop-in communications cable replacement for overhead ground or static wire. Designs use stainless steel or aluminum tubes along with aluminum-clad steel and aluminum-alloy wires to provide electrical grounding protection, mechanical strength, and optical fiber protection. They are available with TeraLight Ultra and Metro fibers as well as Enhanced SingleMode Fiber.

HARTING, Inc. Of North America    Elgin, IL 60123 5538

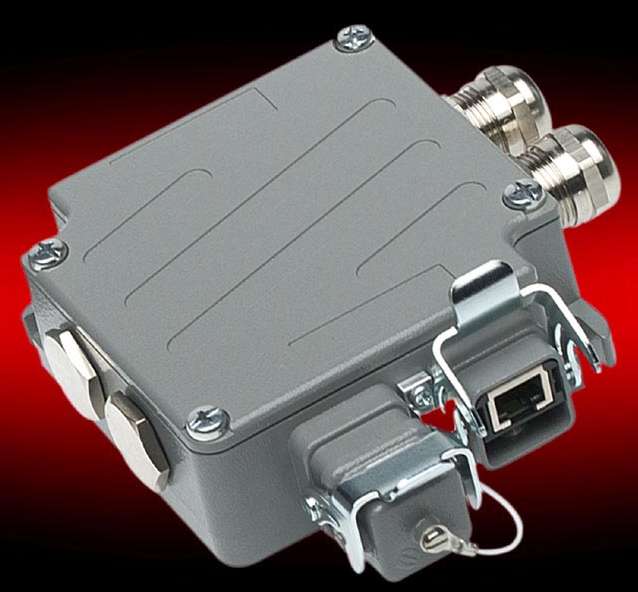

Feb 12, 2004 Industrial Outlet INO 67-30 TP02 facilitates installation of structured Industrial Ethernet cabling. Double wall outlet, with two RJ 45 connectors, provides optimized connectivity for secure data transmission. Metal housing, with protection class IP 65/67, allows product to be installed directly in production environment. Unit is fitted with HARTING RJ Industrial IP 67 Data 3A Connectors and conforms to Profinet® Installation Guideline.

Gore, W. L., & Associates, Inc.    Newark, DE 19711

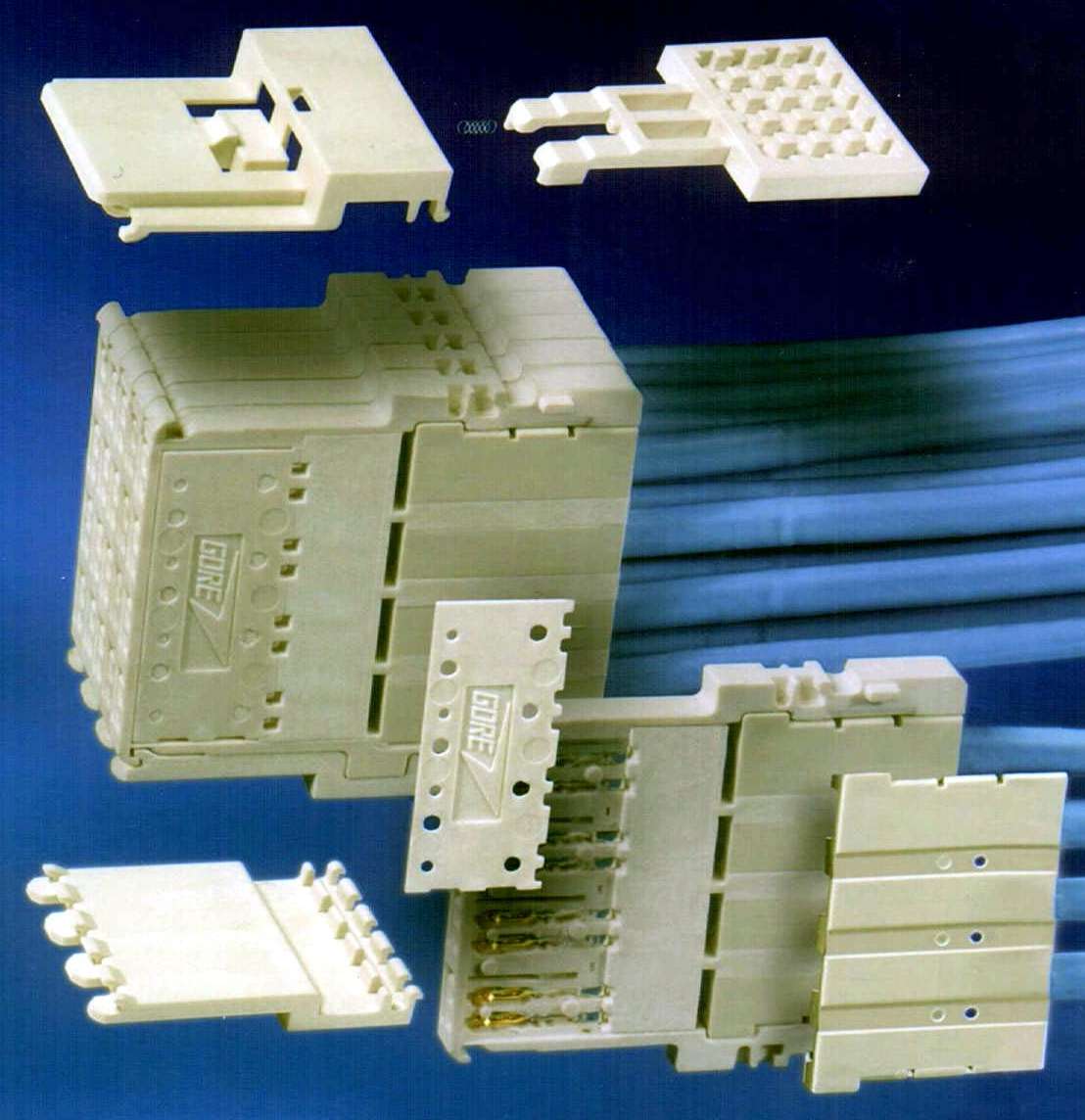

Feb 03, 2004 Able to work with ZD backplane interface, GOREâ„¢ EYE-OPENER® ZD Cable Assembly combines digital cable assembly technology with ZD high-speed connector to offer interconnect that handles bandwidths 5 Gb/s and higher. It uses expanded PTFE as dielectric core for digital interconnect cable. Helically wrapped core ensures controlled electrical properties throughout signal path and provides open eye patterns.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089

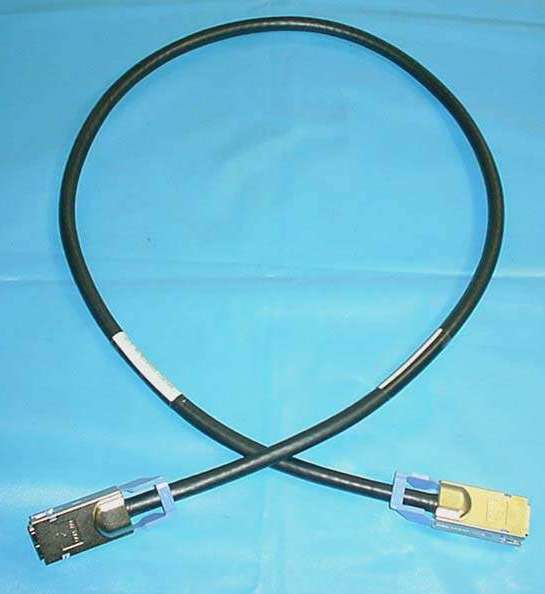

Jun 05, 2003 Assemblies are available in 4- and 12-channel, bi-directional versions, utilizing 24 or 26 AWG cable. They minimize skew, crosstalk, and EMI, resulting in near end crosstalk of less than 4% at 3.187 Gbps. Offered in lengths from 0.5–5 m, differential cables handle high-bandwidth environments, such as InfiniBand™, 10G Fiber Channel, 10G Ethernet (CX4), and other applications that require speeds of 500 Mbps up to 3.187 Gbps.

Igus, Inc.    East Providence, RI 02914 0349

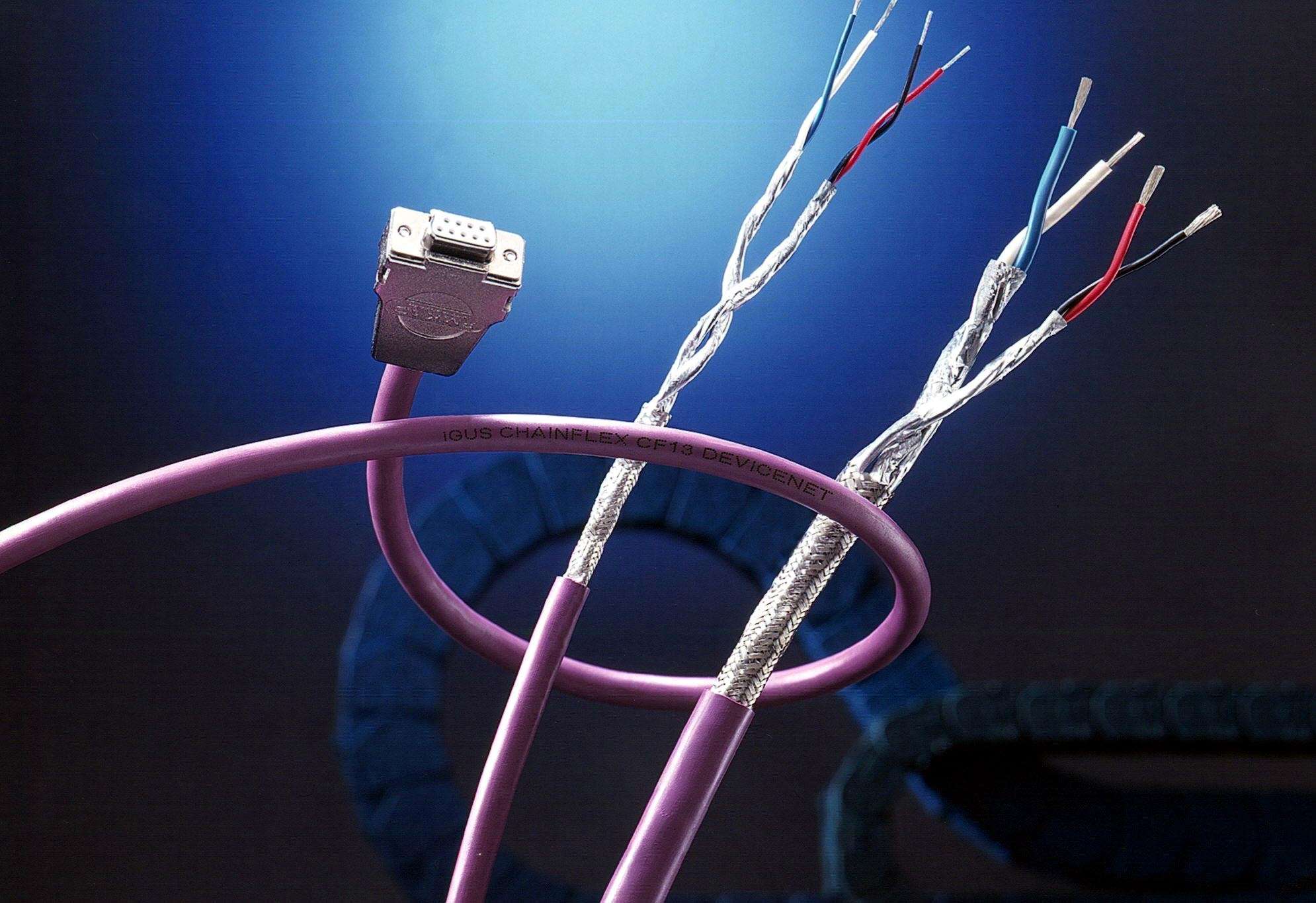

May 08, 2003 Chainflex® CF13 combines communication with control in one twisted-pair, continuous-flex bus cable with 10x diameter flexibility. It meets meets specific requirements of OVDA DeviceNet standards. PUR jacket provides resistance to abrasion, oil, cooling fluids, and other harsh environments. Cable can be used safely without interference near strong electromagnetic DC fields. Data transmission rates are 125, 250, and 500 Kbps.

Saelig Co., Inc.    Pittsford, NY 14534

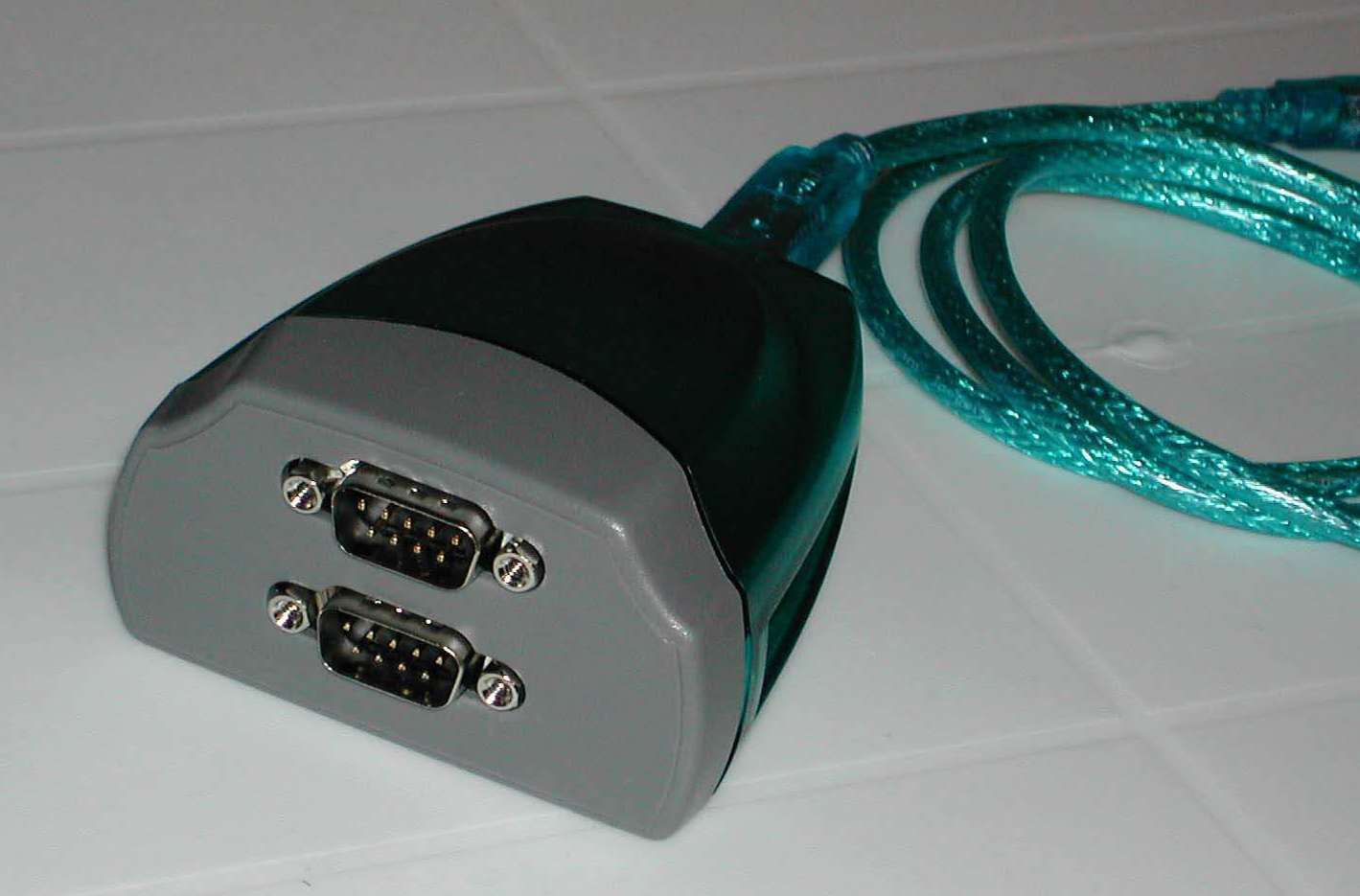

Apr 29, 2003 USB-2COM allows RS232 serial devices to talk to USB PCs. Based on FTDI's single chip FT232BM USB UART IC for transferring serial data over USB, 2-serial-port USB adapter is housed in plastic enclosure. It adds two Windows Serial Com ports via laptop's USB connection and is compatible with new and legacy RS-232 devices. It provides internal 128-byte transmit buffer FIFO, 384-byte receive buffer FIFO, and supports RS232 data transfer rates to 460 Kbps.
