Coaxial & Twinaxial Cables

Computer Hardware & Peripherals

Coaxial Cable Assemblies target broadcast applications.

July 13, 2015

Featuring True 75 Ω performance to ensure low signal distortion, Coaxial Cable Assemblies are available in various configurations utilizing BNC, HD-BNC, and 1.0/2.3 coaxial interfaces as well as popular broadcast cable types Belden 1505A, 1694A, and 1855A. Assemblies are specifically designed for high-definition transmission systems such as Ultra HD and 4K TV. They also support mobile broadcast equipment, video routing and distribution systems, and audio/video switching devices. Read More

Computer Hardware & Peripherals

Ultra-Miniature Cable Assemblies operate from DC to 6 GHz.

February 23, 2015

Available in 40 configurations, UMCX, WMCX, and HMCX32 Coaxial Cable Assemblies provide multiple coax options, including 0.81 mm, 1.13 mm, 1.37 mm, RG178, and double shielded RG178. Flexible jumper cables have snap-on connector and mated connection heights ranging from 1.2–2.5 mm. Offered in both in-series and between-series versions, cables are suitable for Wi-Fi, WLAN, Bluetooth, ZigBee, LTE, mini-PCI, mobile antenna/GPS/radio systems, and PDA/PCS/cellular handset applications. Read More

Computer Hardware & Peripherals, Health, Medical and Dental Supplies & Equipment, Electrical Equipment & Systems

Micro-Coaxial Assemblies support ultrasound applications.

January 2, 2015

Ranging from 40–50 AWG, fine-wire Micro-Coaxial Cable Assemblies feature fine-pitch, microscopic termination capabilities from 1–0.175 mm. Assemblies are capable of exceeding 500,000 flexes at 90° and withstanding ethylene oxide gas sterilization. Capacitance can be tuned to exceed <12 pF/ft, and impedance can be tuned up or down by 0.05 Ω. Intended for medical device OEMs, assemblies are available as insulated single coaxes, twisted shielded pairs, parallel pairs, or differential pairs. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Custom Micro-Coaxial Assemblies suit ultrasound applications.

December 23, 2014

Available in single coax, twisted shielded pairs, parallel pairs, or differential pairs, 40–50 AWG fine-wire coaxial cables come packaged as ribbonized or bundled assemblies. Fine-pitch, microscopic termination capabilities range from 1–0.175 mm and exhibit durability with ratings in excess of 500,000 flex’s at 90° and ability to withstand Ethylene Oxide gas sterilization. Capacitance can be tuned to exceed <12 pF/ft, and impedance can be tuned up or down by 0.05 Ω.
Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Sensor Cable comes in 8 m length.

December 15, 2014

Compatible with all existing capaNCDT capacitive displacement sensors, CCg Triaxial Sensor Cable enables cable lengths up to 8 m without preamplifier, which at same time provides full exchangeability. While previous outgas-optimized and oxygen-free miniature triaxial cable is suitable for EUV lithography in semiconductor production, CCg cable has been specifically designed for industrial environments, where long cable lengths are required. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Electronic Components & Devices

Coaxial Cable suits repeated bending applications.

September 26, 2014

Offered in 1,000 ft bulk reels, CA195FLEX Coaxial Cable is constructed with stranded center conductors and black or white thermoplastic elastomer jacket. Antenna cable assemblies, jumpers, and pigtails with thousands of length and connectors options are available. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Flexible Cables feature low-loss design.

July 29, 2014

Combining advanced coaxial cable and VP90™ expanded PTFE extrusion technologies, Flexible Cable Assemblies are phase-stable, low-loss interconnect solutions. Coaxial cable sizes range from 16-52 AWG, with most cables exhibiting insertion losses of less than 1.00 db per foot. Available with variety of connectors, cables are suited for test and measurement, wireless broadband, radar, semiconductor, medical devices, robotics, satellite, aerospace, defense, and automotive applications. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Cable Jumpers with Formable Coax suit low PIM applications.

July 23, 2014

Low PIM (-160 dBc) formable cables are made using tin-filled braid that produces hand-formable, solid outer conductor wall. Along with 0.163 and 0.276 in. coax diameters, these RF cables are available with several connector options: 7/16 DIN, 4.1/9.5 mini-DIN, Type N, and SMA. Connectors’ TriMetal plating, soldered connection point, and coaxial cable construction produce low PIM performance for life of assembly. Low PIM jumpers operate from DC up to 6 GHz depending on configuration. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

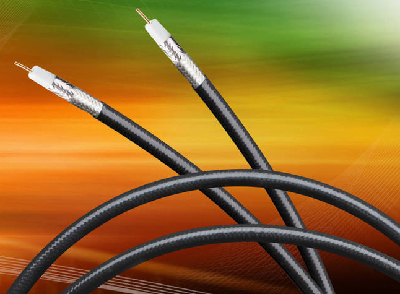

Flexible Coaxial Cable withstands repeated bends.

May 6, 2014

Identical to LMR-600-UF UltraFlex, 50 Ω Model CA600FLEX utilizes multiple solid copper strands for center conductor which withstands repeated bends. Cable has black thermoplastic elastomer jacket and is suitable for indoor or outdoor use. Product is available in bulk 500 ft reels, by foot, or via antenna cables with numerous lengths and connector options. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Low-Loss RF Coax Cable Assemblies have stainless steel connectors.

March 21, 2014

Suited for high-frequency interconnects in mission-critical applications and microwave laboratories, series CC2450-MM-150 features corrosion-resistant, 2.4 mm, 303 stainless steel connectors and 3 levels of shielding for low attenuation (loss) over distance (1.44 dB/ft @ 50 GHz). Construction includes silver-plated copper wire center conductor, flat silver-plated copper strip inner shield, aluminum polyimide foil middle shield, and silver-plated copper braid outer shield with ePTFE dielectric. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Mounting & Attaching Products

Low Loss Cable Assemblies feature 18 GHz rating.

March 19, 2014

Made with LL335i and LL142 coax, which offers phase stability, Low Loss Test Cables come equipped with choice of stainless steel TNC, SMA, or N-Type connectors and heavy-duty booting to optimize strain relief. Double shielded flexible coax provides shielding greater than 95 dB and VSWR of less than 1.35:1. Cables allow for high power transmission because resulting temperatures do not have negative effect on cable due to thermal stability of PTFE tape dielectric. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Electronic Components & Devices

Coaxial Cable Assemblies suit in-building DAS applications.

March 4, 2014

Intended for Distributed Antenna Systems, Coaxial Cable Assemblies efficiently transfer RF signal, minimize interference caused by intermodulation, fit into tight spaces, and are plenum-rated to meet building fire codes. Times Microwave SPP-250-LLPL™ consists of small diameter corrugated cable, while TFT-402-LF is extremely flexible with low minimum bend radius. Available in standard and custom lengths, cables offer 7-16 DIN male, 4.1-9.5 DIN male, N male, and SMA male terminations. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Electronic Components & Devices

Coaxial Products (7/16 DIN) serve high-power applications.

December 31, 2013

Designed for use in high power wireless communication systems, such as cellular network antenna systems, 50 Ω 7/16 DIN coaxial products include connectors for 400 and 600 series low loss cable, within series and interseries adapters, caps, 400- and 600-series cable assemblies, as well as 1/4 wave coaxial lightning protectors. Construction withstands harsh environments, and custom versions of cable assemblies are available. Read More

Test & Measuring Instruments, Computer Hardware & Peripherals

Coax Extender Kit facilitates CCTV system expansion.

September 26, 2013

POE over Coax Extender Kit helps firms consolidate cable installation expense by leveraging existing coax cable to build CCTV systems. Designed specifically to provide optimal image quality to HD cameras involved in monitoring surveillance applications, solution extends transmission of signal by distance of up to 900 ft within industrial setting. Read More

Computer Hardware & Peripherals

SMA Connector Cables cover frequencies from DC to 18 GHz.

September 4, 2013

Available in 4, 5, 6, 9, and 12 in. lengths, 141SMR-Series Hand-Flex Cables feature 2 right-angle SMA connectors, minimizing bend radius at both connectors and saving space in assemblies with tight component configurations. Coaxial cables are hand formable to bend radii as small as 8 mm and maintain shape after bending. Constructed with FEP insulator jacket, cables feature return loss of 33 dB to 6 GHz and 21 dB to 18 GHz, as well as power handling of 546 W at 0.5 GHz and 90 W at 18 GHz. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

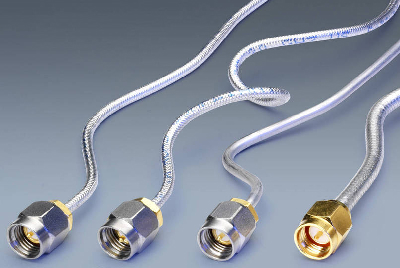

Hand-Flex Coaxial Cables feature right-angle SMA connections.

August 1, 2013

Used for integrating coaxial components and sub-assemblies in tight spaces, 086 series includes 50 Ω, hand-formable, coaxial cables with single and double right-angle SMA connections. Characteristics include frequency range of DC to 18 GHz, return loss of 33 dB to 6 GHz and 21 dB to 18 GHz, and power handling capability of 200 W at 0.5 GHz and 35 W at 18 GHz. Along with bend-radius as small as 6 mm, cables feature FEP insulator jacket that reduces risk of accidental shorting. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems

Low-PIM Cable Assemblies offer stability and repeatability.

May 21, 2013

Serving PIM-sensitive environments though 6 GHz and military/avionics environments through 20 GHz, SRX™ cable assemblies combine eSeries coaxial connectors with SRX coaxial cables. Combination of PTFE with Rexolite™ promotes holding capability, while solder step in manufacturing lends to stability. Deployment scenarios include in-cabinet, plenum-rated, short runs and jumper applications, long-haul cable runs, indoor use, outdoor use, and riser, with several interconnect options. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Electronic Components & Devices

Coax Cable System supports high-speed data transmission.

February 28, 2013

Combining coax cable assembly and board level connector, FCF8/FCS8 System offers choice of 10, 20, or 30 total contacts on .0315 in. pitch, with outside contacts grounded to outer body shielding. Cable assembly features 38 AWG micro discrete wire coax cable, available in any length >3.00 in. Positive latching system, metal shielding for EMI protection, and standard weld tabs on surface mount connector make system suitable for harsh environments. Read More

Computer Hardware & Peripherals, Electrical Equipment & Systems, Electronic Components & Devices

SMA Cable Assemblies speed DUT connect/disconnect cycles.

February 27, 2013

Featuring male N-type connector, Quick Lock QBLxSMQ-NM+ Test Cable Assemblies fill wide range of N-to-SMA connection needs from DC to 18 GHz, with max power rating of 270 W at 1 GHz and 47 W at 18 GHz. Assemblies offer optimal electrical performance through 20,000 tough Flex Test™ cycles and 20,000 Quick Lock push on/pull off connection cycles. Available in lengths of 2, 3, or 6 ft as well as 1 m, cables are suited for use with 50 Ω N-type network analyzers. Read More

Computer Hardware & Peripherals, Electronic Components & Devices

Low PIM Coaxial Cable Jumpers support RF communications.

July 20, 2012

Available in ½ in. flexible and superflexible versions, Corrugated Coaxial Cable Jumpers can be ordered in standard and custom lengths with 7/16 DIN and Type N connectors to meet requirements. Assemblies have injection molded boot on each connector, which provides added strain relief and weather sealing. Providing years of optimal PIM and VSWR performance, assemblies are suited for tower top jumpers, shelter/cabinet jumpers, antenna feed lines, and 2-way land mobile radio installations. Read More
