Digi International    Minnetonka, MN 55343
Nov 26, 2007 Multipoint XPress(TM) Ethernet Bridge (XEB) features external DIP switch, allowing unit to be switched from access point to subscriber unit mode. Using 900 MHz band, unit can communicate in situations where Wi-Fi and other wireless connectivity solutions fail. It has line-of-sight range of up to 15 miles and indoor range up to 2,000 ft with ability to transmit through up to 10 walls with 1.5 Mbps RF data rate and also provides 128-bit encryption for secure connections

GE Intelligent Platforms    Charlottesville, VA 22911
Nov 26, 2007 Suited for harsh industrial environments, SealTouch-15 rugged flat panel computer weighs 28 lb, and can be used in multiple locations. It can operate in +50°C ambient temperatures, and features Intel® Celeron® M 1.5 GHz processor with 512 Mb DDRAM, 40 GB hard drive, and 15 in. XGA resolution display with resistive touchscreen for operator interface. Unit is optionally available with CompactFlash or solid state hard drive for additional resistance to shock/vibration.

Broadcom Corp.    San Jose, CA 95110
Nov 26, 2007 Single chip BCM5761 65 nm GbE controller offers client manageability via web services-based management and security for MS Windows Vista® requirements. It enables IT users to manage PC platforms remotely at any time, regardless of the system state (OS-present, OS-absent, or out-of-service). It offers system authentication/encryption capabilities, along with remote configuration, monitoring, control, diagnostics, and repair of desktop and mobile PCs.

Maxim Integrated Products    Sunnyvale, CA 94086
Nov 26, 2007 Suited for payment card industry and other security-sensitive applications, Model DS3605 integrates real-time clock, battery-backup controller, system power monitor, CPU supervisor, temperature sensor, and 4 tamper-detection comparators. It erases encryption keys on external SRAM if any tamper event occurs. Packaged in lead-free, 5 x 5 mm, 25-ball CSBGA for additional security, unit is fully specified over -40 to +85°C extended temperature range.

Maxim Integrated Products    Sunnyvale, CA 94086
Nov 26, 2007 Compatible with composite NTSC and PAL video standards, Model MAX7456 enables 256 user-programmable characters/graphics for on-screen display. Device includes input clamp, video timing generator, OSD insertion MUX, display memory, crystal oscillator, SPI(TM)-compatible interface to read/write OSD data, and video driver. With sync separator, single-channel, monochrome OSD generator provides vertical, horizontal, and loss-of sync outputs for system synchronization.

Maxim Integrated Products    Sunnyvale, CA 94086
Nov 26, 2007 Suited for space-constrained applications, Models MAX13181E-MAX13184E include ±15 kV ESD protection, pullup/pulldown resistors, and 1/8 unit-load receiver-input impedance, allowing up to 256 transceivers on the bus. Models MAX13181E/MAX13183E feature selectable half- or full-duplex operation, while MAX13182E/MAX13184E are configured for full-duplex operation. Models MAX13181E/MAX13182E provide slew-rate-limited drivers that enable up to 500 Kbps error-free transmission.

Exar Corp.    Fremont, CA 94538
Nov 26, 2007 Supporting OC-3/OC-12 data transmissions speeds, Model XRT91L34 quad-channel clock and data recovery (CDR) circuit accepts high speed NRZ serial data from LVDS or LVPECL receiver and generates clock signal with same frequency as incoming data. Unit integrates Phase Lock Loop (PLL) technology, and features 4 channels that share single 77.76 or 19.44 MHz reference clock. Available in 128-pin LQFP package, it operates at 1.8 V core with 3.3 V tolerant I/Os over industrial temperature range.

Cypress Semiconductor Corp.    San Jose, CA 95134
Nov 26, 2007 Offering non-volatile data storage without batteries, 4-Mbit nvSRAM features access times of 15 ns, infinite read/write/recall cycles, and 20 yr data retention. Data transfer from SRAM to device's nonvolatile elements takes place automatically at power down, and data is restored to SRAM from nonvolatile memory on power up. Available in 44 TSOPII and 54 TSOPII packages, RoHS-compliant device is offered in either 512 Kbit x 8 (CY14B104L) or 256 Kbit x 16 (CY14B104N) configurations.

Comtrol Corp.    Maple Grove, MN 55311
Nov 23, 2007 Utilizing Unity ASIC chip, RocketPort® EXPRESS Cards offer serial communication speeds of 921 Kbps for quad-cabled and octa-cabled products, while interface connected products communicate at up to 460 Kbps. Units accommodate up to 128 ports/system, and support software-selectable RS-232/422/485 serial communication modes. Compatible with systems featuring x1, x2, x4, x8, x12, and x16 lane PCI Express expansion slots, cards provide connectivity for printers, scanners, cameras, and LCD screens.

IntelliCom Innovation AB    Halmstad S-302 50  Sweden
Nov 23, 2007 NetBiter® Serial Server provides remote configuration of Rockwell PLCs over Ethernet, LANs, or Internet. Gateway makes transparent connection between standard RS Logix 500 Windows tools and ControlLogix, MicroLogix, CompactLogix, SLC-500, and PLC-5 Rockwell PLCs using DF1. Server enables remote PLCs to appear locally connected, and features 10/100 Mbps Ethernet and industrial design with DIN rail mounting.

RuggedCom    Woodbridge, Ontario L4L 7Z4  Canada
Nov 23, 2007 Class 1 Div 2 certified for hazardous locations, RuggedSwitch RS940G 8-port gigabit Ethernet switch comes with 6 triple speed 10/100/1000BaseTX ports and 2 optional gigabit fiber or copper ports. Unit features operating temperature range of -40 to +85°C, can be powered from variety of sources including 12, 24, 48, 88-300 Vdc/35-264 Vac, and includes configurations for wireless, Ethernet over VDSL, serial interfaces, and fiber connection options.

TC Communications Inc.    Irvine, CA 92614
Nov 23, 2007 Model TC3240 10/100M 4-port Switching/Bridging Fiber Optic Ethernet Media Converter converts or connects 10/100Base-TX (UTP) networks to 100Base-FX (Fiber Optic) networks. Password-protected unit provides 10/100 Mbps Auto-Negotiation, automatically adapts to full or half-duplex mode, and includes built-in switch that enables distances up to 100 km without additional hardware. Industrial hardened version is also available for harsh environments.

Integrated Silicon Solution, Inc. (ISSI)    San Jose, CA 95112-4216
Nov 23, 2007 Covering densities from 16-512 Mb, automotive SDRAMs support both -40 to +85°C (A1 grade) and -40 to +105°C (A2 grade) temperature ranges. Units feature low operating and standby current, partial array self refresh (PASR), temperature compensated self refresh (TCSR), deep power down, and driver strength selection. Voltage options include 1.8 and 3.3 V Vcc and Vccq devices. SDRAMs are available in both standard and lead-free TSOP and BGA packages.

Beckhoff Automation LLC    Minneapolis, MN 55337
Nov 21, 2007 Acting as bridge between company's original Bus Terminal I/O line and high-speed EtherCAT Terminals, Model BK1250 converts EtherCAT's E-bus signal so data can be passed over original I/O terminals, all on same node. EtherCAT protocol can process 1,000 distributed I/O in 30 µs or 100 axes in 100 µs using twisted pair or fiber optic cable.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 21, 2007 Equipped with 1.5 GHz Core 2 Duo CPU and 1 GB DDR2 RAM, UNO-2182 is fanless and diskless with 255 x 152 x 69 mm dimensions for space-constrained environments. With DVI-I interface, unit provides optimal display capabilities, supporting extra large panels for digital signage industry. Additional features include 2x RS-232 and 2x RS-232/422/485 ports with automation flow control, 2x 10/100/1000 Base-T Ethernet ports, 2 USB ports, and one type I/II PC card.

VMETRO, Inc    Houston, TX 77077
Nov 21, 2007 Model VS-SBOD 3U, 16-disk storage system holds up to 6.4 TB and features switched topology backplane and redundant quad 4 GB fibre channel initiators to drives. Providing up to 9 TB storage, VS-FY5x 2U, 12-disk RAID system utilizes FC to SAS/SATA single or dual RAID controllers and VS-F48D 4U, 48-disk system has dual controllers providing up to 36 TB capacity. Products are suited for applications in digital signal analysis and data collection systems.

NXP Semiconductors    NanGang District   Taiwan
Nov 21, 2007 Including Models LPC2919, LPC2917, and LPC2915, Series LPC2900 microcontrollers feature dual CAN interfaces, 2 LIN masters, standard serial buses, and 1 PWM and 2 analog to digital converters (ADCs). Models LPC2917 and LPC2919 have 32-bit external memory controllers that support static memory devices, including RAM, ROM, Flash, burst ROM, and external I/O devices. Units are suited for high-performance and communication-heavy industrial control and automotive applications.

Ramtron International Corp.    Colorado Springs, CO 80921

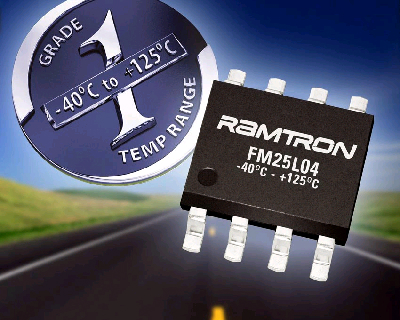

Nov 20, 2007 Equipped with high-speed serial peripheral interface, 4 Kb Model FM25L04-GA reads and writes at bus speeds up to 10 MHz and features advanced write protection scheme to prevent inadvertent writes and data corruption. Unit is guaranteed to retain data for 9,000 hr at +125°C as well as 17 years at +55°C. Available in green 8-pin SOIC package, Model FM25L04-GA operates at 3 V over automotive temperature range, making it suited for intelligent powertrain applications.

Photron USA, Inc.    San Diego, CA 92126

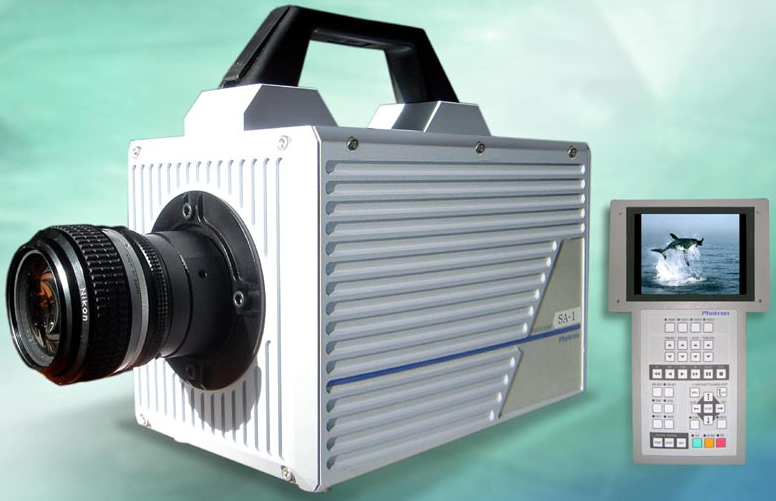

Nov 20, 2007 Available with 8, 16, or 32 GB memory options, Fastcam SA-1 uses sensors that deliver up to 5,400 fps at full megapixel (1,024 x 1,024) resolution and 675,000 fps at reduced resolution. DC-powered CMOS camera offers true 12-bit resolution, microsecond global shuttering, and inter-frame timing. Full control is available via Gigabit Ethernet, or remote control via accompanying LCD keypad, while SDI and RS-170 video outputs facilitate integration.

PSI Engineering    Mississauga, ON L5L 5Z4
Nov 20, 2007 Incorporating Load-on-the-fly technology, Color Laser Mail 3640 can print on multitude of different media including envelopes and specialty stocks. Unit can print up to 40 full color or monochrome envelopes per minute, and is capable of variable data printing as well as mail merge jobs. Employing color proofing technology, printer produces consistent and dynamic color every time. It uses Adobe PostScript 3 so it can deliver optimal results from Mac or PC.
