HD Electric Co.    Waukegan, IL 60085
May 27, 2008 With ability to identify correct phases of de-energized and discharged overhead and underground cables, PF-50 Cable Identifier consists of transmitter and receiver that are designed to be hand-held, with or without gloves, or that can be mounted and used on hotsticks. High test voltage enables device to test full mile of cable. Bright red LEDs on both units indicate that PF-50 units are connected to same cable.

ADLINK Technology Inc.    Irvine, CA 92618
May 27, 2008 Based on ETX® 3.02 form factor standard, Model ETX-NR667 offers scalable CPU, from 1 GHz ULV Celeron® up to Intel® Core(TM)2 Duo, allowing use in both low-power fanless applications and high-end graphics applications. Module supports dual-channel, 24-bit LVDS and provides SODIMM socket that accommodates up to 2 GB of DDR2 667 MHz memory. It also incorporates 10/100Base-T Ethernet port, PATA EIDE controller, dual-port SATA controller, 4 USB 2.0 ports, 2 serial ports, and 1 parallel port.

Unitronics Headquarters    Airport 70100  Israel
May 27, 2008 EX-RC1 allows multiple adapters to connect to single PLC with up to 8 expansion modules to each adapter via CANbus. With distributed control abilities and I/O support for maximum of 512 points, it enables Vision PLCs to be used in large machines such as conveyors. Unit allows PLCs to be placed at operator stand, and distributes I/O's in different locations on machine with single CANbus cable running between units. Through CANbus network, distance of up to 1,000 m can be achieved.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
May 27, 2008 Available in 100-pin TQFP package, PanelPort(TM) provides digital signal integrity by reducing EMI on monitor or display device interfaces by utilizing spread spectrum clocking technology. Compliant to DisplayPort 1.1a standard, it supports full video interface and security encryption through HDCP1.3. Four lane receiver is capable of supporting up to WQXGA (2,560 x 1,600 at 60 Hz) display mode for monitor panels and two-lane 1,920 x 1,080 at 60 Hz for notebook panels.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
May 27, 2008 Supporting OTF error detection and correction, Route Accelerator is suited for forwarding and routing in metro- and carrier-class switch and router applications. It is based on algorithmic search architecture that has automated table management and power efficiency optimization, enabling large forwarding tables required for advanced network applications. Unit addresses IPv4/IPv6 unicast and multicast forwarding, flow-based routing, L2/L3 VPNs, and MPLS applications.

Freescale Semiconductor    AUSTIN, TX 78735-8598
May 27, 2008 Supporting DTS-HD Master Audio(TM) and High Resolution Audio(TM), Symphony(TM) multicore DSP56720 and DSP56721 DSPs have two 24-bit DSP56300 cores with 48-bit double precision capability to handle advanced post processing and decoding on same chip. With 248 K x 24-bit words of integrated memory and plug-and-play software architecture, DSPs integrate S/PDIF transceiver and 10-channel asynchronous sample rate converter. Model DSP56720 also features external memory controller.

IKey Ltd.    Austin, TX 78754
May 23, 2008 Sealed in waterproof polycarbonate case, SK-97-TP features highly-sensitive Synaptics touchpad with left- and right-click buttons below. Keyboard is waterproof and compatible with all hospital-approved cleaning agents. Compact shape fits in places such as medical carts, operating rooms, and workstations.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada
May 23, 2008 Providing 8 analog inputs, 8 digital inputs, and 8 digital outputs, 1018 PhidgetInterfaceKit 8/8/8 includes 2-stage digital input filter, which rejects noise of frequency higher than 1 kHz, eliminating false triggering. Analog inputs measure continuous quantities such as temperature, humidity, position, and pressure. Digital inputs convey state of push buttons, limit switches, and relays, while digital outputs drive LEDs, solid-state relays, and transistors.

AFC Industries, Inc.    College Point, NY 11356
May 23, 2008 Customizable pop-up data and built-in USB ports can be embedded in desktops of AFC workstations, tables, and carts to promote ergonomic workflow. Without reaching, bending, or straining, those sitting at consoles can access range of digital and electronic interfaces. Pop-up units include Ethernet network and parallel ports as well as AC/DC power outlets. Separate USB units include multiple interfaces for multi-device support. Both types help protect PC peripherals and network cables.

Advantech Automation Corp.    Cincinnati, OH 45240

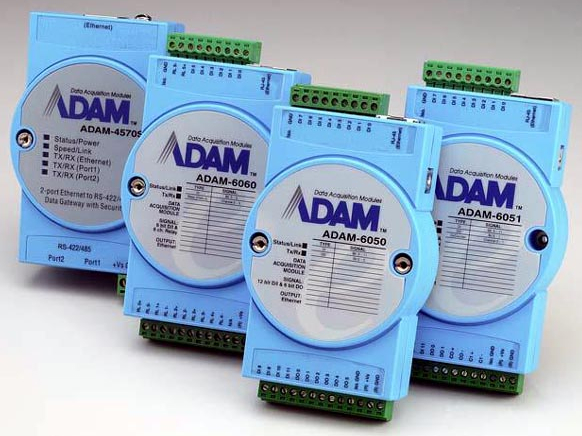

May 23, 2008 With peer-to-peer functionality provided in firmware, ADAM-6000 distributed Ethernet I/O modules can actively update input channel status to specific output channels. Data will transfer automatically, with no extra controller or programming needed. GCL software utility, also included, adds control logic between input and output, and can create equivalent instructions to simple ladder logic instructions on PLC's. It also supports flexible cascade function locally or over Ethernet network.

Freescale Semiconductor    AUSTIN, TX 78735-8598
May 23, 2008 Designed to help reduce board space and power consumption, MC9S08SH32 (SH32) and S9S08SG32 (SG32) provide flexibility and functionality developers need to design embedded applications. While SH32 suits general-purpose consumer and industrial applications, SG32 has extended temperature range (+125°C) designed for general-purpose automotive applications. Memory options include up to 1,024 B RAM and 16 or 32 Kb flash, and integrated 10-bit Adc converter has built-in temperature sensor.

Freescale Semiconductor    AUSTIN, TX 78735-8598
May 23, 2008 Manufactured on 90 nm CMOS technology, MPC5123 combines 400 MHz Power Architecture(TM) e300 core with multimedia co-processor. It offers variety of on-chip peripherals and comes bundled with Linux® OS-based starter kit that helps reduce application complexity. While on-chip integrated display controller provides support for LCD/TFT displays, 128 Kb on-chip SRAM and embedded memory buffers help ensure balanced system performance and system bus throughput while reducing latency demands.

Freescale Semiconductor    AUSTIN, TX 78735-8598
May 23, 2008 Operating at 40 MHz with bus speeds up to 20 MHz, S08AC60/48/32 integrated 8-bit S08AC MCUs provide flexible, scalable, general-purpose solutions with which to expand flash memory range and performance options for control modules in white goods. Products offer 60, 48, and 32 K flash memory, respectively, and feature on-chip timers as well as ADC. To enhance system integrity, MCUs integrate hardware and software safety features to help meet IEC 60730 class B regulation.

Freescale Semiconductor    AUSTIN, TX 78735-8598
May 23, 2008 Flexis(TM) JM family includes 32-bit MCF51JM128 ColdFire® MCUs and 8-bit MC9S08JM60 devices. Software- and pin-compatible, they enable designers to migrate from 8-bit designs to complex application designs that require 32-bit performance. MCUs integrate CAN module and USB controller supporting USB 2.0 full-speed host, device, and On-The-Go configurations, and include up to 128 Kb flash memory and up to 16 Kb SRAM. Featuring 2.7-5.5 V operating range, units operate from -40 to 105°C.

Renesas Technology America, Inc.    San Jose, CA 95134-1368
May 23, 2008 Along with scalable, 200 MHz, CISC-based RX CPU, RX600 Series incorporates 100 MHz single-cycle flash access capability, up to 4 MB on-chip flash, and up to 256 KB SRAM. CPU core has Harvard architecture with 5-stage pipeline and can perform program reads and data writes in parallel, enabling 1.25 MIPS/MHz processing performance. In addition to standard on-chip peripheral functions, MCU offers options for memory protection unit, single-precision floating-point unit, and DSP function.

Wyse Technology Inc.    San Jose, CA 95134
May 23, 2008 Wyse Viance(TM) devices offers complete PC experience in virtual desktop environment through fanless, diskless appliance. For mobile users, Viance Pro Mobile clamshell notebook-style device offers wireless support, 15.4 in. WXGA TFT LCD, full multimedia performance, and Gigabit network connectivity. Both meet plus specifications of Citrix Ready(TM) Desktop Appliance program, required for Citrix XenDesktop(TM) integration; power-up in seconds; and immediately connect to virtual desktop.

Ramtron International Corp.    Colorado Springs, CO 80921
May 22, 2008 Operating over Grade 3 automotive temperature range of -40 to +85°C, 64 Kb Model FM24CL64 combines NoDelay(TM) writes, virtually unlimited endurance of 1 trillion writes, 45 years of data retention, and I2C interface, enabling data collection/storage at max bus speed in intelligent infotainment applications. Available in green, 8-pin SOIC package, nonvolatile device operates at 3 V and draws 75 µA for reads and writes at 100 kHz.

Harting KGaA      Germany
May 22, 2008 Offering management functionalities that enable consistent network administration where availability is prioritized, mCon 1000 managed Ethernet switches are suited for use as industrial network components active on Automation IT communication platforms. They are certified to DIN EN 61850-3 and support 10 Mbps Ethernet, 100 Mbps Fast Ethernet, and 1,000 Mbps Gigabit Ethernet. Up to 11 Ethernet stations can be connected with shielded twisted-pair cable and fiber optic cable.

Nematron Corp.    Ann Arbor, MI 48103
May 22, 2008 PowerView 8000 Series encompasses 4 sizes, all of which have 65K Color TFT LCDs with analog resistive touchscreens. Addressing connectivity, interfaces feature 3 USB 2.0 ports, 3 configurable RS-232/485 ports, CompactFlash port, Audio, and 10/100 Ethernet port. Included development package, ViewBuilder 8000, delivers capabilities for peer-to-peer communication and global data access as well as object libraries, historical and real time trending, and alarm and recipe management.

Men Micro Inc.    Lago Vista, TX 78645-4160
May 22, 2008 Based on 1.5 GHz PowerQUICC III MPC8548 processor, ESMexpress®-based XM50 accommodates 2 GB of soldered DDR2 SDRAM memory with ECC, in addition to non-volatile SRAM and FRAM. Interfaces are comprised of 3 Gigabit Ethernet channels, 6 USBs with host function, 1 USB with client function, and 3 SATA connections. PCI Express link can be configured with 1, 2, 4, or 8 lanes. With max total power dissipation of 12 W, XM50 operates from -40 to +85°C with conduction or convection cooling.
