Avago Technologies    San Jose, CA 95131
Dec 01, 2009 Suited for smart phones, portable media players, and other portable electronic communications devices, Capacitive Touch Panel Controller can track up to 45 simultaneous touch points without ghost points. Unit offers 500 dpi resolution for jitter-free smooth tracking; hover rejection and palm detection to prevent false touch responses; and 13 in./sec tracking speed to provide responsive screen navigation that is suitable for gaming applications.

Avago Technologies    San Jose, CA 95131
Dec 01, 2009 Intended for enterprise and data center applications, dual-rate AFCT-701SDDZ 10GBASE-Long Range single-mode and AFBR-703SDDZ 10GBASE-Short Range multimode fiber transceivers promote flexibility in data rate control via hardware or software control. Both can be operated at 10 or 1 Gbps within same port and are halogen-free. Respectively, AFCT-701SDDZ and AFBR-703SDDZ are designed for operation in over distances up to 10 km and 300 m.

Buffalo Technology (USA), Inc.    Austin, TX 78758
Dec 01, 2009 Optimized for accelerated transfer (625 MBps) and storage of Hi-Res graphics, digital A/V content, and other important data, DriveStation HD-HXU3 works with all USB 2.0-enabled computers/notebooks as well as USB 3.0 models. Available capacities include 1.0, 1.5, and 2.0 TB, and included Memeo AutoBackup software lets users securely and automatically manage and backup files in real-time without any manual interaction or scheduling.

GE Intelligent Platforms    Charlottesville, VA 22911
Dec 01, 2009 Combining 2.26 GHz Intel® Core(TM)2 Duo processor, NVIDIA GPU, and 10 GigE network interface card, 6U VME Model SE 2 handles graphics-intensive applications in harsh environments. Unit includes up to 8 GB DDR2 SDRAM, 4 serial ports, 6 USB 2.0 ports, and x16 PCIe between Intel and NVIDIA processors to maximize system throughput. Typical applications include digital mapping and distributed aperture sensors that need to process substantial quantities of visual information.

SUYIN Connector GmbH    Pfarrkirchen 84347  Germany
Nov 30, 2009 Comprised of version 02 for standard mounting and version 62 for reverse mounting on underside of PCB, SMT 100053FB series is suited for use in mobile digital devices. Contacts with partial gold-plating are specified for 10,000 operation cycles, and spring-style push-push mechanism makes it possible to insert/remove card by manually applying small amount of pressure. Switch contact detects presence of inserted memory card and sends signal to evaluation electronics when circuit is closed.

SUYIN Connector GmbH    Pfarrkirchen 84347  Germany
Nov 30, 2009 Compliant with low-profile mSATA(TM) standard, SMT 127508FB016SX00ZR series is primarily for connections that enable data transfer between processor and memory medium in miniaturized mobile devices. Blind-mating, hot-pluggable, right-angle, 16-pin receptacles, measuring 39.38 x 10.2 x 4.7 mm, have 2 side guide posts and 2 retention clips. Configured for max load of 150 Vdc/1.5 A DC per pin, copper-alloy receptacle contacts have 1.27 mm pitch and gold-over-nickel plating.

Taiwan Commate Computer Inc.    Taipei Hsien   Taiwan

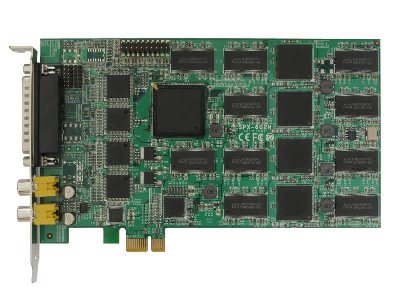

Nov 30, 2009 Complying with PCI Express Base Specification 1.1 and 2.0, Model SPX-602H supports 16-channel D1 real-time recording with H.264 hardware encoder, and 16-channel real-time decoding and playback using software decoder in PC. Unit features adjustable frame rate and resolution, and de-interlacing for live view and playback. Accepting all NTSC/PAL standards, card supports video streaming, remote video transmission, motion detection, noise filter, OSD, and watermarking.

Advantech Automation Corp.    Cincinnati, OH 45240

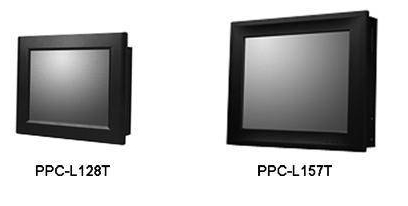

Nov 30, 2009 Powered by Intel® Atom(TM) N270 processors combined with 945GSE + ICH7M chipsets, 12.1 in. Model PPC-L128T and 15 in. Model PPC-L157T offer choice of standard SVGA resolution at 800 x 600 pixels or XGA resolution up to 1,024 x 768 pixels. Both are equipped with IP65/NEMA4 compliant front bezels and dual Gigabit Ethernet connectors supporting failover or LAN teaming. Model PPC-L128T optionally supports sunlight readable display, making it suitable for outdoor use.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 30, 2009 Embedded PCM-9588, powered by Celeron M CPU and Intel® 910GMLE chipset, supports dual display and has UL60601 medical certification. With 15.4 mm PCI slot as highest component on top side and 9.5 mm CF socket as highest component on bottom, this 203 x 146 mm form factor board can be integrated into 1U chassis and suits applications with space limitations. I/O connectivity includes USB 2.0, COM, GPIO, and 10/100 Ethernet with GbE option.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Nov 30, 2009 Supporting Intel Core i7 and XEON 55 series processors, 3U Model RMS-343 features four 5.25 in. drive bays, two 3.5 in. drive bays, and up to 7 expansion slots. Supporting Intel and AMD processors, 4U Model RMS-575 provides three 5.25 in. drive bays, one 3.5 in. drive bay, and support for 7 full-size expansion cards. Both operate from 32-140°F, and are available with 250 GB 7,200 rpm SATA hard drive, 1 GB 800 MHz DDR2 memory, and 400 W 80Plus power supply.

Electro Standards Laboratories    Cranston, RI 02921 3403

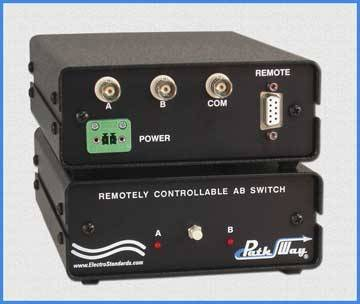

Nov 30, 2009 Model 7203 remotely controllable BNC switch features 3 isolated BNC port connectors on rear panel and switch ports that are transparent to all data. It offers both manual front panel pushbutton control and remote control via RS422 ASCII commands. Remote control option allows access to 2 separate BNC ports via Common port, while aluminum casing of switch aids in reducing EMI/RFI.

One Stop Systems    Escondido, CA 92029
Nov 30, 2009 GPU/SSD Server integrates motherboard with dual Dual AMD® Opteron(TM) Six-Core processors and various I/O, with support for up to 96 GB DRAM in 6 DDR2 DIMM slots. Unit accommodates 4 GPU boards and four 640 GB SSD boards as well as 4 hot-swappable hard disk drives and internal RAID controller. Housed in 2U chassis, server is powered by dual, redundant 1,500 W power supplies. It can provide 8 PCIe x16 Gen 2 slots for single-wide I/O cards or 4 slots for double-wide cards.

Arasan Chip Systems, Inc.    San Jose, CA 95112
Nov 30, 2009 Secure Digital SD/SDIO 3.0 Combo Device Controller IP can be used to design high-performance add-on cards or embedded modules that combine memory and I/O functions such as WiFi, GPS, LTE, and WiMax. It supports Ultra-High Speed I operation and SDSC, SDHC, and SDXC memory capacities with peak bandwidth of 832 Mbps and can address up to 2 TB of memory. Scalable to up to 7 I/O functions, it also supports asynchronous interrupts and suspend/resume function.

Atlona Technologies    San Jose, CA 95131
Nov 30, 2009 Comprised of sender and receiver units, AT-AVGA-SR allows transmission of VGA signal with stereo audio at distances up to 100 ft at resolutions to 1,280 x 1,024 over dual CAT5/6 cables. Sender (AT-AVGA-S) and Receiver (AT-AVGA-R) units are passive and require no power. Suited for A/V installations using HD video, sender and receiver facilitate installation via plug-in operation.

Touch International    Austin, TX 78758
Nov 30, 2009 Supporting one- or two-finger touch, ExtremeTouch Modules feature general-purpose projected capacitive controller and touchscreen mounted on LCD. Portable and plug-and-play design does not require any setup or system integration, and each kit can be configured to any program and adapted to suit needs of any application. Requiring slight touch and no pressure to activate, one-piece modules exhibit immunity to moisture, dirt, temperature extremes, and surface scratches.

DPS Telecom    Fresno, CA 93727
Nov 30, 2009 Once triggered by contact closure or timed interval, SiteMON IP G2 captures and archives several frames/second to record important events. Users can monitor remote sites or areas anywhere in their network in real-time via web browser. With SiteMON IP, users can also make security decisions remotely, allowing for dispatch of on-call staff, security, or police. Receiving 24/7 intruder notifications will boost individual site protection, and ultimately, entire network.

Vitesse Semiconductor Corp.    Camarillo, CA 93012-8543
Nov 30, 2009 Supplied in 13 x 13 mm package, VSC8486-11 features synchronous Ethernet clocking and delivers high-speed signals for XFP and SFP+ module-based Carrier Ethernet equipment supporting 10 GbE, 10G Fibre Channel, and WIS network applications. Transceiver operates from single 1.2 V supply, and FlexEQ(TM) architecture features circuitry that compensates for connector and channel losses. Typical power dissipation is rated at 750 mW (LAN mode) and 850 mW (WAN mode).

Southco    Concordville, PA 19331 0116
Nov 27, 2009 Self-contained EA-P1 facilitates transition from mechanical to electronic access while increasing security. LED and audible beeper provide feedback during software-free programming, and programmable output timing supports multiple access arrangements. Able to accommodate multiple users via support for up to 5 unique PIN codes and 9,999 proximity cards, access management solution also includes relay output that integrates directly with electronic locks.

Kontron    Poway, CA 92064
Nov 27, 2009 Supplied in 75 x 250 x 154 mm rugged aluminum chassis, fanless CB 752 offers interfaces that meet industrial requirements and has MTBF of ~100,000 hr for applications requiring long-term availability. PC offers RS232, RS422/485, DIO, optional CAN, and 2 GbE interfaces in addition to USB 2.0, VGA and optional DVI, configurable GPIO, and HD audio. Additional connectivity is provided via WiFi option, mini PCIe slot, CF socket, and bay for 2.5 in. SATA HDD or SDD.

Kontron    Poway, CA 92064
Nov 27, 2009 Available in 4 screen sizes from 7-15 in., Micro Client IIA Panel PCs can serve as universal HMI for various visualization tasks. IP65-protected units feature resistive touch screen and support thin client concepts from RDP for Microsoft Windows-based servers to Linux-based open platforms with browser based Java clients. Fanless PCs offer 2 x 10/1000 Ethernet, 2 external USB 2.0 ports, and 1 x RS232 with optional RS422/RS485 and CAN bus interface.
