Glacier Computer    Amherst, NH 03031
Sep 16, 2003 I-Stationâ„¢, for space-limited applications, operates on Windows® platforms and consists of 800 MHz processor, 40 GB drive, and 4 serial ports. Network options include 802.11b wireless. The 15 in. flat-panel screen displays large amounts of data at one time and allows viewing in various lighting conditions. Workers wearing gloves can easily operate touchscreen. Applications include factory floors, distribution centers, human resource kiosks, and process control stations.

Cypress Computer Systems    Lapeer, MI 48446
Sep 16, 2003 Spanning up to 10,000 ft using 2-conductor, Ethernet, or fiber-optic media, SUPREX® extends distance between access-control readers and controllers. It provides immediate feedback from diagnostic board and alarm output from central unit indicates power or communication loss with reader at remote unit. Protocol eliminates interference to ensure that reader data arrives intact through noise, transients, and adverse line conditions.

Cygnal Integrated Products, Inc.    Austin, TX 78746-6564
Sep 16, 2003 Offered with on-chip debug circuitry, C8051F120 microcontroller family features 100 MIPS (peak) 8051 CPU; 2-cycle, 16 x 16 Multiply-Accumulate unit; and 12-bit ADC and DACs. Suited for mixed-signal embedded control applications that require signal processing, series includes 128 Kbyte Flash memory, 8448 bytes RAM, and is packaged in 100- and 64-pin TQFP. On-chip peripherals include 2% internal oscillator, temperature sensor, voltage reference, and 2 UARTs.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 15, 2003 Digital Data Storage Generation 5, for xSeries® servers, has 5.25 in. half-high form factor and provides up to 36 GB native capacity and 3.5 MB/s native backup rate. It uses xSeries enclosure that supports Ultra2 low-voltage differential SCSI connections at up to 80 MB/s. Tape Drive offers error rate optimization verification across all media types, streaming operation, and backward read/write compatibility to DDS 4 and DDS 3 tape-drive media.

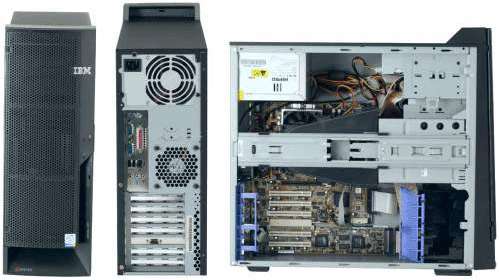

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 15, 2003 Suited for small businesses, xSeries® 205 server utilizes 3.06 GHz Intel® Pentium® 4 processor with 512 KB L2 cache and 533 MHz front-side bus speed. It is also equipped with 256 MB of PC2100 CL2.5 ECC DDR SDRAM UDIMM system memory and comes with integrated dual-channel (ATA-100) EIDE bus-mastering or single-channel Ultra160 controllers. Accommodating 5 PCI slots and 7 bays, product also offers 2 USB ports and Integrated Gigabit Ethernet with RJ-45.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 15, 2003 Uninterruptible power supplies provide power protection, extended run-time power backup, and smart power management. Units are offered with 3 VA points with up to 1,500 VA and 1,050 W load capacity. USB and serial communications are incorporated as standard, and UPS management software integrates with IBM Director for seamless systems management. Units come with 6–8 outlets, depending on model, and hot-swap internal battery.

Diversified Technology Inc.    Ridgeland, MS 39157
Sep 12, 2003 Based on Embedded Technology Extended form factor, Model eTX-Lx05 provides core processing, memory, and I/O for application-specific base boards. It features Intel® Pentium® III or Celeron® low power processor, Intel® 815E chipset, and up to 512 MB PC100/133 SDRAM on single 144-pin SODIMM socket. Integrated 2D/3D AGP4X video controller is enhanced with 8 MB display cache simultaneous LVDS, digital flat panel, and CRT output.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 12, 2003 TotalStorage Ultrium Tape Drive 3580 Model L23 incorporates Linear Tape-Open TotalStorage Ultrium 2 Tape Drive, providing up to 200 GB native capacity per cartridge. It can read and write original LTO Ultrim Data Cartridges at 20 MB/sec native data transfer rate. Unit offers digital speed matching, power management, channel calibration, filemark writing, and 64 MB internal buffer. It comes with SCSI Ultra160 LVD attachment for connection to open system servers.

FieldServer Technologies    Milpitas, CA 95035
Sep 12, 2003 TIWAY driver enables devices using TIWAY 1 protocol to interface with other devices and networks in plant that use other drivers such as DH+, Profibus, Modbus, or ControlNet. With driver and FieldServer Gateway, PLCs using TIWAY protocol can be integrated as part of plant network. Any information available through communications port can be translated into alternative protocol. TIWAY Gateway can act as client, server, or both.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 12, 2003 TotalStorage Enterprise Tape Drive 3592 Model J1A, with TotalStorageâ„¢ Silo Compatible Tape Drive Frame 3592 Model C20, offers 300 GB native cartridge capacity. Tape drive is equipped with dual-ported, 2 Gbps Fibre Channel interface Fibre Channel attachment for connection to switched fabric environment and various host systems. Model C20 Frame holds up to 20 of 3592 Model J1A Tape Drives. Frame also supports n+1 redundant power supplies for drive and has redundant frame line cords.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 12, 2003 Rack-mounted Model 7315-CR2 provides GUI for configuring and operating multiple pSeriesâ„¢ servers in SMP, LPAR, or clustered environments. It can create and store system and partition profiles, display system and partition resources and status, and boot, start, and stop system or individual partitions. Intel® XEON-based system is 1U tall and includes 1 GB of system memory, 40 GB minimum hard disk, and DVD-RAM for creation and storage of backup information.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 12, 2003 TotalStorage Enterprise Tape Controller 3590 Model A60 attaches to TotalStorage Enterprise Tape Drive 3592 Model J1A and is supported in 3494 Tape Library or StorageTek Automated Cartridge System. With adjacent frame support in 3494, up to 12 drives can be attached to single Model A60 Controller. Drive offers 40 MB/sec native data rate, 300 GB native cartridge capacity, and dual ported, switched fabric, 2 Gbps fibre channel attachments.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 12, 2003 Suited for use with IBM TotalStorage Enterprise Tape Drive 3592, TotalStorage Enterprise Tape Media 3599 may be ordered in 4 models with ½ in. advanced metal particle tape with 300 GB native capacity. Cartridge memory stores access history and media performance information every time cartridge is accessed. Data cartridges are available as labeled, initialized, and optionally scaled. Cleaning cartridges are offered with or without media ID labels.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 12, 2003 Nortel Networks Layer 2-7 GbE Switch Module Option for BladeCenter server chassis resides in network slot. It connects to server blades via 14 internal GE interfaces over BladeCenter mid-plane and provides 4 external GbE interfaces. BladeCenter Gigabit Ethernet Expansion Card provides processor blade with 2 additional Gb interfaces. Myrinet Cluster Ethernet Adapter functions with Linux and Microsoftâ„¢ Windows OS.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Sep 12, 2003 Model EXP400 is a high-density SCSI storage expansion unit intended to work in rack or tower. It can support up to 14 Ultra-320 SCSI drives, with up to 320 MB/s data transfer speeds, on single logical bus. Unit supports redundant and hot pluggable power supplies and fans. Internal system management supports error LED indications for power supplies, fans, disk drives, and SCSI Bus Expander and Enclosure Services Module.

Elo TouchSystems, Inc.    Fremont, CA 94555
Sep 11, 2003 Rear-mount touch monitor 1247L features injection-molded minibezel and 0.5 mm thick watertight seal, which keeps liquids and dirt away from electronics. Utilizing IntelliTouch pure glass surface-wave technology for finger or gloved-hand operation, product has brightness of 300 cd/m², 300:1 contrast, and 120° x 90° viewing angle with up to 800 x 600 resolution at 75 Hz. It offers multilingual remote on-screen display and auto-switching power supply.

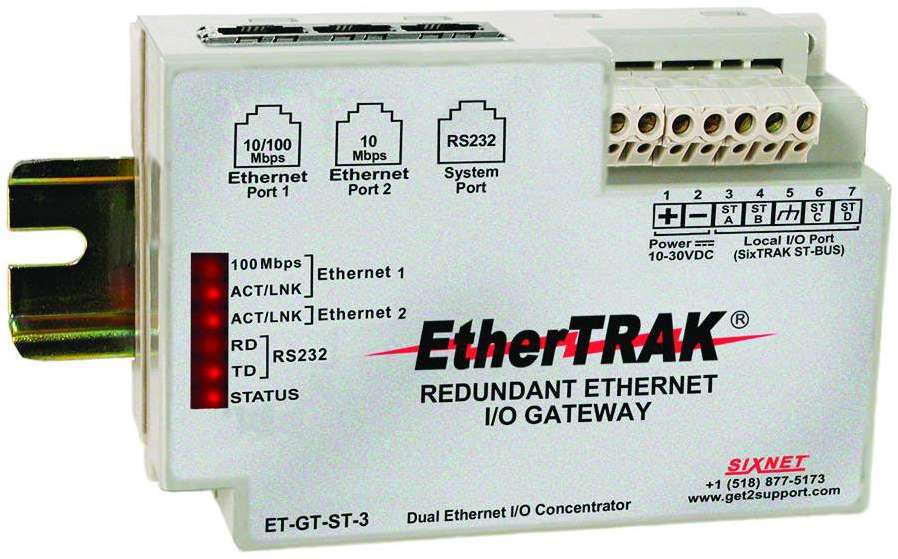

Sixnet    Clifton Park, NY 12065 0767
Sep 11, 2003 EtherTRAK® Model ET-GT-ST-3, for distributed I/O clusters, employs 2 Ethernet ports, allowing 2 unique IP addresses to be used for redundant networking. Gateway supports open Modbus/TCP, ASCII, and RTU and can poll EtherTRAK Ethernet I/O modules. DIN-rail or panel-mounted unit is encased in Lexan/metal shell and withstands temperatures from -40 to +70°C. Setup wizards facilitate configuration and eliminate need for programming.

STMicroelectronics    Lexington, MA 02421
Sep 11, 2003 Turbo µPSD3300 8051-class embedded Flash microcontrollers feature dual independent banks of Flash memory, up to 32 Kbytes SRAM, and over 3,000 gates of programmable logic with 16 macrocells. Dual bank Flash architecture and programmable decode logic support true READ-while-WRITE concurrent access. Memory mapping is handled by integrated decoding PLD. Units include 16-bit Programmable Counter Array, 10-bit resolution ADC channels, and SPI and IrDA interfaces.

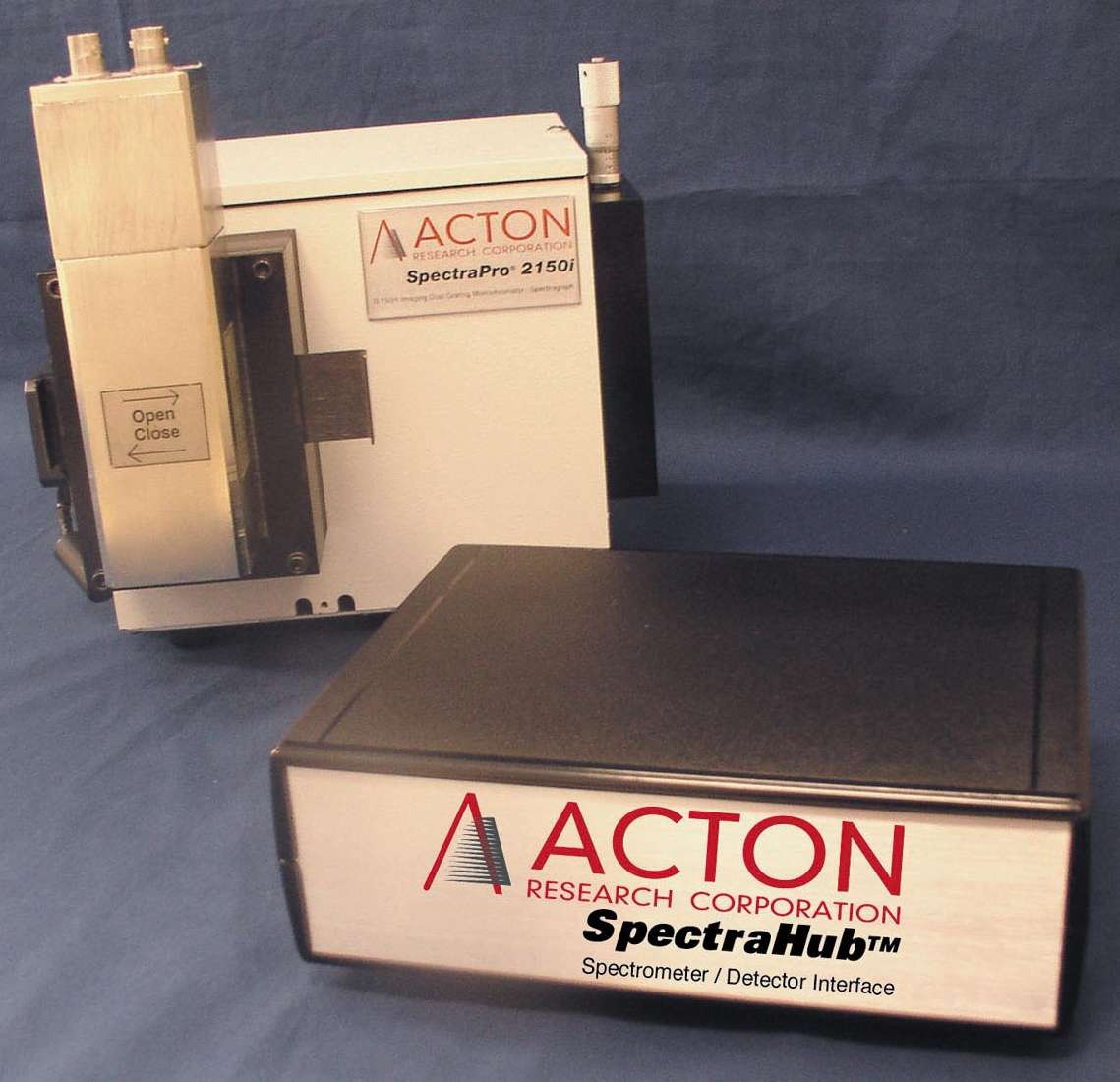

Acton Research Corp.    Acton, MA 01720
Sep 10, 2003 SpectraHubâ„¢ interface is compatible with all proprietary PMT, silicon, and InGaAs single-channel detection systems. USB interface, SpectraSense® software, and SpectraPro 2000 Series imaging monochromators permit scanning spectroscopy and data acquisition through one connection to computer. Detectors connect directly to SpectraHub. Product also includes PMT high-voltage control as well as photon counting compatibility.

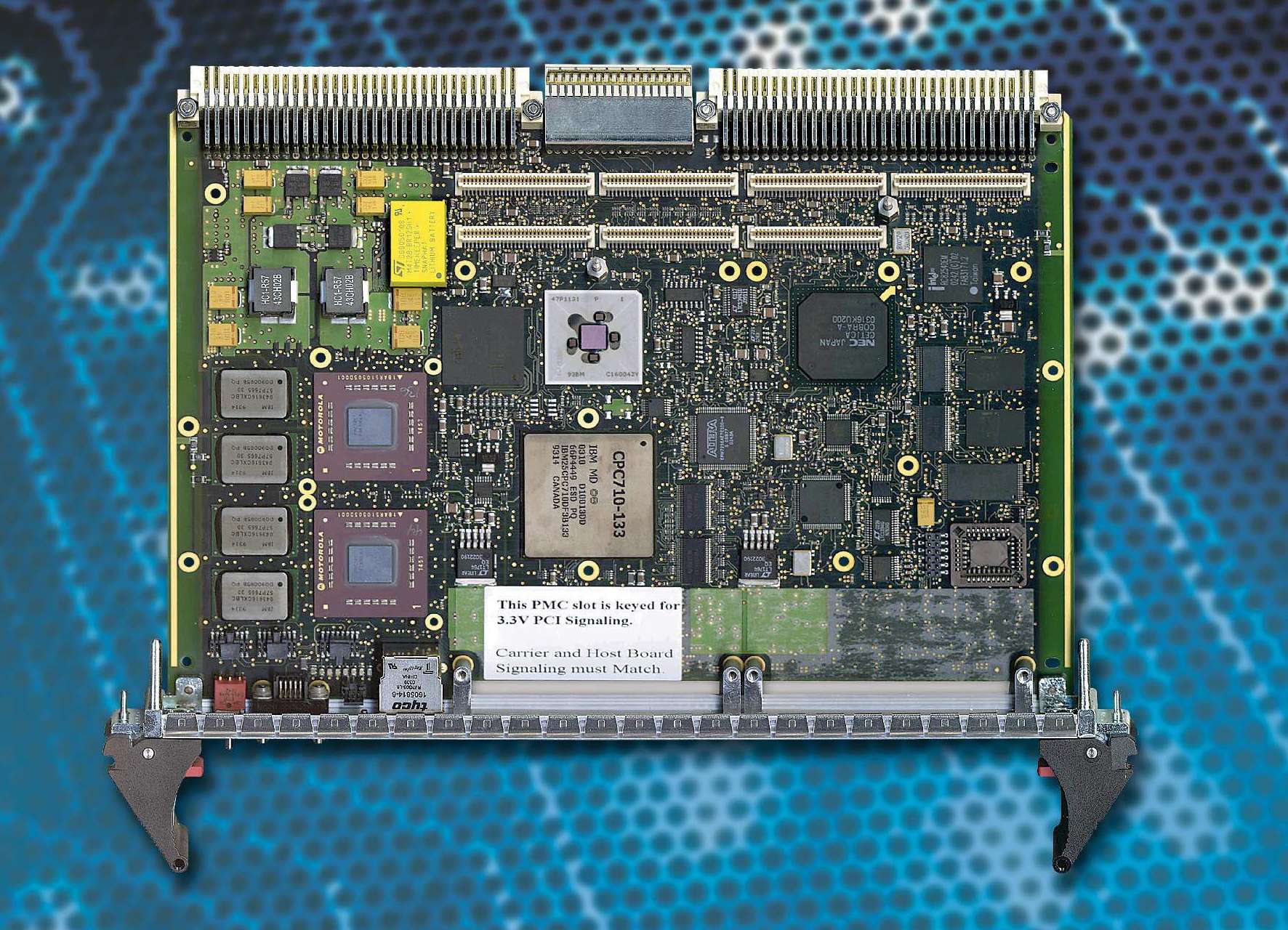

Thales Computers Corp.    Raleigh, NC 27610
Sep 10, 2003 PowerNode3 features dual and single Motorola PowerPC G4 7457 processors running at 1 GHz, each equipped with 2 MB L3 cache and 2 MB private SRAM, linked via 133 MHz Avignon host bridge. ALMA2e VME-PCI bridge enables 2eSST data transfers at up to 180 MB/s for VME board interconnection. Dual Gigabit Ethernet interfaces and 4 asynchronous RS232/422/485 lines provide high-speed networking and connection options. Board typically consumes 30 W for dual CPU configuration.
