Parvus Corp.    Salt Lake City, UT 84115 2913

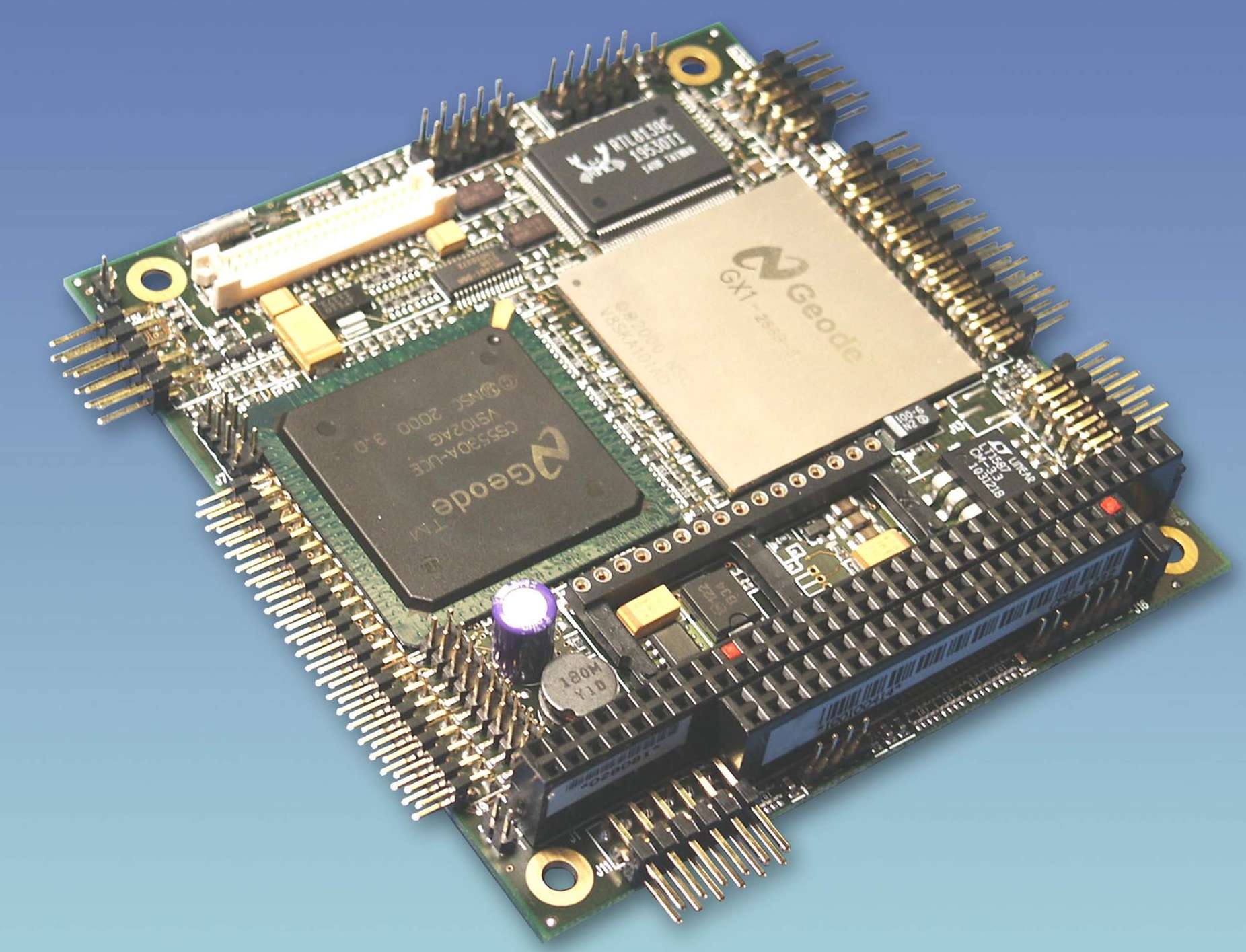

Oct 29, 2003 SpacePC® Series 2320 consists of Intel® Pentium® MMX-compatible embedded PC, integrated with low-power (5.4 W) NS Geode GX1 266 MHz processor, on 3.550 x 3.775 in. PC/104 module. It includes 128 MB SDRAM and interfaces for 10/100 Ethernet, E-IDE, floppy, USB, Serial, LCD-TFT/ LCD-CRT video, AC97 sound, parallel, PS/2 keyboard/mouse, and SSD socket for non-volatile DiskOnChip® memory. Applications include aerospace, industrial, and transportation systems.

Diversified Technology Inc.    Ridgeland, MS 39157

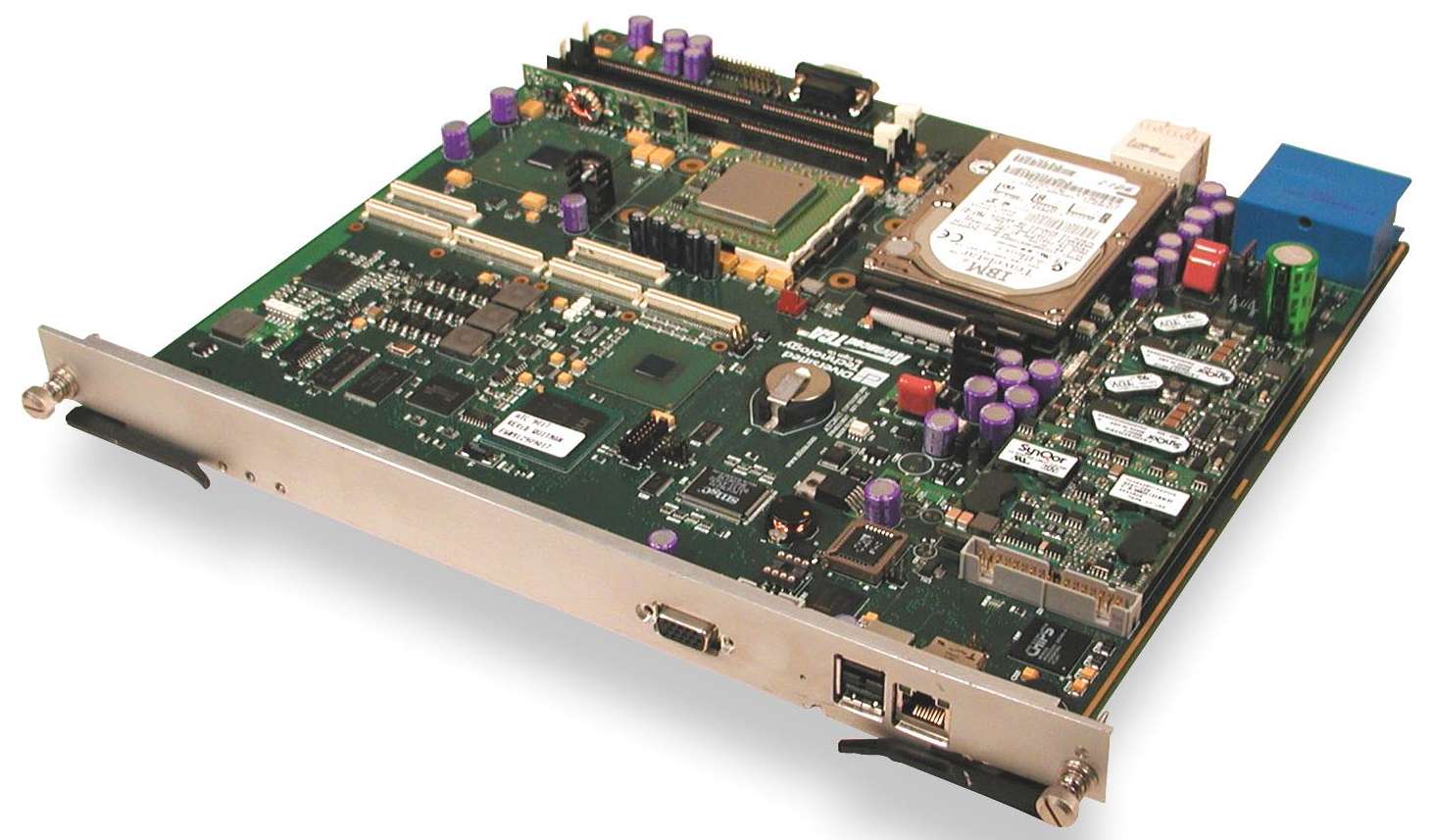

Oct 28, 2003 Suited for carrier-grade solutions, ATC-4130 is based on Intel® E7501 Chipset with 400 MHz front-side bus, utilizes 2.0 GHz LV Intel Xeon® Processor, and is compliant with PICMG® 3.0/3.1 specifications for AdvancedTCA platforms. System memory of up to 4 GB is supported via 2 ECC-protected DDR SDRAM modules. Unit uses Pigeon Point's management architecture, and offers 10/100 Ethernet, serial, USB, and IDE ports.

PFU Systems, Inc.    Santa Clara, CA 95051-3501

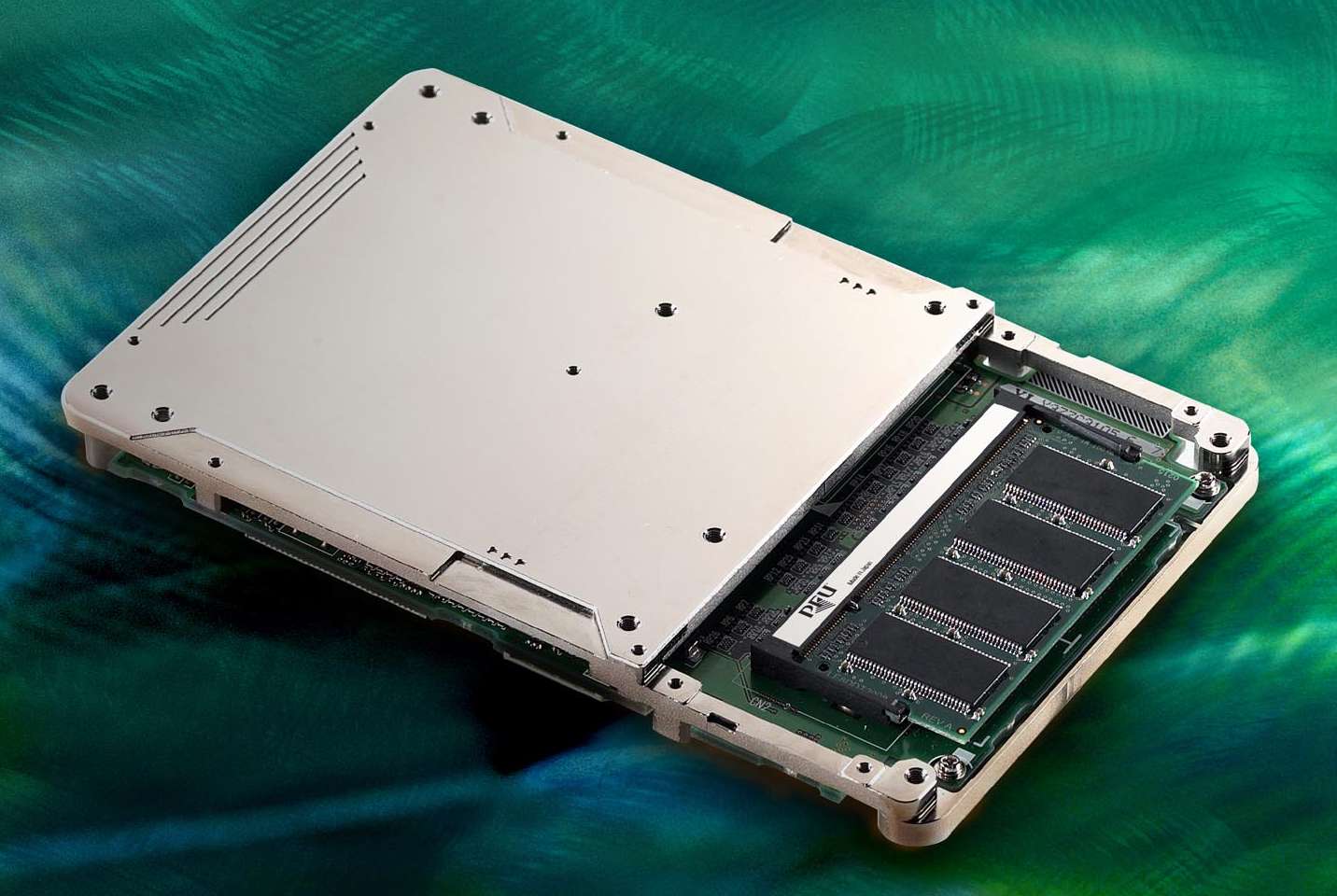

Oct 28, 2003 Plug-N-Run G3 System-on-Modules enable OEM designers to adopt Intel Pentium M processors into embedded system solutions. Modules support intelligent power management, secure computing, and diskless operation. They include Intel® Pentium® M Processor, Intel® 855GME graphics and memory controller hub, and Intel® ICH4 I/O controller hub. Units offer expansion up to 1 GB of DDR SDRAM memory, gaming-like 3D graphics, and mezzanine interface connector.

Datakey Electronics Inc.    Savage, MN 55378
Oct 27, 2003 Keytroller II, Slimtroller II, and Unitroller II use serial memory key and/or serial memory token, and connect with RS-232, RS-485, or USB interface. They allow designers to integrate capabilities such as access control/user authentication and data transfer or storage. Panel-mount devices work in PLC- or PC-controlled applications and withstand rugged environments where it would be inconvenient to have hard-wired connection.

National Instruments Corp.    Austin, TX 78759-3504
Oct 27, 2003 FBUS-HSE/H1 Fieldbus high-speed Ethernet linking device connects 31.25 kbps H1 segments to HSE network running at 10 Mbps or higher. PCI-FBUS/2 plug and play PCI board allows user to connect FOUNDATION Fieldbus devices to desktop PCs that no longer offer ISA slot as standard feature. NI-FBUS v3.0 software integrates with LabVIEW 7 Express, supports FBUS-HSE/H1 and PCI-FBUS/2 Fieldbus interfaces, and includes communications manager and Fieldbus configurator.

Rockwell Automation    Milwaukee, WI 53204
Oct 27, 2003 Model 1757-FFLD linking device enables direct connection from Logix controllers to FOUNDATION Fieldbus networks, allowing manufacturers to use digital instrumentation in process applications. Unit links FOUNDATION Fieldbus H1 and High Speed Ethernet networks while providing dual, concurrent communications with EtherNet/IP(TM). It also enables addition of local I/O modules to incorporate non-FOUNDATION Fieldbus devices into FOUNDATION Fieldbus control environment.

FAG Bearings Corp.    Danbury, CT 06813 1933

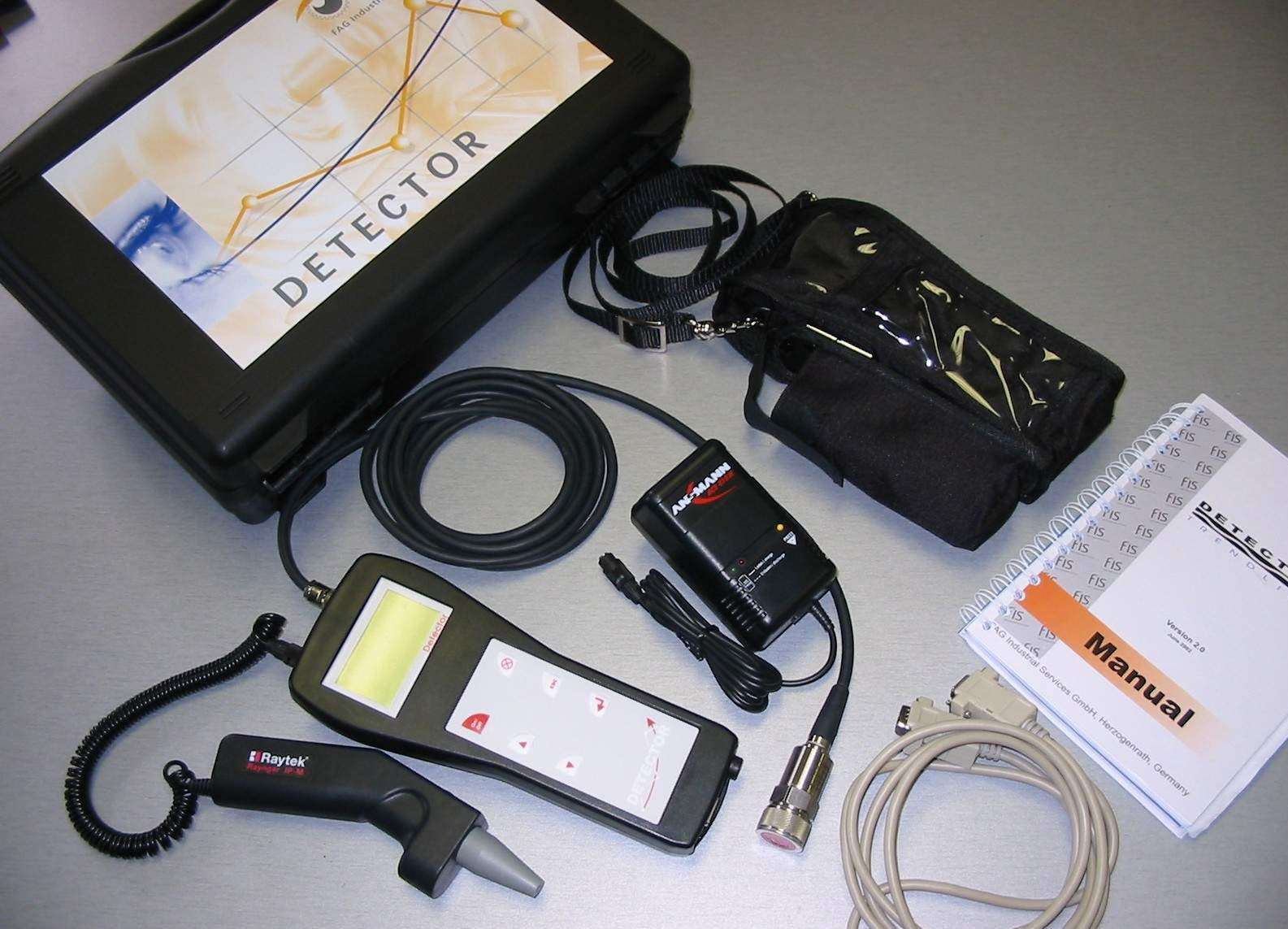

Oct 24, 2003 Mobile Maintenance System combines Detector II damage diagnosis instrument with MAXIMO© computerized maintenance management system to identify potential problem areas. Equipped with Trendline condition monitoring software, handheld Detector II data collector measures vibration and temperature and is suited for periodic measurements. MAXIMO enables production-planning department to select specific measuring points and initiate inspection rounds.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 24, 2003 Think Express model of ThinkPad® R40 notebook computers utilizes Intelâ„¢ Pentiumâ„¢ M processor at 1.4 or 1.5 GHz, with Intel SpeedStep technology, 1 MB on-board L2 cache, and 20, 40, or 60 GB HDD. System memory is expandable to 2 GB. Computer includes integrated 10/100 Ethernet and 56 K V.90 modem, Intel PRO/Wireless network connection 802.11b, IEEE 1394 high-speed serial bus, and Ultrabay Plus modular drive bay. TFT display is available in 14.1 and 15.0 in. sizes.

Berk-Tek, A Nexans Co.    New Holland, PA 17557
Oct 24, 2003 Category 5e Outside Plant, Unshielded Twisted Pair Cable is intended for aerial installation or in above or below grade conduit. It is gel-filled to protect against water penetration and has stabilized jacket material that protects against UV damage. Cable is suited for residential or commercial drop applications or for interconnecting satellite buildings or trailers. It meets ANSI/ICEA 5-56-434 polyolefin outside cable specification.

Kyocera Mita America Inc.    Fairfield, NJ 07004
Oct 24, 2003 ECOSYS FS-1020D produces 600 dpi graphics and text. It features standard paper capacity of 250 sheets, plus multi-purpose tray that accommodates 50 sheets. Unit processes letter and legal size paper up to 90 lb bond. Designed with PowerPC405 266 MHz CPU, printer includes 16 MB memory, upgradeable to 272 MB. It supports most operating systems and print description languages, including PRESCRIBE, PCL6, and KPDL3.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 24, 2003 Infoprint® 4000 and 4100 families of printers can run red toner on Customer Changeable Developer (CCD). Users can choose to print simplex jobs with black toner and hi-lite color, or reverse side of duplex job can be printed with different color. CCD feature does not require users to engage IBM Service to change developers and toner. It also allows users to decrease overall cost of printing by reducing need for purchasing pre-printed forms.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 24, 2003 Available for Infoprint® Color 1357 workgroup printer, M32 Multifunction Printer (MFP) Option includes flatbed single-pass duplex scanner with up to 34 ppm monochrome and 19 ppm color output. It has 50-sheet ADF, touchscreen operator panel, A3/11 x 7 in. scan area, and 600 x 600 DPI® resolution. Capabilities include printing many copies from single scan, electronic routing, fax, and e-mail. Option provides user authentication and 33.6 Kbps fax modem.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 24, 2003 Infoprint® Color 1354 offers up to 20 ppm color and monochrome output, with 2,400 image quality, and 1200 x 1200 dpi resolution at up to 10 ppm. Controller technology utilizes 500 or 600 MHz RISC processor and comes with 128 MB of memory (512 MB max). First page out times are 17.5 and 15.0 sec for monochrome and color, respectively. Network printer includes 500-sheet tray and 100-sheet auxiliary tray and is available with duplex option.

Quatech, Inc.    Akron, OH 44311

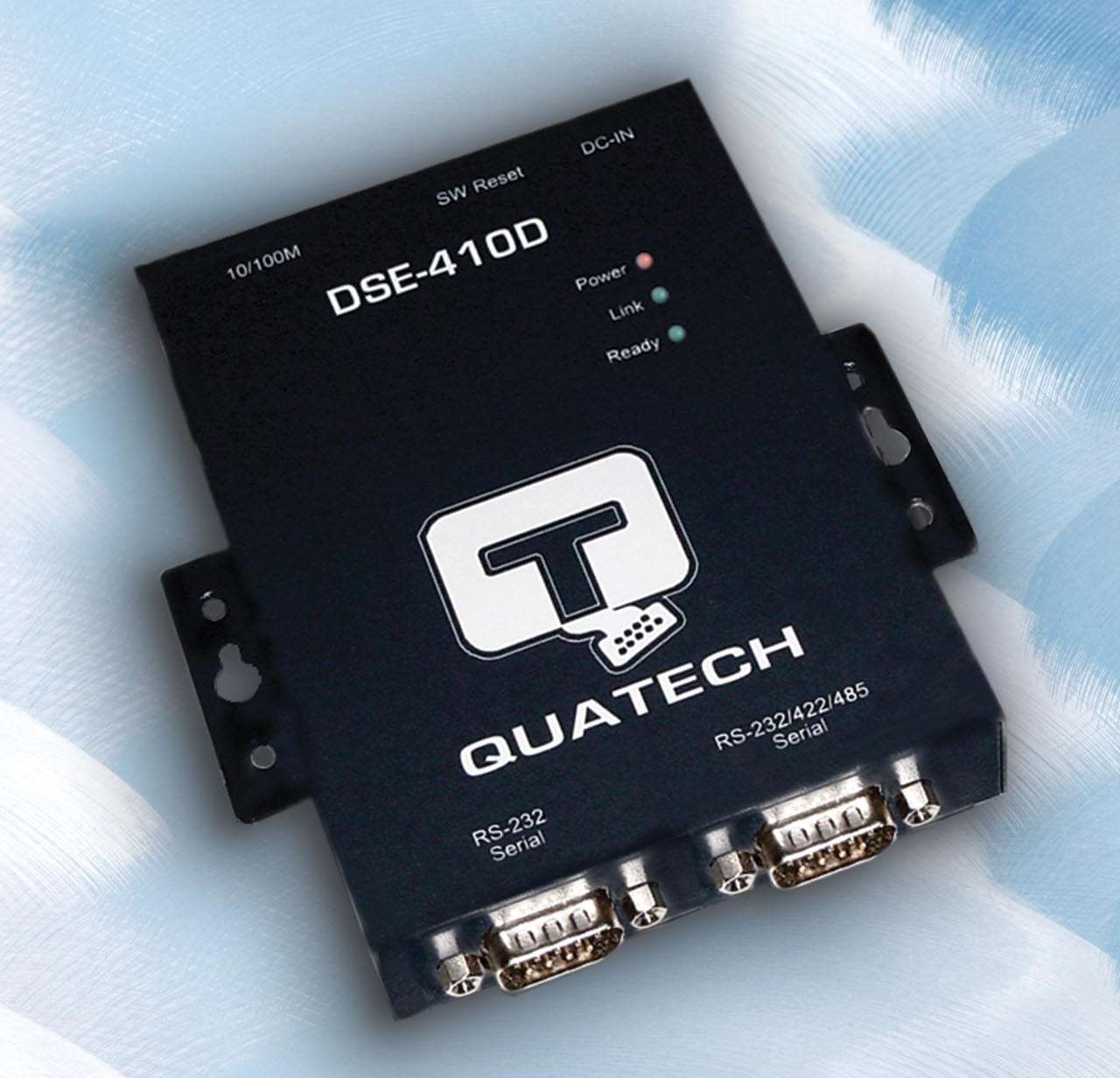

Oct 23, 2003 Two-port Model DSE-410D allows standard serial port to be accessed via Ethernet, enabling any authorized computer connected to LAN, WAN, Intranet, or Internet to access equipment. It is switch-selectable for RS-232, 422, and 485, and can be accessed using standard TCP/IP socket commands. Unit includes auto-sensing 10/100 Ethernet interface, UDP Client/Server modes, and Heartbeat connection to automatically re-connect to networks when needed.

Pacific Image Communications, Inc. (PIC)    Alhambra, CA 91803 4742
Oct 21, 2003 PrimeFilm 3650u operates at 3,600 dpi optical resolution, producing digital image of approx 17.9 million pixels. With 3.2 dynamic range and 48-bit color capability, unit delivers scanned images up to 10 x 14 in. Digital ICE3â„¢ allows user to clean, correct, and restore film images, while LED light source assures consistent and exact color conformity. Scanner includes Photoshop Elements editing tool and uses USB 2.0 interface for data transfer at 480 MB/sec.

Glacier Computer    Amherst, NH 03031

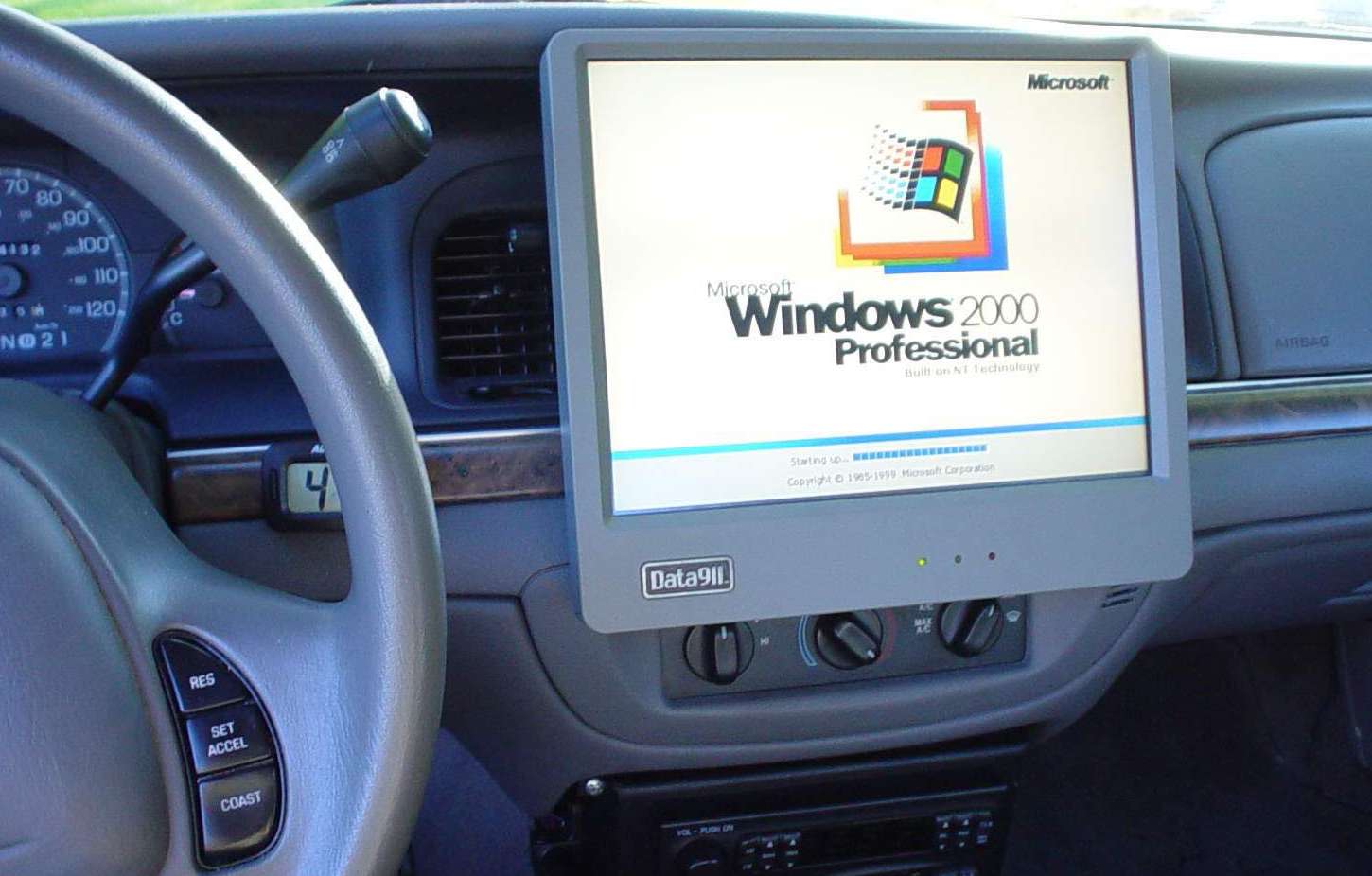

Oct 20, 2003 Model M5™ features Pentium III 700 MHz to 1.0 GHz processors, 12.1 in. display, 256–512 MB DRAM, and 20 gig hard drive. I/O capabilities include 3 serial, 1 parallel, VGA, audio, 10/100 Ethernet, dual PC slots, and 2 USB ports. CPU, display, power supply, and keyboard are separate components, allowing for flexible installation in vehicles where space is limited. Computer is suited for marine, construction vehicles, utility vehicles, dockyards, and crane environments.

Advantech Technologies, Inc.    Irvine, CA 92618
Oct 20, 2003 Modular OFPC-215 Series includes touch panel monitor with computer system box joined together. Unit is scalable from Pentium III CPUs up to 1.26 GHz for Multimedia support to VIA low-power processor. Unit simplifies cabling issues, I/O configuration, and chassis design. Function set includes support for SDRAM up to 512 MB, two 3.5 in. HDD bays, PCI and PC/104 expansion, two USB ports, parallel port, four serial ports, and 100Base-T Ethernet.

Colorgraphic Communications    Atlanta, GA 30366
Oct 20, 2003 Based on ATI graphics technology, Xentera GT 8 PCI provides 8 outputs, while Xentera GT 4 AGP offers quad outputs for AGP bus. Each support DVI resolutions to 1600 x 1200 per display and analog resolutions to 2049 x 1536. Both cards use MV20â„¢ in-line cabling interface, which permits direct attachment of display to adapter bracket. Users can configure mixture of analog and DVI-type displays on either model.

Kyocera Mita America Inc.    Fairfield, NJ 07004
Oct 20, 2003 Multi-functional KM-C850D is suited for small workgroups that require color. With output capacities of 31 ppm (monochrome) and 8 ppm (color), product includes 256 MB RAM and 20 GB HDD. It also offers ability to scan once and print many, electronically sort, and output multi-bit 600 dpi images. Unit features 150-sheet, multi-purpose tray that can process paper up to 121 lb index and 500-sheet paper drawer for up to 12 x 18 in. paper.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Oct 17, 2003 TotalStorage® SAN File System provides data sharing capabilities for heterogeneous servers accessing SAN-attached storage in open environment. It also facilitates data sharing across servers. Scalable solution's hardware consists of one cluster of IBM TotalStorage SAN File System Metadata Server engines and one master console. Master console is IBM xSeries 305 with preloaded code, which can provide Remote Support interface and Service Alert capability.
